Trueway Touch PAD TX1000ML220-V2E Instructions for use

Touch Series Model:TX1000ML220-V2E
Applications
Options of backlight selection in sky blue and black VA Lcd.Fitted with built-in NTC10K sensor and
optional humidity sensor Several addon functions like remote sensor, key card can be choose s
. a
per site requirement.
Specification
Relative humidity:10~90%
Installed on 75 x 75mm box
Lcd Display & Keys Description
Mode Fan Power Up Down
Periods
Program/Manual Mode
Set Temp.
Valve Open/Modbus ID
Fan Speed
Real Time Clock Cooling, Heating & Ventilation Mode
Keycard
Room Temp
Weekdays
Touch makes you Comfortable
Office:
Trueway Controls Hong Kong Limited
Room 1318-19 Hollywood Plaza,
610 Nathan Road, Mongkok,
Kowloon, Hong Kong.
Factory:
4F, Building A2,
Nanxi Industrial Area,
Xiangzhou District,
Zhuhai, China.
Real Time Clock Display with Battery Backup
Features
Power supply: 85-240VAC
Frequency:50~60Hz
Function: Cooling / Heating
Relay life:220±10%VAC，3(5)A
Wiring Max:16AWG
Sensing element:10K(@25°C)NTC
Display accuracy:1°C，
Set-point accuracy:1°C/step
Set-point range: 10-32°C(50-90°F)
Display range: 0-50°C
Protection Glass:IP 20
Operation temperature:-18~49°C
Shipping temperature:-35~65°C
Suitable System: 2-pipe Fan coil Unit
Suitable valve: 2-line / 3- line valve
TX 1000 Series is Touch Pad thermostat with many variants suitable for 2-pipe/4-pipe cooling &
heating fancoil units and DX single stage compressor units.Available in basic standalone and
Modbus communicating variants.
● Modern Touch pad design suitable for offices,
Hotels and residential buildings
● Applicable for 2 pipe
● Black LCD and Sky blue LCD display selectable
● Special colors upon request with RAL number can be provided
● Both Room and Set point Display
● Manual & Automatic Fan functions
● User setting can be kept during power off
● Fan load 5A resistive and inductive of 3A (fan load 8A resistive can
provide on request)
● Big LCD with English only display
● Regular colour available in Black, White and Silver body
●Temperature unit C & F
● EC motor variants available
●Fits in 86mm x 86mm electrical junction box
●Modbus RS485 Communicating
●Real Time clock with Infinite life battery backup

Functions
7 Days 6 Period Programmable Function
Key Pad Lock
Both Room and Set Tempe ature Displayr
3 Speed Fan + Auto Fan Control
Modulating Output 0-10VDC
Energy Save Mode and Comfort Mode Settings
Setup Function Settings and Options
Press and button enter in the settings, then press to choose the ISU code from 1- as below table shown, press or 26
button to adjust the data press to save the settigs and exit
Description
System Type
Temperature Scale
Fan Control Type
Keypad Lock out
Remote Setback Enable method
Freeze Protection
Possible Options
0 HeatOnly
1 Cool Only
2 Two Pipes 1H1C Manual (Default)
F F
: 0
C: 0C (Default)
Ao: Auto Only
Co: Constant Only
bo: Both (Default)
0 All Keys are available (Default)
1 System Button is locked out
2 Fan and System button are locked out
3 All Buttons are locked
No: Hotel Card NO
NC: Hotel Card NC
Bu: Button (Default)
0 Disabled (Default)
1 Enabled
-2 C (-4 F)
0 0
-1.5 C (-3 F)
0 0
-1 C (-2 F)
0 0
0 C(0 F)(Default)
0 0
1 C (-2 F)
0 0
1.5 C (-3 F)
0 0
2 C (-4 F)
0 0
ISU Code
1
2
3
4
5
6
7
Touch makes you Comfortable
Office:
Trueway Controls Hong Kong Limited
Room 1318-19 Hollywood Plaza,
610 Nathan Road, Mongkok,
Kowloon, Hong Kong.
Factory:
4F, Building A2,
Nanxi Industrial Area,
Xiangzhou District,
Zhuhai, China.
12 I-Adjustment of valve Control Range: 1-60 integral output adjustment, it should be adjusted bases on the actual
condition, default is 25
13 Sensor Selection 0: Internal sensor, 1: External sensor, If choosing 1 external sensor, the room card
function will not be available
14 Bee Sound Setting On>On OF>Off
15 Program Setting 0>5 working days week/1>6 working days week/2>7 working days week/3>close
program schedule
16 Minioutput ON/OFF Time 0-4 minutes,when setting is 1with 1 minute delay with both ON or Off Compressor
Remote Setback Heating Setpoint
Remote Setback Cooling Setpoint
Modbus ID Display Setting
P: Adjustment of Valve Control
Range 10-21 C Default: 18 FDefault: 64 F)
0 0 0 0
(Range 50-70
Range 22-32 C Default: 26 FDefault: 79 F)
0 0 0 0
(Range 72-90
OF No Modbus ID address display, ON: Display with Modbus ID address, default is OF
:
Range: 1-10 for proportional output adjustment, it should be adjusted bases on the actual
condition, default is 4
8
9
10
11
Display Temperature Adjustments

Fan Stop /Run Settings
On/off Backlight setting
ON/OFF Memory Settings
Valve opening Value Settings
Lo>Fan will be switched to low speed when valve turn off
OF>Fan will be switched Off when valve turned Off
OF: OFF, The back-light will be o always even the user pressing any key.ff
ON: ON, The back-light will be on for about 15 seconds if any key press.
OF: OFF, user setting will not keep when power o ed, the ff fi
(while electri
thermostat will be off)
ON: ON, user setting will be kept when power off(while electrified, the
thermostat will be on)
19
20
21
Back light settings 0-60 seconds(user can adjust back-light time accordingly to actual demands)
OF: OFF, the valve open value will not be displayed on the LCD
17
ON: ON, the valve open value will be display on LCD(only available for
modulating type thermostat)
22
23
24
25
26
Baud rate setting 480=4800, 960=9600, 192=19200 , 384=38400 , 560=56000 , 115=115200
Reserved for additional ISU settings
Reserved for additional ISU settings
Reserved for additional ISU settings
Touch makes you Comfortable
Office:
Trueway Controls Hong Kong Limited
Room 1318-19 Hollywood Plaza,
610 Nathan Road, Mongkok,
Kowloon, Hong Kong.
Factory:
4F, Building A2,
Nanxi Industrial Area,
Xiangzhou District,
Zhuhai, China.

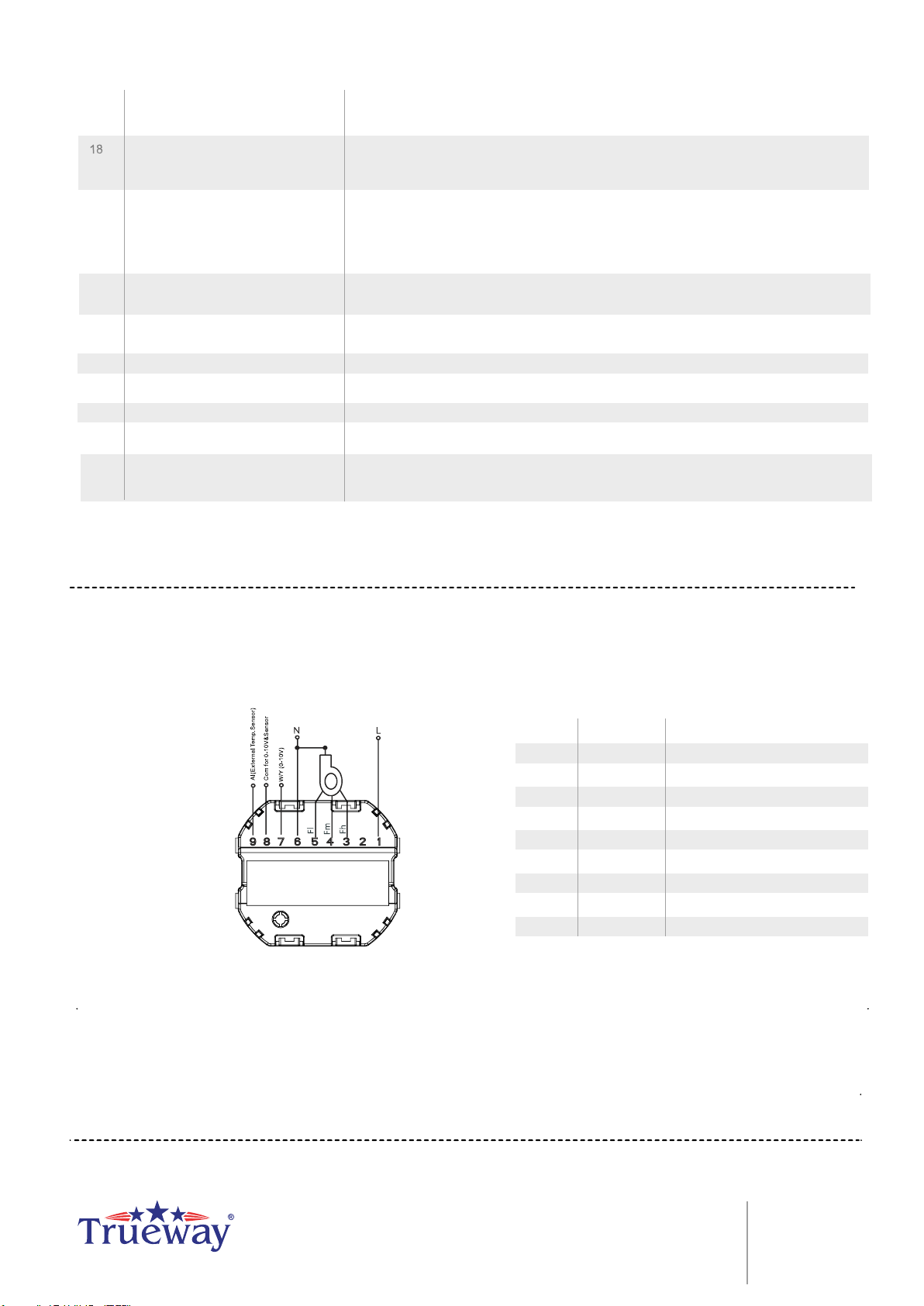

9 TERMINAL POWER BOX
Wiring Diagrams
Terminal
L
FI
Fm
Fh
N
W/Y
No
1
2
3
4
5
6
7
8
9
Description
Live Line in
Low Speed Fan
Medium Speed Fan
High Speed Fan
Neutral Line in
DC 0-10V
*wiring is subject to change without notice based on addons
Fan
85-240VAC
Rs485
A:Red
B: Black
Com Common for valve and sensor
AI AI for temperature sensor
Reset to Factory Default This function is resetting all ISU settings to factory defaults, Operation: press “ up arrow"
0>1>2>3>4, then press " down arrow" 4>3>2 and press “ fan " to confirm Default : 0

Product Dimension
Installation and Commissionin
2. Wiring on the terminals of the back plate according
to above wiring diagram, then fix the back plate on the
junction box by screw driver
3. Recombine the front panel and back plate by
ontract pins.
1. To take the front panel and back plate apart by screwdriver
