Trueway TX1000 Series User manual

CAPACITIVE TOUCH SERIES
MODEL
TX1000 OF220-V2 1CE TX1000 OF220-V2 1CK
CAPACITIVE TOUCH SERIES
APPLICATIONS
TX1000 Series is touch pad thermostat with many variants suitable for 2-pipe cooling & heating fan coil units and DX single stage
compressor units. Available in basic standalone and Modbus communicating variants.
Options of back-light selection in sky blue and black VA LCD. Fitted with built-in NTC 10K sensor and optional humidity sensor.
Several addon functions like remote sensor, key card can be chosen as per site requirements.
FEATURES
♦Modern touch pad design
residential buildings
♦Applicable for 2-pipe FCU
cooling&heating, Simple on-o valve
or compressor
♦ Black LCD and Sky-blue LCD
display selectable
♦Special colors casing upon request
with RAL number can be provided
♦Both room and Set-point display
♦Manual & Automatic fan functions
♦User setting can be kept during
♦Fan load 5A resistive and inductive
of 3A
♦Big LCD with English display
♦Temperature unit C&F
♦Regular color available in Black
and White body
♦EC motor variants available
♦Fits in 75mmx75mm electrical
junction box
♦Real Time clock with infinite life
battery backup
TX1000 OF024-V2 1C
1

W
G
CAPACITIVE TOUCH SERIES

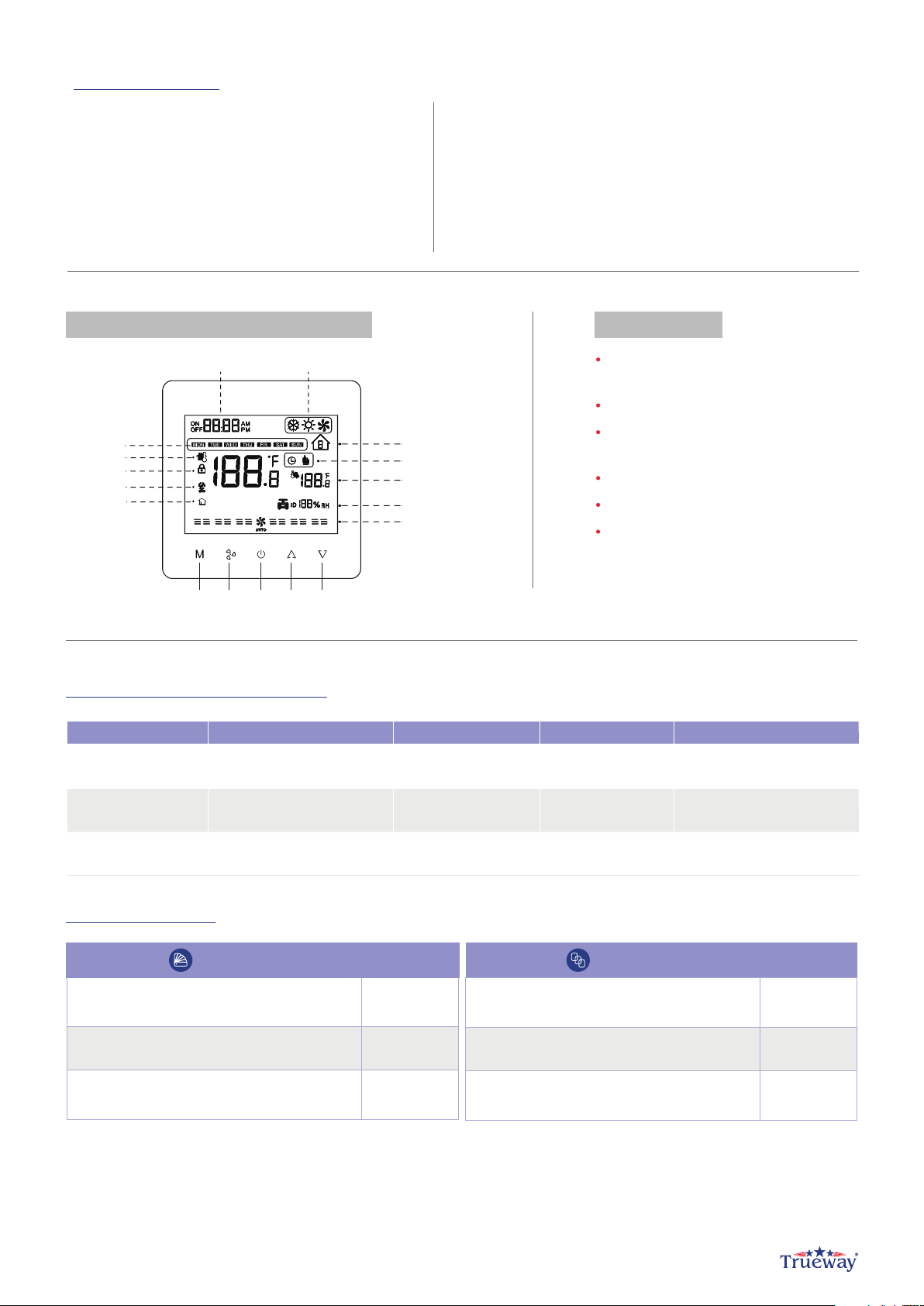

LCD DISPLAY & KEYS DESCRIPTION FUNCTION
2-pipe FCU cooling&heating,
Simple on-o output.
3 Speed Fan + Auto Fan Control
Energy Save Mode and
Comfort Mode Settings
7 Days 6 Periods Programmable Function
Key Pad Lock
Both Room and Set-Point Display
SPECIFICATION
♦Power Supply: 85-240VAC / 24VAC• Frequency: 50~60Hz
♦Function: Cooling/Heating
♦Relay Life: 220±10% VAC, 3(5)A, 100,000 times
♦Wiring Max: 16AWG
♦Sensing Element: 10K(@25°C) NTC
♦Display Accuracy: 1°C, Set-point accuracy: 1°C/step
♦Set-point range: 10-32°C(50-90°F) • Display range: 0-50°C
♦Protection Glass: IP 20 • Operation Temperature: -18~49°C
♦Shipping Temperature: -35~65°C • Suitable System: 2-pipe
FCU cooling&heating, simple on-o valve or compressor.
♦Suitable Valve: 2-line/3-line valve • Relative Humidity: 10~90%
♦Installed on 75mm x 75mm box
ORDERING PART NUMBERS
TX1000 OF220-V21CE 85-240VAC 2-PIPE/ SINGLE STAGE
2-PIPE/ SINGLE STAGE
2-PIPE/ SINGLE STAGE
ON-OFF VALVE /
COMPRESSOR
ON-OFF VALVE /
COMPRESSOR
ON-OFF VALVE /
COMPRESSOR
EXTERNAL SENSOR
TX1000 OF220-V21CK 85-240VAC HOTEL KEYCARD
TX1000OF024-V2 1C
-24VAC N/A
PART NUMBERS OPERATING VOLTAGES APPLICATIONS VALVE TYPE ADDON FUNCTIONS
ABBREVIATION
CASING/COVER COLOR BACKLIGHT COLOR
WHITE
GREY
BLACK B
*ordering example TX1000OF024--V21C-WSB
BW
WB
Sky Blue backlight + Black letters(TN LCD)
Black backlight + White letters (VA LCD)
White backlight + black letters (HTN
LCD)
SB
2
Mode Fan Power Up Down
Real Time Clock Cooling Heating & Ventilation
Periods
Room Temp.
Key lock
Weekdays
Program/Manual Mode
Set - point
Valve Open/Modbus ID
Fan Speed
Key Card
Occ upied
Energy Saving
Mode

CAPACITIVE TOUCH SERIES
OPERATION INSTRUCTION
ON-OFF VALVE /COMPRESSOR CONTROL
Thermostat acquires the room temperature via its
integrated sensor and maintains the set-point by
simple on-o output.
POWER ON OR OFF
By pressing POWER button
INCREASE / DECREASE
In the ON state, press UP or
DOWN to increase or decrease
the setting parameters.
FAN OPERATION
Fan can be selected as manual or automatic 3-speed operation. In manual
mode, the fan will be switched to the selected speed via control output
Gh,Gm,Gl (by pressing FAN button ). In automatic mode, the fan speed will
set-point. When room temperature reaches set-point, valve will be closed and
changed to low speed instead of turning OFF via ISU mode)"
HEAT/COOL/VENT
Pressing the MODE button to select heat
cool or ventilation mode.
TEMPERATURE DISPLAY
Both the room temperature and the set-point
are displayed.
COMFORT MODE
In the comfort mode, the set point can be
changed by pressing UP or DOWN buttons.
and manual heat/cool changeover.
KEY LOCK
The default status of “Key lock” is all keys available and it can be changed in
ISU mode. Key lock function includes the following settings: All keys are
available (Default) Mode button is locked out. Fan and Mode button are
locked out. All buttons are locked.
ENERGY SAVING MODE
By pressing MODE button for 3 seconds can activate the energy saving mode with icon appearing on the screen. If energy saving
is activated by button pressed, pressing POWER button will stop energy saving mode. For heating mode, if energy saving function is
enabled, the set-point will be changed to remote setback heating set-point. The range of remote setback heating set-point is from 10 °C
to 21 °C and default value is 18 °C. The value can be changed in ISU mode with step of 1 °C . For cooling mode, if energy saving function
is enabled, the set-point will be changed to remote setback cooling set-point. The range of remote setback cooling set-point is from 22°C
to 32°C and default value is 26 °C. The value can be changed in ISU mode with step of 1 °C .
FREEZE PROTECTION MODE
Freeze protection can be disable(default) or
enabled via ISU mode. If freeze protection is
enabled( it is not available in cooling only
application) and thermostat is in OFF mode while
the room temperature is below 6 °C , the
thermostat will open heating device before the
temperature rises to 8 °C
TIME SETTING
In ON/OFF states, press and for 5 seconds, the time area will
be flashing, press to select minutes, hours or week, then press or
to adjust the relevant time, press to confirm.
TO SELECT MANUAL AND PROGRAMMABLE
In the thermostat ON status, Press and hold and for more than 5
seconds, the icon of or will be flashing, press to select
manual or programmable and press to confirm.
ADJUSTING OF WEEKLY PROGRAMMABLE
After selected programmable mode, press for more than 5 seconds enter into program schedule setting then press to
select setting item of periods, time and temp. Press or to adjust the relevant value, press to confirm. The program
schedule is a weekly (7days) cycle, it can be selected for 5+2 days, 6+1 days or 7 days. 5+2 is 5 workdays plus 2 days holiday a week,
6+1 is for 6 workdays plus 1 day holiday a week, 7 is for 7 workdays a week. There’s 6 periods for workdays and 2 periods for
holidays.
Setting sequence when enter program setting
Workdays 1st period time adjusting -> temperature adjusting -> 2nd period time adjusting -> temperature adjusting……6th period time
adjusting -> temperature adjusting -> holidays 1st period time adjusting -> temperature adjusting -> 2nd period time adjusting ->
temperature adjusting
3

CAPACITIVE TOUCH SERIES

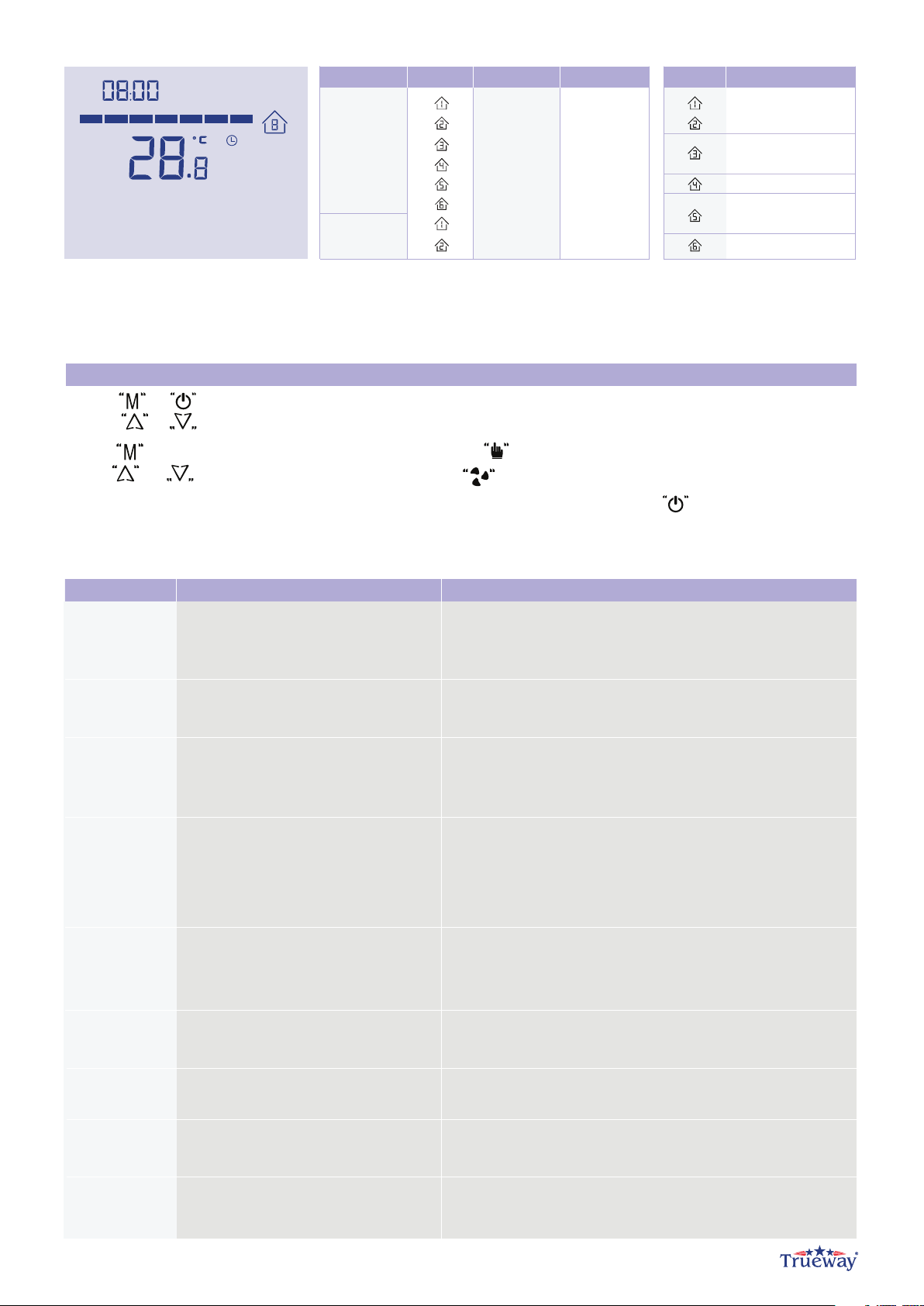

ADJUSTING OF WEEKLY
PROGRAMMABLE
MON TUE WED THU FRI SAT SUN
IN PROGRAMMABLE MODE, SET-POINT
AND TIME COULD NOT BE ADJUSTED
06:00AM
08:00AM
11:30AM
12:30PM
17:00PM
22:00PM
06:00AM
23:00PM
1
2
3
4
5
6
1
2
PERIODS
WORKDAYS
WEEKEND
SYMPOLS DEFAULT TIME DEFAULT TEMP.
26 C
26 C
26 C
26 C
26 C
26 C
26 C
26 C
PERIODS
DESCRIPTION
1ST PERIOD, WAKE UP
2ND PERIOD, LEAVE
3RD PERIOD,
BACK FOR LUNCH
4TH PERIOD, LEAVE
5TH PERIOD,
BACK FOR DINNER
6TH PERIOD, WAKE UP
SYMPOLS
DESCRIPTION
ISU CODE DESCRIPTION POSSIBLE OPTIONS
1 SYSTEM TYPE
0 HEAT ONLY
1 COOL ONLY
2 TWO PIPES 1H1C MANUAL(DEFAULT)
2 TEMPERATURE UNIT F : ° F
C : ° C(DEFAULT)
3 FAN CONTROL TYPE
AO : AUTO ONLY
CO: CONSTANT ONLY
BO : BOTH(DEFAULT)
4 KEYPAD LOCK OUT
0 : ALL KEYS ARE AVAILABLE (DEFAULT)
1 : MODE BUTTON IS LOCKED OUT
2 : FAN AND MODE BUTTON ARE LOCKED OUT
3 : ALL BUTTONS ARE LOCKED
5 REMOTE SETBACK ENABLE METHOD
NO: HOTEL CARD NO
NC : HOTEL CARD NC
BU : BUTTON (DEFAULT)
6 FREEZE PROTECTION OF : DISABLED(DEFAULT)
ON: ENABLED
7DISPLAY TEMP. ADJUSTMENT -9C~+9C~(-9F~+9F)DEFAULT IS 0C/0F
8 REMOTE SETBACK HEATING SET-POINT RANGE 10-21°C DEFAULT 18 ° C(RANGE 50-70°F
DEFAULT 64°F)
9 REMOTE SETBACK COOLING SET-POINT RANGE 22-32°C DEFAULT 26 ° C(RANGE 72-90°F
DEFAULT 79°F)
4
SETUP FUNCTION SETTINGS AND OPTIONS
a. Press and key for 5 seconds to enter ISU setting mode, the ISU code will be flashing.
b. Press or to select the setting items from 1-26.
c. Press and the values of selected item will be flashing with icon on,
Press and revise the values of the setting items, press to confirm.
If you want to revise the other setting items, please repeat above step b. and c. while setting, press to exit, the setting items
and values as below form shown.

CAPACITIVE TOUCH SERIES
12
13 SENSOR SELECTION
IN : INTERNAL SENSOR, OU: EXTERNAL SENSOR, IF
CHOOSING EXTERNAL SENSOR, THE ROOM CARD
FUNCTION WILL NOT BE AVAILABLE, DEFAULT IS IN
14 BEE SOUND SETTING ON: ON, OF: OFF, DEFAULT IS OF
15 PROGRAM SETTING
0: 5 WORKING DAYS AND 2 DAYS HOLIDAY A WEEK, 1: 6
WORKING DAYS AND 1 DAY HOLIDAY A WEEK, 2: 7 WORKING
DAYS A WEEK, 3: CLOSE PROGRAM SCHEDULE ,DEFAULT IS 0
17 FAN STOP/RUN SETTINGS
16
LO: FAN WILL BE SWITCHED TO LOW SPEED WHEN ROOM
TEMP. REACHES TO SET-POINT&VALVE TURNS OFF
OF: FAN WILL BE SWITCHED OFF WHEN ROOM TEMP.
REACHES TO SET-POINT& VALVE TURNS OFF, DEFAULT IS
OF
18 ON / OFF BACK-LIGHT SETTING
OF: OFF, THE BACK-LIGHT WILL BE OFF AFTER 30
SECONDS IF NONE KEY PRESS
ON: ON, THE BACK-LIGHT WILL BE ON ALWAYS EVEN
NONE KEY PRESS, DEFAULT IS OF
19 ON / OFF MEMORY SETTING
OF: OFF USER SETTING WILL NOT BE KEPT WHEN POWER
OFF (WHILE ELECTRIFIED, THE THERMOSTAT WILL BE OFF)
SU: ON, USER SETTING WILL BE KEPT WHEN POWER OFF
(WHILE ELECTRIFIED, THE THERMOSTAT WILL BE ON),
DEFAULT IS OF
21
22
23
24
25
26
20 BACK-LIGHT SETTINGS
10-60 SECONDS(DEFAULT 30 SEC.,USER CAN
ADJUST BACK-LIGHT TIME ACCORDING TO ACTUAL
DEMANDS)
RESERVED FOR ADDITIONAL ISU SETTINGS
RESERVED FOR ADDITIONAL ISU SETTINGS
RESERVED FOR ADDITIONAL ISU SETTINGS
RESERVED FOR ADDITIONAL ISU SETTINGS
RESET TO DEFAULTS
10
11
THIS FUNCTION IS RESETTING ALL ISU SETTINGS TO FACTORY
DEFAULTS, OPERATION: PRESS “ ” 0>1>2>3>4, THEN PRESS
“ ” 4>3>2 AND PRESS “ ” TO CONFIRM DEFAULT: 0
5
RESERVED FOR ADDITIONAL ISU SETTINGS
RESERVED FOR ADDITIONAL ISU SETTINGS
RESERVED FOR ADDITIONAL ISU SETTINGS
COMPRESSOR OFF TIME DELAY SETTING
RANGE 0-4 MINUTES, IF SETTING VALUE IS 0, WITHOUT
DELAY,THIS IS FOR SIMPLE ON-OFF VALVE CONTROL, COM-
PRESSOR FUNCTION IS NOT AVAILABLE IF SETTING VALUE IS
1-4,THIS IS FOR COMPRESSOR FUNCTION, WHEN SETTING IS 1,
WITH 1 MINUTE OFF DELAY FOR COMPRESSOR CONTROL
RESERVED FOR ADDITIONAL ISU SETTINGS

CAPACITIVE TOUCH SERIES
9 TERMINAL POWER BOX
*wiring is subject to change without notice based on addons
PRODUCT DIMENSION
6
NOTE:
♦ The thermostat is high voltage input, please do wiring with technician.
♦ If the thermostat was burned by accidently, please do not wiring it again by yourself, try to check it with a professional technician or contact
with our manufacturer.
NO
1LIVE IN
3MEDIUM SPEED FAN
HIGH SPEED FAN
4LOW SPEED FAN
2
DESCRIPTION
5VALVE/COMPRESSOR OPEN
6VALVE/COMPRESSOR CLOSE
7
COM FOR EXTERNAL SENSOR
8
NEUTRAL IN
9
L
FM
FH
FL
NO
NC
COM
N
AI EXTERNAL SENSOR
TERMINALS NO
1LIVE IN
3MEDIUM SPEED FAN
HIGH SPEED FAN
4LOW SPEED FAN
2
DESCRIPTION
5VALVE/COMPRESSOR OPEN
6VALVE/COMPRESSOR CLOSE
7
COM FOR KEY CARD
8
NEUTRAL IN
9
L
FM
FH
FL
NO
NC
COM
N
DI EXTERNAL SENSOR
TERMINALS NO
124V ACTIVE
3HIGH SPEED FAN
220V LINE FOR 220V FAN
4MEDIUM SPEED FAN
2
DESCRIPTION
5LOW SPEED FAN
624V NEUTRAL
7
8
VALVE/COMPRESSOR OPEN
VALVE/COMPRESSOR CLOSE
9
R
FH
LINE
FM
FL
C
NC
NO
TERMINALS

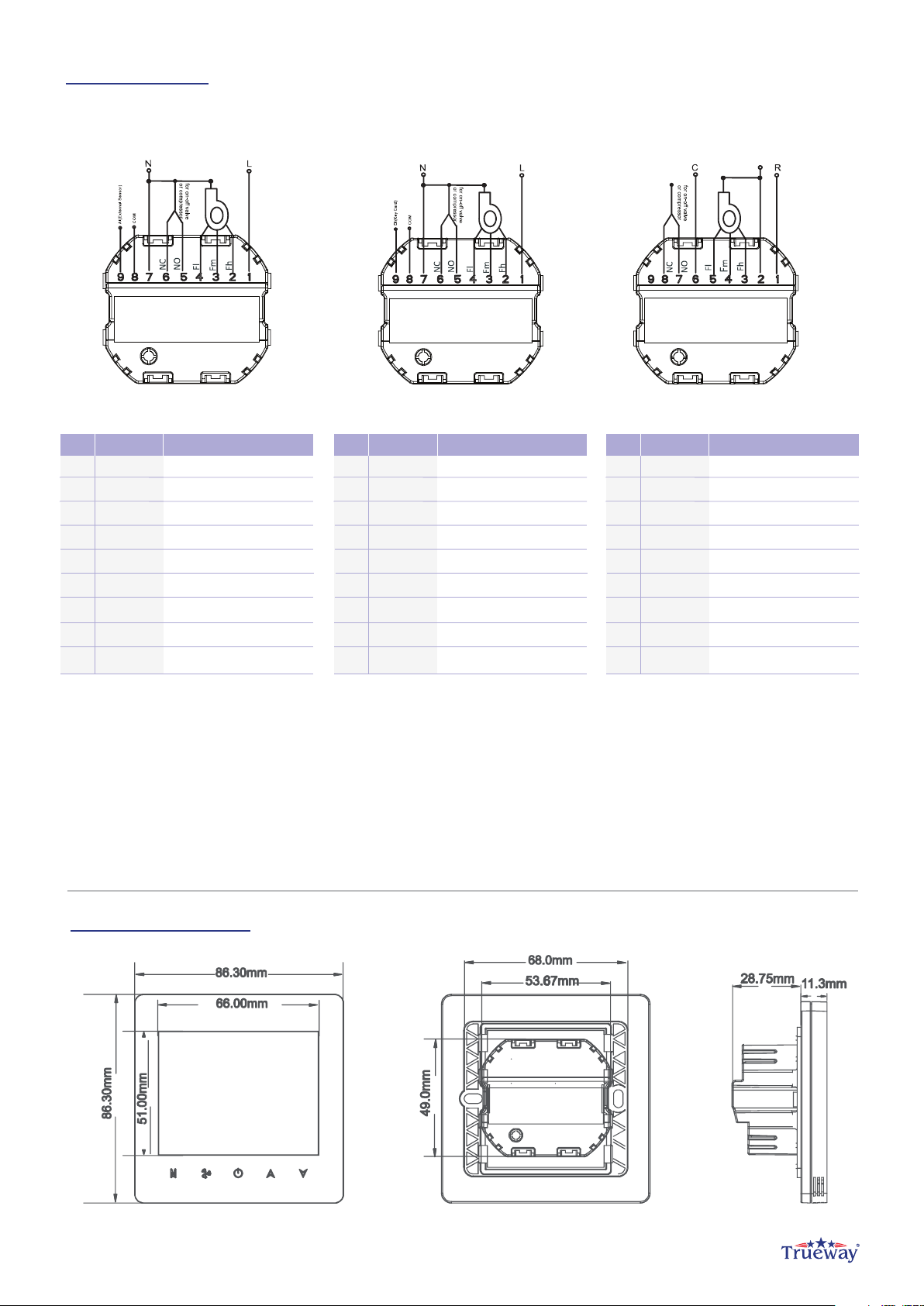

WIRING DIAGRAM
TX1000OF220-V21CE
Fan
85-240VAC
TX1000OF220-V21CK
Fan
85-240VAC
TX1000OF024-V21C
Fan
24VAC

INSTALLATION AND COMMISSIONING
T uch makes you Comfortable
O ce:
Trueway Controls Hong Kong Limited
Room 1318-19 Hollywood Plaza,
610 Nathan Road, Mongkok,
Kowloon, Hong Kong.
Factory:
4F, Building A2,
Nanxi Industrial Area,
Xiangzhou District,
Zhuhai, China.
TROUBLE SHOOTING TIPS
IF... THEN...
The fan doesn’t work
Ao : Auto Onlyconsectetuer
Co : Constant Only
bo : Both(Default) adipiscing elit,
Heating system does not turn on Set the mode to Heat by pressing the Mode button.
Wait five minutes for the heating system to respond.
Cooling system does not turn on Set the mode to Cool by pressing the Mode button.
Wait five minutes for the cooling system to respond.
The Mode button does not work
Check whether the Fan mode is set to Auto
Check whether the heating or cooling system works well.
Check whether the keypad is locked out (ISU mode item 4)
The Fan button does not work
Check whether the system is working in energy saving mode.
Check whether the key pad is locked out (ISU mode item 4)
The Up or Down button does not work
Check whether the system is working in energy saving mode.
Check whether the key pad is locked out (ISU mode item 4)
7
To take the front panel and back plate apart by
screwdriver
Wiring on the terminals of the back plate according
to above wiring diagram,then fix the back plate on the
junction box by screw driver
Recombine the front panel and back plate
by ontract pins
