TUFFTEC 2.0 Locker Series User manual
Solid Plastic
Tufftec®2.0 Locker
Installation Instructions
®
®
®
®
Please read all of the installation instructions prior to installing this product. If you have any questions contact
Scranton Products as soon as possible before installing this product.
Table of Contents
Page 2 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Thank you for purchasing our product, your business is greatly appreciated. If
you have any questions, comments, or concerns with the product you received
please contact the factory. Your feedback on our product and performance is
welcome and needed in order for us to continue providing you with a quality
product. Contact us at 800-445-5148 or fax 800-551-6993.
Section 1: Terminology
Section 2: Components
Section 3: Site Preparation
Section 4: Hardware
Section 5: Bases
Section 6: Lockers
Section 7: Fillers
Section 8: Flat Tops
Section 9: Slope Tops
Section 10: End Panels & Base Trim
Tools Needed:
Please read all of the instructions prior to installing this product. If you have any
questions contact Scranton Products as soon as possible before installing this
product.
Page 3Scranton Products
Section 1: Terminology
Definition of terms used:

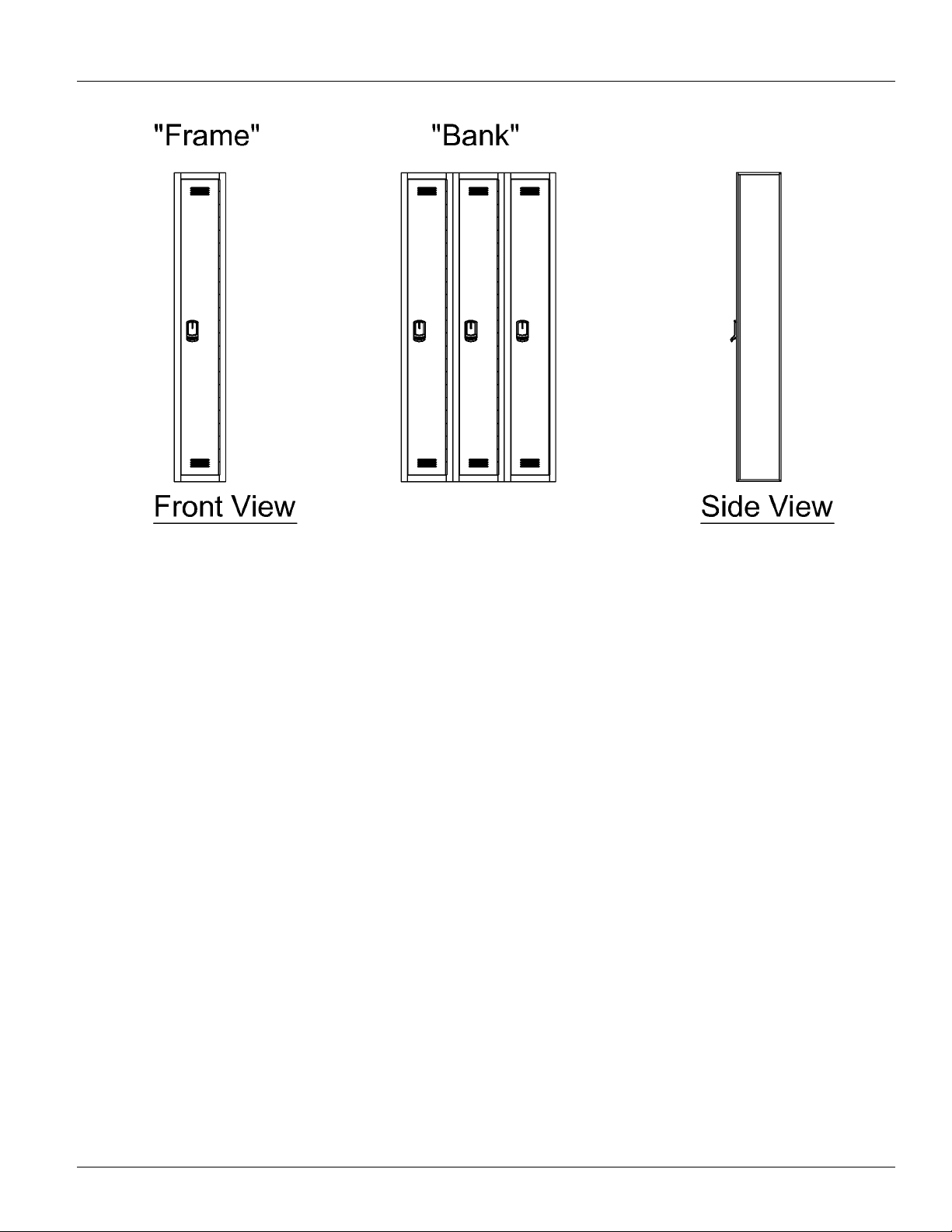

Frame: This represents a single locker
Tier: The number of “tiers” in a frame is the number of doors in a vertical
row. Shown above is a “Single Tier” locker.
Bank:
Profile:
together.
Base:
supporting member.
Filler:
Flat top:
Slope Top:
Page 4 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 2: Components

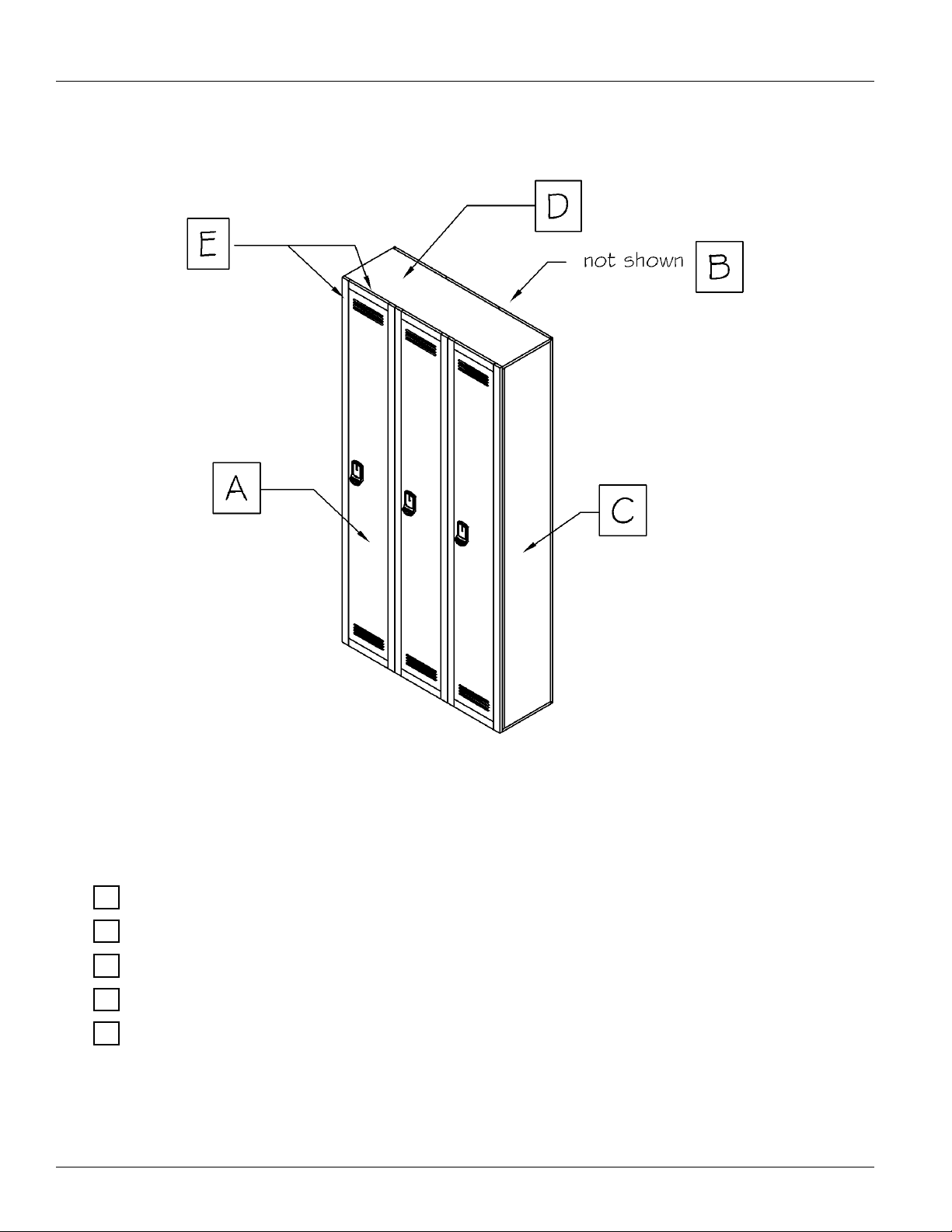

A
B
CSide Panel
D
E
Page 5Scranton Products
Section 3: Site Preparation
Storage:
stack unevenly.
Pre-Check:
Check all materials completely as soon as possible. Check items against the
packing list and layouts provided. If you are missing any items or have received
damaged product please contact your dealer.
Site Inspection:
attention to these areas while attaching the lockers.
Note: If you have ordered the lockers with a base, you will be able to “float” the
base over any low spots in the floor. Shimming may be required to ensure that
the base will sit evenly and securely on the floor.
addressed prior to beginning your installation. You may need to shim behind the
lockers as to not “pull” the lockers to the wall, twisting them out of shape.
any debris. If you are installing the lockers directly to the floor, be sure to sweep
the area clean of debris before beginning.
Once the site inspection and any preparations are completed, you are ready to
begin installing the lockers.
Page 6 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 4: Hardware
Page 7Scranton Products
Locker Base Setup:

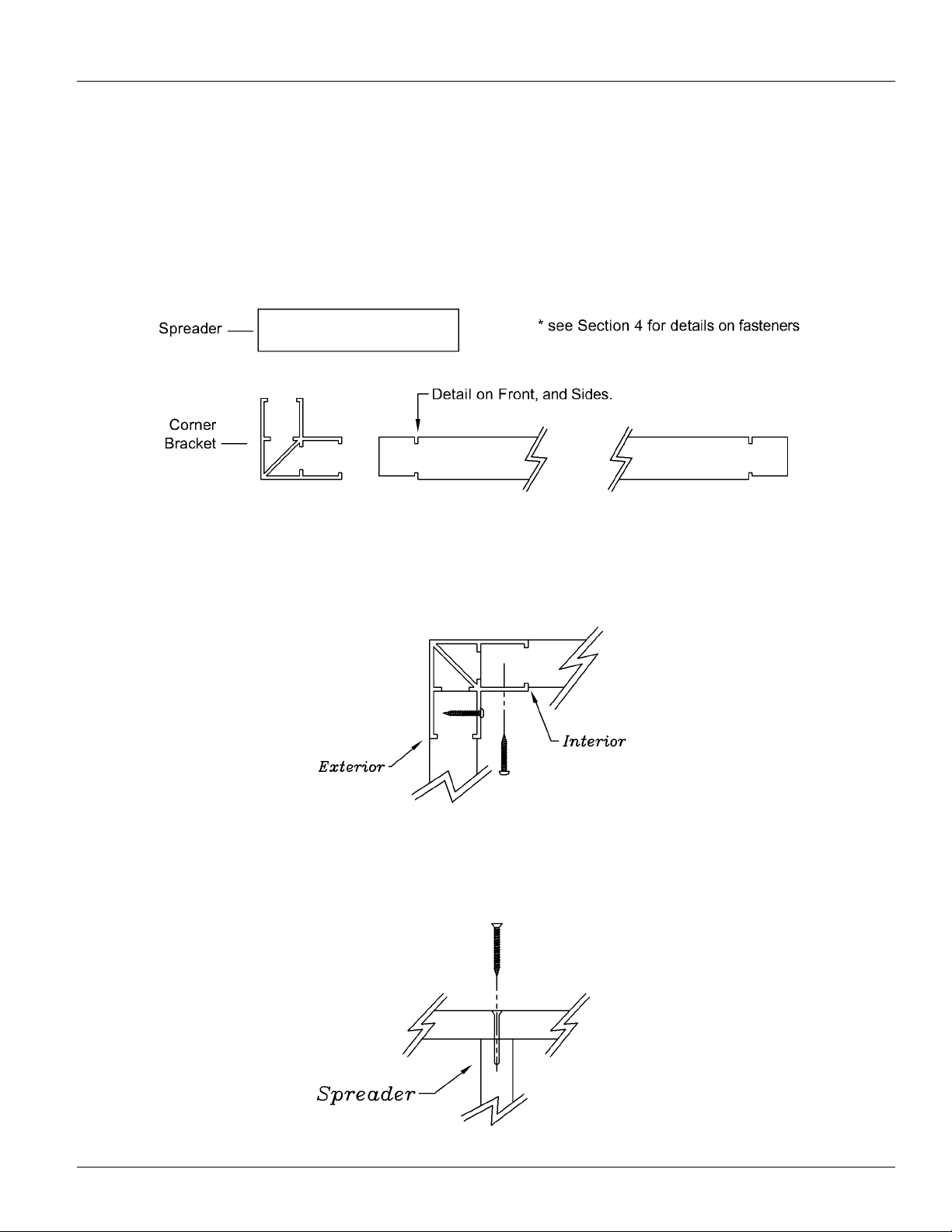

The locker bases are designed to be assembled in the field. Locate all components
Refer to your Scranton Products Locker drawings for the correct position and
Note:
face will set flush with the corner bracket.
countersunk screws.
Section 5: Bases (Optional)
Page 8 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 5: Bases (Optional) Continued
Locker Base Installation:
Once the bases are setup make sure the area of installation is free of all debris.
this point as a reference to ensure that the lockers will sit level after installation.
to shim as required, to make the base plumb and level. Note: Pre-drill wall and
Page 9Scranton Products
Section 6: Lockers

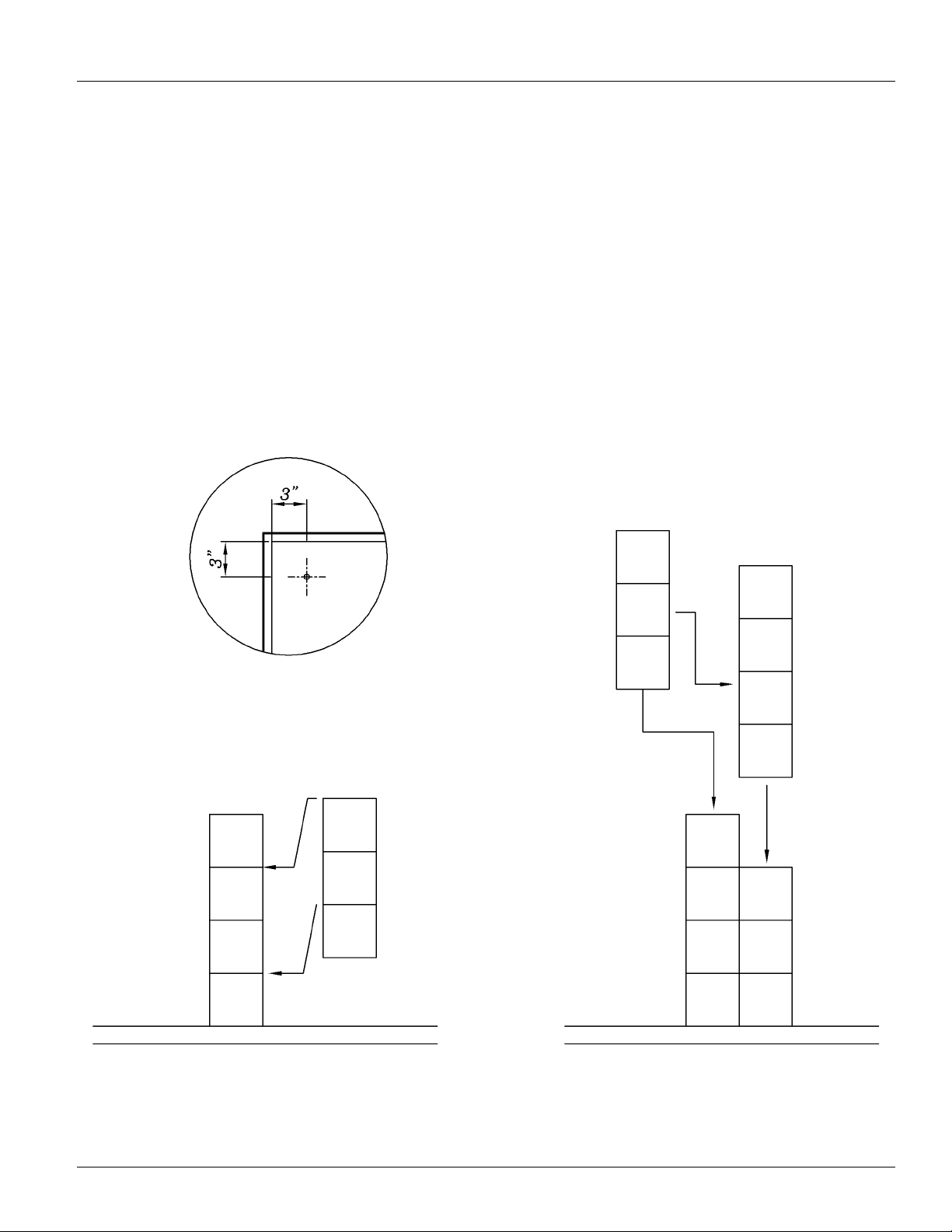

Setting and attaching lockers:
Once you have prepared and inspected the area, and installed the bases
installed without a base, check the floor space and locate the high and low
installation, use shimming as required. The layout drawings provided show
Locate the bank required for this area. Place the
the bank is set square and level. This is crucial since
you will be attaching the next banks to this first one.
tapcon screws provided. The bank will be attached
enough to hold the bank into position.
provided.
Page 10 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 6: Lockers Continued
Setting and Attaching Lockers Continued:
Locate the next bank of lockers to be installed. Place this bank into position next
to the first bank installed. Locate the pre-drilled holes on the side of the face
tighten the screws at this time.
Note: If shimming is required place shims where frames
improper functioning of the door.
Page 11Scranton Products
Section 6: Lockers Continued
Setting and Attaching Lockers in an Island:
setting the next bank into place attaching side to side and then back to back
keeping the lockers level and securely fastened. If bases are provided then secure
Page 12 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 7: Fillers
Filler Attachment:
Note:

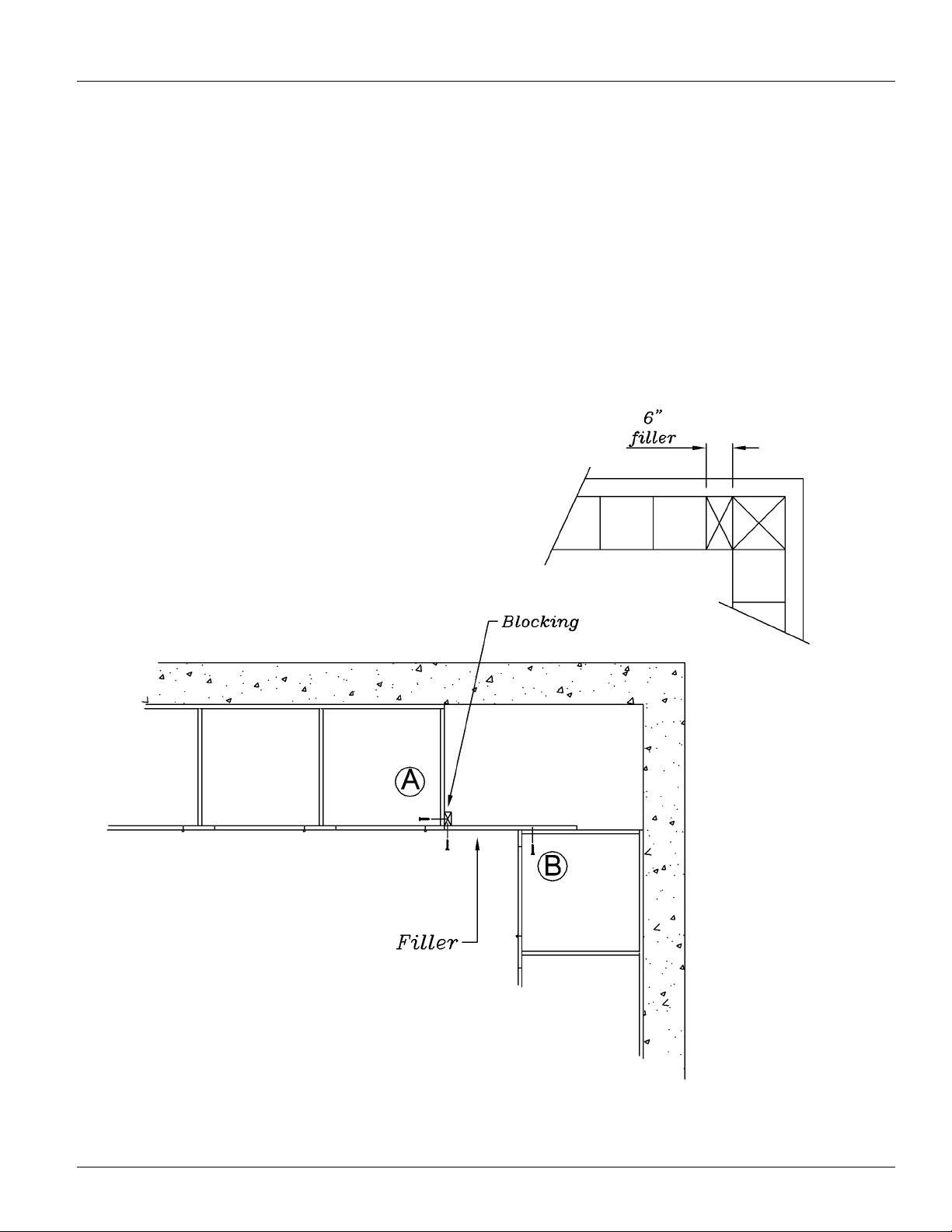

Refer to the Scranton Products layouts for filler location and sizes, fillers may
In the example below, blocking will need to be attached to the wall and the
field conditions.
bottom will be sufficient.
Page 13Scranton Products
Section 7: Fillers Continued
Corner Filler Attachment: (Single)
Note:

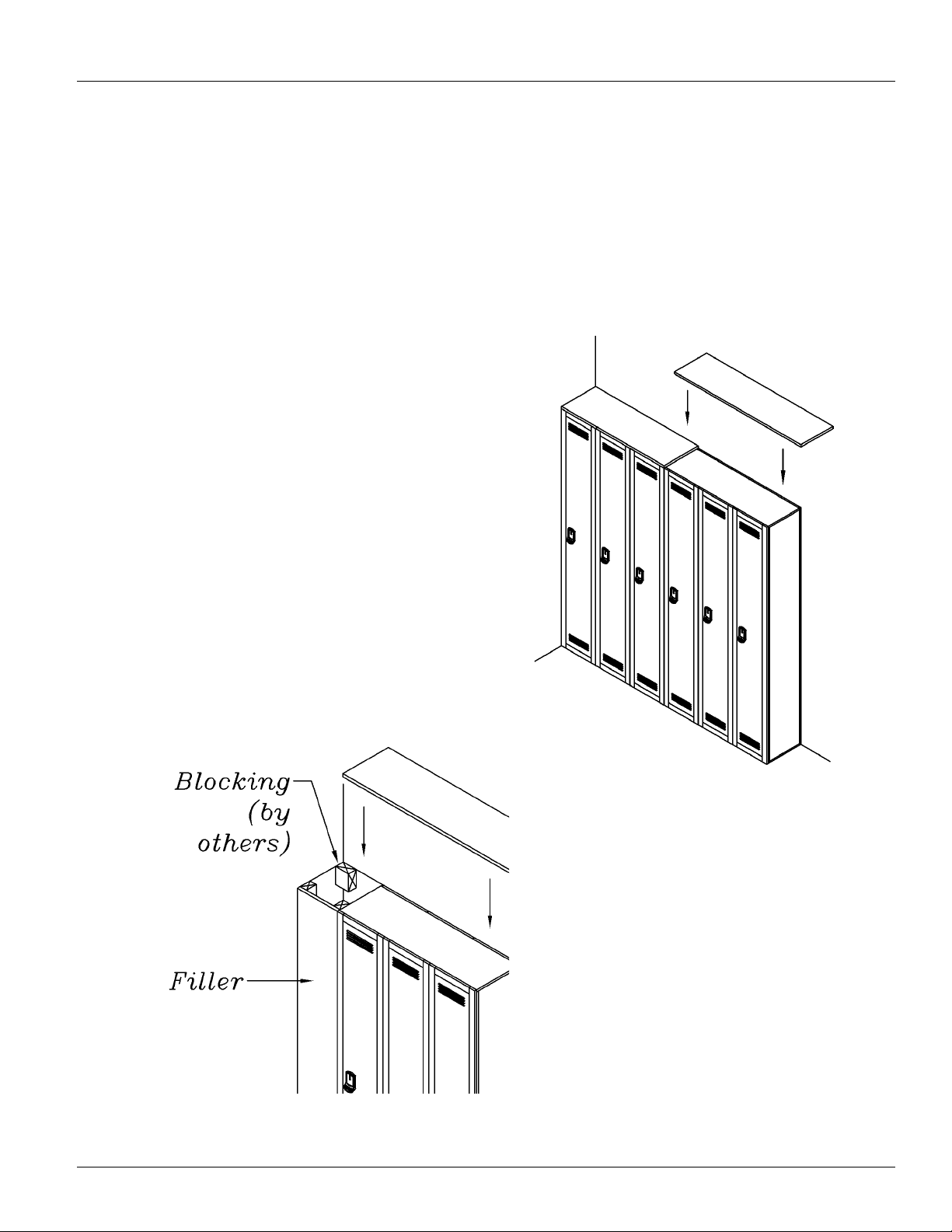

Refer to the Scranton Products layouts for filler location and sizes. The single
countersunk fastener. Slide your filler into place and pre-drill and fasten using the
same methods as stated above.
and through the filler. Countersink the holes
provided.
Page 14 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 7: Fillers Continued
Corner Filler Attachment: (Double)
Note:
fillers and mark for blocking and the intersection where the two fillers meet.
fillers that you had previously marked
and use the same method as stated
above for pre-drilling and attaching.
and pre-drill and fasten into the
blocking.
a corner brace using two pieces of
blocking and pre-drill and attach using
the same methods as above.
Page 15Scranton Products
Section 8: Flat Tops
Flat Top Installation:
Once the lockers are installed you can attach the flat top finish panel. These are
the lockers. They are the same color as the lockers. Last panel will need to be cut
to length.
panel with the back edge of the lockers.
fastening from inside the cabinet.
Note:
cabinet allows more grip from the fasteners
and a cleaner look.
fillers, fasten blocking where necessary
to support the flat top panel. Pre-drill
and fasten using the same methods as
stated above.
Page 16 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 9: Slope Tops
Slope Top Installation:
Please note that the rear supports are generally random lengths, colors, and will
Note: If your layout requires an inside corner see the slope top corner section at
this time. Corners require the rear support to be scribe cut for sufficient support.
Note:
Page 17Scranton Products
Section 9: Slope Tops Continued
Slope Top Installation Continued:
top profile and snap them together. This section
provides the “lip” for the slope top to sit behind.
provided.
Pre-drill and countersink the holes at the rear

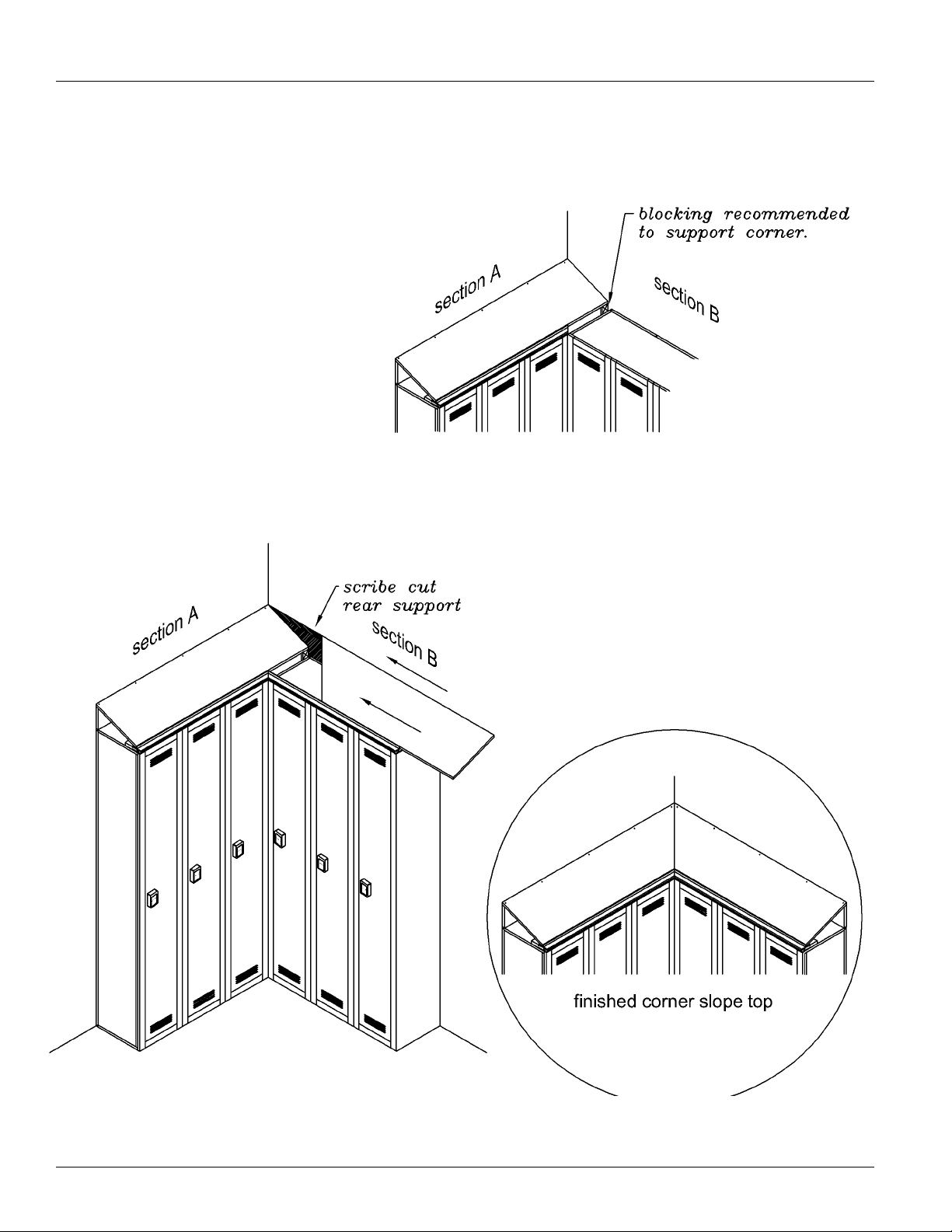

Slope Top Installation (Corner):
Note:
corner.
wall and using the slope top scribe a line into the
support and cut along your scribe line. Set your
slope top piece back into place and pre-drill and
Note: Open ends will be covered
Page 18 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 9: Slope Tops Continued
Slope Top Installation (Corner) Continued:
go ahead and install the rear
profile and install using the same
method of attachment as stated
with the compound miter corner
and slide into place and pre-drill
fasten into the rear support.
Page 19Scranton Products
Section 9: Slope Tops Continued

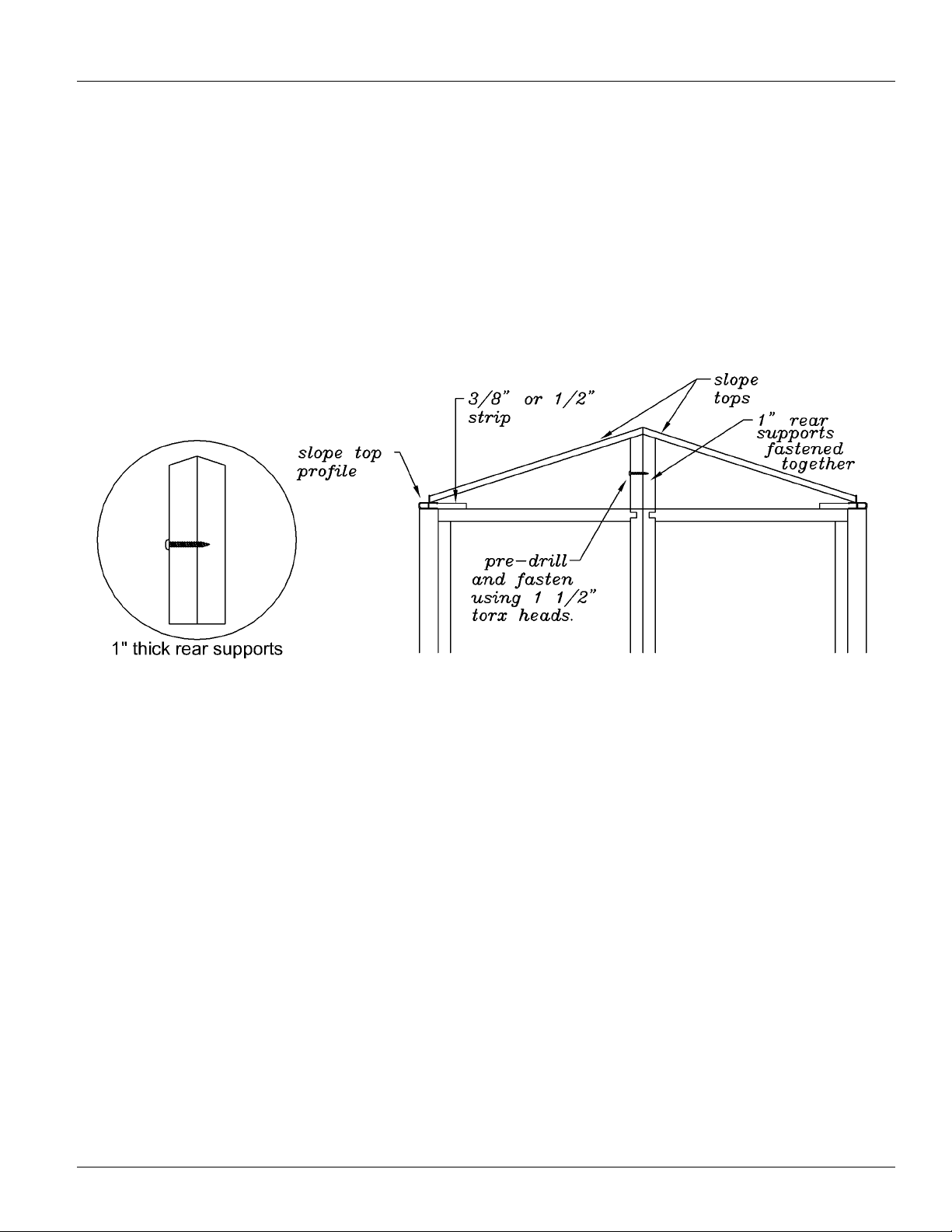

Slope Top Installation (Island):
The first step when installing slope tops in an island is to fasten the rear supports
are fastened together begin setting them into position. Pre-drill from inside the
pieces into place and begin pre-drilling and fastening. The slope top pieces are
Page 20 Solid Plastic Tufftec 2.0 Locker Installation Instructions
Section 10: End Panels & Base Trim
End Panel Installation:
designed to be attached to the end runs where the side of the lockers are
inside of the lockers and into the end panel. Note: pre-drill all the way
end panels will be detail to conceal these.
Base Trim Installation:
and runs in long sections. To attach to the bases first set up your trim piece and
