Turbo TDH-22 User manual

☆ Please read and retain these instructions for future reference
LCD Dehumidifier
TDH-22
Instruction Manual
LCD 抽濕機使用說明書
   


KU

TDH-22
Contents 目錄
Page
2
3
4
5, 6
7, 8
9, 10
11
22
23
產
1
12
13
14
15 16
17 18
19 20
21
22
23
,
,
,
c
Where to position
Before use
Parts
Operation
Drainage
Maintenance
Trouble shooting
Specification
ard
使用位置
使用前
產品簡介
操作
排水
產品保養
疑難小百科
技術規格
品保養證
Product warranty

TDH-22
Where to position
When positioning the dehumidifier, ensure that it is placed on a level
surface and that there is a minimum of 10 cm (4") of space on either
side of the unit to allow for efficient airflow.
This dehumidifier is fitted with castors for extra mobility, if you move the
unit, it should first be switched off and the water tank emptied.
We do not recommend the use of an extension lead, so please try to
ensure that the unit is sufficiently close to a fixed mains socket. If it is
necessary to use an extension lead, please ensure the diameter of the
wires of the cable is at least 1.5 mm2.
When the dehumidifier is in operation, outside doors and windows
should be closed when necessary for most efficient use .
2

TDH-22
Before use
Caution!
 Always keep the unit in vertical position.
 Leave the unit to stand for one hour before connecting to the
mains supply after transport or when it has been tilted (e.g.
during cleaning).
 Keep all foreign objects away from the air intake or output
openings.
 The mains supply must conform to the specification shown on the
rating plate at the back of the unit.
 If the supply cord is damaged, it must be replaced by an
approved service representative or a similar qualified person in
order to avoid a hazard.
 Never use the plug to start and stop the unit. Always use switch
on the control panel.
 Before moving the unit, first switch off, then unplug and empty
the water tank.
 Don't use bug sprays or other flammable cleaners on the unit.
 Never pour or spray water over the unit.
IMPORTANT!
Do not use this unit at ambient temperatures below 5oC, to prevent the
possibility of a heavily ice up evaporating coil.
3

TDH-22

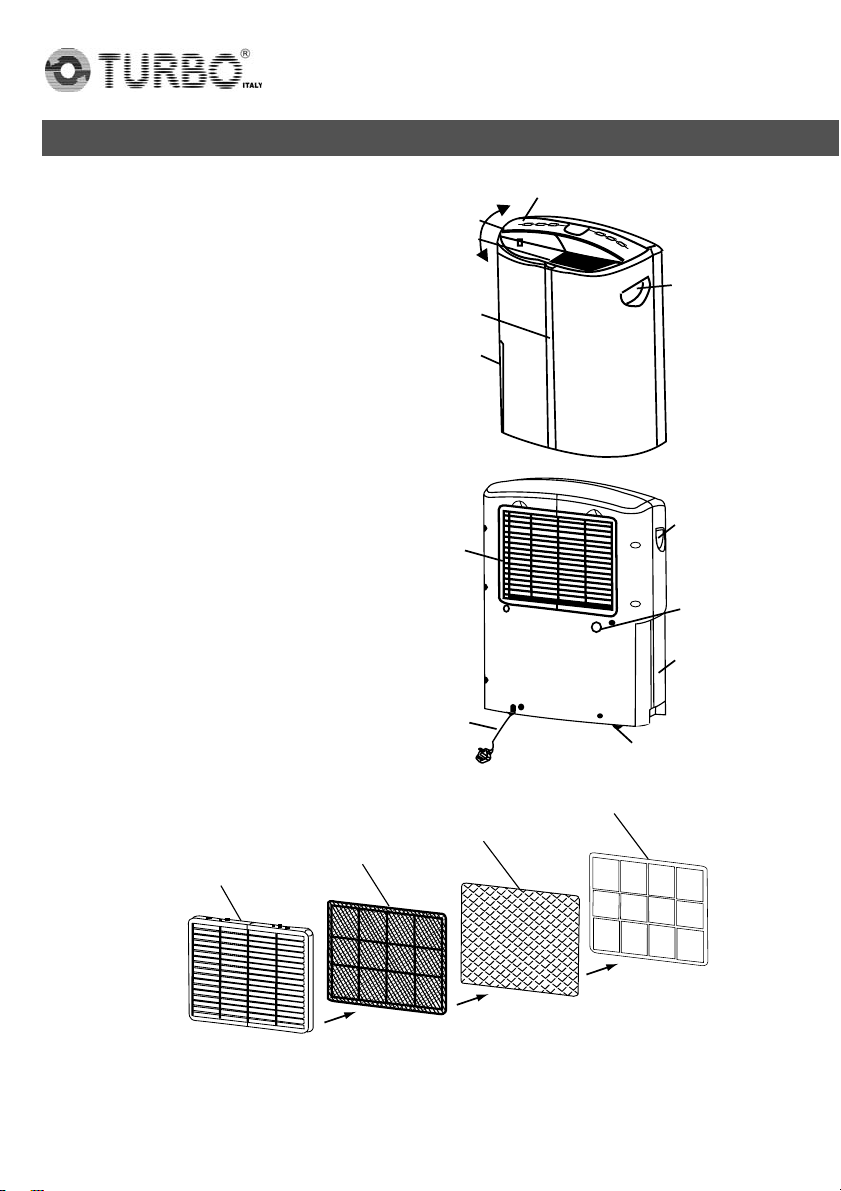

Parts
Front
1. Control panel
2. Clothes drying guider
3. Air outlet
4. Water full indicator
5. Water tank
6. Handle
Rear
7. Air filter / air inlet
8. Power cord
9. Handle
10. Hole for continuous
drainage
11. Water tank
12. Caster
Assembly of the filters
4
Grille Washable
filter
Activated
carbon filter
Filter fixer













TDH-22
Operation

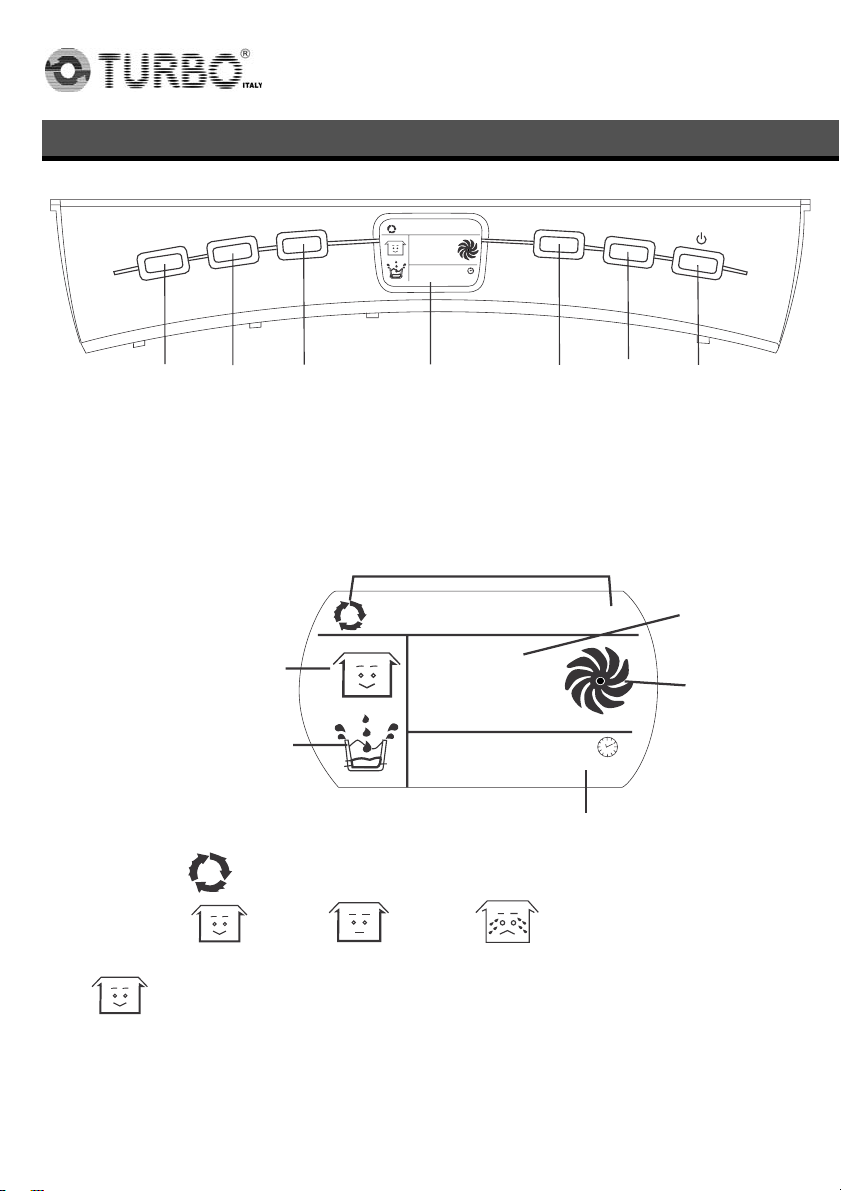

Control panel
1. Not functioned for this model
2. Not functioned for this model
3. Timer
4. Display window
5. Speed button
6. Humidity selection button
7. ON/OFF button
Display window
1. Humidity setting: continuous de-humidifying , 50%, 60%, 70%, 80%
2. Ambient humidity condition: good fair, bad
 means 50% ≤ambient room humidity ≤70%
5
   


KU

7,0(5
63(('
+80
   


KU







TDH-22

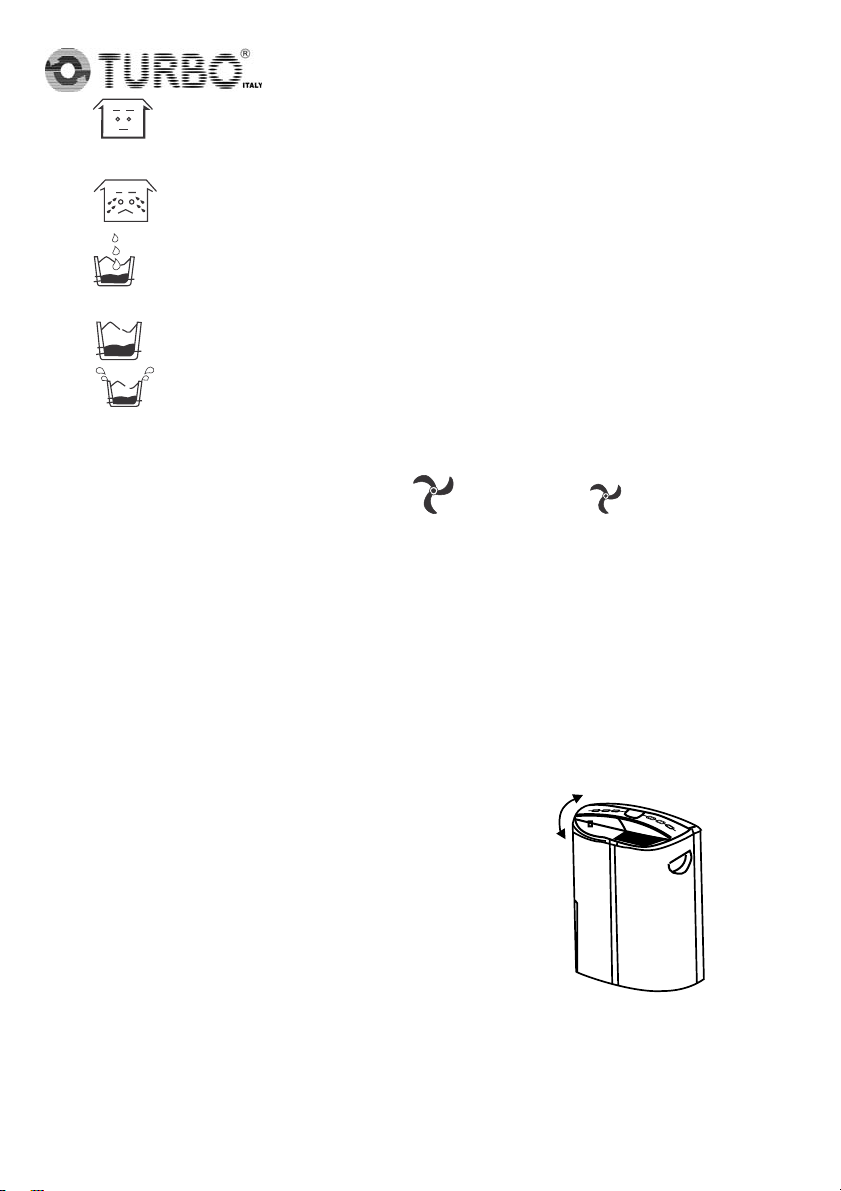

 means 30% ≤ambient room humidity < 50% or 70% < ambient
room humidity ≤80%
 means the ambient room humidity is higher than 80%.
3. compressor is in progress. In case the de-frost function is working, the
water drops will flash.
compressor is not in progress.
water full.
4. Timer indicator, 1 to 24 hours.
5.
6. Fan speed/ventilation indicator: high speed, low speed.
Operation
1. Plug the unit into a correct mains socket.
2. Press button ON/OFF to turn on the unit. The compressor will start to work
in continuous mode.
3. Press button HUMIDITY to set the room humidity you need: continuous
de-humidifying , 50%, 60%, 70% or 80%
4. Press the speed button to choose the ventilation speed, high or low.
5. To turn off the unit, press button ON/OFF
again.
6. The direction of the air outlet can be
adjusted by hand
to dry clothes more efficiently.
6
and temperature display.
Current relative humidity
7. Press button HUM (about 2 seconds) to display
the room temperature. It will turn back to display
room humidity after 12 seconds automatically.

.
TDH-22
Drainage
While the water tank is full, the compressor will stop for self-protection and:
 The sign of water full will flash.
 The unit will buzz. * For stopping the buzz, you may press the ON/OFF
button to turn off the unit
 The water level window will turn to red.

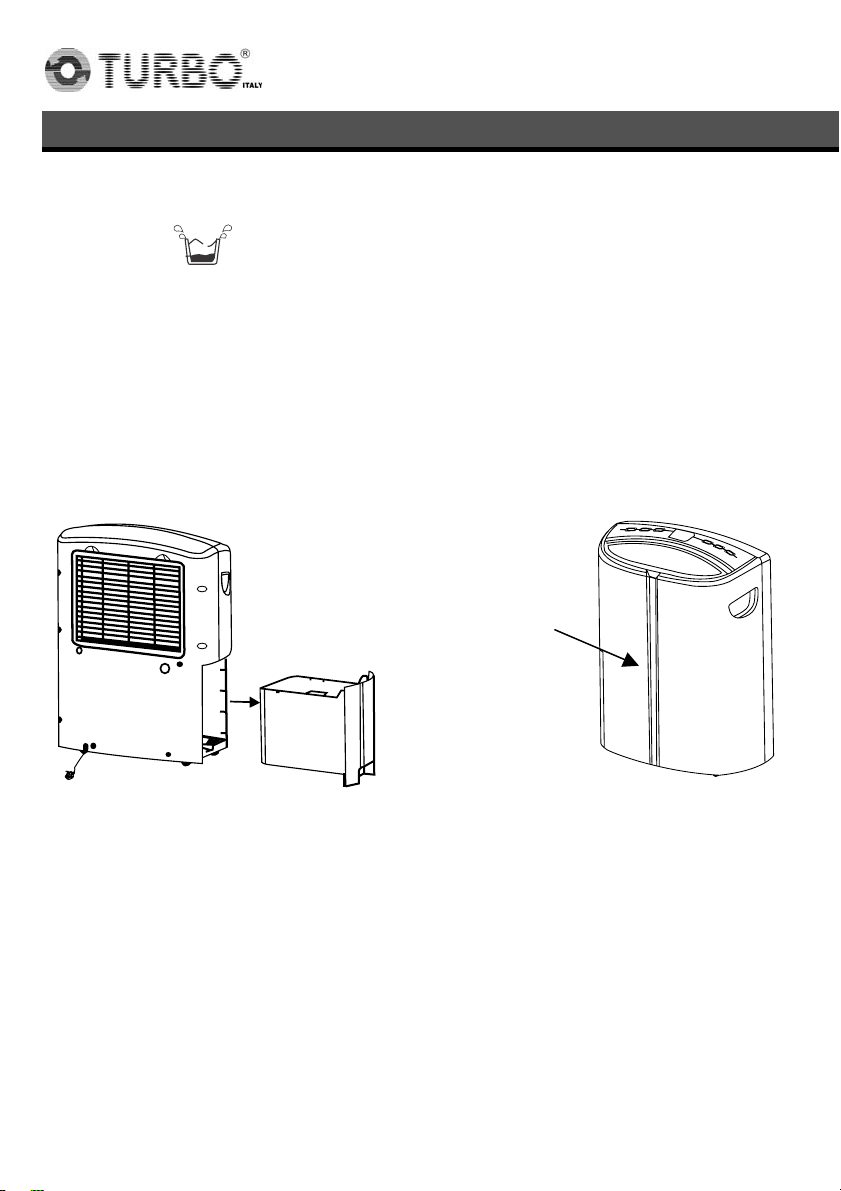

To move the water tank, pull it out squarely from the unit by using the
handle at the water tank. (FIG.1)
After empting the water tank, place the water tank into space. Make sure
it is properly positioned, in order for the 'water full' sign to go out and your
dehumidifier is operating. (FIG.2)
FIG.1 FIG.2
7

TDH-22

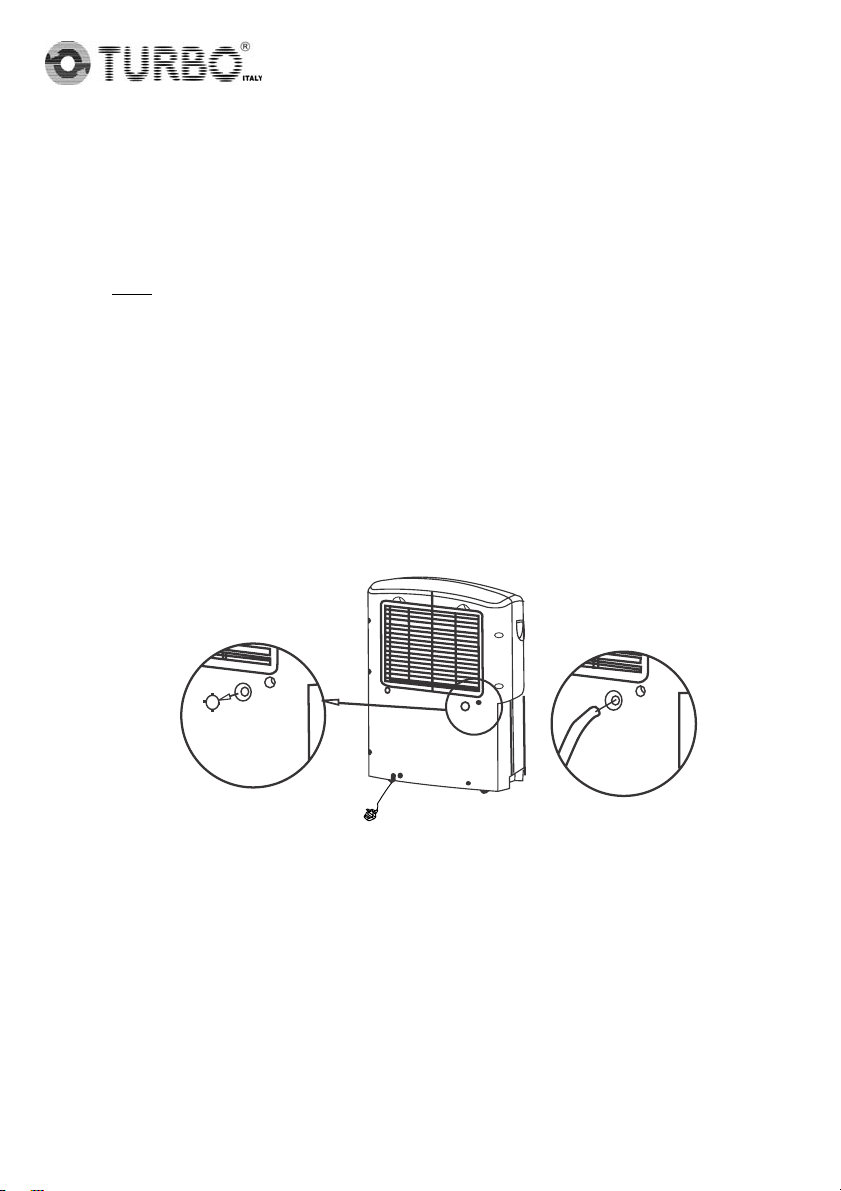

Continuous drainage
When the dehumidifier is operated at very high humidity levels, the water tank
will require more frequent drainage. In this situation, it may be more
convenient to set the unit up for continuous drainage with the following
procedures:
1. Cut the outlet at the unit back. (FIG.3).
* Caution:
When the outlet is cut off, the said portion would leave as a hole and
cannot be covered by any plug.. If cover the said portion by plug,
the drainage water cannot go down to the water tank.
2. Connect the drain hole with a water tube of inner diameter 12mm.
(FIG.4)
* Please note, the water tube is not supplied with the unit.
3. Ensure the water will always drain away freely and the tube will remain in
place.
Note! In very cold weather conditions, precautions should be taken to
prevent the water tube from freezing.
FIG.3
FIG.4
8

TDH-22
Maintenance
Always unplug the unit from the mains before carrying out any
maintenance or cleaning of the unit.
CLEANING THE BODY
Use soft cloth to wipe the unit clean.
Don't ever use volatile chemicals, gasoline, detergents, chemically
treated clothes, or other cleansing solutions. All these could possibly
hurt the cabinet.

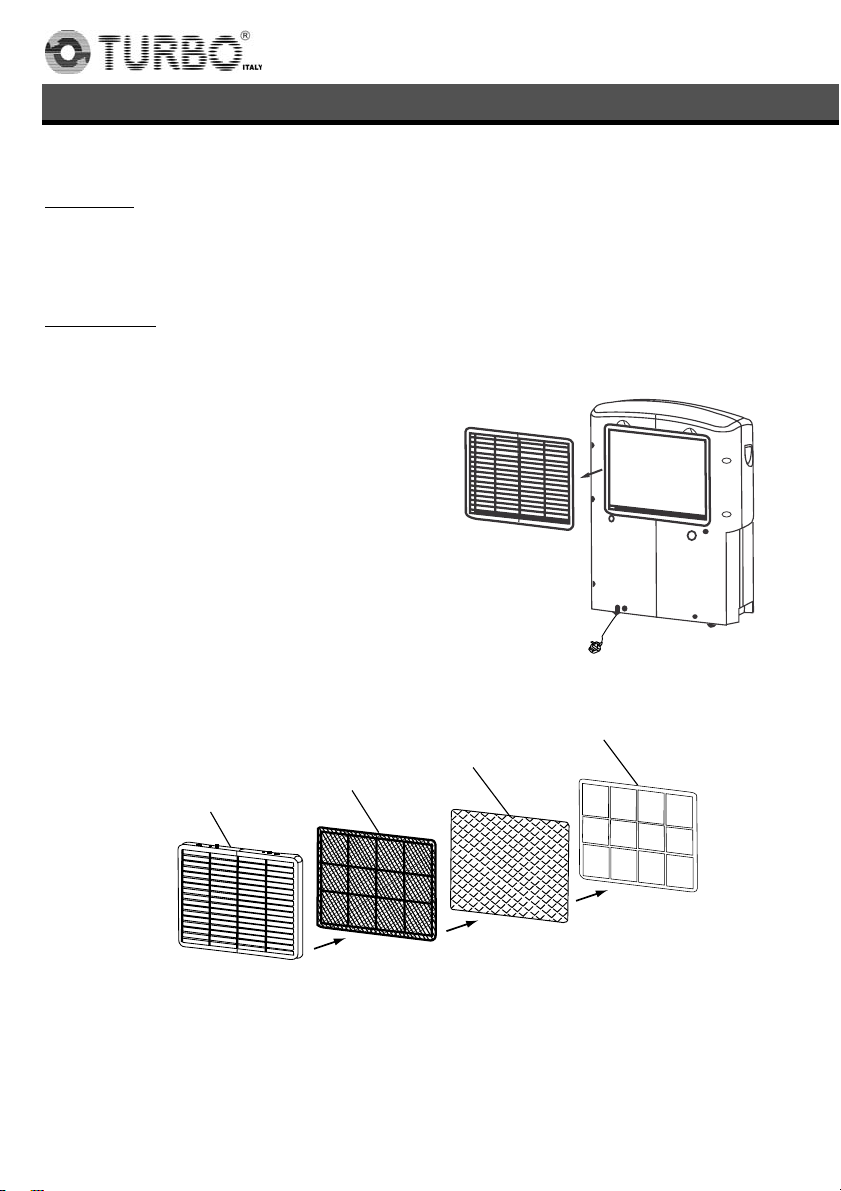

CLEANING THE FILTER
For washable filter - Use a vacuum cleaner or tap the filter lightly for
easy cleaning. If the filter is particularly dirty, use warm water with a
small amount of medium strength.
For activated carbon filter - This
filter is not washable. Its life span is
variable and depends on the
ambient conditions where the
appliance is used. The filter
should be checked periodically
(about every 6 months) and
replaced if necessary.
Grille
Washable
filter
Activated
carbon filter
Filter fixer
9

TDH-22
STORAGE
If the unit is not used for an extended period of time. Please:
Turing the unit off, unplug and tidy power cord.
Completely empty the water tank and wipe it clean.
Cover the unit and store where it will not receive direct sunlight.
10

TDH-22
Trouble shooting
THE UNIT DOES NOT OPERATE:
 Is the unit plugged in?
 Is the house electricity on?
 Is the room temperature below 5oC or above 35oC? If so, then it
is out of the working range of the unit.
 Ensure the humidistat (or ON/OFF switch) is turned on.
 Check the water tank is positioned properly in the unit and it is
not full.
 Make sure the air inlet and outlet are not obstructed.
THE UNIT SEEMS TO DO NOTHING:
 Is the filter dusty, contaminated ?
 Is the air intake or outlet blocked up?
 Is the room humidity already quite low?
THE UNIT SEEMS TO DO LITTLE:
 Are too many windows or doors open?
 Is there something in the room producing lots of humidity?
THE UNIT IS TOO NOISY:
 Check whether the unit is sitting on a level surface.
THE UNIT IS LEAKING:
 Make sure the unit is in good shape.
 If you are not using continuous drainage, make sure the rubber
plug (in the rear) is in its position.
11

TDH-22
使用位置
操作這抽濕機前，請將本機放在與水平線平行的平穩地面，前後最少須預留 10
厘米 間，以達玫最佳對流效果。
此機裝有滑輪，方便移動，但在移動本機前，必須關掉電源和倒去水箱積水。
本機不建議連接電源拖板，但如果必須使用電源拖板，請使用最少 1.5 平方毫米
直徑的電線。
為達到最佳抽濕效果，操作時請關上門窗。
12

TDH-22
使用前
 此機必須直豎在平穩地面。.
 在運送或斜放後，請在一小時後才開機。
 出入風口必須遠離外物。
 電源必須符合機身背後的技術規格。
 如果電源損壞，必須由合格電器技師更換。
 請用機上的開關掣開機或關機，切勿插入或拔出電插頭來開關機。
 移動本機前，請關機，拔出電插頭和倒去水箱積水。
 請勿向本機噴灑任何易燃清潔劑或水份。
 本機不能在 5oC下操作。
13

TDH-22
產品簡介
前面
1. 控制板
2. 乾衣導風板
3. 出風口
4. 水滿顯示
5. 水箱
6. 把手
後面
7. 塵隔 / 入風口
8. 電線
9. 把手
10. 連續排水口
11. 水箱
12. 滑輪
濾網的安裝
14
塵隔 可水洗濾網
活性碳濾網
濾網固定架













TDH-22
操作
控制板
1. 本機不適用此按鍵
2. 本機不適用此按鍵
3. 時間掣
4. 全功 顯示屏
5. 風速鍵
6. 濕度選擇鍵
7. 開關掣
全功能顯示屏
1. 濕度選擇: 連續抽濕，50%, 60%, 70%, 80%
2. 室內濕度: 清爽 尚可, 潮濕
 顯示室內濕度介乎 50%至70%
15
   


KU

7,0(5
63(('
+80
   


KU







TDH-22
 顯示室內濕度介乎 30%至50%，或介乎 70%至80%
 顯示室內濕度高於 80%.
3. 壓縮機運行中。水滴閃動顯示除霜操作中。
壓縮機不在操作。
水滿。
4. 1 至24 小時的時間掣顯示。
5.
6. 風速顯示: 高速, 低速
操作
1. 連接正確電源插座。
2. 按開關掣開機，此機便開始連續操作模式。
3. 按濕度選擇鍵(HUM)設定要求濕度：連續抽濕, 50%, 60%, 70%或80%
4. 按風速鍵(SPEED)設定風速。
5. 按開關鍵關機。
6. 調校乾衣導向板可以更有效乾衣。
16
即時室內相對濕度 顯示。
溫度
及
12 秒鍾後，自動返回顯示當前濕度
長按 Hum 鍵（約 2秒），顯示室內溫度，
7.

TDH-22
排水
水箱滿水時，壓縮機會自動關機，而且：
 水滿顯示 會閃動。
 此機會發出蜂鳴提示 * 要停止蜂鳴，可按開關掣關機。
 水位顯示屏轉紅色。
要抽出水箱，請握着水箱底把手依水平線拉出水箱。(圖1)
倒清水箱積水後，請將水箱放回原處。水箱必須正 放好，水箱顯示才消失，而此
機才可操作。(圖2)
圖1 圖2
17

TDH-22
連續排水
當抽濕機在極潮濕環境下操作時，水箱需要更瀕密排水，在這個情況適宜依據下列方法
進行連續排水：:
1. 從機身後割去排水孔圓蓋(圖3)。.
* 注意:
當排水孔圓蓋被割去後，原位會留下一個圓孔，而這圓孔不 用任何膠塞塞着，
否則排水不 流到水箱。
2. 用一條內徑 12mm(圖4)的水管連接排水孔。 *這水管不隨機附送。
3. 請確保排水無被妨礙而水管亦無移位。在極寒天氣下，請做好預防水管結冰的措
施。
圖3
圖4
18

TDH-22
產品保養
保養或清理本機前，請拔出電插頭。
清理機身
請用軟布抹淨機身，請勿使用強烈化學劑、汽油或洗潔精。以上溶液可能損毁機
身。
清理過濾網
可清洗濾網 ─請用吸塵機或用手輕拍清潔濾網，如果濾網太髒，可以用溫水清
洗。
活性炭濾網 ─這濾網並不可以水
洗，壽命視乎操作環境而不同，建議
6個月檢查一次，並在有需要時更換。
19
塵隔 可水洗濾網
活性炭濾網 濾網固定架
