Turboair TA1500 User manual

100L/MIN OIL-LESS
COMPRESSOR
WORKSHOP SERIES
MODEL NO. TA1500
Read this material before using this product.
Failure to do so can result in injury.
SAVE THIS MANUAL
Forspare parts or product information please email [email protected]
Silent portable compressor ideal for general
inflating tasks.

100L/MIN OIL - LESS COMPRESSOR
2.
CONTENTS
INTRODUCTION..........................................................3

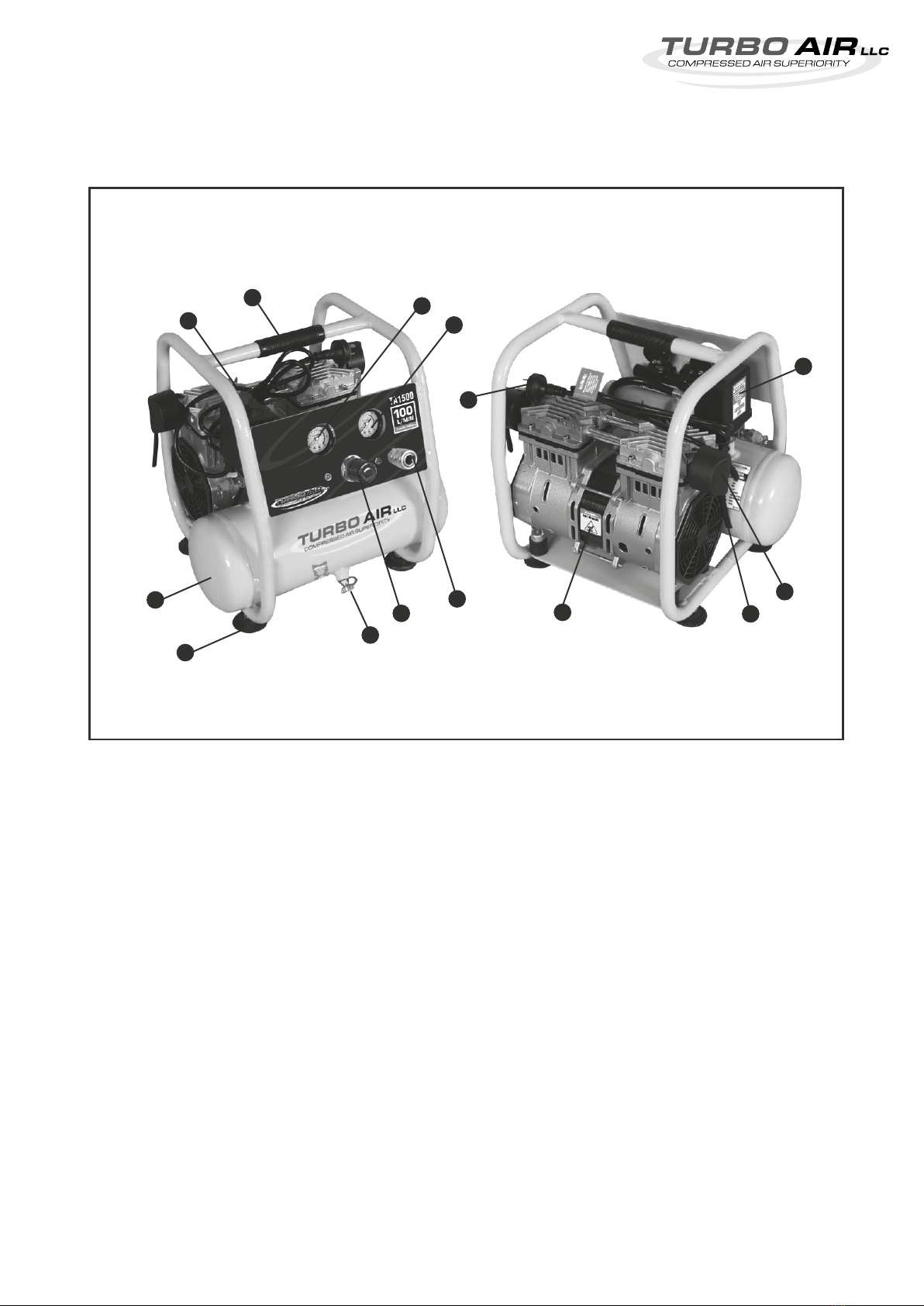

COMPONENTS AND CONTROLS................................8
OPERATING INSTRUCTIONS......................................9
STARTING AND STOPPING YOUR COMPRESSOR..10
USING THE INFLATOR.................................................11
TOOL CONFIGURATION.............................................11

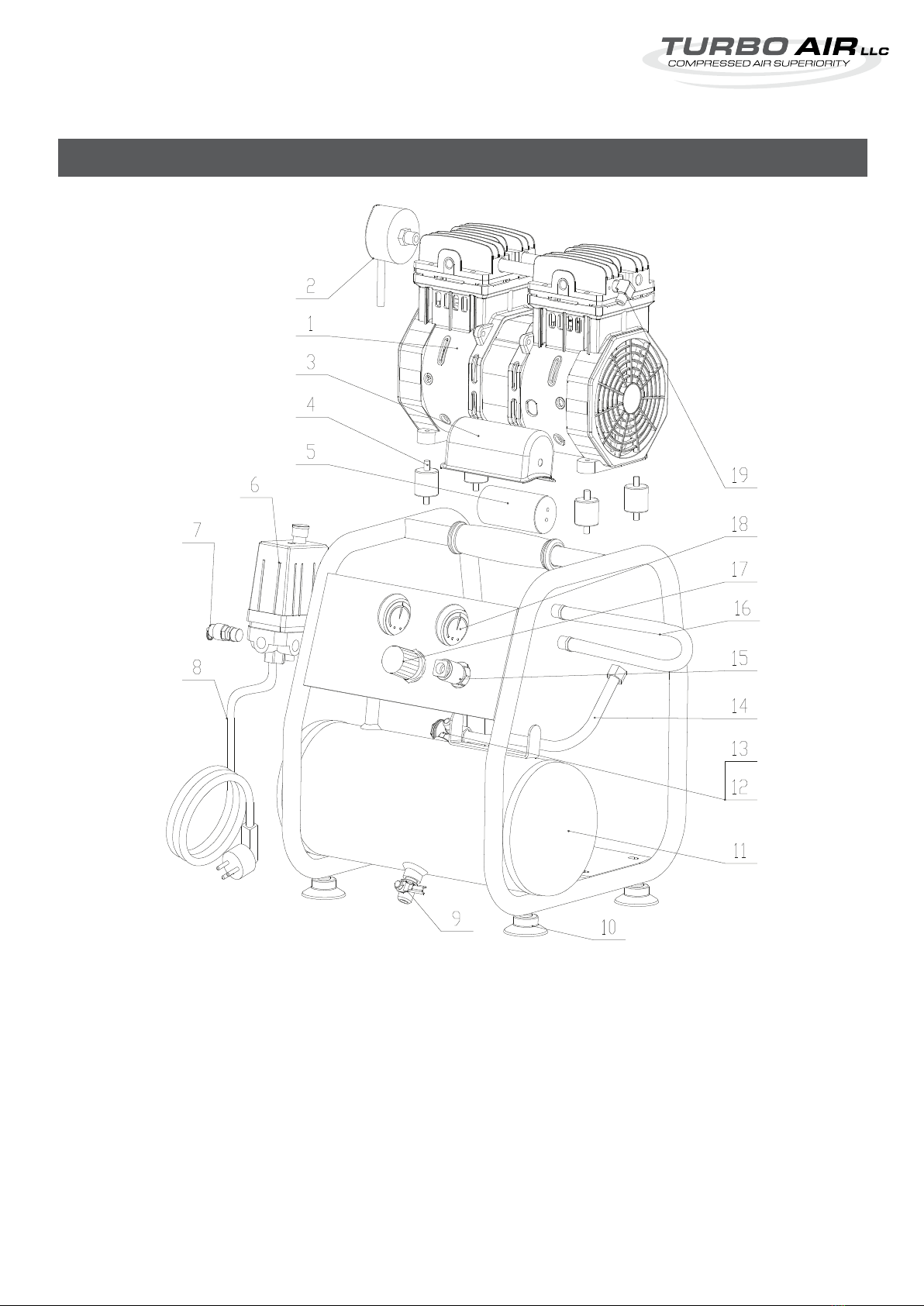

TA1500 PARTS LIST......................................................14

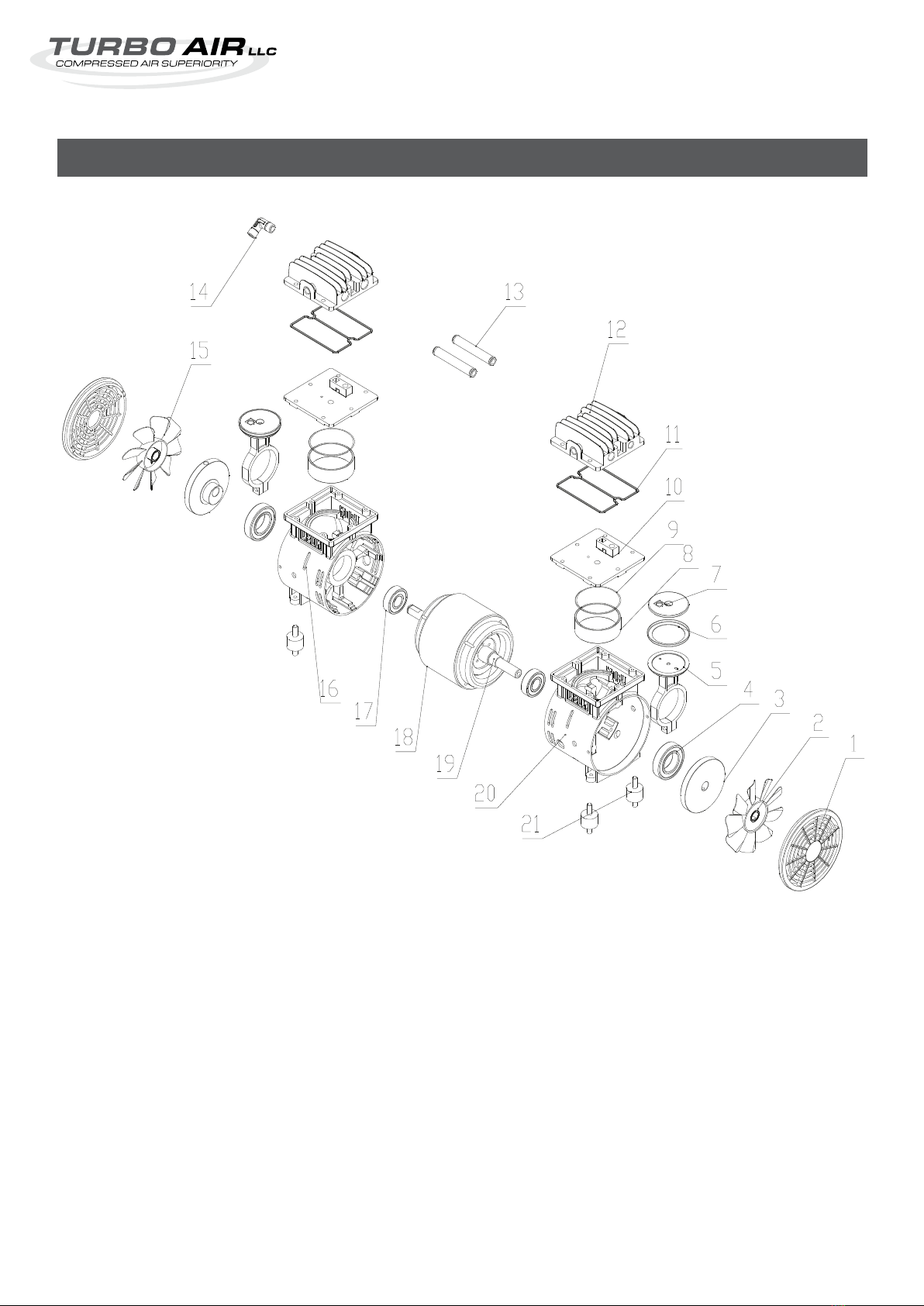

TA1500 PUMP PARTS LIST.............................................15
WARRANTY ...................................................................16

100L/MIN OIL - LESS COMPRESSOR
3.
SUGGESTED APPLICATIONS
You may use most light duty air tools with this Compressor.
Some examples of light duty tools are:
• Ball Inflator
• Toy Inflator
• Tyre Inflator
• Mini Airbrush
• Stapler
• Combo Nailer
This Compressor is NOT recommended for use with
a spray gun or medium duty air tools.
COMPRESSOR
SPECIFICATIONS:
Model: TA1500
VOLTAGE: 230V
FREQUENCY: 50Hz
Power: 1.5HP
Tank Size: 6L carry tank
Displacement: 190L/min 6.7CFM
FAD@7Bar: 100L/min 3.4CFM
[email protected]: 70dBa
Net Weight: 16.4kg
INTRODUCTION
Dear Customer,
Thank you for purchasing this Compressor which has passed
through our extensive quality assurance processes. Every
care has been taken to ensure that it reaches you in perfect
condition. However, in the unlikely event that you should
experience a problem, or if you require any assistance
please do not hesitate to contact us;
If you have a problem, call customer service do not return this
Compressor to the place of purchase.
CUSTOMER SERVICE
Euroquip NZ: 0800 387 678
Euroquip Australia: 1800 040 947

100L/MIN OIL - LESS COMPRESSOR
4.
LUBRICATION OF COMPRESSOR
This inflator is OIL FREE. Therefore there is NO oil used for
lubrication.
ASSEMBLY
This Compressor MUST be fully assembled by you prior to
use.
Failure to do so will result in the warranty being VOID.
Failure to fully assemble this inflator may also result in
personal injury.
SAFETY
Before attempting to operate this Compressor the following
basic safety precautions should be taken to reduce the risk of
fire, electric shock and personal injury. It is important to
read the instruction manual and to understand applications,
limitations and potential hazards associated with the
Compressor. This Compressor is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their
safety.
BEWARE OF CHILDREN
AND PETS
Children and pets should be kept out of the work area.
Children should not be allowed to touch or operate the
Compressor, tools or extension cords. This Compressor is not
designed for use by young children or infirm persons without
supervision. The Compressor and tools should be kept out of
reach of children, preferably stored or locked in a secure
cabinet or room when not in use.
WORK AREA
Work areas and benches should be kept tidy. Cluttered
benches and work areas can cause accidents. Floors should
be kept clean and free from rubbish. Special care should
be taken when the floor is slippery due to sawdust or wax.
Always leave sufficient distance, at least 5 metres between
the Compressor and the work area, especially when using tools
designed for sanding or spraying liquids.
WORK ENVIRONMENT
Do not expose your Compressor to rain or use in damp or wet
conditions. Keep the work area well lit.
GUARD AGAINST ELECTRIC SHOCK
Avoid body contact with earthed or grounded surfaces (e.g.
pipes and refrigerators).
DO NOT FORCE COMPRESSORS
The Compressor will do a better, safer job and give you much
better service if it’s used at the duty cycle for which it was
designed. The duty cycle will only take effect after the initial
(1st) tank fill for the day. This compressors duty cycle is 50%.
Duty cycle is the proportion of time during which the Compressor
is operating compared with not operating. For example a
50% duty cycle could mean after 30 seconds of operation,
motor pumping, the Compressor must be left for 30 seconds
resting, motor not pumping. When the motor is pumping
the attached air tool can not be used. Only use the attached
air tool while the Compressor is not pumping. Stop using the
attached tool as soon as the Compressor starts pumping.
USE THE RIGHT TOOL
Select the right tool for the job. Do not use a tool for a job
for which it was not designed. Do not force a small Compressor
to do the job of a heavy–duty Compressor. Do not use the
Compressor for purposes not intended.

100L/MIN OIL - LESS COMPRESSOR
5.
DO NOT ABUSE THE POWER CORD
Never yank or pull on the power cord to disconnect it from
the mains supply socket. Never carry or pull your compressor
by its power cord. Keep the power cord away from heat,
oil, solvents and sharp edges. Regularly check the plug
and cord and if damaged have it replaced by an authorised
service facility.
EXTENSION CORDS AND REELS
This compressor MUST be plugged directly into a 240V AC
wall socket.
This compressor is NOT designed to be run off an extension
cord/lead. If you need extra distance do NOT use an extension
cord, USE A LONGER AIR HOSE.
The use of extension cords may cause power voltage loss
and will result in damage to the motor. This will NOT be
covered under warranty.
SECURE THE WORK PIECE
Whenever possible secure the work piece using clamps or
a vice. It is safer than using your hands or feet and leaves
both hands free to control the tool.
HOT COMPONENTS
Beware many of the components will get hot during use.
Never touch any of the metal pipes, pump or motor as these
may burn.
MAINTAIN YOUR COMPRESSORS WITH CARE
Follow the instructions for use and changing accessories.
Check the compressor power cord periodically and if damaged
have it replaced by an authorised service facility. Keep
handles clean, dry and free from oil and grease. Ensure
that ventilation slots are kept clean and free from dust at
all times. Blocked ventilation slots or air filter can cause
overheating and damage to the motor and this will not be
covered under warranty.
DISCONNECT COMPRESSORS
Ensure that the compressor is disconnected from the mains
supply when not in use, before servicing, making
adjustments or when changing any accessories.
REMOVE ADJUSTING KEYS
AND WRENCHES
Form the habit of always checking to see that any adjusting
keys or wrenches have been removed from the compressor or
attached air tools before operating.
AVOID UNINTENTIONAL STARTING
Ensure that the switch is in the ‘OFF’ position before
plugging the compressor into the mains power supply.
PROTECT FURNISHINGS
If using the compressor inside your house, protect furnishings
and floors with a suitable dust sheet.
FIRE PRECAUTIONS
When using the compressor inside your house or workshop
general fire precautions should be observed. As a
precaution it is recommended that an expert is consulted on
obtaining and using a suitable fire extinguisher.
CLEANING YOUR COMPRESSORS
Always disconnect your compressor from the mains power
supply before you commence cleaning. Always ensure that
your compressor has cooled, about one (1) hour, before cleaning
and storing. When cleaning your compressor use only a damp
soft cloth. NEVER use liquid or solvents of any type.

100L/MIN OIL - LESS COMPRESSOR
6.
WARNING
Only use Compressor when fully assembled.
Do not attempt to modify the compressor in any way; this will VOID your warranty.
The use of any attachment or accessory other than those recommended in this instruction manual could result in
damage to the compressor and could cause injuries to the operator.
This electric inflator complies with Australian / New Zealand and International standards and safety requirements.
Repairs should only be carried out by qualified persons using original spare parts. Failure to do so may result in
considerable danger to the operator.
PERSONAL SAFETY
Clothing
Do not wear loose clothing, jewellery or anything that could
get caught in moving machinery.
Hair
Long hair should be tied back or contained in a protective
covering.
Eye Protection
The use of safety goggles is highly recommended (normal
glasses are not sufficient for eye protection) when using
compressor. Prescription glasses do not have safety lenses.
Footwear
Where there is the risk of heavy objects or if there is a risk
of slipping on wet or slippery floors, suitable non–slip safety
footwear should be worn. Protect your feet from dropping
accidents.
Ear Protection
The use of ear protection is highly recommended when
using compressor. The continual noise may damage your ears.
Respiratory Protection
When operating any machinery that creates dust or when
spray painting, an approved dust / filter mask must be worn.
When machining concrete, man made fibres, especially
MDF (Medium Density Fibre board), the resin used in these
materials can be hazardous to your health. Use an approved
face mask with replaceable filter.
Do Not Over Reach
Do not over reach. Keep a proper footing and maintain your
balance at all times. Avoid using abnormal stances and
awkward body positions.
Stay Alert
Watch what you are doing, use common sense, and never
operate a compressor when you are tired, drinking alcohol, taking
drugs or if taking medication that causes drowsiness.
CHECK DAMAGED PARTS
Before using the compressor it should be carefully checked
to determine that it will operate properly and perform its
intended function.
Check for the correct alignment of moving parts ensuring
that they do not bind. Check for broken or missing parts
and have them replaced or repaired at an authorised
service facility. Check any other condition that may affect
the operation of the compressor. A guard or any other part of
the compressor that is damaged should be properly repaired or
replaced by an authorised service facility unless otherwise
indicated in this instruction manual.
Any switch that does not operate correctly must be replaced
by an authorised service facility.
DO NOT use the compressor if the ‘ON / OFF’ button does not
turn the inflator ‘ON’ and ‘OFF’.

100L/MIN OIL - LESS COMPRESSOR
7.
SPECIFIC SAFETY INSTRUCTIONS
Warning! Do not use the compressor in areas where there is a
risk of explosion or fire from combustible materials. The
sparks generated from certain tools attached to compressor can
ignite combustible materials as well as flammable liquids,
paint, varnish, petrol, flammable gases and dust of an
explosive nature. As a precaution it is recommended that
you consult an expert on a suitable fire extinguisher and its
use.
• Do not attempt to modify the compressor, guards or the supplied
accessories in any way.
• Domestic compressor are designed for intermittent operation.
Ideally a 50% duty cycle. (Meaning. 30 seconds ON motor
pumping and 30 seconds OFF, motor not pumping). When the
motor is pumping the attached air tool can not be used. Only
use the attached air tool while the inflator is not pumping.
• Stop using the attached tool as soon as the compressor starts
pumping.
• Fully assemble compressor before use.
• Always ensure your compressor is level and stable.
• Never use an extension cord with this inflator always use a
longer air hose.
• Never connect to a generator which does not produce
sufficient power, at least 1500W and has pure sine wave
power output.
• Domestic compressors are not designed for
industrial / commercial applications.
• Domestic compressors are not designed for continuous
running. Always follow duty cycle - 50%.
• Avoid touching the pump area as it can become very hot
and may burn.
• Ensure that the compressor is disconnected from the mains
supply when not in use, before servicing, making
changes and when changing attachments such as air
hoses / tools.
• Always use the correct type of tool for the operation to be
carried out.
• Never use the compressor if any part of the unit is damaged.
Always have the compressor serviced by an authorised
service agent.
• Always wear safety eye, ear and respiratory protection
when operating the Compressor.
• Allow the tank to completely fill before using the compressor.
• If the compressor makes an unfamiliar sound or vibrates
excessively, switch the Compressor ‘OFF’ immediately and
disconnect from the mains power supply. Investigate the
possible cause or consult your authorised service facility.
• Always move the compressor using the handle and wheels.
• Always use the compressor on stable ground.
• This compressor is designed to compress normal air. Never
use to compress any other type (s) of gases.
• Never direct the jet of air or other liquids / gases towards
your body, other persons or animals.
• Never direct the jet of air or other liquids / gases towards
this compressor.
• This compressor is not suitable for pharmaceutical, food or
sanitary purposes.
• This compressor is not to be used to for filling scuba or
oxygen air bottles or tanks.
• Always follow the instructions relating to the tools
attached to this compressor.
IMPORTANT
ELECTRICAL DATA
This compressor is fi tted with a sealed electrical connection plug that is compatible with the mains power supply for Australia
/ New Zealand and meets the requirements of Australian Standards. This compressor must be connected to a supply voltage
that is equal to that stated on the rating label. If the mains power connection plug or power cord becomes damaged it
must be replaced with a complete assembly that is identical to the original, and this must be replaced by an authorised
service centre. Always follow the Australian / New Zealand requirements for connection to the mains supply. If in doubt
always consult a qualified electrician.

100L/MIN OIL - LESS COMPRESSOR
8.
COMPONENTS AND CONTROLS
Pic. 1
1. Pressure switch
2. On / Off button - red colour
3. Handle
4. Quick Connect Outlet
5. Pump
6. Tank
7. Rubber feet
8. Tank drain tap
9. Tank pressure gauge
10. Air filter
11. 10A Plug
12. Air Filter “Quieting Tube”
13. Outlet pressure gauge
PIC. 1
3
2
6
7
8
5
14
1
9
13
11
12
10

100L/MIN OIL - LESS COMPRESSOR
9.
OPERATING INSTRUCTIONS
Unpacking
Carefully unpack your compressor. Dispose of all packing
material in an environmentally responsible manner.
Assembly
.noitarepolaitinierofebylbmessaronimseriuqercompressorruoY
Check that you have all required components required for
assembly and initial use.
Rubber Stopper
To attach the rubber stopper to the bracket located on the
bottom of the tank;
1. Undo the nut and remove the washer.
2. Push through the bracket and replace the washer.
3. Tighten the nut, Pic. 2
Air Filter
The supplied air filter must be used.
Failure to do so may result in irreparable damage and will
void the warranty, Pic. 3
To install;
1. Carefully screw supplied air filter into the threaded hole
on the top of the pump head. This only needs to be done
up by hand. Do not use tools to tighten air filter.
NOTE: Do not OVER TIGHTEN as this may damage the air
filter or cylinder head which will NOT be covered under
warranty.
Once air filter is installed, fit the quieting tube. The quieting
tube pushed into the small air filter inlet hole.
PIC. 2
PIC. 3
WARNING
Do not attempt to operate this compressor until it is fully
assembled.
Damage caused due to incomplete assembly will not
be covered under warranty.
Ensure the compressor is disconnected from the power
supply before carrying out any assembly, maintenance
or adjustments on the machine.

STARTING AND STOPPING YOUR COMPRESSOR
100L/MIN OIL - LESS COMPRESSOR
10.
NOTE: Always ensure that you plug your compressor into a
standard 240V AC power point. Never use an extension cord
as this can lead to a voltage drop which may cause power
loss and over heating. Use a longer air hose if you need to
get closer to your work area.
Always start and stop the compressor using the
ON/OFF button onthe Pressure Switch (Pic.1 Item 1 and 2 as
wellas Pic. 4). Damage caused by not using this buttonwill not
be covered by warranty.
ON;To turn your Compressor
Lift up the red ON / OFF button on top of the pressure switch
To turn your To turn your Compressor OFF;
Push down the red ON / OFF button on top of the pressure
switch
RUNNING IN YOUR NEW COMPRESSOR
Your compressor does not require running in. Before use ensure
you have read and understood these instructions.
Before use ensure this compressor is fully assembled as per
page 10.
Positioning your new compressor
Choose a location away from your work area and near to a mains
power point.
NOTE: 1. Never use an extension lead. Always use a longer
air hose
2. Always position compressor on level ground
3. Always position compressor away from work area so
that the compressor does not get covered in dust or paint -
use a longer air hose to ensure compressor is in clean air
PIC. 4
Push button
down for off
Lift button
up for on

USING THE COMPRESSOR TOOL CONFIGURATION
100L/MIN OIL - LESS COMPRESSOR
11.
Before starting run through this simple list;
1. Ensure the compressor is fully assembled
2. Drain tap – open and drain tank
3. Drain tap – close fully
4. Check power lead for any damage. If damaged have
replaced by an authorised service centre.
5. Plug compressor into a standard 240V 10Amp AC power
point and turn ON.
6. Lift the red button to turn ON, see page 11, Pic.4.
7. Allow the compressor to fill the air tank.
8. Turn the compressor OFF.
9. Turn the power point OFF and disconnect the
power lead from the power point.
10. Connect your air hose and air tools.
11. Reconnect to the power lead to the power point and
turn ON.
12. Turn your compressor ON.
13. Once turned on and you begin using the connected air
tools the compressor will start and stop without warning.
This is controlled by the pressure switch. These
pressure settings are factory set and should not be
changed.
Pumping starts at (minimum) 85PSI and stops at
(maximum) 115PSI. Once the initial pump up stage has
finished you can use the compressor. Remember to adjust the
outlet air pressure to the tools recommended working
pressure and open the tap fully.
The configuration of tools and accessories can be varied to
suit your particular requirements. A basic recommended set
up is shown in Pic. 6 (accessories not included).
When you have finished using your compressor follow these
simple steps:
1. Turn your compressor OFF, using the ON/OFF button.
2. Turn the power point OFF and disconnect the power
lead.
3. Disconnect your air tools and air hose.
4. Clean your air hose and air tools.
5. Store your air hose and air tools in a secure well
ventilated cabinet.
6. Slowly open the tank drain tap, see page 14. This allows
excess air and moisture, water, to vent.
7. Leave the tank drain tap open. This allows any moisture
to drain while the inflator is stored.
NOTE: Use of a water trap may be of benifit to ensure no
water or moisture reaches your air tools.
PIC. 6

100L/MIN OIL - LESS COMPRESSOR
12.
IMPORTANT
NOTE
This compressor has been supplied with no adjustable
regulator and gauge.
Outlet pressure is 8 Bar (115 PSI).
If you require a lower pressure for your air tool please
buy an adjustable regulator and gauge from your
stockist.
PIC. 8
Pull to check
operation
SAFETY VALVE
Pic. 8
NOTE: When checking the safety valve ALWAYS wear safety
glasses.
To check the operation of the safety valve the air tank will
need to be full. Gently pull the ring outwards. This should
release air under pressure. Release the ring and this should
stop the air out flow once the pressure has dropped.
If the safety valve does NOT work in this manner, STOP the
compressor immediately and have the compressor checked /
serviced by an authorised service centre.

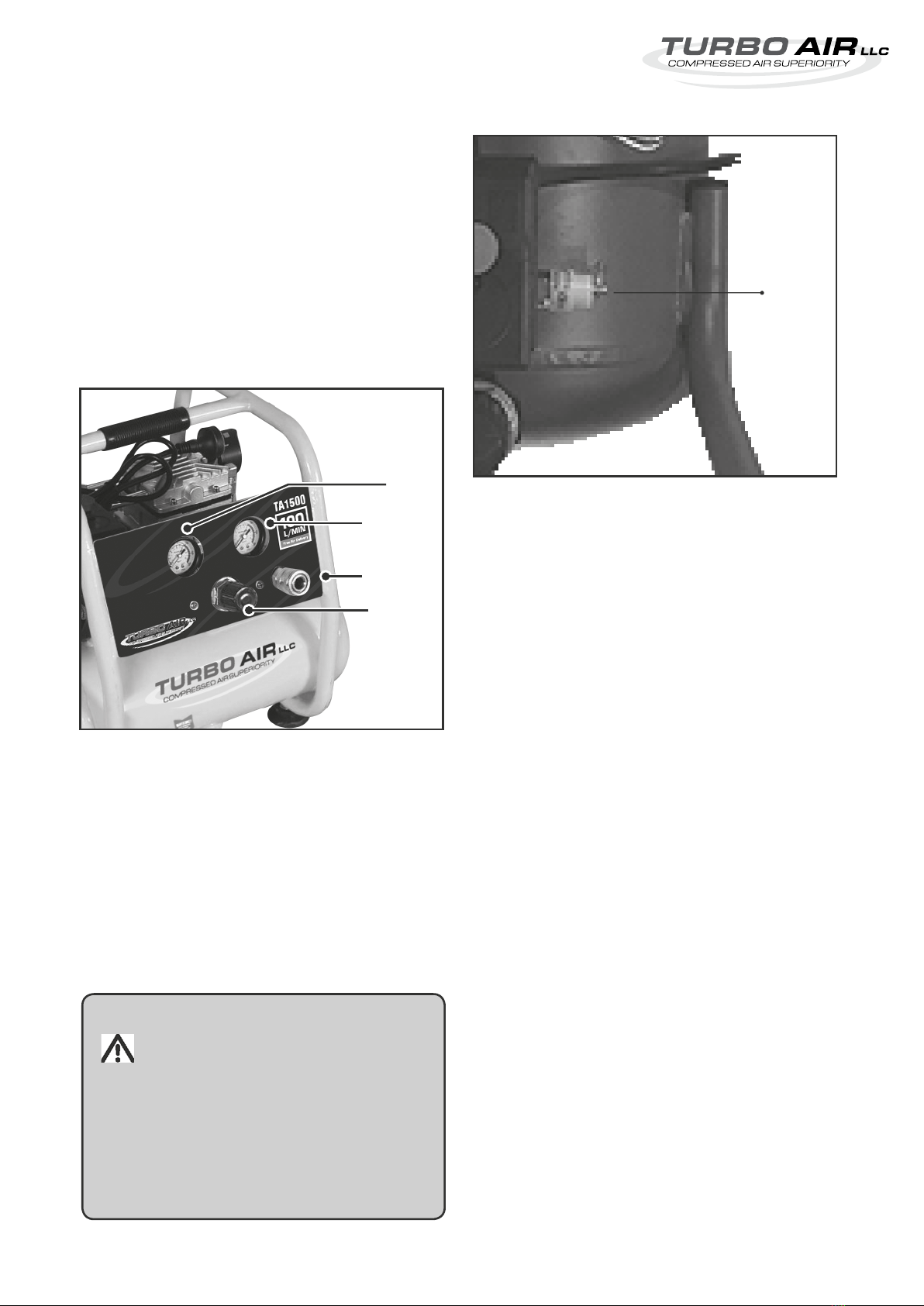

ADJUSTING THE PRESSURE
To adjust the outlet air pressure, use the
red coloured
regulator knob and check the pressure on the outlet pressure
gauge, Pic. 7.
If the pressure needs to be lower,
turn anti clockwise.
If the pressure needs to be higher, turn clockwise.
Use the gauge to ensure you set the correct working pressure.
Note: Different air tools require different operating pressures.
Always check with the tool manufacturer if unsure.
PIC. 7
Tank pressure
gauge
Regulator
Outlet tap
Outlet
pressure
gauge
DRAIN TAP
Pic. 10
After use open the drain tap to drain excess air and any
moisture. The excess air will also help purge the moisture.
Leave the drain tap open when compressor is not in use, so any
moisture can continue to drain
To open the drain tap pull the lever down
to vertical.
To seal the drain tap push the lever up
to horizontal.
NOTE: Remember to seal the drain tap before starting the
inflator.
MAINTENANCE
Daily: Before Use
1. Seal the tank drain tap,
see above, Pic. 10.
2. Check safety valve operation,
see page 13, Pic. 8.
After Use
1. Open the tank drain tap,
see above, Pic. 10.
2. Wipe down the compressor.
3. Store safely and securely.

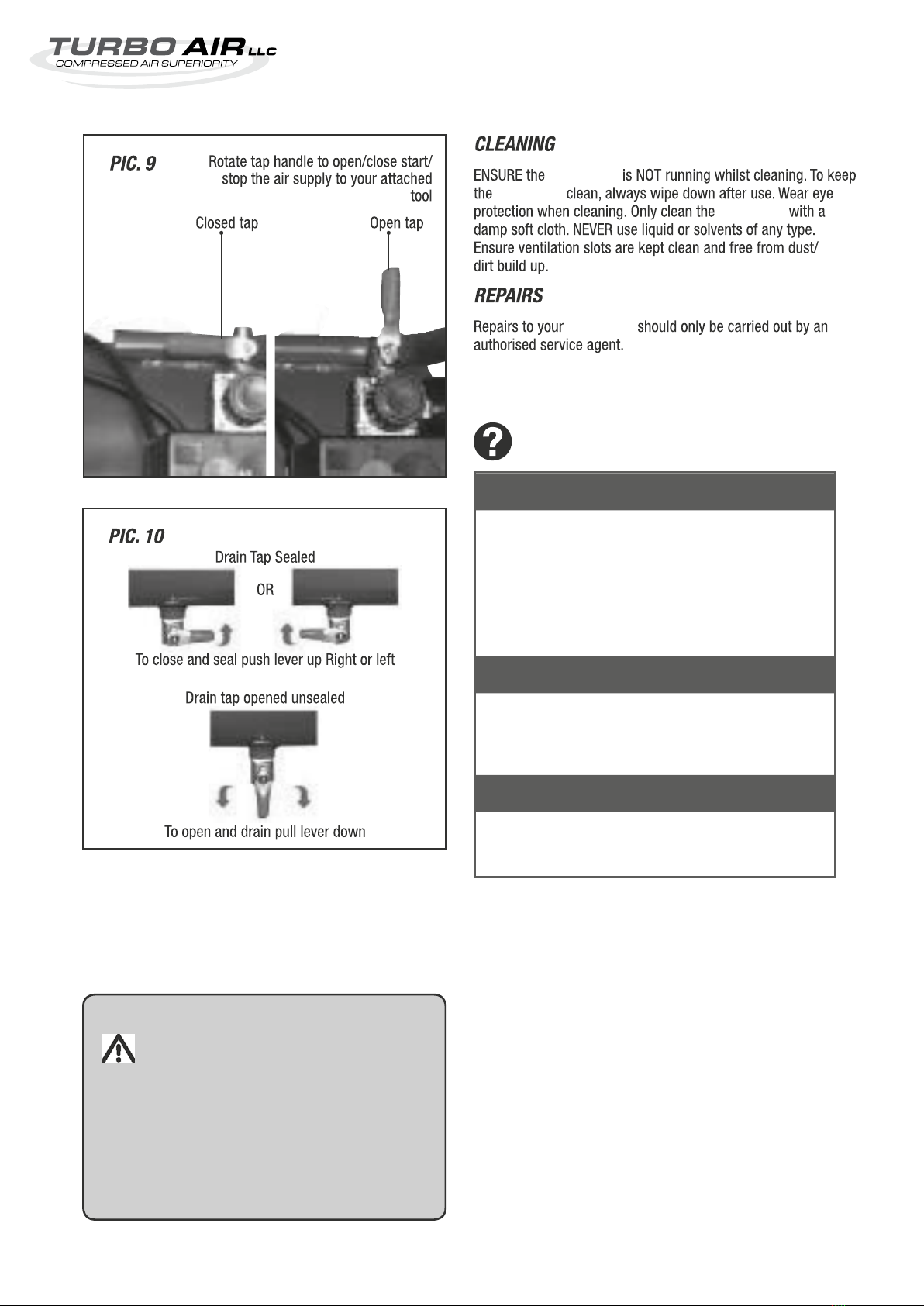

AIR TAP
Pic. 9
The air tap will need to be opened to allow the air to flow to
the attached air tool.
To open air tap rotate the handle so that it lines up with the
fittings and hose, not supplied.
To close air tap rotate the handle so that it is at 90º to the
fittings and hose, not supplied.

100L/MIN OIL - LESS COMPRESSOR
13.
TROUBLE SHOOTING
Check that you have plugged the power lead into a standard 240V 10Amp
power point and turned the switch ON.
Check that you have turned the the pressure decreases to 85PSI.
ON/OFF switch ON.
The air tank may be full. Use your air tool and the compressor should start
when the pressure decreases to 85PSI.
compressor will not startdoes not build up pressure
Check that the tank drain tap is sealed
Check that the air fitting is not leaking. If leaking replace.
compressor will not start smells like burnt oil
Using beyond the 50% duty cycle, allow to cool for 30 minutes before
reusing this compressor.
IMPORTANT
NOTE
This compressor has a maximum pressure of 8 bar.
Always regulate the air pressure to match your air
tool. Different air tools require different operating
pressures. Always check with the tool manufacturer
if unsure.
Euroquip NZ: 0800 387 678
Euroquip Australia: 1800 040 947
compressor
compressor
Call Euroquip for the approved Turbo Air service agent in your area
compressor
compressor
compressor will not start

100L/MIN OIL - LESS COMPRESSOR
14.
TA1500 PARTS LIST
1 Pump Head
2 Air Filter 1/4
3 Capacitance Cover
4 Pump Rubber Screw
5 Capacitance
6 Pressure Switch 4 -Way
7 Safety Valve
8 Power Cord
9 Drain Valve
10 Rubber Pad
11 Tank (Coated)
12 One Way Valve
13 Realease Tube
14 Discharge Tube
15 Outlet
16 Rubber Connect Tube
17 Regulator
18 Gauge
18 Elbow Connector

100L/MIN OIL - LESS COMPRESSOR
15.
TA1500 PUMP PARTS LIST
Fan Cover
Fan A
Crank
Bearing 6006-2Rs
Conrod
Piston Ring
Piston Cover
Cylinder
Valve Seal
Valve Plate
Cylinder Head Seal
3
4
5
6
7
8
9
10
11
2
1
Cylinder Head
Connect Tube
Eblow Connector
Fan B
Crankcase B
Bearing 6203-2rs
Stator
Rotor
Crankcase A
Pump Pad
14
15
16
17
18
19
20
21
13
12

100L/MIN OIL - LESS COMPRESSOR
16.
WARRANTY
Scan here to register your product
As part of an on-going commitment to excellence
product warranty program.
In order to qualify for full warranty support, your
product must be registered.
Product not registered with Euroquip is supported
by a base 12 month warranty only. Spare parts and
technical support will not be available for an unreg-
istered product outside of this base warranty period.
If a Euroquip dealer has not already registered your
product, please register it online at www.euroquip.
co.nz. To request a physical registration form, please
contact Euroquip customer service on 0800 387 678.
Registered warranty period for the TA1500:
Commercial Use: 18 Months
Domestic Use: 18 Months
Warranty covers failure caused by manufacturing
and material defects in the product, during the war-
when the product is purchased by the end user. War-
ranty is not transferrable and is only claimable by the
original purchaser.
Warranty does not cover parts that are subject to
wear and tear from usage.
Warranty covers failure of a product caused by defec-
tive materials and/or manufacturing for the period
-
ranty period begins when the product is purchased
by the end user. Warranty is not transferrable and is
only claimable by the original purchaser.
Warranty also does not cover failure caused by the
untimely replacement or service of the above wear-
ing parts. Evidence must be provided that the prod-
uct has been maintained and serviced suitably for a
claim to be considered under warranty.
Failure caused by incorrect operation of the product,
lack of proper care and maintenance of the product,
external damage, external circumstances such as
-
tions to the product, attempted repair/ service by a
party other than an Approved Service Agent, is not
covered under warranty.
Warranty does not cover pre delivery service and ad-
justment, or failure that may occur as a result of lack
of/ incorrect pre delivery service and adjustment.
Warranty does not cover any incidental, indirect or
consequential loss, damage or expense that may re-
sult from any defect, failure or malfunction of a prod-
uct.
Should any issue be found to be a combination of a
warranty failure and a non-warranty issue, the repair
cost component to rectify and repair the non-war-
ranty failure is the customers’ full responsibility.
a warranty claim is made at the sole jurisdiction of
Euroquip.
No costs incurred will be considered under warranty
if repairs are carried out by a party other than a Euro-
quip Approved Service Agent, unless with prior con-
sent in writing from Euroquip.
It is the responsibility of the purchaser to deliver a
product under warranty to the nearest relevant ser-
vice agent or product reseller. Warranty does not
cover call outs, mileage and freight costs.
If a product is repaired under warranty, parts and
labour required for the repair will be supplied at
no charge. Warranty assessment and repair will be
scheduled and executed according to the normal
work at the service location and depending on
the availability of suitable replacement parts.
service agent.

100L/MIN OIL - LESS COMPRESSOR
17.

100L/MIN OIL - LESS COMPRESSOR
18.

100L/MIN OIL - LESS COMPRESSOR
19.

Congratulations on your new TURBO AIR product. We are proud to have you as our customer and
will strive to provide you with the best service and reliability in the industry. This product is backed
by our extensive warranty and service network. To locate your nearest distributor or service agency
visit www.euroquip.co.nz, or email us at [email protected]
