Turboair JUR-44D-N User manual

Turbo Air Speeds up the Pace of Innovation
J Series
Refrigerators&Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
BUFFET DISPLAY TABLES
JBT-36-N
JBT-48-N
JBT-60-N
JBT-72-N
SANDWICH/SALAD UNITS
JST-36-N
JST-48-N
JST-60-N
JST-72-N
UNDERCOUNTER REFRIGERATORS
JUR-36-N6 JUR-36S-N6 JUR-48-G-N
JUR-48-N6 JUR-48S-N6 JUR-60-G-N
JUR-60-N6 JUR-60S-N6 JUR-72-G-N
JUR-72-N6 JUR-72S-N6
JUR-44D-N
JUR-67D-N
JUR-93D-N
UNDERCOUNTER FREEZERS
JUF-36-N JUF-36S-N JUF-44D-N
JUF-48-N JUF-48S-N JUF-67D-N
JUF-60-N JUF-60S-N JUF-93D-N
DUAL TEMP. UNDERCOUNTERS
JURF-48-N
JURF-60-N
JURF-72-N
www.turboairinc.com
N
N
N

2
NOTICE
FOR HYDROCARBON REFRIGERATION UNITS
IMPORTANT SAFETY INFORMATION
SPECIFICATIONS / SERIAL NUMBER
NOTICE TO CUSTOMER / INSTALLATION
PART NAME & FUNCTION
DISPLAY PANELS
CAUTION
INSTALLATION & OPERATION
CLEANING & PRECAUTION
TROUBLESHOOTING
STAINLESS STEEL EQUIPMENT CARE & CLEANNING
WARRANTY INFORMATION
WARRANTY REGISTERATION CARD
3
4 - 5
6 - 9
10 -11
12
13
14 - 15
16 - 19
20
21
22
23 - 24
25 - 26
27
TABLE OF CONTENTS

3
NOTICE
• This equipment is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge
unless they have been given supervision or instructions concerning the use of this
equipment and the hazards involved by a person responsible for their safety.
• The special instructions for those persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge are not included
in this manual and are not required to be included.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
This manual uses the following safety symbols. These safety symbols with the
words of DANGER, WARNING or CAUTION alert users of the potential
hazards that could cause injury or even death.
DANGER
WARNING
CAUTION
Indicates hazards of death or serious injury,
if the instructions are not followed.
Indicates dangers of death or serious injury,
if the instructions are not followed.
Indicates risks of personal injury or material damage,
if the instructions are not followed.

4
FOR HYDROCARBON REFRIGERATION UNITS
PLEASE REFER TO THE LABEL INSIDE THE CABINET TO CHECK
REFRIGERATION TYPE AND VOLUME.
WARNING
This unit uses R-290 (propane), or R-600a (isobutane) as a refrigerant. These
hydrocarbon refrigerants are highly environmentally compatible but also are
flammable and combustible. Please read this manual thoroughly before installing
and operating the unit. Please take cautious measures to avoid risk of fire or explosion.
DANGER - Risk of fire or explosion. Flammable refrigerant used.
Do not use mechanical devices to defrost refrigerator. Do not
puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used.
To be repaired only by trained service personnel. Do not puncture
refrigerant tubing.
CAUTION - Risk of fire or explosion. Dispose of properly in
accordance with federal or local regulations. Flammable
refrigerant used.
CAUTION - Risk of fire or explosion. Flammable refrigerant
used. Consult repair manual/owner’s guide before attempting to
service this product. All safety precautions must be followed
CAUTION - Risk of fire or explosion due to puncture of refrigerant
tubing; follow handling instructions carefully. Flammable
refrigerant used.
WARNING
- Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage
compartments of the appliance unless they are of a type
recommended by the manufacturer.

5
FOR HYDROCARBON REFRIGERATION UNITS
WARNING
• Handle the unit with care in order to avoid any serious damage to the refrigeration
system.
• The refrigerant tubing, condenser, and evaporator coils are prone to damage
while handling, moving, installing, and cleaning the unit, which may lead to fire or
even explosion.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak
is detected, avoid any naked flames or potential sources of ignition and air the
room in which the appliance is located.
• To avoid the creation of a flammable gas-air mixture from a leaking refrigerating
circuit, the size of the room in which the appliance is placed depends on the
amount of refrigerant used. The room must be 35.31ft3 (1m³) in size for every
0.28oz(8g) of R-600a refrigerant inside the appliance. The amount of refrigerant in
your particular appliance is shown on the label inside the cabinet.
• Never start up an appliance showing any signs of damage. When in doubt, contact
a qualified service professional.
• In case of any hazardous activities such as fire or explosion, move the unit away
from any source of ignition to a well ventilated area.
• Further service and repair must be done by a qualified technician who is familiar
with the safety standards, and also has thorough understanding and knowledge
of the flammable refrigerants.
• Any individuals handling these units must be equipped with proper personal
protection and equipment and follow applicable safety measures and precautions
to avoid risk of fire or explosion.
This appliance contains a small amount of propane (R-290) or isobutane
(R-600a) refrigerant, a natural gas with high environmental compatibility,
but it is also combustible. When transporting and installing the appliance,
ensure that no part of the refrigerating circuit is damaged.

6
IMPORTANT SAFETY INFORMATION
WARNING
• The unit must be installed and located in accordance with the manufacturer’s
installation instructions.
• Installation work must be performed in accordance with the National Electric Code
by qualified and authorized personnel only.
• Repairs and replacement work must be performed by a qualified and authorized
service professional using only genuine replacement parts (Component parts
shall be replaced with like components).
• Do not use an extension cord or an adapter plug. Because of the potential safety
hazards under certain conditions, we strongly do not recommend any use of an
extension cord or an adapter plug.
• Do not, under any circumstance, cut or remove the ground prong from the power
cord. For personal safety, this appliance must be properly grounded.
• Do not store volatile and flammable substances in the refrigerator. The storage of
benzene, thinner, alcohol, ether, LP gas, or other explosive substances may cause
an explosion.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this appliance as well as any other appliances.
• The appliance is not intended for use by children without supervision.
• Do not allow children to climb, stand, or hang on the refrigerator doors or shelves
in the refrigerators. They could damage the refrigerator and seriously injure
themselves.
• To prevent suffocation and entrapment hazards to children, remove the doors and
seals from the refrigerator before disposing of it or discontinuing its use.
SAFETY PRECAUTIONS
To avoid any risk of fire, explosion, electric shock, personal injury, material damage or
incorrect use of the appliance, be sure to observe the following safety precautions
(After reading these owner’s manual instructions, please keep the manual booklet in
a safe place for reference. Remember to hand it over to any subsequent owners).

7
IMPORTANT SAFETY INFORMATION
INSTALLATION & USAGE
WARNING
CAUTION
• Do not install the unit in a damp place where it could be splashed with water.
Incorrect insulation of the electrical parts may cause fire or electric shock.
• Do not plug several appliances into the same sockets. This could cause fire due to
overheating.
• Keep the power plug away from the rear of the cabinet. A damaged power plug may
cause fire due to overheating.
• Do not spray water directly to the interior or exterior of the appliance. There is a risk
of fire or electric shock.
• Do not place any containers filled with water on top of the appliance. If the water
spills onto any electrical parts, it may lead to fire or electric shock.
• Do not attempt to repair, disassemble or alter the appliance. It may cause fire or
abnormal operations which may lead to injury.
• Unplug the refrigerator before making repairs, replacing a light bulb, or cleaning.
• Plug into a grounded 3-prong outlet. Do not remove the ground prong.
• Do not store too much food in the appliance. When you open the door, an item may
fall out and cause personal injury or material damage.
• Do not put bottles or any kind of glass in the freezer. The container may break and
cause personal injury.
• Do not disconnect the power cord by pulling on it. This may disconnect a wire and
cause a short circuit.

8
IMPORTANT SAFETY INFORMATION
INSTALLATION & USAGE
CAUTION
• There is a risk of death from suffocation if a child puts the packing materials on his
or her head.
• Do not store any articles on top of the appliance. Articles may fall while opening or
closing the door, and could cause personal injury or material damage.
• Do not store pharmaceutical products, scientific materials or other
temperature-sensitive products in the refrigerator. Products that require strict
temperature controls must not be stored in the refrigerator.
• Do not let children hang on the door.
• Do not touch any cold surfaces or food containers in the freezer with damp or wet
hands. Skin may stick to these extremely cold surfaces and may cause frostbite.
• Remove any foreign matter from the power plug pins. Otherwise, there is a risk of
fire.
• Do not insert your hand into the bottom area of appliance. Any sharp edges may
cause personal injury.
• After unplugging the appliance, wait at least five minutes before plugging it back in.
Abnormal operation of the freezer may cause material damage.
• If the appliance is not used for a long period of time, unplug it from the power
supply. Any deterioration in the insulation may cause fire.
• Do not let children touch or play with the control panel on the front of the appliance.
- Do not allow children to play with this appliance.
- Do not stand or lean on the base panel, pull-out parts, or doors.
- Repairs and maintenance of the appliance should only be performed by a qualified
technician. Incorrect repairs done by an unqualified person may be a potential
source of danger that could have critical consequences for the user of the
appliance.
- Never put ice cubes or ice pops straight from the freezer into your mouth.
The low temperature may cause cold burns.

9
IMPORTANT SAFETY INFORMATION
The refrigeration used in refrigerator/freezer and the gases in the insulation
material require special disposal procedures. Ensure that none of the pipes on
the back of the appliance are damaged prior to disposal.
WARNING
CAUTION
Before disposing of old appliances, make them inoperable. Remove plug from mains,
severe the power cable, and remove or destroy any snap or latch closures.
This eliminates the danger of any children locking themselves into the appliance
(danger of suffocation) or placing themselves into other life-threatening situations.
• The appliance may not be disposed of with domestic waste or bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of the appliance,
may not be damaged.
• Information concerning collection schedules or locations can be obtained from the
local disposal authorities.
PROPER DISPOSAL OF OLD APPLIANCE
BEFORE YOU CALL FOR SERVICE
For environmental purposes, refrigeration appliances must be properly disposed.
This applies to your old appliance, and at the end of its service life, for your new
appliance as well.
Before contacting our Service Department, review the detailed troubleshooting tips in
the Owner’s manual.
1. Try to remedy the problem. Please read the “Troubleshooting Guide” section.
2. Restart the appliance to check whether the fault repeats. If the malfunction
persists, switch off the appliance and try again after an hour.
3. If the malfunction still persists, then contact our Customer Service, specifying:
• The nature of the problem
• The appliance model number and serial number
• Your full address, telephone number and area code

10
SPECIFICATIONS
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
1.7
1.7
1.9
1.9
181 lbs.
190 lbs.
210 lbs.
240 lbs.
JUR-36S-N6
JUR-48S-N6
JUR-60S-N6
JUR-72S-N6
1/6
1/6
1/5
1/5
115V/60Hz
115V/60Hz
115V/60Hz
115V/60Hz
R-600a
R-600a
R-600a
R-600a
Undercounter Refrigerators - Narrow
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
1.7
1.7
1.9
1.9
190 lbs.
222 lbs.
250 lbs.
295 lbs.
JUR-36-N6
JUR-48-N6
JUR-60-N6
JUR-72-N6
1/6
1/5
1/5
1/5
115V/60Hz
115V/60Hz
115V/60Hz
115V/60Hz
R-600a
R-600a
R-600a
R-600a
Undercounter Refrigerators
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
3.2
3.8
6.2
6.1
171 lbs.
200 lbs.
235 lbs.
279 lbs.
JBT-36-N
JBT-48-N
JBT-60-N
JBT-72-N
2/5
2/5
1/2
1/2
115V/60Hz
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
R-290
Buffet Display Tables
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.1
2.2
5.1
290 lbs.
400 lbs.
550 lbs.
JUR-44D-N
JUR-67D-N
JUR-93D-N
2/5
1/2
1/2+
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Undercounter Refrigerators - Extra Deep
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.4
3.2
3.5
3.2
177 lbs.
212 lbs.
231 lbs.
275 lbs.
JST-36-N
JST-48-N
JST-60-N
JST-72-N
1/3
1/3
2/5
2/5
115V/60Hz
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
R-290
Sandwich / Salad Units

11
SPECIFICATIONS
SERIAL NUMBER
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.3
2.3
2.3
272 lbs.
312 lbs.
370 lbs.
JUR-48-G-N
JUR-60-G-N
JUR-72-G-N
1/4
1/4
1/4
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Undercounter Refrigerators - Glass Door
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.6
2.6
4.8
197 lbs.
232 lbs.
257 lbs.
JUF-36-N
JUF-48-N
JUF-60-N
1/3
1/3
1/2
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Undercounter Freezers
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.8
2.6
4.0
181 lbs.
190 lbs.
210 lbs.
JUF-36S-N
JUF-48S-N
JUF-60S-N
1/3
3/8+
3/8+
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Undercounter Freezers - Narrow
The serial number is on the rating label located on the left interior wall.
Please retain the unit’s serial number for service purpose.
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.6
4.5
4.8
293 lbs.
405 lbs.
555 lbs.
JUF-44D-N
JUF-67D-N
JUF-93D-N
1/2
1/2
1/2+
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Undercounter Freezers - Extra Deep
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.5
2.6
3.5
230 lbs.
260 lbs.
295 lbs.
JURF-48-N
JURF-60-N
JURF-72-N
1/3
1/3
2/5
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Dual Temp. Undercounters

12
NOTICE TO CUSTOMER
INSTALLATION
Loss or spoilage of products in your refrigerator/freezer is not covered by warranty.
In addition to following recommended installation procedures, you must run the
refrigerator/freezer 24 hours prior to usage.
1. LOCATION - Allow adequate space and install the refrigerator on a firm and level floor.
If the appliance is not level, there may be unusual noises and poor cooling performance.
2. GOOD AIR CIRCULATION - Be sure to avoid any partition and object which may
stop the air flow and that air space is allowed to flow to the rear and/or sides of the unit
between the refrigerator and the back wall. Insufficient space causes vibration noise,
inefficient refrigeration, damage to the refrigeration system, and the waste of
electricity (Turbo Air recommends that the rear of the unit should be no less than
5 inches from the wall).
3. PLACE ON STRONG FLOOR - Be sure that the floor on which the unit is to be installed
is strong enough to support the total weight of the cabinet and any other contents,
before starting the installation.
4. DO NOT PLACE NEAR HEAT - Be sure to avoid hot corners and other locations such
as near stoves. High ambient temperature will result in much lower cooling efficiency.
5. INDOOR USAGE ONLY - Be sure to install this unit indoors only, to prevent getting wet
from the rain. Do not install the refrigerator in locations where the temperature is over
100°F (43°C) or below 50°F (10°C).
6. STABILIZING- Make sure the unit is installed in a stable condition with the front wheels
locked while in use.
7. LEVELING- Be sure that the unit levels from the front to the back and side to side.
8. UNIT SHOULD BE ON DEDICATED OUTLET - Plug the refrigerator into a wall socket
exclusively for this appliance. Do not run on extension cord.
9. THE ELECTRICAL PLUG MUST BE ACCESSIBLE WITHOUT MOVING THE UNIT.
10. WHEN POSITIONING FOOD FOR STORAGE, A MAXIMUM OF ONE SHELF MAY
BE LOADED LESS THAN 110lb (50kg), BUT DO NOT ALLOW LOADS TO OVER
HANG FROM THE FRONT AND REAR EDGES OF SHELVES.

13
PART NAME AND FUNCTION
1. THE STRUCTURE OF SANDWICH / SALAD UNITS
2. THE STRUCTURE OF UNDERCOUNTERS
EVAPORATOR
STRONG COOLING CYCLE
COOLING AIR EXIT
COOLING AIR ENTRANCE
DOOR
SHELVES
PAN
SIDE COVER
MAIN PCB
DISPLAY PCB
FRONT COVER
CONDENSER
FAN MOTOR
COUNTER TOP
SIDE COVER
MAIN PCB
CONDENSER
FAN MOTOR
SHELVES
DOOR
DISPLAY PCB
FRONT COVER
EVAPORATOR
STRONG COOLING CYCLE
COOLING AIR EXIT
COOLING AIR ENTRANCE
LAMP SWITCH
※ Lamp switch is located under the top table.

14

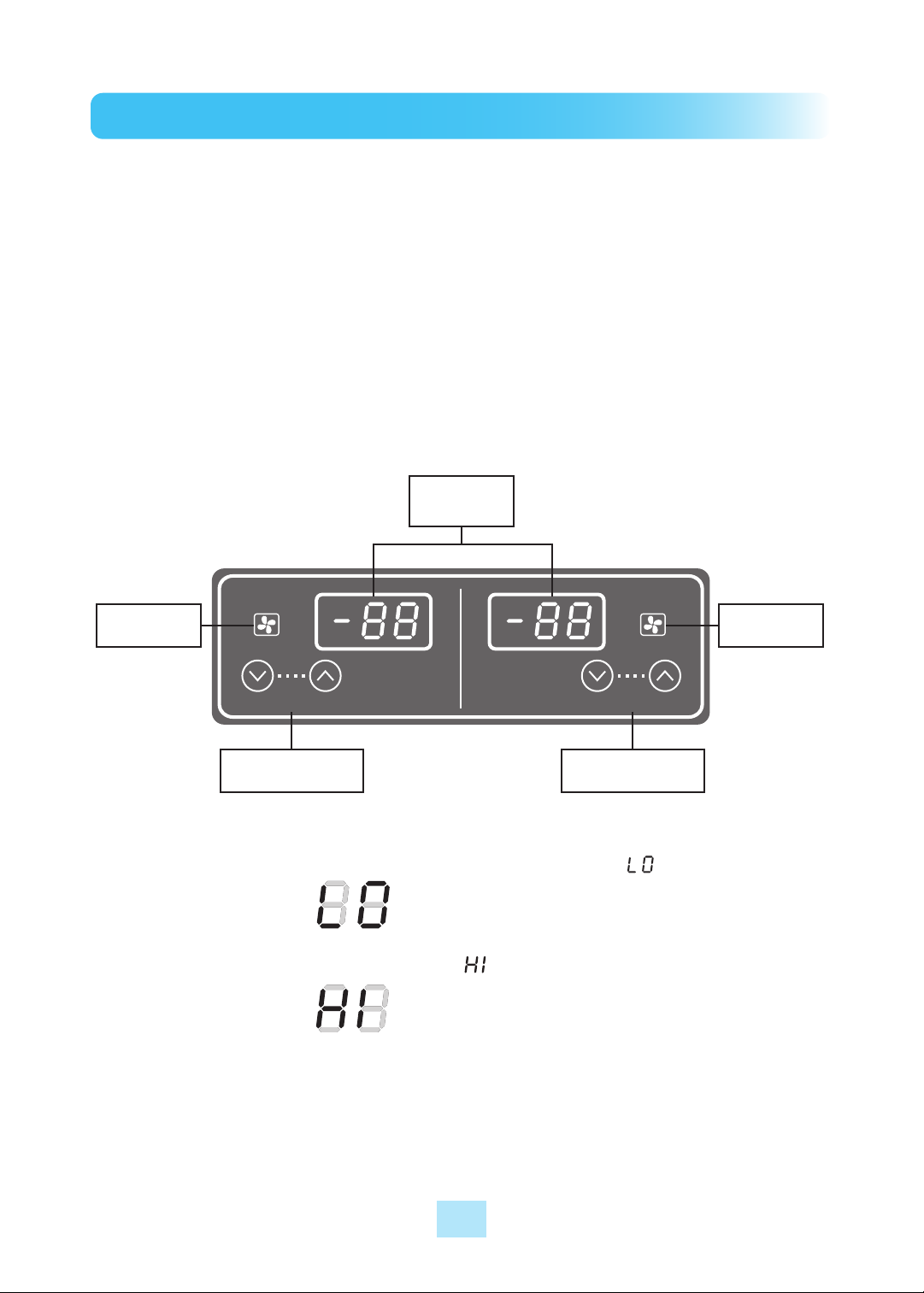

DISPLAY PANEL OF REFRIGERATOR AND FREEZER
BASIC OPERATION
1. Plug in and turn on the power switch located on the top side of the unit front cover.
The display panel will be lighted and make a beep sound. The compressor will
begin to run.
2. The default temperature setting is No. “4”.
3. The compressor is automatically cycled by the electronic controller (PCB).
4. The defrost cycle is automatically controlled by the PCB.
5. Set level toward “1” for higher temperature and “8” for lower temperatures.
6. Good air flow in refrigerator unit is critical.
Be careful to load product so that it neither presses against the back wall, nor
reaches within four inches from the evaporator compartment.
- By pushing the up/down button, you can set the inside temperature.
- If you want lower temperature push the down button to be lighted lower level numbers.
- When the inside temperature is lower than -49ºF (-45ºC), the panel will display ‘ ’
and higher than 64.4ºF (18ºC), the panel wil display ‘ ’.
FREEZER
FAN
TEMPERATURE
Current Setting
TURBO FREEZE
REFRIGERATOR
Current Setting
MEAT
TEMPERATURE
FAN
TEMP.
SETTING
MEAT BUTTON
TEMP. CONTROL
BUTTON
TEMP. CONTROL
BUTTON
EVA FAN
INDICATOR
TEMP.
SETTING
TURBO FREEZE
EVA FAN
INDICATOR

15
DISPLAY PANEL OF DUAL TEMP
BASIC OPERATION
1. Plug in and the display panel will be lighted and make a beep sound. The compressor
will begin to run.
2. The compressor is automatically cycled by the electronic controller (PCB).
3. The defrost cycle is automatically controlled by the PCB.
4. Good air flow in freezer/refrigerator unit is critical.
Be careful to load product so that it neither presses against the back wall, nor
reaches within four inched from the evaporator compartment.
- When the inside temperature is lower than -49ºF (-45ºC), the panel will display ‘ ’
and higher than 64.4ºF (18ºC), the panel wil display ‘ ’.
- By pushing the up/down button, you can set the inside temperature.
- If you want lower temperature push the down button to be lighted lower level numbers.
TEMP.
SETTING
REFRIGERATORFREEZER
TEMPERATURE
TEMP. CONTROL
BUTTON
TEMP. CONTROL
BUTTON
TEMPERATURE
EVA FAN
INDICATOR
EVA FAN
INDICATOR

16

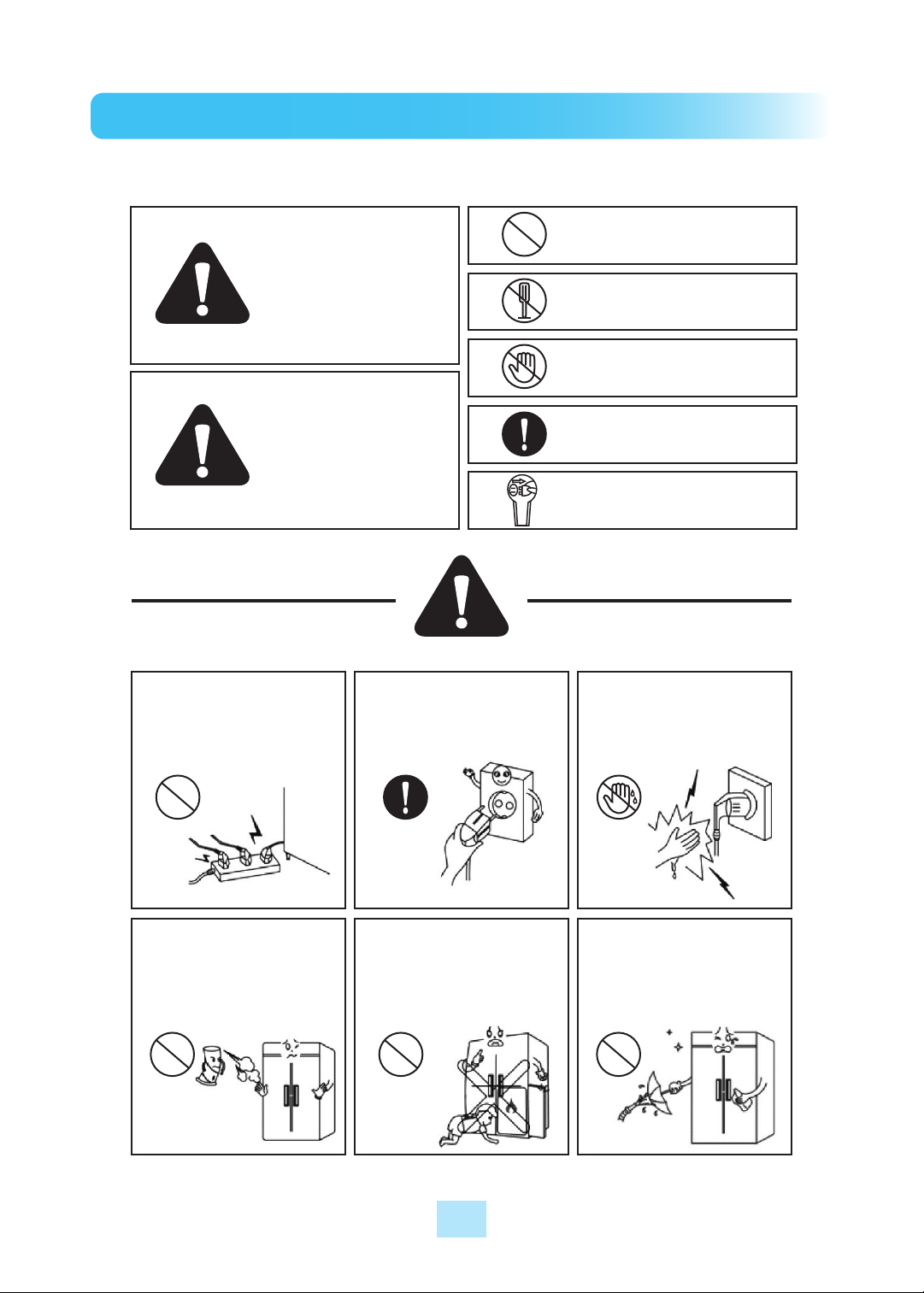

CAUTION
WARNING
PROHIBITION
NO SCREW
NO TOUCH
OBEY
PLUG OFF
It is dangerous
for people

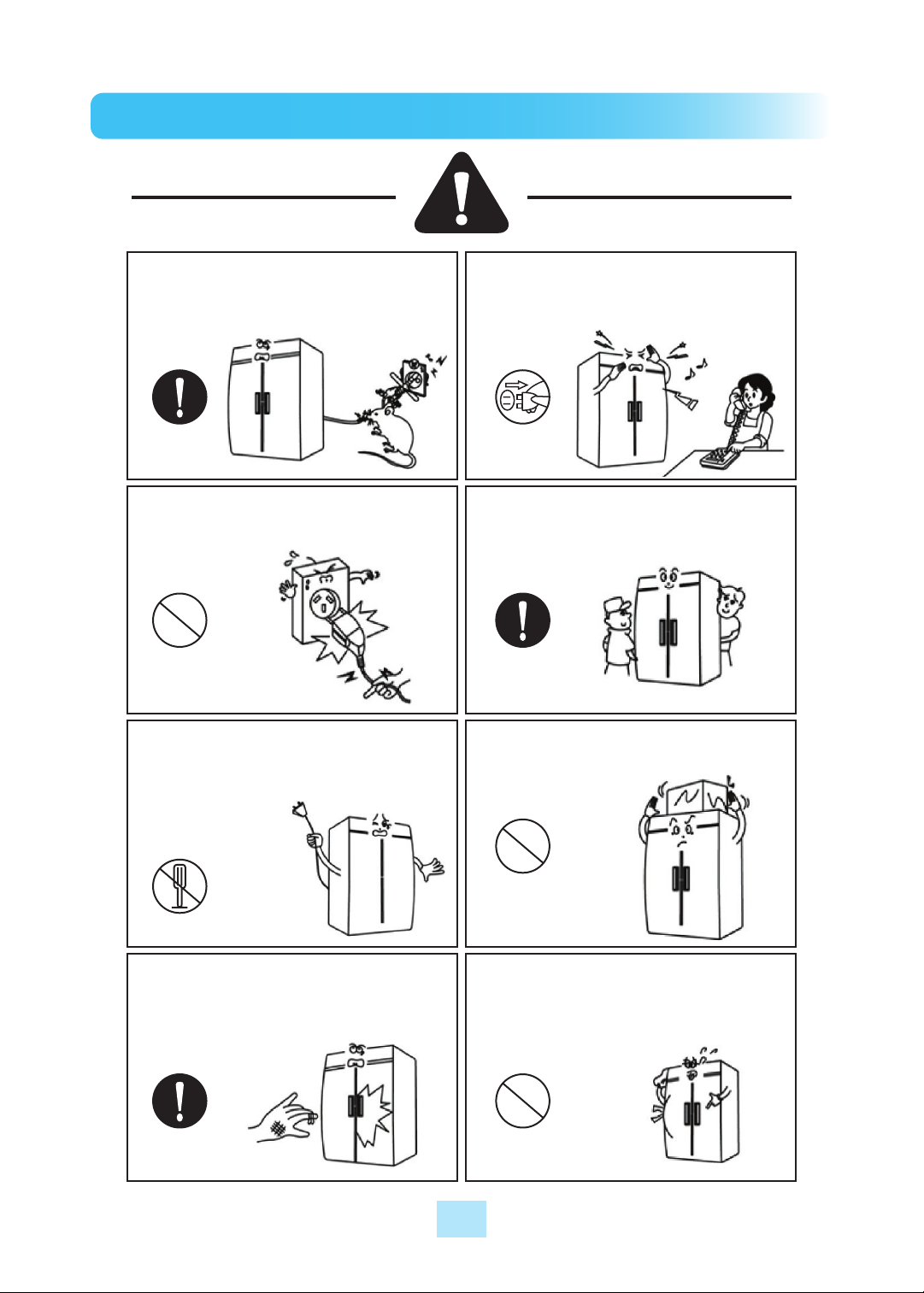

Be sure not to put more
plug in the socket.
Please use a dedicated
socket!
Wet hands off the power
- Overheated wire will cause fire!
Be sure not to spray
flammable aerosol around
the product!
Be sure not to allow
children to enter the
product!
Please do not water
product!
- Explosion, fire etc. - Life is in danger.
- Fire, electric shock etc.
- Life is in danger.
CAUTION
It will cause injury
to human or
lost of property
MARK AND NOTE

17
CAUTION
Do not put bottled drinks in the
refrigerator for a long time.
- Frost crack
Be sure not to touch the power when
the gas leak.
- Leave the scene quickly after opening the windows.
Disassemble all the switch gear
before scrap.
- It hides danger when the children play in the unit.
Please do not squeeze the power
so that it is damaged.
- Fire, electric shock etc.
(GOOD)
AC 115V 15A
(NOT GOOD)
Be sure not to use abrasive cleaner.
- It will scratch the surface of product.
Be sure to avoid any partition and
object which may stop air flow.
Please do not disassemble, repair
or alter products!
- Fire, electric shock etc.
Please do not damage the power
cord.
- Fire, electric shock etc.

18
CAUTION
Please choose the environment
without rat to set the product.
- Damage the power that will cause fire.
Do plug the power without dragging!
- Wire breakage
Please ask more people to carry
the unit.
- No tilt.
Do hold the door handle to open or
close the door.
- It may cause injury when operator hold other parts. - The objects will fail to hit the operator with opening
the door.
Be sure not to put too many objects
in the refrigerator.
When the abnormal situation occurs,
unplug the power then contact the
nearest service center.
Be sure not to disassemble or replace
the power which is damaged.
- Please contact the after
sale service or ask a
professional repairman
in time.
No object on top of unit.
- Electric shock, fire, explosion etc.

19
CAUTION
Be sure not to put pharmaceuticals
and chemicals.
- It will result in an explosion.
Please keep the plug clean.
- The dust and water will cause short circuit.
Be sure not to put hot food in the unit.
Be sure not to plug in the loose
socket.
- Fire, electric shock etc.
Not touch the top and bottom of unit.
- It will cause injury.
Be sure not to store volatiles and
combustibles.
Be sure to avoid the children touching
the unit.
- It is dangerous.
- It is dangerous.
Please use the leakage protector to
prevent the short circuit.

20
INSTALLATION AND OPERATION
INSTALLATION NOTE
Be sure to set the unit in door.
- To prevent damage, leakage.
Be sure to avoid corrosive environment.
- It will shorten the life of the unit.
Be sure no object is on the top of
the product.
Be sure to avoid damp and dusty
environment.
- Electric shock.
Be sure the power cord is connected
to the proper voltage.
- The product is special for 110V
- It can’t be used with the voltage of 220V
- Please connect the power with leakage protector.
Be sure that the location be chosen
has a strong enough floor to support
total weight of the cabinet and other
contents.
- The uneven will make
noise and shake.
- The objects will fall
to hit the unit.
Be sure the unit is away from the wall
at least 15cm.
- Good air circulation.
Please use the casters
or legs.
