Turboair TBC-24SD User manual

Turbo air
REFRIGERATOR MANUFACTURER
Commercial
Refrigerator
Service Manual
Horizontal Bottle Coolers
Model No. : TBC-24SD/SB
TBC-36SD/SB
TBC-50SD/SB
TBC-65SD/SB
TBC-80SD/SB
TBC
-
95SD/SB
TBC
95SD/SB

TABLE OF CONTENTS
1. FEATURE CHART
2. WIRING DIAGRAM
3. PART DETAILS
4. MAIN COMPONENTS
5. TEMPERATURE CONTROL INSTRUCTION
6. PARTS LIST
7. REPLACEMENT OF MAIN COMPONENTS

1. FEATURE CHART
1-1. TBC-24SD/SB

FEATURE CHART
1-2. TBC-36SD/SB

FEATURE CHART
1-3. TBC-50SD/SB, TBC-65SD/SB
1

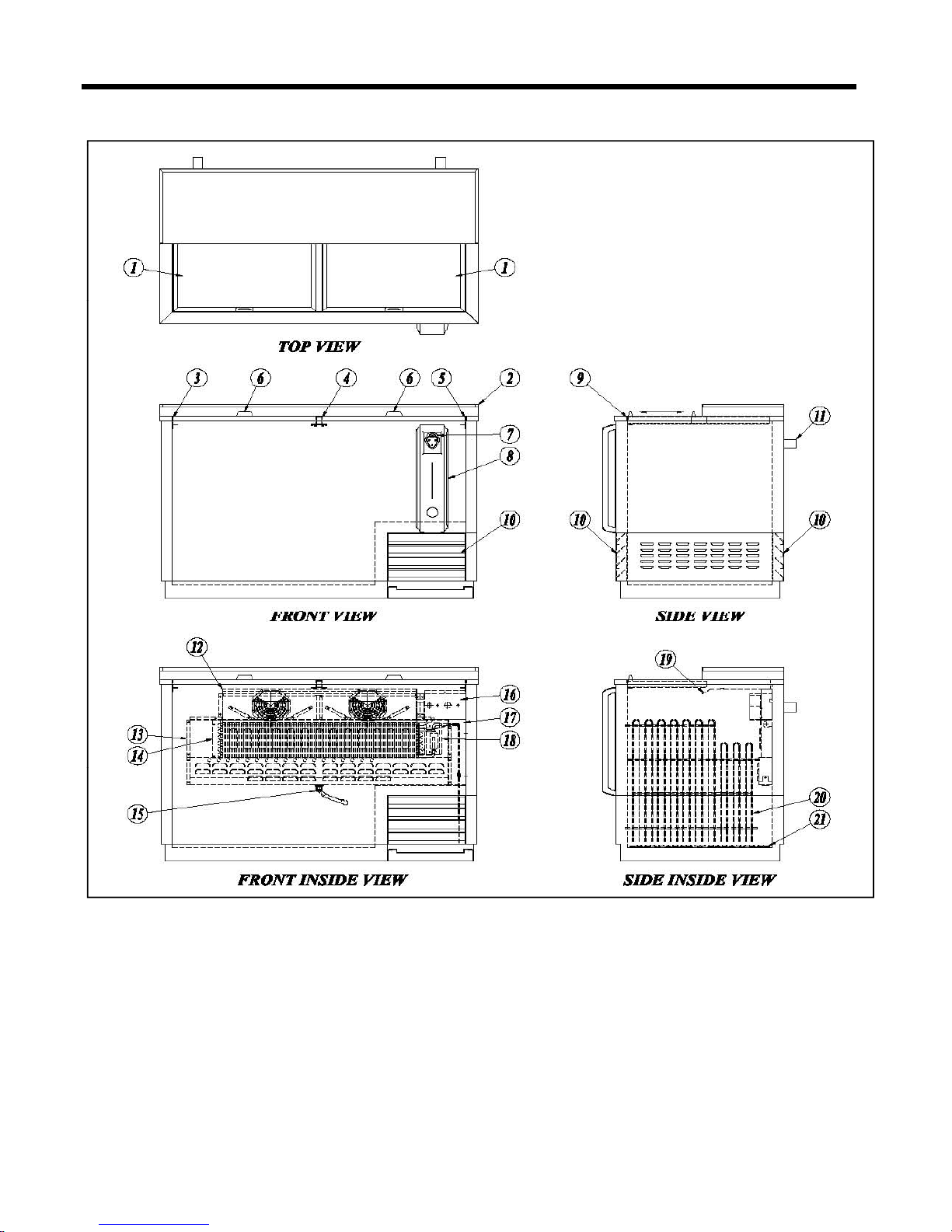

LID
11 CUSHION SPACER
1
.
LID
2. COUNTER TOP
3. LID RAIL LEFT
4. LID RAIL MIDDLE
5. LID RAIL RIGHT
6. LID HANDLE
7. CAP OPENER
8
CAP CATCHER
11
.
CUSHION SPACER
12. DUCT(A)
13. DUCT(B) (LOUVERED)
14. EVAPORATOR COIL
15. EVAPORATOR DRAINELBOW & HOSE
16. TEMPERATURE CONTROL BOX
17. SUCTION LINE COVER
18
LEAK TEST COVER
8
.
CAP CATCHER
9. LID RAIL FRONT
10. GILLE ASSEMBLEY(FRONT = REAR)
18
.
LEAK TEST COVER
19. AIR GUIDE
20. DIVIDER
21. SHELF BOTTOM

FEATURE CHART
1-4. TBC-80SD/SB, TBC-95SD/SB
1~21 PART : Refer to the TBC-50SD/SB LIST
22. DUCT(C)
23. DUCT(D)
24. SUCTION LINE COVER(HORIZONTAL)

2. WIRING DIAGRAM

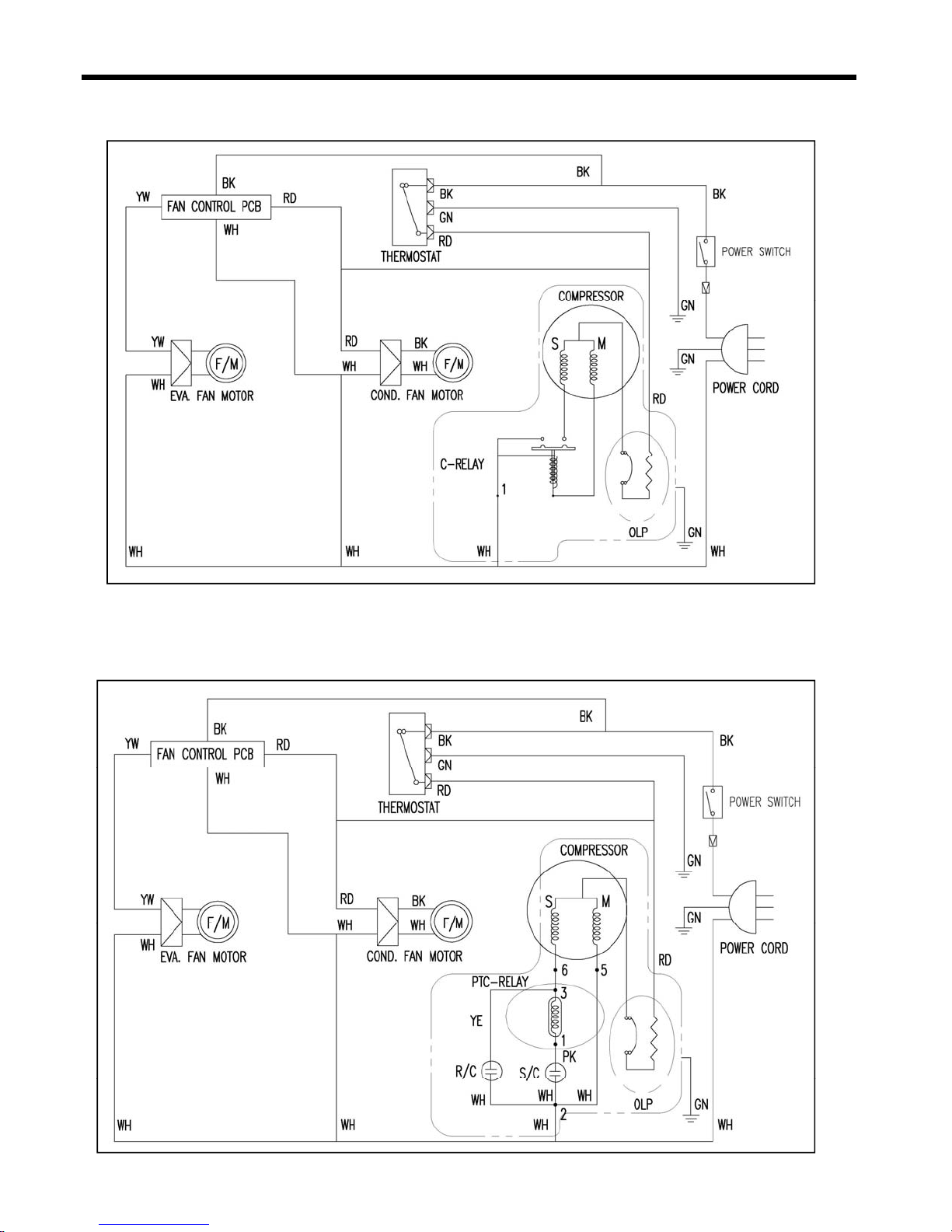

2-1. TBC-24SD/SB
2-2. TBC-36SD/SB

WIRING DIAGRAM
2-3. TBC-50SD/SB, TBC-65SD/SB
2-4. TBC-80SD/SB, TBC-95SD/SB

3. PART DETAILS
3

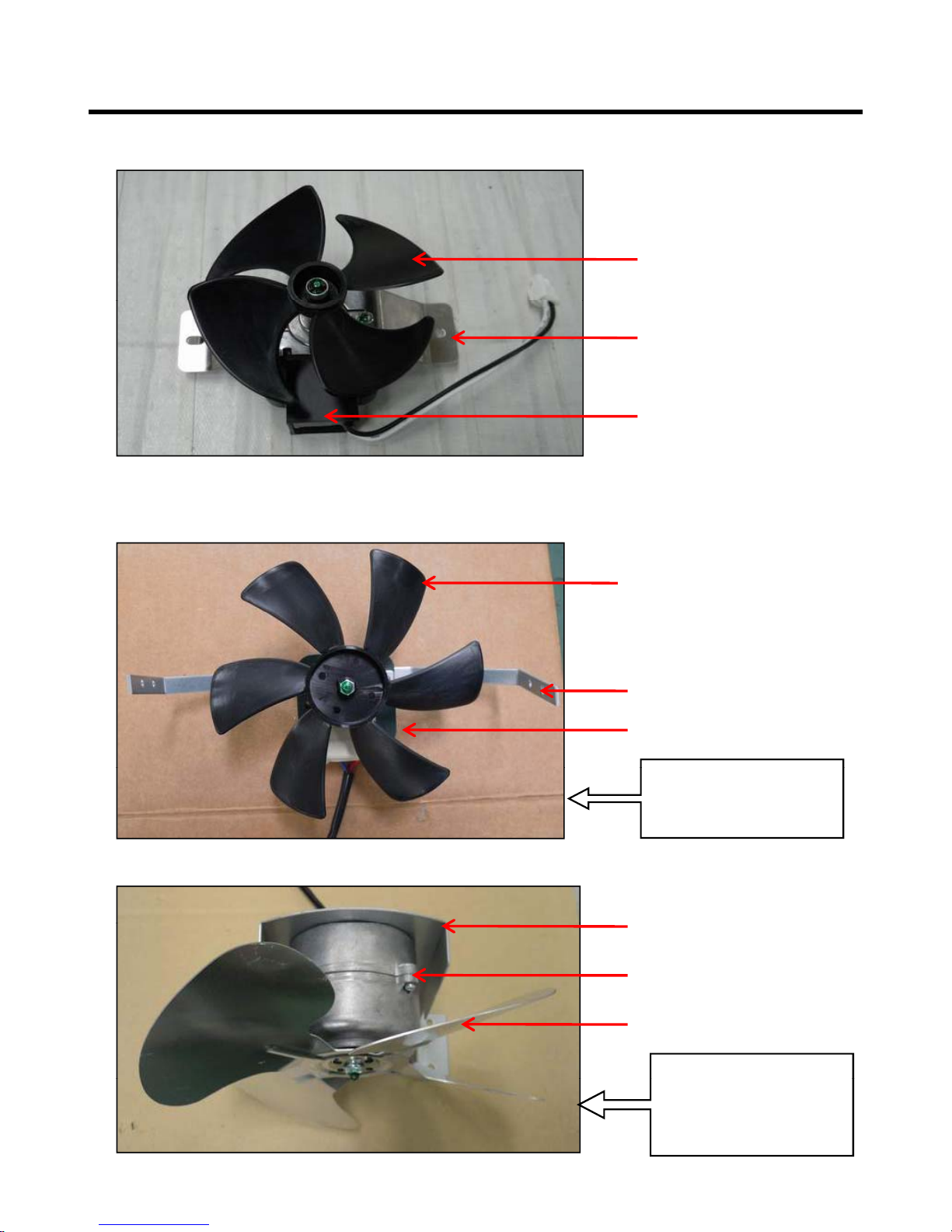

1 EVAPORATOR FAN MOTOR
3
-
1
.
EVAPORATOR FAN MOTOR
Evaporator Fan Blade
Motor Bracket
Evaporator Fan Motor
3-2. CONDENSER FAN MOTOR
Condenser Fan Blade
Motor Bracket
Condenser Fan Motor
Mt B kt
TBC-24SD/SB
TBC-36SD/SB
M
o
t
or
B
rac
k
e
t
Condenser Fan Motor
Condenser Fan Blade
TBC
-
50SD/SB
TBC
50SD/SB
TBC-65SD/SB
TBC-80SD/SB
TBC-95SD/SB

PART DETAILS
3-3. DUCT(A) : EVAPORATOR FAN MOTOR DUCT
3-4. DUCT(B),(C),(D)
DUCT(C) DUCT(B) DUCT(D)

PART DETAILS

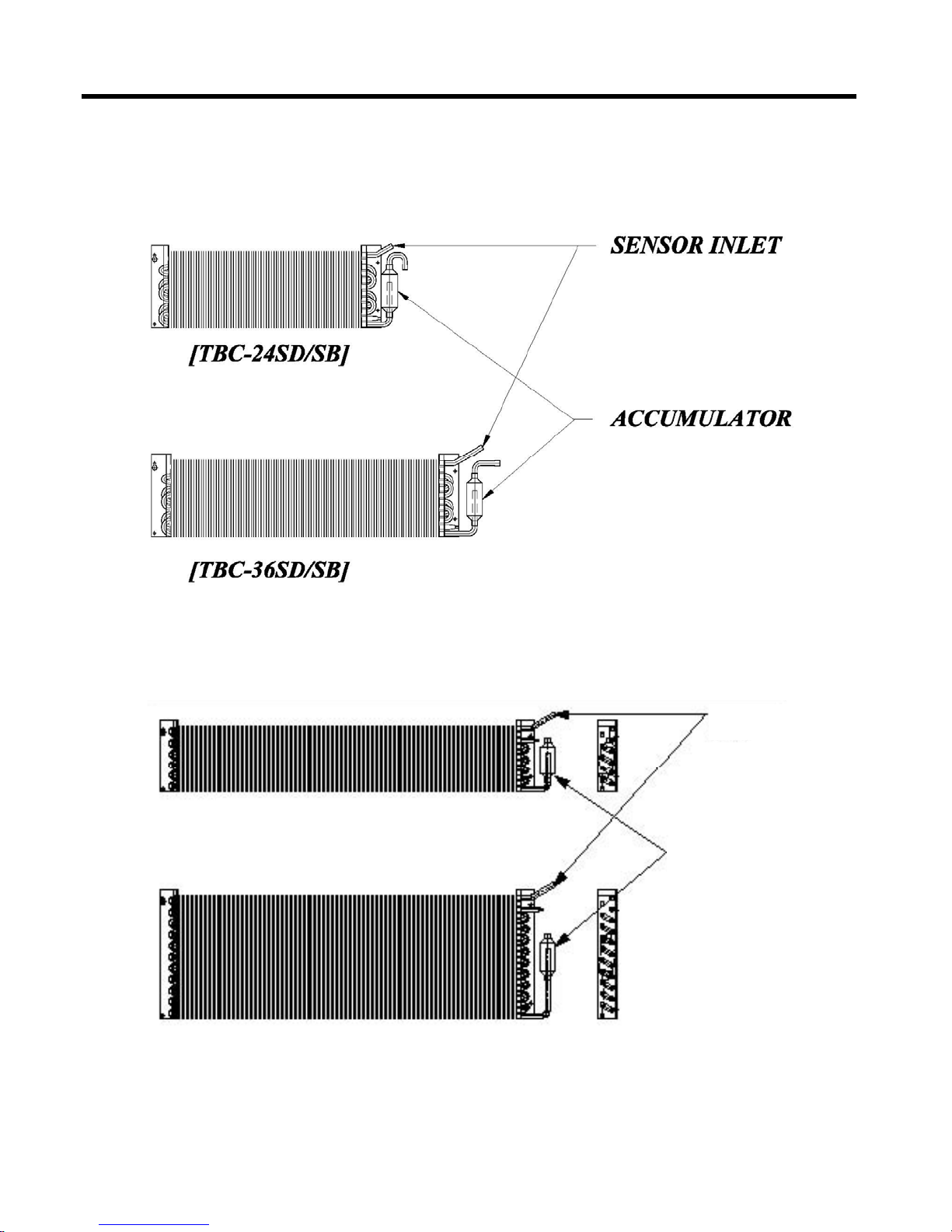

3-5. EVAPORATOR COIL
SENSOR INLET
[ TBC-50SD/SB, TBC-65SD/SB ]
ACCUMULATOR
[ TBC-80SD/SB, TBC-95SD/SB ]

PART DETAILS
3
-
6 CONDENSER COIL
3
6
.
CONDENSER
COIL
[ TBC-50SD/SB, TBC-65SD/SB ] [ TBC-80SD/SB, TBC-95SD/SB ]

PART DETAILS
3-7. DIVIDER
[ TBC-24SD/SB]
[ TBC-36SD/SB, TBC-50SD/SB, TBC-65SD/SB ] [ TBC-80SD/SB, TBC-95SD/SB ]
3-8. DIVIDER SPRING

PART DETAILS
3-9. COUNTER TOP

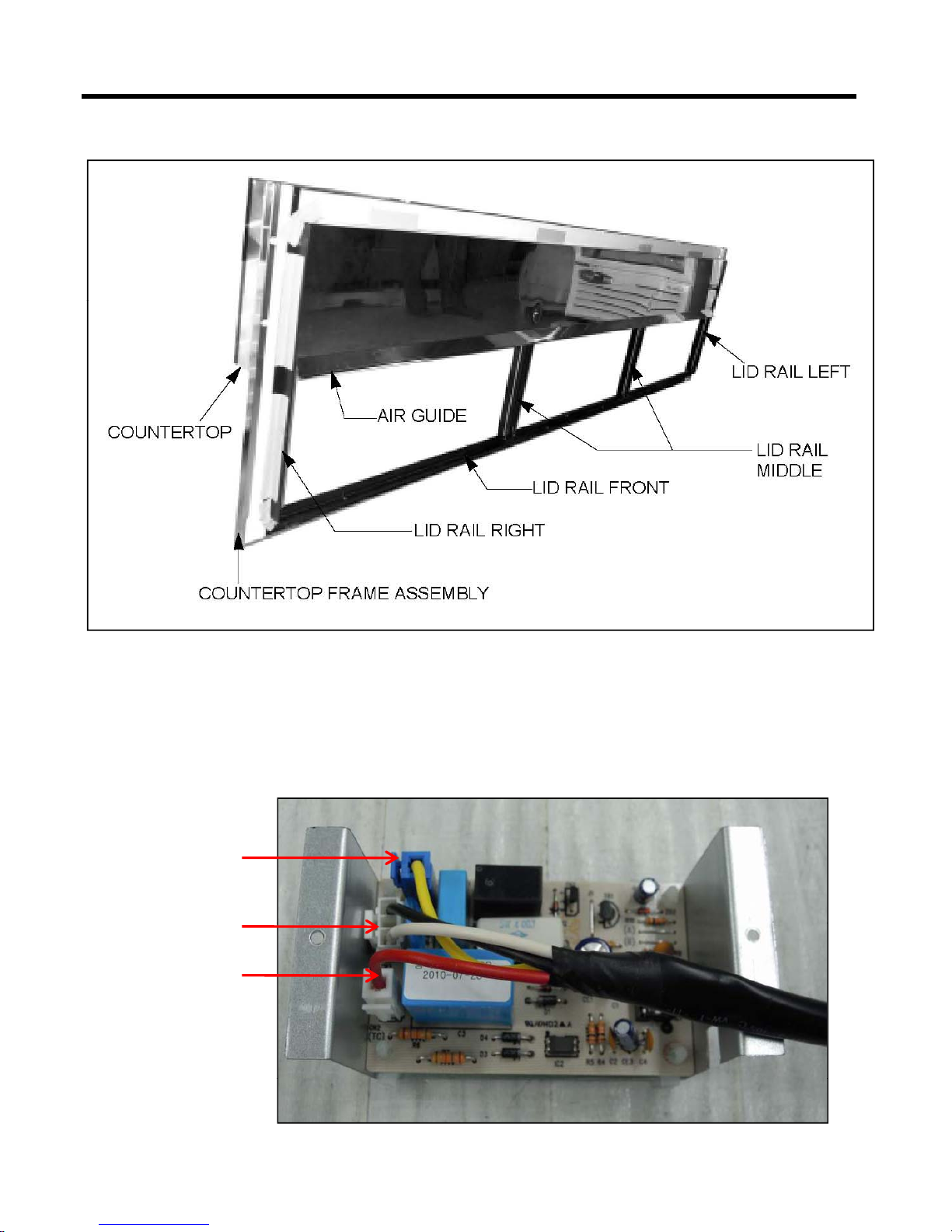

3-10. Fan Control PCB
Fan output
AC input
AC input
Compressor
on/off signal

4. MAIN COMPONENTS
1 COMPRESSOR
1
.
COMPRESSOR
MODEL PARTNAME PARTNO. HORSE CAPACITY TYPE OF Current MAKER
POWER MOTOR (RLA)
TBC-24SD/SB HFL11Y-1 30289A0400 1/10HP 373BTU/h LBP 1.9A DAEWOO
(94Kcal/h) RSIR
896BTU/h
LBP
TBC-36SD/SB HBL27YE-1 3952127G10 1/4HP
896BTU/h
LBP
3.7A DAEWOO
(226Kcal/h) CSR
TBC-50SD/SB SK1A1C-L2W 30200Q1200 1/3HP 1,202BTU/h LBP 4.0A SAMSUNG
TBC-65SD/SB (303Kcal/h) CSR
TBC-80SD/SB CAE4456Y 30200B4500 1/2HP 5,592BTU/h HBP 9.0A TECUMSEH
TB
C
-
95S
D
/S
B(1,410Kcal/h)
CSIR
2. COMPRESSOR RELAY, OVERLOAD
C
95S /S
MODEL RELAY OVERLOADPROTECTOR MAKER
TBC-24SD/SB S068(PTC-RSIR) 4TM-293THBYY-52 DAEWOO
TBC-36SD/SB S068(PTC-CSR) 4TM 783SHBZZ-52 DAEWOO
TBC-50SD/SB J531Q34E22OM3503 4TM795TFBZZ-53 SAMSUNG
TBC-65SD/SB
TBC-80SD/SB KPF498***** T0889 TECUMSEH
TBC
95SD/SB
3. COMPRESSOR CAPACITOR
TBC
-
95SD/SB
MODEL STARTING PARTNO. RUNNING PARTNO.
TBC-24SD/SB - - - -
TBC-36SD/SB 220V/100㎌3017906900 230V/10㎌381791600
TBC-50SD/SB 125V/ 125㎌- 250V/ 12㎌-
TBC-65SD/SB
TBC
80SD/SB
TBC
-
80SD/SB
160V/ 315㎌---
TBC-95SD/SB

MAIN COMPONENTS
4 EVAPORATOR FAN MOTOR
4
.
EVAPORATOR
FAN
MOTOR
5. CONDENSER FAN MOTOR
MODEL PARTNAME PART NO. POLE BLADE SIZE MAKER
ALL DAI-6202DEUA 3963339930 2P ZITEL 110mm DAE-YOUNG
MODEL PART NAME PARTNO. POLE BLADE SIZE MAKER
TBD-1SD IS-3225DWSQ-2 3963326710 2P ZITEL 150mm SUNG-SHIN
TBB-1SB
TBC-50SD/SB
6. THEMOSTAT
IS-4420DWSG-1
3963320410 4P Aluminum 200mm SUNG-SHIN
TBC-65SD/SB
TBC-80SD/SB
TBC-95SD/SB
MODEL PARTNAME PARTNO. MAKER
ALL GNA-242L 30283F1000 SHIN-HAN
▶
THERMOSTAT ON/OFF SPEC
▶
THERMOSTAT
ON/OFF
SPEC
.
MODEL WARM NORMAL COLD
On Off On Off On Off
GNA-242L 8.0 -5.0 5.0 -9.0 2.8 -12.5
7. FAN-CONTROL PCB
MODEL PARTNAME PARTNO. MAKER
ALL FANCONTROL PCB P0143A0100 NEUROSYS

5. TEMPERATUR CONTROL INSTRUCTION

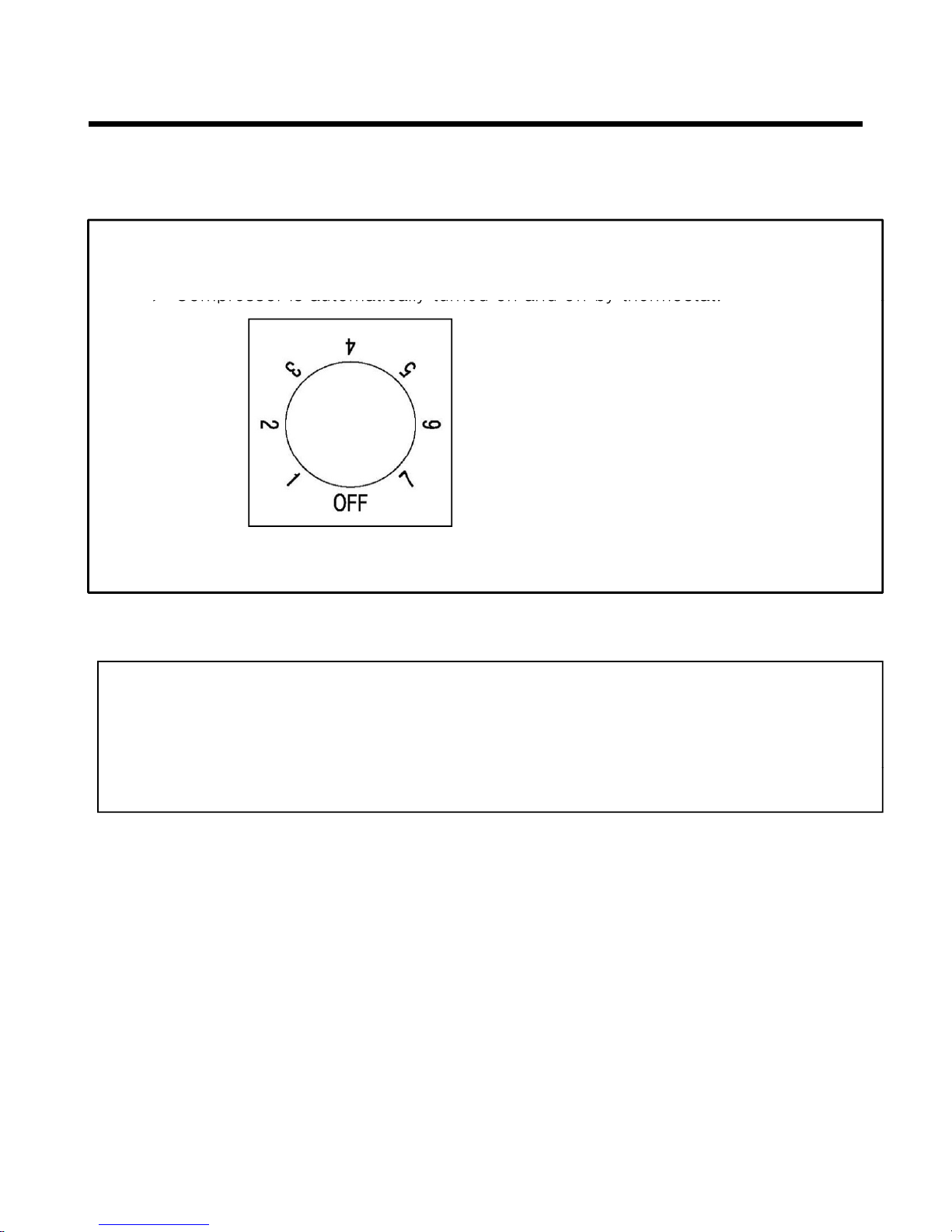

5-1. HOW TO USE THE TEMPERATURE CONTROL
▶ Temperature can be controlled by the user.
▶ Settings can be changed by “Dial Knob”.
▶
Compressor is automatically turned on and off by thermostat.
▶
Compressor
is
automatically
turned
on
and
off
by
thermostat.
TEMPERATURE CONTROL
5-2. FAN CONTROL PCB
▶ Cooling Fan Motors are controlled by “Fan Control PCB”
▶ Cooling Fan Motors are continuously operating while compressor is operating
▶ It is repeated during compressor is not operaing that Cooling Fan Motors are
not operating 3 minutes and operating 1 minutes.

6. PARTS LIST

PARTS LIST

7. REPLACEMENT OF MAIN COMPONENTS
▶
CAUTION : U l th it b f l i t
7-1. REPLACING DOOR THE EVAPORATOR COIL
▶
CAUTION
:
U
n
pl
ug
th
e un
it
b
e
f
ore re
pl
ac
i
ng an
y
p
ar
t
.
A. Remove all lids. Remove the dividers.
(Now, you can replace the evaporator fan motor or the temperature control(thermostat) if you
unscrew the duct(A) or the temperature control box.)
B. Cut the silicone line around the countertop frame with a knife.
Remove all screws in back of the countertop frame.
C. Remove all the screws around the lid rail.
Lift the countertop from the rear first. Push countertop forward and top will come off.
