TurboCharge EVC15 Series User manual
USER MANUAL
1
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS ........................................... 2
2. PRODUCT INTRODUCTIONS.............................................................. 6
3. VERIFY CONTENTS................................................................................ 9
4. GATHER TOOLS..................................................................................... 11
4. PLAN THE MOUNTING ........................................................................ 12
5. MOUNT THE CHARGING STATION ................................................ 13
6. WIRE THE CIRCUIT............................................................................... 14
7. OPERATE YOUR DEVICE................................................................... 15

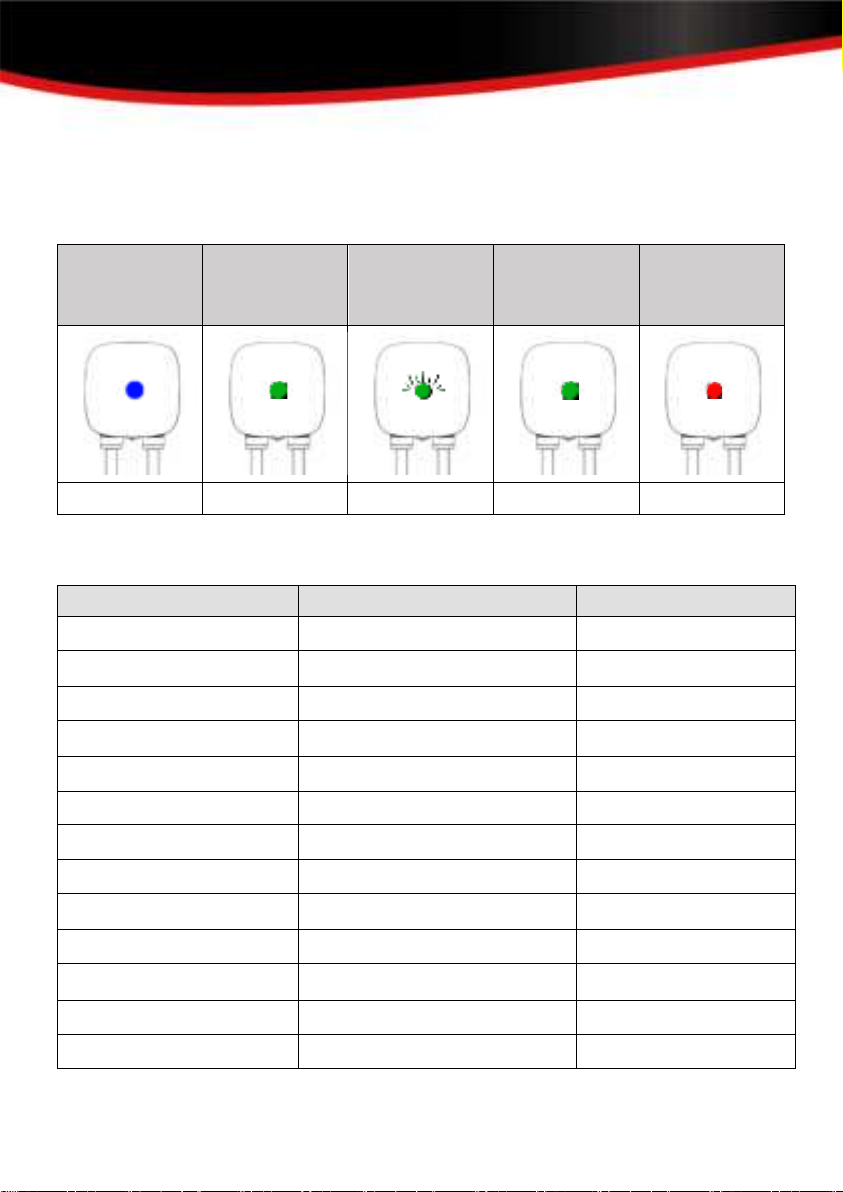

8. LIGHT CODES......................................................................................... 19
9. SMART APP GUIDE (OPTIONAL).................................................... 20
10. FCC STATEMENT................................................................................... 20
11. WARRANTY AND MAINTENANCE .................................................. 21
USER MANUAL
2
I
1. Important Safety Instructions
WARNING: To avoid fire, injury or death, carefully read and follow the instructions
during installation, operation and maintenance.
- DO NOT put fingers into the electric vehicle connector.
- DO NOT use this product if the flexible power cord or EV cable is frayed,
insulation-broken, or any other signs of damage.
- DO NOT use this product if the enclosure or the EV connector is broken, cracked,
open, or shows any other indication of damage.
- DO NOT remove cover or attempt to open the enclosure because of risk of electric
shock.
WARNING: This device should be supervised when used around children.
WARNING: This device must be grounded.
WARNING: To avoid a risk of fire or electric shock, do not use this device with an
extension cord.
WARNING: The suitability of the use of flexible cord in accordance with CE code, part
I, rule 4-012, is to be determined by the local inspection authority.
WARNING: To reduce the risk of fire, connect only to a circuit provided branch circuit
over-current protection in accordance with the CSA C22.115 Canadian Electrical
Code, Part 1 (Canada) or NOM-001-SEDE Electrical installations (utility) (Mexico) or
ANSI / NFPA 70 National Electrical Code (USA).
Circuit Breaker Options table
Output Amperage (A)
16A
32A
40A
48A
Circuit Breaker Options (A)
20A
40A
50A
60A
WARNING & CAUTION
USER MANUAL
3
WARNING: Disconnect electrical power prior to installing the charging station.
WARNING: Be sure to preview the user manual and ensure local building and
electrical codes are reviewed before installing the AC charger.
WARNING: The AC charger should be installed by a qualified technician according to
the user manual and local safety regulations.
CAUTION: Use appropriate protection when connecting to the main power
distribution cable.
CAUTION: Type B, C or D breaker with the rating current for table should be installed
in the upstream AC distribution box.
CAUTION: Disconnect switch for each ungrounded conductor of AC input shall be
provided by others in accordance with the National Electric Code, ANSI/NFPA70.
CAUTION: The device shall be mounted at height between 2 feet (600 mm) and 4
feet (1200 mm) from ground.
CAUTION: Please keep the charger in a clean area with low humidity. Not
recommended to be installed in coastal environments with high humidity or high dust.
CAUTION: Avoid moisture or water in the charger. If there is water or moisture
ingress in the charger, it is necessary to immediately power off to avoid immediate
danger, and notify the professionals to carry out maintenance before next use.
CAUTION: Please use the charger properly. Do not hit or press hard on the
enclosure. If it is damaged, please contact a professional technician.
CAUTION: Avoid placing the charger near hot objects and at high temperature
locations and away from dangerous substances such as flammable gases and
corrosive materials.
CAUTION: Do not put heavy objects on the charger to avoid danger.
WARNING & CAUTION
USER MANUAL
4
1.1
AVERTISSEMENT :
- Ne mettez pas les doigts dans le connecteur du véhicule électrique.
- N'utilisez pas ce produit si le cordon d'alimentation flexible ou le câble EV est
effiloché, isolé ou présentant tout autre signe de dommage.
- N'utilisez pas ce produit si le boîtier ou le connecteur EV est cassé, fissuré,
ouvert ou montre toute autre indication de dommage.
Ne retirez pas le couvercle et n'essayez pas d'ouvrir le boîtier en raison du risque de
choc électrique.
AVERTISSEMENT : Cet appareil doit être surveillé lorsqu'il est utilisé à proximité
d'enfants.
AVERTISSEMENT : Cet appareil doit être mis à la terre.
AVERTISSEMENT : Pour éviter tout risque d'incendie ou de choc électrique, n'utilisez
pas cet appareil avec une rallonge électrique.
AVERTISSEMENT : L'adéquation de l'utilisation du cordon flexible conformément au
code ce, partie i, règle 4-012, doit être déterminée par l'autorité d'inspection locale
compétente.
AVERTISSEMENT : Pour réduire les risques d'incendie, ne connecter qu'à un circuit
protection contre les surintensités des circuits de dérivation conformément à la norme
canadienne CSA C22.1-15 Code électrique, partie 1 (Canada) ou NOM-001-SEDE
Installations électriques (Mexique) ou ANSI / NFPA 70 National Electrical Code
(États-Unis).
Tableau Des Options Du Disjoncteur
Courant De Sortie (A)
16A
32A
40A
48A
Options De Disjoncteur (A)
20A
40A
50A
60A
WARNING & CAUTION
USER MANUAL
5
AVERTISSEMENT : Assurez-vous de consulter le manuel d'utilisation et assurez-vous
que les codes locaux du bâtiment et de l'électricité sont passés en revue avant
d'installer le chargeur.
AVERTISSEMENT : Débranchez l'alimentation électrique avant d'installer la station de
charge.
AVERTISSEMENT : Le chargeur CA doit être installé par un technicien qualifié
conformément au manuel d'utilisation et aux réglementations de sécurité locales.
MISE EN GARDE : Utilisez une protection appropriée lors de la connexion au câble de
distribution d'alimentation principal.
MISE EN GARDE : Un disjoncteur de type B, C ou D avec le courant nominal indiqué
dans le tableau doit être installé dans le boîtier de distribution CA en amont.
MISE EN GARDE : L'interrupteur de déconnexion pour chaque conducteur non mis à
la terre de l'entrée CA doit être fourni par des tiers conformément au Code national de
l'électricité, ANSI/NFPA70.
MISE EN GARDE : Cet appareil doit être monté à une hauteur entre 600 mm (2 pieds)
et 1200 mm (4 pieds) du sol.
MISE EN GARDE : Veuillez conserver le chargeur dans un endroit propre et peu
humide. l'installer dans des environnements côtiers à forte
humidité ou à forte poussière
MISE EN GARDE : Évitez l'humidité ou l'eau dans le chargeur. En cas d'infiltration
d'eau ou d'humidité dans le chargeur, il est nécessaire de l'éteindre immédiatement
pour éviter tout danger immédiat et d'avertir le personnel professionnel d'effectuer
l'entretien avant la prochaine utilisation.
MISE EN GARDE : Veuillez utiliser le chargeur correctement. Ne frappez pas ou
n'appuyez pas trop fort sur le boîtier. Si le boîtier est endommagé, veuillez contacter
un technicien professionnel.
MISE EN GARDE : Évitez de placer le chargeur à proximité d'objets chauds et à des
endroits à haute température et loin de substances dangereuses telles que des gaz
inflammables et des matériaux corrosifs.
MISE EN GARDE : Ne placez pas d'objets lourds sur le chargeur pour éviter tout
danger.
WARNING & CAUTION
USER MANUAL
6

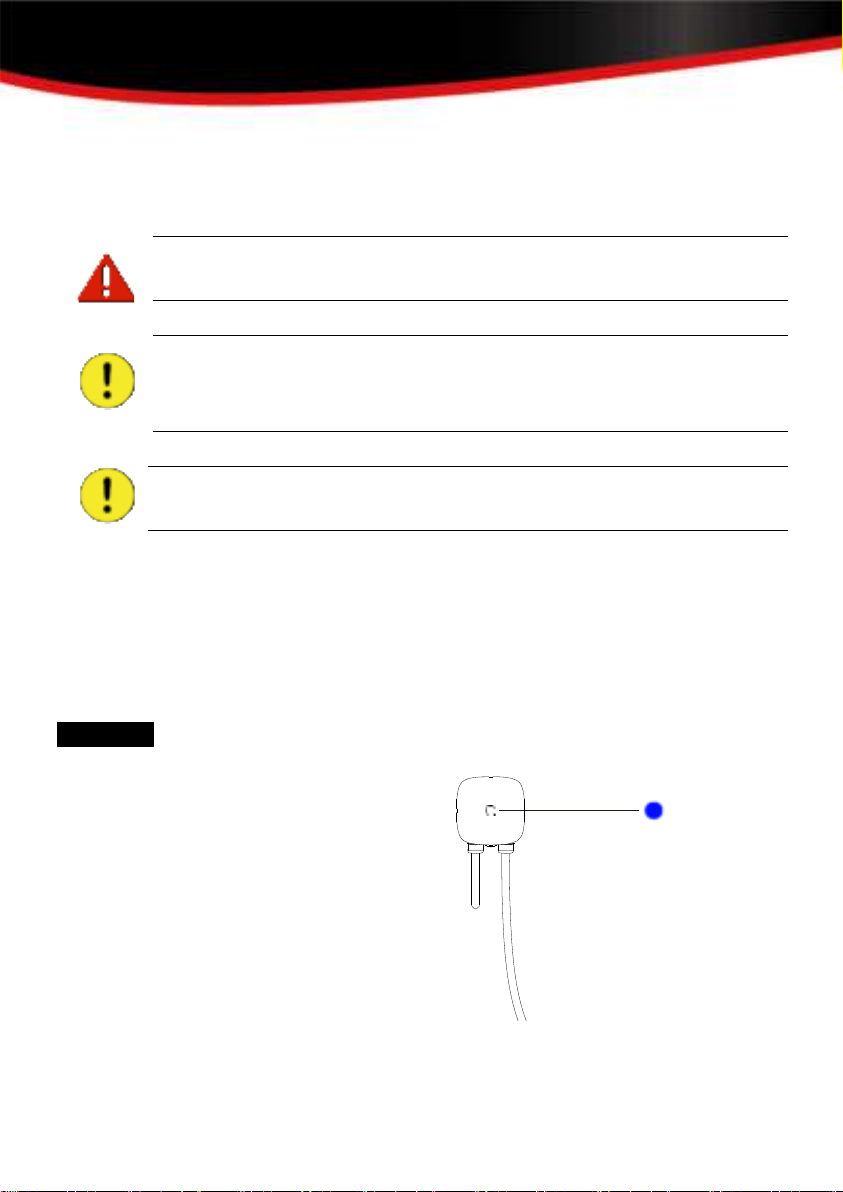

2. Product Introductions
CAUTION: Avoid placing the charger near hot objects and at high
temperature locations and away from dangerous substances such as
flammable gases and corrosive materials.
Enclosure
Wall-Mounted Bracket
3.15″
4-Φ0.35″
2.36″
USER MANUAL
7
Model Number
EVC15
Rated Input Voltage
200-240 VAC
Rated Output Current
16/32/40/48A
AC Power Frequency
60 Hz
Input Protection
UVP, OVP, RCD, SPD, Ground Fault Protection
Output Protection
OCP, OTP, Control Pilot Fault Protection
Output Interface
SAE J1772 AC Charging Connector
Storage Temperature
-40°F to 158°F
Operation Temperature
-22°F to 122°F
Relative Operation Humidity
95% RH Maximum
Relative Storage Humidity
95% RH Maximum
RFID Authentication
LAN Version / Wi-Fi Version
RJ45 Cable Inlet*1
10M / 100M Base-T
Wi-Fi Function*2
802.11 b/g/n
Cable Length
18ft
Protection Level
Type 3
Installation Type
Wall-Mounted
Altitude
Status Indication
Red, Green, Blue LED
USER MANUAL
8
UL 2594: Electric Vehicle Supply Equipment
UL 2231-1: ULPrersonnel Protection Syste
ms forElectric Vehicle (EV) Supply Circuits:
General Requirements
UL 2231: Personnel Protection Systems for
Electric Vehicle (EV) Supply Circuits:
Particular Requirements for Protection
Devices for Use in Charging Systems
UL 2251: Plugs, Receptacles and Couplers
for Electric Vehicles
UL 62: Flexible Cords and Cables
UL 991: Tests for Safety-Related Controls
Employing Solid-State Devices
UL 1998: Software in Programmable
Components
NFPA 70 Article 625: National Electrical
Code, Electric Vehicle Charging System
UL 840 (Clearance and Creepage)
USER MANUAL
9
3. Verify Contents
4
5
6
7
2
3
8
9
10
11
12
13
1
USER MANUAL
10
No.
Product Name
Quantity
Description
1
AC Charger
1
With attached input power cable
and output charging cable
2
User Manual
1
PDF version available online
3
Wall-Mounted Bracket
1
For mounting the charging station to
the wall/structure
4
M5 Anti-Theft Round
Head Screws
2
For securing the charging station to
the Mounting Bracket
5
M6 Hexagonal Expansion
Screws
4
For installing the Mounting Bracket
to the wall/structure
6
RFID Card
2
RFID Version Only
7
Allen Wrench
1
For tightening M5 Screws
8
M5 Anti-Theft Countersunk
Head Screws
4
For securing the Plug Holster to the
Holster Bracket
9
M6 Anti-Theft Hexagonal
Expansion Screws
4
For installing the Holster Bracket to
the wall/structure
10
Plug Holster
1
For allowing the plugs to be neatly
and safely stored when not in use.
11
Holster Bracket
1
For mounting the Plug Holster to the
wall/structure
12
Corrugated Mounting
Template
1
For easy drilling of 4 screws holes
for wall-mounted bracket.
13
Corrugated Mounting
Template
1
For easy drilling of 4 screws holes
for holster bracket.
Note: If you are missing any of these parts, please contact us @ 877-960-5408
or help@turbocharge.eco
USER MANUAL
11

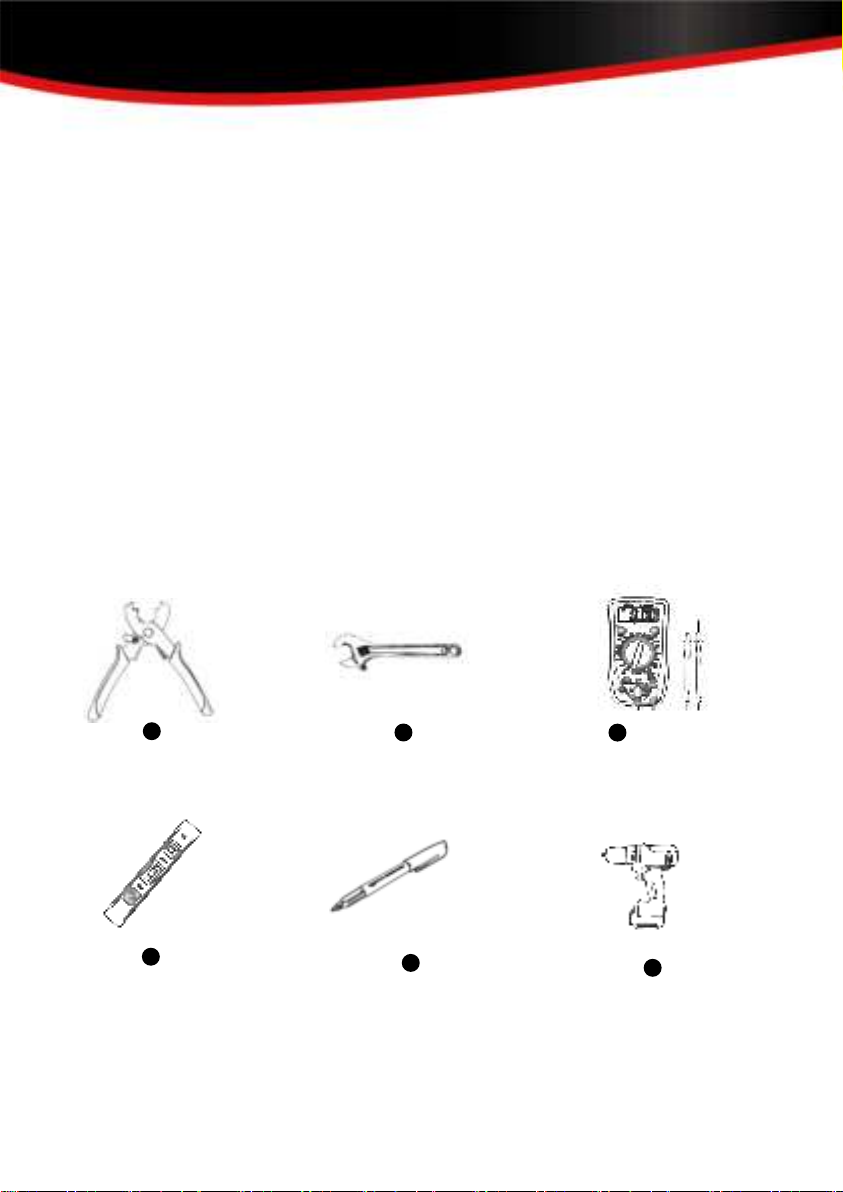

4. Gather Tools
Note: The above tools are very important, please gather them all.
USER MANUAL
12

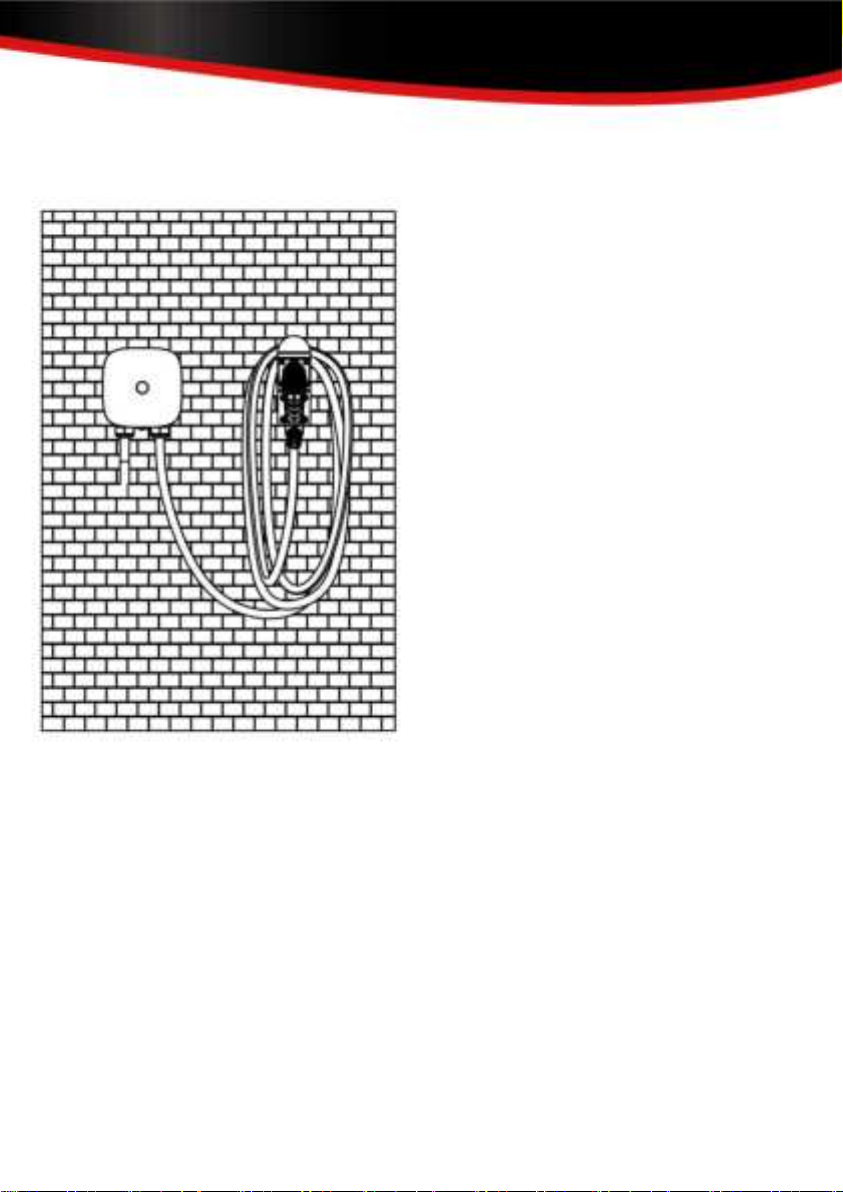

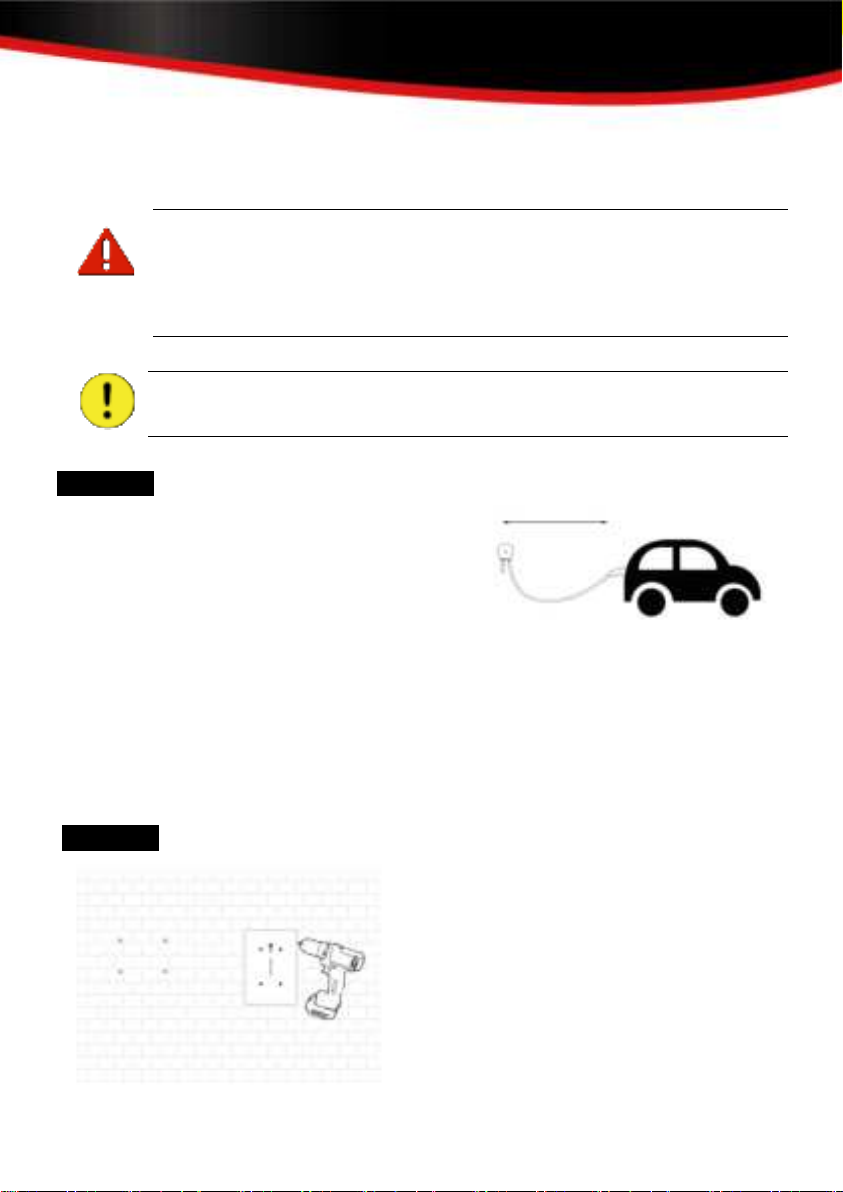

4. Plan The Mounting
WARNING: In areas with frequent thunderstorms, add surge
protection at the service panel for all circuits. Ensure all power and
ground connections, especially those at the breaker and bus bar, are
clean and tight.
CAUTION: Not recommended to be installed in coastal environments
with high humidity or high dust.
Select
I. Ensure the owner has chosen a mounting
location that allows the charging cable to reach
II. The device must be anchored into mounting such as 24
III. The device shall be mounted at height between 2 feet (600 mm) and 4 feet (1200 mm)
from ground.
Drill 8 Screw Holes
USER MANUAL
13
5. Mount the Charging Station
Secure
Align
Tighten
USER MANUAL
14
6. Wire The Circuit
WARNING: This device must be grounded. Disconnect electrical
power prior to installing the charging station.
WARNING: Improper connection of the equipment-grounding
conductor would result in a risk of electric shock. Check with a
qualified electrician or serviceman if you are not sure whether
the product is properly grounded. Do not modify the plug
provided with the product if it t fit the outlet, have a
proper outlet installed by a qualified electrician.
CAUTION: Use appropriate protection when connecting to the
main power distribution cable.
For safe use of electricity,
USER MANUAL
15
7. Operate Your Device
WARNING: This device should be supervised when used
around children.
CAUTION: Please use the charger properly. Do not hit or press
hard on the enclosure. If the case is damaged, please contact a
professional technician.
CAUTION: Do not put heavy objects on the charger to avoid
danger.
7.1
Standby Mode:
READY
USER MANUAL
16

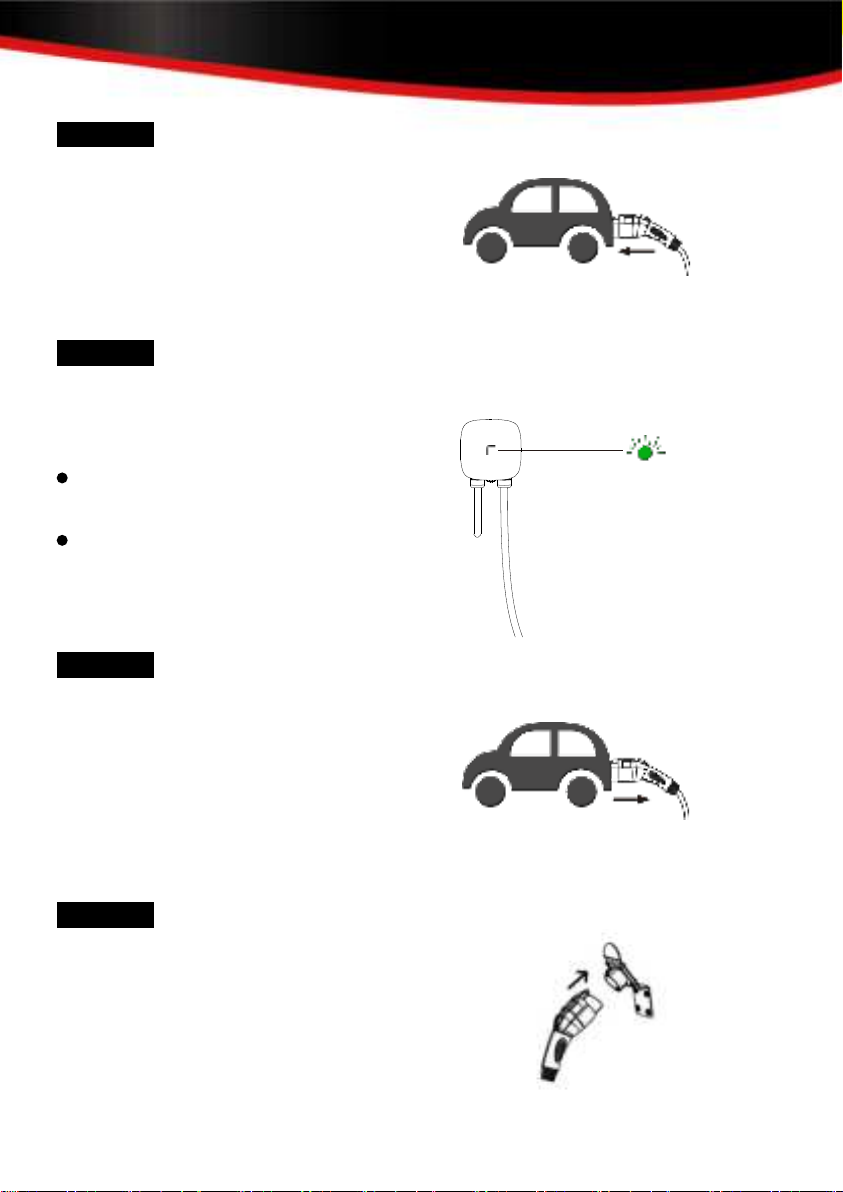

Plug the Charging Connector:
Charging:
Charging finished:
Re-plug the charging connector:
CHARGING
USER MANUAL
17
7.2
CAUTION: Please keep your RFID card properly to avoid
unnecessary loss.
Standby Mode:
Swipe the RFID Card:
READY
USER MANUAL
18
Charging:
Charging finished:
Re-plug the charging connector:
CHARING
USER MANUAL
19
8. Light Codes
8.1
8.2
Standby,
waiting to plug
in
Waiting to
charge,
communicating
with vehicle
Charging in
progress
Finished
charging
Fault
Status
Red
Remark
Input OVP
1 flash followed by 3 sec pause
Auto Recover
Input UVP
2 flashes followed by 3 sec pause
Auto Recover
Output OCP
3 flashes followed by 3 sec pause
Auto Recover
OTP
4 flashes followed by 3 sec pause
Auto Recover
RCD Abnormal
5 flashes followed by 3 sec pause
Auto Recover
Ground Fault
6 flashes followed by 3 sec pause
Auto Recover
Control Pilot Fault
Flicker
Auto Recover
MCU Self-Test Fail
Constantly Bright
Contact Customer Service
RCD Self-Test Fail
Constantly Bright
Contact Customer Service
Relay Self-Test Fail
Constantly Bright
Contact Customer Service
RCD Abnormal Stop Charging
Constantly Bright
Contact Customer Service
Output OCP Stop Charging
Constantly Bright
Contact Customer Service
OTP Stop Charging
Constantly Bright
Contact Customer Service
Table of contents
