Turfmatic TM380-1800 User manual

ARTIFICIAL GRASS
SWEEPER
TM380-1800
INSTRUCTION MANUAL

Contents
Product overview
Packaging
Technical Specifications
Introduction
Features
Symbol
Purpose of use
Assembly Instructions
Setting Up
Product Operation
Replacing Brush Head
Safety Instructions
Maintenance
Warnings
Disposal
03
04
04
05
05
06
07
07
11
12
14
16
18
19
19
Page No. 01www.turfmatic.info

Thank You!
DEAR CUSTOMER
Thank you for purchasing Turfmatic™ 380 Artificial Grass Sweeper
2 in 1 machine. We always endeavor to bring you technology
superior appliances, designed to let you live life on your terms.
Before you start working with the machine, read the following
safety and usage instructions in this manual. Acquaint yourself
with the operating elements and the correct use of the machine.
Save the original packaging, including the internal packing
material, warranty card, and proof of purchase receipt at least for
the duration of the warranty.
Following the instructions in the included user's manual is a
prerequisite for the proper use of the machine. This user's manual
also contains operating, maintenance, and repair instructions.
Keep the user's manual in a safe place where it can be easily
retrieved for future use.
Pack this machine in the original cardboard box to ensure
maximum protection during shipping or transport (e.g., when
moving or when you need to send this product for repair).
NOTE: If you hand over the machine to somebody else, do so
together with this user's manual. The manufacturer takes no
responsibility for accidents or damages resulting from not
following the instructions in this manual.
Page No. 02www.turfmatic.info

Product Overview:
1. Main Switch Bar
2. Main Switch Safety Button
3. Power Cord
4. Power Cord Retainer Hook
5. Top Section of Handle
6. Middle Section of Handle
7. Bottom Section of handle
8. Brush Depth Level Control
9. Collection Basket
10. Basket Cover
11. Basket Support Frame
12. Cable Retaining Clip
13. Quick Release
14. Bottom Handle Screw
15. Middle Handle Screw
16. Handle Angle Adjust
17. Handle Washer
8
2
1
5
13
6
15
11
3
12
5
14
16
4
7
17
10
Page No. 03www.turfmatic.info

Packaging:
The product is packed in a package that prevents damage during
transport. This package is a resource and so can be handed over
for recycling.
Technical Specifications:
Electric Sweeper
Rated Power
Working Brush Width
Working Depth
Collection basket capacity
Weight
Protection class
Brush head operating speed
Sound pressure level
Guaranteed sound power level
Vibrations
Turfmatic 380-1800
1800W
38cm
+6 to -12mm
48l
12.6kg
IPX4
3500rmp
L = 85,56 db(A) K=3 db(A)
L = 104 db(A)
5,508 m/s K=1,5 m/s
Page No. 04www.turfmatic.info
pa
2 2
wa

Introduction:
The Turfmatic™ 380 Artificial Grass Sweeper is exclusively designed
for seasonal maintenance of Artificial Grass. It uses 380mm brush
head (built with Turfmatic™ Astrospiral Nylon) 4 height settings that
allow the machine to be set for all styles of fake grass. It can easily
pick up twigs, leaves, weeds, and items even as small as sunflower
seeds while lifting any flattened area. Its 2 in 1 function allows for
power brooming of the grass together with debris collection. The
Turfmatic™ 380 Artificial Grass Sweeper increases the lifespan of
the artificial grass and ensures it looks fresh all the time.
Features:
• Electric Motor Type
• 10 meter working cable length.
• Maximum power needed to run is 1800 watts
• IPX4 Protection
• 1 level forward speed
• Large 48L Collection Basket.
• Operating Speed 3500rpm.
• 380mm Working Width
• 12.6 kg Weight
• 2 Years Parts & Labour Warranty.
• Turfmatic Designed Astrospiral Nylon Brush
• Handy and portable to carry.
Page No. 05www.turfmatic.info

Symbols:
Attention! Before putting into operation, carefully
read the user's manual and the general safety
instructions!
Keep others a safe distance!
Do not work in the rain or in unfavorable climatic
conditions!
Attention, the brush of the sweeper continues to
rotate for some time after it is turned off!
Attention, rotating brush! Protect yourself against
injury and loss of fingers.
If the electric power cable has become jammed or is
damaged, always turn off and pull the plug out of
the electric power sockets!
While working use protective aids.
Before performing work on the machine, pull the
power cord out of the electrical power socket.
Page No. 06www.turfmatic.info

Purpose of Use:
The TM380-1800 is designed for sweeping lawns and grass areas in
private gardens and yards. It is not intended for use in public
facilities, parks, sports fields, on roads, or any agriculture uses.
ATTENTION! To prevent injury, the electric sweeper must not be
used on garden borders, hedges, and bushes. Furthermore, the
electric sweeper must not be used on uneven terrain or gravel
surfaces.
Assembly Instructions
1. Attach the handle’s bottom parts using the screw (14). Adjust the
required handle (item 7) angle using the spline connector (16) as
shown in the figure below;
Page No. 07www.turfmatic.info
16

2. Screw on the handle’s middle part with the power cord safety
retainer clamp (4) attached using the quick release coupling and
the handle screw (13).
3. Screw on the handle’s top part as shown in the figure below;
Page No. 08www.turfmatic.info
15
15 15

4. Attach the power cord to the handle using the retainer clips as
shown in the figure below;

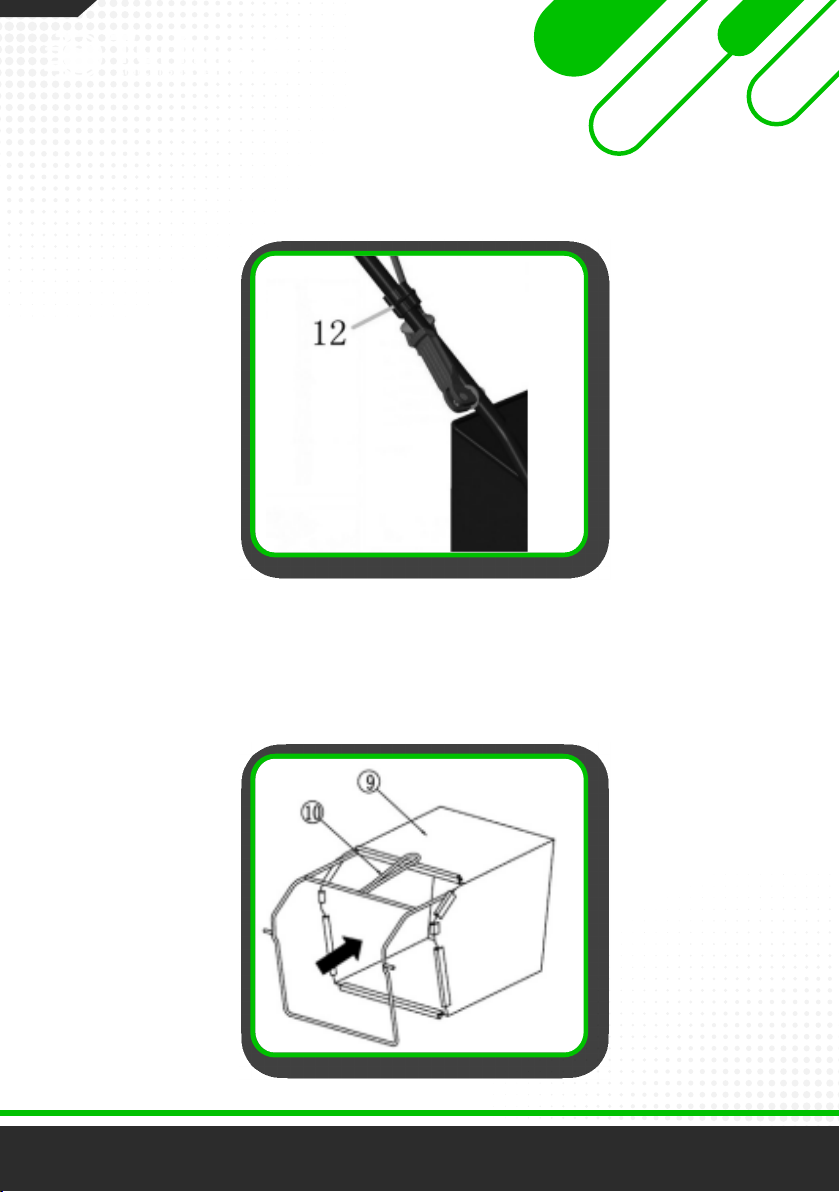

5. Place the steel frame (10) into the textile collection basket (9) and
attach all fasteners to the left, right, and rear poles of the frame.
Make sure that all fasteners are secured correctly as shown in the
figure below;
Page No. 09www.turfmatic.info

6. Installation of the completely assembled collection basket onto
the sweeper
A. Lift up the protective cover.
B. Make sure that the ejection chute is clear and free of debris.
C. Place the fully assembled collection basket onto the fastening
points in the rear part of the chassis, as shown.
D. Place the protective cover on top of the collection basket. Check
that the collection basket is seated correctly
Note: The sweeper may be used without the collection basket with
the protective cover in the lower position. This allows the sweeper to
be used to lift flat blades of artificial grass back into an upright
position. It is recommended to prolong the life of your artificial
grass and keep it looking its best that this is carried out at least
yearly. Use the lowest possible brush height setting without over
stressing the motor. It is recommended that run time does not
exceed 20 minutes of continuous use.
Page No. 10www.turfmatic.info

Setting Up:
ATTENTION!
The working depth of the brush head should always be set to the
minimum required to lift up the blades of artificial grass. This will
depend on the height of the grass and degree of flattening. It may
be necessary to reduce the brush depth after the first pass as the
grass blades begin to lift. Setting an excessive working depth may
result in damage to the brush head cylinder or the overloading and
destruction of the motor. The lawn may also be damaged.
Adjustment after wear:
To maintain the recommended working depth, use the depth
adjustment control (fig. 1, item 8).
Note: The brush head of the sweeper wear out depending on the
manner in which they are used. The more intensively the sweeper is
used, the greater the wear on the brush head.
The sweeper brush head is replaceable part and is covered as part
of any warranty on the machine.
Page No. 11www.turfmatic.info

Product Operation:
Before starting up the sweeper, check that the brush has come to a
complete stop. Do not turn on and off in rapid succession.
Starting:
1. Press and hold the safety button1. Pull the starting lever 2 towards
the handle.
2. Release the safety button.
Turning off:
Release the starting lever 2
Page No. 12www.turfmatic.info

Sweeping / Powerbrooming:
• For comfortable work with the sweeper, it is best to start working
at the location closest to the power source and to proceed away
from the power source.
• Sweep the lawn at a right angle from the power source and place
the power cord on the side that has already been swept.
ATTENTION! Do not place too much strain on the motor when
working, especially in demanding conditions. When the motor is put
under strain, the motor speed will decline and you will hear a
change in the noise of the motor. Whenever this happens, stop
working, release the starting lever, and reduce the brush depth.
Otherwise, the machine could be damaged.
NOTE: The motor is protected by a safety mechanism that is
activated at the instant that the brush is caught or the engine is
overloaded. Whenever this occurs, turn the machine off and pull the
power plug out of the power source. The safety mechanism will
reset only when the starting lever is released. Remove all
obstructions and wait several minutes before resetting the safety
mechanism and resuming work. At this point, do not play with the
starting lever as this will extend the safety mechanism reset time. In
the event that the machine turns off again, raise the height of brush
depth again, which in turn will reduce the load on the motor further.
Page No. 13www.turfmatic.info

Replacing Brush Head:
DANGER! The brush head may cause injuries!
Prior to replacement, disconnect the machine from the power
supply and wait for the brush to come to a stop. When replacing the
brush head, wear heavy-duty gloves.
1. Screw out bolt 1 on the underside of the chassis.
2. Lift the brush at an angle and pull it out.
Page No. 14www.turfmatic.info

3. Slide the replacement brush on to the drive shaft so that pin 5 fits
into the respective part of the drive shaft 4.
4. Retighten screw 1 to secure the brush.
Page No. 15www.turfmatic.info

Safety Instructions:
•Carefully unpack the product and take care not to throw away
any part of the packaging before you find all the parts of the
product.
•Store the product in a dry place out of reach of children.
•Work only under good visibility.
•Do not place hands or feet near the brush head.
•Do not open the rear cover during use.
•Acquaint yourself with the surroundings of your work area. Check
for potential dangers, which may not be audible due to the noise of
the machine.
•Wear solid footwear and long trousers to protect your legs.
•Make sure that your legs are at a sufficient distance from moving
parts.
•Make sure that there are no other people (particularly children) or
animals in the work area.
•Always push the artificial grass sweeper at walking speed.
•Operating position: make sure that you have safe foot support
during operation.
•Be careful when changing direction on a sloped area.
•Read all warnings and instructions in this manual as not following
the instructions may lead to injury by electrical shock, a fire, and/or
other serious injuries.
Page No. 16www.turfmatic.info

•You are responsible for the safety methods of use described in
these instructions.
Electrical safety:
•Keep the extension cord away from the brush cylinder!
•Never use the electric sweeper in the rain.
•Please adhere to local residential noise restrictions.
•Regularly inspect the power/extension cord for damage and signs
of wear and tear.
•In the event that the power/extension cord is damaged,
immediately unplug the power cord.
•The extension cord must be water-resistant providing protection
against spraying water, or the power sockets for the extension cord
must be made from rubber or must have a rubber cover.
•Any extension cords must meet the requirements of local
electrical standards.
•Only use approved extension cords with the corresponding
conductor cross-sections. Please consult your electrician.
•It is necessary to use connecting accessories for the extension
cord.
•For portable equipment used outdoors, we recommend the use of
a residual current device with a maximum current rating of 30 mA.
Page No. 17www.turfmatic.info

ATTENTION! Be careful when walking backward. You could stumble!
Note: When you stop using the machine, place it in a safe location.
Unplug the power plug! If you stop working in order to move to a
different work location, always turn the power off while carrying it.
Move the height adjustment lever to its highest transport position.
In the event that you hit an object while sweeping, always turn off
the electric before attempting to remove the object from the brush.
Maintenance:
•Prior to maintenance, disconnect the machine from the power
supply and wait for the brush head cylinder to come to a stop.
• While performing maintenance use work gloves.
• The sweeper should be cleaned after every use.
• Do not clean the sweeper under running water (Do not pressure
wash).
• Do not use hard or pointed items for cleaning the sweeper.
• Regularly remove accumulated debris from the wheels, brush
head cylinder, and cover.
• Regularly check the electric sweeper for foreign object damage
and have it repaired if necessary.
Page No. 18www.turfmatic.info

Warnings:
•A rotating brush may cause injuries.
• Risk of injury and material damage.
• Do not use the electric sweeper in the rain or in damp or wet
conditions.
• Do not work with the sweeper near the edges of swimming pools
or garden ponds.
• Please adhere to all local restrictions related to noise levels. Never
leave the electric sweeper in the work area without supervision.
Warranty:
1 - Year Limited Lifetime Warranty
The original purchaser for this unit is provided with a 1-YEAR
WARRANTY.
Covered Under Warranty:
The warranty begins from the date of purchase. For the first year,
coverage is for both parts and labour on warranty repair services.
Note: Customers have to provide proof of purchase to initiate the
repair work under warranty. We strongly recommend keeping the
original receipt.
Page No. 19www.turfmatic.info
