Agri-Fab 26" Leaf/Lawnsweeper 45-02181 User manual

Model No.
45-02181
PRINTED IN USA
26" LEAF/LAWNSWEEPER
OWNERS
MANUAL
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
FORM NO. 40261 (4/24/07)
the fastest way to purchase parts
www.speedepart.com
™
Safety
Assembly
Operating
Maintenance
Repair Parts

2
SAFETY RULES
Remember, any equipment can cause injury if operated improperly or if the user does not understand how to operate the
equipment. Exercise caution at all times when using this equipment.
LOOK FOR THIS SYMBOL TO POINT OUT
IMPORTANT SAFETY PRECAUTIONS. IT
MEANS — ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED.
1. Sweeper Housing Assembly
2. Hopper Bag
3. Upper Handle
CAUTION: VEHICLE BRAKING AND
STABILITY MAY BE AFFECTED WITHTHE
ADDITION OF AN ACCESSORY OR AN
ATTACHMENT.BE AWARE OF CHANGING
CONDITIONS ON SLOPES.
Do not allow anyone to operate the sweeper without proper instructions.
Do not permit children to operate sweeper.
Eye protection should be worn while operating sweeper.
 Donotpushortowsweepertooclosetoare.
Do not attempt to remove wire or string wrapped around brush while brush is rotating.
Operate sweeper at reduced speed on rough terrain, in ditches and on hillsides to prevent tipping and loss of control.
Stay alert for holes or other hidden hazards.
 Thissweeperisnotmeantforstreetorhighwayuse.Watchfortrafcwhensweepingnearroadways.
Keep all nuts, bolts and screws tight to be sure equipment is in safe working condition.
Sweeper should be stopped and inspected for damage after striking a foreign object and damage should be repaired
before operating the equipment.
Follow maintenance instructions as outlined in this manual.

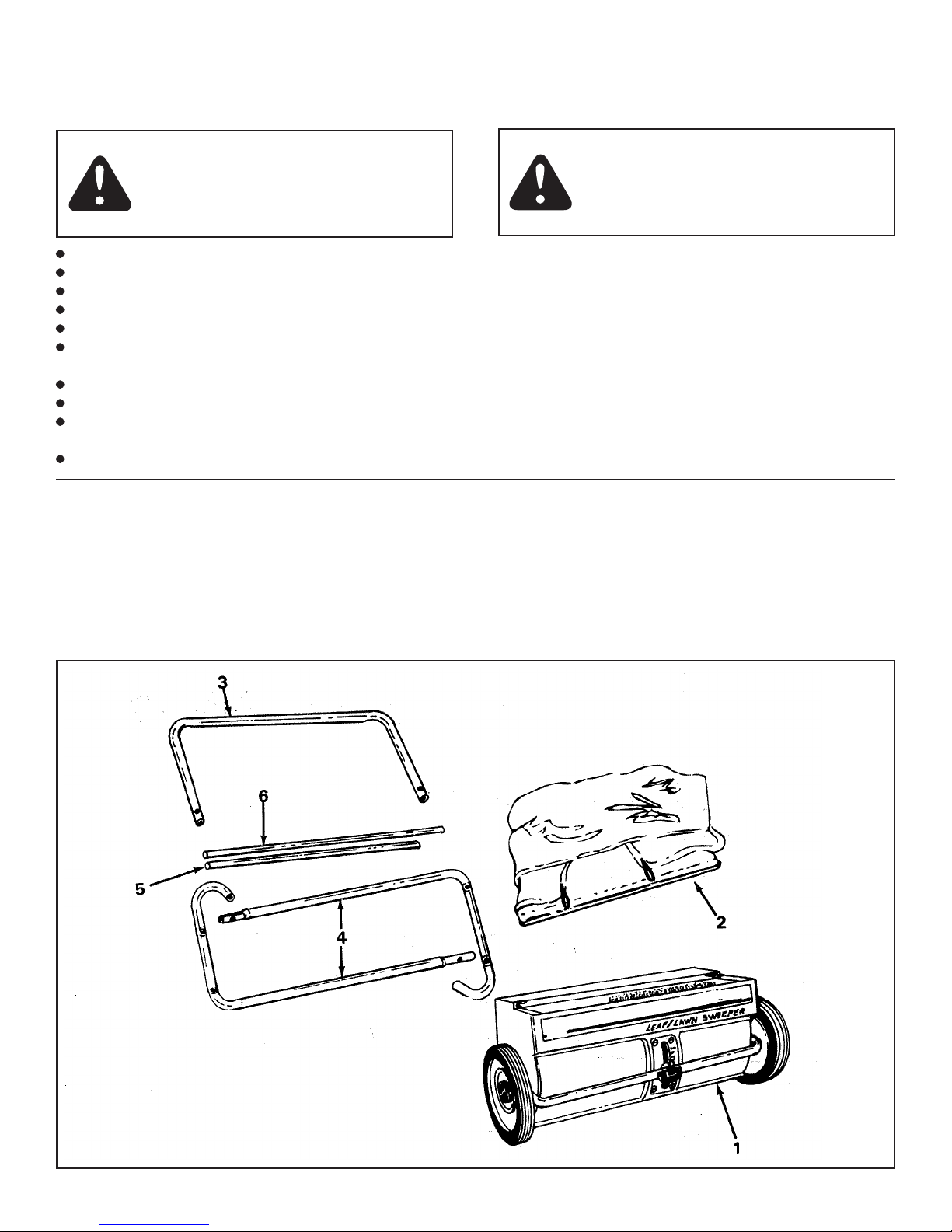

CARTON CONTENTS
4. Lower Handle Leg Stand (2)
5. Short Bag Rod
6. Long Bag Rod

3

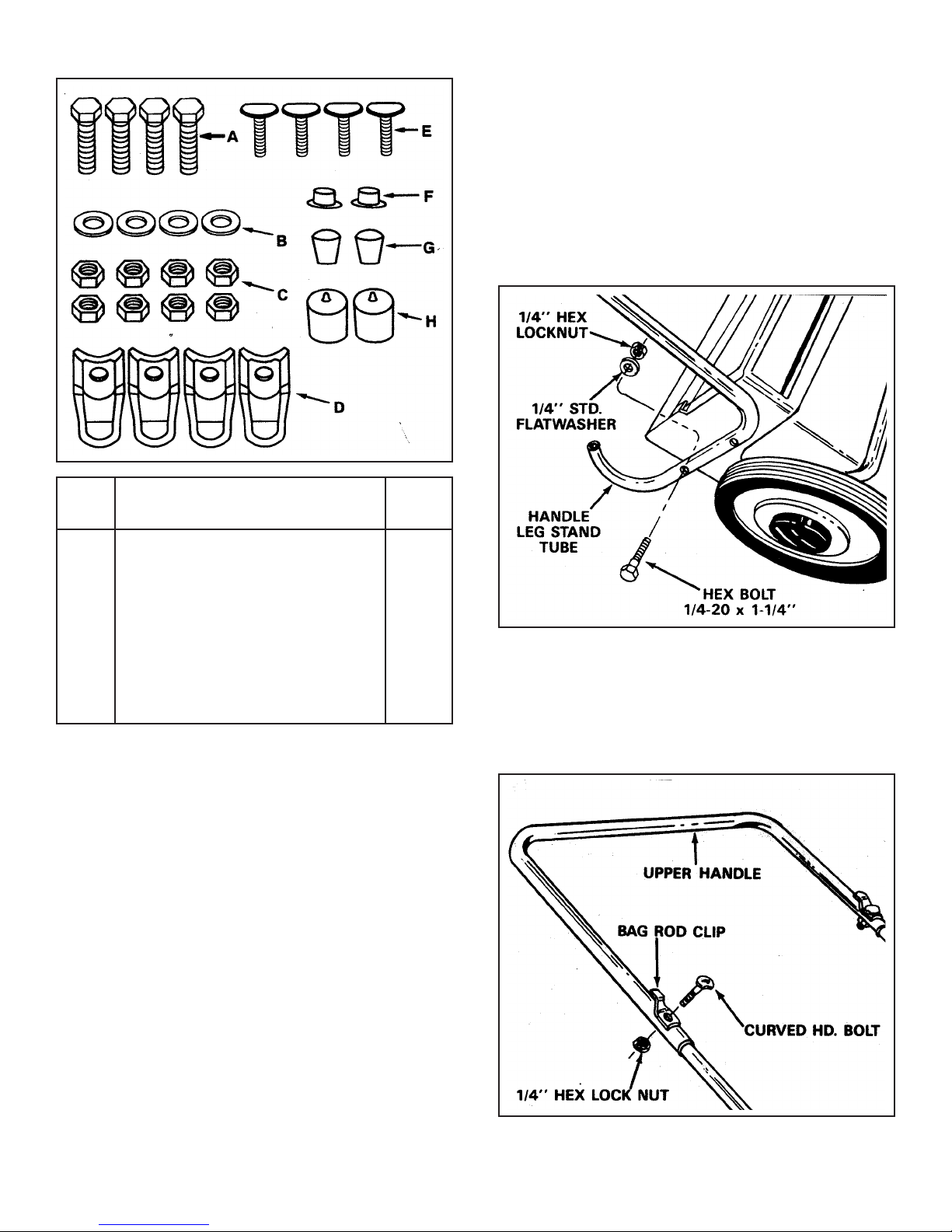

HARDWARE PACK (NOT SHOWN FULL SIZE)
Ref. Description Qty.
No.
A Hex Bolt, 1/4-20 x 1-1/4" 4
B Flat Washers 1/4" I.D. 4
C Hex Lock Nuts 1/4-20 8
D Bag Rod Clips 4
E Curved Head Bolts 1/4-20 x 1" 4
F Palnut 1/4" 2
G Plastic Caps (for bag rods) 2
H Plastic Caps (for leg stands) 2
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
(1) Phillips Screwdriver
(1) Adjustable Wrench
(1) 7/16" Open End or Box Wrench
1. Assemble the two Handle Leg Stand Tubes to the
Sweeper Housing, using two hex bolts 1/4-20 x 1-1/4"
long,atwashersand1/4-20hexlocknuts,perhandle.
Seegure1.Onlyhandtightenatthistime.
2. Assemble the Upper Handle Tube over the Handle Leg
StandTubes.Seegure2.Alignholesinhandleand
assemble the Bag Rod Clips to the handle as shown
and fasten with curved head bolts and hex lock nuts.
FIGURE 1
FIGURE 2

4
3. Now tighten the four bolts from step 1.
4. Assemble a bag rod clip to the inside of each lower
handle tube using a curved head bolt secured down
against the clip using a 1/4" lock nut. The open end of
the clips should face towards the sweeper housing. See
gure3.
5. Slide the long bag rod (28-1/2" long) through the stiched
bagaponthetopofthehopperbagasshowningure
4.
6. Slide the short bag rod (25-1/2" long) through the stiched
bagaponthebottomofthehopperbagasshownin
gure4.

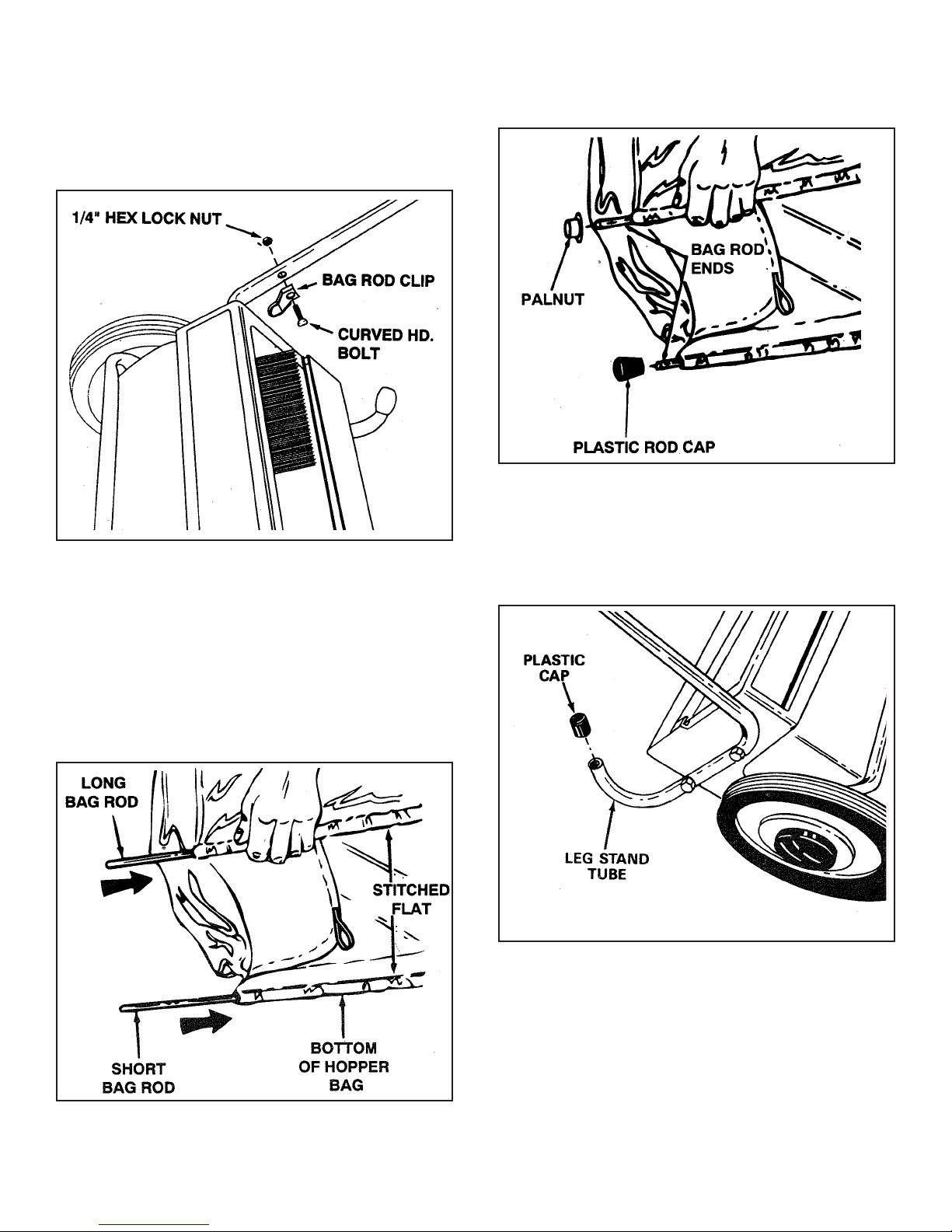

7. Assemble the two plastic rod caps to the rod ends of
the bottom bag rod. Assemble two Palnuts to the ends
ofthetopbagrod.Seegure5.
8. Assemble the two plastic caps 3/4" x 7/8" onto the ends
ofthelegstandsasshowningure6.
FIGURE 3
FIGURE 4
FIGURE 5
FIGURE 6

5
9. Place the upper hopper bag and bag rod into the bag
rodclipsonthehopperhandle.Seegure7.
10. Place the lower hopper bag and bag rod into the opening
onthesweeperhousing.Seegure8.
11. Hooktheelasticstrapsonthebagapsunderthebag
rodclipsonthelowerhandletubesasshowningure
9.
OPERATION
Take care when operating your sweeper. Operating your
sweeper according to these instructions will help prevent
damage and prolong the life of your sweeper.
BRUSH HEIGHT ADJUSTMENT
To adjust your sweeper brushes to the best operating height,
loosen the hand knob and slide the height adjustment tube
down to raise or up to lower the brushes. Best adjustment is
when brushes are set 1/2" down into the grass. Always mow
grasstoevenheightbeforesweeping.Seegure10.
FIGURE 7
FIGURE 8
FIGURE 9
FIGURE 10

6
CAUTION:EYE PROTECTION SHOULD BE
WORN WHILE OPERATING SWEEPER
DUMPING OF SWEEPER
To dump sweeper hopper bag, simply tip the sweeper forward
or lift off the complete hopper bag frame.
Always dump hopper after each use. Damp or wet grass
and leaves will cause damage to hopper if stored for long
periods of time.
CAUTION: DO NOT DUMPTHE SWEEPER
TOO CLOSETO A FIRE ASTHE BRUSHES
AND BAG CAN BE DESTROYED BY
EXCESSIVE HEAT OR FLAME.
STORAGE
The entire unit may be hung on a wall or the hopper bag
frame can be removed for storage.
LUBRICATION/MAINTENANCE
The bearings in the sweeper have been prelubricated at
the factory. It is recommended that a few drops of light
oil be added to the brush shaft bearings twice a year.
The wheels should be removed to clean gears every two
years. After cleaning, apply an even coat of light grease.
Seegures11,12and13.
NOTE:
To remove the wheel, pop off hub cap with a screw
driverandremoveretaining"E"ringandatwasher.
FIGURE 12
WHEEL GEARS/PAWL SERVICE
IMPORTANT: Do not remove both wheels at the same
time to avoid mixing parts. (The R.H. and L.H. ratchet
gears are not interchangeable.) Make notes on the position
of washers and snap rings during disassembly.
1. Remove only one wheel from the sweeper.
2. Remove the retaining rings and washers which hold
the ratchet gear onto the brush shaft.
3. Remove the gear by sliding it off the brush shaft. (Look
for the drive pin, which may fall out of the brush shaft
when the ratchet gear is removed.
4. To reassemble, insert the drive pin through the hole
near the end of the brush shaft. Make sure the pin
slides back and forth easily in the shaft.
5. Lightlygreasetheshaftandlltheratchetgearwith
grease. Assemble the ratchet gear back onto the shaft.
6. Lightly grease the axle and the gear teeth on the
wheel and then reassemble the wheel. The brushes
should rotate only during forward movement. If the
brushes rotate by both forward and reverse movement,
the drive pin is jamming in the ratchet gear. Dissamble,
clean and lubricate the drive pin and ratchet gear and
then reassmble wheel.
7. Remove opposite wheel and repeat steps 1-6 for that
wheel.
FIGURE 11

7
BRUSH REPLACEMENT
1. Remove the hopper bag from lawnsweeper.
2. Brush replacement should be done one brush at a
time.
3. Tip the sweeper forward on housing for ease of brush
replacement. Do not remove hex bolt from double
brush retainers through brush shaft.

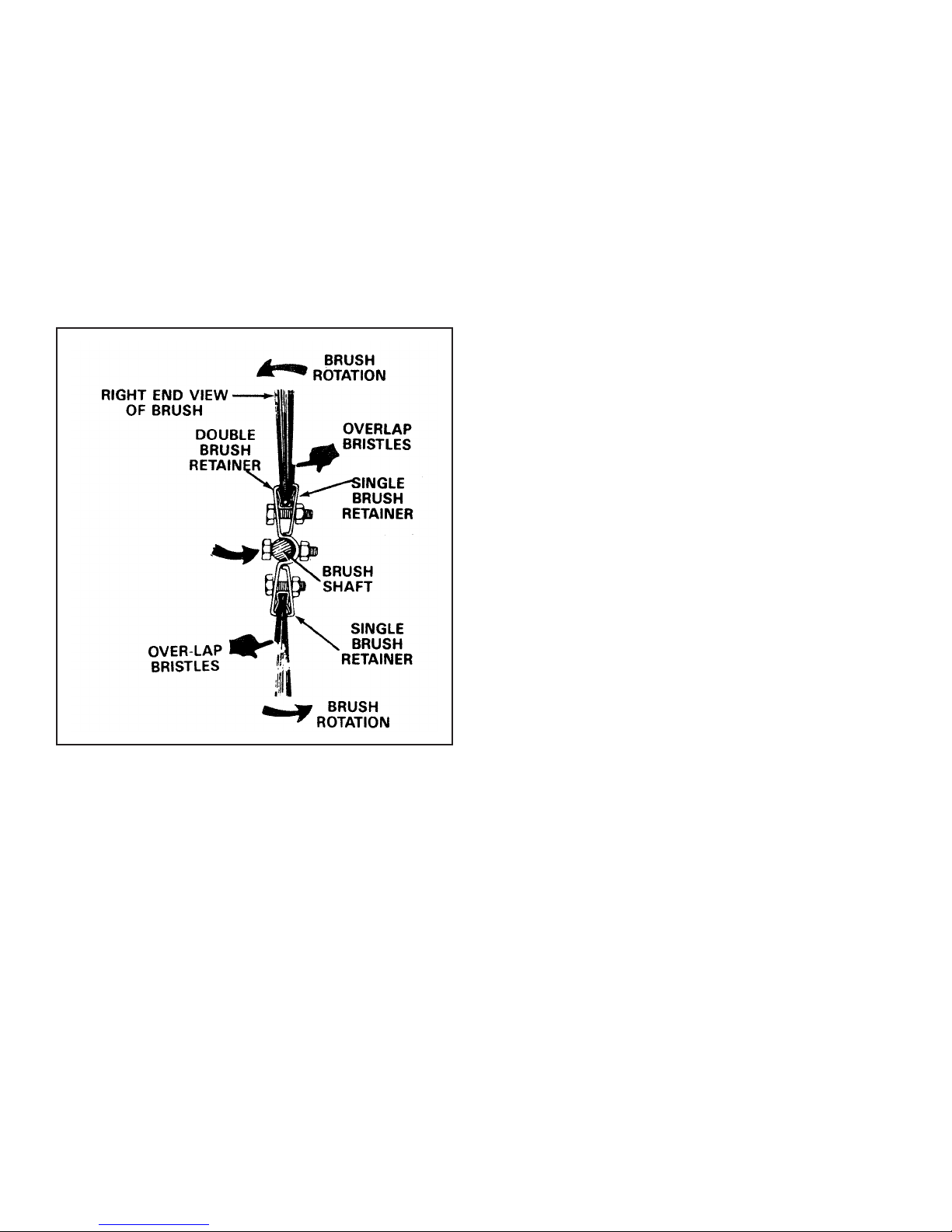

4. Loosen hex bolts and hex lock nuts from single brush
retainers.Seegure13.Slidebrushoutofretainers,
making not of over-lap bristles position.
5. Install new brush, making sure over-lap bristles are
postionedthesameasbeforeandasshowningure
13.
FIGURE 13

8

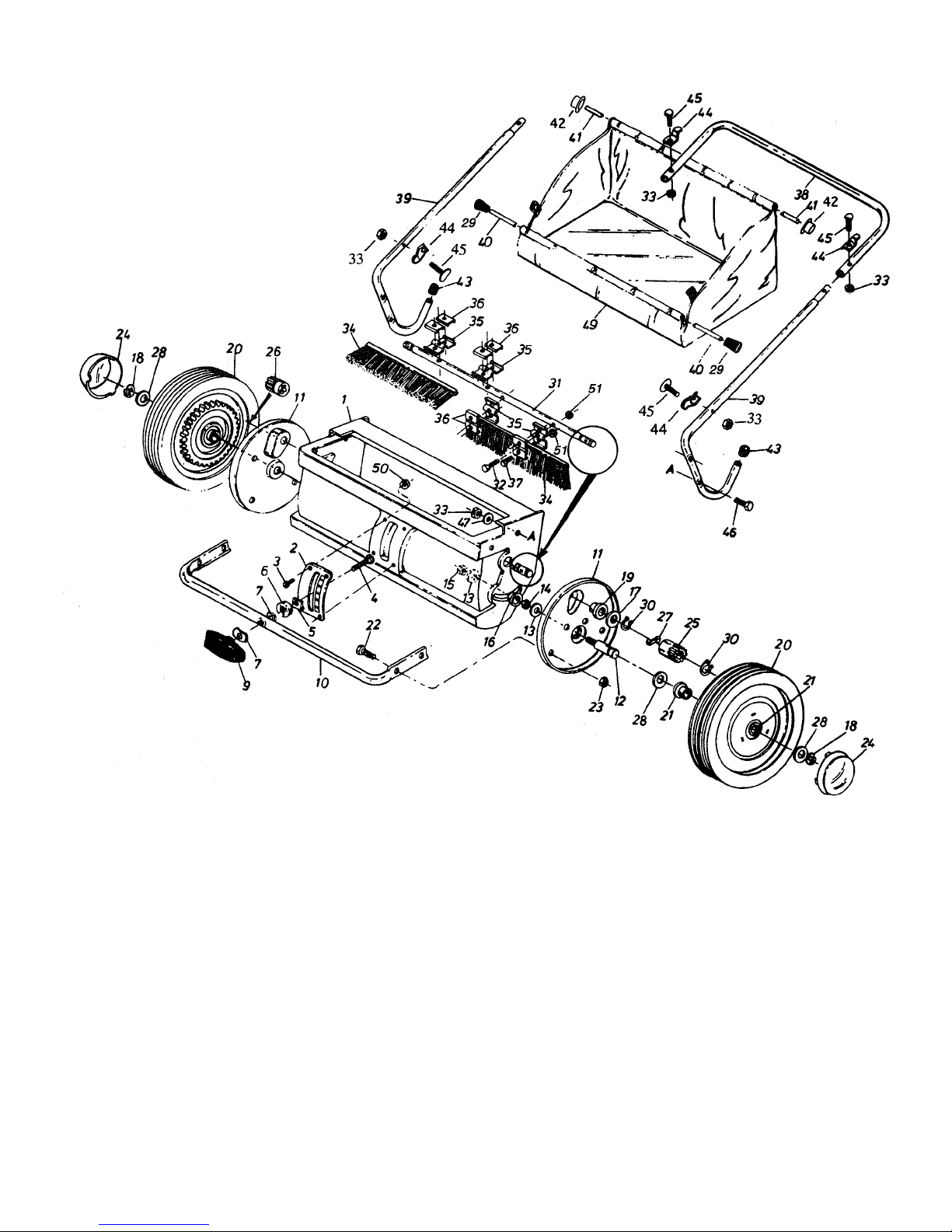

REPAIR PARTS FOR 45-02181 26" LEAF/LAWNSWEEPER

9
the fastest way to purchase parts
www.speedepart.com
REF. PART
NO. NO. QTY. DESCRIPTION
1 44600 1 Housing
2 23784 1 Height Adjustment Plate
3 44286 4 Bolt, Hex 10-32 x 5/8"
4 43681 1 Bolt, Carriage 5/16-18 x 1-1/2"
5 44680 1 Washer, Nylon
6 1543-69 1 Washer, Nylon 21/64
7 44695 1 Washer, Bowed
8 R19111116 1 Washer, 11/32 x 11/16
9 43720 1 Knob, 5/16"
10 44946 1 Height Adjustment Tube
11 23866 2 Dust Cover
12 44598 2 Axle
13 43070 4 Washer, 3/8"
14 44684 2 Jam Nut, 3/8-24
15 1038 2 Lock Nut, 3/8-24
16 44685 2 Shoulder Spacer
17 40007 2 Washer, .596 x 1.125 x .025
18 716-0106 2 "E" Ring, 5/8"
19 44679 2 Flange Bearing, .59
20 49946 2 Wheel Assembly
21 741-0249 4 Flange Bearing, .63
22 44692 4 Bolt, Hex 5/16-18 x 1/2"
23 43064 4 Lock Nut, 5/16-18
24 2674-32 2 Black Hub Cap
25 48651 1 Pinion, L.H. 11 T.
26 48652 1 Pinion, R.H. 11 T.
27 47046 2 Pin, Drive
REF. PART
NO. NO. QTY. DESCRIPTION
28 44125 4 Flat Washer, .62 x 1"
29 44687 2 Plastic Cap, .207
30 1650-21 4 Retaining Ring, .594
31 23782 1 Brush Shaft
32 43661 4 Bolt, Hex 1/4-20 x 1"
33 43013 8 Lock Nut, 1/4-20
34 44681 4 Brush, 13-1/4"
35 23580 4 Brush Retainer, Double Bracket
36 23581 8 Brush Retainer, Single Clip
37 43012 8 Bolt, Hex 1/4" x 3/4"
38 44603 1 Upper Handle Tube
39 44595 2 Handle Leg Tube
40 44683 1 Bag Rod, 1/4" x 25-1/2"
41 44682 1 Bag Rod, 1/4" x 28-1/2"
42 726-0106 2 Palnut, 1/4"
43 44688 2 Plastic Cap, 3/4"
44 44696 4 Bag, Rod Clip
45 43978 4 Bolt, Curved 1.4-20 x 1"
46 1509-90 4 Bolt, Hex 1/4-20 x 1-1/4"
47 43088 4 Washer, 1/4"
49 44694 1 Hopper Bag
50 43662 4 Lock Nut, 10-32
51 47189 12 Nylock Nut, 1/4-20
40261 1 Owner's Manual
