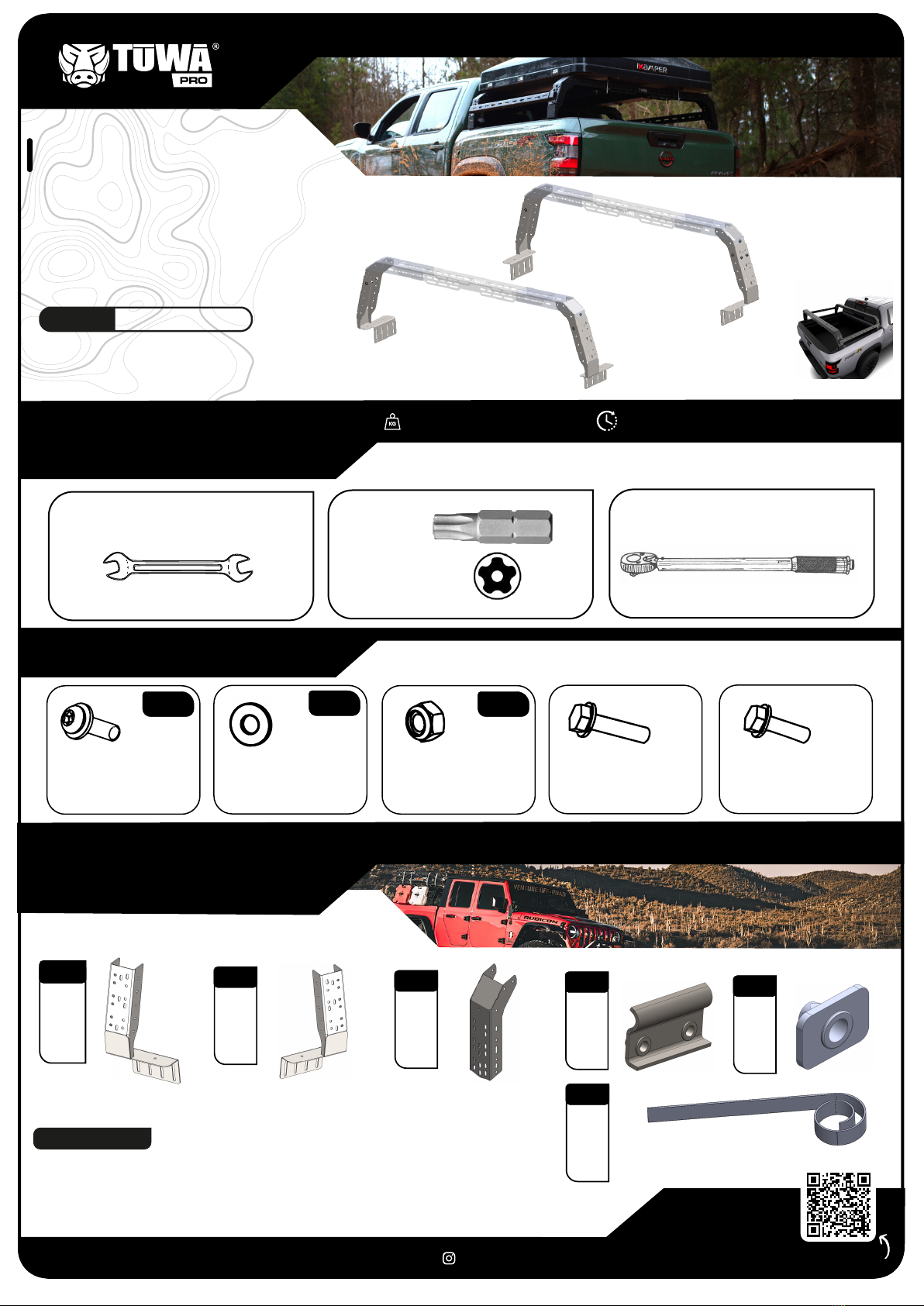

TUWA PRO BR47B User manual

WRENCH 13
LLAVE
TORX 40
TORX
TORQUE WRENCH
TORQUIMETRO
BASE LONA
X 4 SHIPROCK BEDRACK
BASE LONA X 4 SHIPROCK BEDRACK
REGULAR BASES X 4 SHIPROCK BEDRACK
REGULAR BASES
X 4 MIDRACK
WEIGHT
PESO
INSTALLATION TIME
TIEMPO DE INSTALACIÓN
15500 g.
37 lbs.
20 min.
BR47B
BT-52
CODE
CÓDIGO
EXPLODED DETAIL
DETALLE DE DESPIECE
02
x2
03
x4
04
x4
05
x8
06
x2
x2
01
M8X25 x36 M8 x36 M8 x36 M8X35 x8 M8X25 x8
XYZ
INSTALLATION GUIDE
GUÍA DE INSTALACIÓN
NOTE/NOTA
BOLT A,B,C INCLUIDED IN KIT SR4CX47 (BT-50/7)
BULONERÍA A,B,C INCLUIDA EN EL KIT SR4CX47 (BT-50/7)
GOMA 3x50x400mm
FLAT WASHER
ARANDELA PLANA
VUELO CHICO
TUERCA
AUTOFRENANTE
NUT
TORNILLOS
SCREWS TORX SCREW
TORNILLOS EXA. SCREW
TORNILLOS EXA.
REQUIRED TOOLS
HERRAMIENTAS REQUERIDAS
TUWAPRO.COM
HARDWARE
TORNILLERIA
THANK YOU FOR
TRUSTING OUR BRAND!
SHARE YOUR SETUP ON SOCIAL MEDIA AND TAG @TUWAPRO FOR A 10% DISCOUNT ON ACCESSORIES.
WEATHER
STRIPPING
3X50X800MM

AJUSTE DE
ALTURA.
HEIGHT
ADJUSTMENT.
2
X x16
Y x16
Z x16
A x20
B x20
C x20
A X20
B X20
C X20
TORQUE 25 NM.
TORQUE 25 NM.
TORQUE 25 NM.
ASSEMBLE / ENSAMBLADO
STEP 1 / PASO 1 TORQUE 25 NM.
ARMAR
LAS DOS
ESQUINAS
ASSEMBLE
THE TWO
CORNERS
STEP 2 / PASO 2
STEP 3 / PASO 3
STEP 4 / PASO 4
A x16
B x16
C x16
ARMAR AMBOS LADOS DE LA MISMA MANERA
ASSEMBLE BOTH SIDES THE SAME WAY
3
A
AB
CORTAR Y PEGAR LA GOMA "6"
EN LAS PIEZAS 1 y 2
CUT AND FIX THE RUBBER ONPIECES
1 AND 2.
X
Y,Z
Y,Z
X
ARMAR LOS LATERALES.
ASSEMBLE THE SIDES.
X
Y,Z
3
1
2
A
A
B,C B,C
8
AJUSTAR CON EL ANCHO INTERIOR
DE LA CAJA DE CARGA.
FIT WITH THE INSIDE WIDTH OF THE
CARGO BOX. COLOCAR LA VIGA 7
PARA FORMAR EL ARCO.
PLACE THE BEAMS
TO FORM ARCH.
A
A
A
A
A
B,C
A

ASSEMBLE / ENSAMBLADO
