1RK-xRU-PSU-2-HSWP
ONErack dual-redundant PSU
Installation Guide V1.10

In this guide
In the box 1
About the ONErack dual-redundant PSU 3
Fitting the ONErack dual-redundant PSU 6
Replacing the power units in your ONErack
dual-redundant PSU 8
Overloading the ONErack dual-redundant PSU 9
Powering modules outside your ONErack with the
service cable 11
Safety information for the internal power supply and
the dual-redundant PSU 13
Contact us 14

MNL-1RK-HSWP-V1.10 1
Thanks for buying this ONErack dual-redundant power supply unit.
The dual-redundant PSU comes with two removable power units
that you can replace during operation, with no need to power off.
Features
n450 watts, supplied across two power units, allows you to power
more devices and more than one ONErack chassis
nDual redundancy, if one power unit fails, the other can supply up
to 450 watts alone
nHot-swappable power units
nReplacement power units sold separately
nSurge and fuse protection protects your devices
nIndicator lights to show if a power unit has failed
nLoad indicator shows you how much power you're using, and
how much is available
nFault relay can alert you if the dual-redundant PSU fails
nPower up to four fan covers: three rear-mounted covers and one
front-mounted cover

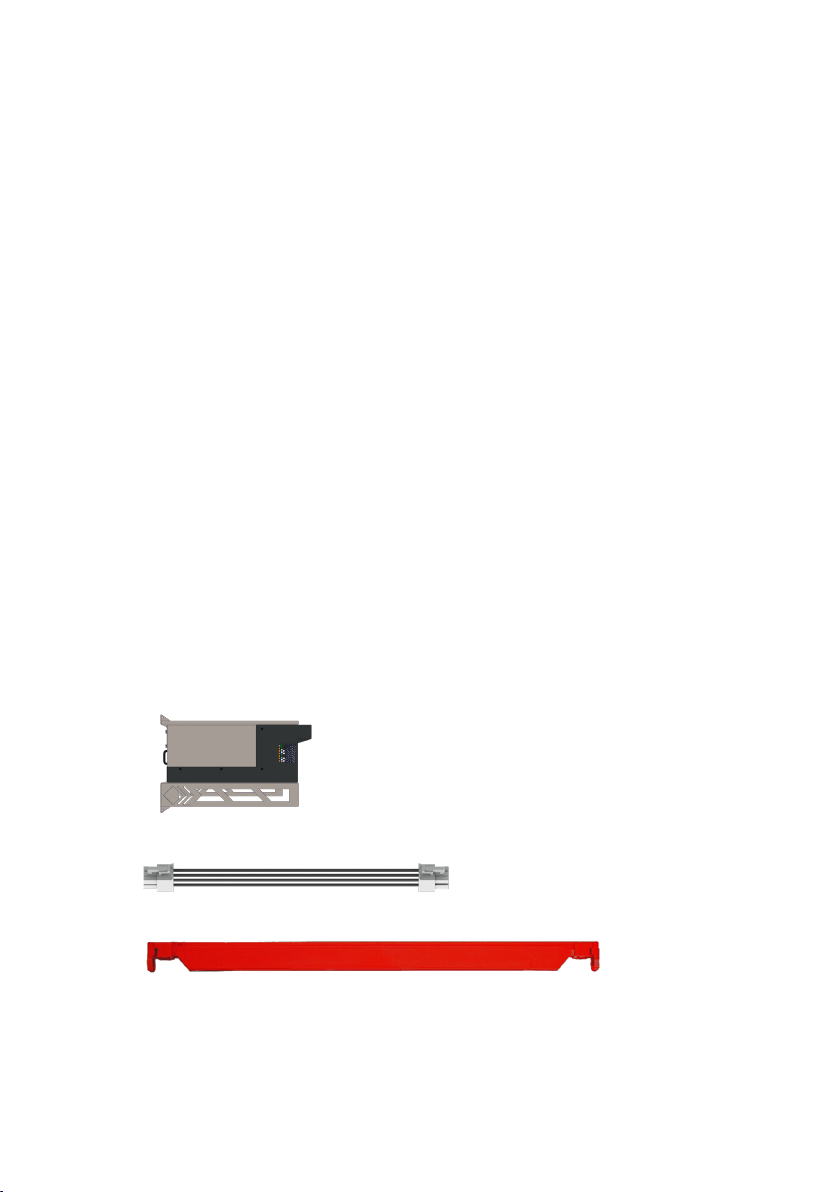

In the box
1 dual-redundant PSU, including two replaceable power units
2 daisy-chain cables
6 guide rails, including 2 spare guide rails

2 tvONE
4 M3 screws
2 power leads, AC, appropriate for your region
1 service cable
1 safety guide
1 installation guide
1 A3 template
In the unlikely event that a component is missing or damaged, please
contact [e-mail] or [e-mail].
Tools
Pozidriv®PZ1 crosshead screwdriver

MNL-1RK-HSWP-V1.10 3
About the ONErack dual-redundant PSU

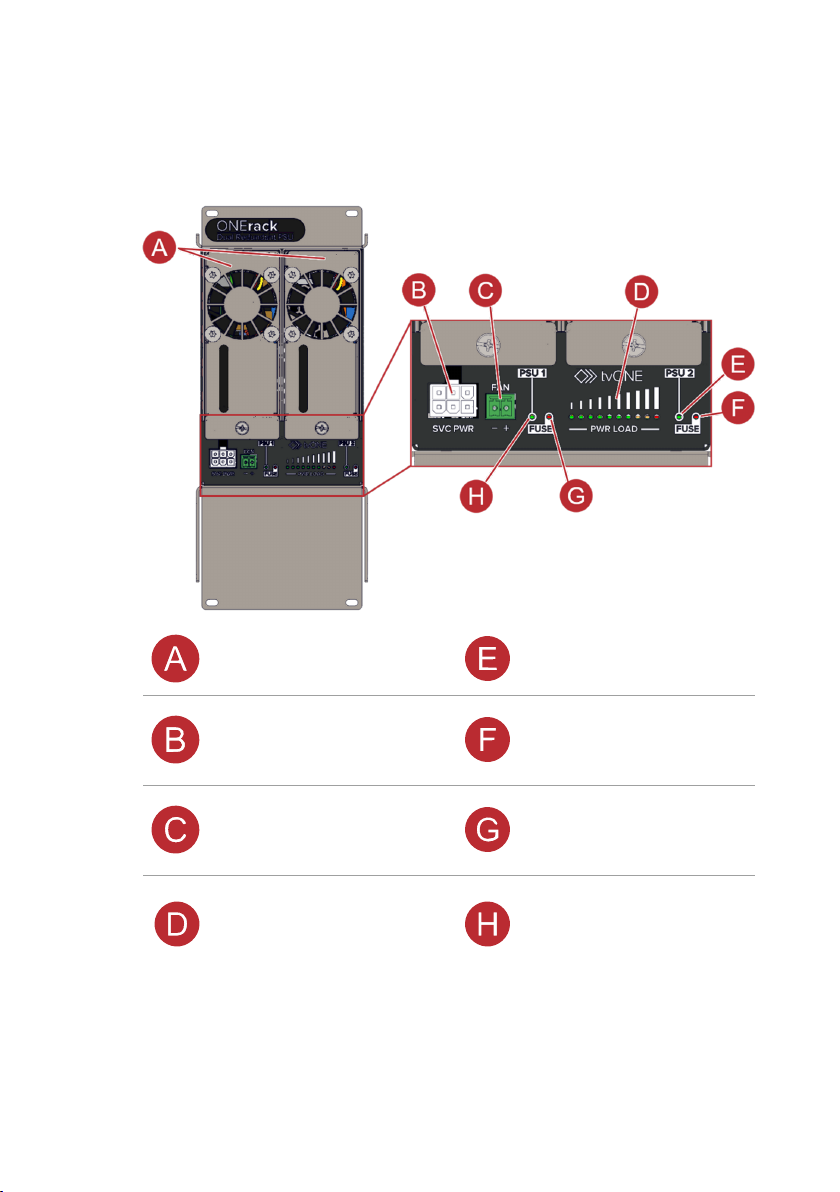

Front panel
Replaceable power units Shows you the status
of power unit 2
Connect the service
cable
Shows you the status
of the fuse of power
unit 2
Connect a fan cover
Shows you the status
of the fuse of power
unit 1
Shows you the power
load
Read more on page 9.
Shows you the status
of power unit 1

4 tvONE

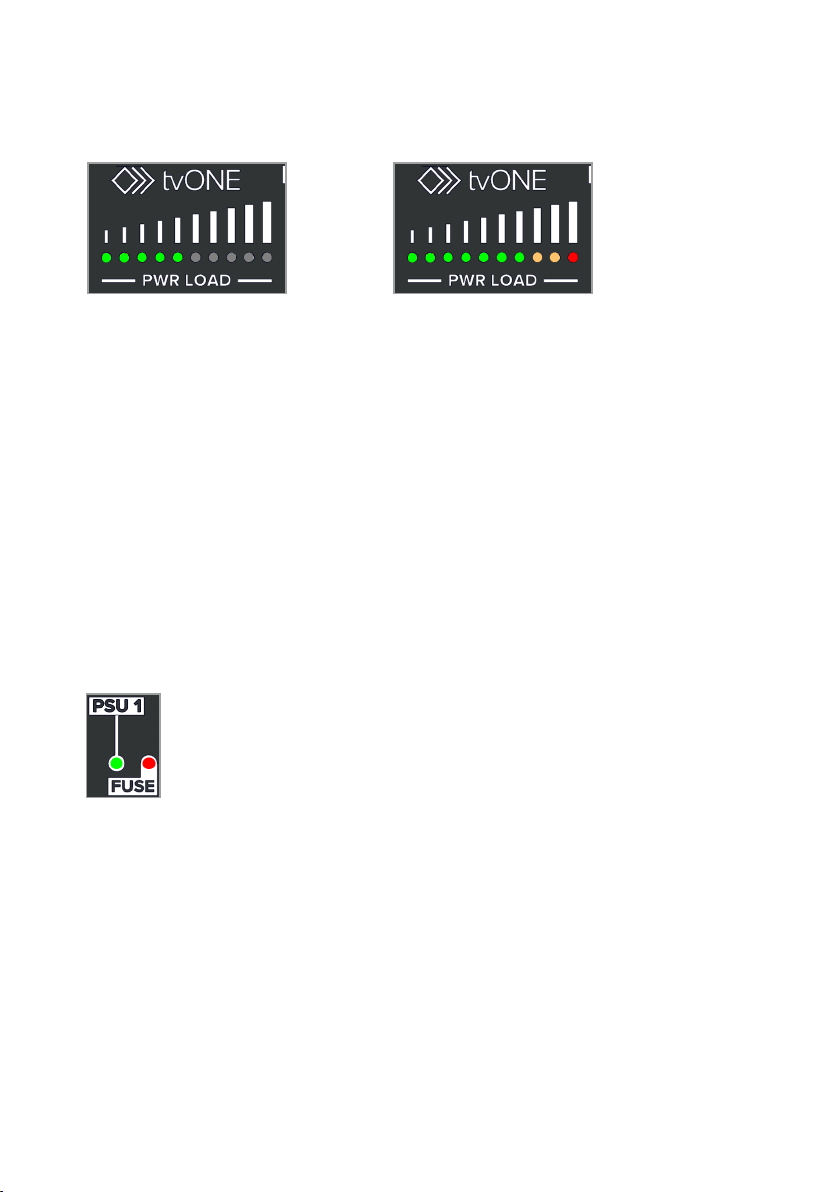

Status LEDs of the front panel
The power unit is working correctly.
The fuse of the power unit has tripped.
The fault relay closes and triggers an alert.
Read more on page 10.
The power unit has failed and needs to be
replaced.
The fault relay closes and triggers an alert.
Read more on page 8.
Both power units have failed, or there is no
power supplied to the dual-redundant PSU.
The fault relay closes and triggers an alert.

MNL-1RK-HSWP-V1.10 5

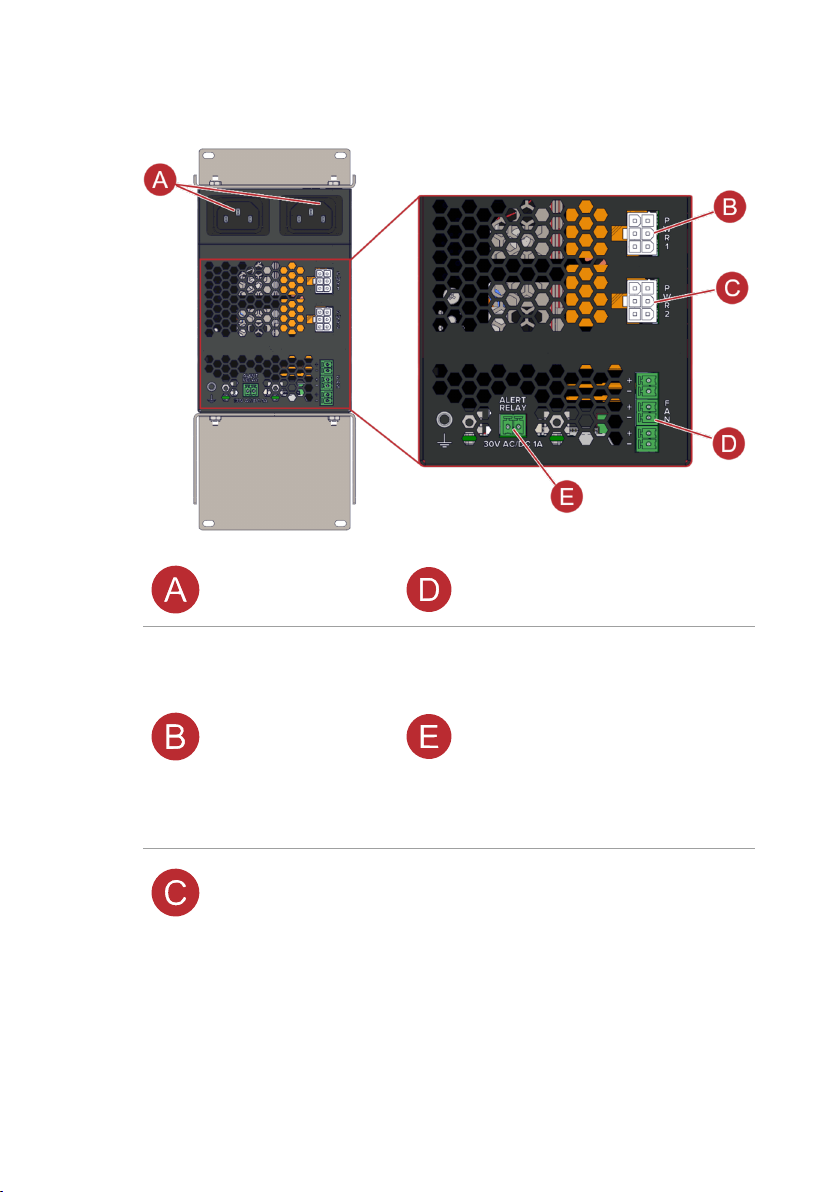

Rear panel
Connect power
leads
Connect up to three fan
covers
Connect a daisy-
chain cable to the
upper power rail
Fault relay.
2-pin 3.5 mm detachable
terminal block. Relay contact
rating 1A30VAC/DC. Closes
on fault.
Connect an alerting device,
for example, a buzzer, light,
or third-party control system.
Connect a daisy-
chain cable to the
lower power rail

6 tvONE
Fitting the ONErack dual-redundant PSU
To avoid damaging your ONErack, build it in a clean, tidy area.
This installation guide assumes you have already built a ONErack
chassis.
Read more about building a chassis in the installation guide for the
ONErack chassis. The guide is available from the Downloads tab at
tvone.com/onerack.
Airflow
You can place the dual-redundant PSU anywhere in your ONErack
chassis. If you mount the dual-redundant PSU at the left-hand end,
leave an empty numbered hole at the left-hand end. If you mount the
dual-redundant PSU at the right-hand end, leave an empty numbered
hole at the right hand end. Leaving an empty numbered hole allows
space for airflow.

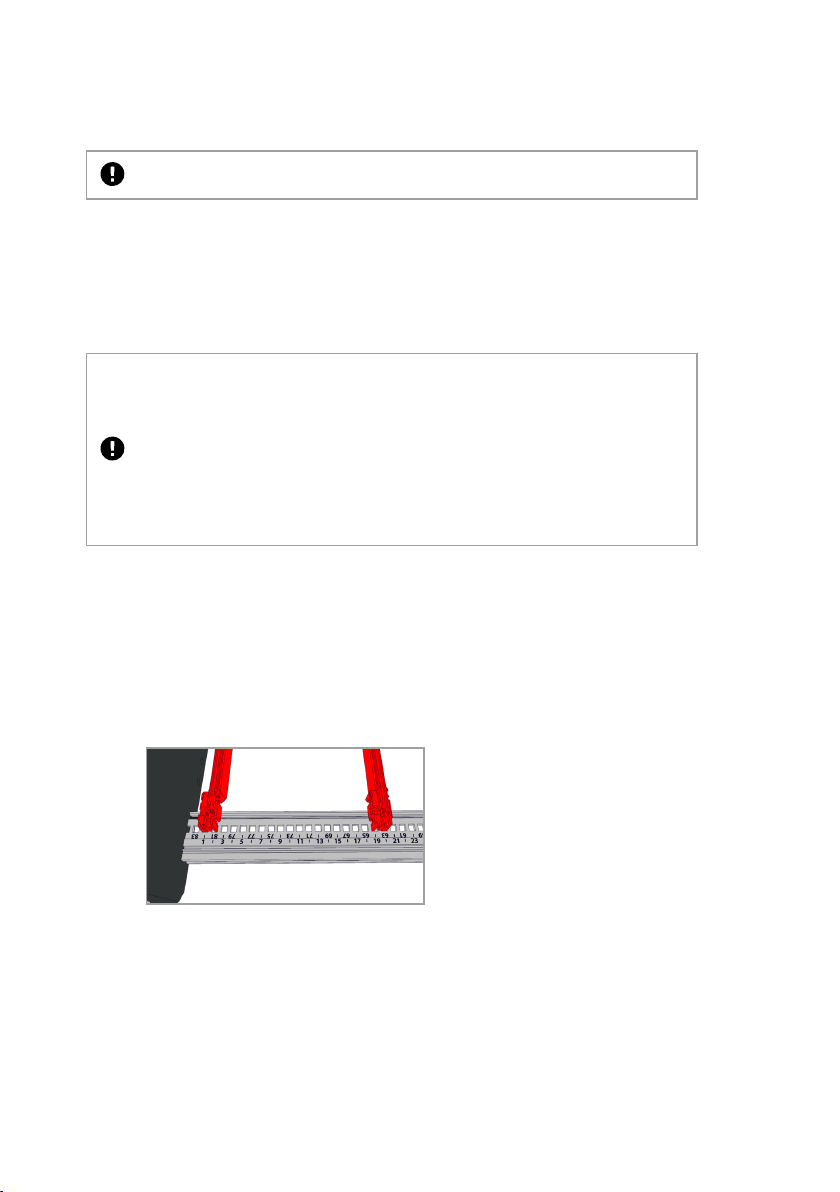

1. Clip a pair of guide rails into the lower and upper mounting rails.
nUse the numbers on the mounting rails, and the included
template, to help you fit the guide rails straight and in line
with one another.
nLeave 16 numbered holes between each pair of guide rails.
nMake sure the groove is on the right when you look from the
front of the chassis.

MNL-1RK-HSWP-V1.10 7

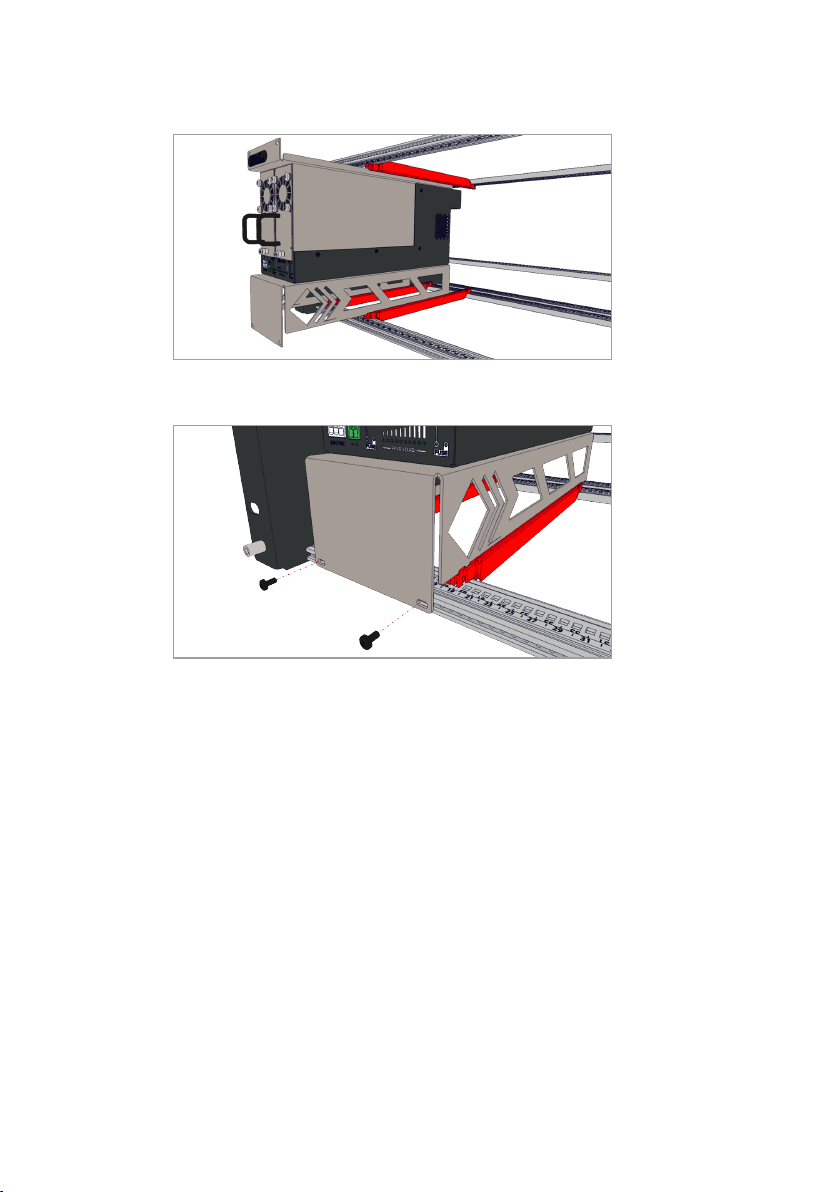

2. Slide the dual-redundant PSU into the groove in the guide rails.
3. Screw the top and bottom of the dual-redundant PSU in place
with 4 M3 screws.

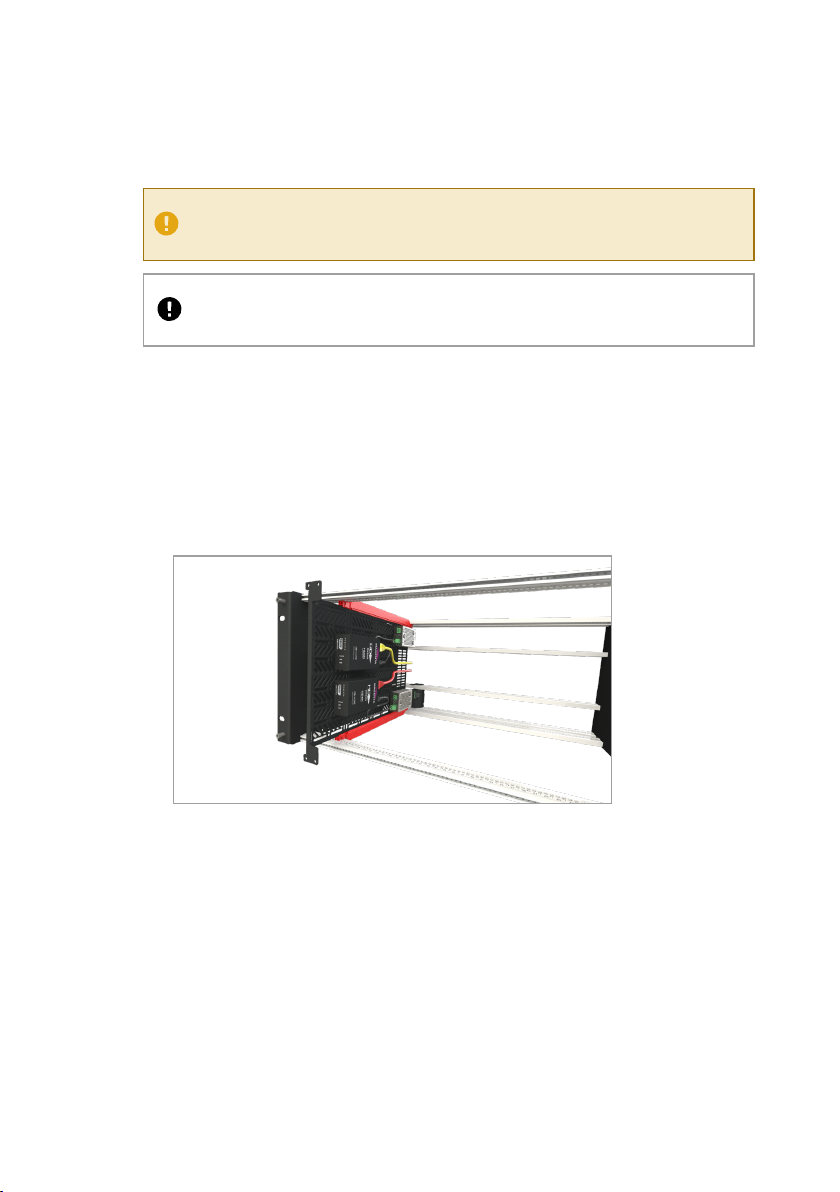

4. OPTIONAL: Connect one or both daisy-chain cables to the rear of
the dual-redundant PSU, ready for your modules.
You only need to connect a daisy-chain cable to the upper port if
you need to provide 350 W to the lower rail, or if you intend to
create an upper rail with extra voltage selectors, sold separately.
Ask your sales representative about 1RK-XTRA-RAIL and
1RK-XTRA-PWR.
5. When you have connected all your modules with daisy-chain
cables, connect your dual-redundant PSU to two electrical
outlets.
The green LEDs on the front of the dual-redundant PSU light up.
Read more in the guide for ONErack modules. The guide is
available from the Downloads tab at tvone.com/onerack.

8 tvONE
Replacing the power units in your
ONErack dual-redundant PSU
You can replace each of the power units in your dual-redundant PSU
during operation, with no need to power off.
Replacement power units are sold separately. Ask your sales
representative about 1RK-PSU-HSWP.
Replace the power units one at a time.
1. Unscrew the thumbscrew.
2. Use the handle to pull the power unit toward you and out of the
dual-redundant PSU.
