TV One 1T-VS-558 User manual

Instruction Manual
1T-VS-558
PC/HD/DVI Scaler

Table of Contents
1.0
Introduction
2
2.0
Specifications
3
3.0
Package Contents
5
4.0
Connecting The Hardware
5
5.0
Operating The Unit
7
6.0
Troubleshooting
12
7.0
Limited Warranty
13
8.0
Regulatory Compliance
14
9.0
Contact Information
14

2
1.0 INTRODUCTION
Thanks for purchasing this 1T-VS-558 PC/HD/DVI Scaler from tvONE. The 1T-VS-558 Video
Scaler is a high bandwidth, professional Cross Converter for Analog and DVI formats. The
unit has separate Analog and DVI inputs and outputs via HD-15 and DVI-I connectors
respectively. It accommodates resolutions up to WUXGA and 1080p and allows
conversion between them. The unit also accepts 480i/576i YUV interlaced analog
component video, such as from a DVD Player for up-conversion.
Our professional video conversion products have been serving the industry for over
twenty years. tvONE offers a full line of high quality Seamless Switchers, Video Scalers,
Up/Down/Cross Converters, Analog-Digital Converters (SD/HD-SDI, HDMI, DVI), Format
Converters, Standards Converters, TBC/Frame Synchronizers, Matrix Routing Switchers,
Signal Distribution Amplifiers and Cat.5/6 Transmission Systems.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. tvONE cannot be
held liable for the use of this hardware or any direct or indirect consequential damages
arising from its use. It is the responsibility of the user of the hardware to check that it is
suitable for his/her requirements and that it is installed correctly. All rights reserved. No
parts of this manual may be reproduced or transmitted by any form or means electronic or
mechanical, including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
tvONE reserves the right to revise any of its hardware and software following its policy to
modify and/or improve its products where necessary or desirable. This statement does not
affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The tvONE logo and CORIO
logo are the registered trademarks of tvONE. All other trademarks are the property of their
respective holders.
1.2 Features
The 1T-VS-558 has many features that enable it to perform in a superior manner.
Among those features you will find:
Cross Conversion
I/O Max Res: WUXGA and 1080p
Input Formats: RGBHV, YPbPr, YUV
Output Formats: RGBHV
Bi-directional Digital-Analog
Converter
DVI I/O is fully HDCP Compliant
3-D Motion Adaptive De-Interlacing
3-D Noise Reduction
3:2 Pull-Down
2:2 Pull-Down Recovery
Automatic Size/Position
Infrared Remote Control
Locking DC Power Supply
Optional Rackmount Kit
(RM-220 Single/Dual)

3
2.0 SPECIFICATIONS
Video Inputs
DVI-D (HDCP compliant)
Analog RGBHV
Analog Component (YPbPr/YUV)
1x via DVI-I Connector
1x via HD-15 Connector
1x via 3x RCA Connectors
Video Outputs
DVI-D (HDCP compliant)
Analog (RGBHV)
1x via DVI-I Connector
1x via HD-15 Connector
Formats Supported
Input
Output
RGBHV, YPbPr, YUV
RGBHV
Control Methods
Local Control
Remote Control
Front Panel via 6x Buttons and Joystick
IR and RS-232 via DB-9 Connector
Scaling Engine
Number of Engines
Phased Lock Loops
De-Interlace
Noise Reduction
Pull-Down
Bandwidth
Two (2)
8-bit triple ADC
3D Motion Adaptive
3D
3:2 + 2:2 Recovery
165 Mbs Digital, 100MHz Analog
Limited Warranty
Main Unit
3 Years Parts and Labor
Mechanical
Size (H-W-D)
Weight (Net)
42 x 218 x 164mm (1.7” x 8.5” x 6.45”)
1.13kg (2.5 lbs.)
Environmental
Operating Temperature
Operating Humidity
0to +50C (+32to +122F)
10% to 90%, Non-condensing
Storage Temperature
Storage Humidity
-10to +60C (+14to +140F)
10% to 90%, Non-condensing
Power Requirement
External Power Supply
5VDC@6A, twist lock connector
Regulatory Approvals
Main Unit
FCC, CE, RoHS
Power Supply
UL, CUL, CE, PSE, GS, RoHS
Accessories Included
1x AC Power Adapter
US, UK or Euro Type
1x Operations Manual
1x IR Remote Control
Optional Accessories
Rackmount Kit
RM-220 Single/Dual

4
2.1 Supported Input Formats and Resolutions
The 1T-VS-558 accepts DVI and analog PC plus analog Component inputs via separate
connectors. The resolutions and formats processed for these inputs are as follows:
Resolution
V. Rate/Hz
Scan
Format
Connector
480i
720x480
60 (NTSC)
Interlaced
YUV
RCA
576i
720x576
50 (PAL)
Interlaced
YUV
RCA
480p
720x480
60
Progressive
YPbPr/RGBHV(1)
HD15, DVI, RCA
576p
720x576
50
Progressive
YPbPr/RGBHV(1)
HD15, DVI, RCA
720p
1280x720
50,60
Progressive
YPbPr/RGBHV(1)
HD15, DVI, RCA
1080i
1920x1080
50,60
Interlaced
YPbPr/RGBHV(1)
DVI, RCA(2)
1080p
1920x1080
50,60
Progressive
YPbPr/RGBHV(1)
HD15, DVI, RCA
VGA
640x480
60,72,75,85
Progressive
RGBHV
HD15, DVI
SVGA
800x600
56,60,72,75,85
Progressive
RGBHV
HD15, DVI
XGA
1024x768
60,70,75,85
Progressive
RGBHV
HD15, DVI
SXGA
1280x1024
60,75,85
Progressive
RGBHV
HD15, DVI
UXGA
1600x1200
60
Progressive
RGBHV
HD15, DVI
WXGA
1280x800
60
Progressive
RGBHV
HD15, DVI
WXGA+
1440x900
60
Progressive
RGBHV
HD15, DVI
WSXGA
1680x1050
60
Progressive
RGBHV
HD15, DVI
WUXGA
1920x1200
60
Progressive
RGBHV
HD15, DVI
Note 1 –Analog YPbPr input is only available via the 3-RCA Connectors.
Note 2–Analog 1080i sources are not accepted over the HD-15 input.
2.2 Supported Output Formats and Resolutions
The 1T-VS-558 can provide a large number of output resolutions in the RGBHV format as
shown in the following table:
Resolution
V. Rate/Hz
Scan
Format
Connector
480p
720x480
60
Progressive
RGBHV
HD15, DVI
576p
720x576
50
Progressive
RGBHV
HD15, DVI
720p
1280x720
50,60
Progressive
RGBHV
HD15, DVI
1080i
1920x1080
50,60
Interlaced
RGBHV
HD15, DVI
1080p
1920x1080
50,60
Progressive
RGBHV
HD15, DVI
VGA
640x480
60
Progressive
RGBHV
HD15, DVI
SVGA
800x600
60
Progressive
RGBHV
HD15, DVI
XGA
1024x768
60
Progressive
RGBHV
HD15, DVI
SXGA
1280x1024
60
Progressive
RGBHV
HD15, DVI
UXGA
1600x1200
60
Progressive
RGBHV
HD15, DVI
WXGA
1280x800
60
Progressive
RGBHV
HD15, DVI
WXGA+
1440x900
60
Progressive
RGBHV
HD15, DVI
WSXGA
1680x1050
60
Progressive
RGBHV
HD15, DVI
WUXGA
1920x1200
60
Progressive
RGBHV
HD15, DVI

5
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain the
following items are contained in the shipping carton:
1x 1T-VS-558 Scaler
1x Power Supply
1x IR Remote Control
1x Operations Manual
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are
missing, contact your reseller or tvONE immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.
4.0 CONNECTING THE HARDWARE
Referring to the drawing below, connect the proper cable (3x RCA to 3x RCA for YPbPr
component input, HD-15 to HD-15 for PC input or DVI to DVI for DVI input) and then
connect the AC power adaptor.
Next, study the panel drawings and connector/control descriptions below and become
familiar with the control actions, connector functions and power requirements.
Above the word “MENU” you’ll find a joystick/switch control that allows access to and
adjustment of various operational items. Pressing the top of the joystick will bring up the
menu On Screen Display (OSD) and moving the joystick will allow you to move to, select
and then adjust the various functions.
The three buttons in the middle, YPbPr, RGB and DVI allow you to select the type of input
you desire and the Auto Adjust button causes the scaler to position and size the image
automatically. The Standby/On button is the power switch and above it is the IR sensor
used with the included remote control.

6

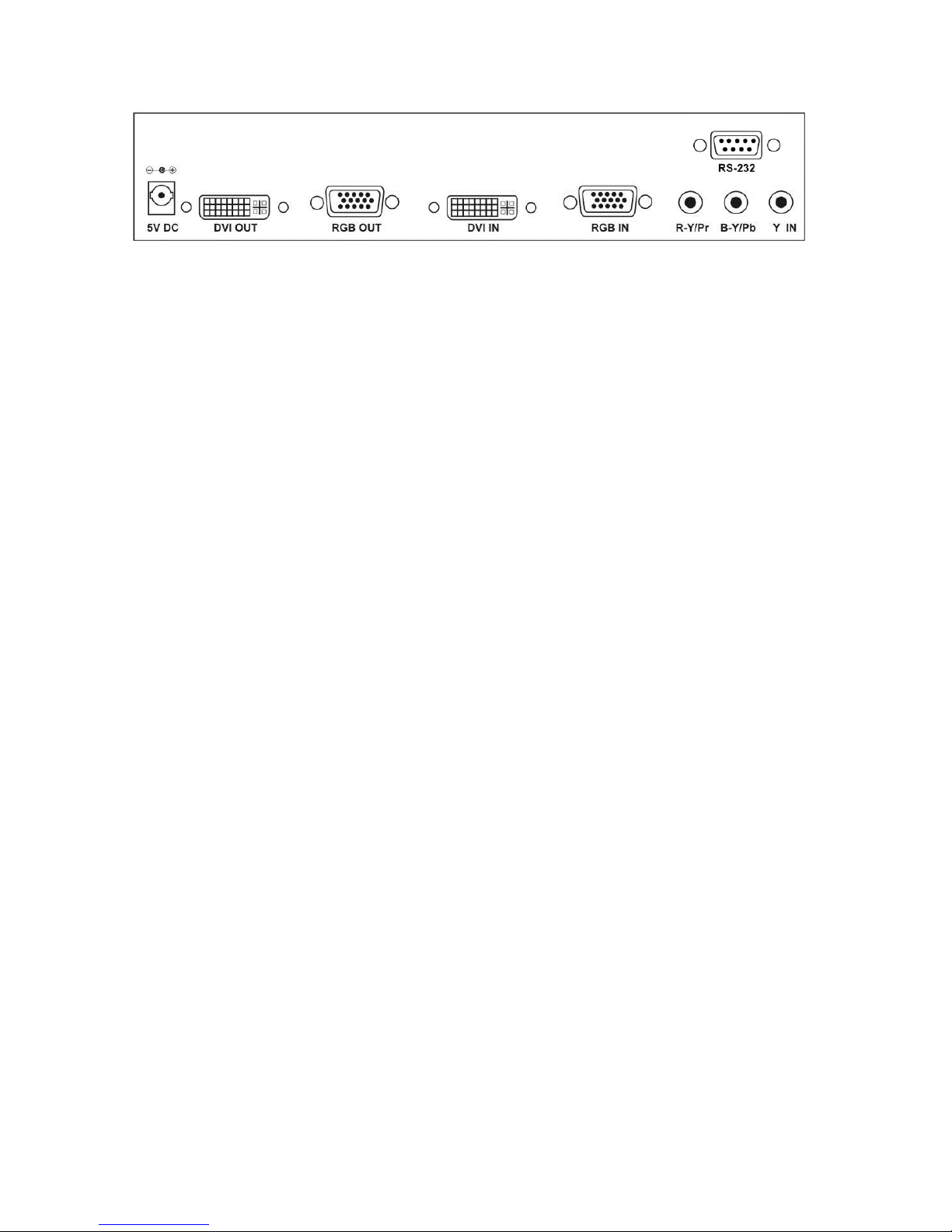

1 +5 VDC Input. (Connects to AC Adapter)
2 DVI Video Output
3 PC Video Output (RGBHV).
4 DVI Video Input
5 PC Video Input (HD-15 Connector from PC’s Monitor Output)
6 Component Video Inputs (3x RCA Connectors)
7 RS-232 Remote Control Connector
Connect the appropriate cables to the desired connector. Use only the highest quality
cables for the input and output connections.
The 1T-VS-558 is very capable and will automatically identify, accept and scale a host of
input types and resolutions (including analog and PC type signals). The output however
will be either DVI with a resolution of 480p to 1080p or RGB with resolutions from VGA to
WUXGA. You must use a display or other destination device that is either DVI or RGB
capable in order to use the output from this product. Since you can specify the output
resolution, you’ll need to know the highest resolution your destination device is capable of
handling and set the 1T-VS-558’s output resolution accordingly.
Note 1: tvONE utilizes a special “Twist-to-lock” connector to prevent the power cable coming loose. Insert the connector
into the socket just as you would with other manufacturer’s power adaptors but once securely inserted, gently twist the
connector 90 degrees to the right or left which will lock it in place.
Note 2: To realize maximum quality and performance, use only the highest quality cables with the 1T-VS-558. Low
quality cables will cause degradation of the signal quality and limit the distance between both the source and destination
devices and the 1T-VS-558.
2
3
4
5
6
1
7

7
5.0 OPERATING THE UNIT

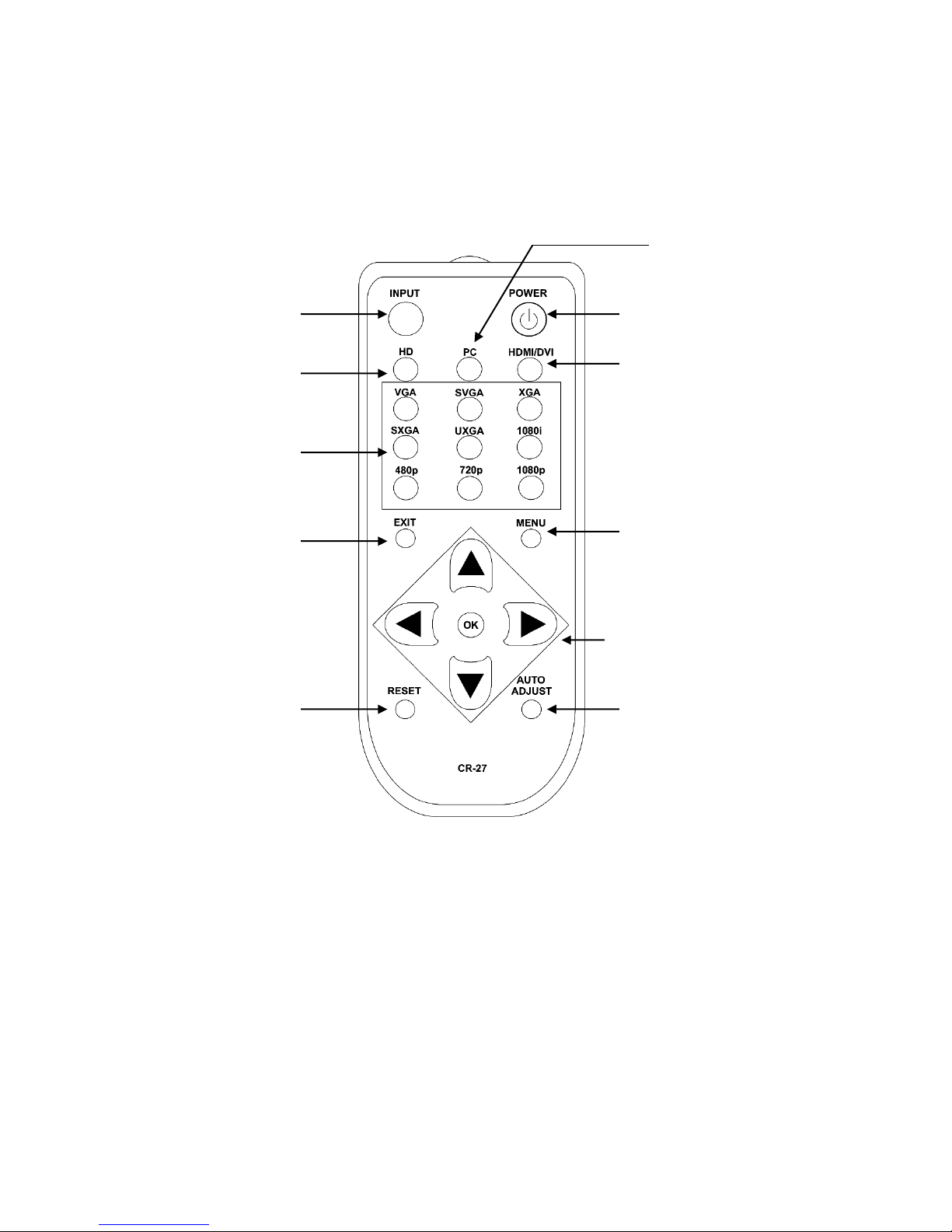

The 1T-VS-558 can be operated from either the front panel controls or via the included
Infrared Remote Control. Since Infrared is the control method used most often by the
majority of users, please take the time to familiarize yourself with the location and function
of the various control buttons on the Controller.
* For resolutions not accessible from the Remote, Use the OSD capability.
5.1 Using the On Screen Display Menus
Regardless of whether you operate the 1T-VS-558 from the front panel or using the
Remote Controller, you will need to become familiar with the OSD (On Screen Display)
menu structure if you wish to take full advantage of the capability of the product.
5.1.1 Using the On Screen Display Menus
If you are using the front panel control method, you can select the desired function by
pressing the top of the Joystick immediately above the MENU legend to bring up the On
Screen Display and then move the Joystick to navigate to the desired function. Once at
the desired function, press the top of the Joystick to make the selection and then move
Select PC Input
Power On/Off
Select DVI Input
Toggle through
the Inputs
Select YPbPr
Input
Select Output
Resolution *
Exit Menu
Select Menu (OSD)
Navigate Menus and
adjust parameters.
Select Auto-Adjust
Function
Reset to Factory
Default Setting

8
the Joystick (left or right) to make the actual adjustment. Once you’ve made the
adjustment, press the top of the Joystick a last time to save your adjustment. Escape from
the OSD menu modes is accomplished by positioning the cursor over the word “Exit” in
any menu and then pressing the top of the Joystick.
From the IR remote controller, press the menu key to activate the OSD, use the arrow
buttons to navigate to the selection you want and then use the arrow buttons and the “OK”
button to make your adjustment or selection. Press the “Exit” button to escape from the
OSD mode.
5.1.2 Menu Structure
The main structure is as follows. The 1T-VS-558 OSD (On Screen Display) Menu structure
is a two tier display. You first select the high level portion of the menu (Video, Color,
Output, OSD Characteristics, Audio, Information or Exit) and then, with the exception of the
Exit function; a secondary menu will appear where specific adjustments or operational
selections can be made.
High Level
Second Level
Adjustment
Video
(or PC1)
Picture Mode
User / Standard / Vivid / Movie
Contrast
0-100 Contrast Adjustment
Brightness
0-100 Brightness Adjustment
Hue
0-100 Hue Adjustment
Saturation
0-100 Color Level Adjustment
Sharpness
0-100 Picture Sharpness Adjustment
Scale
Follow Aspect / Overscan / Underscan /
Letterbox / Panscan / Full
Noise Reduction
Low / Middle / High / Off
H-Position1
0-100 Horizontal Image Position
V-Position1
0-100 Vertical Image Position
PC Clock1
0-100 Input Clock Adjustment
PC Phase1
0-63 Input Phase Adjustment
Exit
Return to High Level Menu
Color
Color Tone
User / Normal / Warm / Cool
Red
0-100 Relative Red Color Level
Green
0-100 Relative Green Color Level
Blue
0-100 Relative Blue Color Level
Exit
Return to High Level Menu
Output2
-
NATIVE / VGA / SVGA / XGA / SXGA / SXGA+
WXGA+ / WSXGA / UXGA / WUXGA
480i/480p/720p@60Hz/1080i@60Hz/1080p@60Hz
576i/576p/720p@50Hz/1080i@50Hz/1080p@50Hz

9
OSD
Control3
H Position
0-100 Relative L-R Position
V Position
0-100 Relative U-D Position
Display Select
INFO / OFF / ON
Timer
0-100 Relative OSD Show Time (Sec)
Transparency
0-100 Relative OSD Text Transparency
Exit
Return to High Level Menu
Information4
-
Source (Input Interface)
Input (Input Resolution)
Output (Output Resolution)
Version (Firmware Version)
Exit
-
Close the OSD Menu
OSD Menu Notes:
Note 1: The PC sub-menu controls are only visible when you have selected a PC source.
Note 2: The Output sub-menu allows you to specify the resolution you want the 1T-VS-558 to produce. Keep in mind
that setting the resolution can cause an apparent malfunction if you select a resolution that your display device cannot
reproduce. Make certain your display device can reproduce the resolution you select BEFORE you select it.
Note 3: The OSD sub-menu allows you to customize the way the On Screen Display appears when it has been
accessed. This is a personal preference matter. You can change the default if you wish or simply leave it at the factory
setting.
Note 4: The Info sub-menu contains technical information. If you have problems with the 1T-VS-558 and require
assistance, the technician may ask you to read information from this menu to him as part of the troubleshooting process.
5.2 RS-232 Protocol
The connection between 1T-VS-558 and controller with RS-232 modem cable.
RS-232
Transmission Format:
Baud Rate: 19200bps
Data Bit: 8 bits
Parity: None
Stop Bit: 1bit
Flow Control: None
Remote Control
PIN
Assignment
1
NC
2
Rx
3
Tx
4
NC
5
GND
6
NC
7
NC
8
NC
9
NC
1T-VS-558
PIN
Assignment
1
NC
2
Tx
3
Rx
4
NC
5
GND
6
NC
7
NC
8
NC
9
NC
