TV One 1T-SX-632 User manual

1T-SX-632 & 1T-SX-634
HDMI V1.3 Switchers
Instruction Manual

Table of Contents
1.0 Introduction 2
2.0 Specifications 4
3.0 Checking Package Contents 5
4.0 Connecting the Hardware 5
5.0 Operating The Unit 7
6.0 Troubleshooting 8
7.0 Limited Warranty 9
8.0 Regulatory Compliance 9
9.0 Contact Information 10

2
1.0 INTRODUCTION
The 1T-SX-632 and 1T-SX-634 HDMI Switchers allow selection of 2 or 4 inputs
respectively for display on an HDMI compliant display device. These version 1.3 HDMI
switchers support all standard High Definition Television formats, PC formats from
1024x768 thru 1920x1200 and embedded HD-Audio (including Dolby® TrueHD and
DTS-HD). Infrared Remote Control and RS-232 Control are standard features of both
products. Secured HDMI connectors insure input and output cables will not
inadvertently become disconnected.
Our professional video conversion products have been serving the industry for over
twenty years. TV One offers a full line of high quality Seamless Switchers, Video
Scalers, Up/Down/Cross Converters, Analog-Digital Converters (SD/HD-SDI, HDMI,
DVI), Format Converters, Standards Converters, TBC/Frame Synchronizers, Matrix
Routing Switchers, Signal Distribution Amplifiers and Cat.5 Transmission Systems.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. TV One cannot
be held liable for the use of this hardware or any direct or indirect consequential
damages arising from its use. It is the responsibility of the user of the hardware to check
that it is suitable for his/her requirements and that it is installed correctly. All rights
reserved. No parts of this manual may be reproduced or transmitted by any form or
means electronic or mechanical, including photocopying, recording or by any
information storage or retrieval system without the written consent of the publisher.
TV One reserves the right to revise any of its hardware and software following its policy
to modify and/or improve its products where necessary or desirable. This statement
does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The TV One logo, AV Toolbox
logo, TV One-task and CORIO are the registered Trademarks of TV One. All other
trademarks are the property of their respective holders.
1.2 Features
•HDMI 1.3, HDCP 1.1 and DVI 1.0 Compliant
•Allows switching of 2 or 4 inputs
•Supports 10/12 bit Color Depth Display
•Supports PC resolutions to 1920x1200
•Supports HDTV resolutions to 1080p & SDTV resolutions of 480i and 576i
•Supports embedded Audio including Dolby® Digital TrueHD and DTS-HD
•Signal Enhancement feature enables longer cable runs
•Infrared Remote Control and RS-232 Control Standard

3
1.3 Getting the Best Results
There are many factors affecting the quality of results when switching HDMI type
signals. Some basic precautions will ensure the best possible performance from your
1T-SX-632 or 1T-SX-634 HDMI Switcher.
•Output display device – The quality of the output signal will depend largely upon
the type and quality of the HDMI display device used. For instance, some video
projectors just look better than others.
•Distance between the switcher, the sources and the display – This plays a
major role in the final result. Long distances are possible, but special measures
should be taken in order to avoid cable losses. These include using high quality
cables. Line amplifiers may also be necessary for the longest runs.
•Input/Output connection cables – Low quality cables are susceptible to
interference. They degrade signal quality due to poor matching and can cause
elevated noise levels. Cables should be of the best quality.
•Interference from nearby electrical devices – These can have an adverse effect
on signal quality. For example, an older computer monitor often emits very high
electromagnetic fields that can interfere with the performance of video equipment in
its proximity.

4
2.0 SPECIFICATIONS
Video Inputs
1T-SX-632 2x HDMI via Type A HDMI Connector (Note 1)
1T-SX-634 4x HDMI via Type A HDMI Connector (Note 1)
Video Output
Both Models 1x HDSMI via Type A HDMI Connector
General
Frequency Bandwidth 2.25Gbps (Single Link)
Color Depth 10/12 bit Color Depth Display
Supported PC Resolution Up to 1920x1200
Supported HDTV Formats 480p, 576p, 720p, 1080i and 1080p
Supported SDTV Formats 480i, 576i, 576p
Audio I/O (Embedded) HD-Audio, including Dolby® TrueHD & DTS-HD
Compliance HDMI V1.3, HDCP V1.1, DVI V1.0
Signal Enhancement Switchable On/Off
Maximum Distances
Source to Switcher 20m (60’) for 1080p/8-bit, 15m (45’) for 1080p/12-bit
Switcher to Display 15m (45’) for 1080p/8-bit, 10m (30’) for 1080p/12-bit
Control Methods
Local Control Front Panel via Push Button Switches
Remote Control Infrared and RS-232 via DB-9 Connector
Warranty
Limited Warranty 2 Years Parts and Labor
Mechanical
Size (H-W-D) 30x200x89mm (1.2”x7.9x3.5”)
Weight (Net) 0.85kg (1.88lbs)
Environmental
Operating Temperature 0°to +50°C (+32°to +122°F)
Operating Humidity 10% to 90%, Non-condensing
Storage Temperature -10°to +50°C (+32°to +122°F)
Storage Humidity 10% to 90%, Non-condensing
Power Requirement
External Power Supply 5VDC@2A
Regulatory Approvals
HDMI Switchers FCC, CE, RoHS
Power Supply UL, CUL, CE, PSE, GS, RoHS
Accessories Included
1x AC Power Adapter US, UK or Euro
1x Instruction Manual
1x IR Remote Control
Optional Accessories
RM-230 Single/Dual Rackmount Kit
Product Item Numbers
1T-SX-632 2x1 HDMI Switcher
1T-SX-634 4x1 HDMI Switcher

5
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain the
following items are contained in the shipping carton:
•1x 1T-SX-632 or 1T-SX-634 HDMI Switcher
•1x 100~240VAC to 5VDC Power Adapter
•1x Instruction Manual
•1x Infrared Remote Control
Note: Please retain the original packing material should the need ever arise to return
the unit. If you find any items are missing, contact your reseller or TV One immediately.
Have the Model Number, Serial Number and Invoice available for reference when you
call.
4.0 CONNECTING THE HARDWARE
Connect the HDMI Video Sources to the inputs of the 1T-SX-632 or 1T-SX-634 HDMI
switcher, connect its output to a HDMI Compliant monitor and lastly connect the AC to
DC Power Adapter. The drawings below show the locations of the inputs, output, power
switch and power connector.
1T-SX-632 HDMI Switcher
1T-SX-634 HDMI Switcher

6
4.1 Connecting the Inputs to the 1T-SX-632 or 1T-SX-634
You can connect any HDMI compliant device’s output to any of the HDMI inputs. Make
certain that the HDMI cable is securely plugged into the source device as well as the
HDMI Switcher. Always use a high quality cable, as short a length as possible, for best
results.
4.2 Connecting the 1T-SX-632 or 1T-SX-634 Output
Using a high quality HDMI cable, connect the output of the HDMI Switcher to an HDMI
compliant display device. Use the shortest cable run possible.
4.3 Connecting Power to the 1T-SX-632 or 1T-SX-634
Both units are shipped with a Power Adapter to convert 100~240VAC@50-60Hz to
5VDC. Connect the DC Output Cable from the Power Adapter to the back of the unit
and then plug the Power Adapter into an AC Receptacle. You will be able to turn the
HDMI Switchers “On” via either the front panel power switch, the power switch on the
Infrared remote control or via RS-232 commands.
4.4 Using the Positive Cable Securing Feature
If HDMI cables are used that are equipped with Locking type connectors, an added step
is necessary. Remove the Philips head screws from the rear of the unit just above the
HDMI connectors and replace them with the Hex Nut/Screws that came in the 1T-SX-
632 or 1T-SX-634 accessory pack. After screwing these into the threaded holes vacated
by the Philips head screws, the Hex Nut provides a threaded receptacle for the screw
that is part of the locking HDMI connector on the cable. Plug in the cable’s Locking
HDMI connector and secure it to the unit with its integral screw. This fastens the cable
to the unit and prevents its inadvertent removal.
4.5 Optional Rack Mount Kit
The 1T-SX-632 and 1T-SX 634 HDMI Switchers can be mounted in a standard 19”
equipment rack. To mount the units, the optional RM-230 Rack Mount kit must be
purchased. Using this kit, either type HDMI switcher can be mounted in the rack. It is
also possible to mount one of each switcher in the rack using the dual rack mount
capability. It is not necessary to mount two of the same type of switchers.

7
5.0 OPERATING the HDMI SWITCHERS
The 1T-SX-632 and 1T-SX-624 HDMI Switchers can be operated via the front panel
controls. If the cable run length is excessive and the quality of the display is less than
optimum, you can press the Enhance switch on the front panel which will turn on a low
noise amplifier within the switcher and light an LED indicating that the amplifier is in use.
Provided there is enough signal for the amplifier to recover the HDMI bitstream, you will
be able to use inputs and a display located farther apart than is normally possible.
Another front panel control is the input select switch. This switch is pressed to select the
desired input. Each time the switch is pressed, the next input in sequence (from left to
right) is selected. LED displays indicate which input is active. Finally, there is an On/Off
Power Switch and an indicator LED that shows when the unit is turned on.
5.1 Operation of the 1T-SX-632 or 1T-SX-634 via Remote Control
5.2 Operation of the 1T-SX-632 or 1T-SX-634 via RS-232 Machine Control
Operation using RS-232 protocols is possible for either HDMI Switcher. The technical
information needed is provided in the two charts which follow but if you are not
technically inclined, seek help from an appropriately trained individual since cables will
have to be constructed and programs written to use the RS-232 capabilities.
5.2.1 RS-232 Commands
Command Action
“I” + “1” Port 1 On
“I” + “2” Port 2 On
“I” + “3” Port 3 On
“I” + “4” Port 4 On
“S” + “1” Enable Signal Enhance
“S” + “0” Disable Signal Enhance
“P” + “1” Power On
“P” + “0” Power Off

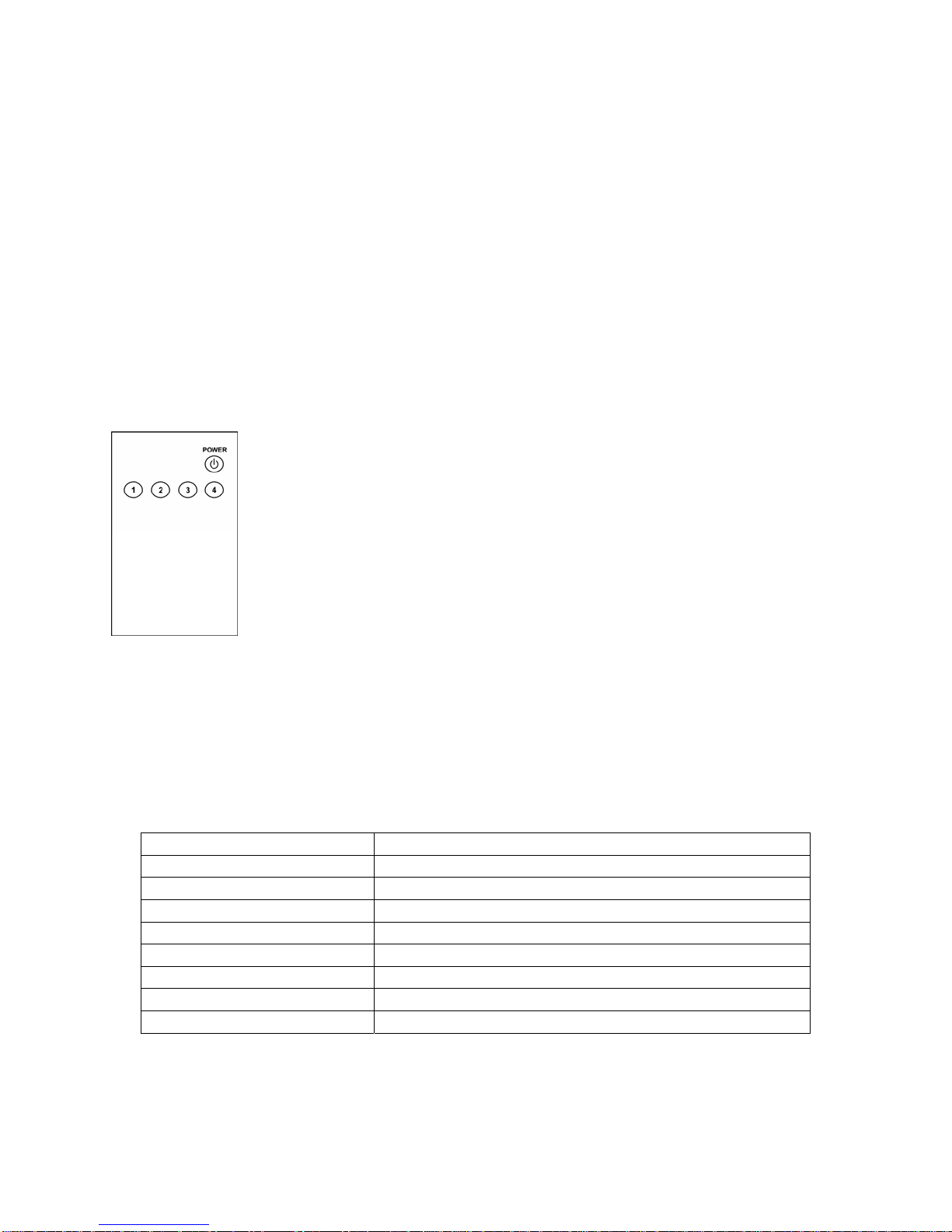

Operation of the HDMI Switchers is possible via an included
Infrared Remote Control. Selection of Enhance mode is not
possible from the IR Remote however the unit can be turned on
and off and the inputs can be selected simply by pressing the
appropriate button on the remote. Note: When you unpack either
HDMI Switcher, you may have to remove an insulator from the
battery compartment of the remote in order for the remote to
receive power. The battery compartment slides out from the bottom
of the unit.

8
6.0 TROUBLESHOOTING
In the event of problems, first make certain that the input and output cables are no more
than 50 feet long (for signals to 1080i resolution) and are of the highest possible quality.
Next, make certain that the Switcher is receiving power.
If all is well in these areas, remember that HDMI devices communicate with one another
so the source devices and destination device must be fully HDMI capable. In addition,
HDCP encryption requires additional processing which also is dependent on the
equipment you have connected to the sources and destination device. If you experience
problems using the 1T-SX-632 or 1T-SX-634 HDMI Switcher, you should attempt to
determine what is wrong by attaching each of the source devices – one at a time –
directly to the destination device using the same cables you are using with the
expanded system. This is a way of determining if the problem is due to bad cables or a
problem with the other devices. If you are unable to obtain a signal using this simplified
path, suspect the cables, the source device(s) or the destination device.
After trying the above suggestions should the problem still persist, contact your dealer
for additional suggestions before contacting TV One. Should the dealer’s technical
personnel be unable to assist you, contact TV One via our support website:
http://tvone.crmdesk.com. Create a technical support request on the site and our
support team will respond within a short period of time.
Pin Definitions
HDMI Switcher Control Unit
PIN Definition PIN Definition
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC

9
7.0 LIMITED WARRANTY
LIMITED WARRANTY – With the exceptions noted in the next paragraph, TV One
warrants the original purchaser that the equipment it manufactures or sells will be free
from defects in materials and workmanship for a period of one year from the date of
purchase. Should this product, in TV One’s opinion, prove defective within this warranty
period, TV One, at its option, will repair or replace this product without charge. Any
defective parts replaced become the property of TV One. This warranty does not apply
to those products which have been damaged due to accident, unauthorized alterations,
improper repair, modifications, inadequate maintenance and care, or use in any manner
for which the product was not originally intended.
Items integrated into TV One products that are made by other manufacturers, notably
computer hard drives and liquid crystal display panels, are limited to the term of the
warranty offered by the respective manufacturers. Such specific warranties are
available upon request to TV One.
If repairs are necessary under this warranty policy, the original purchaser must obtain a
Return Authorization Number from TV One and return the product to a location
designated by TV One, freight prepaid. After repairs are complete, the product will be
returned, freight prepaid.
LIMITATIONS - All products sold are "as is" and the above Limited Warranty is in lieu
of all other warranties for this product, expressed or implied, and is strictly limited to two
years from the date of purchase. TV One assumes no liability to distributors, resellers or
end-users or any third parties for any loss of use, revenue or profit.
TV One makes no other representation of warranty as to fitness for the purpose or
merchantability or otherwise in respect of any of the products sold. The liability of TV
One with respect to any defective products will be limited to the repair or replacement of
such products. In no event shall TV One be responsible or liable for any damage
arising from the use of such defective products whether such damages be direct,
indirect, consequential or otherwise, and whether such damages are incurred by the
reseller, end-user or any third party.
8.0 REGULATORY COMPLIANCE
The 1T-SX-632 and 1T-SX-634 HDMI Switchers have been tested for compliance with
appropriate FCC and CE rules and regulations. The Power Adaptor/Supplies have been
tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations
and/or Guidelines. These Products and Power Adapters are RoHS Compliant.

10
9.0 CONTACT INFORMATION
Should you have questions or require assistance with this product in areas not covered
by this manual, please contact TV One at the appropriate location.
TV One USA
1350 Jamike Drive
Erlanger, KY 41018
USA
Tel [phone]
Fax [phone]
[email protected]
www.tvone.com
TV One Europe
Continental Approach
Westwood Industrial Estate
Margate, Kent CT9 4JG, UK
Tel [phone]
Fax [phone]
[email protected]
www.tvone.co.uk
TV One Latin America
2790 NW 79 Ave
Miami, FL 33122
USA
Tel [phone]
Fax [phone]
[email protected]
www.tvonela.com
TV One Mercosur
Honduras 5849, 2nd Floor, Office C
(C1414BNI) Capital Federal
Buenos Aires, Argentina
Tel [phone]
Fax [phone]
[email protected]
www.tvonela.com
TV One Asia
11F, NO.28, Sec. 2
San-Min Rd, Panchiao City
Taipei Hsien 220
Taiwan R.O.C.
Tel [phone]
Fax [phone]
[email protected]
www.tvoneasia.com
TV One China
Rm.9C, Neiwailian Building
No.518 Shangcheng Road
Pudong, Shanghai
China 200120
Tel [phone]
Fax [phone]
Email: [email protected]
Website: www.tvonechina.com
End of Manual
