TVS electronics BS-L100 Plus User manual
Handheld Laser Barcode Scanner - BS-L100 Plus
1
BS-L100 Plus User Manual
Handheld Laser Barcode Scanner - BS-L100 Plus
2
Table of Contents
Chapter 1 Getting
Started……………………………………………………………………………………………...4
Barcode Programming……………………………………………………………………4
Factory
Defaults …………………………………………………………………………………….4
Chapter 2 Scan Mode...................................................................................................5
Manual Mode........................................................................................................... 5
Continuous Mode........................................................................................................... 5
Auto-Flashing Mode......................................................................................................... 5
Chapter 3 Notification......................................................................................................6
Buzzer ......................................................................................................................6
Chapter 4 Communication
Settings …………………………………………………………………………………6
RS-232 Interface ................................................................................................. 6
Baud Rate...............................................................................................6
Parity Check ....................................................................................... 7
Stop Bit ........................................................................................ 7
Data Bit ........................................................................................ 7
USB Interface……………………………………………………………..8
USB HID-KBW………………………………………….8
USB Country Keyboard Types………………………………………….8
USB COM Port Emulation………………………………………….9
Chapter 6 Keyboard Mode..........................................................................10
Chapter 7 Data Formatting...........................................................................11
Prefix Setting ..............12
Suffix Setting..............13
Character for Prefix and Suffix..............14-19
Chapter 8 Symbologies ...................................................................................20-32
Handheld Laser Barcode Scanner - BS-L100 Plus
3

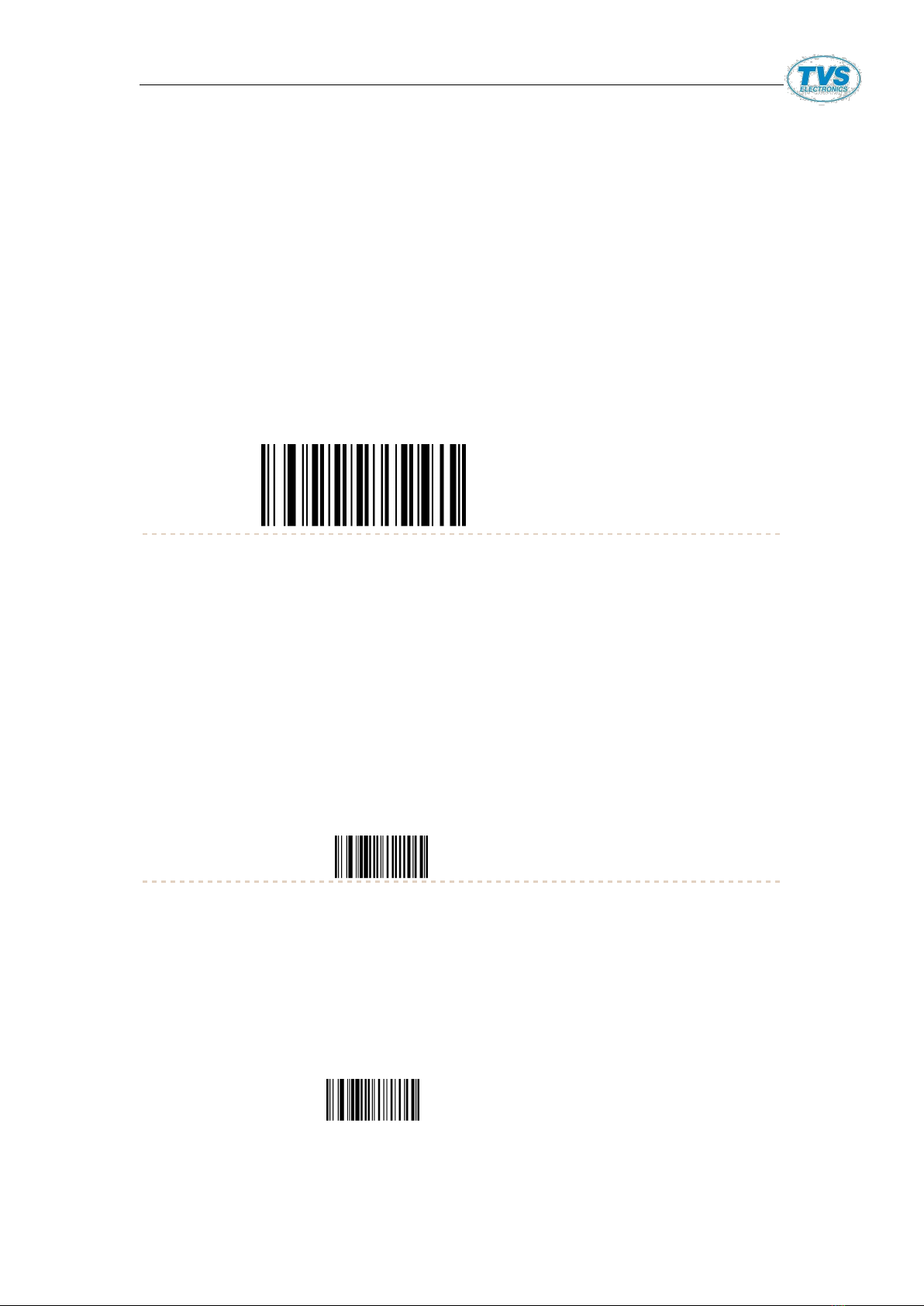

Factory Defaults Scanning
The following barcode can restore the engine to the factory defaults.
You may need to reset your engine when:
1. engine is not properly configured so that it fails to decode barcodes
2. you forget previous configuration and want to avoid its impact
3. functions that are rarely used have been enabled for the time being.
000B0
Factory Default
Chapter 2 Scan Mode
Manual Mode
Manual Mode (default): A trigger pull activates a decode session. The decode
session continues until the barcode is decoded or the trigger is released or the decode
session timeout expires.
013300
Manual
Continuous Mode: A trigger press activates the engine to scan and decode
at user-specified intervals, i.e. the timeout between decodes. Each decode session lasts until
barcode is decoded or the decode session timeout expires. To suspend/resume the operation,
simply press the trigger. By default, the engine rereads same barcode with no delay.
013304 Continuous
Handheld Laser Barcode Scanner - BS-L100 Plus
4

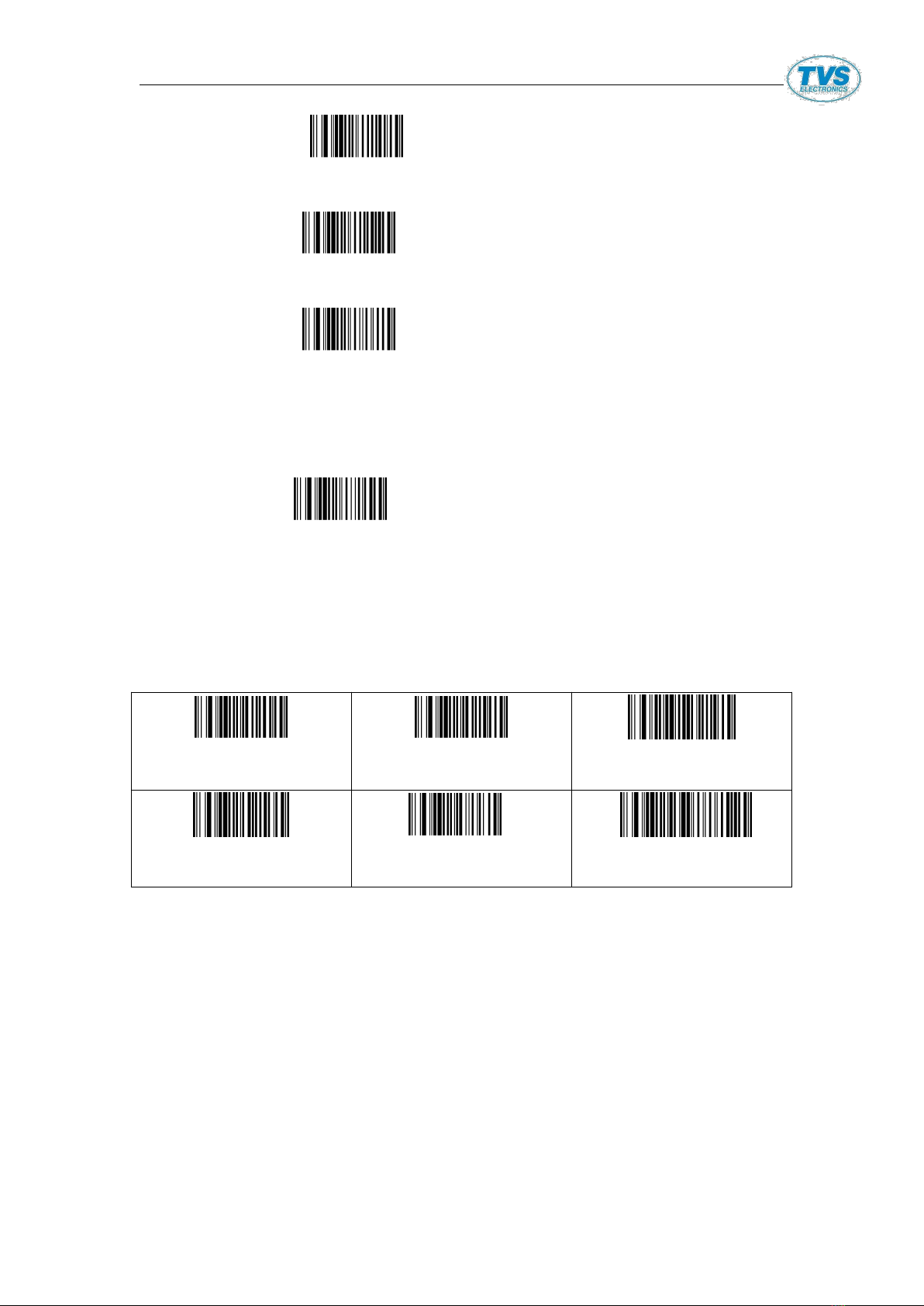

013302
Button Delay
013301
Single Untriggered
013303
Button Delay Untriggered
Automatic Flashing Mode:
013305
Chapter 3 Notification
Buzzer
014201
Buzzer ON ( Default)
014200
Buzzer off
0145800
Buzzer Frequency 2048
014300
Buzzer High
014301
Buzzer Low
0145AAA
Buzzer Frequency 2731
Chapter 4 Communication Settings
The scanner provides an RS-232 interface and a USB interface to communicate with
the host device. The host device can receive scanned data and send commands to
control the engine or to access/alter the configuration information of the engine via
the RS-232 or USB interface.
Handheld Laser Barcode Scanner - BS-L100 Plus
5

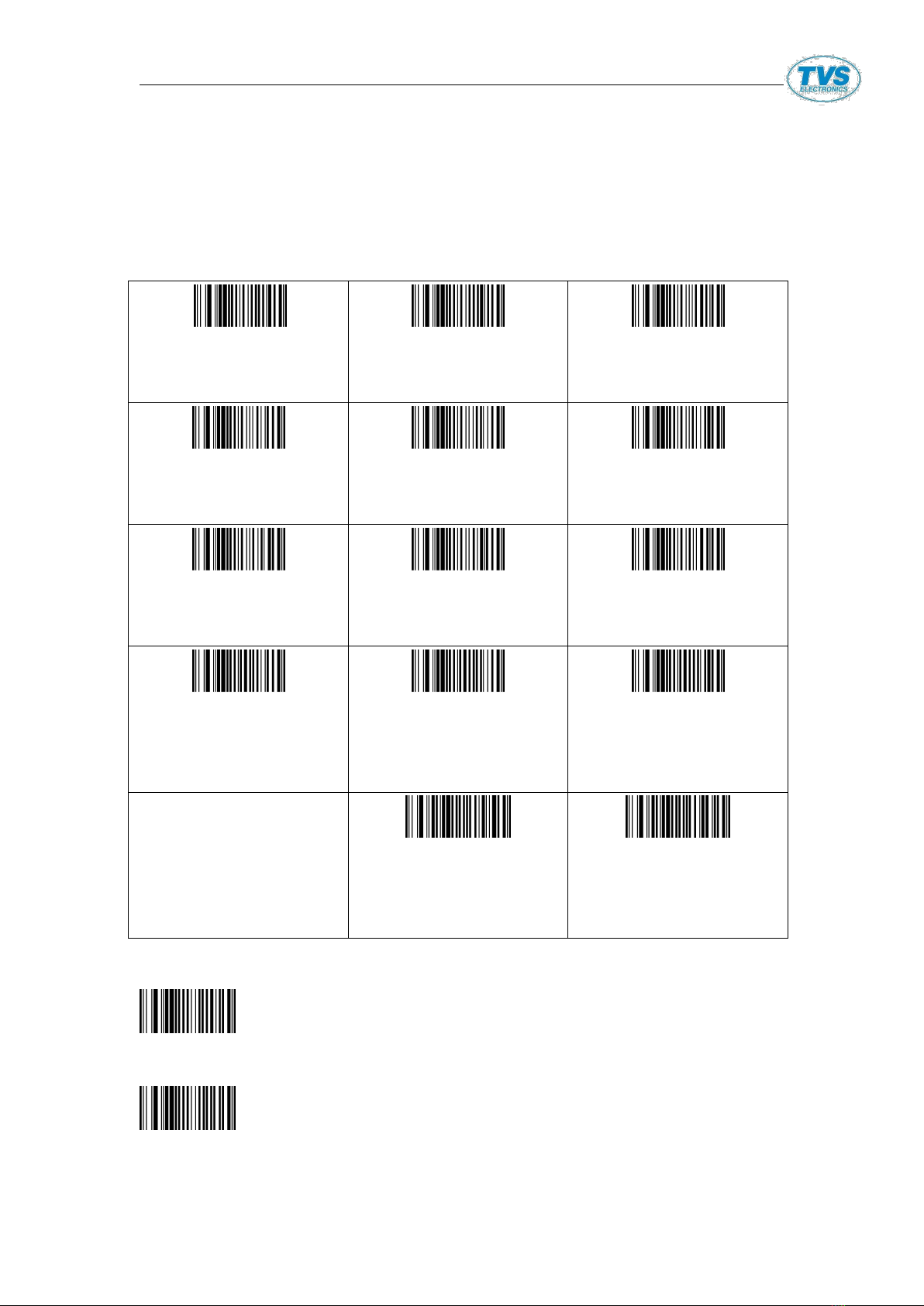

RS-232 Interface
Baud Rate
When the scanner is connected to a host device through its RS-232 interface, you need to set
communication parameters (including baud rate) to match the host device. Baud rate is the number
of bits of data transmitted per second. Set the scanner’s baud rate to match the Host requirements.
000701
RS232 600bps
000702
Rs232 1200bps
000703
Rs232 2400bps
000704
Rs232 4800bps
000705
Rs232 9600bps
Factory Fault
000706
RS232 19200bps
000707
Rs232 38400bps
000708
Rs232 57600bps
000709
Rs232 115200bps
001200
RS232 No Parity
001201
RS232 XON/OFF
Protocol
001202
RS232 RTS/CTS
Protocol
0013020
RS232 Handshake
Timeout 2s
0013050
RS232 Handshake
Timeout 5s
Parity Check
001000
RS232 No Parity
001001
RS232 Odd Parity
Handheld Laser Barcode Scanner - BS-L100 Plus
6
001002
RS232 Even Parity
Stop Bit
00090
RS232 1 stop Bit
00091
RS232 2 stop Bit
Data Bit
00080
RS232 8 Bit Data
00081
RS232 7 Bit Data
USB Interface
USB HID-KBW
When enabled, the scanner’s transmission is simulated as USB keyboard input. It works on a Plug
and Play basis and no driver is required.
000603
USB-HID
USB Country Keyboard Types
Keyboard layouts vary from country to country. All supported keyboard types are listed below
Handheld Laser Barcode Scanner - BS-L100 Plus
7

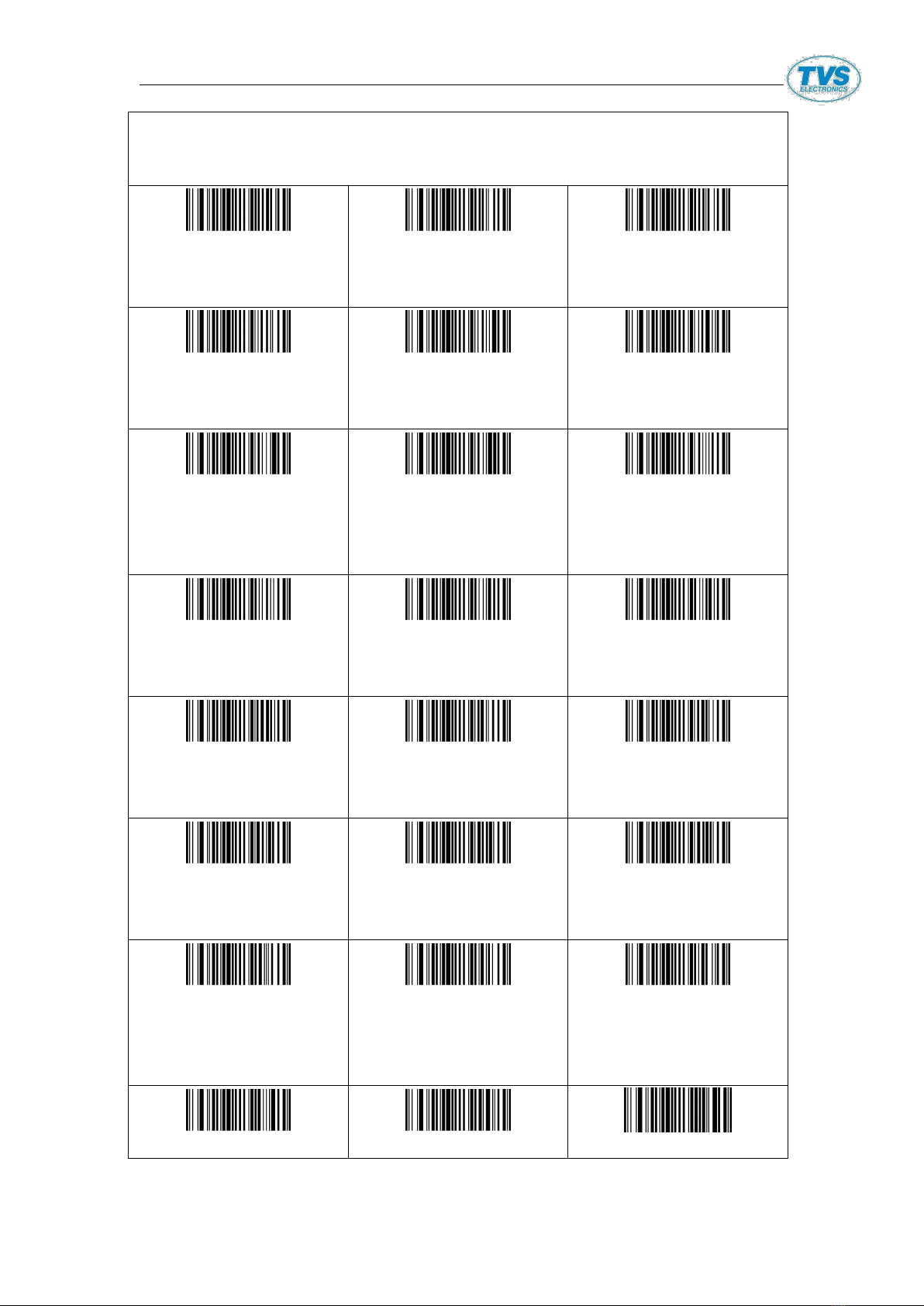

Keyboard Mode
0005000
USA，Chinese（English）
Default
0005001
Canada （French ）
0005002
Netherlands (Dutch)
0005003
Spain-Spanish
0005004
Argentina-Latin
American
0005005
Brazil-Portuguese
0005006
Denmark-Danish
0005007
UK-English
0005008
Italy-Italian
0005009
France-French
0005010
Germany-German
0005011
Norway-Northern Sami
0005012
Sweden,Finland-Swedis
h,Finnish
0005013
Slovakia-Slovak
0005014
Portuguesa-Portugues
e
0005015
Czech Republic-Czech
0005016
Belgium -Dutch
0005017
Turkey-F
0005018
Turkey-Q
0005019
Poland-Polish
0005020
Switzerland
–German,French
0005021
0005022
0005023
Handheld Laser Barcode Scanner - BS-L100 Plus
8
Croatia-Srb-Crt
Hungary -Hungarian
Japan-Japanese
0005024
Russia-Russian
0005025
Arab （Arab）
USB-COM
Chapter 7 Data Formatting
Introduction
After a successful barcode read, a string containing numbers, letters or symbols will be returned.
In real applications, barcode data may be found insufficient for your needs. You may wish to
include additional information such as barcode type, data acquisition time or delimiter in data
being scanned. Adding extra information to printed barcodes does not seem like a sensible
solution since that will increase the barcode size and make them inflexible. Instead, we come up
with the idea of appending prefix and suffix to the data without making any change to barcodes.
We will show you how to conduct the configuration in the following sections.
Note: Customized data:< Prefix><Data><Suffix>< Terminating Character>
Prefix &Suffix Setting:
Prefix/Suffix Setting
0212@\r
CR
0213@\r\n
CR+LF
0211@[ETX]
All barcodes(rear)
add ETX
Handheld Laser Barcode Scanner - BS-L100 Plus
9
02160081
All barcodes(front)
addF2
02110081
All barcodes(rear)
addF2
0210@
Cancel all
barcodes(rear)
format character
0217@[STX]
Add STX before
barcodes
0215@
Cancel all boots
before barcodes
02240
Add prefix
02241
Add suffix
02242
Exit add pre/suffix
Mode
02220
Clear all prefix
02200
Clear all suffix
02340
Exit Hide Prefix Mode
02341
Exit Hid Suffix Mode
02342
Exit Hide Middle Mode
02343
Exhit Hide Nth Mode
Note：1,SUC/SWK/SUG all setting code are code128，when it is barcode
Prefix ^3 will be set，such as ^3+******(required code)：
2,The Ascll code of this table is decimal, and the hexadecimal system is referenced in schedule 2
Prefix & Suffix Setup Instruction
1.The prefix and suffix is divided into shared prefix-suffix and
private prefix-suffix；SUCR SUC0 SUC2 SUGR could add max 32 characters;
SWK could add max 16 characters.
2.Shared Prefix-suffix ：
Two Methods to prefix-suffix：
[1]. To scan one code to add，setup code 0223X（Prefix）、
0221X（Suffix）
0223, 0221stand for one-time adding shared prefix-suffix X
stand for added characters，X is binary，for example, to add
shared prefix-suffix A, setup code is 0221A ，which show all
code add suffix A, to input the following content in the
software：
Handheld Laser Barcode Scanner - BS-L100 Plus
10
Setup code is 0223A ，which show all codes will be added prefix
A;to input the following content in the software：
For example,to add shared suffix CR, setup code is 0221\r，to input
the following content in the software：
[2]: to scan one code to add,setup by Ascll, setup code is
021100nn （suffix ） 、 021600nn （prefix ） ； Ascll setup by Hexadecimal
detailed spec pls refer to ASCll Table 1
For Example：to add shared prefix-suffix A, By Hexadecimal, setup
code is：02160041
Moreover：to add character &Enter behind code，to add“+”and Enter behind
code ；setup code ：0213@+\r ；Suffix ：0212@ No cumulative 、0213@ 2
times、0211@ three times
3，To add private suffix
To add private suffix，to add A behind all Code 128；Two Methods：
1，0211 0141
Table 1, Ascll Table 2
2，0212 A A
If accumulative, to use 0213A、0211A
Any other code,pls refer to Table 1
To add private prefix,to add A in the front of all Code 128 ；Two Methods：
1，0216 0141
Table 1 pls refer to Ascll Table 2
2，0217 A A
Handheld Laser Barcode Scanner - BS-L100 Plus
11
If accumulative：0218A
2，Sleeping Time/ Button Delay
1，Sleeping Time Setup code：0310nnn
If XS sleep，by binary system（cardinal number: 4），Formula：x/4=NNN
For example：Auto-power off during 60 s，setup code：0310015
Auto- power off during 5 min,setup code：031075
Sleep time Limited：42min 47s
2，Button time-out setup code:0235nn
If button overtime 4s, setup code：023540
三， For hide characters；
Hid suffix characters setup code:0233nn ,if Hide suffix 5 characters
setup code:023305
Hid prefix characters setup code ：0234nn ,for 023405 hide front 5
characters.
If Hide middle characters, two setup codes are used together：0239nn(隐
Hide middle nn characters)/0240nn(from nnth on in the front) ，for
123456789，if we need to hide 345, setup code：023903 and 024003 used
together.
Barcode Type Table 1
@（00）all
A（01）code128
C（03）EAN8
D（04）EAN13
E（05）UPCA
F（06）UPCE
I（09）CODE93
J（0A）GS1 OMNI
K（0B）GS1 LIMI
M（0D）CODE39
N（0E）Interleaved 2 of 5
O（0F）Industrial 2 of 5
P（10）Aviation 25
Handheld Laser Barcode Scanner - BS-L100 Plus
12
Q（11）Matrix 25
R（12）Postal 25
S（13）MSI
T（14）PLESSEY
U（15）CODE11
V（16）CODABAR
Special Button Accordingly Code Table (Standard Characters by
ASCII)：
F1 = 0x80; F2 = 0x81; F3 = 0x82; F4 = 0x83; F5 = 0x84;
F6 = 0x85; F7 = 0x86; F8 = 0x87; F9 = 0x88; F10 = 0x89;
F11 = 0x8A; F12 = 0x8B;
Insert = 0x8C; Home = 0x8D; Page up = 0x8E;
Delete = 0x8F; End = 0x90; Page down = 0x91;
Right = 0x92; Left = 0x93; Down = 0x94;
Up = 0x95;
The specified CODE93 add prefix STX，according to STX ASCII: 0x02，
Setup code Contents:
Number 1：
ASCII = [F3]‘0’‘2’‘1’‘6’‘I’ [STX]
Binary System = [F3] + 0x30 + 0x32 + 0x31 + 0x37 + 0x49 + 0x02
Setup code Pic
Number 2：
ASCII = [F3] + ‘0’ + ‘2’ + ‘1’ + ‘6’ + ‘0’ + ‘9’ + ‘0’ + ‘2’
For example CODE93 add Home prefix：
ASCII = [F3] + ‘0’ + ‘2’ + ‘1’ + ‘6’ + ‘0’ + ‘9’ + ‘8’ + ‘D’
(Note: code93 >，home Value:0x8D)
Ascll Table 2
Decimal
Hexadecim
al
Character
s
Decimal
Hexadeci
mal
Characters

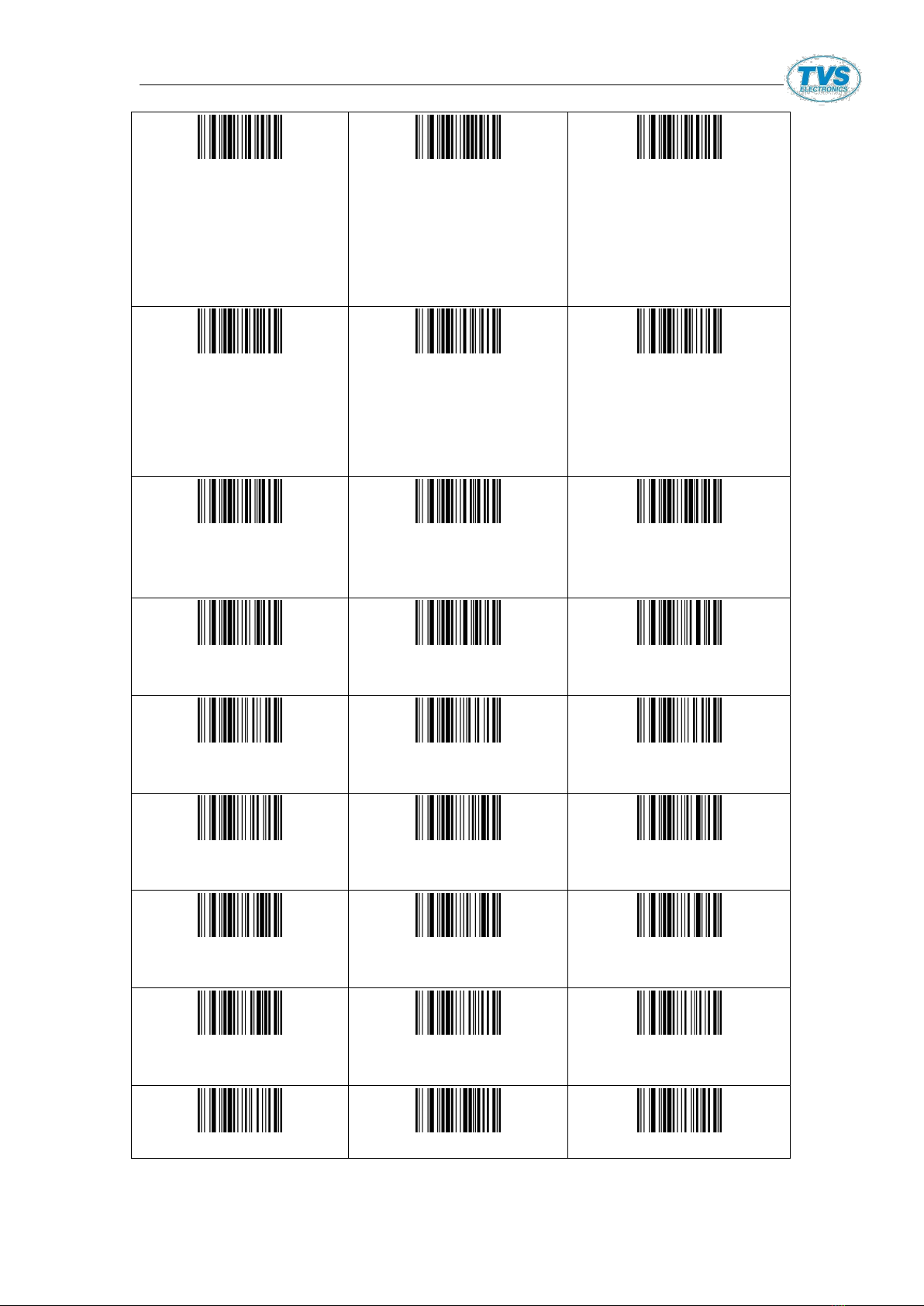

0
0
Space
16
10
Data link
Switching
1
1
Start of
17
11
Place
Handheld Laser Barcode Scanner - BS-L100 Plus
13
heading
Control 1
2
2
Start of
Main Body
18
12
Place
Control 2
3
3
End of
Main Body
19
13
Place
Control 3
4
4
End of
Transmiss
ion
20
14
Place
Control 4
5
5
Inquiry
21
15
Recomfirm
6
6
Comfirmat
ion
22
16
Synchnous
idle
Character
7
7
Shake the
bell
23
17
End of
Transmissi
on-Block
Character
2
8
8
backspace
24
18
Cancel
9
9
Horizonta
l TAB
25
19
End of
Media
10
0A
Line
feed/New
Line
26
1A
Replace
11
0B
Vertical
TAB
27
1B
Transferen
ce
12
0C
Skip/New
Page
28
1C
File
Separator
13
0D
Enter
29
1D
Group
Seperator
14
0E
Shirt-out
30
1E
Record
Seperator
15
0F
Shift-in
31
1F
Unit
Seperator
32
20
space
80
50
P
33
21
!
81
51
Q
34
22
"
82
52
R
35
23
#
83
53
S
36
24
$
84
54
T
37
25
%
85
55
U
38
26
&
86
56
V
39
27
'
87
57
w
40
28
(
88
58
X
41
29
)
89
59
Y
Handheld Laser Barcode Scanner - BS-L100 Plus
14
42
2A
*
90
5A
Z
43
2B
+
91
5B
[
44
2C
,
92
5C
\
45
2D
-
93
5D
]
46
2E
.
94
5E
^
47
2F
/
95
5F
_
48
30
0
96
60
`
49
31
1
97
61
a
50
32
2
98
62
b
51
33
3
99
63
c
52
34
4
100
64
d
53
35
5
101
65
e
54
36
6
102
66
f
55
37
7
103
67
g
56
38
8
104
68
h
57
39
9
105
69
i
58
3A
:
106
6A
j
59
3B
;
107
6B
k
60
3C
<
108
6C
l
61
3D
=
109
6D
m
62
3E
>
110
6E
n
63
3F
?
111
6F
o
64
40
@
112
70
p
65
41
A
113
71
q
66
42
B
114
72
r
67
43
C
115
73
s
68
44
D
116
74
t
69
45
E
117
75
u
70
46
F
118
76
v
71
47
G
119
77
w
72
48
H
120
78
x
73
49
I
121
79
y
74
4A
J
122
7A
z
75
4B
K
123
7B
{
76
4C
L
124
7C
|
77
4D
M
125
7D
}
78
4E
N
126
7E
~
79
4F
O
127
7F
DEL
Revision History ：
V2.04：[1] Fixed whether the UPCA sent a system character definition
error
Define Meaning Exchange between 00401 and 00400
Handheld Laser Barcode Scanner - BS-L100 Plus
15
V3.00：[1] Add Code 11 to Proof Setup
[2] Add EAN Force Exchange ISSN And ISBN
[3] Add the Proof Mode Setting
V3.10：[1] Add《USB Software》interface Setting
V3.11：[1] Add 《Hide Intermediate Character 》setting
[2] Add 《Display Serial Number 》Setting
[3] Add《Displays an internal Version Number
setting
V3.12：Add the prefixes to the Setting Code
V3.20: [1] Remove the calibration mode, calibration method into sweep
calibration
[3] Prefix character change
V4.00:(1)Add Wireless Setting Code
（2）Add size code conversion
V4.2：(1)Organize the collation code
(2)Increase the front and back description
（3）Infraced Incereased Interfaced Mode
V4.3：(1)the instruction of adding setting code
（2）GS1 Support Revision
（3）USB Support Medium Speed
(4)Add ASCLL Code Table 1for setup usage.
V4.4:（1）to revise sleep time need to set up at first
V4.5: Revising Sleep time,Remove two wireless setup mode
V4.6：1) Disable and Enable adding setup code
2）Add Matrix 25 setup function
3）Add HID Mode
V4.7:1)Delete useless setup code
2）Revising min digit setup code
3）Format Arrangement
V4.8:1)Revising 014300 setup code Fixed 014300 set code graphic
2) Increase the sound frequency setting
2）To add sound frequency setup
Handheld Laser Barcode Scanner - BS-L100 Plus
16
Character for Prefix and Suffix
Character for Prefix and Suffix
1001
SOH
1002
STX
1003
ETX
1004
EOT
1005
ENQ
1006
ACK
1007
BEL
1008
Backspace
1009
TAB
1010
LF
1011
VT
1012
FF
1013
CR
1014
SO
1015
SI
1016
DLE
1017
DC1
1018
DC2
1019
DC3
1020
DC4
1021
NAK
1022
1023
1024
Handheld Laser Barcode Scanner - BS-L100 Plus
17
SYN
ETB
CAN
1025
EM
1026
SUB
1027
ESC
1028
FS
1029
GS
1030
RS
1031
US
1032
SPACE
1033
!
1034
“
1035
#
1036
$
1037
%
1038
&
1039
‘
1040
(
1041
)
1042
*
1043
+
1044
,
1045
-
1046
.
1047
/
1048
0Note:Used to set
Addrass/prefix/suffix
1049
1
Note:Used to set
Addrass/prefix/suffi
x
1050
2
Note:Used to set
Addrass/prefix/suffi
x
1051
3
Note:Used to set
Addrass/prefix/suffix
Handheld Laser Barcode Scanner - BS-L100 Plus
18
1052
4
Note:Used to set
Addrass/prefix/suffi
x
1053
5
Note:Used to set
Addrass/prefix/suffi
x
1054
6
Note:Used to set
Addrass/prefix/suffix
1055
7
Note:Used to set
Addrass/prefix/suffi
x
1056
8
Note:Used to set
Addrass/prefix/suffi
x
1057
9
Note:Used to set
Addrass/prefix/suffix
1058
:
1059
;
1060
<
1061
=
1062
>
1063
?
1064
@
1065
A
1066
B
1067
C
1068
D
1069
E
1070
F
1071
G
1072
H
1073
I
1074
J
1075
K
1076
1077
1078
Handheld Laser Barcode Scanner - BS-L100 Plus
19
L
M
N
1079
O
1080
P
1081
Q
1082
R
1083
S
1084
T
1085
U
1086
V
1087
W
1088
X
1089
Y
1090
Z
1091
[
1092
\
1093
]
1094
^
1095
_
1096
`
1097
a
1098
b
1099
c
1100
d
1101
e
1102
f
1103
g
1104
h
1105
i
1106
j
1107
k
1108
l
Handheld Laser Barcode Scanner - BS-L100 Plus
20
1109
m
1110
n
1111
o
1112
p
1113
q
1114
r
1115
s
1116
t
1117
u
1118
v
1119
w
1120
x
1121
y
1122
z
1123
{
1124
|
1125
}
1126
~
1127
Delete
1128
F1
1129
F2
1130
F3
1131
F4
1132
F5
1133
F6
1134
F7
1135
F8
1136
F9
1137
F10
1138
F11
1139
F12
1140
INSERT
1141
HOME
Table of contents
Other TVS electronics Barcode Reader manuals
