TW Audio QBC12 User manual
Assembly
Instructions
QBC12
Assembly Instructions QBC12
2
Introduction
The swivel bracket QBC12 is an accessory for the C12 loudspeaker.
It is characterized by a subtle look, a remarkable size to weight ratio and ease of use.
Instructions in this user manual
NOTE
TIP
CAUTION
WARNING
Thank you for choosing a high-quality product “MADE IN GERMANY” from the brand
TW AUDiO.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
Assembly Instructions QBC12
3
Notes on the products
Read manual
before use!
Before using the device, carefully read the assembly instructions and keep it with the
QBC12 swivel bracket.
General information
Assembly instructions: OM-QBC12
Version 2.1 en, 11/2023
© by TWAMBO 2023; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAMBO.
TWAMBO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TWAMBO reserves the right to update this document based on recent developments.
TWAMBO GmbH
Karl-Hofer-Str. 42
14163 Berlin
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Assembly Instructions QBC12
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
3. Technical data ................................................................................................................ 8
3.1 Data sheet............................................................................................................... 8
4. Commissioning............................................................................................................... 9
4.1 Setup ...................................................................................................................... 9
4.2 Needed tools for setup ............................................................................................ 9
4.3 Wind load ................................................................................................................ 9
4.4 Assembly QBC12 to loudspeaker.......................................................................... 10
4.4.1 Removing the side countersunk screws............................................................ 10
4.4.2 Assembly QBC12 to C12 loudspeaker ............................................................. 11
4.5 Assembly QBC12 swivel bracket to trusses, ceiling or wall .................................... 12
4.6 Assembly QBC12 swivel bracket on tripod............................................................. 13
5. Transport and storage .................................................................................................. 14
6. CE Conformity Declaration............................................................................................ 15
7. Disposal ....................................................................................................................... 15
Assembly Instructions QBC12
5
1. Safety | Intended use
The QBC12 swivel bracket was developed for use in professional sound systems. The swivel
bracket may only be used by trained and qualified personnel.
The QBC12 swivel bracket may only used with the C12 loudspeaker.
This rigging manual describes how to use the QBC12 swivel bracket correctly. Any other use
shall be deemed improper and may result in damage or even injury.
Modifications or alterations to individual parts of the QBC12 swivel bracket are not permitted!
Danger to life!
WARNING
Before every operation, check the scope of delivery of the QBC12 swivel bracket for its com-
pleteness and ensure that all parts are in perfect condition.
The scope of delivery includes specified components. Only use the recommended and cer-
tified components.
WARNING
The QBC12 swivel bracket is designed both for indoor and outdoor use.
CAUTION
The QBC12 swivel bracket may only be used by trained and qualified personnel. Personnel
must check the QBC12 swivel bracket for suitability before each use.
WARNING
The QBC12 swivel bracket must be taken out of operation immediately as soon as visible
damage to the parts can be seen.
WARNING
Please keep all elements of the QBC12 swivel bracket away from children! The small parts can
easily be swallowed and lead to suffocation!
WARNING
Please adhere to the following safety instructions to avoid risks when using accessories.
Note the operating modes described in this assembly instructions. Other uses are not per-
missible.
Damage caused by improper use is not covered by TWAMBO.
Assembly Instructions QBC12
6
The payload of the QBC12 swivel bracket is designed of one C12 loudspeaker. Do not
exceed this payload.
WARNING
When moving (assembling, dismantling, maintaining) the QBC12 swivel bracket with
C12 loudspeaker, ensure sufficient space to prevent collisions with other objects.
WARNING
Do not squeeze or twist the electrical cables of the C12 loudspeaker during the installation of
the QBC12 swivel bracket! The respective national electrotechnical rules and regulations are
applicable.
CAUTION
All screw connections should be checked each time the QBC12 swivel bracket are installed.
Tighten all loose screws. If this is no longer possible, the screws must be replaced.
WARNING
Before mounting the QBC12 swivel bracket check that e.g. ceilings, trussus and tripods are
capable to carrying the payload of the components.
WARNING
WARNING
WARNING
Make sure that no water pipes, electrical lines or any other lines are behind the intended place
of mounting.
Only use wall plugs and screws which are suitable for the intended mounting and structural
fabric. All screws must be set and tightened properly. Ensure that the fixing holes have the
correct depth and diameter. Always use all fixing holes.
Assembly Instructions QBC12
7
2. Overview
2.1 Components
1. Hexagon screw M10 x 20................................................................................ 2 pieces
2. Washer (metal)................................................................................................. 2 pieces
3. Rubber break washer ...................................................................................... 2 pieces
4. Adaptor plate .................................................................................................. 2 pieces
5. Countersunk screw M5 x 20 black .................................................................. 4 pieces
6. Countersunk screw M5 x 40 black .................................................................. 4 pieces
7. Swivel bracket QBC12 ......................................................................................1 piece
Figure 2.1 - Overview
123
4 5
7
6
Assembly Instructions QBC12
8
3. Technical data
Maximum load capacity 1x C12
Dimensions (h x w x d) 340 x 490 x 82mm [13.39 x 19.29 x 3,23 in]
Weight 2,7 kg [5.95 lbs]
Surface Powder-coated
3.1 Data sheet
Assembly Instructions QBC12
9
4.1 Setup
The QBC12 swivel bracket is designed for the hanging and stacking operation. TWAUDiO
provides a wide range of accessories to securely attach the swivel bracket.
NOTE
4. Commissioning
4.3 Wind load
WARNING
WARNING
4.2 Needed tools for setup
• Open-end wrench SW17
• Torque wrench
• Bit insert for torque wrench: SW3
• Bit insert for torque wrench: TX25
Have the following tools ready for each setup:
TW AUDiO recommends using only the accessories specified by TWAUDiO for securing and
mounting loudspeakers.
Before setting up the system outdoors, consider unexpected wind conditions at the opera-
tion site!
Disassemble your system immediately when wind speeds exceed 8 bft (34 to 40 kn / 62 to
74 kph / 38.5 to 46 mph) and secure the system components!
Make sure that there are no persons in the immediate vicinity of the system structure!
Make sure that the system structures are not operated over the audience at wind speeds in
excess of 6 bft (22 to 27kn / 39 to 49kph / 24.2 to 30.45mph) and that there are no persons
in the immediate vicinity of the system structure!
WARNING
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
Please note that setting up the system structures always requires two persons!
WARNING
Assembly Instructions QBC12
10
4.4 Assembly QBC12 to loudspeaker
NOTE
WARNING
4.4.1 Removing the side countersunk screws
Note that for future uses all eight countersunk screws must be refitted!
Remove the four center countersunk screws on both sides at the C12 loudspeaker as shown
in Figure 4.4.1. Keep all eight countersunk screws in a safe place for re-use.

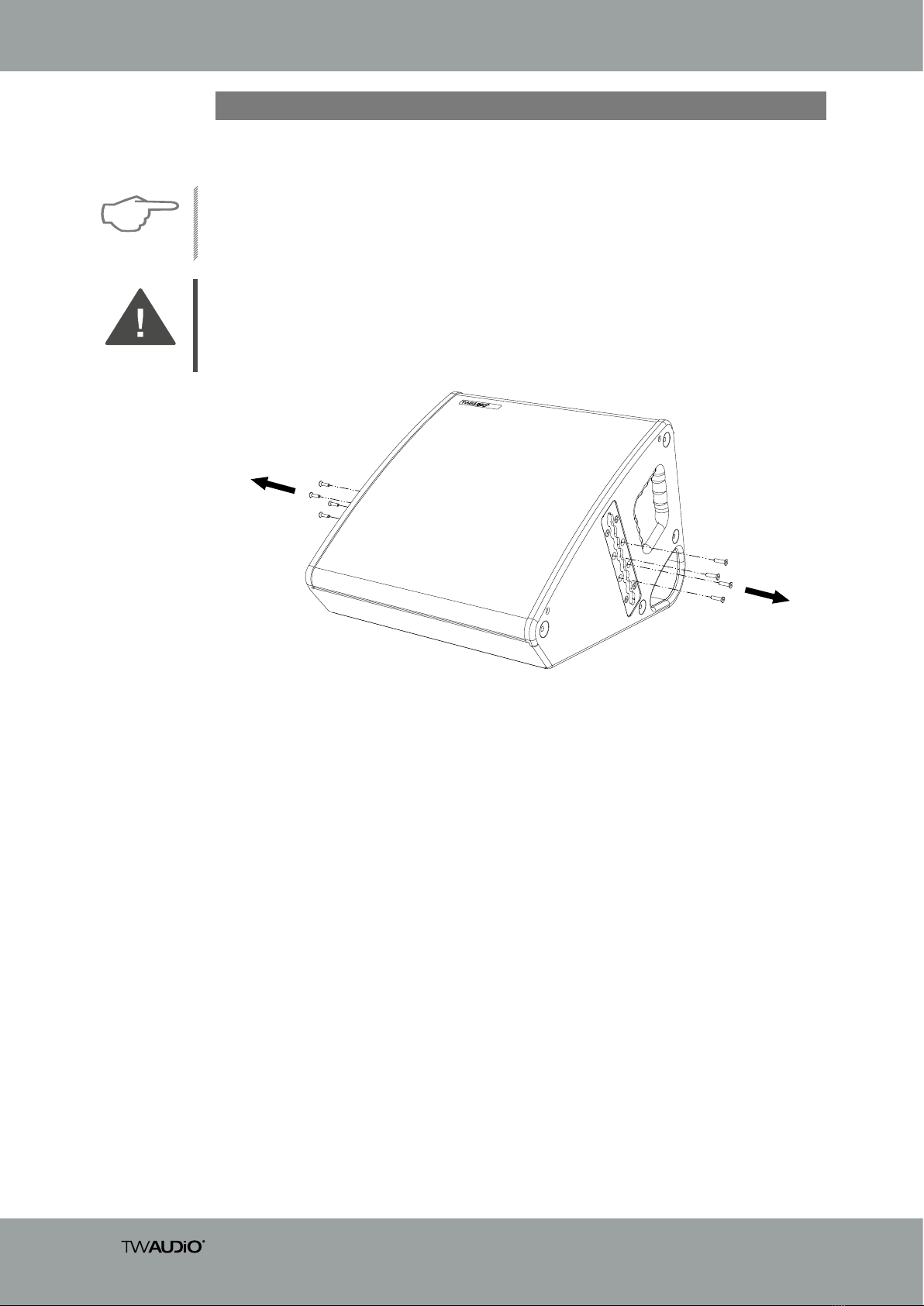

Figure 4.4.1 - Removing the countersunk screws on the C12 loudspeaker
Assembly Instructions QBC12
11

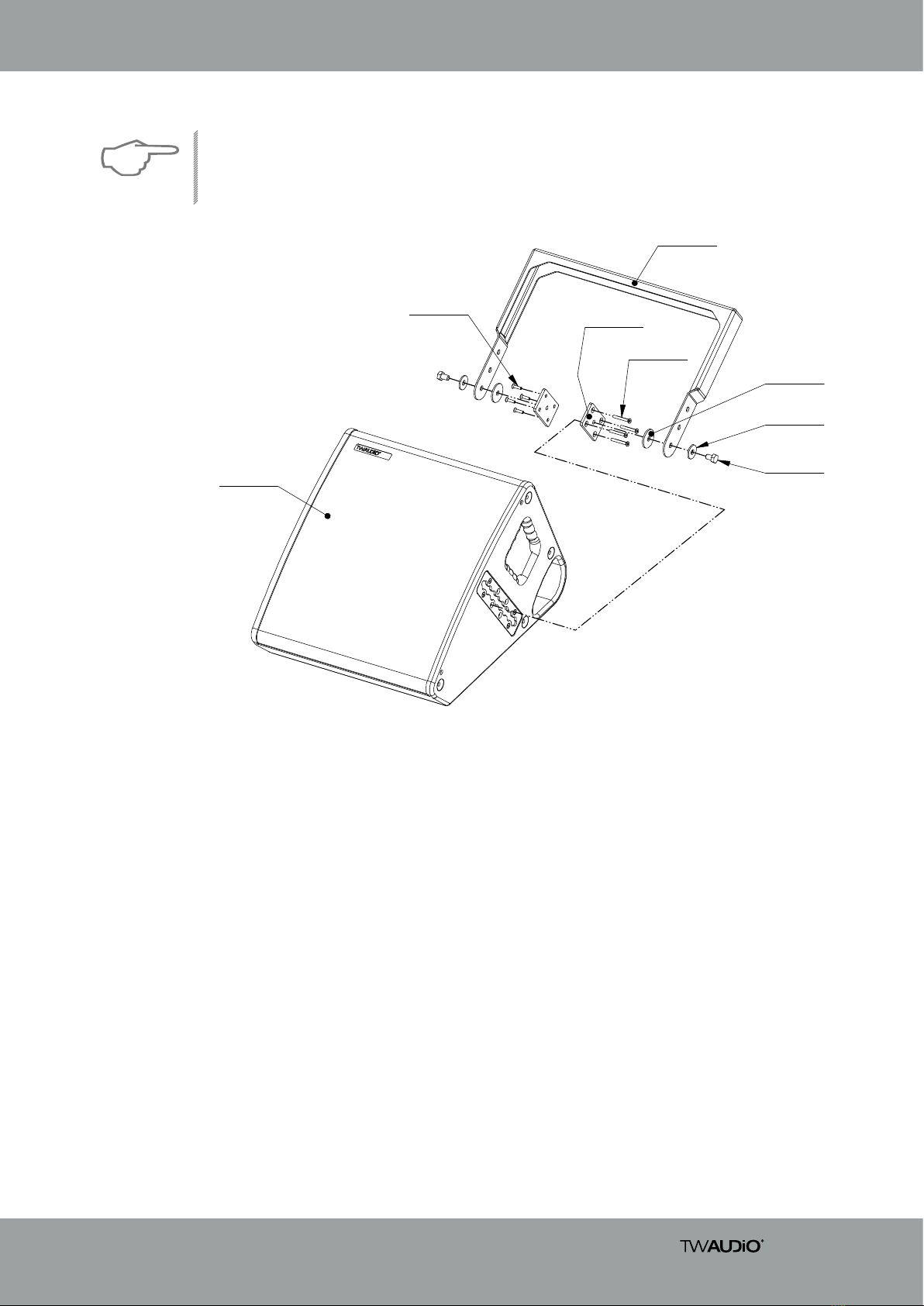

Figure 4.4.2 - Assembly QBC12 to C12 loudspeaker
Mount positions 1 to 6 (see figure 2.1) on both sides as shown in figure 4.4.2. Note that at
pos.7 (see figure 2.1) one of the side holes is used.
NOTE
4.4.2 Assembly QBC12 to C12 loudspeaker
Pos.1
C12
Pos.7
Pos.5 Pos.4
Pos.2
Pos.6
Pos.3
Assembly Instructions QBC12
12
4.5 Assembly QBC12 swivel bracket to trusses, ceiling or wall
For installation purposes, attach the QBC12 swivel bracket to the ceiling or wall by using all
three holes located on the crossbar. Make sure that you use suitable fastening material and
that the connections are set firmly and correctly!
WARNING

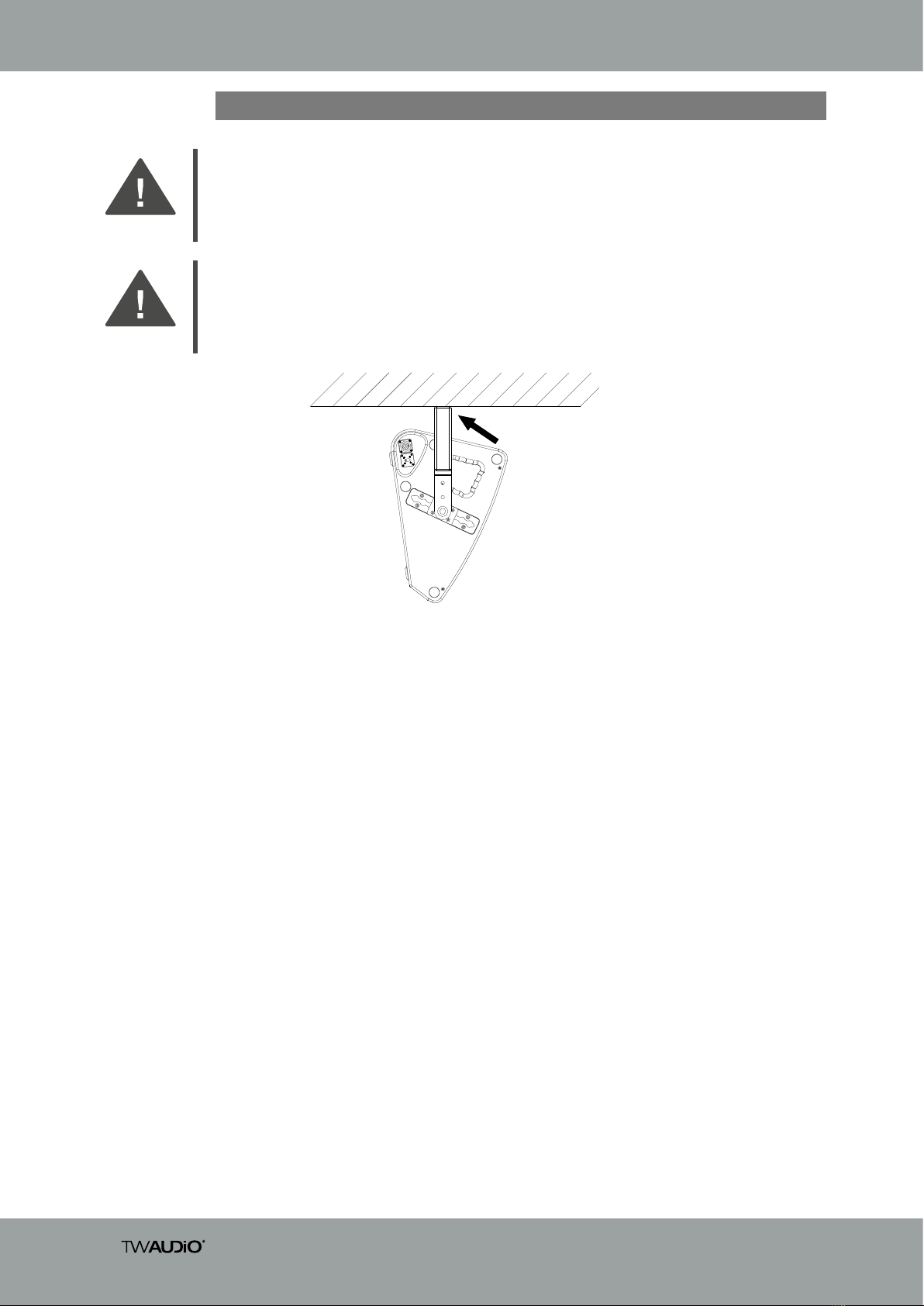

Figure 4.5 - Assembly QBC12 with C12 to ceiling
WARNING
Attach the DHST Doughty Halfcoupler Slimline to the ø12.2mm hole located on the crossbar
of the QBC12 swivel bracket when using the QBC12 swivel bracket on trusses. Make sure
that the connections are set firmly and correctly!
Assembly Instructions QBC12
13

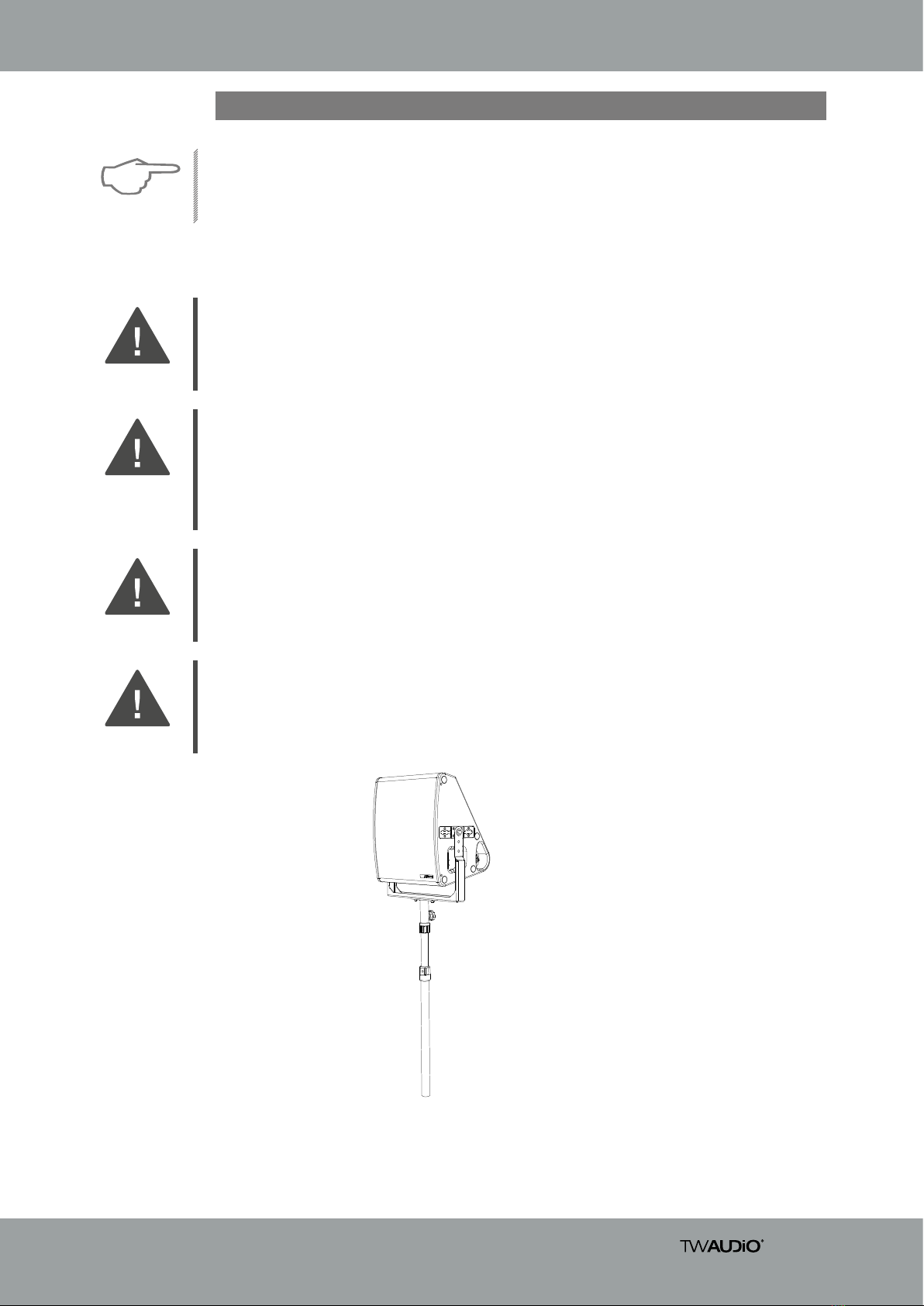

Figure 4.6 - QBC12 with C12 on tripod
4.6 Assembly QBC12 swivel bracket on tripod
Mount the C12 loudspeaker with QBC12 swivel bracket and the HSF pole mount flange on
the tripod. Make sure that you use suitable fastening material and that the connections are set
firmly and correctly!
NOTE
WARNING
WARNING
WARNING
WARNING
General safety instructions for setting up on a tripod:
For every system setup on a tripod, use a tripod that is designed according to the total weight.
When setting up a system on uneven surfaces, such as gravel or grass, always put a pressu-
re-resistant surface under all four spindle feet or the tripod legs! Make sure that all four spindle
feet or the tripod legs rest completely on the pressure-resistant shims and that the surface can
withstand the total weight!
Note that depending on the system design, either the front or rear spindle feet may be able to
carry more weight!
Make sure that no one can trip over your system structures, or over individual components!
This is especially true for all pressure-resistant shims, tripod legs and bracing ropes!
Any influences on your system setup, such as leaning against objects (or people) and flying
objects around, be refrained from!
Assembly Instructions QBC12
14
• Hexagon screw M10 x 20
• Washer (metal)
• Rubber break washer
• Adaptor plate
• Countersunk screw M5 x 20 black
• HSF (pole mount flange)
• DHST (doughty halfcoupler slimline)
NOTE
5. Transport and storage
The original packaging is unsuitable as permanent storage and transport packaging.
When transporting and storing the unit, it is important to ensure that the surface of the swi-
vel bracket are not damaged. Moisture can penetrate where steel surfaces are exposed by
scratches and result in corrosion.
In addition, appreciable dust deposits may considerably impair the functionality of a loudspe-
aker membrane. For this reason, the loudspeakers should be transported and stored in a
safe, careful, dry and largely dust-free manner.
The following accessory parts for the swivel bracket are available from TW AUDiO:
Assembly Instructions QBC12
15
as well as all model variants based on these, provided that they correspond to the original
factory models and have not been technically modified in any way.
Applicable directives:
• 2001/95/EG
Applicable national standards and technical specifications:
• DIN EN 18 800
• DIN EN ISO 12 100
• DGUV Vorschrift 17 und 18
Berlin, Germany, January 1st, 2021
Bernhard Wüstner
7. Disposal
This declaration applies to the following components
• QBC12
6. CE Conformity Declaration
If you have any question regarding the disposal of used devices, please contact us under the
following telephone number:
+49 (0) 71 41 - 48 89 89 0
In countries outside of the European Union, comply with local regulations.
Copy and translation of the original CE Conformity Declaration:
We hereby declare that the below-referenced components by virtue of their design and con-
struction, and in the configuration placed on the market by us, satisfy the safety and health
requirements of the applicable EC directives. This declaration becomes invalid in case of modi-
fications that have not been approved by us.
Assembly Instructions QBC12
16
TWAMBO GmbH
Karl-Hofer-Str. 42
14163 Berlin
Germany
Phone: + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Table of contents
Other TW Audio TV Mount manuals
