Twister AL46-05R User manual

Introduction
Thank you for selecting Twister. Twister is a four-channel DMX laser which can be
controlled via a standard DMX controller. It is a lightweight, mini intelligent fixture
and is an ideal product for discos, small clubs, exhibitions and any place that need
visionary effect. Twister creates exciting dual beam show with double scanner action
and four operating modes. For safe operation, read this manual before powering or
installing the fixture, follow the safety precautions listed below, and observe all
warnings printed in this manual and on the fixture.
Safety Precautions
Do not spill liquids in to or on to your unit. If this ever happens, disconnect the main
power immediately. Do not connect this unit to any dimmer pack.
Always disconnect from main power before making any type of connection.
Be sure to locate this unit in a place with adequate ventilation at least 15 cm from a
wall, and mount this unit in safe and stable matter.
To prevent fire or shock hazard, do not expose this unit to a high temperature or
high humidity area. Please unplug unit when not in use.
Always keep combustible materials away from the fixture.
This unit is intended for indoor use. Use of this unit outdoors voids all warranties.
Always refer service to a qualified technician. Never look directly into laser beam.
Occasional breaks are necessary to prevent breakdowns. Top Panel
Caution - Use of controls or adjustments or performance of procedures other
than as specified herein may result in hazardous radiation exposure!
Set Up
Unpacking Twister comes with: 1 hanging bracket, 2 clamp levers, 2 washers, 1
power cord and 1 user manual. Unpack carefully and be sure that no damage has
occurred during shipping. If there is anything missing or appear to be damaged
please contact your dealer.
Power Connection Be sure the source voltage in your area matches the required
voltage for your Twister before plugging your unit in. Incorrect voltage selection will
detrimentally affect the operation of this product.
DMX Cable Connection Twister is a four-channel DMX fixture that can be
operated with universal DMX controller. This unit and DMX controller require a
standard 3-pin XLR connector for data input and data output.
Installation/Mounting Twister should be properly mounted by using a suitable
hanging clamp and safety cable. Use in a well-ventilated area. Be sure no
ventilation slots are blocked.

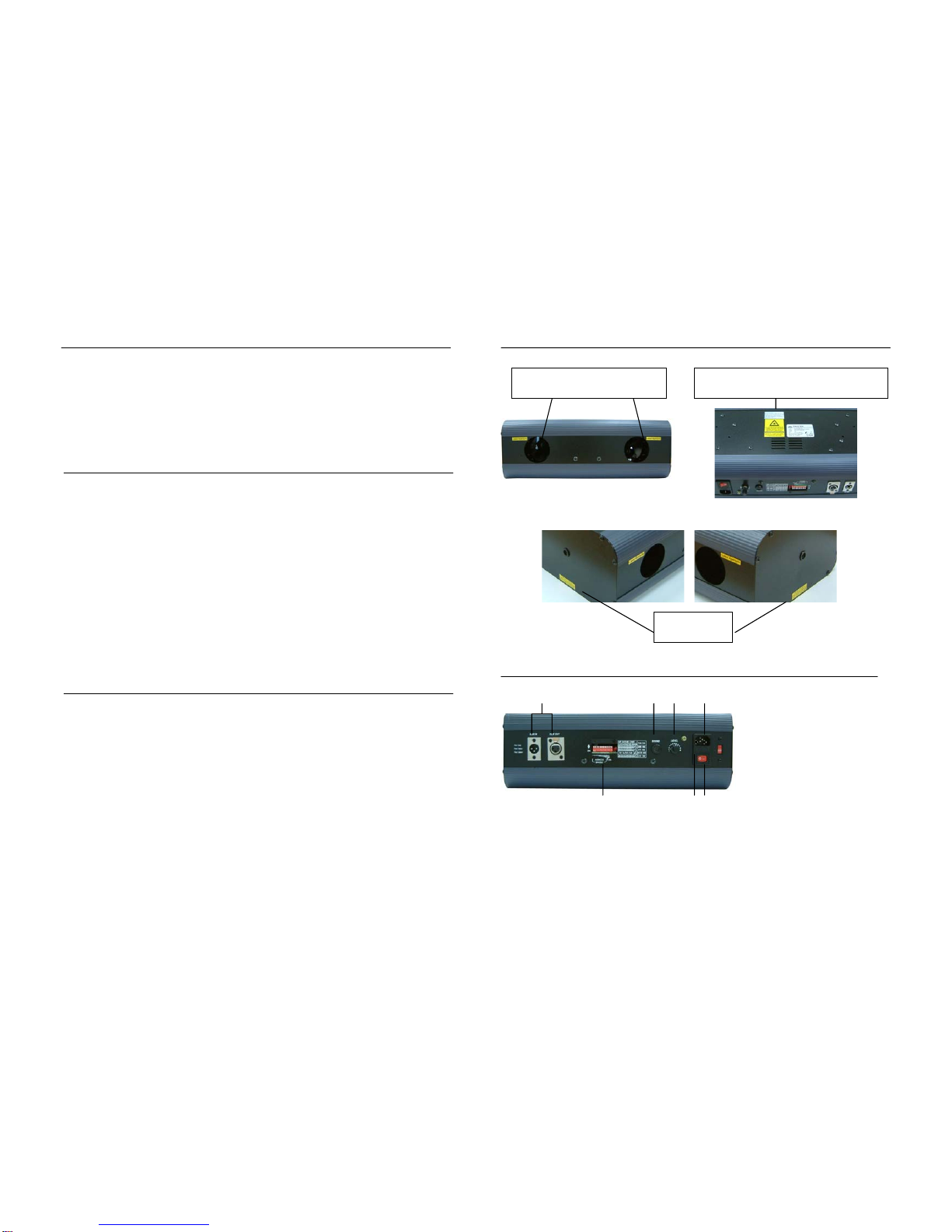

Safety Label Position
Front Panel Bottom Panel
Left and Right Side Panel
Control Panel Introduction
6541
723
Certification, identification and warning label
Warning label
Laser aperture & aperture label
1Power Cord Connection
2Fuse
3Power Switch
4Sensitivity Adjustment Knob
5Microphone
6DMX In & Out
7DIP Switch Pin

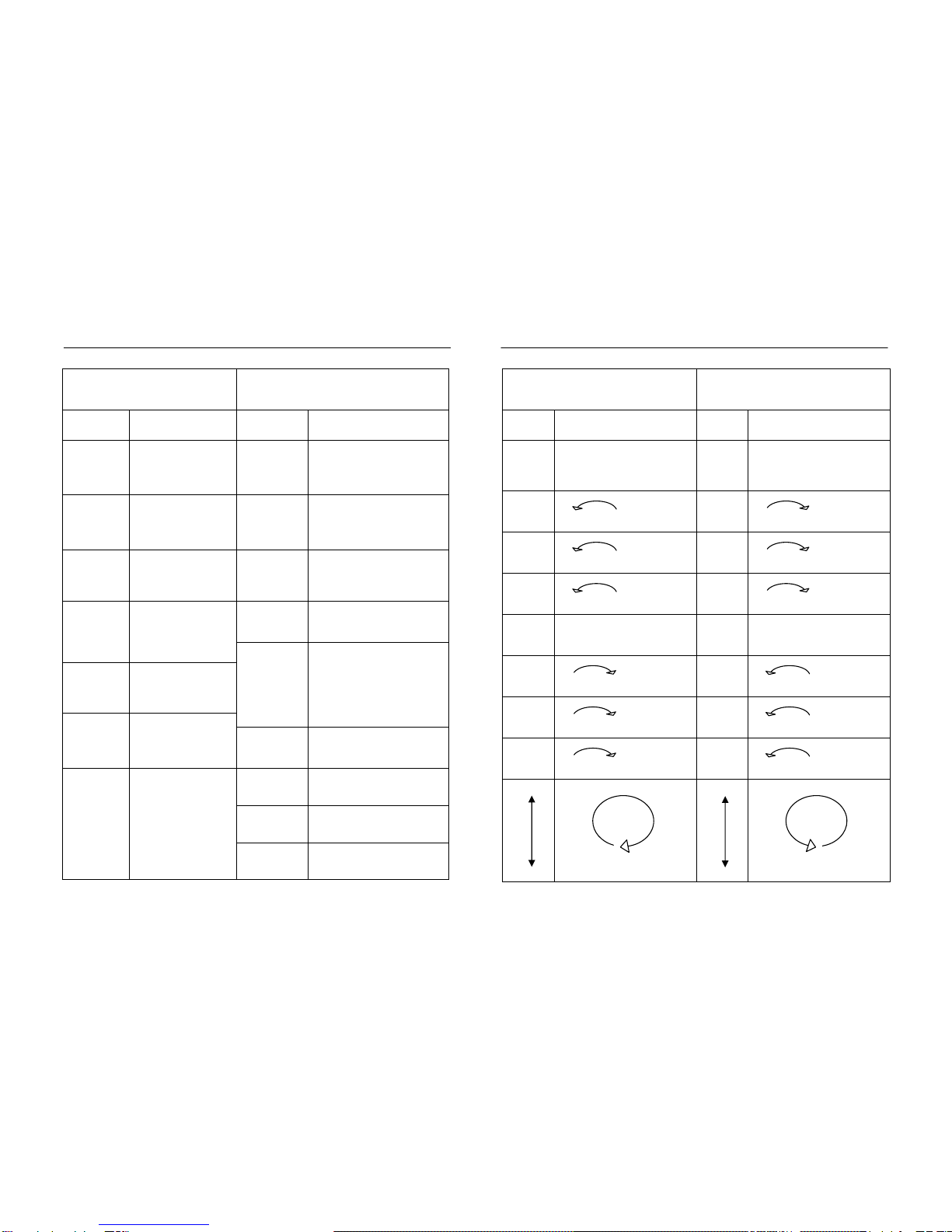

Operating Modes (Cont.)
DMX Signal Levels
Channel 1
Channel 2
Range Lines Selection Range Patterns Selection
226-255 Lines change every 5
seconds 221-255
Automatically change all the
patterns in every 10 seconds
208-225
Lines change every 3
seconds
204-220 Sound Active Mode
157-207 Dotted Line 3 199-203 Pattern 15
185-198 Pattern 14
105-156 Dotted Line 2
53-104 Dotted Line 1
：
：
：
：
：
：
1-52
Line 31-44 Pattern 3
17-30 Pattern 2
4-16 Pattern 1
0
Off
0-3 Off
Operating Modes (Cont.)
DMX Signal Levels
Channel 3 Channel 4
Range Mirror Rotation No. 1 Range Mirror Rotation No. 2
228-255 Sound Active 228-255 Sound Active
224-227
Counterclockwise Fast 224-227 Clockwise Fast
220-223
Counterclockwise Medium 220-223 Clockwise Medium
216-219
Counterclockwise Slow 216-219 Clockwise Slow
213-215 Stop 213-215 Stop
209-212
Clockwise Slow 209-212 Counterclockwise Slow
205-208
Clockwise Medium 205-208 Counterclockwise Medium
201-204
Clockwise Fast 201-204 Counterclockwise Fast
200
0
0 360
360°
200
0
-0 -360
-360°

Fuse Replacement
Always disconnect from main power supply before attempting to replace the fuse
Remove the old fuse from the holder and replace with the exact same type fuse.
Replacement with anything other than the specified part may damage your unit.
Trouble Shooting
If there is no light from the unit, please check the main power supply and fuse.
If unit does not respond to DMX, please check the DMX cables are connected
properly and are wired correctly.
If unit does not response to the music please check the sound-activation
adjustment.
If problems cannot be solved please contact your dealer for service
Cleaning
Use a soft cloth and normal glass cleaner to clean the outside casing and the
hexagonal reflection mirror. Cleaning frequency depends on the environment in which
the fixture operates. Be sure to dry all parts before plugging the unit back in.
Specifications
Model No. AL46-05R/ 30R/ 50R/ 100R AL46-05G/ 20G/ 30G
Laser power 4.9/ 30/ 50/ 100mW x 2 4.9/ 20/ 30mW
Laser color Red Green
Model No. AL46-5R5G AL46-50R20G AL46-100R30G AL46-200R50G
Laser Power 4.9~200mW Red & 4.9~50mW Green
Laser color Red and Green
Net Weight 6.5kgs
Power AC 100V~120V or 220V~240V 50/60HZ
Classification 4.9mW to 20mW: 3R/ 30mW to 200mW: 3B
Size (mm) L435 ×W220 ×H135
Fuse 20mm×2A
Material Metal
Beam Divergence < 1.5 mrad
Op. Temperature 18 ~ 25 ℃
Operating Modes
1. Stand-Alone Operation (Auto, Sound Active Mode)
Auto mode
The unit runs built-in program to change the laser effects automatically. Set
DIP switch pin 10 to ON, other pins to OFF to run Auto mode
Sound Active mode
This unit has built-in program that will react to sound and music under Sound
Active mode. Set all DIP switch pins to OFF to run Sound Active mode.
Please adjust “Sensitivity Adjustment Knob” to fine-tune the optimum level of
sound reaction.
2. Master-Slave Operation (Auto, Sound Active Mode)
This mode allows user to link up to 32 units to run the Master-Slave operation.
In the Master-Slave operation one unit will act as the controlling unit and the
others will react to the controlling unit. Daisy chain your units via the standard
XLR microphone cables in the following configuration: ‘Out’ from the first unit to
‘In’ on the second, ‘Out’ from the second to ‘In’ on the third and so on.
Auto mode
To set the master: Set DIP switch pin 10 and 11 to ON, other pins to OFF.
To set the slaves: Set pin 1 to ON, other pins to OFF
Sound Active mode
To set the master: Set DIP switch pin 11 to ON, other pins to OFF.
To set the slaves: Set pin 1 to ON, other pins to OFF
3. DMX Operation
DMX operation gives the users freedom to create their own programs tailored to
their own individual needs. To run this unit in DMX mode, connect the unit to
any standard DMX controller via XLR connectors. Please consult DMX
controller manual to determine address.
Function Selection Chart
DIP SWITCHES CHART
123456789101112 FUNCTION
OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF N/A N/A SOUND MODE
OFF OFF OFF OFF OFF OFF OFF OFF OFF ON N/A N/A AUTO MODE
SET SOUND / AUTO MODE ON N/A MASTER
ON OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF N/A SLAVE
SETADDRESS OFF OFF N/A DMX MODE

Twister
AL46 Series User Manual
Your Best Mate
in Laser Lighting! ©2007 ACTOR-MATE CO., LTD.
