Twose TF5500 User manual

Twose Series Reach Arms
TF5500 & TF5500S Models
Operation Manual
Publication No.842 June 2016 (Rev.20.09.16)

IMPORTANT
VERIFICATION OF WARRANTY REGISTRATION
DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION
It is imperative that the selling dealer registers this machine with McConnel Limited before
delivery to the end user –failure to do so may affect the validity of the machine warranty.
To register machines go to the McConnel Limited web site at www.mcconnel.com, log
onto ‘Dealer Inside’ and select the ‘Machine Registration button’which can be found in
the Service Section of the site. Confirm to the customer that the machine has been
registered in the section below.
Should you experience any problems registering a machine in this manner please contact
the McConnel Service Department on 01584 875848.
Registration Verification
Dealer Name:
……………………..…………………………………………………………….
Dealer Address:
…….………………………………………………………………………….
Customer Name:
……………………..…………………………………………………………
Date of Warranty Registration:
……/……/...…… Dealer Signature: ………………..……
NOTE TO CUSTOMER / OWNER
Please ensure that the above section above has been completed and signed by the selling
dealer to verify that your machine has been registered with McConnel Limited.
IMPORTANT: During the initial ‘bedding in’ period of a new machine it is the customer’s responsibility
to regularly inspect all nuts, bolts and hose connections for tightness and re-tighten if required. New
hydraulic connections occasionally weep small amounts of oil as the seals and joints settle in –where
this occurs it can be cured by re-tightening the connection –refer to torque settings chart below. The
tasks stated above should be performed on an hourly basis during the first day of work and at least
daily thereafter as part of the machines general maintenance procedure.
CAUTION: DO NOT OVER TORQUE HYDRAULIC FITTINGS AND HOSES
TORQUE SETTINGS FOR HYDRAULIC FITTINGS
HYDRAULIC HOSE ENDS
PORT ADAPTORS WITH BONDED SEALS
BSP
Setting
Metric
BSP
Setting
Metric
1/4”
18 Nm
19 mm
1/4”
34 Nm
19 mm
3/8”
31 Nm
22 mm
3/8”
47 Nm
22 mm
1/2”
49 Nm
27 mm
1/2”
102 Nm
27 mm
5/8”
60 Nm
30 mm
5/8”
122 Nm
30 mm
3/4”
80 Nm
32 mm
3/4”
149 Nm
32 mm
1”
125 Nm
41 mm
1”
203 Nm
41 mm
1.1/4”
190 Nm
50 mm
1.1/4”
305 Nm
50 mm
1.1/2”
250 Nm
55 mm
1.1/2”
305 Nm
55 mm
2”
420 Nm
70 mm
2”
400 Nm
70 mm

WARRANTY POLICY
WARRANTY REGISTRATION
All machines must be registered, by the selling dealer with McConnel Ltd, before delivery to the
end user. On receipt of the goods it is the buyer’s responsibility to check that the Verification of
Warranty Registration in the Operator’s Manual has been completed by the selling dealer.
1. LIMITED WARRANTIES
1.01. All machines supplied by McConnel Ltd are warranted to be free from defects in material and
workmanship from the date of sale to the original purchaser for a period of 12 months, unless
a different period is specified.
1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be
free from defects in material and workmanship from the date of sale to the original purchaser
for a period of 6 months. All parts warranty claims must be supported by a copy of the failed
part invoice to the end user. We cannot consider claims for which sales invoices are not
available.
1.03. The warranty offered by McConnel Ltd is limited to the making good by repair or replacement
for the purchaser any part or parts found, upon examination at its factory, to be defective
under normal use and service due to defects in material or workmanship. Returned parts
must be complete and unexamined. Pack the component(s) carefully so that any transit
damage is avoided. All ports on hydraulic items should be drained of oil and securely plugged
to prevent seepage and foreign body ingress. Certain other components, electrical items for
example, may require particular care when packing to avoid damage in transit.
1.04. This warranty does not extend to any product from which McConnel Ltd’s serial number plate
has been removed or altered.
1.05. This warranty does not apply to any part of the goods, which has been subjected to improper
or abnormal use, negligence, alteration, modification, fitment of non-genuine parts, accident
damage, or damage resulting from contact with overhead power lines, damage caused by
foreign objects (e.g. stones, iron, material other than vegetation), failure due to lack of
maintenance, use of incorrect oil or lubricants, contamination of the oil, or which has served
its normal life. This warranty does not apply to any expendable items such as blades, belts,
clutch linings, filter elements, flails, flap kits, skids, soil engaging parts, shields, guards, wear
pads, pneumatic tyres or tracks.
1.06. Temporary repairs and consequential loss - i.e. oil, downtime and associated parts are
specifically excluded from the warranty.
1.07. Warranty on hoses is limited to 12 months and does not include hoses which have suffered
external damage. Only complete hoses may be returned under warranty, any which have
been cut or repaired will be rejected.
1.08. Machines must be repaired immediately a problem arises. Continued use of the machine
after a problem has occurred can result in further component failures, for which McConnel Ltd
cannot be held liable, and may have safety implications.
1.09. If in exceptional circumstances a non McConnel Ltd part is used to effect a repair, warranty
reimbursement will be at no more than McConnel Ltd’s standard dealer cost for the genuine
part.
1.10. Except as provided herein, no employee, agent, dealer or other person is authorised to give
any warranties of any nature on behalf of McConnel Ltd.
1.11. For machine warranty periods in excess of 12 months the following additional exclusions
shall apply:
1.11.1.Hoses, exposed pipes and hydraulic tank breathers.
1.11.2. Filters.
1.11.3. Rubber mountings.
1.11.4. External electric wiring.
1.11.5. Bearings and seals.

1.12. All service work, particularly filter changes, must be carried out in accordance with the
manufacturer’s service schedule. Failure to comply will invalidate the warranty. In the event of
a claim, proof of the service work being carried out may be required.
1.13. Repeat or additional repairs resulting from incorrect diagnosis or poor quality previous repair
work are excluded from warranty.
NB Warranty cover will be invalid if any non-genuine parts have been fitted or used. Use of non-
genuine parts may seriously affect the machine’s performance and safety. McConnel Ltd cannot be
held responsible for any failures or safety implications that arise due to the use of non-genuine parts.
2. REMEDIES AND PROCEDURES
2.01. The warranty is not effective unless the Selling Dealer registers the machine, via the
McConnel Ltd web site and confirms the registration to the purchaser by completing the
confirmation form in the operator’s manual.
2.02. Any fault must be reported to an authorised McConnel Ltd dealer as soon as it occurs.
Continued use of a machine, after a fault has occurred, can result in further component
failure for which McConnel Ltd cannot be held liable.
2.03. Repairs should be undertaken within two days of the failure. Claims submitted for repairs
undertaken more than 2 weeks after a failure has occurred, or 2 days after the parts were
supplied will be rejected, unless the delay has been authorised by McConnel Ltd. Please
note that failure by the customer to release the machine for repair will not be accepted as a
reason for delay in repair or submitting warranty claims.
2.04. All claims must be submitted, by an authorised McConnel Ltd Service Dealer, within 30 days
of the date of repair.
2.05. Following examination of the claim and parts, McConnel Ltd will pay, at their discretion, for
any valid claim the invoiced cost of any parts supplied by McConnel Ltd and appropriate
labour and mileage allowances if applicable.
2.06. The submission of a claim is not a guarantee of payment.
2.07. Any decision reached by McConnel Ltd is final.
3. LIMITATION OF LIABILITY
3.01. McConnel Ltd disclaims any express (except as set forth herein) and implied warranties with
respect to the goods including, but not limited to, merchantability and fitness for a particular
purpose.
3.02. McConnel Ltd makes no warranty as to the design, capability, capacity or suitability for use of
the goods.
3.03. Except as provided herein, McConnel Ltd shall have no liability or responsibility to the
purchaser or any other person or entity with respect to any liability, loss, or damage caused
or alleged to be caused directly or indirectly by the goods including, but not limited to, any
indirect, special, consequential, or incidental damages resulting from the use or operation of
the goods or any breach of this warranty. Notwithstanding the above limitations and
warranties, the manufacturer’s liability hereunder for damages incurred by the purchaser or
others shall not exceed the price of the goods.
3.04. No action arising out of any claimed breach of this warranty or transactions under this
warranty may be brought more than one (1) year after the cause of the action has occurred.
4. MISCELLANEOUS
4.01. McConnel Ltd may waive compliance with any of the terms of this limited warranty, but no
waiver of any terms shall be deemed to be a waiver of any other term.
4.02. If any provision of this limited warranty shall violate any applicable law and is held to be
unenforceable, then the invalidity of such provision shall not invalidate any other provisions
herein.
4.03. Applicable law may provide rights and benefits to the purchaser in addition to those provided
herein.

DECLARATION OF CONFORMITY
Conforming to EU Machinery Directive 2006/42/EC
We,
McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK
Hereby declare that:
The Product; Tractor Mounted Hedgecutter / Grass Mower
Product Code; T500
Serial No. & Date ………………………………… Type …………………………
Manufactured in; United Kingdom
Complies with the required provisions of the Machinery Directive 2006/42/EC
The machinery directive is supported by the following harmonized standards;
BS EN ISO 12100 (2010) Safety of machinery –General principles for design –Risk
assessment and risk reduction.
BS EN 349 (1993) + A1 (2008) Safety of machinery - Minimum distances to avoid the
entrapment with human body parts.
BS EN 953 (1997) + A1 (2009) Safety of machinery - Guards general requirements for
the design and construction of fixed and movable guards.
BS EN 4413 (2010) Hydraulic fluid power. Safety requirements for systems and their
components.
McCONNEL LIMITED operates an ISO 9001:2008 quality management system,
certificate number: FM25970.
This system is continually assessed by the;
British Standards Institution (BSI), Beech House, Milton Keynes, MK14 6ES, UK
BSI is accredited by UK Accreditation Service, accreditation number: UKAS 003.
The EC declaration only applies if the machine stated above is used in
accordance with the operating instructions.
Signed …………………................ Responsible Person
CHRISTIAN DAVIES on behalf of McCONNEL LIMITED
Status: General Manager Date: May 2016

DECLARATION OF CONFORMITY
Conforming to EU Machinery Directive 2006/42/EC
We,
McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK
Hereby declare that:
The Product; Hydraulic Arm Mounted Flail Head
Product Code; TWHD
Serial No. & Date ………………………………… Type …………………………
Manufactured in; United Kingdom
Complies with the required provisions of the Machinery Directive 2006/42/EC
The machinery directive is supported by the following harmonized standards;
BS EN ISO 12100 (2010) Safety of machinery –General principles for design –Risk
assessment and risk reduction.
BS EN 349 (1993) + A1 (2008) Safety of machinery - Minimum distances to avoid the
entrapment with human body parts.
BS EN 953 (1997) + A1 (2009) Safety of machinery - Guards general requirements for
the design and construction of fixed and movable guards.
BS EN 4413 (2010) Hydraulic fluid power. Safety requirements for systems and their
components.
McCONNEL LIMITED operates an ISO 9001:2008 quality management system,
certificate number: FM25970.
This system is continually assessed by the;
British Standards Institution (BSI), Beech House, Milton Keynes, MK14 6ES, UK
BSI is accredited by UK Accreditation Service, accreditation number: UKAS 003.
The EC declaration only applies if the machine stated above is used in
accordance with the operating instructions.
Signed …………………................ Responsible Person
CHRISTIAN DAVIES on behalf of McCONNEL LIMITED
Status: General Manager Date: May 2016

LIST OF CONTENTS – Operator Section
Operator Section Page No.
General Information 1
Features & Specifications 2
Safety Information 3
Introduction 8
Tractor Requirements 10
Hydraulic Oil 11
Machine Attachment 12
Flail Motor Hose Installation 16
Operation Information 17
Rotor Rotation Direction 17
Rotor Control 18
Cable Controls – TF5500 Models 19
Cable Controls – TF5500S Models 20
Low Pressure Controls 21
Electric Proportional Controls 22
Cutting Head 25
Transportation 27
Head Belt Adjustment 28
Head Belt Replacement 29
Rotor Removal & Replacement 30
Roller Height Adjustment 31
Machine Removal 32
Maintenance 34

1
GENERAL INFORMATION
Read this manual before fitting or operating the machine. Whenever any doubt exists
contact your dealer or the McConnel Service Department for assistance.
Use only Twose Classic Line Parts on Twose Classic Line equipment and machines.
DEFINITIONS - The following definitions apply throughout this manual:
WARNING:
An operating procedure, technique etc., which can result in personal injury or loss of life if
not observed carefully.
CAUTION:
An operating procedure, technique etc., which can result in the damage of either machine
or equipment if not observed carefully.
NOTE:
An operating procedure, technique etc., which is considered essential to emphasise.
LEFT AND RIGHT HAND:
This term is applicable to the machine when fitted to the tractor and viewed from the rear.
This also applies to tractor references.
Note: The illustrations in this manual are for instructional purposes only and may on occasion not
show some components in their entirety. In some instances an illustration may appear slightly
different to that of your particular model but the general procedure will be the same. E&OE.
MACHINE & DEALER INFORMATION
Record the Serial Number of your machine on this page and always quote this number when ordering
parts. Whenever information concerning the machine is requested remember also to state the make
and model of tractor to which the machine is fitted.
Machine Serial Number:
Installation Date:
Machine Model details:
Dealer Name:
Dealer Address:
Dealer Telephone No:
Dealer Email Address:
Noise
The equivalent daily personal noise exposure from this machine, measured at the operators’ ear, is
within the range 78 –85 dB.
These figures apply to a normal distribution of use where the noise fluctuates between zero and
maximum. The figures assume that the machine is fitted to a tractor with a quiet cab with the
windows closed in a generally open environment. We recommend that the windows are kept closed.
With the cab rear window open the equivalent daily personal noise exposure will increase to a figure
within the range 82 –88 dB.
At equivalent daily noise exposure levels of between 85 and 90 dB, ear protection is recommended; it
should be used at all times if any window is left open.

2
FEATURES & SPECIFICATIONS
TF5500 Models
5.50m (18ft 0in) Reach
Left Hand or Right Hand Build
A-Frame Mounting
3-Point Linkage Mounted (Cat II)
Parallel arm geometry
Mechanical Safety Breakback
Totally Independent Hydraulics
200 litre Hydraulic Reservoir
Cast Iron Pump and Motor
240° Head Rotation
Head Float (Standard)
Lift Float (Optional)
Cab Guard Kit
LED Road Lights
540RPM PTO Speed
Dual Direction Flail Rotation
TF5500S Models
5.50m (18ft 0in) Reach
Left Hand or Right Hand Build
A-Frame Mounting
3-Point Linkage Mounted (Cat II)
Parallel arm geometry
100° Hydraulic Slew
Hydraulic Safety Breakback
Totally Independent Hydraulics
200 litre Hydraulic Reservoir
Cast Iron Pump and Motor
240° Head Rotation
Head Float (Standard)
Lift Float (Optional)
Cab Guard Kit
LED Road Lights
540RPM PTO Speed
Dual Direction Flail Rotation
Control Options Cable Controls –TF5500 & TF5500S Models
LP Hydraulic Controls –TF5500 & TF5500S Models
Electric Proportional Controls –TF5500S Models only

3
SAFETY
INFORMATION

4
SAFETY INFORMATION
This machine has the potential to be extremely dangerous, in the wrong hands it can kill or
maim. It is therefore imperative that the owner, and the operator of this machine, read the
following section to ensure that they are both fully aware of the dangers that do, or may
exist, and their responsibilities surrounding its use.
The operator of this machine is responsible not only for their own safety but equally for
the safety of others who may come into the close proximity of the machine, as the owner
you are responsible for both.
POTENTIAL SIGNIFICANT DANGERS ASSOCIATED WITH THE USE OF
THIS MACHINE:
▲Being hit by debris thrown by rotating components.
▲Being hit by machine parts ejected through damage during use.
▲Being caught on a rotating power take-off (PTO) shaft.
▲Being caught in other moving parts i.e.: belts, pulleys and cutting heads.
▲Electrocution from Overhead Power Lines (by contact with or ‘flashover’ from).
▲Being hit by cutting heads or machine arms as they move.
▲Becoming trapped between tractor and machine when hitching or unhitching.
▲Tractor overbalancing when machine arm is extended.
▲Injection of high pressure oil from hydraulic hoses or couplings.
▲Machine overbalancing when freestanding (out of use).
▲Road traffic accidents due to collision or debris on the road.
BEFORE USING THIS MACHINE YOU MUST:
▲Ensure you read all sections of the operator handbook.
▲Ensure the operator is, or has been, properly trained to use the machine.
▲Ensure the operator has been issued with and reads the operator handbook.
▲Ensure the operator understands and follows the instructions in operator handbook.

5

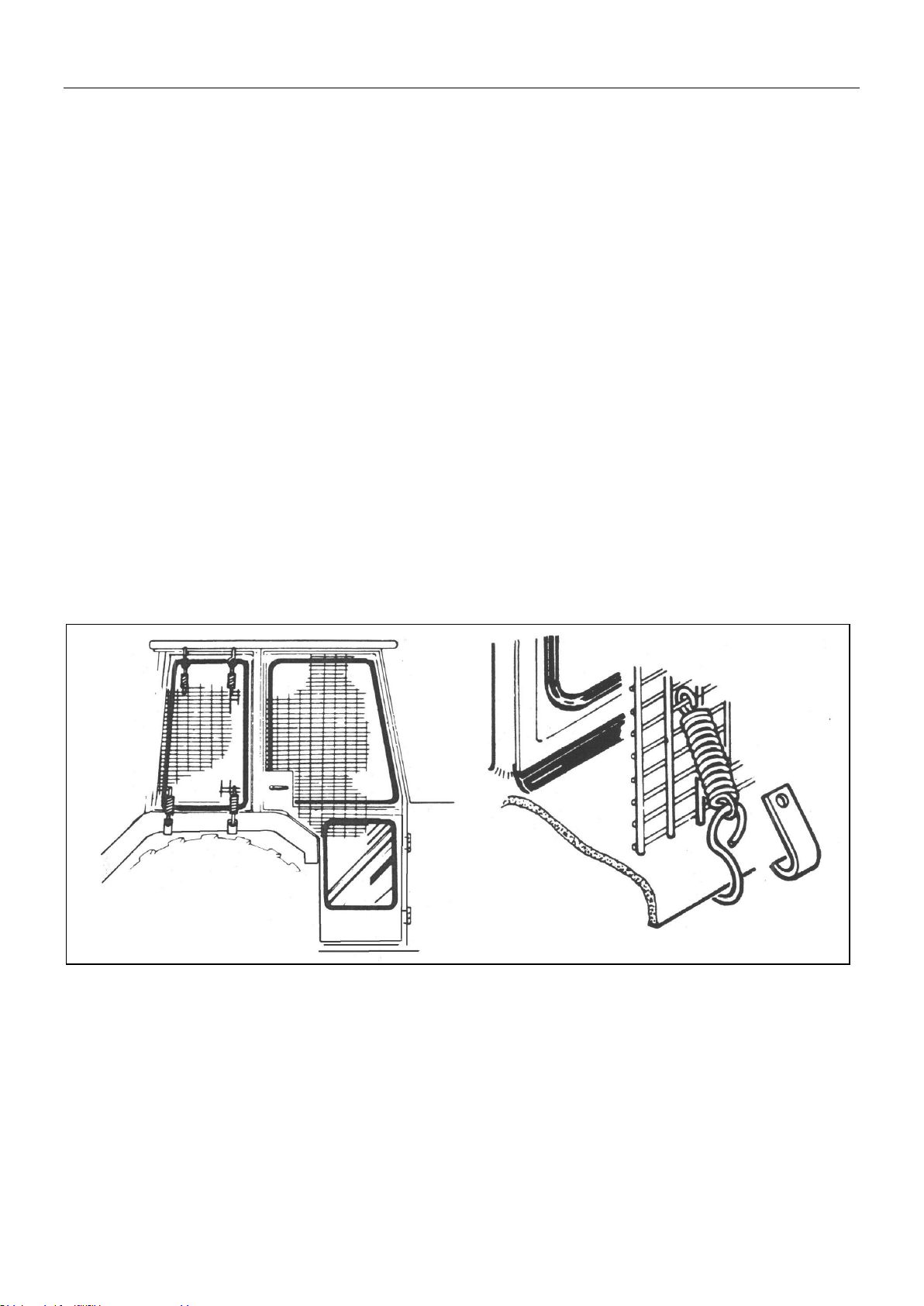

▲Ensure the tractor front, rear and side(s) are fitted with metal mesh or polycarbonate
guards of suitable size and strength to protect the operator against thrown debris or
parts.
▲Ensure tractor guards are fitted correctly, are undamaged and kept properly
maintained.
▲Ensure that all machine guards are in position, are undamaged, and are kept
maintained in accordance with the manufacturer’s recommendations.
▲Ensure flails and their fixings are of a type recommended by the manufacturer, are
securely attached and that none are missing or damaged.
▲Ensure hydraulic pipes are carefully and correctly routed to avoid damage by chaffing,
stretching or pinching and that they are held in place with the correct fittings.
▲Always follow the manufacturer’s instructions for attachment and removal of the
machine from the tractor.
▲Check that the machine fittings and couplings are in good condition.
▲Ensure the tractor meets the minimum weight recommendations of the machine
manufacturer and that ballast is used as necessary.
▲Always inspect the work area thoroughly before starting to note obstacles and remove
wire, bottles, cans and other debris.
▲Use clear suitably sized warning signs to alert others to the nature of the machine
working within that area. Signs should be placed at both ends of the work site. (It is
recommended that signs used are of a size and type specified by the Department of
Transport and positioned in accordance with their and the Local Highways Authority
guidelines).
▲Ensure the operator is protected from noise. Ear defenders should be worn and tractor
cab doors and windows must be kept closed. Machine controls should be routed
through proprietary openings in the cab to enable all windows to be shut fully.
▲Always work at a safe speed taking account of the conditions i.e.: terrain, highway
proximity and obstacles around and above the machine.
▲Extra special attention should be applied to Overhead Power Lines. Some of our
machines are capable of reach in excess of 8 metres (26 feet) this means they have the
potential to well exceed, by possibly 3 metres (9’ 9”), the lowest legal minimum height
of 5.2 metres from the ground for 11,000 and 33,000 volt power lines. It cannot be
stressed enough the dangers that surround this capability, it is therefore vital that the
operator is fully aware of the maximum height and reach of the machine, and that they

6
are fully conversant with all aspects regarding the safe minimum distances that apply
when working with machines in close proximity to Power Lines. (Further information
on this subject can be obtained from the Health & Safety Executive or your Local
Power Company).
▲Always disengage the machine, kill the tractor engine, remove and pocket the key
before dismounting for any reason.
▲Always clear up all debris left at the work area, it may cause hazard to others.
▲Always ensure when you remove your machine from the tractor that it is left in a safe
and stable position using the stands and props provided and secured if necessary.
WHEN NOT TO USE THIS MACHINE:
▲Never attempt to use this machine if you have not been trained to do so.
▲Never uses a machine until you have read and understood the operator handbook, are
familiar with, and practiced the controls.
▲Never use a machine that is poorly maintained.
▲Never use a machine if guards are missing or damaged.
▲Never use a machine on which the hydraulic system shows signs of wear or damage.
▲Never fit, or use, a machine on a tractor that does not meet the manufacturer’s
minimum specification level.
▲Never use a machine fitted to a tractor that does not have suitable front, rear and
side(s) cab guarding made of metal mesh or polycarbonate.
▲Never use the machine if the tractor cab guarding is damaged, deteriorating or badly
fitted.
▲Never turn a machine cutting head to an angle that causes debris to be ejected towards
the cab.
▲Never start or continue to work a machine if people are nearby or approaching - Stop
and wait until they are at a safe distance before continuing. WARNING: Some cutting
heads may continue to ‘freewheel’ for up to 40 seconds after being stopped.
▲Never attempt to use a machine on materials in excess of its capability.
▲Never use a machine to perform a task it has not been designed to do.

7
▲Never operate the tractor or machine controls from any position other than from the
driving seat, especially whilst hitching or unhitching the machine.
▲Never carry out maintenance of a machine or a tractor whilst the engine is running –
the engine should be switched off, the key removed and pocketed.
▲Never leave a machine unattended in a raised position –it should be lowered to the
ground in a safe position on a level firm site.
▲Never leave a tractor with the key in or the engine running.
▲Never carry out maintenance on any part or component of a machine that is raised
unless that part or component has been properly substantially braced or supported.
▲Never attempt to detect a hydraulic leak with your hand –use a piece of cardboard.
▲Never allow children near to, or play on, a tractor or machine under any
circumstances.
Although the information given here covers a wide range of safety subjects, it is impossible
to predict every eventuality that can occur under differing circumstances whilst operating a
machine of this type. No advice given here can replace ‘good common sense’ and ‘total
awareness’ at all times, but will go a long way towards the safe use of your Twose machine.

8
INTRODUCTION
The Twose series Boom Flail Trimmers has been designed with both the farmer and the
contractor in mind - which has resulted in a boom flail with a very high specification -
with many features not found on other machines.
The construction is of welded steel fabricated assemblies - with many and varied options
available covering such things as controls, hydraulics, heads, booms etc. The cutting head
is of a ‘double skin’ construction.
The cutting flail blades offered for your Twose Series machine are: -
a) Heavy, double edged design (one piece).
-For ‘Upward’ or ‘Downward’ cutting.
-Suitable for all types of conditions and growth.
b) Back to Back ‘rigid’ one piece blade (in pairs).
-For ‘Upward’ or ‘Downward’ cutting.
-Suitable for grass/mowing and trimming.
Illustration shows both a single blade and pair of blades back to back.
c) Heavy single edge blade flail (twisted pattern).
-Cuts one direction only.
-For grass cutting and hedge trimming.
d) Back to Back - on shackle (in pairs).
-For ‘Upward’ or ‘Downward’ cutting.
-Suitable for grass/mowing.
e) Boot flail - on shackle.
-Cuts one direction only.
-For grass cutting and hedge trimming.

9
The cutter head design is of a ‘double skin’ construction for greater strength and longer
life. The drive is by means of ‘vee’ belts from the hydraulic motor to the rotor, with the
drive completely contained within the width of head for a cleaner cut.
Twin ‘vee’ belts take the drive from the motor to the rotor - giving a reliable drive with the
added benefit of anti-shock protection that a belt drive system provides.
A ‘swing link breakback’ system is built into the machine; this offers a degree of
protection to machine components if an obstruction is encountered during normal work.
Two parking stand legs are fitted to the machine, which once the machine has been
attached to the tractor should be folded away in the ‘stow’ position.
The machine has ‘angle head flotation’ as standard –this is engaged by moving the head
rotation lever beyond the normal actuation range into a detented ‘float’ position. Lift float
is available as an option on the machine.
All machines have a relief valve in the primary ram system, this limits the pressure which
can be generated in the drop side of the cylinder –the cutting head cannot therefore be
‘driven’ into the ground in any circumstances.

10
TRACTOR REQUIREMENTS
Tractor Weight (Minimum)
TF5500 Models –2250kg (5000lbs)
TF5500S Models –2500kg (5500lbs)
Tractor Power (Minimum)
TF5500 Models –60HP (45kW)
TF5500S Models –65HP (50kW)
Tractor PTO
Tractors must be equipped with a power take off (PTO) shaft that must run at 450 rpm
during operation. The PTO shaft should run clockwise when viewed from the rear of the
tractor and ideally be of a 1⅜” S.A.E. – 6 spline shaft type to enable a standard PTO shaft
to be connected.
Ballast
The tractor should have counterbalance weights (on approved mountings) fitted if
necessary and/or ballasted wheels to ensure stability of the unit at all times.
Stability may be further increased with a wider track setting on the tractors rear wheels –
contact your local dealer or tractor agent for specific advice on this subject.
Four wheel drive tractors have extra weight inbuilt plus larger front wheels, this is an
advantage in keeping the unit stable.
Tractor/Operator Guarding
Use a tractor fitted with ‘safety glass’ windows wherever possible and fit an operator
safety guard (Part No. 7313324) using the hooks provided; shape the safety protection
material so that all vulnerable areas are covered - remember the driver must be looking
through safety protection when the flail head is working in any position.
If the windows are not laminated safety glass polycarbonate glazing must also be fitted.
If the tractor has a roll bar only, a frame must be made to carry both mesh and
polycarbonate glazing.
Ensure the operator is guarded by safety protection whatever position the machine is in
and that the protection is such that it does not interfere with tractor and machine functions
or obstruct the operator’s vision.

11
HYDRAULIC OIL
IMPORTANT
The hydraulic system will have been 'run-up' and checked at the factory prior to the
machines despatch. Home market machines are delivered pre-filled with oil.
The hydraulic oil tank capacity for these models is 200 litres. The tank should be filled to
90% capacity, do not overfill the tank.
The user must ensure the hydraulic tank is filled to the correct level with one of the oils
listed in the chart below (or a high quality equivalent) before attempting to use the
machine for the first time.
Recommended Oils
Manufacturer
Cold or Temperate Climate
Hot Climate
BP
Bartran 46
Energol HLP-HM 46
Bartran 68
Energol HLP-HM 68
CASTROL
Hyspin AWH-M 46
Hyspin AWH-M 68
COMMA
Hydraulic Oil LIC 15
Hydraulic Oil LIC 20
ELF
Hydrelf HV 46
Hydrelf XV 46
Hydrelf HV 68
ESSO
Univis N 46
Univis N 68
FUCHS
(UK/Non UK markets*)
Renolin 46
Renolin HVZ 46
Renolin CL46/B15*
Renolin AF46/ZAF46B*
Renolin 68
Renolin HVZ 68
Renolin CL68/B20*
Renolin AF68/ZAF68B*
GREENWAY
Excelpower HY 68
Excelpower HY 68
MILLERS
Millmax 46
Millmax HV 46
Millmax 68
Millmax HV 68
MORRIS
Liquimatic 5
Liquimatic HV 46
Triad 46
Liquimatic 6
Liquimatic HV 68
Triad 68
SHELL
Tellus 46
Tellus T46
Tellus 68
Tellus T68
TEXACO
RandoHD 46
Rando HDZ 46
Rando HD 68
Rando HDZ 68
TOTAL
Equivis ZS 46
Equivis ZS 68
The tank top filter/breather is equipped with a strainer to ensure the oil is strained when it
is put into the tank; the strainer basket should never be removed, all hydraulic oil filling is
to be done through the strainer.
WARNING
Never mix hydraulic oils - if another supplier’s oil is to be used ensure it is a suitably
compatible oil; check with your oil supplier or machine manufacturer first.
