TYAN S8226 User manual

S8226
Version 1.0
Copyright
Copyright © 2010 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN®is a trademark of MiTAC International Corporation.
AMD®is a trademark of AMD®Corporation.
Intel®is a trademark of Intel®Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Winbond®is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.tyan.com
2

http://www.tyan.com
3
Contents
Before you begin….................................................................................... 4
Chapter 1: Instruction ................................................................................ 5
1.1 Congratulations ................................................................................. 5
1.2 Hardware Specifications.................................................................... 5
1.3 Software Specifications ..................................................................... 8
Chapter 2: Board Installation..................................................................... 9

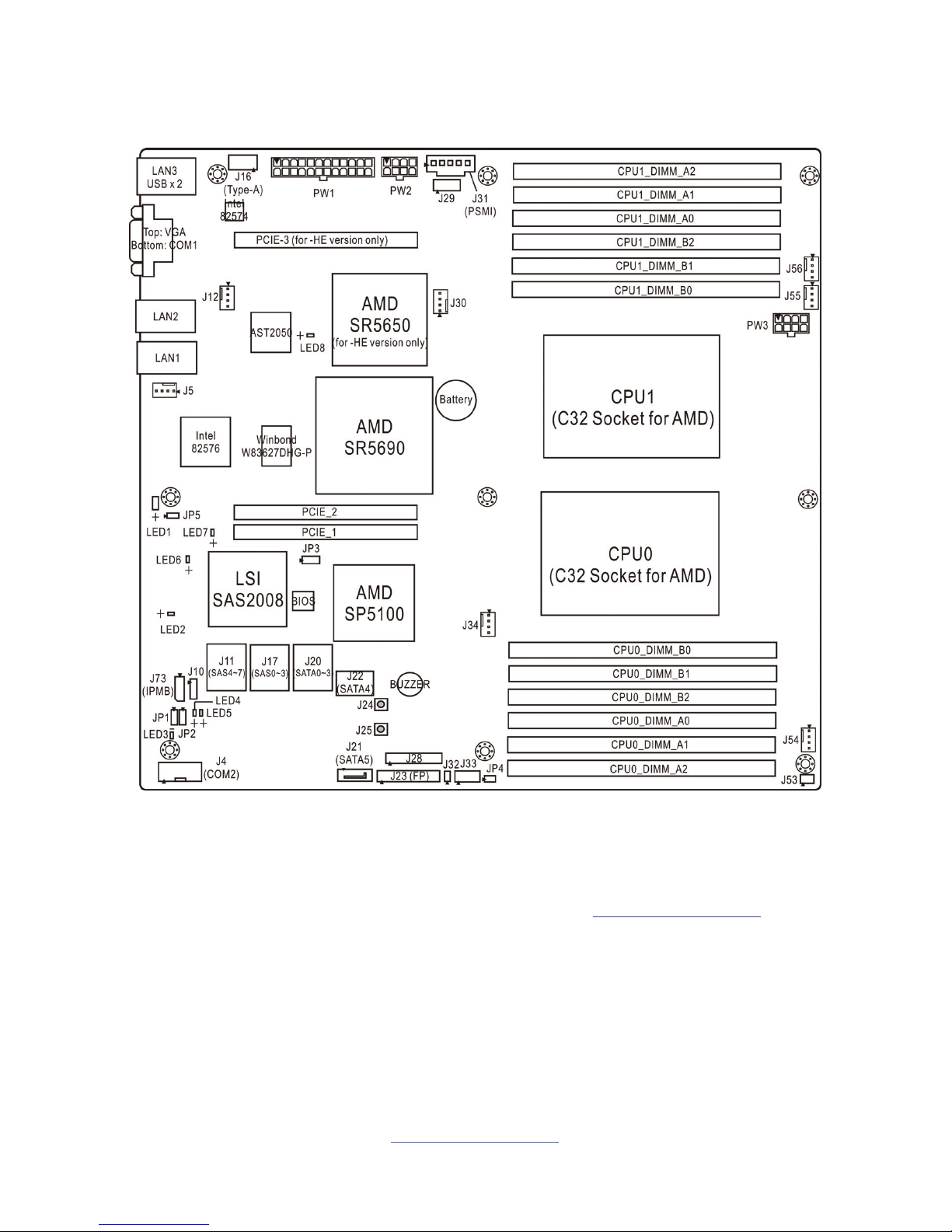

2.1 Board Image .................................................................................... 10
2.2 Block Diagram ................................................................................. 11

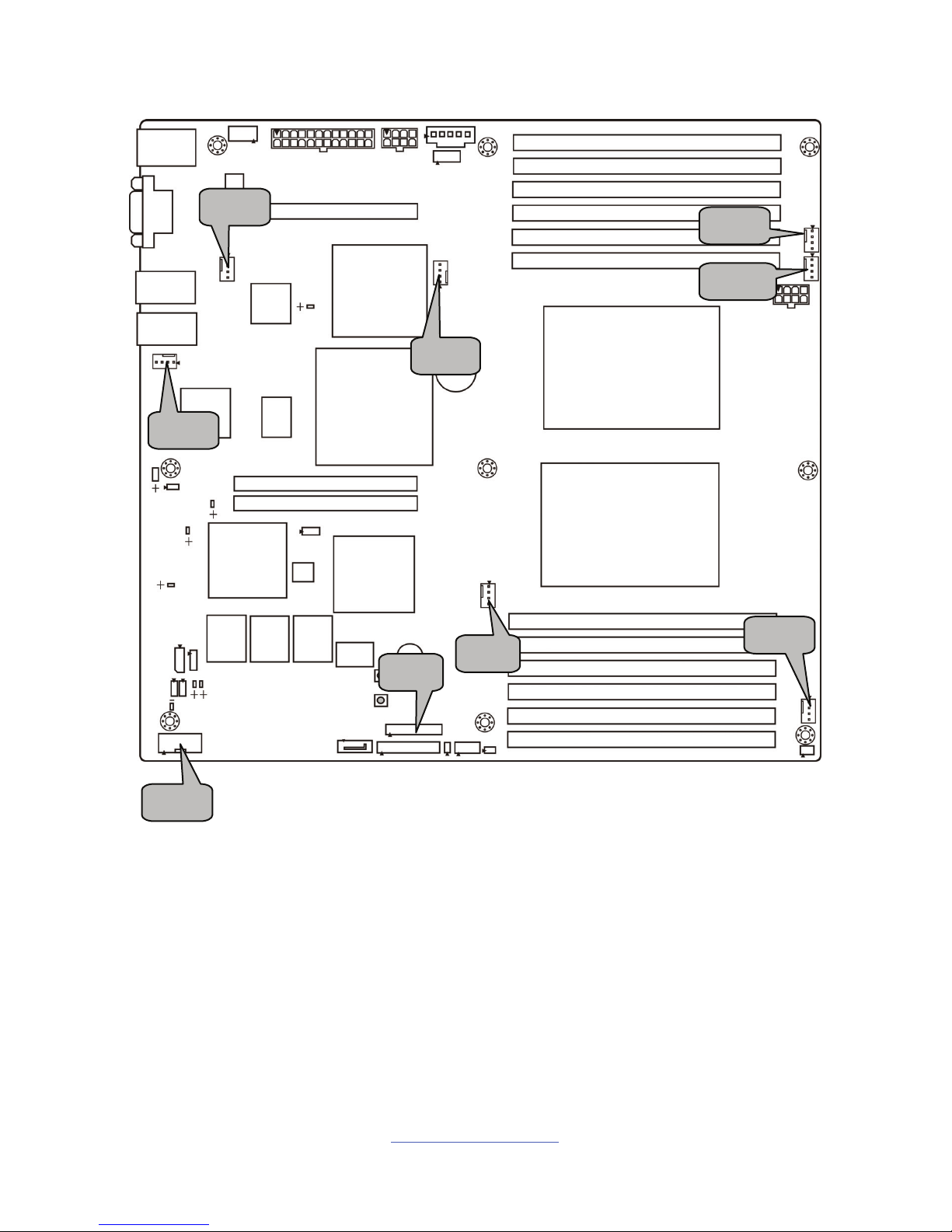

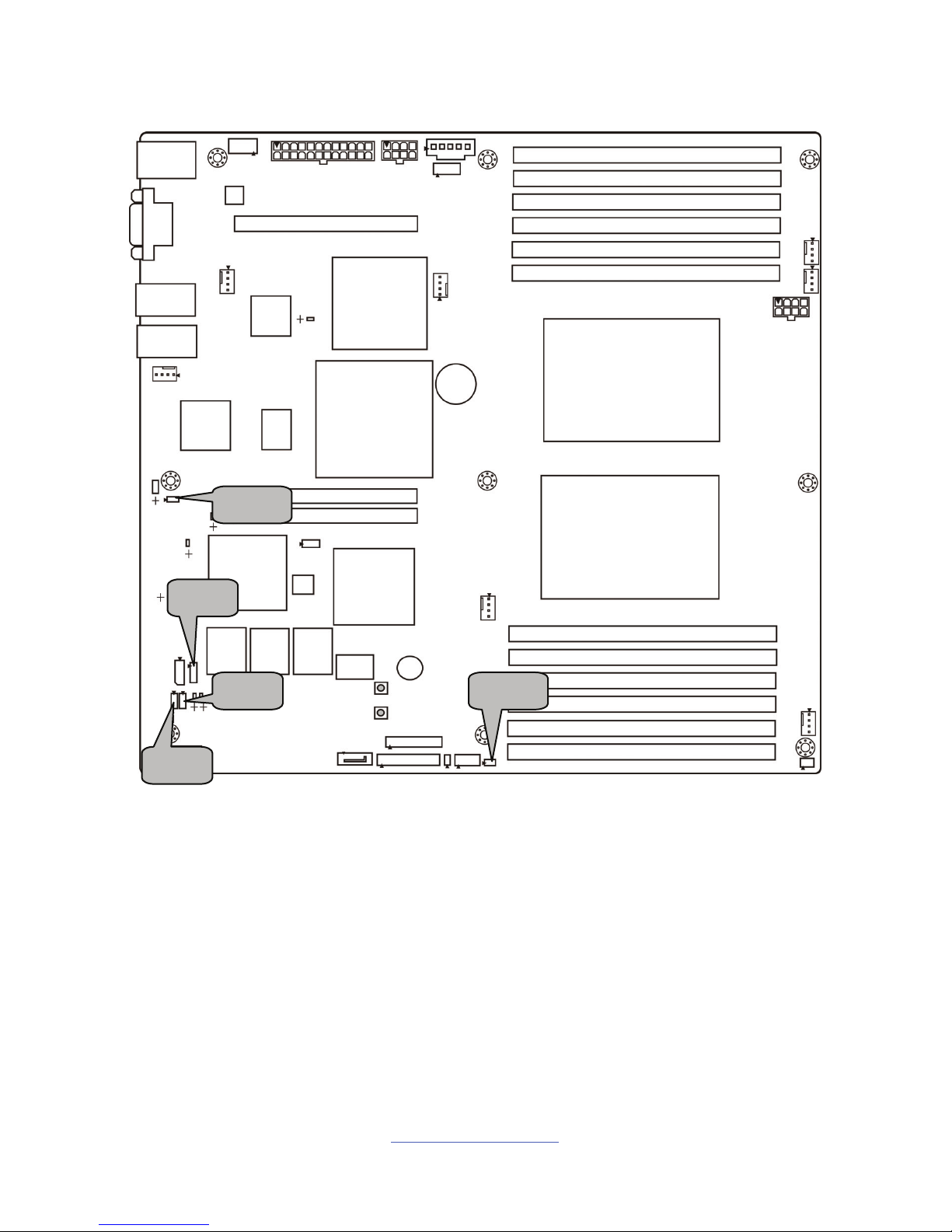

2.3 Board Parts, Jumpers and Connectors ........................................... 12
2.4 Installing the Processor and Heat sink ............................................ 22
2.5 Thermal Interface Material .............................................................. 25
2.6 Tips on Installing Motherboard in Chassis ...................................... 26
2.7 Installing the Memory ...................................................................... 28
2.8 Attaching Drive Cables .................................................................... 36
2.9 Installing Add-In Cards .................................................................... 37
2.10 Connecting External Devices ........................................................ 38
2.11 Installing the Power Supply ........................................................... 39
2.12 Finishing Up................................................................................... 40
Chapter 3: BIOS Setup ............................................................................. 41
3.1 About the BIOS................................................................................ 41
3.2 Main Menu....................................................................................... 43
3.3 Advanced Menu............................................................................... 44
3.4 PCI/PnP Menu................................................................................. 63
3.5 Boot Menu ....................................................................................... 65
3.6 Security Menu.................................................................................. 68
3.7 Chipset Menu .................................................................................. 69
3.8 Exit Menu......................................................................................... 83
Chapter 4: Diagnostics............................................................................. 85
4.1 Beep Codes..................................................................................... 85
4.2 Flash Utility ...................................................................................... 85
4.3 AMIBIOS Post Code........................................................................ 86
Glossary..................................................................................................... 89
Technical Support .................................................................................... 95

http://www.tyan.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1x S8226 Motherboard
1 x S8226 User’s manual
1 x S8226 Quick reference guide
1 x TYAN®Driver CD
1 x I/O shield
2 x Serial ATA Cable
1 x USB 2.0 Cable
1 x Mini-SAS to 7-Pin SATA Cable
1 x Mini-SAS to Mini-SAS Cable (for S8226GM3NR)
2 x Mini-SAS to Mini-SAS Cable (for S8226WGM3NR)

http://www.tyan.com
5
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S8226 motherboard, based on the
AMD®SR5690 & SP5100 chipsets. The S8226 is designed to support dual
AMD®45nm 4-Core/6-Core Opteron 4100 Series Processors and up to 128GB of
800, 1066 and 1333MHz DDR3 memory modules. Leveraging advanced
technology from AMD®, the S8226 is capable of offering scalable 32 and 64-bit
computing, high-bandwidth memory design, and lightning-fast PCI-E bus
implementation.
The S8226 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provides the S8226 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can find
all the information on all TYAN®products as well as all the supporting
documentation, FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
S8226GM3NR
Supported CPU Series
AMD 45nm 4-Core/6-Core Opteron 4100 Series Processors (Lisbon)
Features
HyperTransportTM3 technology (HT3) links provide up to 102.4 GB/s
peak bandwidth per processor; Quad 16-bit HyperTransportTM3
technology (HT3) links provide up to 6.4GT/s per link.
Socket Type / Q'ty C32 / (2)
Average CPU Power
(ACP) wattage Up to 75W (95W TDP)
Processor
System Bus Up to 6.4 GT/s Hyper-Transport link support
Chipset AMD SR5690 + SP5100
Chipset Super I/O Winbond W83627DHG
Supported DIMM Qty
(6)+(6) DIMM slots
DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
Capacity Up to 128GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
PCI-E (2) PCI-E Gen.2 x16 slots
Expansion Slots Recommended TYAN
Riser Card
M2091, PCI-E x16 1U riser card (left) / M2091-R, PCI-E x16 1U riser
card (right)
Recommended
Barebone / Chassis 1U Barebone GT24-B8226
Port Q'ty (3)
LAN Controller Intel 82574L / Intel 82576EB
Connector (1) Mini-SAS (4-port) + (2) SATA
Controller AMD SP5100
Speed 3.0 Gb/s
Storage SATA
RAID RAID 0/1/10/5 (Promise Integrated software RAID)
Graphic Connector type D-Sub 15-pin

http://www.tyan.com
6
Resolution 1600x1200@60Hz
Chipset Aspeed AST2050
USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power ATX12V / SSI EEB spec. 2008 / Universal 24-pin + 8-pin + 8-pin
power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-II connectors
Chipset Winbond W83795G
Voltage Monitors voltage for CPU, memory, chipset & power supply
Fan Total (7) 4-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning indicator / Fan &
PSU fail LED indicator
System Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI
Feature
IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0
virtual hub / BIOS update
Server Management
AST2050 iKVM
Feature
24-bit high quality video compression / Dual 10/100 Mb/s MAC
interfaces
Brand / ROM size AMI / 4MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI
2.0 power management /Power on mode after power recovery / User-
configurable H/W monitoring
Form Factor SSI EEB
Physical Dimension Board Dimension 12"x13" (305x330mm)
Operating System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint
Yes
Motherboard (1) S8226 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package Contains
Cable
SATA (2) SATA signal cables / (1) Mini-SAS cable
Optional accessories
Riser Card M2091, PCI-E x16 1U riser card (left) / M2091-R, PCI-E x16 1U riser
card (right)
TYAN S8226 (S8226WGM3NR)
Supported CPU Series AMD 45nm 4-Core/6-Core Opteron 4100 Series Processors (Lisbon)
Socket Type / Q'ty C32 / (2)
Average CPU Power
(ACP) wattage Up to 75W (95W TDP)
Processor
System Bus Up to 6.4 GT/s Hyper-Transport link support
Chipset AMD SR5690 + SP5100
Chipset
Super I/O Winbond W83627
Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
Capacity Up to 128GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
Expansion Slots PCI-E (2) PCI-E Gen.2 x16 slots

http://www.tyan.com
7
Recommended TYAN
Riser Card
M2091, PCI-E x16 1U riser card (left)
M2091-R, PCI-E x16 1U riser card (right)
Port Q'ty (3)
LAN
Controller Intel 82574L / Intel 82576EB
Connector (2) Mini-SAS connectors (4-in-1) (totally support 8 ports)
Controller LSI SAS2008
Speed 6.0 Gb/s
SAS
RAID RAID 0/1/1E/10 (LSI Integrated RAID)
Connector (1) Mini-SAS (4-in-1) + (2) SATA connectors (totally support 6 ports)
Controller AMD SP5100
Speed 3.0 Gb/s
Storage
SATA
RAID RAID 0/1/10/5 (Promise Integrated Software RAID)
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Graphic
Chipset Aspeed AST2050
USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)
COM (2) ports (1 at rear, 1 via cable)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power ATX12V / SSI EEB spec. 2008 / Universal 24-pin + 8-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS (4-in-1) & (2) SATA-II connectors
Chipset Winbond W83795G
Voltage Monitors voltage for CPU, memory, chipset & power supply
Fan Total (7) 4-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED
indicator
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0 virtual hub /
BIOS update
Server
Management
AST2050 iKVM Feature 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces
Brand / ROM size AMI / 4MB
BIOS
Feature Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power
management /Power on mode after power recovery / User-configurable H/W monitoring
Form Factor SSI EEB
Physical
Dimension Board Dimension 12"x13" (305x330mm)
Operating
System OS supported list Please visit our Web site for the latest OS supported list.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S8226 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
SATA (2) SATA signal cables / (1) Mini-SAS cable
Package
Contains
Cable
SAS (2) Mini-SAS cables
Optional
accessories Riser Card M2091, (1) PCI-E x16 slot, 1U riser card (left),
M2091-R, (1) PCI-E x16 slot, 1U riser card (right)

http://www.tyan.com
8
1.3 Software Specifications
For OS (operation system) support, please check with TYAN®support for latest
information.
Remember to visit our Web site at http://www.tyan.com for the latest AST2050
User’s Guide.

http://www.tyan.com
9
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE: Do not apply power to the board if it has been damaged.

http://www.tyan.com
10
2.1 Board Image
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.
