TYAN S5512 User manual

S5512
Version 1.1
Copyright
Copyright © MiTAC Computer Corporation, 2012. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN®is a trademark of MiTAC Computer Corporation
Intel®is a trademark of Intel®Corporation.
AMI®, AMIBIOS® and combinations thereof are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Aspeed®is a trademark of Aspeed Technology Inc.
Notice
Information contained in this document is furnished by MiTAC Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will MiTAC be held liable for any direct
or indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.TYAN.com
2
About this guide
This user guide contains the information you need when installing and configuring
the motherboard.
How this guide is organized
This guide contains the following parts:
Chapter1: Instruction
This chapter describes the features of the motherboard and the new technology it
supports.
Chapter2: Board Installation
This chapter lists the hardware setup procedures that you need to abide by when
installing system components. It includes description of the jumpers and connectors
on the motherboard.
Chapter3: BIOS Setup
This chapter tells how to change system settings through the BIOS setup menu.
Detailed descriptions of the BIOS parameters are also provided.
Chapter4: Diagnostics
This chapter introduces some BIOS codes and technical terms to provide better
service for the customers.
Appendix: Fan and Temp Sensors
This section aims to help readers identify the locations of some specific Fan and
Temp Sensors on the motherboard. A table of BIOS Temp sensor name
explanation is also included for readers’ reference.

http://www.TYAN.com
3
Contents
Before you begin… ..............................................................................4
Chapter 1: Instruction..........................................................................5
1.1 - Congratulations ............................................................................................. 5
1.2 - Hardware Specifications................................................................................ 5
1.3 - Software Specifications ............................................................................... 14
1.4 - AST2150 User Guide .................................................................................. 14
Chapter 2: Board Installation............................................................15
2.1 - Board Image................................................................................................ 16
2.2 - Block Diagram ............................................................................................. 17
2.3 - Board Parts, Jumpers and Connectors........................................................ 18
2.4 - Installing the Processor ............................................................................... 33
2.5 - Installing the Heatsink ................................................................................. 36
2.6 - Thermal Interface Material........................................................................... 37
2.7 - Tips on Installing Motherboard in Chassis................................................... 38
2.8 - Installing the Memory .................................................................................. 40
2.9 - Attaching Drive Cables ................................................................................ 43
2.10 - Installing Add-In Cards .............................................................................. 44
2.11 - Connecting External Devices .................................................................... 45
2.12 - Installing the Power Supply ....................................................................... 47
2.13 - Finishing Up .............................................................................................. 48
Chapter 3: BIOS Setup.......................................................................49
3.1 - About the BIOS............................................................................................ 49
3.2 - Setup Basics ............................................................................................... 49
3.3 - Getting Help ................................................................................................ 50
3.4 - In Case of Problems .................................................................................... 50
3.5 - BIOS Main Menu ......................................................................................... 51
3.6 - BIOS Advanced Menu................................................................................. 53
3.7 - Chipset Menu .............................................................................................. 84
3.8 - Boot Configuration....................................................................................... 92
3.9 - Security Menu.............................................................................................. 94
3.10 - Server Mgmt Menu .................................................................................... 95
3.10.1 - System Event Log Sub-Menu................................................................. 96
3.10.2 - BMC Network Configuration Sub-Menu.................................................. 97
3.11 - Event Logs ................................................................................................ 98
3.12 - Save & Exit Menu...................................................................................... 99
Chapter 4: Diagnostics....................................................................101
4.1 - Flash Utility................................................................................................ 101
4.2 - AMIBIOS Post Code (Aptio) ...................................................................... 102
Glossary............................................................................................113
Technical Support............................................................................119

http://www.TYAN.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1x S5512 Motherboard
6 x Serial ATA Cable or 8 x Serial ATA Cable
1 x USB2.0 Cable
1 x I/O shield
1 x I/O shield Installation Guide
1 x S5512 User’s manual
1 x S5512 Quick reference guide
1 x TYAN®Driver CD
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.

http://www.TYAN.com
5
Chapter 1: Instruction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. Based on the Intel®
Cougar Point PCH chipset, the TYAN®S5512 series motherboard is designed to
support Single Intel® Xeon E3-1200 series, E3-1200 v2 series or Intel® 2nd Gen/3rd
Gen i3 series processor. It is up to 32GB Un-buffered DDR3 with ECC. The memory
interface supports speed up to 1600 MHz. There are also 2 channels with 4 DDR3
DIMMs, providing a rich feature set and incredible performance. Leveraging the
advanced technology from Intel®, the TYAN®S5512 series is capable of offering a
scalable 32 and 64-bit computing environment with high-bandwidth memory design
and lightning-fast PCI-E Gen2/3 bus implementation.
The S5512 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provides the S5512 with the power and flexibility to meet demanding
requirements for today’s IT environments.
The TYAN S5512 series is designed around several different configurations which
are detailed in the following 1.2 Hardware Specification section:
1.2 - Hardware Specifications
TYAN S5512 (S5512GM2NR)
Supported CPU
Series Intel Xeon E3-1200, i3-2100 (32nm / 22nm) series
processors
Socket Type / Q'ty LGA 1155/ (1)
Processor Thermal Design
Power (TDP)
wattage Max up to 95W
PCH Intel C204
Chipset Super I/O Nuvoton 5577D
Supported DIMM
Qty (4) DIMM slots
DIMM Type / Speed Unbuffered ECC DDR3 1600/1333
Capacity Up to 32GB
Memory channel 2 Channels
Memory
Memory voltage 1.5V
PCI-E (1) PCI-E Gen.2 x8 slot (w/ x4 link) / (2) PCI-E Gen.2
x1 slots / (1) PCI-E Gen.3 x16 slot (w/ x8 link) / (1)
PCI-E x8 Gen.3 slot(w/ x8 link)
Note: PCI-E Gen.2 x16 slot (w/ x8 link) can be x16 link for
customized purpose
Expansion
Slots
PCI (1) PCI 32-bit slot

http://www.TYAN.com
6
Port Q'ty (2)
LAN Controller Intel 82574L
Connector (6) SATA
Controller Intel C204
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Graphic Chipset Aspeed AST2150
USB (10) USB2.0 ports (4 at rear, 4 via cable, 2 vertical
onboard)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (2) GbE ports
Power SSI/ATX 24-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II and (2) SATA-III connectors
Chipset Nuvoton 5577D
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers & (5)8-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
System
Monitoring
Others Chassis intrusion detection / Watchdog timer support
Onboard Chipset Onboard Aspeed AST2150
AST2150 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote platform-
flash / USB 2.0 virtual hub
Server
Management AST2150 iKVM
Feature 24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size 8MB / AMI
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor ATX
Physical
Dimension Board Dimension 12"x9.6" (305x243.8mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Operating
Environment Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)

http://www.TYAN.com
7
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S5512 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S5512 (S5512WGM2NR)
Supported CPU
Series Intel Xeon E3-1200, i3-2100 (32nm / 22nm) series
processors
Socket Type / Q'ty LGA 1155/ (1)
Processor Thermal Design
Power (TDP)
wattage Max up to 95W
PCH Intel C204
Chipset Super I/O Nuvoton 5577D
Supported DIMM
Qty (4) DIMM slots
DIMM Type / Speed Unbuffered ECC DDR3 1600/1333
Capacity Up to 32GB
Memory channel 2 Channels
Memory
Memory voltage 1.5V
PCI-E (2) PCI-E Gen.2 x1 slots / (1) PCI-E Gen.3 x16 slot (w/
x8 link) / (1) PCI-E x8 Gen.3 slot(w/ x8 link)
Note: PCI-E Gen.2 x16 slot (w/ x8 link) can be x16 link for
customized purpose
Expansion
Slots
PCI (1) PCI 32-bit slot
Port Q'ty (2)
LAN Controller Intel 82574L
Connector (8) SAS
Controller LSI SAS2008
Speed 6.0 Gb/s
SAS
RAID RAID 0/1/1E/10 (LSI Integrated RAID)
Connector (6) SATA
Controller Intel C204
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Graphic Chipset Aspeed AST2150

http://www.TYAN.com
8
USB (10) USB2.0 ports (4 at rear, 4 via cable, 2 vertical
onboard)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (2) GbE ports
Power SSI/ATX 24-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II and (2) SATA-III connectors
Chipset Nuvoton 5577D
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers & (5)8-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
System
Monitoring
Others Chassis intrusion detection / Watchdog timer support
Onboard Chipset Onboard Aspeed AST2150
AST2150 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote
platform-flash / USB 2.0 virtual hub
Server
Management AST2150 iKVM
Feature 24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size 8MB / AMI
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor ATX
Physical
Dimension Board Dimension 12"x9.6" (305x243.8mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S5512 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SAS/SATA (8) SAS/SATA signal cables

http://www.TYAN.com
9
TYAN S5512 (S5512GM4NR)
Supported CPU
Series Intel Xeon E3-1200, i3-2100 (32nm / 22nm) series
processors
Socket Type / Q'ty LGA 1155/ (1)
Processor Thermal Design
Power (TDP)
wattage Max up to 95W
PCH Intel C204
Chipset Super I/O Nuvoton 5577D
Supported DIMM
Qty (4) DIMM slots
DIMM Type / Speed Unbuffered ECC DDR3 1600/1333
Capacity Up to 32GB
Memory channel 2 Channels
Memory
Memory voltage 1.5V
PCI-E (1) PCI-E Gen.2 x8 slot (w/ x4 link) / (2) PCI-E Gen.2
x1 slots / (1) PCI-E Gen.3 x16 slot (w/ x8 link) / (1)
PCI-E x8 Gen.3 slot(w/ x8 link)
Note: PCI-E Gen.2 x16 slot (w/ x8 link) can be x16 link for
customized purpose
Expansion
Slots
PCI (2) PCI 32-bit slots
Port Q'ty (4)
LAN Controller Intel 82574L
Connector (6) SATA
Controller Intel C204
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Graphic Chipset Aspeed AST2150
USB (10) USB2.0 ports (4 at rear, 4 via cable, 2 vertical
onboard)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (4) GbE ports
Power SSI/ATX 24-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II and (2) SATA-III connectors
Chipset Nuvoton 5577D
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers & (5)8-pin headers
Temperature Monitors temperature for CPU & system environment
System
Monitoring

http://www.TYAN.com
10
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
Others Chassis intrusion detection / Watchdog timer support
Onboard Chipset Onboard Aspeed AST2150
AST2150 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote platform-
flash / USB 2.0 virtual hub
Server
Management AST2150 iKVM
Feature 24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size 8MB / AMI
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor ATX
Physical
Dimension Board Dimension 12"x9.6" (305x243.8mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S5512 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S5512-HE (S5512G2NR-HE)
Supported CPU
Series Intel Xeon E3-1200, i3-2100 (32nm / 22nm) series
processors
Socket Type / Q'ty LGA 1155/ (1)
Processor Thermal Design
Power (TDP)
wattage Max up to 95W
PCH Intel C206
Chipset Super I/O Nuvoton 5577D
Supported DIMM
Qty (4) DIMM slots
Memory DIMM Type / Speed Unbuffered ECC DDR3 1600/1333

http://www.TYAN.com
11
Capacity Up to 32GB
Memory channel 2 Channels
Memory voltage 1.5V
PCI-E (1) PCI-E Gen.2 x8 slot (w/ x4 link) / (2) PCI-E Gen.2
x1 slots / (1) PCI-E Gen.3 x16 slot (w/ x8 link) / (1)
PCI-E x8 Gen.3 slot(w/ x8 link)
Note: use Intel Ivy Bridge CPU to support PCI-E Gen.3
Expansion
Slots
PCI (1) PCI 32-bit slot
Port Q'ty (2)
LAN Controller Intel 82574L
Connector (6) SATA
Controller Intel C206
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Graphic Chipset Aspeed AST2150-GP-V
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A
onboard)
COM (1) port (rear)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (2) GbE ports
Power SSI/ATX 24-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II and (2) SATA-III connectors
Chipset Nuvoton 5577D
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers & (5)8-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
System
Monitoring
Others Chassis intrusion detection / Watchdog timer support
Brand / ROM size 8MB / AMI
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor ATX
Physical
Dimension Board Dimension 12"x9.6" (305x243.8mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes

http://www.TYAN.com
12
Operating Temp. 0° C ~ 55° C (32° F~ 131° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S5512 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S5512-LE (S5512G2NR-LE)
Supported CPU
Series Intel Xeon E3-1200, i3-2100 (32nm / 22nm) series
processors
Socket Type / Q'ty LGA 1155/ (1)
Processor Thermal Design
Power (TDP)
wattage Max up to 95W
PCH Intel C202
Chipset Super I/O Nuvoton 5577D
Supported DIMM
Qty (4) DIMM slots
DIMM Type / Speed Unbuffered ECC DDR3 1600/1333
Capacity Up to 32GB
Memory channel 2 Channels
Memory
Memory voltage 1.5V
PCI-E (2) PCI-E Gen.2 x1 slots / (1) PCI-E Gen.3 x16 slot (w/
x8 link) / (1) PCI-E x8 Gen.3 slot(w/ x8 link)
Note: use Intel Ivy Bridge to support PCI-E Gen.3
Expansion
Slots PCI (1) PCI 32-bit slot
Port Q'ty (2)
LAN Controller Intel 82574L
Connector (6) SATA
Controller Intel C202
Speed 3.0 Gb/s
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Graphic Chipset Aspeed AST2150-GP-V

http://www.TYAN.com
13
USB (8) USB2.0 ports (4 at rear, 4 via cable)
COM (1) port (rear)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (2) GbE ports
Power SSI/ATX 24-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (6) SATA-II connectors
Chipset Nuvoton 5577D
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
System
Monitoring
Others Chassis intrusion detection / Watchdog timer support
Brand / ROM size 8MB / AMI
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor ATX
Physical
Dimension Board Dimension 12"x9.6" (305x243.8mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S5512 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables

http://www.TYAN.com
14
S5512 SKU Comparison Table
Cougar
Point
Expand.
slot
PartNumberBMC
PCH
X16/X8
/X1/PCI
SAS
6Gb/s
SATA
6Gb/s
SATA
3Gb/s
LAN
port
IPMI
port
S5512GM2NRYes Standard
(C204)
1 / 2 /
2 / 1 No 2 4 2 1
S5512GM4NRYes Standard
(C204)
1 / 2 /
2 / 1 No 2 4 4 1
S5512WGM2NRYes Standard
(C204)
1 / 1 /
2 / 1 Yes 2 4 2 1
S5512G2NR‐LENo Essential
(C202)
1 / 1 /
2 / 1 No 0 6 2 0
S5512G2NR‐HE(BTO) No Advance
(C206)
1 / 2 /
2 / 1 No 2 4 2 0
1.3 - Software Specifications
For OS (operation system) support, please check the TYAN®website for the latest
information.
1.4 - AST2150 User Guide
Remember to visit TYAN®’s Website at http://www.TYAN.com for AST2150
updated user guide.

http://www.TYAN.com
15
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN®recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
DO NOT apply power to the board if it has been damaged.

http://www.TYAN.com
16

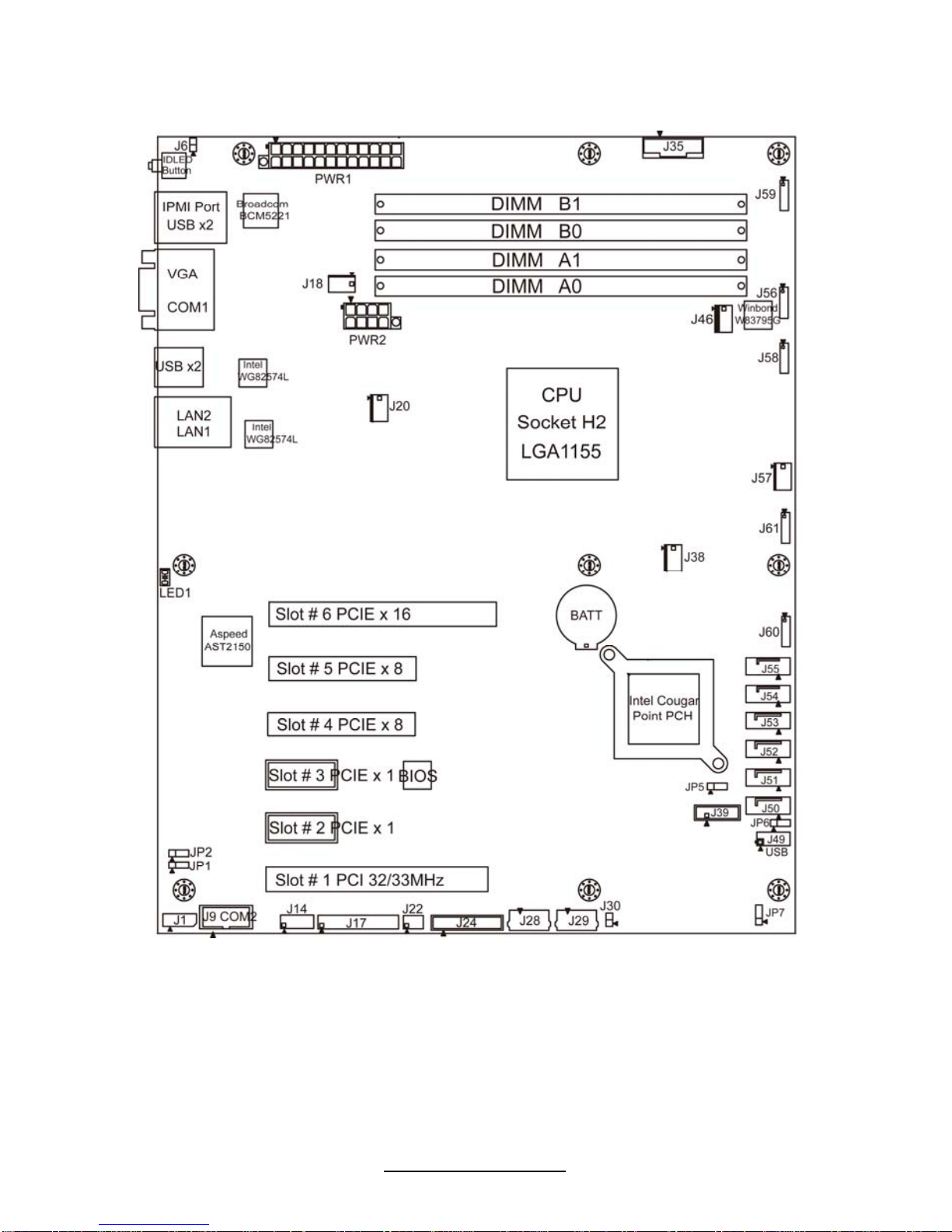

2.1 - Board Image
S5512
This diagram is representative of the latest motherboard revision available at the
time of publishing. The board you receive may not look exactly like the above
diagram.

http://www.TYAN.com
17
2.2 - Block Diagram
S5512 Block Diagram

http://www.TYAN.com
18
2.3 - Board Parts, Jumpers and Connectors
S5512 SKU Comparison Table II
S5512 series jumper and connector Support SKUs
Jumper/Connector Function
GM
2NR GM
4NR WGM
2NR G2NR-HE G2NR-LE
J18/J20/J38/J46/J57 4-Pin Fan Connectors YES YES YES YES YES
J56/J58/J59/J60/J61 8-Pin Fan Connectors YES YES YES YES NO
SW1 ID LED Switch Button YES YES YES NO NO
J1 IPMB Connector YES YES YES NO NO
J6 Front Panel IDLED
Switch 2Pin Header YES YES YES YES YES
J9 COM2 Header YES YES YES NO NO
J14/J49 Dual USB2.0 Header YES YES YES YES YES
J17 Front Panel Header YES YES YES YES YES
J22 LAN ACTIVE LED
Header YES YES YES YES YES
J24 Fan Front Header YES YES YES YES YES
J28 USB 2.0 Type-A
Connector YES YES YES NO NO
J29 USB 2.0 Type-A
Connector YES YES YES YES NO
J30 Intrusion Switch 2Pin
Headers YES YES YES YES YES
J35 PSMI Connector YES YES YES YES YES
J39 SGPIO Header YES YES YES YES YES
J47/J48 SGPIO Header NO NO YES NO NO
J31/J32/J33/J34 SAS(Port7/Port3/
Port6/Port2) NO NO YES NO NO
J36/J37/J40/J41 SAS (Port5/Port1/
Port4/Port0) NO NO YES NO NO
JP5 ME recovery function
set YES YES YES YES YES
JP6 RTC Clear CMOS set YES YES YES YES YES
JP7 ME update function set YES YES YES YES YES

http://www.TYAN.com
19
NOTE: ▲in the image indicates pin 1. There are five SKUs of S5512 motherboard.
S5512GM2NR

http://www.TYAN.com
20
S5512WGM2NR
Other manuals for S5512
1
Table of contents
Other TYAN Motherboard manuals

TYAN
TYAN S7052 User manual

TYAN
TYAN S8028 User manual

TYAN
TYAN THUNDER K8WE User manual

TYAN
TYAN TIGERCUB ATX User manual

TYAN
TYAN Toledo i965R (S5180AG2N) User manual

TYAN
TYAN S5537 User manual

TYAN
TYAN THUNDER I840 User manual

TYAN
TYAN Thunder n4250QE-S4985G3NR-E User manual

TYAN
TYAN InterServe 90 User manual

TYAN
TYAN TOMAHAWK BX User manual

TYAN
TYAN THUNDER K8SRE User manual

TYAN
TYAN S1830 TSUNAMI AT User manual

TYAN
TYAN TIGER I7501S User manual

TYAN
TYAN TOMCAT I7230A User manual

TYAN
TYAN S5556 User manual

TYAN
TYAN S8010 User manual

TYAN
TYAN S7063 User manual

TYAN
TYAN S7067 User manual

TYAN
TYAN TIGER 100 User manual

TYAN
TYAN Trinity 100AT S1590 User manual
