TYAN TEMPEST I5000VF User manual

1
Tempest i5000VF /// S5370
Version 1.1
Copyright
Copyright © TYAN Computer Corporation, 2006. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
TYAN Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN, Tempest i5000VF are trademarks of TYAN Computer Corporation.
Intel, Blackford-VS, and combinations thereof are trademarks of Intel
Corporation.
Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.
Microsoft, Windows are trademarks of Microsoft Corporation.
SuSE,is a trademark of SuSE AG.
IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.
Notice
Information contained in this document is furnished by TYAN Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
TYAN assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN products including liability or
warranties relating to fitness for a particular purpose or merchantability. TYAN
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will TYAN be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

2
Table of Contents
Check the box contents! 3
Chapter 1: Introduction
1.1 Congratulations…………………………………………………………… 5
1.2 Hardware Specifications………………………………………………… 5
Chapter 2: Board Installation
2.1 Board Image……………………………………………………………… 8
2.2 Block Diagram……………………………………………………………. 9
2.3 Board Parts, Jumpers and Connectors………………………………... 10
2.4 Tips on Installing Motherboard in Chassis…………………………….. 19

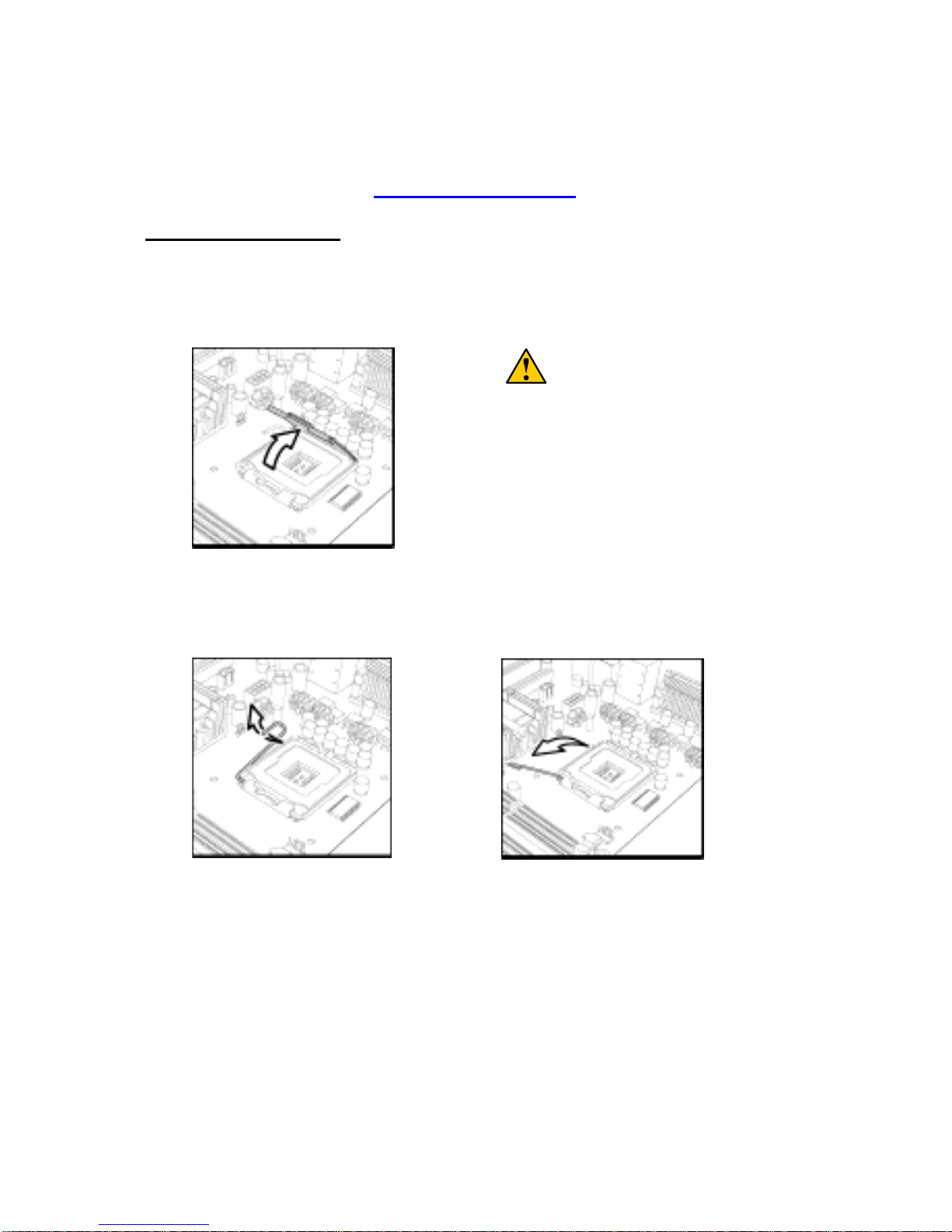

2.5 Installing the Processor(s)………………………………....................... 20
2.6 Installing the Memory……………………………………………………. 23
2.7 Attaching Drive Cables………………………………………………….. 25
2.8 Installing Add-in Cards………………………………............................ 27
2.9 Connecting External Devices…………………………………………… 28
2.10 Installing the Power Supply……………………………………………... 29
2.11 Finishing up………………………………………………………………. 29
Chapter 3: BIOS Setup
3.1 About the BIOS…………………………………………………………… 31
3.2 BIOS Main Menu…………………………………………………………. 33
3.3 Advanced Menu………………………………………………………….. 41
3.4 Security Menu…………………………………………………………….. 55
3.5 Power Menu………………………………………………………………. 56
3.6 Boot Menu………………………………………………………………… 57
3.7 Exit Menu…………………………………………………………………. 58
Chapter 4: Diagnostics
4.1 Beep Codes………………………………………………………………. 59
4.2 Flash Utility……………………………………………………………….. 59
4.3 BIOS Post Code………………………………………………………….. 60
Appendix I: SMDC Information
Appendix II: How to Make a Driver Diskette
Glossary

3

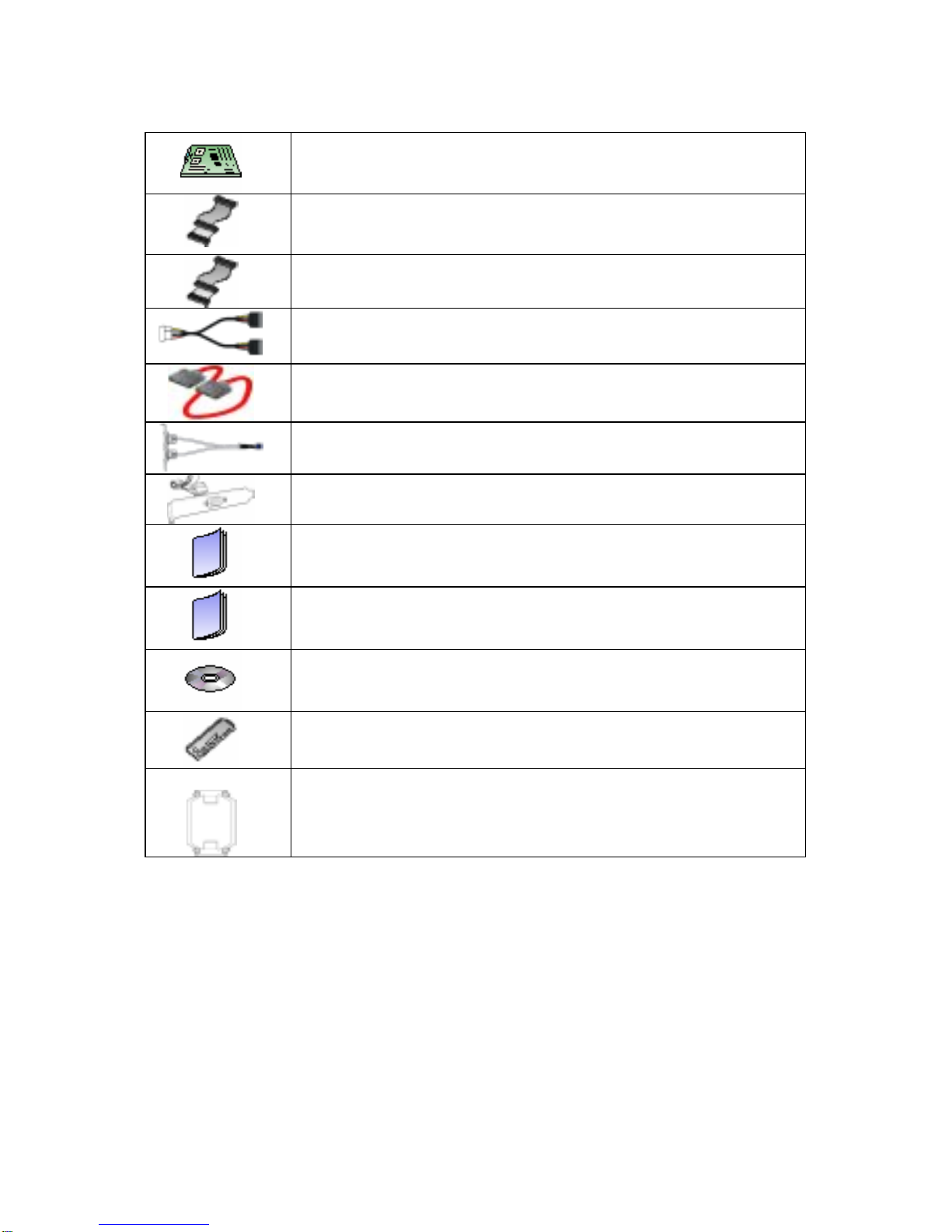

Check the box contents!
1x S5370 motherboard
1x 34-Pin floppy drive cable
1 x Ultra-DMA-133/100/66/33 IDE cable
3 x Serial ATA power cable
6 x Serial ATA Cable
1 x USB2.0 cable
1x Serial Port Cable
1 x S5370 user’s manual
1 x S5370 Quick Reference guide
1 x TYAN driver CD
1 x I/O shield
2 x CPU Back Plane
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.

4

5
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. The Tempest
i5000VF (S5370) is a flexible Intel®platform for multiple applications, based on
Intel®“Blackford-VS” MCH and ESB2 chipsets.
Designed to support Intel®Dempsey processor and 8GB DDR2-533/667 FB-
DIMM memory, and featured with integrated Dual Gigabit Ethernet LAN, built-in
16MB XGI XG20TM video plus six serial ATA ports, the S5370 offers exceptional
performance and versatile solution for your server platform.
Remember to visit TYAN’s Website at http://www.TYAN.com. There you can
find information on all of TYAN’s products with FAQs, online manuals and BIOS
upgrades.
1.2 - Hardware Specifications
Processor
•Dual LGA771 sockets
•Supports up to two IntelR
Dempsey/Woodcrest processor
•1066/1333 MHz FSB
•VRD 11.0
Chipset
•IntelR“Blackford-VS” MCH+ESB2
chipset
•Supports for 1033/1066MHz FSB
•SMSC SCH5017 super I/O chip
Memory
•Four 240-pin DDR2 FBDIMM
sockets
•2 memory channels
•Supports ECC DIMMs
•Maximum of 16/8GB DDR2-
533/667 FB-DIMM*
*FB-DIMM: Fully Buffered DIMM
Integrated LAN Controllers
•IntelR Gigabit from ESB2
(w/”Gilgal”) (ASF2.0 option)
•Two front panel LED headers
(Link/Act)
•Two RJ-45 port with LEDs
Integrated Video Controller
•XGI XG20
•PCI interface
•16MB DDR memory
Integrated SATA 2.0 Controller
•Six SATA2.0 ports from Intel
ESB2
•Integrated HostRAID o or 1
support
BIOS
•PhoenixRBIOS on 8Mbit Flash
ROM
•Supports ACPI 1.0b

6
Expansion Slots
•Two (2) PCI-Express x8 slots
(with x4 signal)
•One (1) PCI-X 133/100MHz slot
•Two (2) PCI 32-bit 33MHz slots
Total Five expansion slots from
ESB2
Integrated I/O
•One (1) 9-pin 16550 UART serial
port
•One (1) 15-pin VGA port
•Eight (8) USB2.0 ports (two ports
at rear, three front headers
support six ports)
•PS/2 mouse and keyboard
connectors
•One (1) FDD connector
•One (1) IDE connector supports
ATA100
•Six standard/integrated SATA
connectors
•Two side by side RJ-45
10/100/1000 LAN ports
System Management
•Winbond W83793G Hardware
Monitor ASIC
•CPU thermal & voltage monitor
support
•2-pin chassis intrusion header
•4-pin fan monitoring header
•Five (5) fan headers with
Tachometer and auto fan control
(4-pin configuration)
•Serial Console Redirect
•PXE via Ethernet, USB device
boot
•User-configurable H/W monitoring
•Auto-configuration of hard disk
types
•Multiple boot options
•48-bit LBA support
Form Factor
•SSI/CEB 1.01 (12” x 10.5”)
•EPS12V/SSI (24+8pin) power
connectors
•Stacked PS/2 keyboard and
mouse connectors
•Stacked USB2.0 (2) connectors
•Serial (1) and VGA (1) connectors
•Two side-by-side RJ-45 LAN
connectors with LEDs

7
Chapter 2: Board Installation
You are now ready to install your motherboard. The mounting hole pattern of
the Tempest i5000VF S5370 matches the ATX specification. Before continuing
with installation, confirm that your chassis supports an ATX motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the
antistatic bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED

8
2.1- Board Image
This picture is representative of the latest board revision available at
the time of publishing. The board you receive may or may not look
exactly like the above picture.

9
2.2 - Block Diagram
Tempest i5000VF S5370 Block Diagram

10

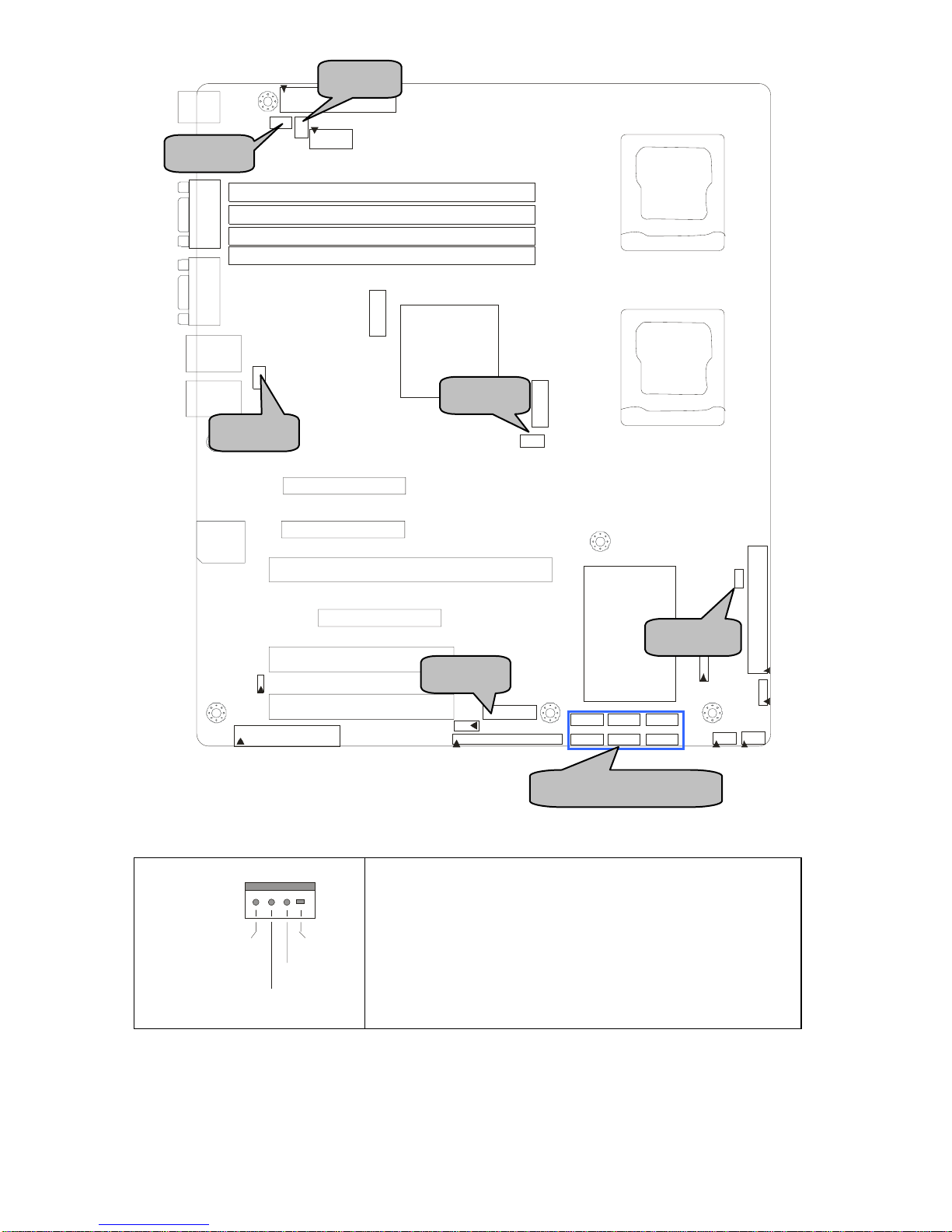

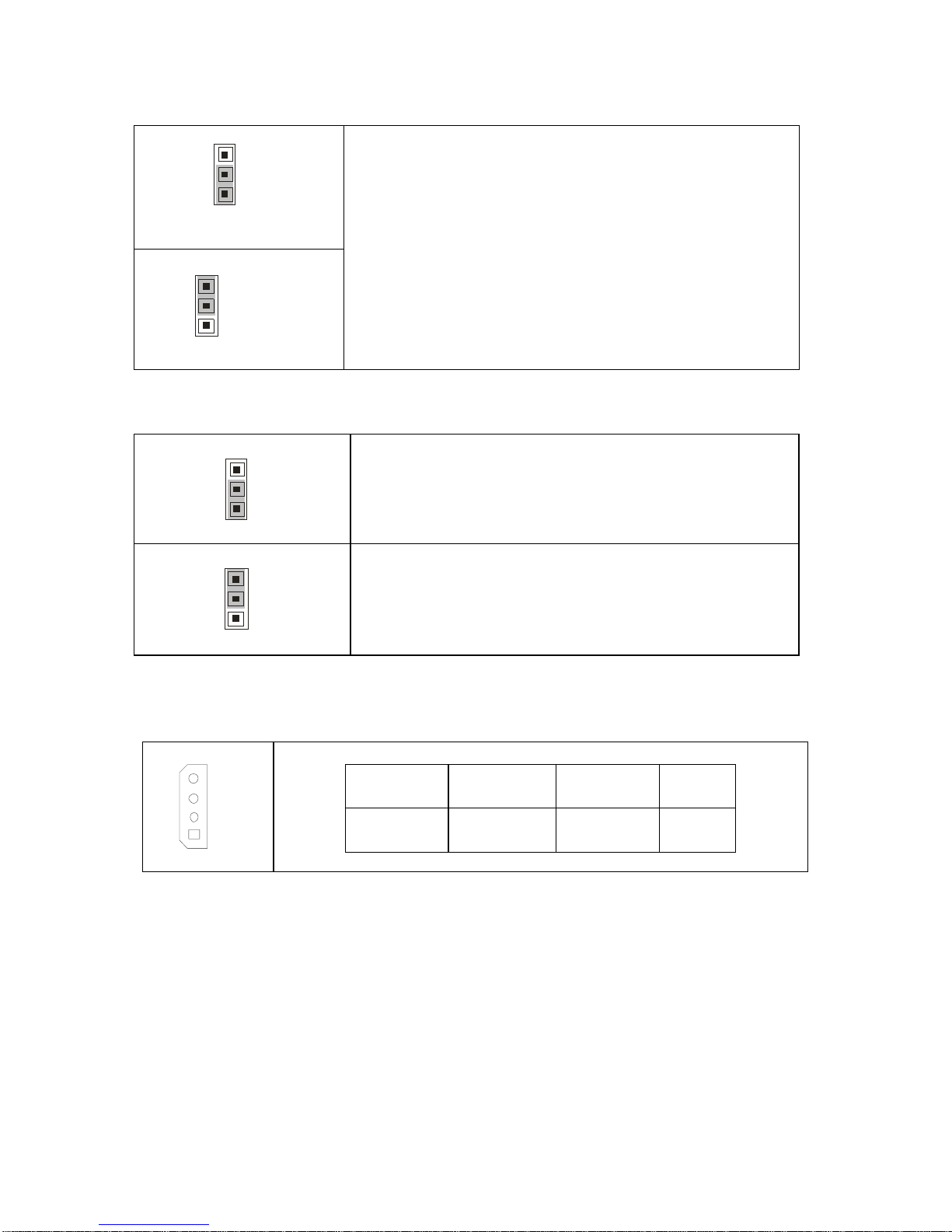

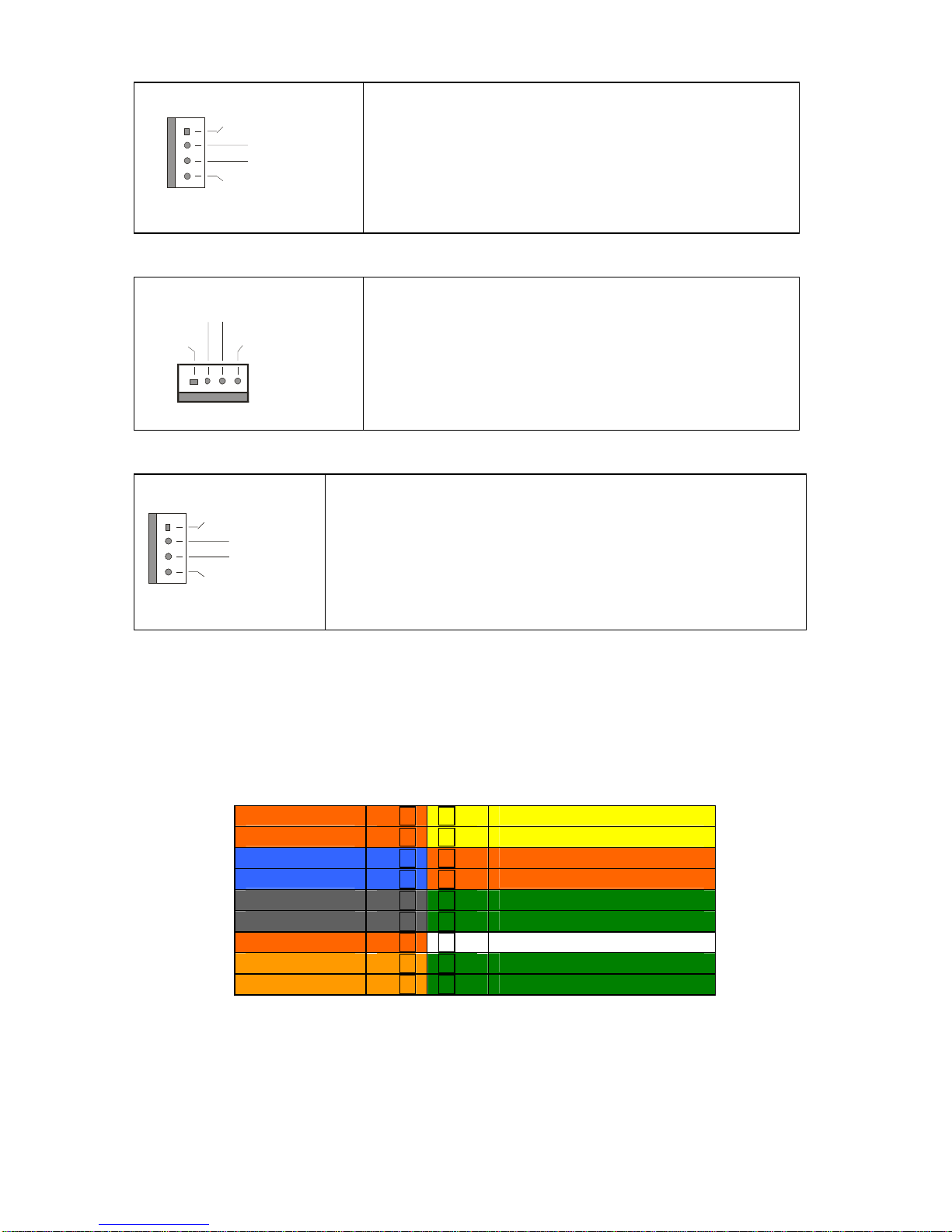

2.3 - Board Parts, Jumpers and Connectors
DIMM 2
DIMM 1
DIMM 0
CN1
CN3
KB/MS
USBx2
COM1
VGA
LAN1
LAN2
CN23
JP19
CN22
BIOS
PCIE1
PCIE3
PCIX1
BMC1
PCI1PCI1
PCI2
CN12
JP16
CN26
SATA0 SATA1
SATA4
SATA2 SATA5 SATA3 CN15
CN19
JP9
CN20
JP18
CN28
CN25
CN14
CN24
Intel
BF-VS MCH
Intel
ESB2
JP5
Intel
BF-VS MCH
Intel
BF-VS MCH
CPU1
CPU0
DIMM 3
CN21
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.
