Thunder i7525 (S2676) User’s Manual
i
http://www.tyan.com
Thunder i7525 ///
S2676
Revision 1.01
Copyright © TYAN Computer Corporation, 2004-2005. All rights reserved. No part of this manual
may be reproduced or translated without prior written consent from TYAN Computer Corp.
All registered and unregistered trademarks and company names contained in this manual are
property of their respective owners including, but not limited to the following.
TYAN, Thunder i7525 and (S2676) are trademarks of TYAN Computer Corporation.
Intel, Xeon, and combinations thereof are trademarks ofIntel Corporation.
Phoenix, PhoenixBIOS are trademarks of Phoenix Technologies.
Microsoftand Windows are trademarks of Microsoft Corporation.
Linux is a trademark of Linus Torvalds.
IBM, PC, ATand PS/2 are trademarks of IBM Corporation.
ATI, ATI RAGE is a trademark of ATI Technologies Incorporated.
SMSC is a trademark of SMSC -Standard Microsystems Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corporation.
Information contained in this document is furnished by TYAN Computer Corporation and has been
reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and
disclaims any express or implied warranty, relating to sale and/or use of TYAN products including
liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains
the right to make changes to product descriptions and/or specifications at any time, without notice.
In no event will TYAN be held liable for any direct or indirect, incidental or consequential damage,
loss of use, loss of data or other malady resulting from errors or inaccuracies of information
contained in this document.

Thunder i7525 (S2676) Table of Contents
ii
http://www.tyan.com
Table of Contents
Chapter 1: Introduction................................................................................................................1
1.1 –Congratulations!..............................................................................................................1
1.2 –Hardware Specifications.................................................................................................1
1.3 –Board Diagram................................................................................................................3
Chapter 2: Choose Proper Parts For Your System....................................................................4
2.1 –Central Processor Unit (CPU) Considerations ................................................................4
2.2 –Memory Considerations..................................................................................................4
2.3 –Chassis/Enclosure Considerations..................................................................................5
2.4 –Power Supply Considerations.........................................................................................5
Chapter 3: Board Installation.......................................................................................................7
3.1 –Key Component View.......................................................................................................8
3.2 –Jumper Settings & Definitions.........................................................................................9
3.3 –Mounting the Motherboard............................................................................................16
3.4 –Installing the Processor and Heatsink...........................................................................16
3.5 –Installing the Memory....................................................................................................19
3.6 –Memory Installation Procedure......................................................................................19
3.7–Attaching Drive Cables...................................................................................................20
3.8 –Installing Add-In Cards..................................................................................................23
3.9 –Connecting External Devices........................................................................................24
3.10 –Installing the Power Supply.........................................................................................24
3.11 –Finishing Up ................................................................................................................25
Chapter 4: BIOS Setup................................................................................................................26
4.1 –Main BIOS Setup ..........................................................................................................27
4.2 –Main Submenu Standard / Native IDE..........................................................................30
4.3 –Advanced BIOS Features .............................................................................................32
4.4 –Security Menu...............................................................................................................44
4.5 –Power Menu..................................................................................................................46
4.6 –Boot Menu.....................................................................................................................48
4.7 –Exit Menu......................................................................................................................50
Chapter 5: Diagnostics...............................................................................................................51
5.1 Beep Codes.....................................................................................................................51
5.2 Flash Utility ......................................................................................................................51
Appendix I: Glossary..................................................................................................................54
Appendix II: Post Error Code for BIOS......................................................................................60
Technical Support..................................................................................................................65

Thunder i7525 (S2676) Before you begin…
iii
http://www.tyan.com
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1x Thunder i7525 (S2676) motherboard
1x 34-pin floppy drive cable
1x 80-pin Ultra-DMA-133/100/66/33 IDE cable
1x 68-pin Ultra 320 SCSI cable (Optional)
1x Thunder i7525 (S2676) User’s Manual
1x Thunder i7525 (S2676) Quick Reference
1x TYAN driver CD
1x I/O shield
1 x Serial ATA driver diskette
SCSI Driver Disk (Optional)
1x Serial ATA power cable
2x Serial ATA cables
If any of these items are missing, please contact your vendor/dealer for replacement before
continuing with the installation process.

Thunder i7525 (S2676)
1
http://www.tyan.com
Chapter 1: Introduction
1.1 –Congratulations!
You have purchased one of the most powerful Intel Xeon-basedworkstation solutions in a
standard SSI EEB v3.5 form factor. Based on the Intel E7210 chipset, the Thunder i7525 (S2676)
features some state-of-the-art technologies such as dual/single 800 MHz FSB Xeonprocessor
support, multiple PCI-Express buses, dual channel DDR2 memory design, onboard PCI-Express
Gigabit Ethernet port, Serial-ATA IDE ports,and multiple USB2.0 (Universal Serial Bus) ports.By
doubling the capability of existing AGP8x designs with transfer rates of 4.0 Gigabytes per second
over a x16 PCI Express lane for graphics controllers, the onboard x16 PCI-Express slot supports
a high performance graphics infrastructure for high-end gaming or multimedia.
Visit Tyan’s website at http://www.tyan.com. There,you can find information on all of Tyan’s
products with up-to-date FAQs, a list of worldwide distributors, Tyan software utilities, the latest
drivers, memory compatibility listings, and BIOS setting explanations.
1.2 –Hardware Specifications
Processors
-Dual mPGA604 ZIF sockets
-Supportssingle or dual Intel Xeon
processors (Nocona)
-800MHz Front-Side Bus
-Dual onboard 4-phaseVRM10.1 complaint
voltage regulation design
Chipset
-Intel E7525 chipset
§E7525 MCH (North Bridge)
§ICH5R (South Bridge)
§PXH (PCI-X hub)
-SMSC LPC47B397 Super I/O chip
Expansion Slots
-One x16 PCI-Express high-performance
Graphicsslot
-One PCI-X 64-bit 133/100/66MHz (3.3-
Volt)slot
-Two PCI-X 64-bit 100/66MHz (3.3-volt)
slots
-One PCI 32-bit 33MHz (5-Volt) slots
-Total of six usable slots
Memory
-Eight 240-pin 1.8-Volt DDR2 400 DIMM
sockets
-Dual channel memory bus
-Supports Registered/ECC or registered
/non-ECC memory
-Supports up to 32GB*of Registered
DDR2-400 DIMM modules
IntegratedLAN
-Broadcom BCM5751 PCI Express Gigabit
Ethernet Controller
System Hardware Health Monitor
-Total four 3-pin fan headers with
tachometer monitoring and five of them
with PWM control
-Chassis intrusion header
-Temperature and voltage monitoring
-Watchdog timer
BIOS
-Phoenix BIOS 4Mbit flash ROM
-Supports ACPI 1.0b, PnP, DMI 2.0
-Auto configuration of IDE devices
-Multiple boot options
-Power Management: ACPI S1, S3, S4 and
S5 modes
Other Integrated I/O Interfaces
-One floppy connector for up to two drives
-One UART serial port connector
-One ECP/EPP/SPP parallel connector
-One OPTION USB header with 2-4 USB
ports (2 front USB ports via an optional
cable)
-PS/2 mouse & keyboard ports

Thunder i7525 (S2676)
2
http://www.tyan.com
*Not validated at time of print. (16GB
validated at time of release)
IntegratedAudio
-Intel ICH5R AC’97 compliant audio link
-Analog Device AD1981B CODEC
-Line-in,Line-out, Mic-in rear vertical jacks
and a front panel audio header
-One 4-pin CD-ROM audio input header
-One 4-pin Auxiliary header
Integrated MassStorage Port
-Two ICH5-S integrated SATA ports up to
1.5 Gbit/s with SATA RAID 0,1 (Microsoft
OS support only)
-Two bus-master UDMA ATA100/66/33
Parallel IDE channels support up to 4
ATA/ATAPI complaint devices
Form Factor
-SSI EEB 3.5 footprint (12”x13”,
305x330mm)
-EPS12V V3.51 power connectors
-Rear I/O
§Stacked PS/2 mouse and keyboard
connectors
§One parallel connector
§One GbE RJ45 connector
§One stack of four USB ports
§Stacked audio connector for MIC,
Line_out and Line_in.
Regulatory
-FCC Class B (Declaration of Conformity)
-European Community CE (Declaration of
Conformity)
Note: TYAN reserves the right to add support or discontinue support for any OS with or without
notice.
Software Specifications
OS (Operating System) Support
Win2k Pro Advanced Server
WinXP Pro
RedHat (x32) 9.0
SuSE (x32) 9.0, 9.1
SuSE (x64) 9.0
Other distributions of Linux pending validation
TYAN reserves the right to add support or discontinue support for any OS with or without
notice.

Thunder i7525 (S2676)
http://www.tyan.com
3
1.3 –Board Diagram
The above picture is purely representative. Due to engineering updates and new board
revisions, certain components may change and or be repositioned. The picture above may
or may not look exactly like the board you received.
The following page includes details on the vital components of this motherboard.

Thunder i7525 (S2676)
http://www.tyan.com
4
Chapter 2: Choose Proper Parts For Your System
Before you installa system with this motherboard, make sure your major system parts meet the
following basic guidelines and requirements:
2.1 –Central Processor Unit (CPU) Considerations
§Process Type and Package
Thunder i7525 (S2676) board supports Intel Xeonprocessors in 604-pin Pin Grid
Array package.
§Front Side Bus (FSB)
The processor host bus, or called Front Side Bus (FSB), always operates at 800 MHz.
Choose Intel Xeon800 MHz FSB processors for Thunder i7525 (S2676) board.
The system will not operate with 400MHz FSB or 533MHz FSB Intel XeonCPUs.
§Single/Dual Processor System
The S2676 will only support a dual CPU configuration where BOTH CPUs have the
same FSB, Core Frequency and internal cache sizes. Using CPUs that do not follow
these guidelines can/would result in damage to the CPUs or the motherboard.
Single Processor System:
When installing only a single CPU, that CPU must be installed on CPU1 socket to
operatecorrectly.
Dual Processor System:
Thunder i7525 (S2676) board supports dual processor configurations only in which both
processors operate with the same FSB frequency, core frequency, and have the same
internal cache sizes. Mixing processors operating at different FSB frequency, core
frequency, or cache sizes may cause system non-operation or damages on processors
and/or the motherboard.
2.2 –Memory Considerations
§MemoryType
The S2676 motherboard supports up to eight 240-pin, 1.8 volt DDR2-400 Reg/ECC
modules. The 8 slots support 256MB, 512MB, 1GB, 2GB and 4*GB memory sticks up
to 32*GB the maximum in total. (*Not validated at the time of release)
DDR-I or Unbuffered DDR memory modules are not supported by Thunder i7525
(S2676) design.
Visit Tyan’s web site for the memory recommendation list.
§Memory Installation
The Thunder i7525 is based on Intel’s e7525 Tumwater chipset which supports a 144-
bit wide dual memory channel in an interleaved scheme. The motherboard requires a
minimum of 2 memory modules installed in order to boot/POST. You must install these
2 memory modules starting in DIMM slots 1 and 2. Do not mix and match different sizes,
brands or speeds for the best performance and stability possible.

Thunder i7525 (S2676)
http://www.tyan.com
5
2.3 –Chassis/Enclosure Considerations
§Motherboardsize
Thunder i7525 (S2676) board is in the board size of12” (W) x13” (L).

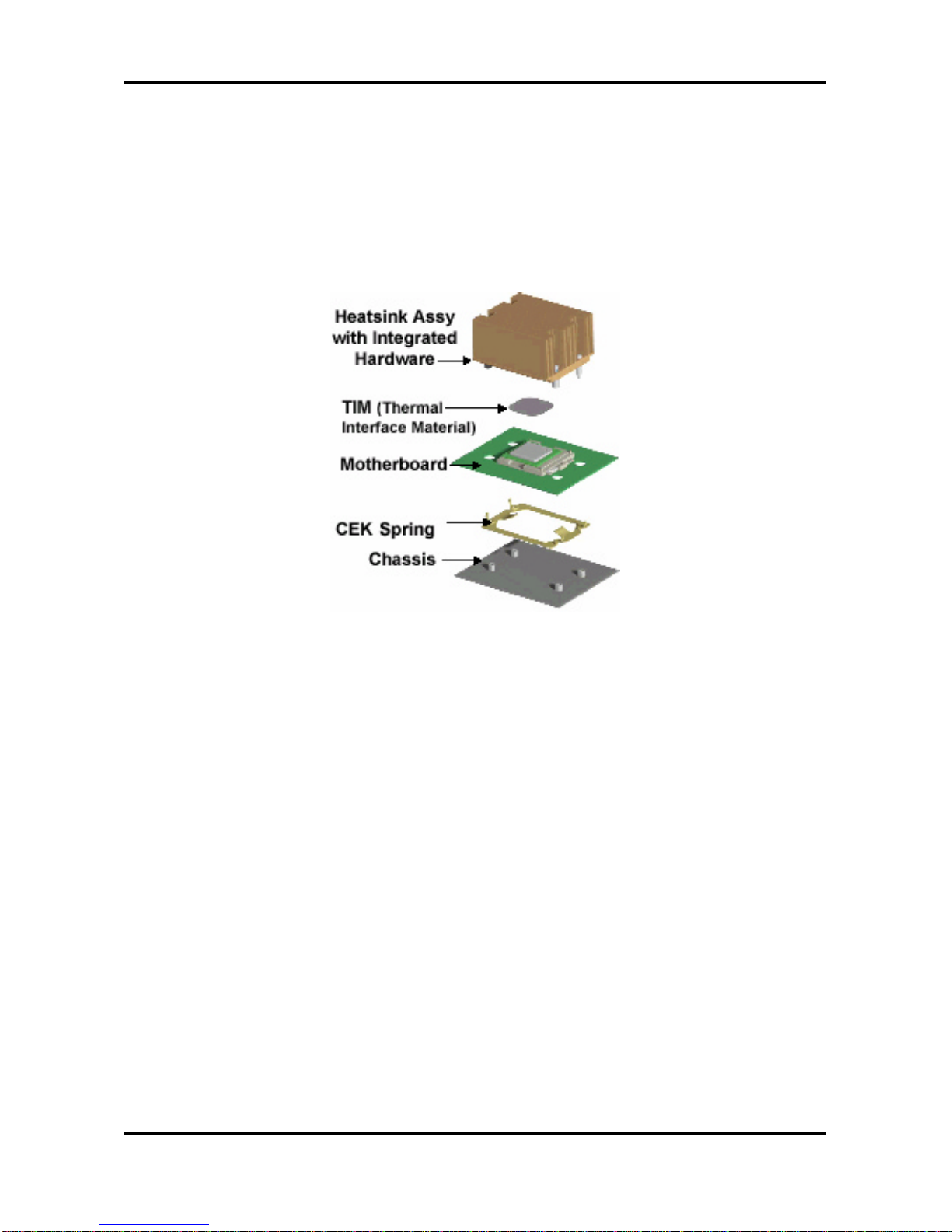

§Motherboard and CPU Heat-sink Mounting Holes
There are six motherboard-mounting holes and eight CPU heat-sink mounting holes on
Thunder i7525 (S2676) board design. The motherboard and CPU mounting hole
locations follow SSI EEB v3.51 (AServer System Infrastructure specification for Entry
Pedestal Servers and Workstations) specifications. Ensure that the SSI-EEB chassis
you purchase is designed to accommodate the new Nacona heat sink mounting
process.
NOTE: There are many SSI-EEB chassis, but not all will accommodate the Nacona
design for the direct heat sink attachment to thechassis.Check with your vendor to
make sure thechassis supports the design.
Thunder i7525 (S2676) supports Intel’s CEK (Common Enabling Kit) for securing Intel’s
Xeon800 MHz FSB processors in the chassis. Two CEK springs for the dual
processors are pre-assembled with the motherboard or enclosed in the motherboard
accessory package. The CPU heat-sinks must be mounted down to the chassis base
panwithstand-offs. Any additional chassis standoffs, besides the 6 motherboard-
mounting holes and 8 CPU heat-sink mounting holes, should be removed to preventing
from short-circuit or motherboard damage.
§Others
As a system integrator, the air-flow/thermal, EMI/EMC, shock/vibration, and system
packing should be also considered for choosing a proper enclosure.
2.4 –Power Supply Considerations
§Power connectors
Thunder i7525 (S2676) board supports EPS/12V power supply unit (PSU) with three
power connectors listed below.
EPS/12V Power Connectors
+
24-pin system power connector 8-pin CPU power connector
(split CPU power planes)
§Split processor power planes
Thunder i7525 (S2676) board supports dual Intel’s 800 MHz FSB Xeonprocessors,
which could reach up to 140 Watts per processor. (Check Intel’s web for the processor
specifications.) By following SSI EEB v3.51 specifications, the Thunder i7525 (S2676)
is designed with two separate voltage regulator circuits to provide the power for both
onboard processors in separate power rails. Using a power supply with a combined
CPU power plane from the CPU power connector is not allowed and may causethe
system to fail to power up or damage to the power supply.

Thunder i7525 (S2676)
http://www.tyan.com
6
§Powerrequirements
Check your power supply specifications to ensure sufficient power currents for each
power rail based on your system configuration.
The major system components/parts power sources are listed below as reference:
Components/Parts Main Power Source Power Connectors
CPU1 +12V_CPU1 8-pin CPU power connector
CPU2 +12V_CPU2 8-pin CPU power connector
Memory (Normal) +12V 24-pin and 6-pin power connectors
Memory
(Suspend to RAM) +5Vstandby 24-pin power connector
System logic +3.3V 24-pin and 6-pin power connectors
x16 PCI-Express
Graphic card +12V and +3.3V 24-pin and 6-pin power connectors
x8 PCI-Express +12V and +3.3V 24-pin and 6-pin power connectors
32-bit PCI +12V, +5V and +3.3V 24-pin and 6-pin power connectors
Cooling fans +12V 24-pin and 6-pin power connectors
IDE/SATA hard drives +12V and +5V From PSU
CDROM/DVD drives +12V and +5V From PSU

Thunder i7525 (S2676)
http://www.tyan.com
7
Chapter 3: Board Installation
How to install our products right….the first time!
The first thing you should do read this user’s manual. It contains important information that will
make configuration and setup much easier. Here are some precautions you should take when
installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the antistatic bag.
Unplug the power from your computer power supply and then touch a safely grounded
object to release static charge (i.e. power supply case). For the safest conditions,
TYANrecommends wearing a static safety wrist strap.
(2) Inspect the mounting holespattern of the Thunder i7525 (S2676) to match your chassis
standoff locations and remove the additional standoffs.
(3) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the
board in any way.
(4) Avoid touching the motherboard components, IC chips, connectors, memory modules
and leads.
(5) Place the motherboard on a grounded antistatic surface or on the antistatic bag that the
board was shipped in.
(6) Inspect the board for damage.
(7) Check the jumper settings and connector locations as described in next sections.
In last sections of this chapter, we will cover the details on how to install your motherboard into
your chassis, as well as installing the processor, memory, disk drives andcables.
NOTE: Do not apply power to the board if it has been damaged.

Thunder i7525 (S2676)
http://www.tyan.com
8
3.1 –Key Component View
Fig. 3-1 Thunder i7525 (S2676) Key Component View
This jumper diagram is representative of the latest board revision available at the time of
publishing. The board you receive may or may not look exactly like the above diagram.
The board parts are not to scale.

Thunder i7525 (S2676)
http://www.tyan.com
9
3.2 –Jumper Settings& Definitions
Jumper /
Connector Function
P1 24-pin system power connector
P3 8-pin CPU power connector
P7 CD-ROMaudio input connector
P10 Keyboard/mouseconnector
P11 Auxiliary audio input connector
P20 Primary IDE connector
P21 Secondary IDE connector
P23 Front audio header
P29 SCSI LEDconnector
P24 Front USB header
J3 TPM disable jumper
J9 External LAN connector
J10 Rear USB connector
J11 Rear IEEE1394 connector
J12 Front IEEE1394 connector
J32 Floppy driveconnector
J86 Front panel connector
J102 PS/2 wake up jumper
J104 BIOS write protect jumper
J105 Chassis intrusion header
J106 LCD connector
J107 Remote thermal sensor header (Reserved)
J108 Clear CMOS jumper
J109 PSU PC98 connector
J110 FAN 1connector
J111 FAN 2 connector
J112 FAN 4 connector
J113 FAN 3 connector
J114 SPDIF connector
J137 LAN disable jumper
**All fans may be monitored from BIOS.
**J58 & Card Reader are reserved for OEM design only.
Jumper Example
OPEN -Jumper OFF Without jumper cover
CLOSED -Jumper ON With jumper cover
To indicate the location of pin-1

Thunder i7525 (S2676)
http://www.tyan.com
10
3.2.1 -Clear CMOS Switch
J108
J108
You can reset the CMOS settings by Closing
header J108, if you have forgotten your
system/setup password or need to clear
system BIOS settings.
-Power off system and disconnect
both power connectors from the
motherboard.
-Close J108 for sev
eral seconds to
Clear CMOS.
-Remove Jumper
Reconnect power & power on system
3.2.2 -Fan Connector
Pin1: GND
Pin2: +12V
Pin3: Tachometer
This 3-pin fan connector supports tachometer monitoring.
There are three 3-pin fan connectors on Thunder i7525 (S2676) board. Use these connectors
to connect chassis and processor cooling fans to your motherboard. Cooling fans can keep
the system stable and reliable for its product’s life.

Thunder i7525 (S2676)
http://www.tyan.com
11
3.2.3 -Front Panel Header
Normally, a chassis has some control or signal wires can be connected onto a motherboard for
hard drive LED, Power LED, power button, and reset button,
The front panel header (marked as “j86”) has been implemented on Thunder i7525 (S2676) board
for such purposes.
Front Panel Header
(J86)
Function PIN # PIN # Function
HDD LED+ 12PWR LED
HDD LED# 34PWR LED
RST SW 56PWR SW
RST SW 78PWR SW
+5V 910 FP_SLP#
IRRX 11 12 GND3
GND4 13 14 Key
IRTX 15 16 IR_PWR
RSVD1 17 18 RSVD2
J86

Thunder i7525 (S2676)
http://www.tyan.com
12
3.2.4 -Front USB Connector (USB2)
Front USB Header (P24)
Functio
nPin #Pin #Functio n
Power 12Power
USB6-34USB7-
USB6+ 56USB7+
GND 78GND
Key 910 Reserve
d
3.2.5–External HDD LED Input Header (P29)
P29
Pin# Function
1NC
2LED2-
3LED2-
4NC
P24
P29

Thunder i7525 (S2676)
http://www.tyan.com
13
3.2.6– Front Audio Header (P23)
10 2
9 1
(P23)
*Jumper 5, 6 and 9, 10 must be on
the header to provide audio. If
jumpers are removed no audio will
be heard.
Function Pin# Pin# Function
Micro
input 12Analog GND
Micro
bias 34Analog VCC
Right line
output 56Right line return
NC 78Key
Left line
output 910 Left line return
3.2.7–Chassis Intrusion Header (J105)
1
3
J105
Pin# Function
1Chassis_CBL_L
2Intruder_L
3HDR3
P2
3
J105

Thunder i7525 (S2676)
http://www.tyan.com
14
3.2.8–PSU PC98 Connector (J109)
8
1
(J109)
Pin# Function
1GND
2Fan speed control
3GND
4Fan speed reader
5SMB clock
6SMB DATA
73.3 volt
8Ground
P24

Thunder i7525 (S2676)
http://www.tyan.com
15

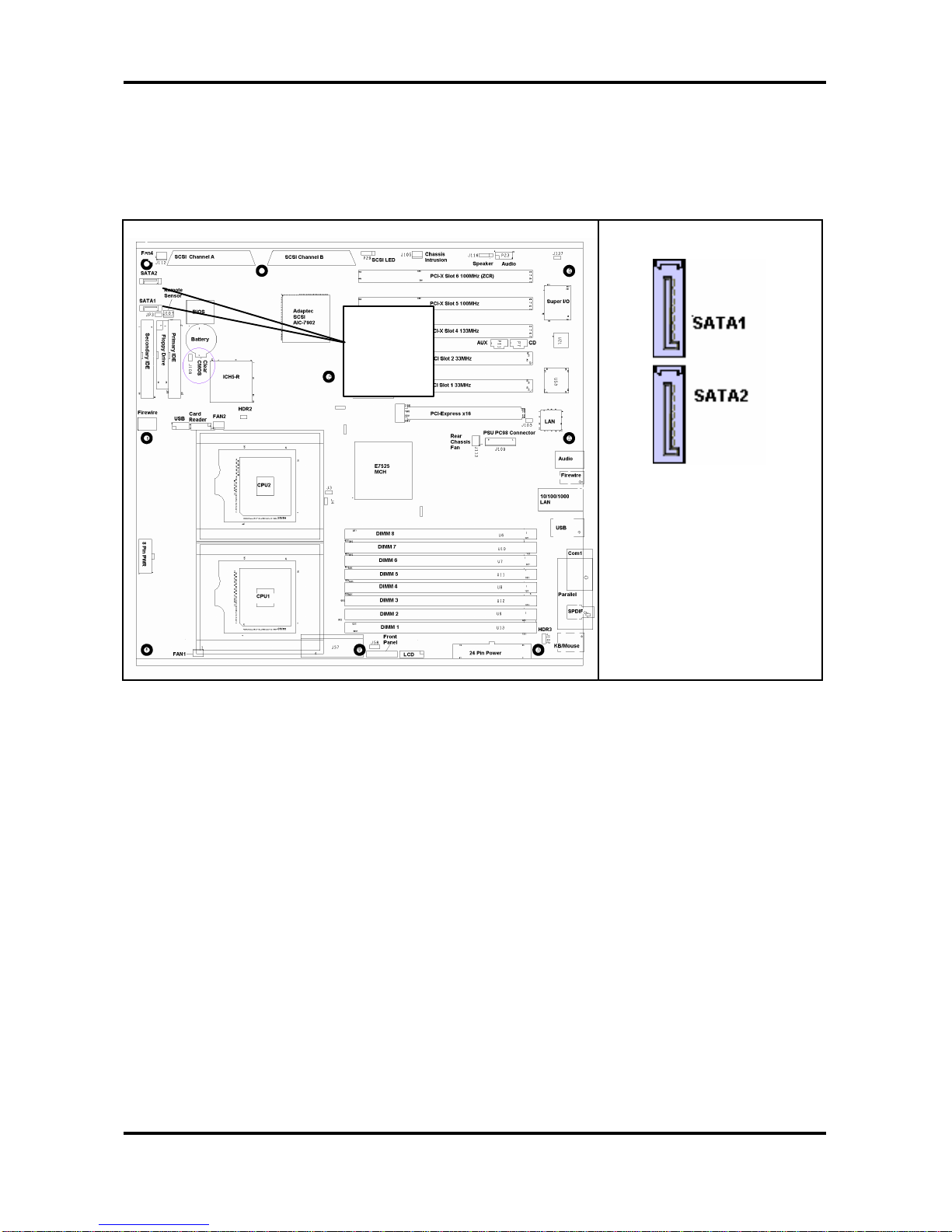

3.2.9-Serial ATA Connectors (SATA0& SATA1)SATA0/SATA1(from Intel’s
FW82801ER/ICH5R South Bridge chip):
User can connect up to two serial ATA hard disks to run IDE mode or configure both drives to a
RAID under Windows. The RAID level 0 or level 1function is supported for Microsoft’s Windows
XP and Windows 2000 operating systems.
Serial ATA connectors
For information regarding the setup of SATA/RAID, you may search the contentsof the
driver CD that shipped with your motherboard or visit our website at:
HTTP://WWW.TYAN.COM/
SATA1
&
SATA2

Thunder i7525 (S2676)
http://www.tyan.com
16
3.3 –Mounting the Motherboard
Before installing your motherboard, make sure your chassis has the necessary motherboard
support studs installed. These studs are usually metal and are in gold or silver color. Usually, the
chassis manufacturer will pre-install the support studs. Remove the unused or additional studs,
which may scratch the motherboard or cause short-circuit with the components on the bottom
side. If you’re unsure of stud placement, simply lay the motherboard inside the chassis and align
the screw holes of the motherboard to the studs inside the case. If there are any studs missing,
you will know right away since the motherboard will not be able to be securely installed. Some
chassis’ include plastic studs instead of metal. Although the plastic studs are usable, TYAN
recommends using metal studs with screws that will fasten the motherboard more securely in
place.
3.4 –Installing the Processor and Heatsink
Your Thunder i7525 (S2676) supports the latest processor technologies from Intel. Check the
following page on TYAN’s website for latest processor support:
http://www.tyan.com
The following diagrams will detail how to install your processor:
The diagram is provided as a visual guide to help you install socket processors and may not be an
exact representation of the processors you have.
1. Lift the lever on the socket until it is approximately 90o or as far back as possible to the
socket.
2. Align the processor with the socket. There are keyed pins underneath the processor to
ensure that the processor’s installed correctly.
3. Seat the processor firmly into the socket by gently pressing down until the processor
sits flush with the socket.
4. Place the socket lever back down until it locks into place.
5. Your processor is installed.
Take care when installing the processor as it has very fragile connector pins below the
processorthat can bend and breakif inserted improperly.
Heatsink Installation
After you are done installing the processor, you should proceed to installing the heatsink.
Heatsink will ensure that the processor not overheat and continue to operate at maximum

Thunder i7525 (S2676)
http://www.tyan.com
17
performance for as long as you own them. Anoverheated processor is dangerous to the health of
the motherboard.
DCA (Direct Chassis Attach) is required to install the Intel Xeon processor on the S2676
motherboard. The processor heat sinks need to be Intel’s CEK (Common Enabling Kit) compliant
to attach properly. Each processor heat sink needs to be mounted directly to the chassis via the 4
mounting studs. If your chassis does not have the holes to attach these heat sinks directly, then it
is not the correct version of the SSI-EEB v3.5chassis that supports Intel’s latest design.
-MemoryType:
The S2676 motherboard supports Reg/ECC DDR2-400 memory modules and requires a
minimum of 2 DIMMs to boot/POST the system. Unbuffered or DDR memory isNOT
supported with this motherboard.
