TYAN TOLEDO I3010W User manual

1
http://www.tyan.com
Toledo i3010W /// S5197
Version 1.00
Copyright
Copyright © TYAN Computer Corporation, 2006. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from TYAN
Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN, Toledo i3010W are trademarks of TYAN Computer Corporation.
Intel, Prescott, and combinations thereof are trademarks of Intel Corporation.
Phoenix, Phoenix-Award BIOS are trademarks of Phoenix Technologies.
Microsoft, Windows are trademarks of Microsoft Corporation.
SuSE, is a trademark of Novell.
IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.
Notice
Information contained in this document is furnished by TYAN Computer Corporation
and has been reviewed for accuracy and reliability prior to printing. TYAN assumes
no liability whatsoever, and disclaims any express or implied warranty, relating to
sale and/or use of TYAN products including liability or warranties relating to fitness
for a particular purpose or merchantability. TYAN retains the right to make changes
to product descriptions and/or specifications at any time, without notice. In no event
will TYAN be held liable for any direct or indirect, incidental or consequential
damage, loss of use, loss of data or other malady resulting from errors or
inaccuracies of information contained in this document.

2
http://www.tyan.com
Table of Contents
Check the box contents! 3
Chapter 1: Introduction
1.1 Congratulations 5
1.2 Hardware Specifications 5
1.3 Software Specifications 7
Chapter 2: Board Installation
2.1 Board Image 9
2.2 Block Diagram 10
2.3 Board Parts, Jumpers and Connectors 11
2.4 Jumper Settings 12
2.5 Tips on Installing Motherboard in Chassis 21
2.6 Installing the Memory 23
2.7 Installing the Processor & Cooling Fan 25
2.8 Attaching Drive Cables 28
2.9 Installing Add-in Cards 30
2.10 Connecting External Devices 31
2.11 Installing the Power Supply 32
2.12 Finishing Up 33
Chapter 3: BIOS Setup
3.1 About the BIOS 34
3.2 BIOS Main Setup 36
3.3 Main Menu 37
3.4 Advanced Menu 43
3.5 Security Menu 55
3.6 Power Menu 56
3.7 Boot Menu 57
3.8 Exit Menu 58
Chapter 4: Diagnostics
4.1 Beep Codes 59
4.2 Flash Utility 59
4.3 Phoenix BIOS Post Code 60
Appendix I: SMDC Information 64
Appendix II: How to Make a Driver Diskette 67
Glossary 69
Technical Support 77

3
http://www.tyan.com

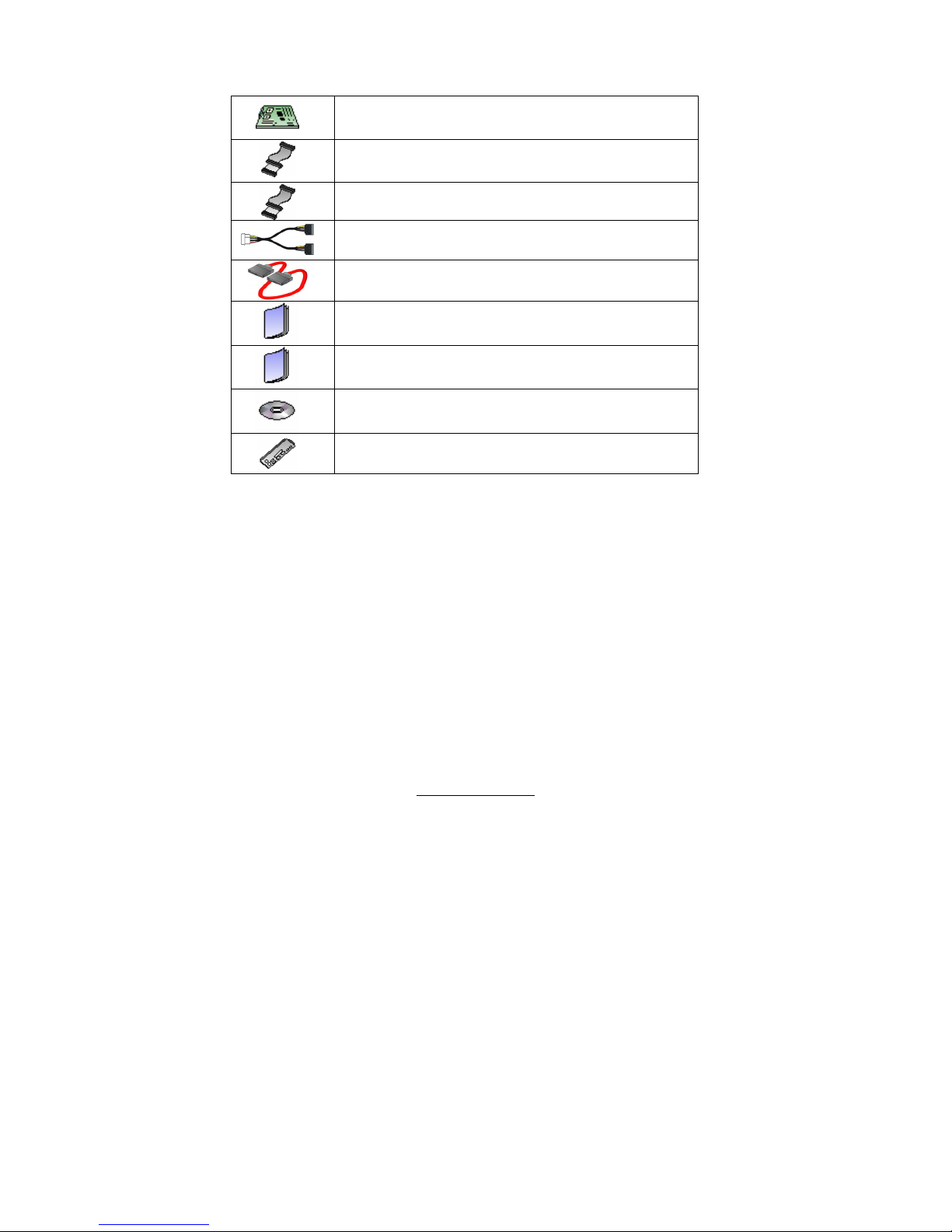

Check the box contents!
1x S5197 motherboard
1x 34-Pin floppy drive cable
1 x Ultra-DMA-133/100/66/33 IDE cable
2 x Serial ATA power cable
4 x Serial ATA cable
1 x S5197 user’s manual
1 x S5197 Quick Reference guide
1 x TYAN driver CD
1 x I/O shield
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.
NOTE: The box contents do not include any driver diskette. Please use the
included driver CD to make a driver diskette. Refer to Appendix II for the
information on how to make a driver diskette.

4
http://www.tyan.com
NOTE

5
http://www.tyan.com
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. The Toledo
i3010W (S5197) is a flexible Intel®platform for multiple applications, based on Intel®
Mukilteo-2P MCH and ICH7-R chipsets.
Designed to support the family of Intel®Socket 775 processors and 8GB DDR2
533/667 memory, the S5197 has integrated Dual Gigabit Ethernet LAN, built-in
32MB ATI graphics controller and four SATA-II ports. This motherboard represents
the best choice for a server platform product.
Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find
information on all of TYAN’s products with FAQs, online manuals and BIOS
upgrades.
1.2 - Hardware Specifications
Processors
zIntel®Pentium 4 1066/800/533
MHz FSB
zSupports Intel® Celeron®D ,
Pentium® D, Pentium® 4,
Pentium® Extreme Edition,
Intel® Core™2 Duo processor
zSingle Socket-T LGA775 socket
Expansion Slots
zTwo PCI-X 133/100/66 slots in
one PCI-X bus
zOne PCI-Express x16 slot with
PCI-Express x8 signals
zPCI-Express x4 slot with PCI-
Express x4 signals
zOne 32bit/33MHz 3.3V PCI 2.2
slot
zTotal five usable slots
Chipset
zNB: 3010 Mukilteo-2P MCH,
IOB: 6702 PXH-V; SB: ICH7R
zSMSC SCH5027 Super I/O chip
w/PECI support
System Management
zSupports Tyan M3291 SMDC
via 25x2 pin-header
zIntegrated H/W Monitoring
functions in Super I/O chip with
PECI support
zOne 4-pin CPU fan header and
four 4-pin system fan headers
z2-pin chassis intrusion header
zTemperature and voltage
monitoring
Intelligent Platform Management
Interface Header
zTyan M3291 Server
Management Daughter card
(Optional) supports features
listed below via IPMI header
zBased Renesas H8 2167
Baseboard Management
Controller (BMC)
zTailored for IPMI 2.0
specifications
zWindows and Linux based
Management Solution
zSupports RMCP and SNMP
protocols

6
http://www.tyan.com
Memory
zDual or single DDR-II memory
channels
zFour DDR-II 533/667 DIMM
sockets
zSupports up to 8 GB ECC or
non-ECC unbuffered memory
Integrated I/O
zOne floppy connector for up to
two drives
zOne IDE connector
zOne COM port (via cable)
zOne ECP/EPP/SPP parallel port
header (via an optional cable)
zFour USB v2.0 in USB Type A
(vertical) connectors
zFour SATAII ports
zOne 2x25 connector for optional
TYAN SMDC card
Integrated PCI IDE
zSingle ATA100/66 IDE bus
master channel supports up to 2
ATA/ATAPI IDE compliant drives
Integrated SATA Controller
(ICH7-R)*
zSupports 4 SATAII ports running
at 3.0Gb/s
zSupport Raid 0/1/5/10
(*Note: the current version of the
ICH7R SATA RAID Utility can only
support Windows XP/2000/2003)
Onboard Graphics
zATI ES1000 (a.k.a. RN50) VGA
graphics controller
z32MB frame buffer
zI2C serial multi-master
controllers and UARTs
zRemote power on/off and reset
support (IPMI-over-LAN) on
Intel’s 82573
BIOS
zPhoenix BIOS 8Mb flash ROM
zSupports ACPI 1.0, PnP
zAuto detection of memory size
zAuto configuration of IDE hard
disk types
zUser settings of hardware
monitoring
zMultiple boot options including
PXE or emulated FD/HD
zPower Management: S1, S3, S4
and S5
Back Panel I/O Ports
zOne stacked Mouse/ Keyboard
connector
zOne stacked four-port USB
connector
zOne 9-pin COM Port
zOne 15-pin VGA Port
zTwo side-by-side GbE RJ45
Form Factor
zStandard ATX (12" x 9.6”)
zEPS/12V 24-pin plus 8-pin
power connectors
Power
zOnboard 5-phase CPU VRM
zOne universal 24-pin EPS/12V
system power connector plus
one 8-pin power connector for
processor power

7
http://www.tyan.com
Integrated LAN Controller(s)
zTwo 10/100/1000 Gigabit
Ethernet NIC
zTwo Intel’s 82573 GbE NICs
(1*82573E & 1*82573V)
zRunning at independent x1 PCI-
Express bus
Regulatory
zFCC Class B (Declaration of
Conformity)
zEuropean Community CE
(Declaration of Conformity)
1.3 - Software Specifications
OS (Operating System) Support
Windows Server 2003 (R2 or later)
Red Hat Linux EL4
Red Hat Linux EL5
SuSE Enterprise Server 10
TYAN reserves the right to add support or discontinue support for any OS
with or without notice.

8
http://www.tyan.com
Chapter 2: Board Installation
You are now ready to install your motherboard. The mounting hole pattern of the
Toledo i3010W S5197 matches the ATX specification. Before continuing with
installation, confirm that your chassis supports an ATX motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED

9
http://www.tyan.com

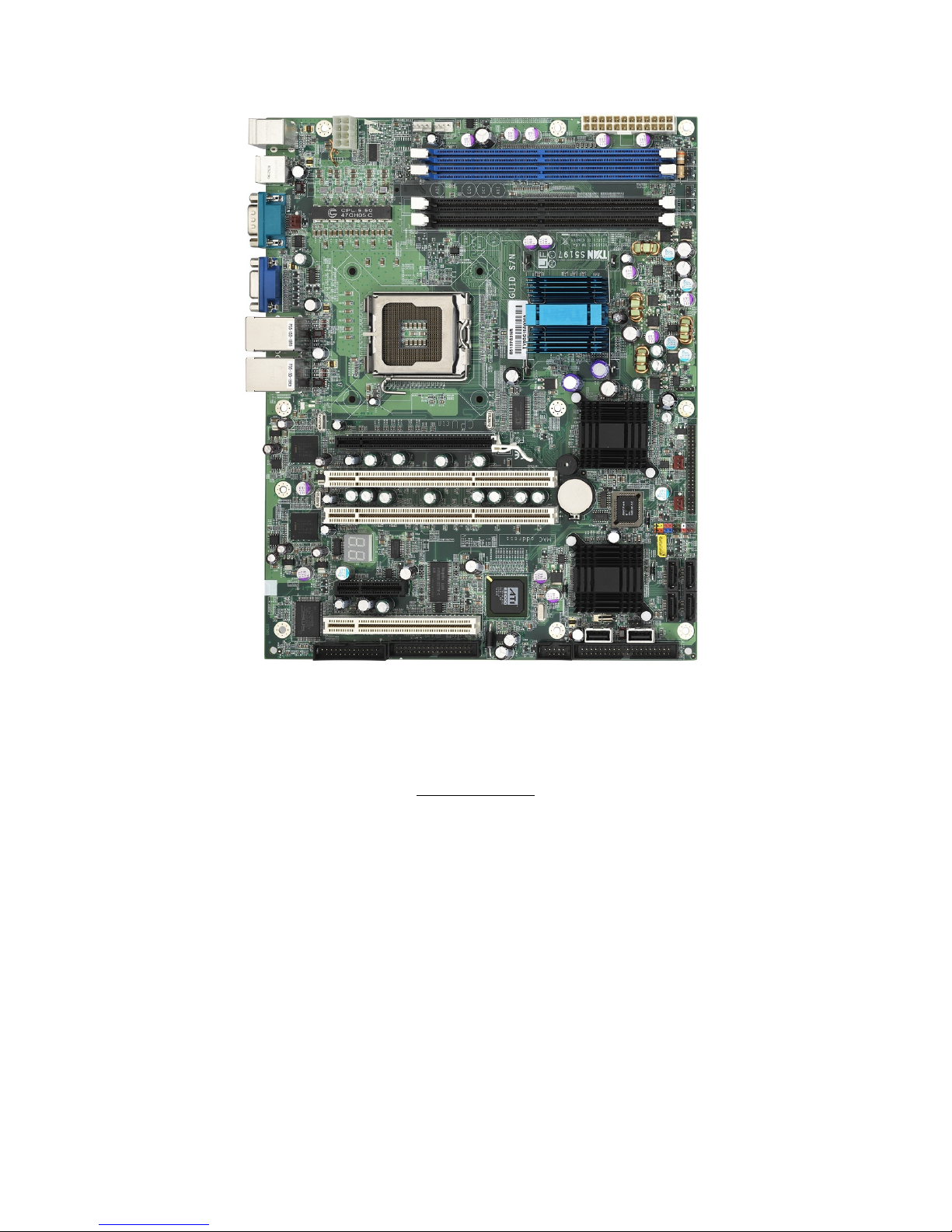

2.1- Board Image
This picture is representative of the latest board revision available at the
time of publishing. The board you receive may or may not look exactly
like the picture above.

10
http://www.tyan.com
2.2 - Block Diagram
Toledo i3010W S5197

11
http://www.tyan.com

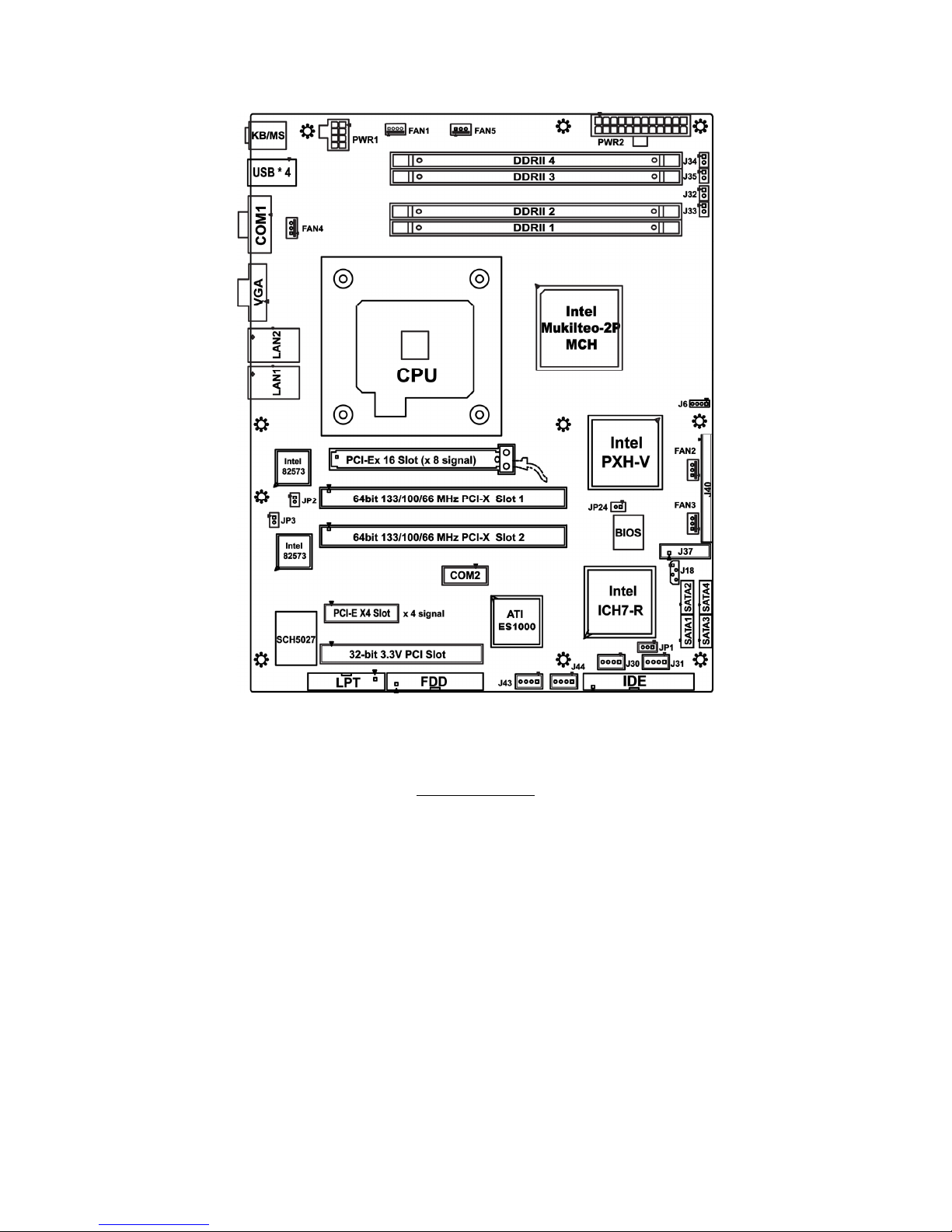

2.3 - Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the diagram above.

12
http://www.tyan.com
2.4 – Jumper Settings
Jumper Function Settings
J3 COM1 Connector See Section 2.4.1
J5 COM2 Connector See Section 2.4.2
J6 External Speaker Header and Enable/Disable
Buzzer See Section 2.4.3
J8 LPT Connector See Section 2.4.4
J30，J31
J43，J44 USB Header (4-Pin x 1) See Section 2.4.5
J37 Front Panel Header See Section 2.4.6
J32~J35 Front Panel LAN1/LAN2 Link and Active LED
Connector: J32 ~ J35 See Section 2.4.7

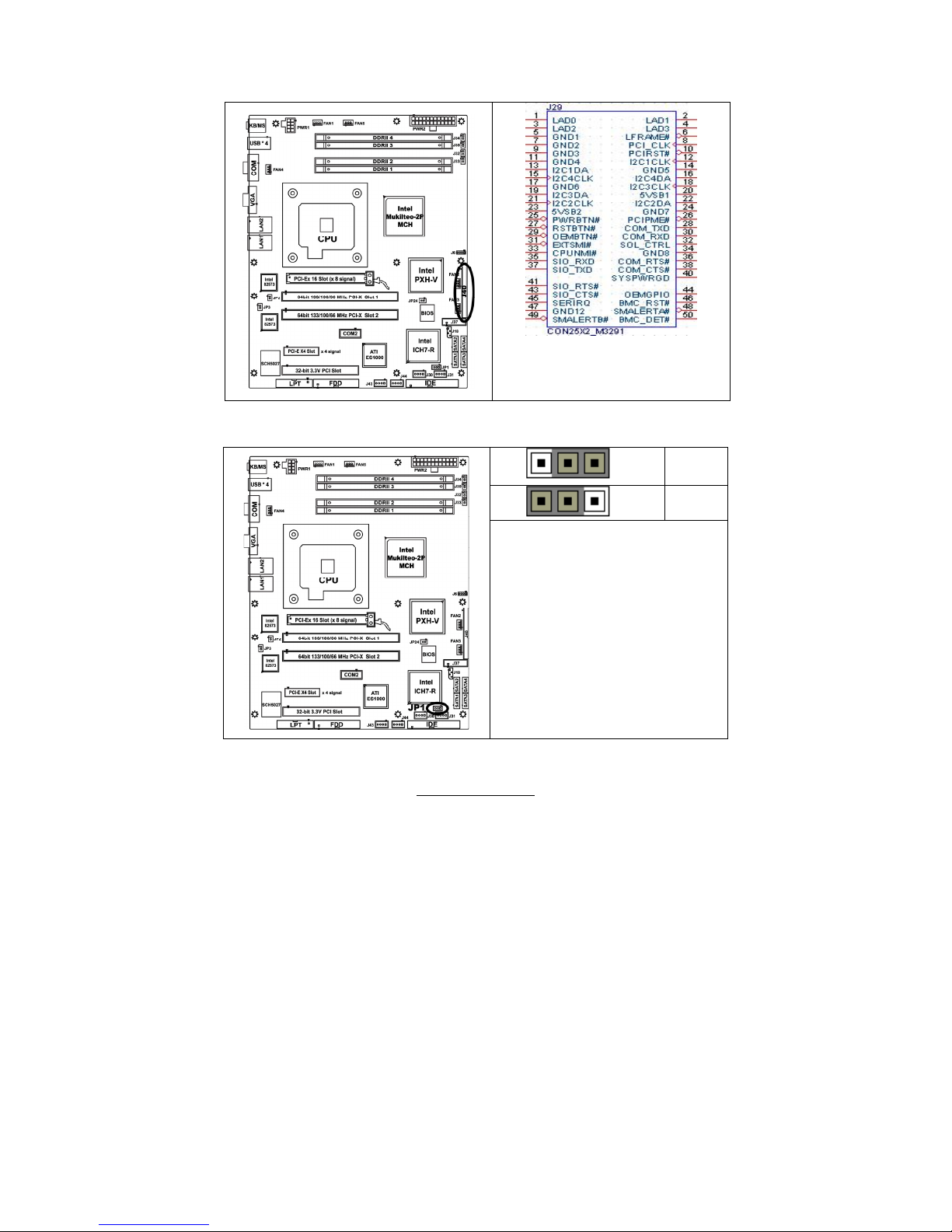

J40 ASF 2.0/SMDC Select See Section 2.4.8
JP1 Clear CMOS Jumper See Section 2.4.9
JP2，JP3 LAN1&LAN2 Enable/Disable Jumper See Section 2.4.10
JP24 PCI-X Frequency Configure See Section 2.4.11

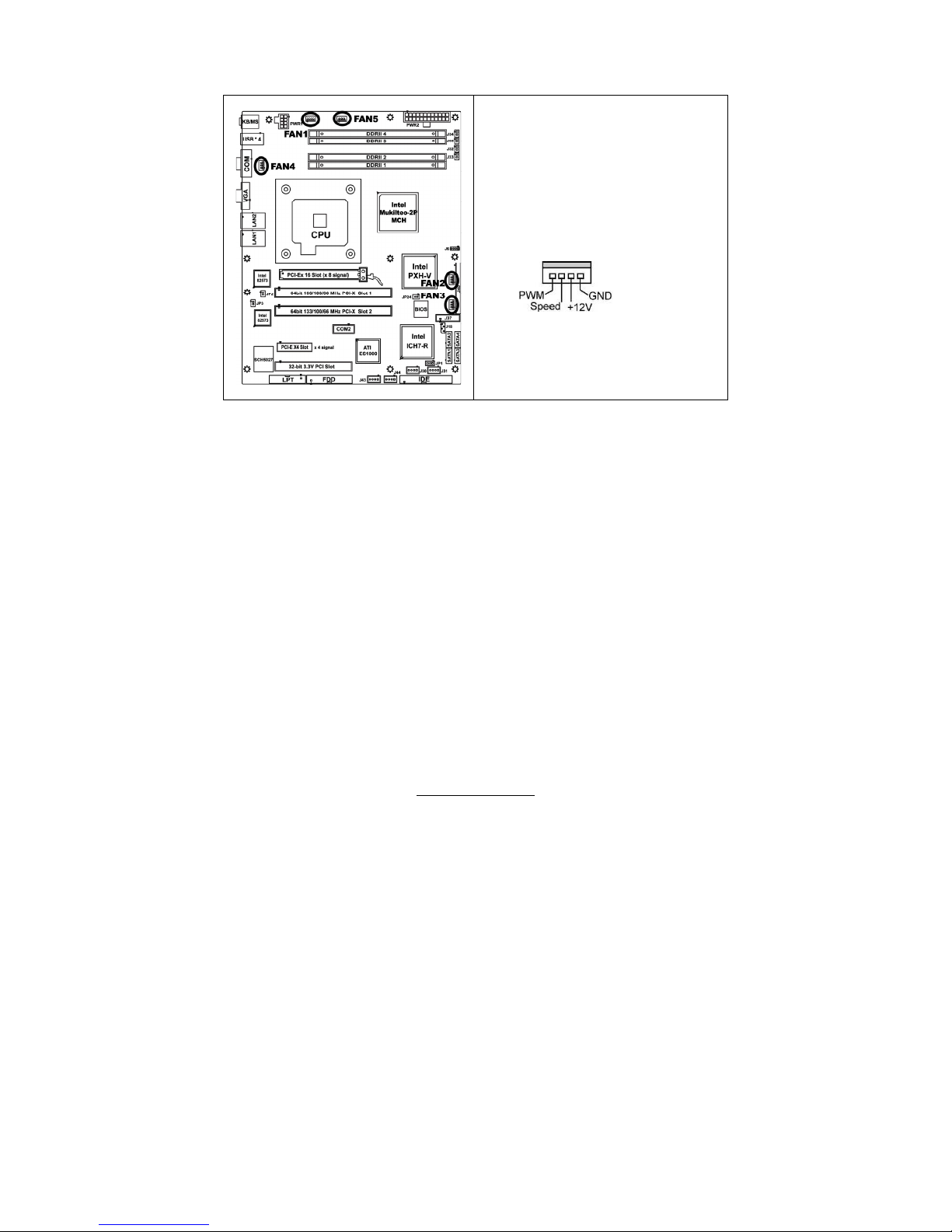

FAN1~5 FAN Headers See Section 2.4.12
Jumper Legend
OPEN - Jumper OFF Without jumper cover
CLOSED - Jumper ON With jumper cover
To indicate the location of pin-1
To indicate the location of pin-1

13
http://www.tyan.com
2.4.1 – COM1 Connector (J3)
Signal
Description
Pin
#
Pin
#
Signal
Description
DCD 1 2 DSR
RXD 3 4 RTS
TXD 5 6 CTS
DTR 7 8 RI
GND 9 10 KEY
2.4.2 – COM2 Connector (J5)
Signal
Description
Pin
#
Pin
#
Signal
Description
DCD2 1 2 DSR2
RXD2 3 4 RTS2
TXD2 5 6 CTS2
DTR2 7 8 RI2
GND 9 10 KEY

14
http://www.tyan.com
2.4.3 –External Speaker Header and Enable/Disable Buzzer (J6)
Enable onboard buzzer
Disable onboard buzzer
Pin 1 and Pin 4 for an
external speaker header
Pin 1: +5Vdc power
Pin 4: SPK_DATA
2.4.4 – LPT Connector (J8)
Signal
Configuration
PIN
#
PIN
#
Signal
Configuration
STB# 1 2 AFD#
LPD0 3 4 ERR#
LPD1 5 6 INIT#
LPD2 7 8 SLIN#
LPD3 9 10 GND
LPD4 11 12 GND
LPD5 13 14 GND
LPD6 15 16 GND
LPD7 17 18 GND
ACK# 19 20 GND
BUSY 21 22 GND
PE 23 24 GND
SLCT 25 26 KEY

15
http://www.tyan.com

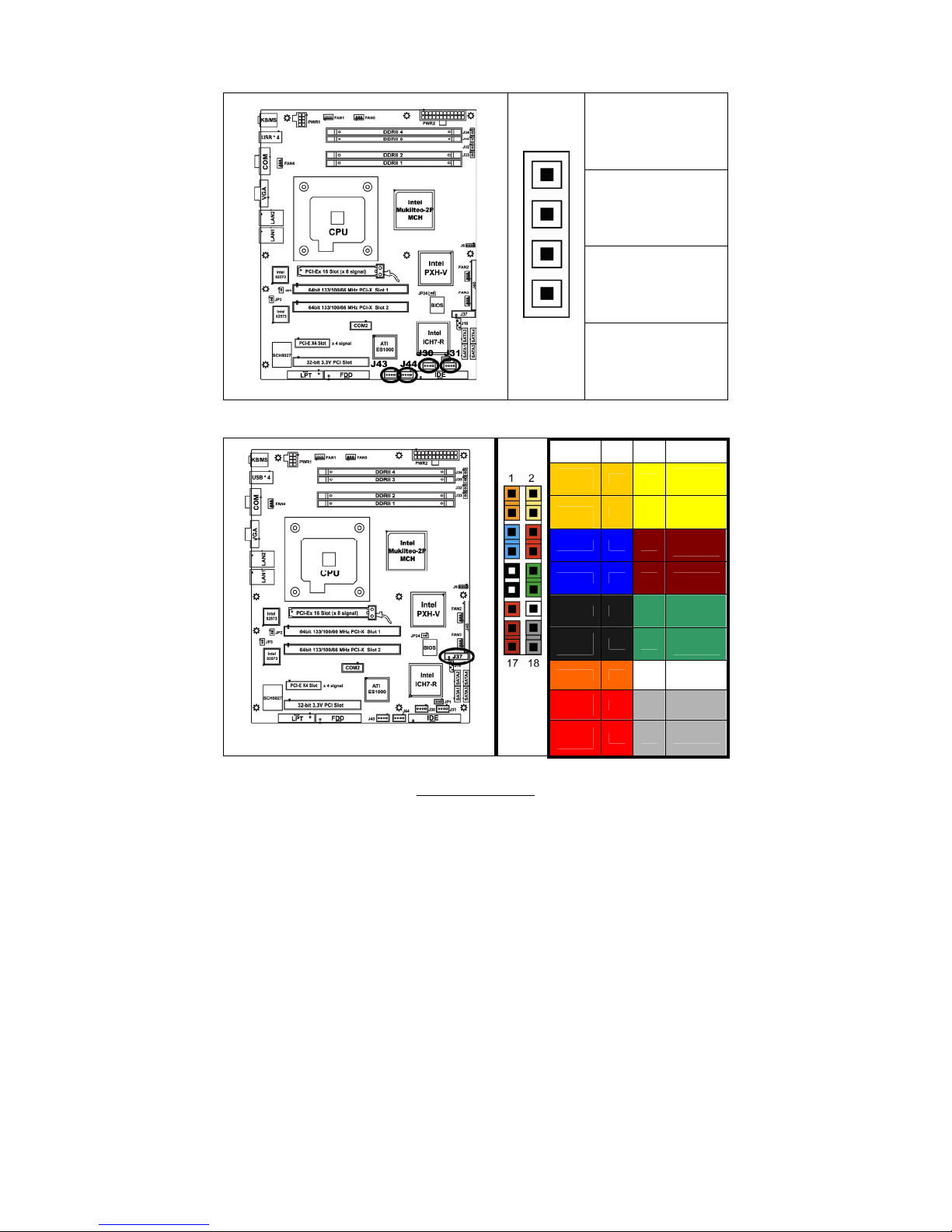

2.4.5 –Vertical USB Header (4-Pin x 1) (J30, J31, J43, J44)
Pin_4: GND
Pin_3 : DATA +
Pin_2 : DATA -
Pin_1
Pin_1 : +5VPWR
2.4.6 – Front Panel Header (J37)
Signal PIN
#
PIN
# Signal
HD_
LED+ 1 2 PW_ LED+
HD_
LED-
3 4 PW_ LED-
GND0 5 6 PWR_
S/W#
RESET 7 8 GND2
GND1 9 10 SLP_SW#/
WLED+
Ext.
Interrupt 11 12 GND3/ WLED-
+5VSB 13 14 NC
SMBUS
Data 15 16 GND4
The Front Panel Header is used to connect some control
or signal wires from motherboard to chassis, such as
HDD LED, power LED, power button, and reset button.
SMBUS
Clock 17 18 INTRU#

16
http://www.tyan.com
2.4.7 – Front Panel LAN1/LAN2 Link and Active LED Connector: J32 ~ J35
J35
1
J32
1
J35 is for connecting an
external LED to indicate LAN2
LINK and ACTIVITY. The
behavior of this LED is the
same as LAN2 RJ45 LED2:
Pin 1: LED+
Pin 2: LED-
J32 is for connecting an
external LED to indicate LAN1
LINK and ACTIVITY. The
behavior of this LED is the
same as LAN1 RJ45 LED2:
Pin 1: LED+
Pin 2: LED-
The external LED’s for J32 and J34
can be either bi-color or single-color
LED.
For a single-color LED to indicate
1000Mbps SPEED, connect Pin 1 to
LED+ and Pin 2 to LED-.
J34
1
J33
1
J34 is for connecting an
external LED to indicate LAN2
SPEED. The behavior of this
LED is the same as LAN2
RJ45 LED1:
Pin 1: 100 Mbps- (Low Active)
Pin 2: 1000 Mbps- (Low
Active)
J33 is for connecting an
external LED to indicate LAN1
SPEED. The behavior of this
LED is the same as LAN1
RJ45 LED1:
Pin 1: 100 Mbps- (Low Active)
Pin 2: 1000 Mbps- (Low
Active)

17
http://www.tyan.com
2.4.8 –SMDC CON25X2_M3291 (J40)
2.4.9– Clear CMOS Jumper (JP1)
Pin_3 Pin_1 Normal
Pin_3 Pin_1 Clear
You can reset the CMOS settings by using
this jumper if you have forgotten your
system/setup password or need to clear
system BIOS setting.
-Power off system and disconnect
both power connectors from the
motherboard
-Use jumper cap to close Pin_2 and
Pin_3 for several seconds to Clear
CMOS
-Put jumper cap back to Pin_1 and
Pin_2 (default setting)
Reconnect power & power on system
For connection with Tyan Server
Management Daughter Card (SMDC).
The SMDC connector is compatible with
only the Tyan M3291 (SMDC).

18
http://www.tyan.com
2.4.10 – LAN1 & LAN2 Enable / Disable Jumper (JP2, JP3)
OPEN - Enable
CLOSED– Disable
JP2: LAN1 Enable/Disable
JP3: LAN2 Enable/Disable
2.4.11 – PCI-X Frequency Configure (JP24)
OPEN - Jumper OFF
CLOSED - Jumper ON
JP24 is used to adjust PCI-X frequency.
Open(Default):133MHz/100MHz/66MHz;
Closed: 100MHz/66MHz

19
http://www.tyan.com
2.4.12 – FAN Headers
Use these headers to connect the 3-pin or 4-pin
cooling fans to your motherboard to keep the
system stable and reliable.
These connectors support the tachometer
monitoring and auto fan speed control.
FAN1: CPUFAN (4-pin)
FAN2,FAN3,FAN4,FAN5:System FAN (4-pin)

20
http://www.tyan.com
2.4.13 - OEM Reserved Connectors and Jumpers
The connectors and jumpers, which are not listed, are reserved for OEM use only.
