TYAN Tempest i5000PX S5380 User manual

1
Tempest i5000PX /// S5380
Version 1.1
Copyright
Copyright © TYAN Computer Corporation, 2006. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
TYAN Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN, Tempest i5000PX are trademarks of TYAN Computer Corporation.
Intel, Blackford, and combinations thereof are trademarks of Intel Corporation.
Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.
Notice
Information contained in this document is furnished by TYAN Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
TYAN assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN products including liability or
warranties relating to fitness for a particular purpose or merchantability. TYAN
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will TYAN be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

2
Table of Contents
Check the box contents! 3
Chapter 1: Introduction
1.1 Congratulations…………………………………………………………… 5
1.2 Hardware Specifications………………………………………………… 5
Chapter 2: Board Installation
2.1 Board Image……………………………………………………………… 8
2.2 Block Diagram……………………………………………………………. 9
2.3 Board Parts, Jumpers and Connectors………………………………... 10
2.4 Tips on Installing Motherboard in Chassis…………………………….. 20
2.5 Installing the Processor(s)………………………………....................... 21
2.6 Installing the Memory……………………………………………………. 24
2.7 Attaching Drive Cables………………………………………………….. 26
2.8 Installing Add-in Cards………………………………............................ 28
2.9 Connecting External Devices…………………………………………… 29
2.10 Installing the Power Supply……………………………………………... 30
2.11 Finishing up………………………………………………………………. 30
Chapter 3: BIOS Setup
3.1 About the BIOS…………………………………………………………… 31
3.2 BIOS Main Menu…………………………………………………………. 33
3.3 Advanced Menu………………………………………………………….. 41
3.4 Security Menu…………………………………………………………….. 54
3.5 Power Menu………………………………………………………………. 55
3.6 Boot Menu………………………………………………………………… 56
3.7 Exit Menu…………………………………………………………………. 57
Chapter 4: Diagnostics
4.1 Beep Codes………………………………………………………………. 59
4.2 Flash Utility……………………………………………………………….. 59
4.3 BIOS Post Code………………………………………………………….. 60
Appendix I: SMDC Information
Appendix II: How to Make a Driver Diskette
Glossary

3
Check the box contents!
1x S5380 motherboard
1x 34-Pin floppy drive cable
1 x Ultra-DMA-133/100/66/33 IDE cable
3 x Serial ATA power cable
6 x Serial ATA Cable
1 x COM Port Cable
1 x S5380 user’s manual
1 x S5380 Quick Reference guide
1 x TYAN driver CD
1 x I/O shield
2 x CPU Back Plane
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.

4

5
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. The Tempest
i5000PX (S5380) is a flexible Intel®platform for multiple applications, based on
Intel®“Blackford” MCH and ESB2 chipsets.
Designed to support Intel®Dempsey/Woodcrest processors and max 16GB
DDR2-533/667 FB-DIMM memory, and featured with integrated Dual Gigabit
Ethernet LAN, PCI-Express, PCI/PCI-X 32/64bit PCI bus plus six serial ATA
ports, the S5380 offers exceptional performance and versatile solution for your
server platform.
Remember to visit TYAN’s Website at http://www.TYAN.com. There you can
find information on all of TYAN’s products with FAQs, online manuals and BIOS
upgrades.
1.2 - Hardware Specifications
Processors
•Dual LGA771 sockets
•Supports up to two (x2) Intel®
Dempsey/Woodcrest/Clovertown,
Intel®Xeon 5000/5100/5300
series processors with
667/1066/1333 MHz FSB
•VRM 11.0
Chipset
•Intel®“Blackford” MCH+ESB2
chipset
•Supports for 667/1066/1333 MHz
FSB
•Winbond 83627HF super I/O chip
Memory
•Eight (x8) 240-pin DDR2 FB-
DIMM* sockets
•Supports ECC function
•Maximum of 16GB DDR2-533/667
FB-DIMM
*FB-DIMM: Fully Buffered DIMM
Integrated Video Controller
•ATI ES1000
•PCI interface
•32MB DDR memory
Integrated LAN Controllers
•One (x1) Intel Gigal network
controller
- Direct link to ESB2
•Two (x2) Gilgal LAN ports
•Two (x2) front panel LED headers
Intelligent Platform
Management Interface (Option)
Baseboard Management Controller
(BMC) from daughter card M3291
•Tailored for IPMI 2.0 specification
•Supports remote power on/off and
reset support (IPMI-over-LAN)
•Server Management Daughter
card via built-in 2x25 header

6
Expansion Slots
•Two (x2) 64/133 PCI-X slots
- One inversed PCIe x4 slot (w/ x8
signals from ESB2) for risers, in-
lined with the 1st PCI-X slot
•Two (x2) PCI Express x16 slot
(w/ x8 signals from Blackford
MCH)
•One (x1) PCI Express x8 slot (w/
x4 signals from ESB2)
Integrated I/O
•One (x1) 9-pin 16550 UART serial
port
•One (x1) 15-pin VGA port
•One (x1) IDE port
•One (x1) Floppy port
•Total Eight (8) USB 2.0 ports (6 in
rear and 2 onboard with vertical
USB Type A connectors
- One (x1) 2-USB-port connector
- Two (x2) 2-USB-port + 1 RJ45
10/100/1000 LAN port
•PS/2 mouse & keyboard
connectors
•Standard/integrated SATA
connectors
System Management
•Analog Devices ADT7468
Hardware Monitor ASIC
•CPU thermal & voltage monitor
support
•2-pin chassis intrusion header
•Multiple 4-pin and 3-pin fan
monitoring headers
Integrated SATA 2.0 Controller
•Six SATA 2.0 ports from Intel
ESB2
•Integrated Host RAID 0/1/5
support
BIOS
•Phoenix BIOS on 8Mbit Flash
ROM
•Support APM 1.2, ACPI 1.0b
•Serial Console Redirect
•PXE via Ethernet, USB device
boot
•PnP, DMI 2.0, WFW 2.0 power
management
•User-configurable hardware
monitoring
•Auto-configuration of hard disk
types
•Multiple boot options
•48-bit LBA support
Form Factor
•SSI/Extended ATX (12” x 13”)
•EPS 12V/SSI (24+8+4 pin) power
connectors
•Stacked PS/2 keyboard and
mouse connectors
•Stacked USB 2.0 connectors (x2)
•Serial (x1) and VGA (x1)
connectors
•Two (x2) side-by-side stacked RJ-
45 LAN + Two (x2) USB ports
connectors with LEDs
Regulatory
•FCC Class B (DoC)
•European Community CE (DoC)

7
Chapter 2: Board Installation
You are now ready to install your motherboard. The mounting hole pattern of
the Tempest i5000PX S5380 matches the SSI CEB v1.01 specification. Before
continuing with installation, confirm that your chassis supports an SSI CEB
v1.01 motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the
antistatic bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED

8
2.1- Board Image
This picture is representative of the latest board revision available at
the time of publishing. The board you receive may or may not look
exactly like the above picture.

9
2.2 - Block Diagram
Tempest i5000PX S5380 Block Diagram

10

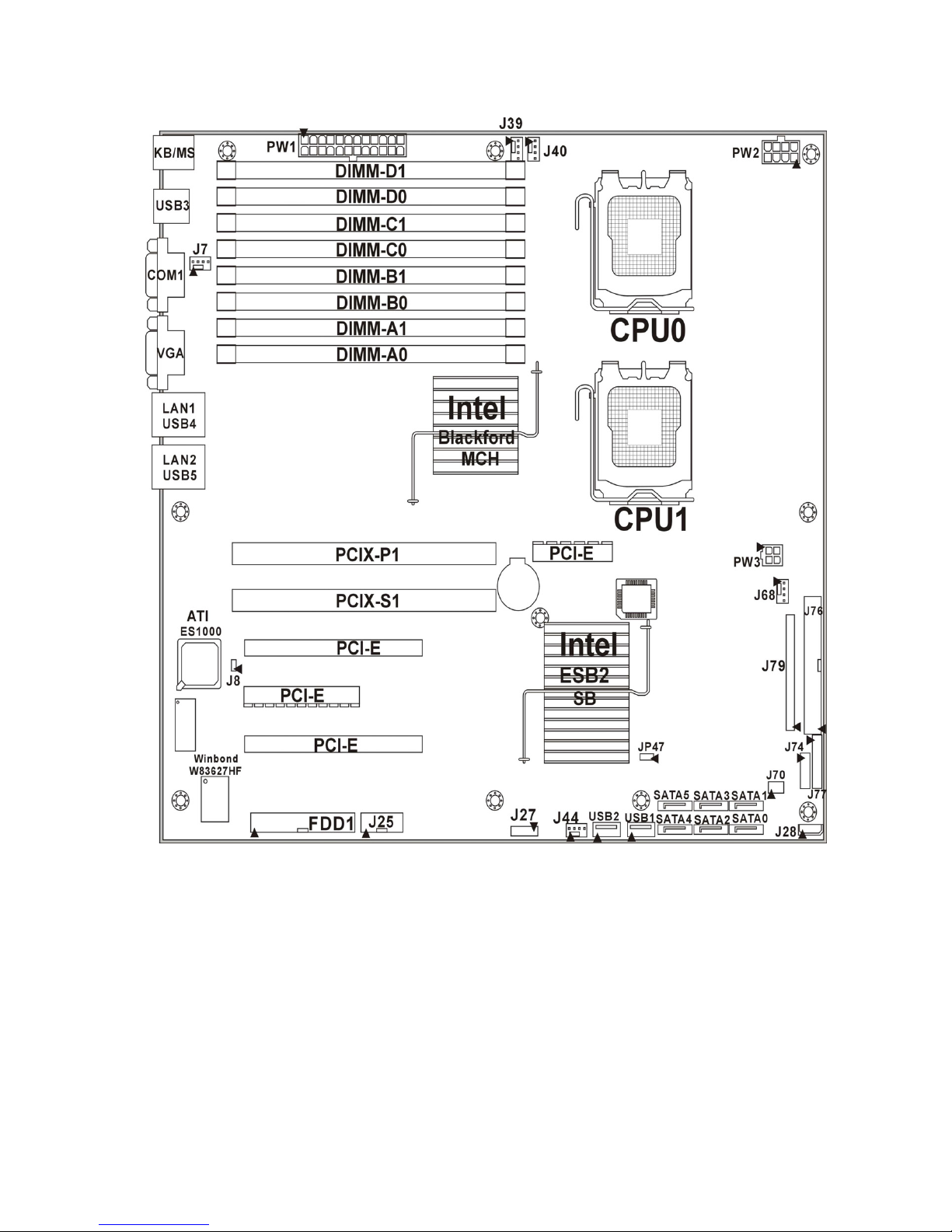

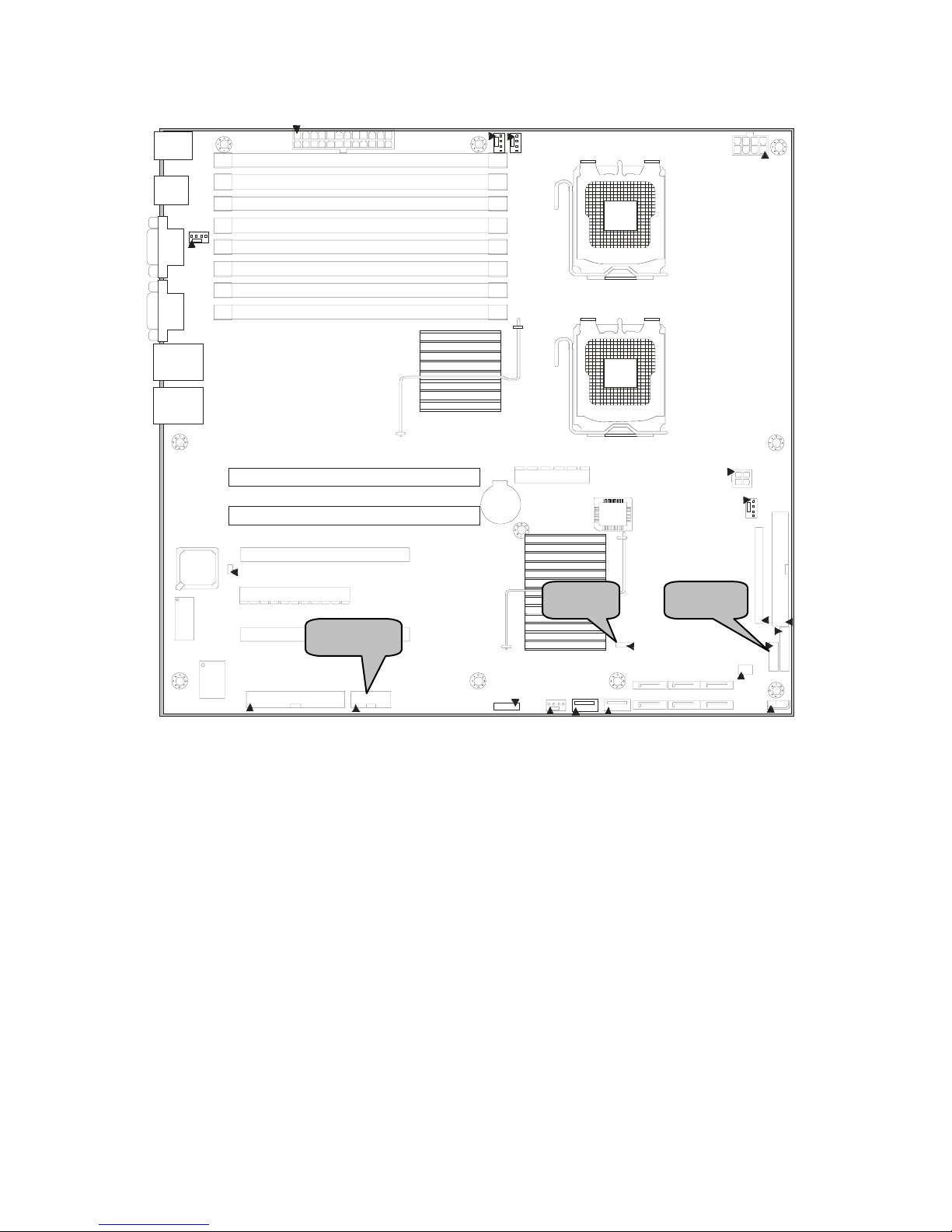

2.3 - Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.
