TYAN Toledo q35T User manual

1
Toledo q35T /// S5220
Version 1.1
Copyright
Copyright © TYAN Computer Corporation, 2007. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from TYAN
Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN, Toledo q35T are trademarks of TYAN Computer Corporation.
Intel®, Intel® Core 2 Duo / Wolfdale / Yorksfield Quad Core processor, Q35, and
combinations thereof are trademarks of Intel Corporation.
Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.
Microsoft, Windows are trademarks of Microsoft Corporation.
SuSE is a trademark of Novell.
IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.
Notice
Information contained in this document is furnished by TYAN Computer Corporation
and has been reviewed for accuracy and reliability prior to printing. TYAN assumes
no liability whatsoever, and disclaims any express or implied warranty, relating to
sale and/or use of TYAN products including liability or warranties relating to fitness
for a particular purpose or merchantability. TYAN retains the right to make changes
to product descriptions and/or specifications at any time, without notice. In no event
will TYAN be held liable for any direct or indirect, incidental or consequential
damage, loss of use, loss of data or other malady resulting from errors or
inaccuracies of information contained in this document.

2
Table of Contents
Check the box contents! 3
Chapter 1: Introduction
1.1 Congratulations 5
1.2 Hardware Specifications 5
Chapter 2: Board Installation
2.1 Board Image 8
2.2 Block Diagram 9
2.3 Board Parts, Jumpers and Connectors 10
2.4 Tips on Installing Motherboard in Chassis 20
2.5 Installing the Memory 21
2.6 Installing the Processor and Cooling Fan 23
2.7 Attaching Drive Cables 26
2.8 Installing Add-in Cards 27
2.9 Installing Optional SO-DIMM Modules 28
2.10 Connecting External Devices 29
2.11 Installing the Power Supply 30
2.12 Finishing Up 30
Chapter 3: BIOS Setup
3.1 About the BIOS 31
3.2 Main BIOS Setup 33
3.3 Main Menu 34
3.4 Advanced Menu 41
3.5 Security Menu 61
3.6 Power Menu 62
3.7 Boot Menu 63
3.8 Exit Menu 64
Chapter 4: Diagnostics
4.1 Beep Codes 65
4.2 Flash Utility 65
4.3 Phoenix BIOS Post Code 66
Appendix: SMDC Information 69
Glossary 71
Technical Support 77

3
Check the box contents!
1x S5220 motherboard
1 x Ultra-DMA-133/100/66/33 IDE cable
3 x Serial ATA power cables
3x Serial ATA cables
1x USB2.0 cable
1 x S5220 user’s manual
1 x S5220 Quick Reference guide
1 x TYAN driver CD
1 x I/O shield
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.

4
NOTE

5
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions available. The
Toledo q35T (S5220) is a flexible Intel®platform for multiple applications, based on
the Intel®Q35 memory Controller Hub (GMCH) and 82801IR I/O Controller Hub
(ICH9R) chipsets.
Designed to support the family of Intel®Socket 775 processors and 8GB of DDR2
800/667 memory, the S5220 has integrated Dual Ethernet LAN’s, an integrated
graphics controller from Q35 and six SATA-II ports. This motherboard represents
the best choice for a server platform product.
Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find
information on all of TYAN’s products with FAQs, online manuals and BIOS
upgrades.
1.2 - Hardware Specifications
Processor
•One (1) LGA775-pin socket supports
Intel CPUs of the type below:
- Intel Core 2 Duo / Wolfdale /
Yorksfield Quad core processors
•Supports 1333/1066/800 MT/s FSB
Expansion Slots
•One (1) PCI-E x16 slot
- with Tyan M2061 riser card: PCI-E
x8 to PCI-X
- with Tyan M2083-RS riser card:
PCI-E x16 to PCI-E x16
•One (1) PCI-X x8 slot with PCI-E x4
link only
•Four (4) PCI slots
Chipset
•Intel®Q35 Memory Controller Hub
(GMCH)
•Intel 82801IR I/O Controller Hub
(ICH9R)
•Winbond W83627DHG super I/O
Onboard Audio
•Onboard Realtek ALC262
Integrated LAN Controllers
•One (1) Intel 82573L and one (1) Intel
82573V single port Gigabit Controller
Integrated SATA Controllers
•Six (6) SATA ports from ICH9R
Integrated I/O
•One (1) 40-pin IDE connector (Extend
IDE from ITE IT8213F)
•Six (6) SATA (3Gb/s) ports
•Four (4) USB 2.0 connectors (support
two USB 2.0 devices)
•One (1) shrouded header for serial
port or LCM module interface
connector
•One (1) pin header for audio ports
•One (1) TYAN SMDC connector for
server management (M3295-2)
•One (1) pin header for SMBUS
connection
•One (1) 34-pin FDD connector
Integrated 2D/3D PCI Graphics
•Integrated graphics from Q35; one
PCI-E x16 slot is available for the
VGA card

6
Memory
•Four 240-pin DDR2 sockets support
up to 8 GB
•Dual channel memory bus (must be
populated in pairs)
•Un-buffered, non-ECC DDR2 667/800
MHz DIMM
•Supports 256MB, 512MB, 1GB, 2GB
DIMM
System Management
•Total six (6) fan headers with control
and tachometer monitoring
•Monitoring voltage for CPU, Memory
& Power Supply
•Monitoring temperature for CPU &
environment
•One (1) pin header for Chassis
Intrusion detection
•Supports Serial Console Redirect
•Supports Watch Dog Timer, ACPI
S1/S3/S4/S5
External I/O Ports
•Stacked PS/2 mouse & keyboard ports
•Stacked two (2) USB ports
•Stacked COM port and VGA port
•Stacked two (2) USB ports and one (1)
10/100M LAN port (LAN port is for
M3295-2 only)
•Two (2) RJ-45 10/100/1000M ports
•Audio connectors (Line-in/Line-
out/Mic-in)
BIOS
•Phoenix BIOS on 8Mbit LPC Flash
ROM
•Supports boot from USB device
•Supports ACPI 2.0
•Power-on mode control for AC power
loss recovery
Power Supply
•EPS 12V Power Supply (24-pin + 8-
pin power connectors)
Regulatory
•FCC Class B (DoC)
•European Community CE (DoC)
Form Factor
•ATX form factor
•12” x 9.6” (305mm x244mm)

7
Chapter 2: Board Installation

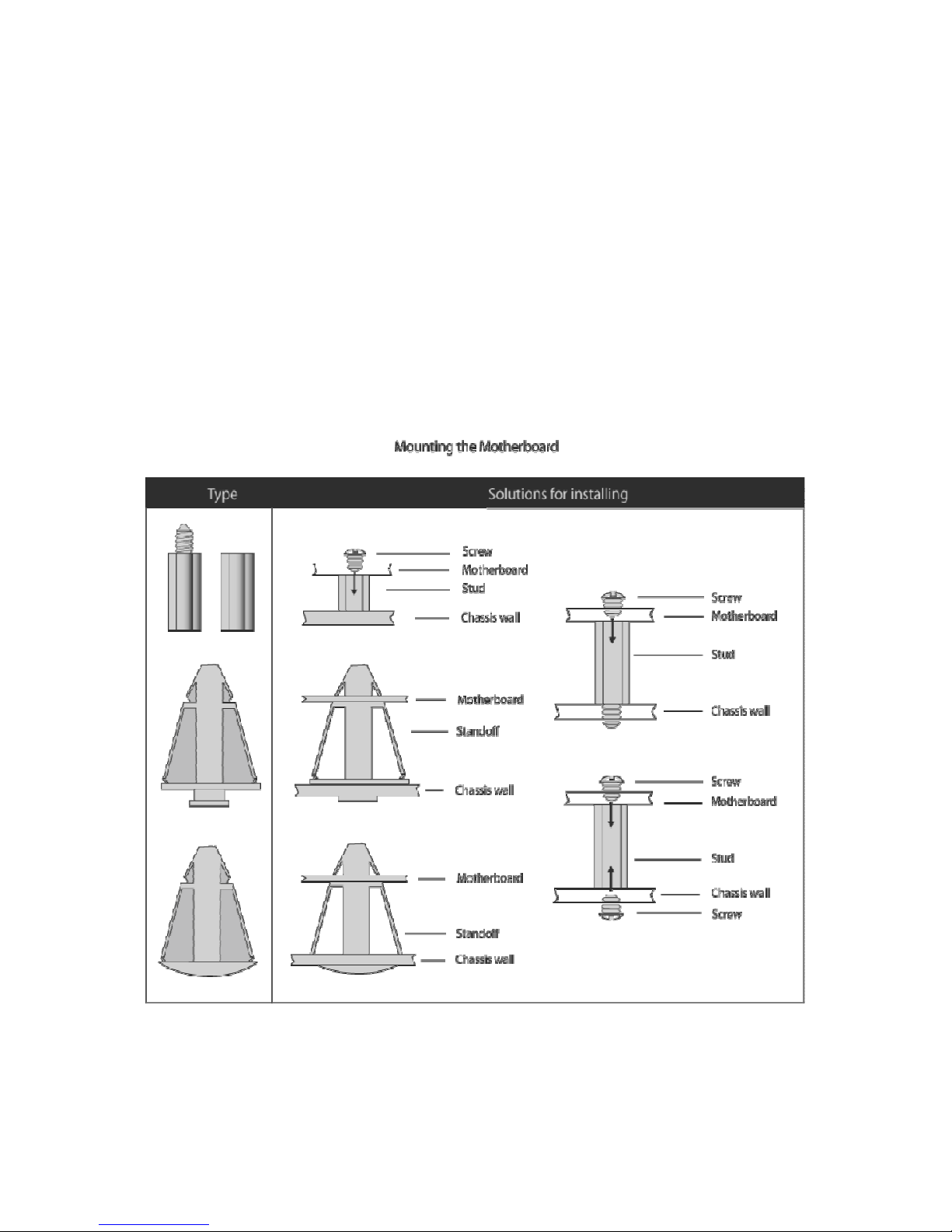

You are now ready to install your motherboard. The mounting hole pattern of the
Toledo q35T (S5220) matches the ATX specification. Before continuing with
installation, confirm that your chassis supports an ATX motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED.

8

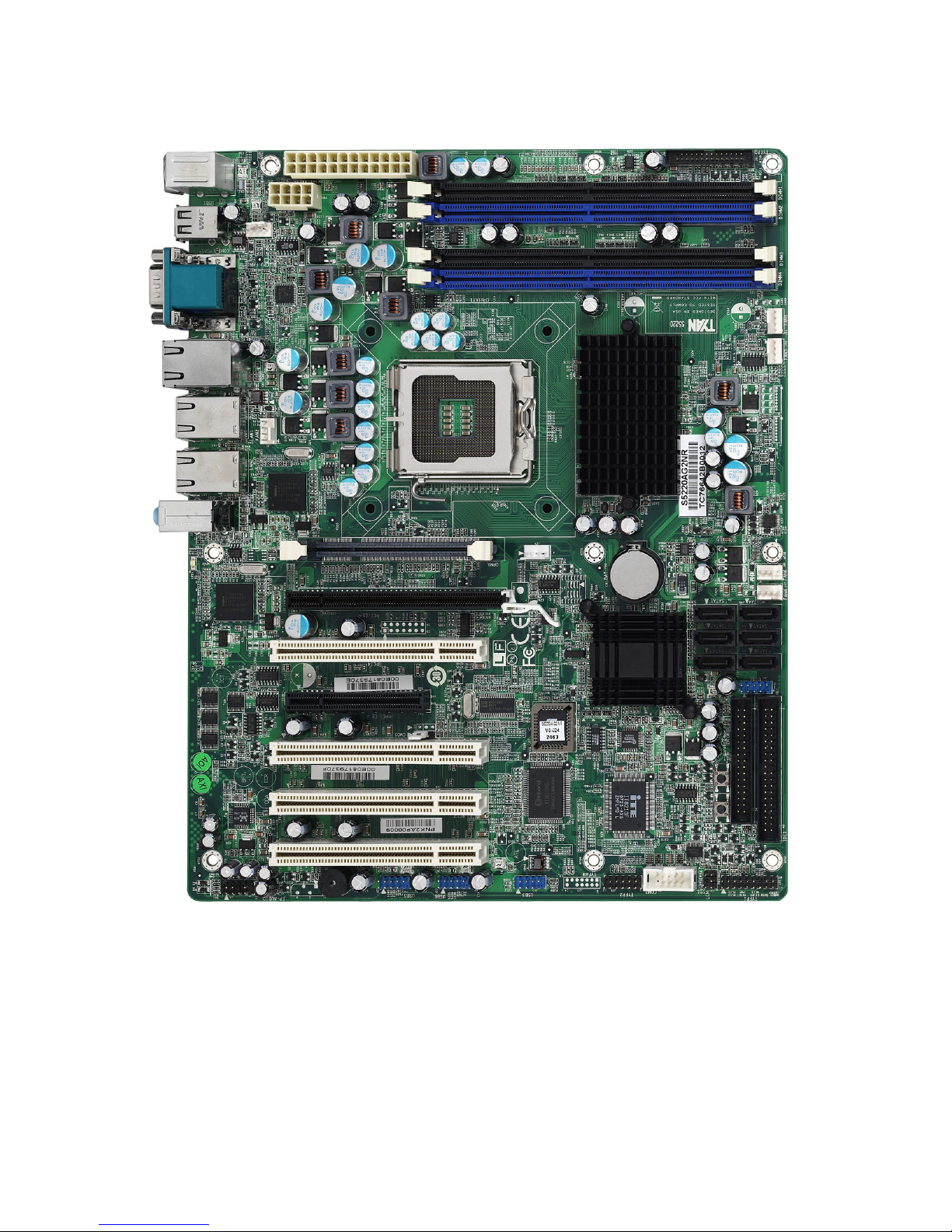

2.1- Board Image
Toledo q35T S5220
This picture is representative of the latest board revision available at the
time of publishing. The board you receive may or may not look exactly
like the above picture.

9
2.2 - Block Diagram
Toledo q35T S5220

10
2.3 - Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.
Jumper Legend
 OPEN - Jumper OFF, without jumper cover
 CLOSED – Jumper ON, with jumper cover

11
Jumper/Connector Function
COM2 COM2 Header
CPUFAN1, FAN2/3/4/5/6 4-pin Fan Connector with Tachometer
USB3/USB4/USB5/USB6 USB Front Panel Connector
TYFP1 Front Panel Connector
TYFP2/TYFP3 Front Panel Connector for Barebone
LCM LCM Connector for Barebone
J13 OPMA Connector (supports TYAN M3295)
J24 Aux. Power Connector for TYAN Riser Card
(M2061)
FP-AUDIO Front Panel Audio Connector
J35 Reset Switch
J36 Power Switch
TYFAN/J50/J52 Fan Connector for Barebone
CMOS (J14)
Clear CMOS Jumper
Pin 1-2 closed: Normal (Default)
Pin 2-3 closed: Clear

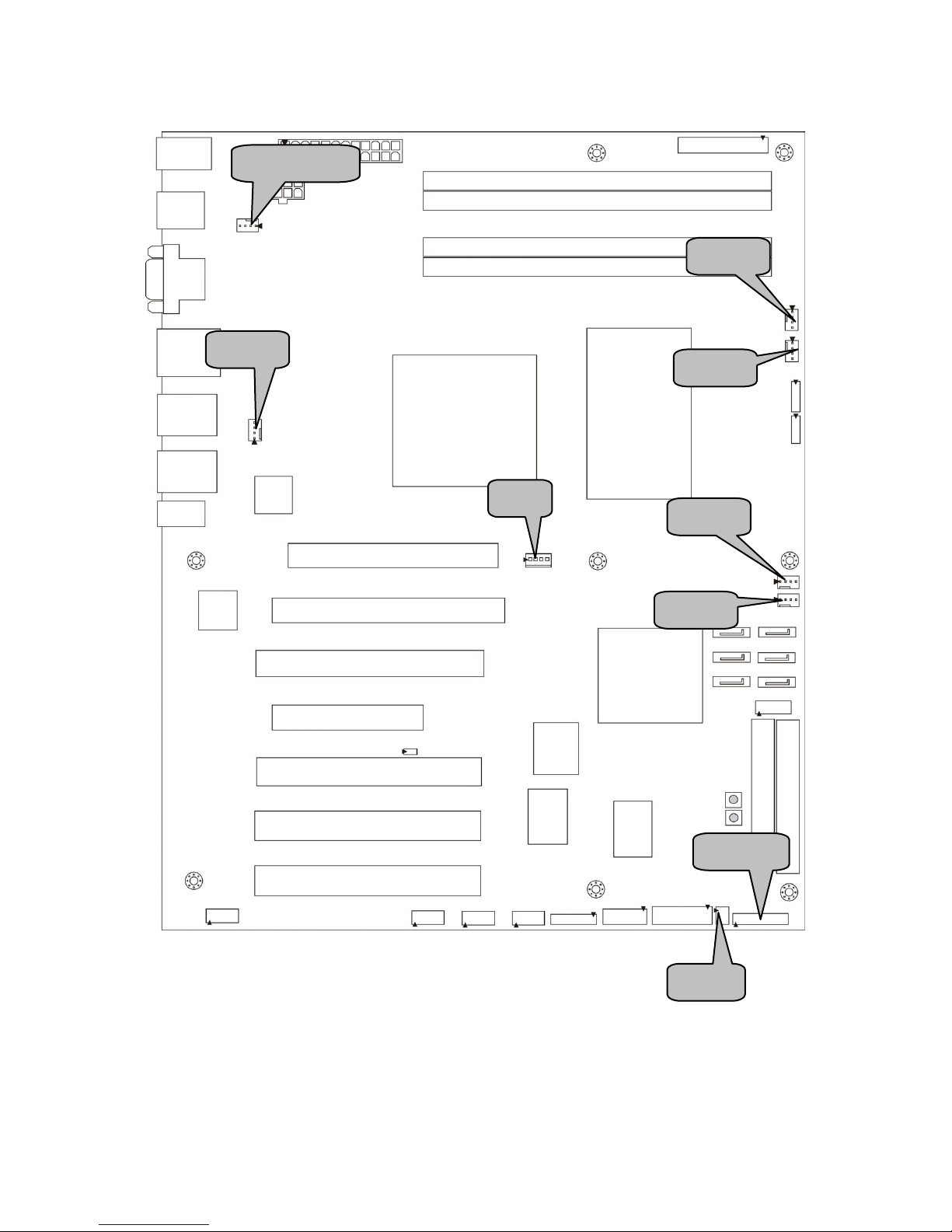

12
CPUFAN1
TYFP1
FAN2
FAN3
FAN6
FAN4
J24
FAN5
LCM

13

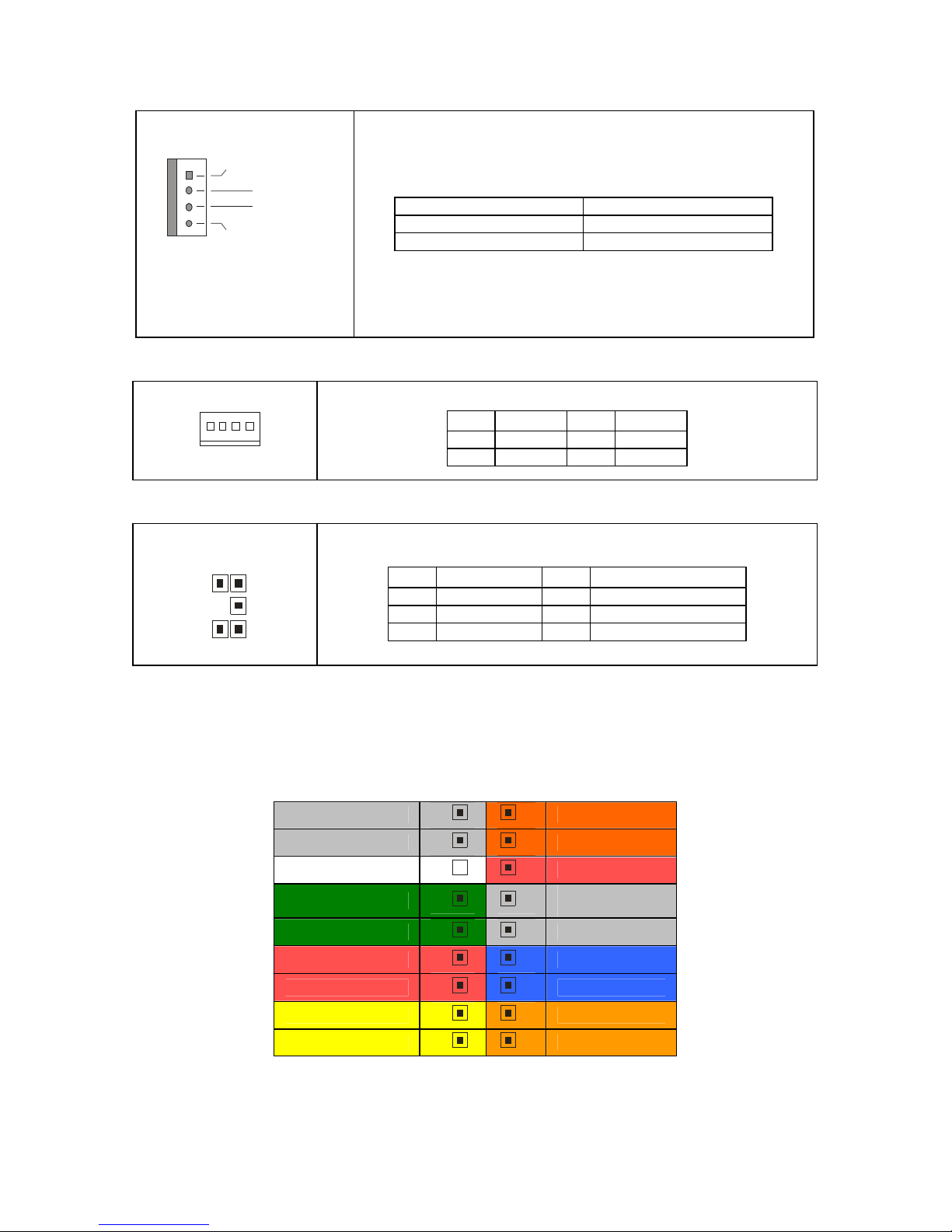

CPUFAN1/FAN2~FAN6: 4-pin Fan Connector with Tachometer
+12V
PWM C ontrol
GN
D
Ta c h o m e t er
1
Use these headers to connect the 4-pin cooling fans
to your motherboard to keep the system stable and
reliable.
CPUFAN1: J7 FAN2: J6
FAN3: J53 FAN4: J47
FAN5: J51 FAN6: J48
These connectors support the tachometer monitoring
and auto fan speed control.
J24: Aux. Power Connector for TYAN Riser Card (M2061)
1
Pin Signal Pin Signal
1 +12V 2 GND
3 GND 4 +5V
LCM (J30): LCM Header for Barebone
2
1
56
It is designed for barebone use only.
Pin Signal Pin Signal
1 +5V 2 RXD (Receive Data)
3 Key Pin 4 GND
5 +5V Standby 6 TXD (Transmit Data)
TYFP1 (J37): Front Panel Header
The Front Panel Header is used to connect some control or signal wires from
motherboard to chassis, such as HDD LED, power LED, power button, and
reset button.
Intrusion - 18 17 SMBUS Clock
GND 16 15 SMBUS Data
Key Pin 14 13 +5V Standby
Warning LED - 12 11 Ext. Interrupt
(NMI)
Warning LED+ 10 9 +5V
GND 8 7 Reset -
PW R_SW - 6 5 GND
PWR LED- 4 3 HDD LED-
PWR LED+ 2 1 HDD LED+

14
USB6FP-
A
UDIO
USB5 USB3
SATA1 SATA4
SATA2 SATA5
SATA3 SATA6
USB4
COM2

15
USB3/USB4/USB5/USB6: USB Front Panel Connector
1 9
2 10
Pin Signal Pin Signal
1 +5V Standby 2 +5V Standby
3 USB_A- 4 USB_B-
5 USB_A+ 6 USB_B+
7 GND 8 GND
9 Key Pin 10 GND
Use these headers to connect to the USB devices via the
enclosed USB cable.
USB3: J25 USB5: J21
USB4: J39 USB6: J22
COM2 (J29): COM2 Header
10
2
9 1
Use these pin definitions to connect a port to COM2.
*TYAN does not provide cable for this header. It is designed for barebone
use only.
Pin Signal Pin Signal
1 DCD (Data Carrier Detect) 2 DSR (Data Set Ready)
3 RXD (Receive Data) 4 RTS (Request To Send)
5 TX (Transmit Data) 6 CTS (Clear To Send)
7 DTR (Data Terminal
Ready)
8 RI (Ring Indicator)
9 GND 10 NC
SATA1/2/3/4/5/6: Serial ATA Connector
7
1
Connects to the Serial ATA ready drives via the Serial ATA
cable.
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7
GND TXP TXN GND RXN RXP GND
SATA1: J34 SATA4: J46
SATA2: J33 SATA5: J45
SATA3: J32 SATA6: J44
FP-AUDIO (J5): Front Panel Audio Connector
1 9
2 10
Pin Signal Pin Signal
1 Microphone In-L 2 GND
3 Microphone In-R 4 Presence-
5 Headphone-R 6 Microphone Sense Return
7 Sense Send 8 Key Pin
9 Headphone-L 10 Headphone Sense Return

16
J52
J50
TYFP3
TYFP2
TYFAN

17
TYFP2 (J28) : Front Panel Connector for Barebone
1
12
1
1
2
It is designed for barebone use only.
Pin Signal Pin Signal
1 LAN1 LED+ 2 LAN1 LED-
3 LAN2 LED+ 4 LAN2 LED-
5 NC 6 NC
7 ID LED+ 8 ID LED-
9 ID SW+ 10 ID SW-
11 Key Pin 12 NC
TYFP3 (J31) : Front Panel Connector for Barebone
1
27
28 2
It is designed for barebone use only.
Pin Signal Pin Signal
1 HDD LED+ 2 HDD LED-
3 GND 4 RESET-
5 Power LED+ 6 Power LED-
7 Warning
LED+
8 Warning
LED-
9 SMBus Data 10 SMBus Clock
11 Ext. Interrupt
(NMI)
12 +5V
13 +5V Standby 14 Intrusion-
15 GND 16 PWR_SW-
17 LAN1 LED+ 18 LAN1 LED-
19 LAN2 LED+ 20 LAN2 LED-
21 NC 22 NC
23 ID LED+ 24 ID LED-
25 ID SW+ 26 ID SW-
27 Key Pin 28 NC
J50/J52/TYFAN (J27): Fan Connector for Barebone
TYFAN
1
14
13
2
J50/J52
1
1
4
4
It is designed for barebone use only.
Pin Signal Pin Signal
1 Tachometer 1 2 Tachometer 6
3 Tachometer 2 4 NC
5 Tachometer 3 6 NC
7 Tachometer 4 8 NC
9 Tachometer 5 10 NC
11 GND 12 Key Pin
13 GND 14 PWM Control
Pin Signal Pin Signal
1 PW M Control 1 2 +12V1
3 Tachometer 1 4 GND
1 GND 2 Tachometer 2
3 +12V2 4 PWM Control 2

18
CMOS

19
CMOS (J14): Clear CMOS Jumper
3
1
Normal
(Default)
13
Clear
Use this jumper when you have forgotten your system/setup
password or need to clear the system BIOS settings.
How to clear the CMOS data:
-Power off system and disconnect the power supply
from the AC source
-Use jumper cap to close Pin 2 and 3 for several
seconds to Clear CMOS
-Replace jumper cap to close Pin 1 and 2 Reconnect
the power supply to the AC source
-Power on system

20
2.4 - Tips on Installing Motherboard in Chassis
Before installing your motherboard, make sure your chassis has the necessary
motherboard support studs installed. These studs are usually metal and are gold
in color. Usually, the chassis manufacturer will pre-install the support studs. If
you are unsure of stud placement, simply lay the motherboard inside the chassis
and align the screw holes of the motherboard to the studs inside the case. If
there are any studs missing, you will know right away since the motherboard will
not be able to be securely installed.
Some chassis’ include plastic studs instead of metal. Although the plastic studs
are usable, TYAN recommends using metal studs with screws that will fasten
the motherboard more securely in place.
Below is a chart detailing what the most common motherboard studs look like
and how they should be installed.
