THANK YOU FOR YOUR PURCHASE
Thank you for your purchase. We know that you have many brands and products to choose from and we are honored to know that you have decided to take one of our products into your home and hope that you enjoy it.
TYLZA appliances are designed according to the strictest safety and
performance standard for the North American market. We follow the most
advanced manufacturing philosophy. Each appliance leaves the factory after
thorough quality inspection and testing. Our are ready to answer any
questions you may have regarding how to install, use and care for your
products. We hope that this manual will help you learn to use the product in
the safest and most effective manner .
If you have any questions or concerns, please contact our Customer Support at:
[email protected]TABLE OF CONTENTS
SAFETY INSTRUCTIONS 4STAINLESS STEEL FILTERS 5 MEASUREMENNTS ＆ DIAGRAMS 6PARTS DIAGRAM 7INSTALLATION REQUIREMENTS 8INSTALLATION OVERVIEW 9RANGE HOOD INSTALLATION 10-11RECIRCULATING CHARCOAL FILTERS12RANGE HOOD OPERATIONS13MAINTENANCE14TROUBLESHOOTING15WARRANTY AND SERVICE16
4 5
Read all instructions before using this appliance.
Save these instructions for future references
Approved for residential appliances
For residential use only
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
FOR GENERAL VENTILATING USE ONLY. DO NOT USE
TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS
OR VAPORS.
WARNING
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This appliance
is equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING - IMPROPER GROUNDING CAN
RESULT IN A RISK OF ELECTRIC SHOCK.
Consult a qualified electrician if the grounding instructions are
not completely understood, or if doubt exists as to whether the
appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too
short, have a qualified electrician install an outlet near the
appliance.
CAUTION
To reduce risk of fire and to properly exhaust air, do not
vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCT WORK. Install this hood in accordance with all
requirements specified.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer
A.
B. Before servicing or cleaning the unit, switch power
off at service panel and lock service panel disconnecting means to prevent
power from
being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.
C. Installation Work and Electrical Wiring Must Be Done
By Qualied Person(s) In Accordance With all Applicable Codes & Standards,
Including Fire-rated Construction.
D. Sufcient air is needed for proper combustion and
exhausting of gases through the ue (Chimney) of fuel burning equipment to
prevent back- drafting. Follow he heating equipment manufacturers guideline
and safety standards such as those published by the National Fire Protection
Association (NFPA), the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
E.When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
F.Ducted systems must always be vented to the outdoors.
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Hood
With Any External Solid State Speed Control Device.
WARNING
WARNING
Unplug or disconnect the appliance from the power supply
before servicing.
TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
A. SMOTHER FLAMES with a close - fitting lid, cookie sheet, or other metal
tray, then turn off the gas burner or the electric element. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately, EVACUATE
AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN - you maybe DO NOT USE WATER,
including wet dishcloths or towels - a violent steam explosion will result.
Always leave safety grills and filters in place.Without these components,
operating blowers could catch onto hair, fingers and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe
the instructions given here for installation,maintenance and suitable use of the
product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper
maintenance.
STAINLESS STEEL FILTERSAbout Your New Filters
Stainless Steel Baffle Filters do not need linings or mesh inside of the filters and
are completely constructed out of stainless steel. The stainless steel construction
allows them to be used again after being cleaned or going through the
dishwasher.
How do Baffle Filters Work?
They function by forcing the grease filled air to quickly and continuously change
direction as it passes through the filter. The grease is unable to change direction
as fast as the air carrying them, they end up getting caught on the metal blades
and then trapped into the filter tray.These filters are both efficient and require less
maintenance.
IMPORTANT SAFETY INSTRUCTIONS

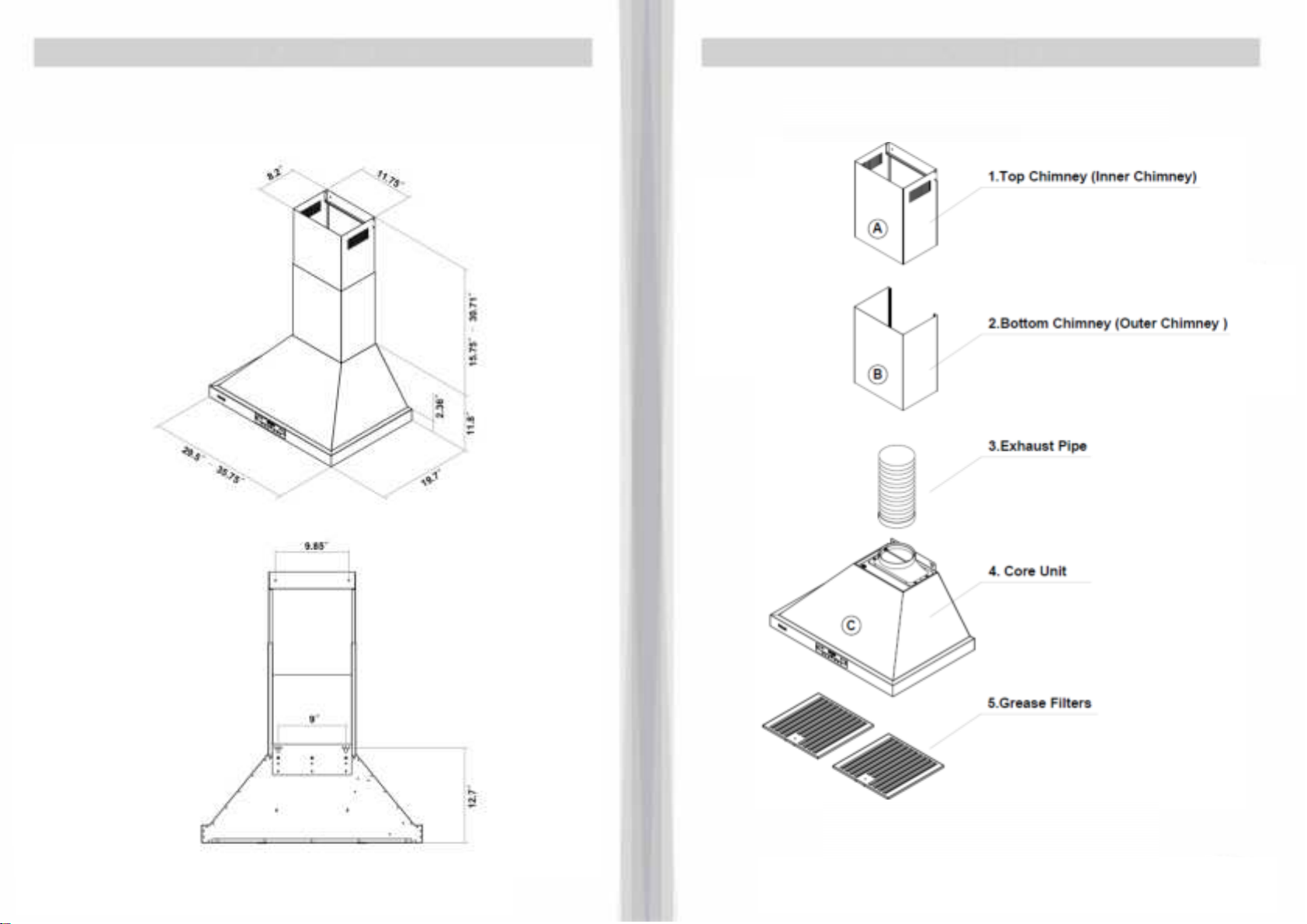

M
E
AS
U
R
E
M
ENN
TS
＆
DIAGRAMS
.
6
C
,
C
,
岫PARTS DIAGRAM .. "..
.
-
8
L
.
U
L
(s
a
n
:ma
)
:
,
·s
,
_
-
S8
.
6Z
(papn
a
)·
一
寸
．
6C,
9
·sz，
***All inch measurements are converted from millimeters.Inch measurements are estimated.
***All measurements in ( ) are millimeters.
67
MODEL NO.: KMC03-30〞 KMC03-36〞

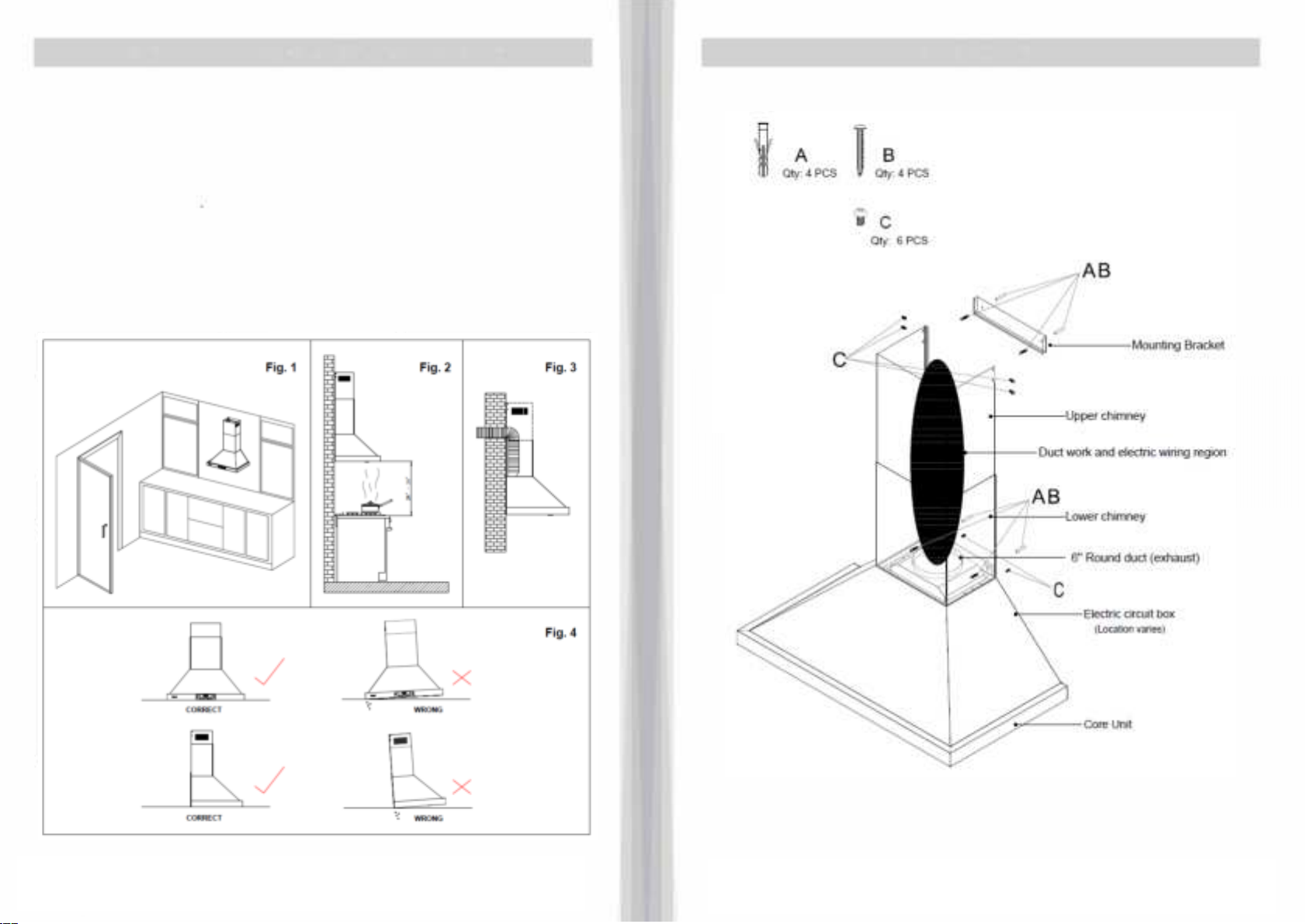

INSTALLATION REQUIREMENTS INSTALLATION O
V
ER
V
IE
W
A.
B
C.
N
=
E
=� [＝叫
G.
H.
7
8
89
RANGE HOOD INSTALLATION RANGE HOOD INSTALLATION
D
E t一一1臣
』
,v B ＼ A
B三g

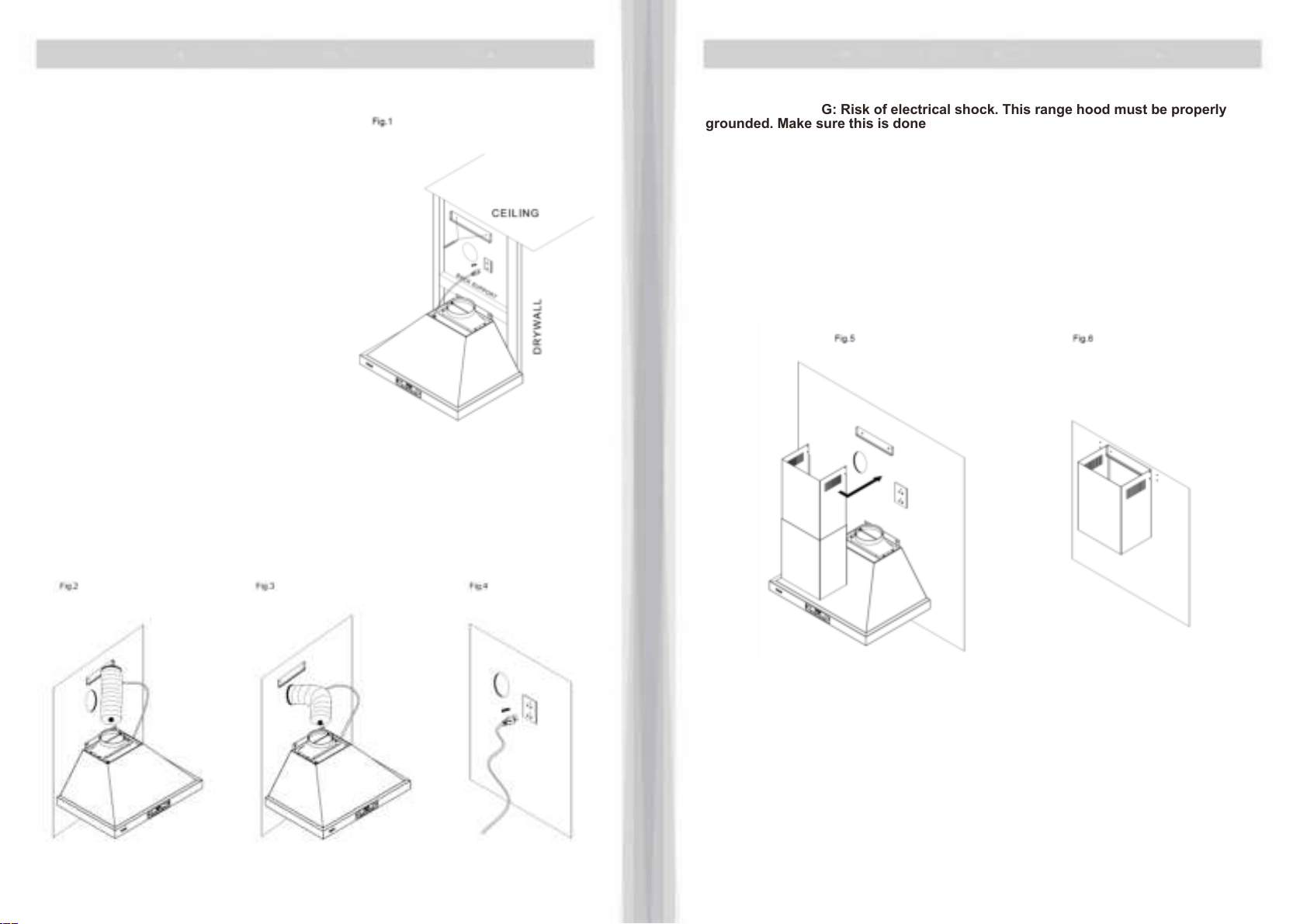

10 惫Installations :
Measure the distance between stove top and the
bottom of range hood. A distance of 24" to 32" is
recommended*. *Due to different ceiling height
configurations, recom-mended height may not be
applicable.
I. mark the leveling point of the hood. Position
two mounting screws on the wall, leaving 1/8"
space away from the wall.
2. Measure the width of the chimney then attach
the chimney -mounting brackets to the wall as
high as you want the upper chimney to be.
NOTE: Use threaded drywall anchors only
when mounting the hood on sheet rock.
Mounting the hood on wall studs or lumbar is
highly recommended.
3. Align hood-mounting holes to the screws on
the wall and hook the hood into place. Tighten
screws to secure hood to the wall.
CAUTION: Make certain the range hood is
secure before releasing!
SAFETY WARNING: Risk of electrical shock. This range hood must be properly
grounded. Make sure this is done by qualified electrician in accordance with all
applicable national and local electrical codes. Before connecting wires, switch power
off at service panel and lock service panel to prevent power from being switched on
accidentally.
6. Store excess wires in the wiring box.
7. Install both chimneys and tighten screws to secure the lower chimney to the range hood
as shown in Figure 5.
8. To avoid scratching the chimney, extend the upper chimney slowly and carefully to the
chimney-mounting bracket and tighten screws as shown in Figure 6.
10
11
5. Connect the range hood to a designated standard outlet (please refer the product label
for the suitable voltage of this unit) or cut off the plug and connect three wires to house
wires and cap with wire connectors. Connect according to colors.
4.Connect the venting duct between the hood and the exhaust opening either on the
ceiling or wall. Use aluminum tape to make all joints secure and air tight.
RECIRCULATING CHARCOAL FILTERS i ， A.Chn叮加印叩三13 RANGE HOO
D

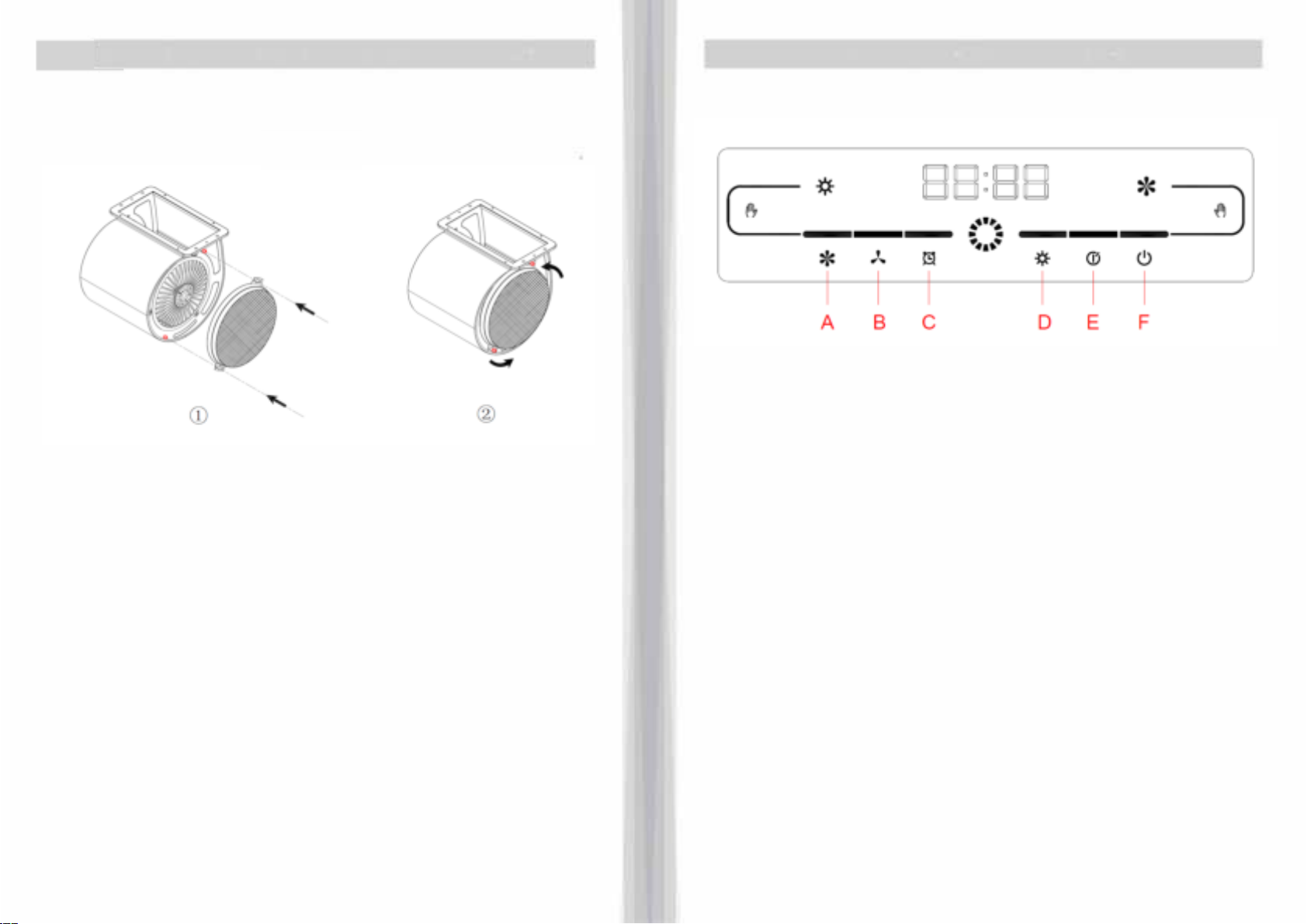

OPERATIONS14惫Skip this step if you are installing a Ducted Range Hood. Charcoal Filters are
only included with Ductless Models.
Capable of Vent-less or recirculation Operation, please install this charcoal
carbon filter as picture.(NO NEED TO DISASSEMBLE THE VOLUTE)
Warning: if installed this charcoal filter to be ductless or recirculation mode, the
noise would be more loudly, and the airflow would be less.
C
ontrol
P
anel
L
ayout
and
Buttons
C
onfigurations:
A. Plus Button - used to increase settings.
B. Minus Button - used to decrease settings.
C. Timer - only works when the range hood fan is running, touch once, the timer
has a default setting of 15 minutes; use button A or B to increase or decrease
time duration depending on how much time you require.
D. To press Light to open or close the lamp. The luminance of lighting can be
adjusted from 0% to I 00% as wanted by touching Light .
E. Auto Power off- press to tum off the fan automatically after 3 minutes.
F. Power/Gesture Control—press to turn the control panel on/off; (the control
panel will power off automatically after I minute if no further operation) Press
and hold for 5 seconds will run (or turn off) the gesture control. Move your hand
from left to right side will run the l st fan speed, and again to go with 2nd fan
speed, then 3rd and 4th speed, and your 5th hand moving will bring the fan into
sleeping. Oppositely, move your hand from right to left will decrease the fan
speed.
Remote control：Remote control sensor receives infrared(IR) signal from the Remote control.
The maximum distance for IR data transmission is 3 meter(10ft.) and requires
direct line of sight.The transmission distance may vary depending on
temperature and remote control battery condition.
12 13
