TYPHOON Q500 4K User manual

Version 2.0

1
1
TABLE OF CONTENTS
TABLE OF CONTENTS
INTRODUCTION
AERIAL IMAGING SOLUTION
· Specifictaons
· Noces and Warnings
· General Safety Precauons and Warnings
· TYPHOON Q500 4K RTF Contents
· Baery Warnings and Usage Guidelines
· Charging The Baeries
· Preparing The CGO3
· Installing The Propellers
· TYPHOON Q500 4K, CGO3 and ST10+ Overview
· ST10+ Display
· ST10+ Accessories
· Flight Controls
· Flight Controls - Smart Mode
· Follow Me Funcon
· Watch Me Funcon
· Flight Controls - Angle (Pilot) Mode
· Flight Controls - Home Mode

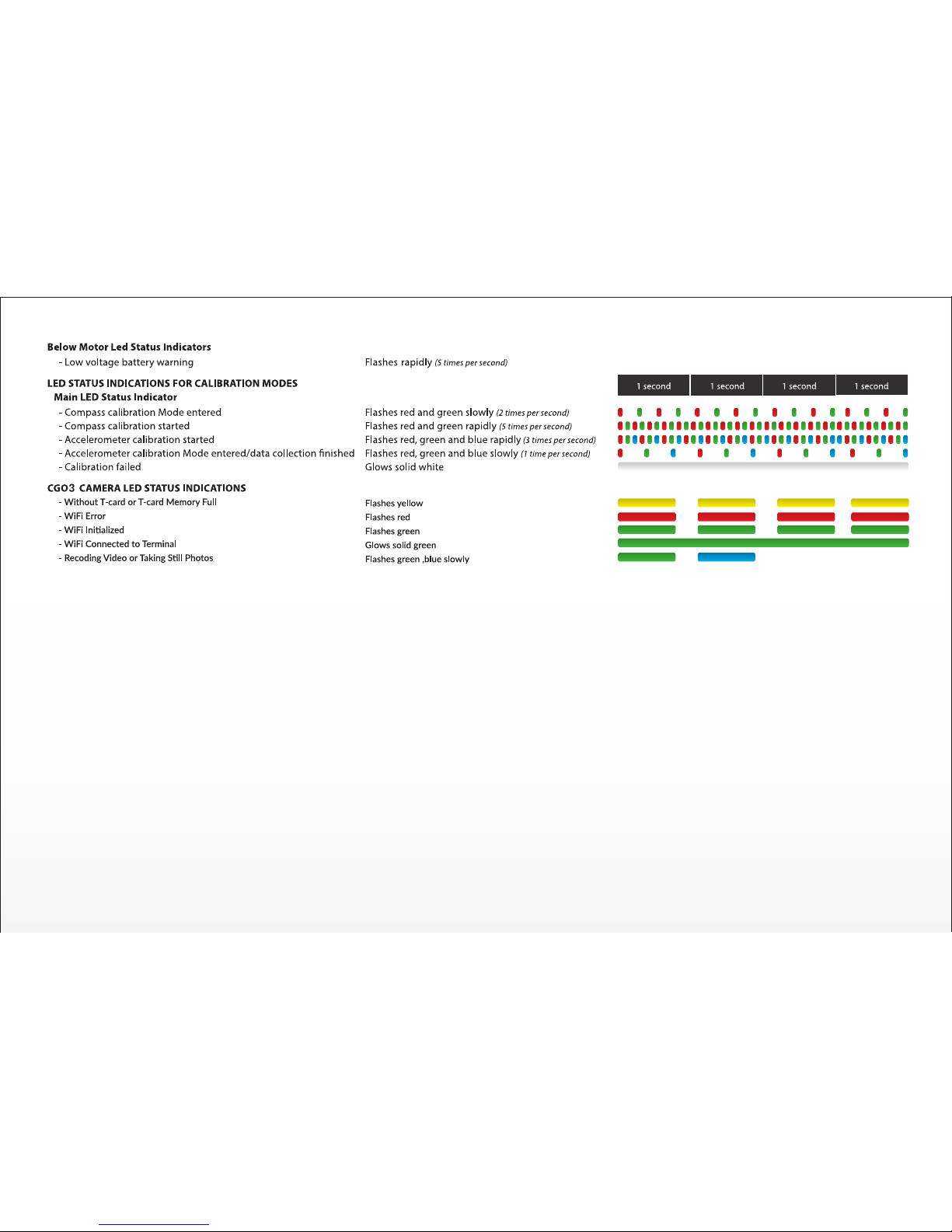

· Led Status Indicaons
· Taking Photos and Recording Video
· Installing The Flight Baery
· GPS Funconality
· Preparing to Fly
· Flying
· Disabling GPS
· Graphical User Interface (GUI)
· Compass Calibraon
· ST10+ and Receiver Binding
· ST10+ and CGO3 Binding
GROUND IMAGING SOLUTION
· Specifictaons
· Baery Warnings and Usage Guidelines
· Installing The Steadygrip Baeries
· Aaching The CGO3 to The Steadygrip
· CGO3 APP
· Aaching A Mobile Device to The Steadygrip
· Using The Camera Pitch Control Wheel
· Taking Photos and Recording Video
· Added Features for CGO3 on Steadygrip
TROUBLESHOOTING
WARRANTY INFORMATION
CERTIFICATION INFORMATION
1
2
2
3
3
4
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
20
20
21
22
23
24
24
25
27
28
29
29
29
30
30
31
31
31
31
32
33
35
35

2
INTRODUCTION
AERIAL IMAGING SOLUTION
The TYPHOON Q500 4K is a superior modular, integrated aerial and ground imaging soluon. The system arrives 100% factory-assembled and test flown,
including a larger ST10+ 5.5’’ Android touch screen personal ground staon and a CGO3 3-axis gimbal camera able to take 16 megapixel sll photos and
excellent Full HD 60 FPS videos. The STEADYGRIP extends the use of the gimbal camera from the sky to the ground and, With the CGO APP, whatever is
shot can be viewed on your SmartPhone with the same control of video FPS, video start/stop and sll photos as found on the ST10+. With the Q500 4K,
it’s never been easier to capture amazing photographs and video footage for a wide variety of uses.
Although the Q500 4K is ready to fly right out the box, please take the me to read through this enre instrucon manual for more informaon on safety,
baery charging, flight controls and more before making your first flight. Please also visit www.yuneec.com for addional informaon including product
updates, bullens, videos and more.
Specifictaons
TYPHOON Q500 4K
FLIGHT TIME: Up to 25 Minutes
DIMENSIONS: 9.45 in (210mm) x 16.54 in (420mm)
DIAGONAL MOTOR TO MOTOR DISTANCE: 20 in (510mm)
PROPELLER/MAIN ROTOR DIAMETER: 13.0 in (330mm)
WEIGHT WITHOUT BATTERY AND PAYLOAD: 40.0 oz (1130g)
MAXIMUM TAKEOFF WEIGHT WITH CGO3: 60.0 oz (1700g)
BATTERY: 5400mAh 3S 11.1V LiPo (included)
CHARGER: 3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter (included)
TRANSMITTER: 10-channel 2.4GHz with 5.8GHz video downlink (included)
MAXIMUM FLYING ALTITUDE: Default 400 Feet Above Ground Level
(Adjustable via the Q500 GUI)
MAXIMUM ROTATION RATE: 65°/s
MAXIMUM ROLL ANGLE: 35°
RADIO CONTROL FREQUENCY BAND: 2.4GHz
MAXIMUM CLIMB RATE: 2m/s
MAXIMUM DESCENT RATE: 3m/s
CGO3
Dimension: 4.2x5.0x3.1in (106x128x80mm)
Weight: 6.9oz (195g)
Sensor: 1/2.3” CMOS
Effecve Pixels: 12.4 Megapixels
Camera lens: 14mm/F2.8 35mm
FOV: 115 Degree
Electronic Shuer: 1/30 —— 1/8000
Working Temperature: 0-40℃
Power Consumpon: 10W
Video Transmission Range: Up to 500m (1640)
Transmission System: 5.2Ghz — 5.8Ghz
Video UHD: 4K 30FPS
ST10+
Number of Channels: 10
RC Band: 2.4GHz
RC Modulaon: Yuneec
Video Downlink Band: 5.8GHz
Telemetry/OSD: Yes
SD Card Compable: Yes
LCD Screen Size: 5.5”
Touchscreen: Yes

3
Noces And Warnings
IMPORTANT NOTE: All safety precauons and warnings, instrucons, warranes and other collateral informaon is subject to change at the sole discre-
on of Yuneec. For the most up-to-date informaon please visit the corresponding product page at www.Yuneec.com or contact the nearest Yuneec office
or authorized distributor.
The following special language terms are used throughout the product literature to indicate various levels of potenal harm when operang this product:
NOTICE: Procedures, which if not properly followed, create a possibility of property damage and/or lile to no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of property damage and/or a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage and/or serious injury or create a high
probability of superficial injury.
WARNING: Read the ENTIRE quick start guide and instrucon manual to become familiar with the features of the product before operang. Failure to
operate the product correctly can result in damage to the product, property and/or cause serious injury.
WARNING: This is a sophiscated consumer product. It must be operated with cauon and common sense, and requires some basic mechanical ability.
Failure to operate this product in a safe and responsible manner could result in damage to the product, property and/or cause serious injury. This product
is not intended for use by children without direct adult supervision. Do not use with incompable components or alter this product in any way outside of
the instrucons provided by Yuneec. The quick start guide and instrucon manual contain instrucons for safety, operaon and maintenance. It is essenal
to read and follow all the instrucons and warnings prior to assembly, setup and/or use in order to operate the product correctly and avoid damage or
serious injury.
AGE RECOMMENDATION: NOT FOR CHILDREN UNDER 14 YEARS. THIS IS NOT A TOY.

4
General Safety Precauons And Warnings
WARNING: Failure to use this product in the intended manner as described in the quick start guide and instrucon manual can result in damage to the
product, property and/or cause serious injury. A Radio Controlled (RC) mulrotor aircra, APV plaorm, drone, etc. is not a toy! If misused it can cause
serious bodily harm and damage to property.
WARNING: As the user of this product you are solely and enrely responsible for operang it in a manner that does not endanger yourself and others or
result in damage to the product or the property of others.
• Keep your hands, face and other parts of your body away from the spinning propellers/rotor blades and other moving parts at all mes. Keep items that
could impact or become entangled away from the propellers/rotor blades including debris, parts, tools, loose clothing, etc.
• Always operate your aircra in open areas that are free from people, vehicles and other obstrucons. Never fly near or above crowds, airports or
buildings.
• To ensure proper operaon and safe flight performance never aempt to operate your aircra nearby buildings or other obstrucons that do not offer
a clear view of the sky and can restrict GPS recepon.
• Do not aempt to operate your aircra in areas with potenal magnec and/or radio interference including areas nearby broadcast towers, power
transmission staons, high voltage power lines, electrical storms, etc.
• Always keep a safe distance in all direcons around your aircra to avoid collisions and/or injury. This aircra is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause momentary loss of control.
• To ensure proper and safe operaon of the automac landing funcon in Home Mode you must start the motors with the aircra in a posion that has
at least 10 feet (approximately 3 meters) of clear and open space around it and achieve a proper GPS lock.
• Do not aempt to operate your aircra with any worn and/or damaged components, parts, etc. (including, but not limited to, damaged propellers/rotor
blades, old baeries, etc.).
• Never operate your aircra in poor or severe weather condions including heavy winds, precipitaon, lightning, etc.
DO NOT FLY OVER
CROWDS!
DO NOT FLY NEAR
AIRPORTS!
THE MAXIMUM FLYING
ALTITUDE FOR THIS AIRCRAFT
IS 8000FT ABOVE SEA LEVEL!
DO NOT FLY NEARBY TALL
BUILDINGS/OBSTRUCTIONS
(100° MINIMUM CLEARANCE
REQUIRED)
KEEP CLEAR OF THE
SPINNING PROPELLERS!
MAX 8000ft
100˚
DO NOT FLY IN WINDS
THAT EXCEED 8–12 MPH
(13–19 KPH)!

5
• Always operate your aircra starng with a fully charged baery. Always land as soon as possible aer the first level low voltage baery warning or land
immediately aer the second level low voltage baery warning (as indicated by the vibraons and audible alerts from the transmier/personal ground
staon).
• Always operate your aircra when the voltage of the baery in the transmier/personal ground staon is in a safe range (as indicated by the baery
charge status icon on the screen of the transmier/personal ground staon).
• Always keep the aircra in clear line of sight and under control, and keep the transmier/personal ground staon powered on while the aircra is
powered on.
• Always move the throle control sck down fully and turn off the motors in the event the propellers/rotor blades come into contact with any objects.
• Always allow components and parts to cool aer use before touching them and flying again.
• Always remove baeries aer use and store/transport them per the corresponding guidelines.
• Avoid water exposure to all electronic components, parts, etc. not specifically designed and protected for use in water. Moisture causes damage to
electronic components and parts.
• Never place any poron of the aircra or any related accessories, components or parts in your mouth as doing so could cause serious injury or even death.
• Always keep chemicals, small parts and electronic components out of the reach of children.
• Carefully follow the instrucons and warnings included with this aircra and any related accessories, components or parts (including, but not limited to,
chargers, rechargeable baeries, etc.).
CAUTION: The electronic speed controls (ESCs) installed in the TYPHOON are not compable with any other product, and the TYPHOON is not compa-
ble with any other ESCs. Use of any other ESCs in the TYPHOON will cause a crash, which may result in damage to the product, property and/or cause
serious injury.

The TYPHOON Q500 4K RTF Contents
6
The TYPHOON RTF includes everything needed to fly right out of the box. There’s nothing extra to buy or provide!
1 The TYPHOON RTF Airframe w/Installed CGO3
2 ST10+ Transmier and Personal Ground Staon
3 ST10+ LCD Screen Sun Shade/Shield
4 ST10+ Neck Strap
5 AC to DC USB Adapter/Charger
6 USB to Micro USB Cable
7 USB Interface/Programmer
8 5400mAh 3S 11.1V LiPo Baery
9 3S 11.1V LiPo Balance Connector Charge Lead
10 DC 3S 11.1V LiPo Balancing Charger
11 DC Automobile Accessory Socket/
Cigaree Lighter Receptacle Adapter
12 AC to DC Adapter/Power Supply
13 16GB microSD Card w/Adapter
14 Motor Holder/Prop Installaon Tool
15 Propellers/Rotor Blades (2 sets)
16 CGO STEADYGRIP™
1
69
10
13
11
16
14
8
7
3
15
2
4
5
12

7
Baery Warnings and Usage Guidelines
WARNING: Lithium Polymer (LiPo) baeries are significantly more
volale than alkaline, NiCd or NiMH baeries. All instrucons and
warnings must be followed exactly to prevent property damage and/or
serious injury as the mishandling of LiPo baeries can result in fire. By
handling, charging or using the included LiPo baery you assume all risks
associated with LiPo baeries. If you do not agree with these condions
please return the complete product in new, unused condion to the place
of purchase immediately.
• You must always charge the LiPo baery in a safe, well-venlated area
away from flammable materials.
• Never charge the LiPo baery unaended at any me. When charging
the baery you must always remain in constant observaon to monitor the
charging process and react immediately to any potenal problems that may
occur.
• Aer flying/discharging the LiPo baery you must allow it to cool to
ambient/room temperature before recharging.
• To charge the LiPo baery you must use only the included charger or a
suitably compable LiPo baery charger. Failure to do so may result in a
fire causing property damage and/or serious injury.
• If at any me the LiPo baery begins to balloon or swell, disconnue
charging or discharging immediately. Quickly and safely disconnect the
baery, then place it in a safe, open area away from flammable materials to
observe it for at least 15 minutes. Connuing to charge or discharge a
baery that has begun to balloon or swell can result in a fire. A baery that
has ballooned or swollen even a small amount must be removed from
service completely.
• Do not over-discharge the LiPo baery. Discharging the baery too low
can cause damage to the baery resulng in reduced power, flight duraon
or failure of the baery enrely. LiPo cells should not be discharged to
below 3.0V each under load.
• Store the LiPo baery at room temperature and in a dry area for best
results.
• When charging, transporng or temporarily storing the LiPo baery the
temperature range should be from approximately 40–120° F (5–49° C). Do
not store the baery or aircra in a hot garage, car or direct sunlight. If
stored in a hot garage or car the baery can be damaged or even catch fire.
• Never leave baeries, chargers and power supplies unaended during
use.
• Never aempt to charge low voltage, ballooned/swollen, damaged or wet
baeries.
• Never allow children under 14 years of age to charge baeries.
• Never charge a baery if any of the wire leads have been damaged or
shorted.
• Never aempt to disassemble the baery, charger or power supply.
• Never drop baeries, chargers or power supplies.
• Always inspect the baery, charger and power supply before charging.
• Always ensure correct polarity before connecng baeries, chargers and
power supplies.
• Always disconnect the baery aer charging.
• Always terminate all processes if the baery, charger or power supply
malfuncons.
IMPORTANT NOTE: It’s safer and beer for the longevity of the baery to
store it only parally charged for any length of me. Storing the baery
approximately 50% charged (which is around 3.85V per cell) is typically
best, however, it will take some careful management of the charge me and
the use of a volt meter to achieve this voltage. If you have the equipment
and skills to achieve the 50% charge level for storage it is recommended. If
not, simply be sure to not store the baery fully charged whenever
possible. In fact, as long as the baery will be stored at approximately room
temperature and for no more than a few weeks before the next use, it may
be best to store the baery in the discharged state aer the last flight (as
long as the baery was not over-discharged on the last flight).

Charging The Baeries
WARNING: Lithium Ion (LiIon) and Lithium Polymer (LiPo) baeries are
significantly more volale than alkaline, NiCd or NiMH baeries. All
instrucons and warnings must be followed exactly to prevent property
damage and/or serious injury as the mishandling of LiIon/LiPo baeries
can result in fire. By handling, charging or using the included LiIon/LiPo
baeries you assume all risks associated with them. If you do not agree
with these condions please return the complete product in new, unused
condion to the place of purchase immediately.
CHARGING THE LIPO FLIGHT BATTERY
You can power the SC3500-3 charger from a 100-240V AC outlet using the
AC adapter/power supply, or from a 12V DC accessory socket/cigaree
lighter receptacle in a vehicle using the corresponding adapter. Once
you’ve verified the charger is powered on and ready to charge (green
blinking LED), plug the balance connector charge lead into the charger, then
connect the LiPo flight baery to the charge lead. The baery will begin
charging (red blinking LED) and it will take approximately 2 hours to charge
a fully discharged (not over-discharged) baery.
CHARGING THE LI-ION ST10+ BATTERY
You can charge the LiIon baery installed in the ST10+ from a 100-240V
AC outlet using the USB adapter/charger, or from a suitable USB power
source (2.0 amps max), with the USB to micro USB cable. While the ST10+
is powered off connect the cable to the USB adapter/charger, then plug it
into the USB connector/charging port on the right side. Aer approximate-
ly 30-45 seconds the LED indicator for the baery will blink blue while the
baery is charging, and will glow solid blue when the baery is fully
charged. It will take approximately 5.5 hours to charge a fully discharged
(not over-discharged ) baery.
NOTE: The AC plug type will vary depending on the region in which the
product was imported/purchased (AU = Australian; EU = European; UK =
United Kingdom; US = United States).
8

Preparing The CGO3
WARNING: Before installing the flight baery and powering on the
TYPHOON you MUST remove the cover/lock from the rear of the CGO3
by carefully sliding it backward. Failure to remove the cover/lock can result
in damage to the TYPHOON and the CGO3!
QUICK TIP: It’s a good idea to re-install the cover/lock aer each flying
session and while transporng/storing the TYPHOON (just remember to
remove the cover/lock before powering on the TYPHOON and CGO3!).
Step 1) Remove the cover/lock from the rear of the CGO3 by carefully
sliding it backward.
Step 2) Slide the microSD card into the corresponding slot on the boom of
the CGO3. You can use the included 16GB card or any name brand Class 10
microSD card up to 128GB.
Step 3) Carefully remove the protecve material from the camera lens.
Installing The Propellers
WARNING: We recommend wearing gloves and using extreme care when
installing the propellers/rotor blades.
Each motor and propeller are marked with an ‘A’ or ‘B’ to ensure easy
installaon in the correct posions (for example: install propellers marked
with ‘A’ on motors marked with ‘A’).
IMPORTANT NOTE: It is NOT possible to install a propeller marked with
‘A’ on a motor marked with ‘B’. The threads go in different direcons for
the ‘A’ and ‘B’ motors/propellers.
Step 1) Use the special tool (included) to hold the motor so it cannot spin.
CAUTION: Do not over-ghten the propellers when using the tool.
Step 2) Install the corresponding propeller by rotang it trialing edge first
unl it‘s secure against the o-ring located at the boom of the motor sha.
You may want to add this: Connue to screw down the propeller 1-1.5
turns more to ensure it is properly ghten and compressing the O-rings
slightly.
Step 3) Repeat steps 1 and 2 to install the three remaining propellers
securely.
9
B
B
A
A

The TYPHOON Q500 4K, CGO3 And ST10+ Overview
The TYPHOON Q500 4K / CGO3
1 CGO3 Gimbal Camera
2 Camera Microphone
3 Camera LED Status Indicator
4 Camera Lens
5 5.8GHz Antenna
6 Main LED Status Indicator
7 Power Switch
ST10+
8 Proporonal Control Rate Slider
9 USB Connector/Charging Port
10 Audio/Earphone Jack
11 Take Sll Photo Buon
12 Start/Stop Motors Buon
13 Rudder/Yaw Control (for Mode 2 and Mode 1)
14 Throle/Altude Control (for Mode 2)
Elevator/Pitch Control (for Mode 1)
15 5.8GHz Antenna (located inside the case)
16 Status Indicators (for ST10+ baery, 5.8GHz
WiFi and GPS)
17 2.4GHz Antenna (located inside the handle)
18 Start/Stop Video Recording Buon
19 Flight Mode Selecon Switch
20 Aileron/Roll Control (Mode 2 and Mode 1)
21 Elevator/Pitch Control (Mode 2)
Throle/Altude Control (Mode 1)
22 Power Switch
23 Volume and Navigaon Touch-Acvated Buons Volume
Down/VolumeUp/Menu/Home/Back)
24 CGO3 Pitch Angle/Posion Control Slider
25 SD Card Slot (located under the baery)
The ST10+ is equipped with an internal cooling fan and components that deliver vibrang and
audible alerts.
IMPORTANT NOTE: Although the ST10+ is equipped with digital ‘trims’ (located below the control
scks) they are not acve/funconal when controlling the TYPHOON.
10
6
7
8
9
10
11
12
13
14
15 16 17
18
19
20
21
22
23
24
25

11
ST10+ Display
1 Model Name
2 Status Informaon
3 Direcon to Home Point
4 Clock/Current Time
5 Watch Me/Follow Me Buon
6 GPS Status and Number of Satellites for ST10+
7 ST10+ Baery Charge Level Status Icon
8 Aircra Baery Voltage
9 Altude of Aircra (Above Ground Level)
10 Ground Speed of Aircra
11 Distance of Aircra from Home Point
12 Model Select Menu Buon
13 In Flight Sengs
14 Flight Sengs Menu Buon
15 System Sengs Menu Buon
16 Latude/Longitude Posion of Aircra
17 Number of Satellites for Aircra
18 GPS Status for Aircra
19 Flight Mode of Aircra
The ST10+ is equipped with a touchscreen display that allows for changing various sengs and viewing real-me telemetry data and streaming video during
flight.
QUICK TIP: 1. Double tap on the screen to increase the size of the video viewing area to full-screen and double tap again to return to the standard size).
2. Single tap to hide the camera sengs, tap again to display camera sengs
WARNING: NEVER aempt to fly the TYPHOON via First-Person View (FPV). There’s a slight ‘lag’ in the CGO3 streaming video downlink to the ST10+,
and as a result the streaming video/FPV should only be used for aligning camera shots and not for flying! Aempng to fly via FPV can result in a crash that
will cause damage to the product, property and/or cause serious injury.
IMPORTANT NOTE: Streaming video from the CGO3 to the ST10+ and to a separate phone/tablet (or another Yuneec transmier/personal ground
staon) at the same me is NOT recommended as it will result in a very significant lag in the video downlink.
8
7654
9
10
11
19
18
17
16
1415 1213
21 3
Model:4K Welcome,Pilot 07:25
GPS
N/A
SAT
N/A
POS
N/A E
N/A N
MODE
N/A
ALT
N/A 
VOLTS
N/A V
G-SPD
N/A mph
DIS
N/A 
System Sengs Flight Sengs Model Select
AWB
3840 x 2160 F30

12
ST10+ Accessories
You can install the included and oponal-use Neck Strap to help hold and
support the ST10+. You can also install the included and oponal-use LCD
Screen Sun Shade/Shield to help improve viewing in sun light.
QUICK TIP: It may be helpful to apply suitable an-glare screen protector
material over the LCD screen to further improve viewing in sun light.
CAUTION: Do not bend, or move around in excess as the strap can come
unhooked from the ST10+ and potenally fall and damage the sensive
electronic components.
Moving the le-hand sck to the le will turn (yaw) the nose of the
TYPHOON to the le about the vercal axis. And moving the sck to the
right will turn (yaw) the nose of the TYPHOON to the right.
Flight Controls
NOTE: The informaon in this and the following secons refers to the
default ‘Mode 2’ control configuraon of the ST10+. The le-hand sck on
the ST10+ controls the throle (climb/descend) and rudder (yaw le/right)
channels.. When the le-hand sck (also known as the throle sck) is in
the middle posion during flight the TYPHOON will maintain the current
altude. As you move the sck upward the TYPHOON will climb, and as
you move the sck downward the TYPHOON will descend. The farther
away from the middle posion you move the sck the faster the TYPHOON
will climb or descend.
IMPORTANT NOTE: The maximum altude is limited to 400 feet (122
meters) AGL (Above Ground Level) in both Smart and Angle (Pilot) Mode.
And although this limit can be adjusted using the USB interface/program-
mer and soware we strongly recommend using the default limit at all
mes.
Maximum Climb Rate:
2m/s (6.6f/s)

13
SELECTING A FLIGHT MODE
the TYPHOON is programmed with three (3) flight modes that can be
selected via the Flight Mode Selecon Switch located just above the
right-hand control sck.
PROPORTIONAL CONTROL RATE SLIDER
The Proporonal Control Rate Slider located on the right side of the ST10+
allows you to set the overall climb/descend and direconal control rates.
Use the turtle posion for the lowest control rates (best for first-me pilots
and required when flying between 5000 feet and 8000 feet Above Mean
Sea Level), and use the rabbit posion for the highest control rates (best for
experienced pilots and can only be used when flying below 5000 feet MSL).
Or use a posion in between if you prefer.
When the Flight Mode Selecon Switch is the top posion the TYPHOON
will be in Smart Mode.
Although we recommend learning to fly the TYPHOON in Angle (Pilot)
Mode as soon as possible, Smart Mode is typically the best mode for
first-me pilots to fly in which also features ‘Follow Me’ and ‘Watch Me’
funcons.
In Smart Mode the TYPHOON will always move in the direcon the
right-hand control sck is pushed relave to the pilot and no maer which
way the front/nose is pointed. So if you push the sck to the le the
TYPHOON will always move to the le, regardless of the direcon the nose
is poinng and even if it’s spinning. This mode can also be helpful for pilots
that lose orientaon while flying in Angle (Pilot) Mode.
Flight Controls - Smart Mode
SMART CIRCLE*
*Ø 52 feet / 16 meters

14
FOLLOW ME FUNCTION
The Follow Me funcon allows the TYPHOON to follow the pilot, adjusng
its locaon to the locaon of the ST10+. This funcon is enabled when
ST10+ GPS posioning completes, and the TYPHOON is using shared GPS
signal with the ST10+. At this me, you will see in orange, and in
green color.
When in Follow Me funcon, the TYPHOON will follow the movement of
ST10+ if there is no extra operaon on the ST10+. The flight status is also
controllable when you operate ST10+ and CGO3.
Important Note: In Follow Me funcon, the aircra will maintain a constant
altude and cannot detect obstacles. Pilots who change their altude by
for example, moving to higher ground, during flight should be mindful of
this.
MODE
Follow

System Setting Flight Setting Model Select
MODE
Model: 4K WELCOMEPILOT 11:25:11am
Watch
GPS
N/A
SAT
N/A
POS
N/A E
N/A N
VOLTS
N/A V
ALT
N/A ft
G-SPD
N/A mph
DIS
N/A ft
3840 x 2160 F30
WATCH ME FUNCTION
Watch Me funcon enables the camera to keep tracking the remote control-
ler no maer where and how it moves as the camera can automacally lt its
angle according to the controller.
Usually, the default funcon under Smart Mode is Follow Me. Watch Me
funcon can be switched to by following steps:
15
In Watch Me funcon, the pilot will always be kept in the frame wherever
he moves.
Model: 4K Welcome,Pilot 10:48:28 pm 10
GPS
Ready
SAT
13
POS
00.0000E
00.0000N
MODE
Watch
ALT
21.4 
VOLTS
12.3 V
G-SPD
0.0 mph
DIS
22.5 
System Sengs Flight Sengs Model Select
3840 x 2160 F30
Press , the buon will change from ORANGE to GREEN. And now it is
in Watch Me funcon.
NOTE: Once the TYPHOON is above 2m and out of Smart Circle during
flying, the TYPHOON yaw direcon will take the control itself. Camera
lens will always point to you as long as Flight Mode Selecon Switch is in
Smart Mode. Please put the CGO3 Pitch Angle/Posion Control Slider in
the middle posion. If you want to trim the camera angle up, then just
move the Pitch Angle/Posion Control Slider a bit up. If you want to trim
the camera angle down, just move the slider down.
Watch Me/Follow Me Buon: When in Smart Mode, press to switch
the TYPHOON between Watch Me and Follow me funcon. Follow Me
funcon is the default seng, and the buon is ORANGE. If it is GREY,
it means ST10+ GPS isn’t ready yet. Please wait.
Welcome,Pilot 10:48:28 pm 10
GPS
Ready
SAT
13
POS
00.0000E
00.0000N
MODE
Follow
ALT
21.4 
VOLTS
12.3 V
G-SPD
0.0 mph
DIS
22.5 
System Sengs Flight Sengs Model Select
3840 x 2160 F30
Model: 4K

16
Addional Angle (Pilot) Mode Features:
POSITION HOLD AND SELF-LEVELING
the TYPHOON will automacally hold its posion (with a suitable GPS
signal/lock) and maintain a level atude when the right-hand sck is
centered.
WARNING: If you do not properly control the TYPHOON in Angle (Pilot)
Mode the aircra may crash or even ‘fly away’.
IMPORTANT NOTE: Crash damage and ‘fly aways’ are NOT covered under
warranty.
Flight Controls - Angle (Pilot) Mode
When the Flight Mode Selecon Switch is the middle posion the
TYPHOON will be in Angle (also known as Pilot) Mode.
Angle (Pilot) Mode is the mode preferred
by experienced RC/drone pilots because
the TYPHOON will move in the direcon
the control sck is pushed relave to the
front/nose of the aircra. So if you push
the right-hand sck to the le the
TYPHOON will bank toward the le side
and move to the le. This means if the
front/nose of the TYPHOON is poinng
away from you it will move to the le, but
if the front/nose is poinng at you the
TYPHOON will move to the right.
Addional Smart Mode Features:
*SMART CIRCLE
In most cases the Smart Circle will keep the TYPHOON from coming within
approximately 26 feet (8 meters) of you (as long as you posion yourself at
least 26 feet/8 meters behind the TYPHOON.
GEO-FENCE
The geo-fence is a virtual ‘barrier’ that will keep the TYPHOON from travel-
ing further than 300 feet (91 meters). Although this limit can be adjusted
using the USB interface/programmer and soware we strongly recommend
using the default limit at all mes.
WARNING: Smart Mode only works when the TYPHOON has a suitable
GPS signal/lock. If you take off in Smart Mode and the TYPHOON loses
GPS signal/lock it will switch to Angle (Pilot) Mode automacally. This is
why we strongly recommend learning to fly in Angle (Pilot) Mode as soon
as possible. Otherwise, if you lose GPS signal/lock and are not able to
properly control the TYPHOON in Angle (Pilot) Mode the aircra may
crash or even ‘fly away’.
IMPORTANT NOTE: Crash damage and ‘fly aways’ are NOT covered under
warranty.

Flight Controls - Home Mode
When the Flight Mode Selecon Switch is in the boom posion the
TYPHOON will be in Home (also known as Return to Home) Mode.
PILOT LOCATION
13-26 
(4-8m)
LANDING
LOCATION
In Home Mode the GPS connecv-
ity will fly back the TYPHOON, and
automacally land within 13-26 
(4-8m) of the pilot. This can be
very helpful for first-me pilots
who aren’t quite ready to land the
TYPHOON themselves. It can also
be helpful for pilots that lose
orientaon during flight; simply
acvate Home Mode unl the
TYPHOON automacally moves
toward the home posion, and
once you’ve confirmed orientaon
switch back to Angle (Pilot) Mode.
And if the TYPHOON ever loses
the link with the ST10+ it will
automacally enter Home Mode.
When Home Mode is acvated the TYPHOON will respond as follows:
10 m
10 m
B) When flying lower than 33 feet (10 meters) the TYPHOON will climb to
33 feet (10 meters) while flying back to the home point, or acve home
posion, then descend vercally unl it lands.
A) When flying higher than 33 feet (10 meters) the TYPHOON will maintain the
current altude, fly back to the home point, , or acve home point if the ST10+
has enough satellites for Follow Me, then descend vercally unl it lands.
17

B) When flying lower than 33 feet (10 meters) the TYPHOON will climb to
33 feet (10 meters) while flying back to the home point, or acve home
posion, then descend vercally unl it lands.
CAUTION: You must be certain there are no obstacles in the ‘Return to
Home’ flight path otherwise the TYPHOON may come into contact with
them and crash. And while the TYPHOON is in Home Mode you will have
a limited amount of direconal control to help avoid obstacles, however,
we strongly recommend switching to Smart or Angle Mode to avoid the
obstacle (then you can switch back to Home Mode).
WARNING: Home Mode only works when the TYPHOON has a suitable
GPS signal/lock. If the TYPHOON loses GPS signal/lock it will switch to
Angle (Pilot) Mode automacally. This is why we strongly recommend
learning to fly in Angle (Pilot) Mode as soon as possible. Otherwise, if you
lose GPS signal/lock and are not able to properly control the TYPHOON in
Angle (Pilot) Mode the aircra may crash or even ‘fly away’.
IMPORTANT NOTE: Crash damage and ‘fly aways’ are NOT covered under
warranty.
Led Status Indicaons
18

19
