Tyrepal TC215/OEK User manual

TyrePal TPMS OE Monitor Kit
TC215/OEK
User manual
Innovative safety solutions for your peace of mind

2

3
CONTENTS
1. INTRODUCTION ....................................................... 4
2. IMPORTANT SAFETY NOTE ....................................... 4
3. MONITOR LAYOUT AND CONTROLS ........................... 5
4. SETTING UP.............................................................. 5
4.1 Switch on the monitor.......................................... 6
4.2 Register the sensors ........................................... 6
4.3 Set units of pressure and alert levels.................... 7
4.4 Install the monitor .............................................. 8
4.5 Connect power ................................................... 8
5. OPERATION .............................................................. 8
5.1 Sleep mode ........................................................ 8
5.2 Alerts .................................................................9
5.3 Connecting and disconnecting a trailer ................ 10
6 OPTIONAL EQUIPMENT............................................ 10
6.1 Sensors for spare tyre or tow car ....................... 10
6.2 Smart transceiver .............................................. 10
7. TROUBLESHOOTING & ADDITIONAL INFORMATION.. 11
8. SPARES AND WARRANTY ......................................... 11

4
1. INTRODUCTION
This system is designed to monitor the pressure and temperature of wheels and tyres that have been fitted with
TyrePal TPMS internal sensors. Additional sensors can be purchased to monitor spare wheels, or the tyres on
the towing car.
This pack contains the monitor set comprising the following components together with this user manual:
The system continuously monitors tyre pressure and temperature while the caravan is in motion and gives
distinct alerts in the event of:
 Rapid pressure loss
 Low tyre pressure
 High tyre pressure
 High tyre temperature
The TC215 system can monitor up to 22 tyres on a car and trailer, but once the sensors are registered to the
monitor, it only displays the wheel positions where sensors are registered.
2. IMPORTANT SAFETY NOTE
The system does not replace the need to carry out regular checks on the condition, age and wear
of the tyres. It is your responsibility to ensure that the system is working properly in your particular vehicle,
and is properly maintained.

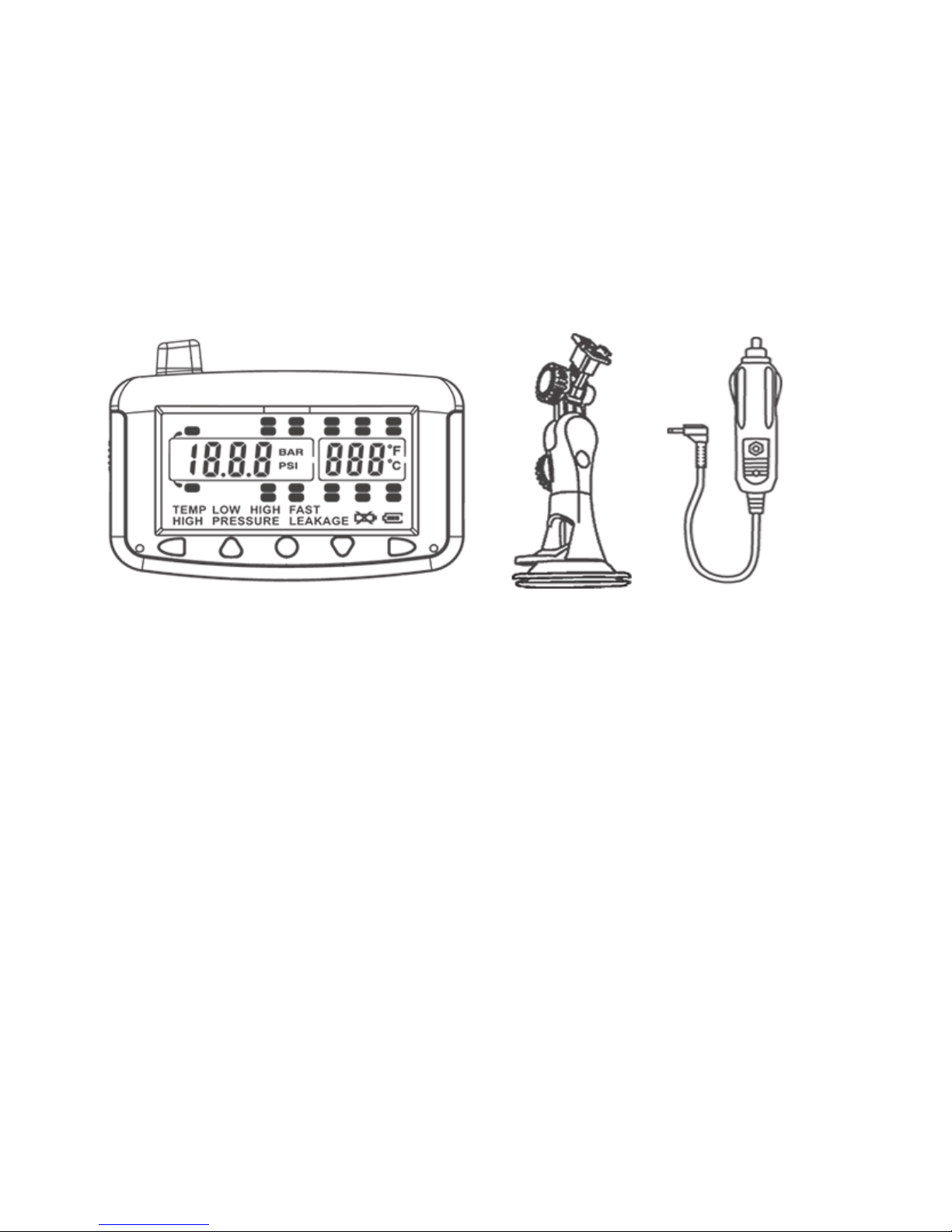

1 x Monitor 1 x Articulated suction
mount 1 x Charging lead

5
3. MONITOR LAYOUT AND CONTROLS
Tyre position icon
Monitor battery icon (fully charged) (requires charging)
Sensor low battery icon (replace sensor battery or replace internal sensor)
4. SETTING UP
Tyre sensors must be registered to the monitor before use.
If the caravan or trailer has been supplied as ‘TyrePal TPMS ready’, internal sensors are pre-fitted inside the
tyres. The system can also monitor the caravan spare tyre or the tyres on the towing vehicle, if additional
sensors are purchased. These external sensors simply screw on to the tyre valve in place of the normal valve
caps.
The sensors can be registered to any of the 22 possible positions shown on the display. For a single axle
caravan, we recommend using the caravan wheel positions as indicated.
