Introduction
1.1 Introduction
We are happy to provide this user manual as an introduction for the usage of the
TYROSTATION. The following user manual addresses the essential functions that are
necessary for understanding the functionality and usage of the TYROSTATION.
For more information about our products visit our website or contact us personally.
1.1.1 Regarding the usage of this documentation
It is absolutely imperative that every user completes the training course
and has read the user manual prior to using TYROSTATION!
For legibility reasons, the following pages only refer to the male gender, which, however,
always implies the female gender as well. TYROMOTION GmbH rejects any liability for
damages to persons or material if safety regulations and instructions relevant to the
usage of the TYROSTATION are not observed!
1.1.2 Symbols in the user manual
Warnings: Severe risk of injury or hazard results when this symbol is
displayed in the user manual and notices are not observed. Be especially
mindful of these notices!
Follow the user manual

EN –6
1.1.3 System content
The TYROSTATION consists of the following components, included in the delivery:
Height-adjustable therapy desk consisting of table frame (foot stabilizers with
castors, lifting column including controls, power supply for PABLO® - and
TYMO® system), table top, storage area for PABLO® - and TYMO® system,
storage container (maximum load of 5kg)
All-In-One PC on a monitor arm
Height-adjustable therapy stool
USB memory stick (manual)
1.1.4 Intended purpose
The TYROSTATION has been developed as accessory equipment for the medical devices
PABLO® and TYMO®. However, the user manual does not contain any information about
the therapeutic use of these devices, but only serves to describe the TYROSTATION.
TYROSTATION offers all options you require for the application and storage of the
mentioned devices from TYROMOTION. It offers adjustment options for the desk and
stool height in order to be able to optimally adapt the therapy to the patient.
1.1.5 Notices
Familiarize yourself with the user manual prior to system usage and re-
read the manual in regular intervals.
Medical personnel and properly trained therapists responsible for the TYROSTATION are
required to warn technicians, patients and other persons within the vicinity of the device
to fully observe the contained safety precautions. The system may only be operated by
properly trained personnel. Training can be requested as required. Ensure that the
system is not manipulated by unauthorized personnel.
1.1.6 Safety
The TYROSTATION must be activated by persons who have read and understood chapter
1.1.6 and 1.1.7. Modifications by users can compromise safety and system performance.
All modifications must be performed by persons certified by TYROMOTION. The
information in section 1.1.7 familiarizes users with potential hazards of system usage
and warns about injuries and damages resulting from non-observance of safety

EN –7
precautions. Users are obligated to familiarize themselves with these safety instructions
and avoid conditions that may lead to injuries or damages.
1.1.7 Warning
Warnings are always identified in the user manual by the symbol displayed in chapter
1.1.2 (yellow triangle with exclamation mark).
All warnings from the chapters are collectively stated in the following in order to ensure
the applicability of this user manual.
Warnings from chapter 1
Introduction:
It is absolutely imperative that every user completes the training course and has read the
user manual prior to using TYROSTATION!
Warnings from chapter 2
Area of application:
It is not permitted to consume or set down food or beverages near or on the device due
to safety considerations.
It is not permitted to set down liquids (for example, disinfectants) near or on the device
due to safety considerations.
Caution: The therapy desk is not suited for standing or sitting on it. Do not put loads on
TYROSTATION that are heavier than specified above (therapy desk 70kg, therapy stool
110kg). Make sure to put weight centrally on the therapy desk. The specified load limit
applies only to the table top. Only the weight of the devices to be used on TYROSTATION
may be put in shelf areas designated for them.
The maximum load applies to a central load placed on the therapy stool. Always place
loads centrally on the therapy stool and not close to the edges.
TYROSTATION is classified as a medical electronic device and therefore subject to specific
precautionary measures relating to electromagnetic compatibility (EMC). It is absolutely
imperative to observe the following EMC indications. Portable and mobile HF
communication equipment may affect TYROSTATION.
Repair:
Always contact the manufacturer for repairs!

EN –8
Adjustment options TYROSTATION:
It is possible to pinch body parts under TYROSTATION while lowering the lifting column.
Observe the warnings attached to the device! Only therapists may lower the lifting
column.
Only adjust the height of TYROSTATION after all TYROMOTION devices have been placed
in the shelves designated for them.
When adjusting the height of the therapy desk, make sure that there is nothing below or
above the table top (stools, side tables, shelves, etc.).
Do not fix any objects such as handles and the like on the therapy desk, because the
stability of the desk cannot be guaranteed when excessive force is applied.
Adjust the height of the therapy desk in such a way that optimum operation for therapy
is guaranteed. (The therapist in charge has to perform this adjustment).
Functionality test:
Immediately stop using the system if one of the described malfunctions in Table 6 has
occurred or is suspected.
Warnings from chapter 3
Power supply:
Caution: TYROSTATION® may only be connected to electricity grids with ground
connection (3-pole). If your power grid requires another mains plug than the supplied
one, you have to get one yourself beforehand.
The system may only be connected to a safety outlet as such an outlet provides the
necessary protection.
The system may only be connected to electric IT circuits equipped with max. 30mA RCCB
protection.
The system may not be connected to the electric circuit with extension cables.
The TYROSTATION was developed especially for the use of the therapy devices by the
TYROMOTION GmbH. For safety reasons it is not permitted to connect other electrical
devices than those from TYROMOTION GmbH to the power supply of the TYROSTATION.

EN –9
Device setup and movement:
When positioning it, make sure that the rear of the therapy desk is positioned at a
distance of 5-10 cm from a solid wall. This minimizes the risk of tilting and prevents the
therapy desk from rubbing against the wall during height adjustment.
If you need to lift the TYROSTATION during transport, be careful not to raise the
TYROSTATION on the table top or on the storage containers, but always on the table
frame.
For safety reasons, always secure all four adjustable castors before using the
TYROSTATION.
It is imperative that the following items are observed due to the increased tipping hazard:
•Never move the device while a patient is close by
•Always move the TYROSTATION in the collapsed mode (tabletop not tilted, lowest
position)
•Exercise caution while crossing thresholds
•Observe the warning "Sitting prohibited", which is attached to the device
Start-up:
The electronic distribution panel at the rear of TYROSTATION can only be accessed using
tools. It serves exclusively to supply TYROMOTION products with voltage. The connection
of other electric components using this distribution panel can compromise the electric
safety of TYROSTATION.
Warnings from chapter 4
Cleaning:
The hygienic instructions stated in chapter 4.3 must be strictly observed.
1.1.8 Owner’s responsibility
The owner is responsible for ensuring that all persons who operate the system have read
and understood this user manual. However, we cannot guarantee that every person who
has read this manual is qualified to operate, inspect, check, calibrate, repair or modify
the system or fix system errors. The owner must ensure that the installation,
maintenance, calibration and repair of the system as well as the fixing of errors are only
performed by properly trained and fully qualified personnel. The owner of the
TYROSTATION must ensure that only properly trained and fully qualified personnel
(certified users or operators) receive the authorization to operate the system. It must
be ensured that the user has read and fully understood the operating instructions

EN –10
contained in this user manual and has been trained either by TYROMOTION or by other
employees of the owner who have been trained by TYROMOTION before being
authorized to operate the TYROSTATION. The owner is obligated to maintain a list of
authorized operators. The operator must contact TYROMOTION if the system does not
work properly or does not respond correctly to the commands described in this user
manual.
1.1.9 Error and omissions
Please contact TYROMOTION GmbH if this user manual contains errors or omissions
(addresses are listed at the beginning of the document and on our website
www.tyromotion.com).
1.1.10 Property of TYROMOTION GmbH
TYROMOTION GmbH owns the copyright-protected content of this user manual,
including all figures and illustrations; this information is exclusively provided for
operational, maintenance and repair purposes. Any distribution for other purposes or
copying without prior written approval by TYROMOTION is prohibited.
1.1.11 Warranty and legal disclaimer
TYROMOTION GmbH issues a warranty to the original system purchaser that the system
shall be free of material and qualitative processing defects for a period of 12 months
under normal usage conditions from the date of installation on the owner's premises
and that the system complies with the mechanical and electrical specifications published
by TYROMOTION (unless the warranty term is extended by an optional service contract).
This warranty is granted under the provision that the system is installed, operated and
maintained in accordance with the user manual. The customer must submit all warranty
claims to TYROMOTION in written form within 60 days of the occurrence of the problem
and before the expiry of the warranty. TYROMOTION is exclusively obligated to repair,
exchange or correct faulty or non-compliant parts at its own discretion in accordance
with the warranty. TYROMOTION has no further obligations to the owner in regard to
these parts after the repair or exchange of faulty or non-compliant parts. All repairs or
maintenance work must be performed by an authorized TYROMOTION service
representative in accordance with this warranty. The above mentioned warranty
becomes null and void if repairs, maintenance or other work is performed by third
parties. Moreover, problems resulting from accidents, improper use, incorrect
application, storage damage, negligence as well as system or component modifications
are excluded from the warranty.
The above mentioned warranty is granted in place of all other warranties, rights or
conditions, and the system is delivered "without deficiency warranty" apart from the
limited warranty. TYROMOTION and its third-party suppliers specifically and

EN –11
unreservedly reject all other explicit or implicit warranties held by the owner, his
personnel and patients, customers, users and any third parties, unreservedly including
all warranties for marketability, applicability for a specific purpose, non-infringement
and any warranties resulting from performance development, business trends or
commercial customs. TYROMOTION and its third-party suppliers do not provide
declarations or warranties for system compliance with the owner's requirements or for
functionality without interruption, errors or deficiencies.
TYROMOTION is in no way liable for indirect, incidental, specific or consequential
damage or for punitive damage compensation including, among other things, the loss or
absence of profits, yield, goodwill or usage, which the owner or third parties may incur
or for damage to connected equipment, costs for replacement products, installations,
servicing, exchange elements or idle time or for claims from patients, customers, visitors,
the owner's employees or other persons, regardless whether submitted within the
context of a contractual claim, due to unauthorized behavior, strict liability or imposed
by law or otherwise even when TYROMOTION has been informed about the possibility
of such damages. TYROMOTION's liability for damages resulting from or in connection
with this contract may not in any event exceed the purchasing price of the system.
Some jurisdictions limit or exclude the extent of restrictions, the exclusion of legal
means, compensation or liability, such as liability for gross negligence or willful
misconduct according to or in the abovementioned extent or do not permit the exclusion
of implicit warranties. In such jurisdictions, the restriction or exclusion of warranties,
legal means, compensations or liabilities described above may not be valid for the
owner. Such restrictions or exclusions apply according to the highest legally permitted
extent even if they are not valid according to the legally prohibited extent. The owner
may also have other rights that vary depending on the specific country or other
jurisdictions.
1.2 Training concept
The TYROSTATION is a complex technical device. Users of the TYROSTATION are required
to complete a training course and read the user manual in order to ensure the safety of
patients, users and the device itself. Merely reading the present manual does not convey
sufficient competence for operating the TYROSTATION. Prospective users are also
required to have basic medical training (e.g. physiotherapy/ergotherapy). TYROMOTION
GmbH rejects all liability for damages resulting from therapy that was performed by an
untrained user. Prospective users are trained after delivery of the TYROSTATION.
Users are able to perform initial and repeated therapies training with the TYROSTATION.
Users are not permitted to instruct other persons in the usage of the TYROSTATION.
Users are trained by a member of TYROMOTION GmbH or by another trainer delegated
by TYROMOTION GmbH.

EN –12
1.3 Symbols on TYROSTATION
Follow the user manual
Do not discard with household waste.
Applied part, type B
Alternating current
CE mark
Information about the manufacturer of the TYROSTATION, including
the manufacturer's full mailing address is displayed next to the factory
symbol.
Warning symbol: Crushing hazard warning
Sitting prohibited!
Sitting on or bracing oneself against the device or device parts is
prohibited.

EN –13
No entry!
Entering the area is prohibited due to potential pinch point and
breakage hazard.
Labelling on the power switch:
I means the device is activated (top position).
O means the device is deactivated (bottom position).
Table 1: Symbols on TYROSTATION

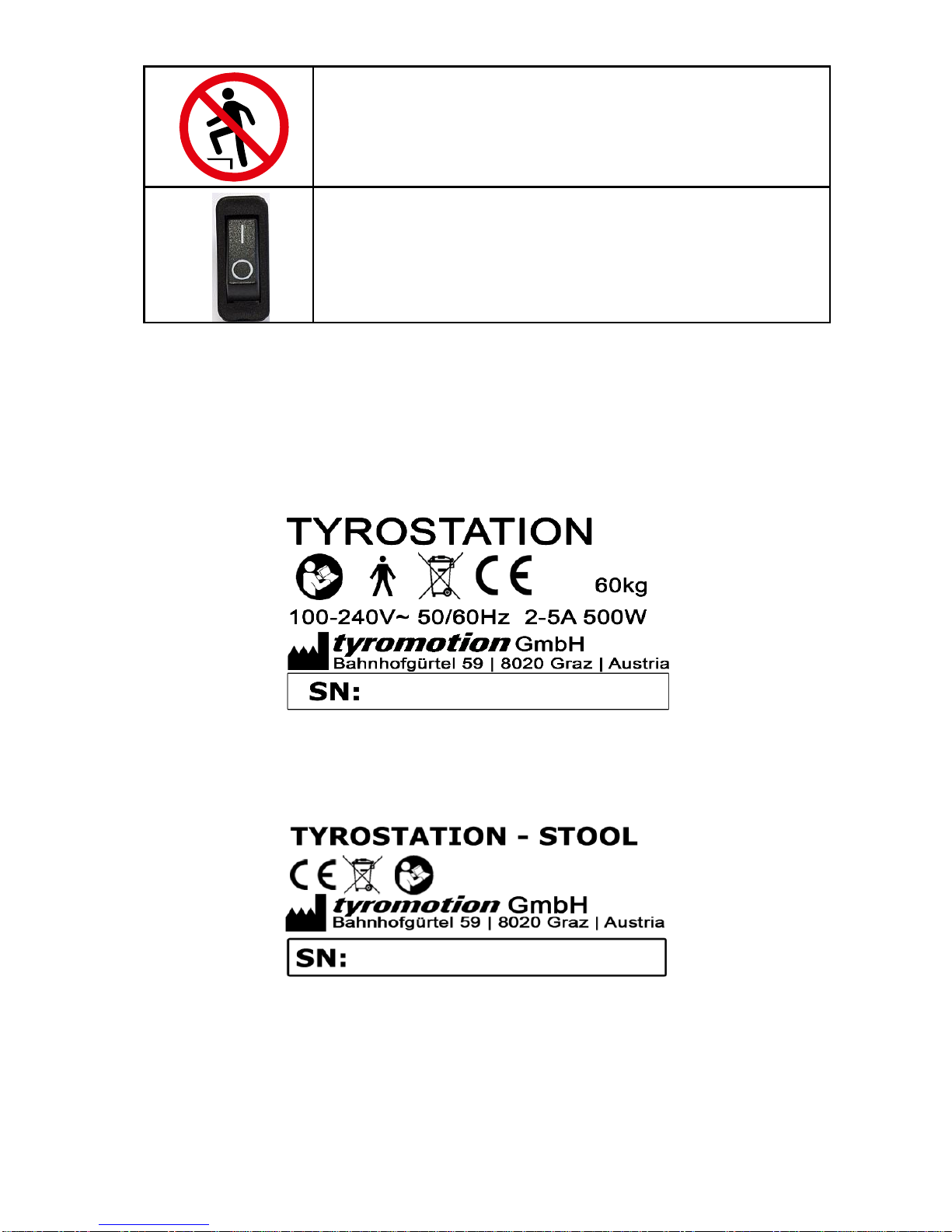

1.3.1 Type label
The type labels designate the TYROSTATION as a medical product.
TYROSTATION Therapy desk
Figure 1: Type label TYROSTATION Therapy desk
TYROSTATION Therapy stool
Figure 2: Type label TYROSTATION Therapy stool

EN –14
Technology
2.1 Technology
2.1.1 Overview
Type description:
TYROSTATION
Build year:
Can also be determined from the serial number, e.g. SN: TSTR2-2017-XXX
refers to the year 2017.
Classification:
Class I medical product according to the Council's Directive 2017/745 MDR.
Type of applied part:
Type B
Protection against electric
shock:
Protection class I device –protective grounding
Electromagnetic
compatibility:
Class B device (CISPR 11)
The TYROSTATION is suitable for usage in all establishments including
residential areas and areas that are directly connected to the PUBLIC SUPPLY
GRID, which also supplies residential buildings.
Country of origin:
AUSTRIA
Power supply voltage:
100 –240V alternating current
Supply frequency:
50/60Hz
Electricity/Power
consumption:
2 - 5A / 500W
Supply grid:
Only connect to supply grids with protective ground wiring.
Operating type:
Continuous operation
Electrical adjustment drives interval operation (2 min. on/18 min. off)
Fuses:
Secured for all poles (2x T 5A H 250V, IN=5A, UN=250V)
Weight:
Therapy desk: 60 kg
Therapy stool: 9.6 kg
Dimension (WxLxH):
Therapy desk
Collapsed (in mm): 1183 x 1000 x 650
Extended (in mm): 1183 x 1000 x 1310
Therapy stool
Collapsed (in mm): 380
Extended (in mm): 500

EN –15
2.1.2 Area of application
Device usage is principally limited to clean, dry rooms within professional health care
establishments.
Operation:
Temperature: 10 ... 30 °C
Humidity: 30 ... 75 % relative humidity
Storage and transport:
Temperature: -20 ... 60 °C
Humidity: 20 ... 90 % relative humidity, no dew
Maximum load:
The maximum load for the TYROSTATION therapy desk is 70 kg. The maximum load for
the TYROSTATION therapy stool is 110 kg.
Caution:
The TYROSTATION may not be used in explosion-prone zones AP and APG according to
EN 60601-1/2006.
Among other things, this means: The usage of easily flammable and explosive, anesthetic
inhalation materials and mixtures thereof is not permitted within the vicinity of the
TYROSTATION. These materials include:
•Ether pro narcosi (diethyl ether)
•Cyclopropane
It is not permitted to consume or set down food or beverages near or
on the device due to safety considerations.
It is not permitted to set down liquids (for example, disinfectants)
near or on the device due to safety considerations.
Caution: The therapy desk is not suited for standing or sitting on it.
Do not put loads on TYROSTATION that are heavier than specified
above (therapy desk 70kg, therapy stool 110kg). Make sure to put
weight centrally on the therapy desk. The specified load limit applies
only to the table top. Only the weight of the devices to be used on
TYROSTATION may be put in shelf areas designated for them.

EN –16
The maximum load applies to a central load placed on the therapy
stool. Always place loads centrally on the therapy stool and not close
to the edges.
TYROSTATION is classified as a medical electronic device and therefore
subject to specific precautionary measures relating to
electromagnetic compatibility (EMC). It is absolutely imperative to
observe the following EMC indications. Portable and mobile HF
communication equipment may affect TYROSTATION.
Guidelines and MANUFACTURER‘s declaration – ELECTROMAGNETIC
EMISSIONS
The TYROSTATION is designed for operation in an ELECTROMAGNETIC ENVIRONMENT as indicated below.
The customer or user of the TYROSTATION must ensure that it is used in such an environment.
Interference emission
measurements
Agreement
ELECTROMAGNETIC
ENVIRONMENT –
Guidelines
HF emmissions according to
CISPR 11
Group 1
The TYROSTATION exclusively uses
HF energy for its internal
FUNCTIONS. HF emissions are very
low and unlikely to disrupt electronic
devices within range.
HF emissions
according to CISPR 11
Class B
The TYROSTATION is suitable for
usage in all establishments
including residential areas and
areas that are directly connected to
the PUBLIC SUPPLY GRID, which
also supplies residential buildings.
Harmonics emissions according
to IEC 61000-3-2
Class A
Emissions of voltage
fluctuations/flicker according to
IEC 61000-3-3
Not applicable
Table 2: Guidelines and manufacturer‘s declaration – Electromagnetic emissions

EN –17
Guidelines and MANUFACTURER‘s declaration – ELECTROMAGNETIC
IMMUNITY
The TYROSTATION is designed for operation in an ELECTROMAGNETIC ENVIRONMENT as indicated below.
The customer or user of the TYROSTATION must ensure that it is used in such an environment.
Immunity Test
IEC 60601-Test
Level
Compliance Level
ELECTROMAGNETIC
ENVIRONMENT - Guidance
Electrostatic Discharge
(ESD)
IEC 61000-4-2
± 8 kV contact
± 15 kV air
± 8 kV contact
± 15 kV air
Floors should be wood,
concrete, or ceramic tile. If
floors are covered with
synthetic material, relative
humidity should be at least
30%.
Electrical Fast
Transient/Burst
IEC 61000-4-4
± 2 kV for power
supply lines
± 1 kV for
input/output lines
± 2 kV for power supply
lines
Not applicable
Mains power quality should be
that of a typical
commercial or hospital
environment.
Surge
IEC 61000-4-5
± 1 kV differential
mode
± 2 kV common
mode
± 1 kV differential
mode
± 2 kV common
mode
Mains power quality should be
that of a typical
commercial or hospital
environment.
Voltage dips, short
interruptions,
and voltage variations on
power
supply input lines
IEC 61000-4-11
< 5 % UT
(> 95 % dip in UT)
for 0.5 cycles
70 % UT
(30 % dip in UT) for
25 cycles
< 5 % UT
(> 95 % dip in UT)
for 5 s
< 5 % UT
(> 95 dip in UT) for 0.5
cycles
70 % UT
(30 % dip in UT) for 25
cycles
< 5 % UT
(> 95 % dip in UT) for 5
s
Mains power quality should be
that of a typical
commercial or hospital
environment.
Power Frequency
(50/60 Hz) Magnetic Field
IEC 61000-4-8
30 A/m
30 A/m
Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.
NOTE: UTis the AC mains voltage before application of the test level.
Table 3: Guidelines and Manufacturer ‘s declaration – Electromagnetic Immunity

EN –18
Guidance and Manufacturer’s Declaration— ELECTROMAGNETIC
IMMUNITY
The TYROSTATION is designed for operation in an ELECTROMAGNETIC ENVIRONMENT as indicated below.
The customer or user of the TYROSTATION must ensure that it is used in such an environment.
Portable and mobile RF communications equipment should be used no closer to any part of the device,
including cables, than the recommended separation distance calculated from the equation applicable to
the frequency of the transmitter.
Immunity Test
IEC 60601-Test
Level
Compliance Level
ELECTROMAGNETIC
ENVIRONMENT - Guidance
Recommended Separation
Distance:
Conducted RF
IEC 61000-4-6
6 Vrms
150 kHz to 80 MHz
6 V
𝑑 = 0.58 √𝑃
Radiated RF
IEC 61000-4-3
10 V/m
80 MHz to 2.7 GHz
10 V/m
𝑑 = 0.35 √𝑃80 MHz to 800
MHz
𝑑 = 0.7 √𝑃800 MHz to 2.5
GHz
where P is the maximum
output power rating of the
transmitter in watts (W)
according to the transmitter
manufacturer and d is the
recommended separation
distance in meters (m).
Field strengths from fixed RF
transmitters, as determined by
an electromagnetic site
surveya, should be less than the
compliance level in each
frequency range.b
Interference may occur in the
vicinity of equipment marked
with the following symbol:

EN –19
NOTES:
- At 80 MHz and 800 MHz, the higher frequency range applies.
- These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects, and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones
and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be
predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the measured field strength in
the location in which the TYROSTATION is used exceeds the applicable RF compliance level above, the
device should be observed to verify normal operation. If abnormal performance is observed, additional
measures may be necessary, such as reorienting or relocating the TYROSTATION.
b
Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [4] V/m.
Table 4: Guidelines and Manufacturer ‘s declaration –Electromagnetic Immunity
Recommended separation distances between portable and mobile RF communications
equipment and TYROSTATION
The TYROSTATION is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. Users of this device can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF communication equipment
(transmitters) and the device as recommended below, according to maximum output power of the
communications equipment
Rated Maximum Output
Power of Transmitter
W
Separation Distance According to Frequency of Transmitter
150 kHz to 80 MHz
𝑑 = 0.58 √𝑃
80 MHz to 800 MHz
𝑑 = 0.35√𝑃
800 MHz to 2.5 GHz
𝑑 = 0.7√𝑃
0.01
0.058
0.035
0.07
0.1
0.18
0.11
0.22
1
0.58
0.35
0.70
10
1.83
1.11
2.21
100
5.80
3.50
7.00

EN –20
For transmitters rated at a maximum output power not listed above, the recommended separation
distance d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to
the transmitter manufacturer.
NOTES:
- At 80 MHz and 800 MHz, the higher frequency range applies.
- These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects, and people.
Table 5: Recommended separation distances between portable and mobile RF communications
equipment and TYROSTATION
2.2 The TYROSTATION system

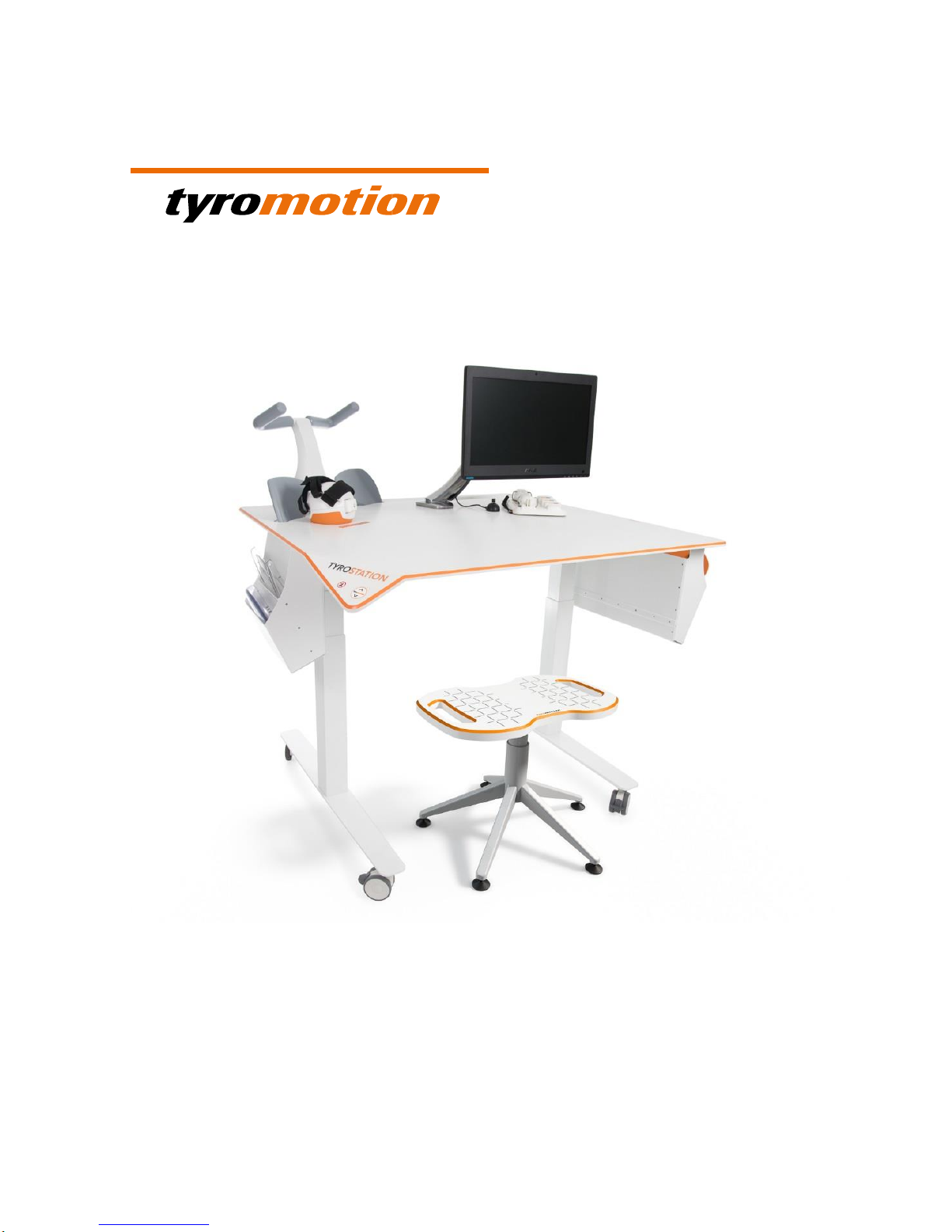

Figure 3: The TYROSTATION –1
Figure 4: The TYROSTATION –2
