Content Index
2
U-Reach UPRO User Guide V1.0(EN).indb 2
13/4/22 上午10:18

Function table
3
Function table
Function Description
1. Copy To copy disc to disc or copy disc from HDD.
2. Test To simulate copy process.
3. Compare To bit by bit compare between source disc and copied discs.
4. Copy & Compare To copy first and compare the copied discs later. To ensure data correctness.
5. Set Burn Speed To set burning speed for duplication.
6. Select Source To select source from any optical drive or hard disk drive.
7. Utility
1. Information
1. Disc Info.
To check the format of disc,
burning speed supported and
total capacity or data size.
2. Drive Info. To check the version, model No.
and brand name.
3. System Info. To check the model No. and
firmware version.
2. Erase Disc
1. Quick Erase To quick erase data from
rewritable disc.
2. Full Erase To full erase data from rewritable
disc.
3. PreScan Source To check source disc’s readability.
4. Track Edit
1. Copy Track
To select and combine audio
tracks from various CDs into a
single customized audio CD.
2. Close Disc
To close the disc after track
copying to make the CD playable
on CD player.
3. Disc Info. To check the audio CD’s status
of usage.
5. Eject All Disc To eject all trays.
6. Copy Counter
1. Show Count To check how many discs copy
uccessfully and failed.
2. Enable Counter To enable or disable counter
setting.
3. Clear Counter To delete the record.
7. Update BIOS To update the system’s firmware.
8. PRINT LS Label To print Lightscribe image.
U-Reach UPRO User Guide V1.0(EN).indb 3
13/4/22 上午10:18

Function table
4
8. Setup
1. Auto Start Time
Allow the system to do the Copy,
Test, Compare and Copy +
Compare functions automatically.
2. Display Mode
1. Basic
2. Show Timer
3. Show Speed
3. Button Beep
4. Eject On Start
1. Eject All Discs To eject all trays with disc inside
once the system is booted up.
2. Do Not Eject No eject any tray or disc once
the system is booted up.
3. Eject Target Only
Only eject target trays with disc
inside once the system is booted
up.
4. Eject Source Only Only eject source disc once the
system is booted up.
5. Eject All Trays To eject all trays once the system
is booted up.
5. Reader Speed To adjust the reading speed of
source drive.
6. Compare Speed To adjust the speed of drives
while comparing.
7. Language
8. Clear Setup To reset all the function back to
manufacturer’s default setting.
9. Advanced Setup
1. Power On Time To set a warm-up time from 5
seconds to 99 seconds.
2. Startup Menu
To select which function you
would like to show up in the
beginning
3. Skip Reader Error To set skip the read error and
keep copying.
4. Change Bad Master
To make the system eject
source disc and ask for another
one while the source disc is
unreadable for system.
5. CD Overburn Set to copy overburn CD.
6. Show HDD Image
Name
To show HDD image name
or capacity on Copy, Test,
Copy+Compare and Compare
function.
7. Keep Buffer To set enable or disable load
source to the buffer.
8. Boot Password To enable or disable the user
administrative password.
9. Setup Password To set up the login password.
10. Count Password To set up counter login password.
U-Reach UPRO User Guide V1.0(EN).indb 4
13/4/22 上午10:18

Function table
5
9. HDD Manager
1. Select Image To select image file from HDD as
your source for copy.
2. Disc => Image To load your source disc to the
built-in HDD.
3. Set Reader Speed
To adjust the speed of source
reader while you load image file
from the reader to HDD..
4. Show Image Info. To check the disc format and
data size of image file.
5. Rename Image To change the name of image file.
6. Delete Image To delete image file in the built-in
HDD.
7. Show HDD Info.
To check the information of the
built-in HDD includes how many
discs are stored and the free
space is available.
8. Format HDD To format the built-in HDD.
9. Load & Copy
1. Synchronous To load source to HDD first and
copy from HDD to disc.
2. Load First To load the source to HDD and
make copy at the same time.
3. OFF To disable Load & Copy function.
10. USB Copy Tool
1. Disc to USB Copy Disc to USB
2. USB to Disc Copy USB to Disc
3. USB to USB Copy USB to USB
U-Reach UPRO User Guide V1.0(EN).indb 5
13/4/22 上午10:18

Copy Disc to Disc
6
How to execute disc to disc duplication?
Source Targets after copy
100 %
=

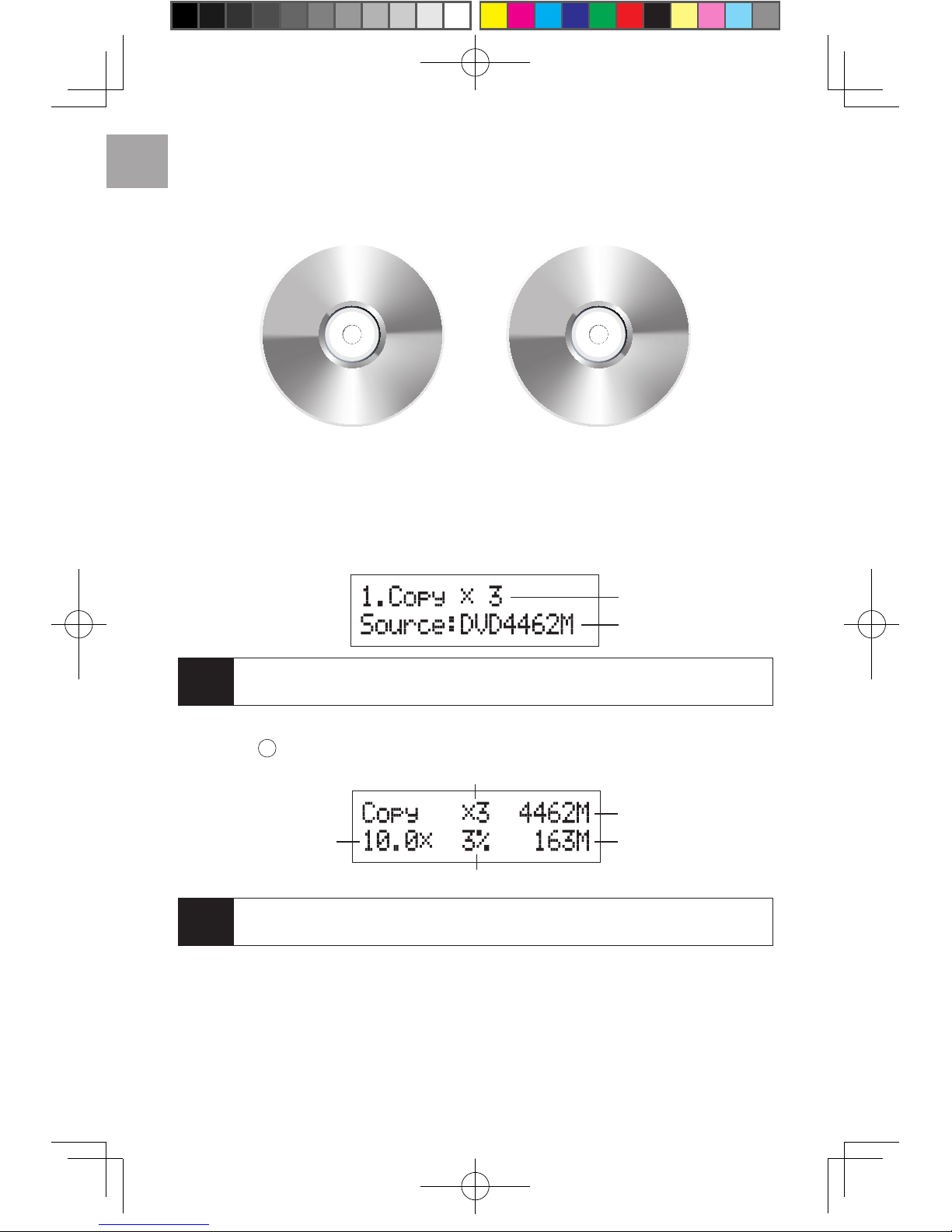

1Select function "1.Copy" and place source disc/target disc to the
right drives. The system will detect source disc and display the disc
info on LCD.
Data size
Q'ty of target disc
Note If you want to change source drive to other port, please go sesstion "How to
select source?"
2Press
OK
button to start copying.
Data size
Copied data siz
e
Speed of burning
Copy process %
Q'ty of target
Note It’s necessary to use the same types of disc during duplication. E.g., CD to CD;
DVD to DVD.
U-Reach UPRO User Guide V1.0(EN).indb 6
13/4/22 上午10:18

Copy Disc to Disc
7
3Once duplication task is completed, disc will be ejected
automatically and LCD will show duplication result.
Elapsed time
Note Default setting of function "8.1 Auto Start Time". is 5 seconds, so the system
automatically starts duplicating after the last drive rack is retracted for 5
seconds. User can customize the setting to longer waiting time or select "Off"
to cancel this function.
How to set copy speed?
User can change the copy speed of CD, Audio CD, DVD, DVD DL and
Blu-ray. The default setting is CD=40×, Audio CD=24×, DVD=8×, DVD
DL=2×, and Blu-ray=2×.
1Select function "5. Set Burn Speed" press
OK
button to get into
setting page.
2Press to adjust the copy speed of CD, press
OK
after
adjustment is set. After press
OK
, it switches to speed adjustment of
ther disc : Audio CD, DVD, DVD DL and Blu-ray.
U-Reach UPRO User Guide V1.0(EN).indb 7
13/4/22 上午10:18

Copy Disc to Disc
8
How to select source?
If the current source drive is broken, user can select any other drives to
be source drive. In order to reduce damage on source disc, user can
also select HDD as source.
1Select function "6. Select Source".
2Press
OK
then press to adjust setting. After adjustment is set,
press
OK
to get back to main menu.
Note • Default source drive is the first drive on the top.
• Please refer to "9. HDD Manage" for setting about HDD.
U-Reach UPRO User Guide V1.0(EN).indb 8
13/4/22 上午10:18

Copy Disc to USB Drive
9
Execute duplication from disc to USB drive.
It is able to copy data from disc to USB sticks by this function.
Disc 1 Disc 2
Disc 3 Disc 4
Disc 1 Disc 2 Disc 3 Disc 4 USB Drive
1Place the source discs into drives and attached USB stick on the
"Target port".
Note • If USB stick is connected on "source port", the system would show
"ERROR".
• The system supports FAT16/32 format of USB stick. If the format is not FAT,
system would show "target is not FAT system !"
2Select function "10.1 Disc to USB" and press
OK
to start copying.
During duplication, the system shows the quantity of duplication file,
the size of duplication file, and working progress of duplication.
U-Reach UPRO User Guide V1.0(EN).indb 9
13/4/22 上午10:18

Copy Disc to USB Drive
10

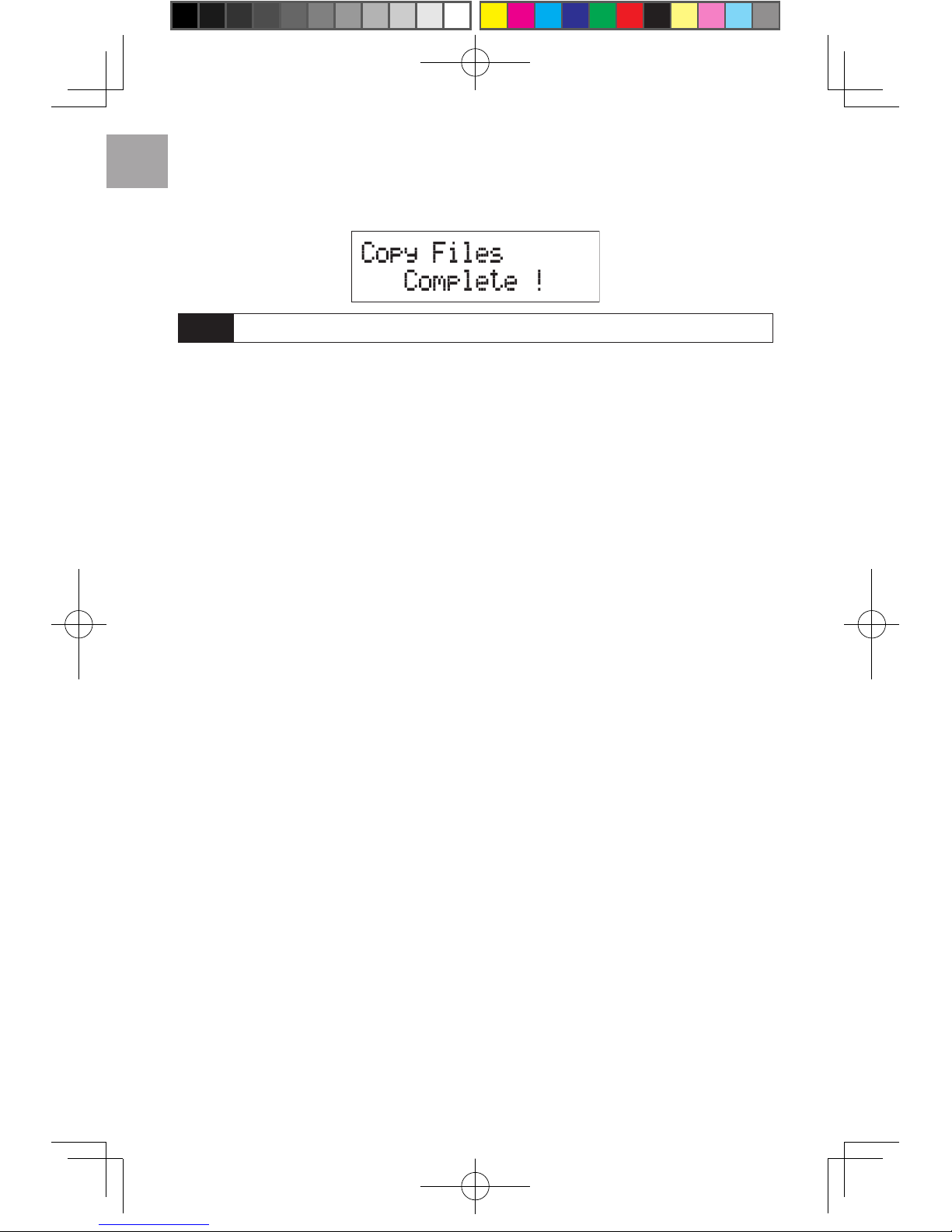

3Copy accomplish.
Note • If source disc is Audio CD, the soundtracks will be saved as .wav file and
named as CD001, CD002, CD003, etc. Other format discs are saved and
named as DISC001, DISC002, DISC003, etc.
• System is allowed to copy data from several discs to one USB drive by
"Append Data".
U-Reach UPRO User Guide V1.0(EN).indb 10
13/4/22 上午10:18

Copy USB Drive to Disc
11

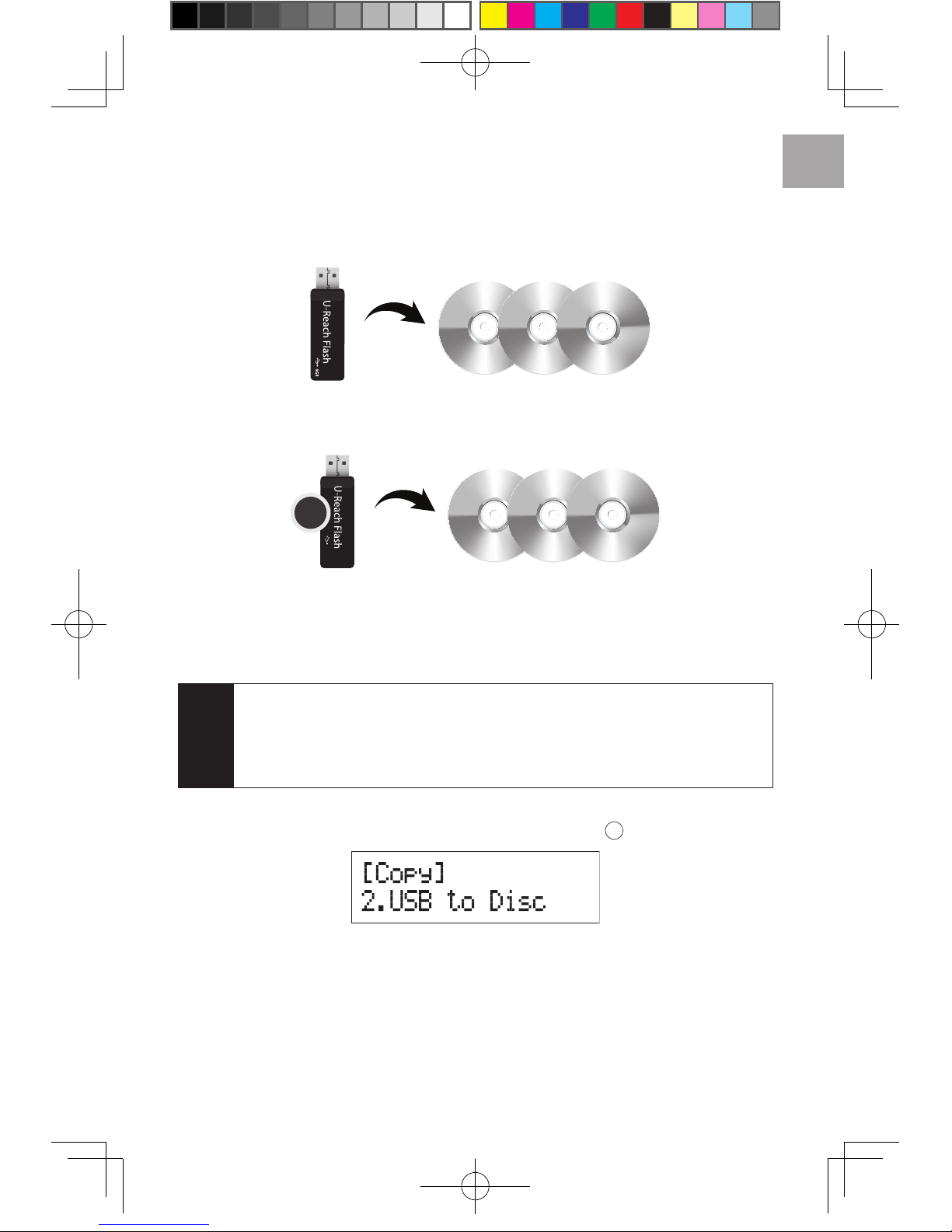

Execute duplication from USB drive to disc.
If the file capacity < Disc capacity, you can copy to multidiscs
Disc 1 Disc 2 Disc 3USB Drive
If the file capacity > Disc capacity
16GB
4G(1/3) 4G(2/3) 4G(3/3)USB Drive
10
GB
Data
1Connect USB drive on "USB source port" and place target discs in
the drives.
Note • If USB stick connects on "USB target port", the system would show "No
USB Exist".
• The system supports FAT16/32 format of USB stick. System shows "Can't
copy NTFS!" if USB stick format is NTFS; it shows "Unknown Format!" if
USB stick format is Ext2/3/4.
2Select function "10.2 USB to Disc" then press
OK
to start copying.
U-Reach UPRO User Guide V1.0(EN).indb 11
13/4/22 上午10:18

Copy USB Drive to Disc
12

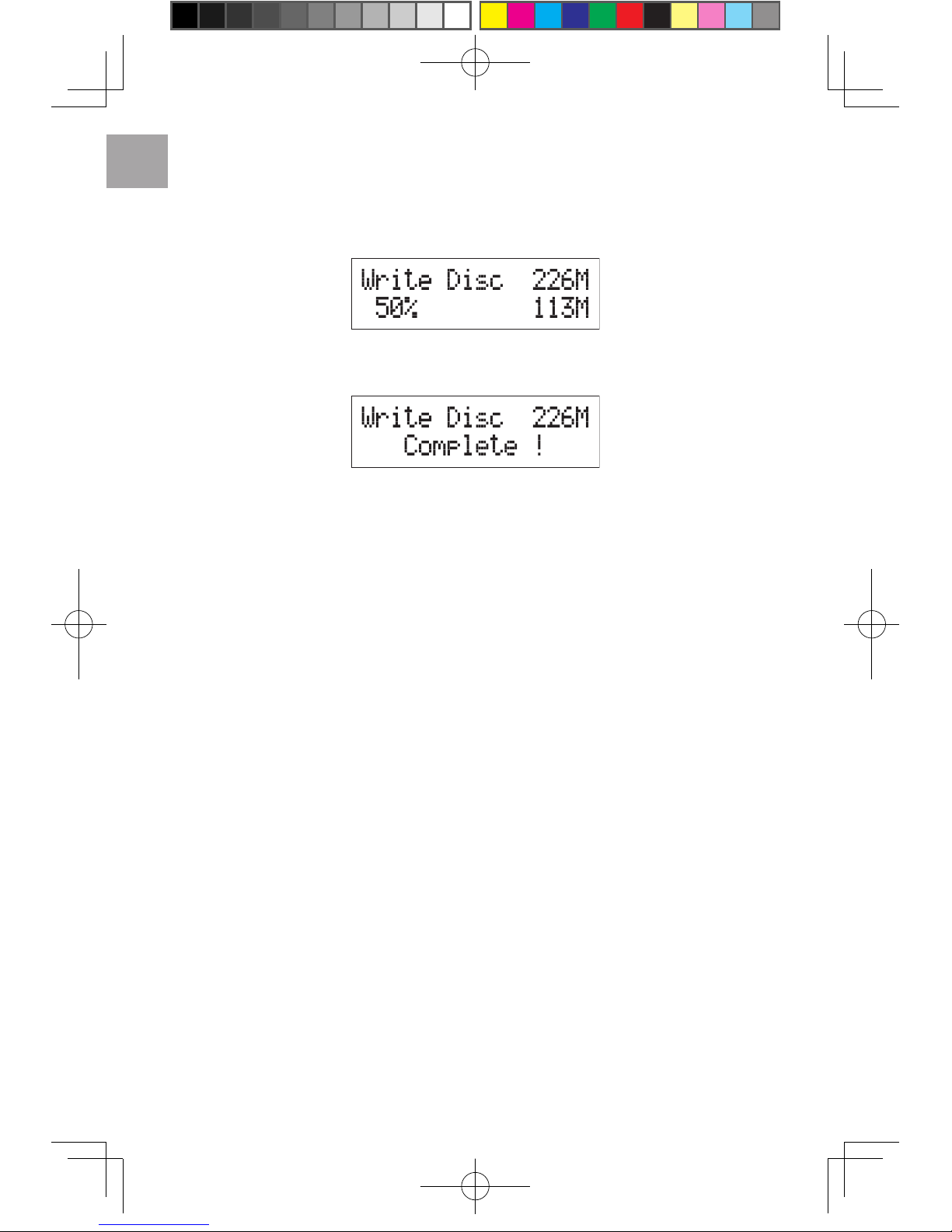

3During duplication, the system shows data size, copied data
size, and the completed percentage of duplication.
4Discs are ejected automatically when copy is completed.
U-Reach UPRO User Guide V1.0(EN).indb 12
13/4/22 上午10:19

Copy USB Drive to USB Drive
13
Execute duplication from USB drive to USB drive.
Source Target

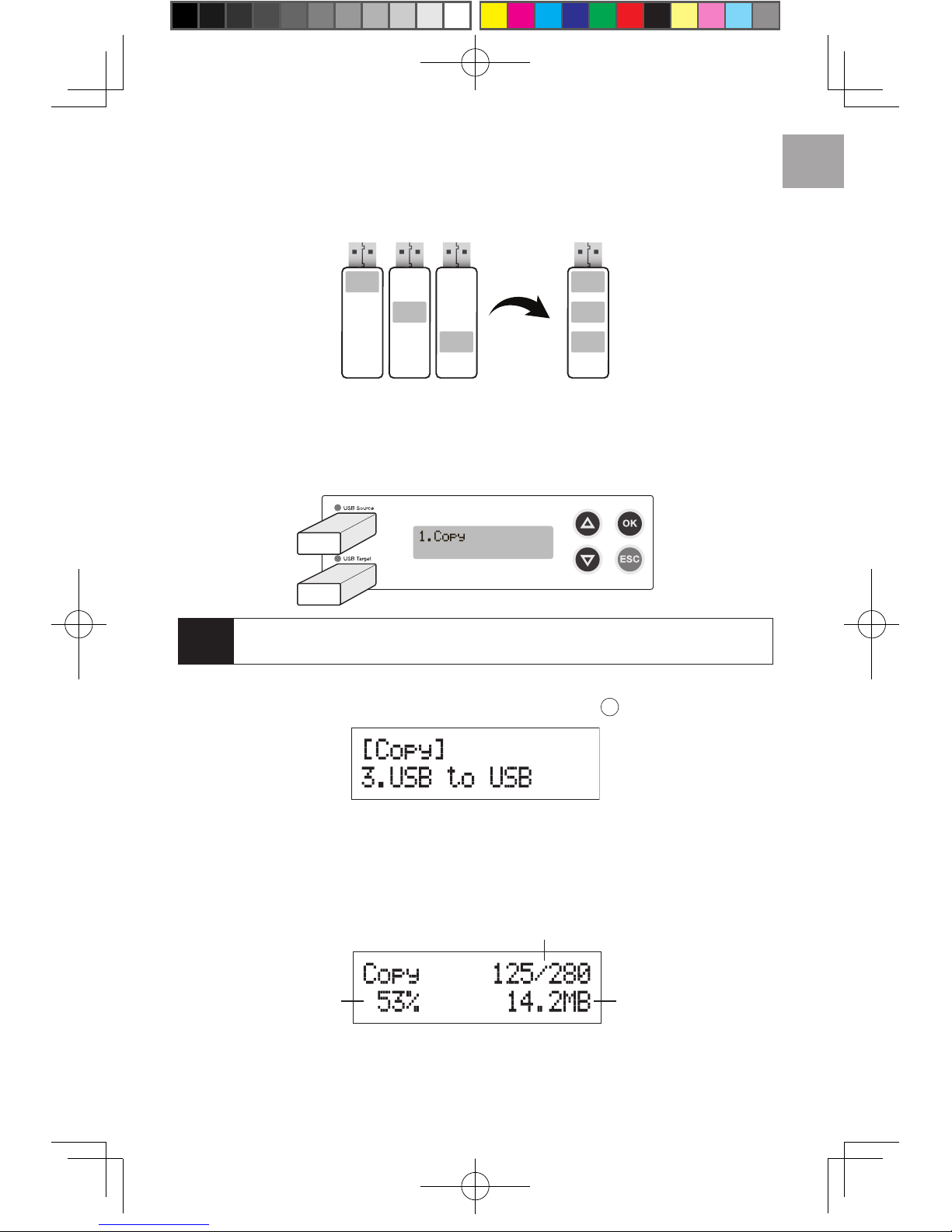

1To connect USB drive on both "Source USB port" and "Target
USB port".
Note Source and target supports only FAT16/32 format. System would show
"Source/target is not FAT system!" if it detects non-FAT format.
2Select function "10.3 USB to USB" then press
OK
to start copying.
3During copy, system shows quantity of data, quantity of completed
copied data, quantity of data in copy, and the complete percentage
of duplication.
Progressed %
Progressed Capacit
y
Progressed Files / Total Files
U-Reach UPRO User Guide V1.0(EN).indb 13
13/4/22 上午10:19

Copy USB Drive to USB Drive
14
4Duplication completes.
Note System executes copying in the way of "Append Data".
U-Reach UPRO User Guide V1.0(EN).indb 14
13/4/22 上午10:19

Compare
15
How to confirm accuracy of duplication result?
Because the quality of discs on the market is not always reliable, it’s
not guaranteed that duplication result is always successful. Thus, it’s
recommended to execute function "3. Compare" to make sure target
is identical to source. "Compare" function verifies the data bit-for-bit.
The compare function only can be apply on Disc to Disc copy.
1Place source disc into source drive and duplicated target disc to
target drives.
Note • If USB stick connects on "USB target port", the system would show "No
USB Exist".
• The system supports FAT16/32 format of USB stick. System shows "Can’t
copy NTFS !" if USB stick format is NTFS; it shows "Unknown Format !" if
USB stick format is ext2/3/4.

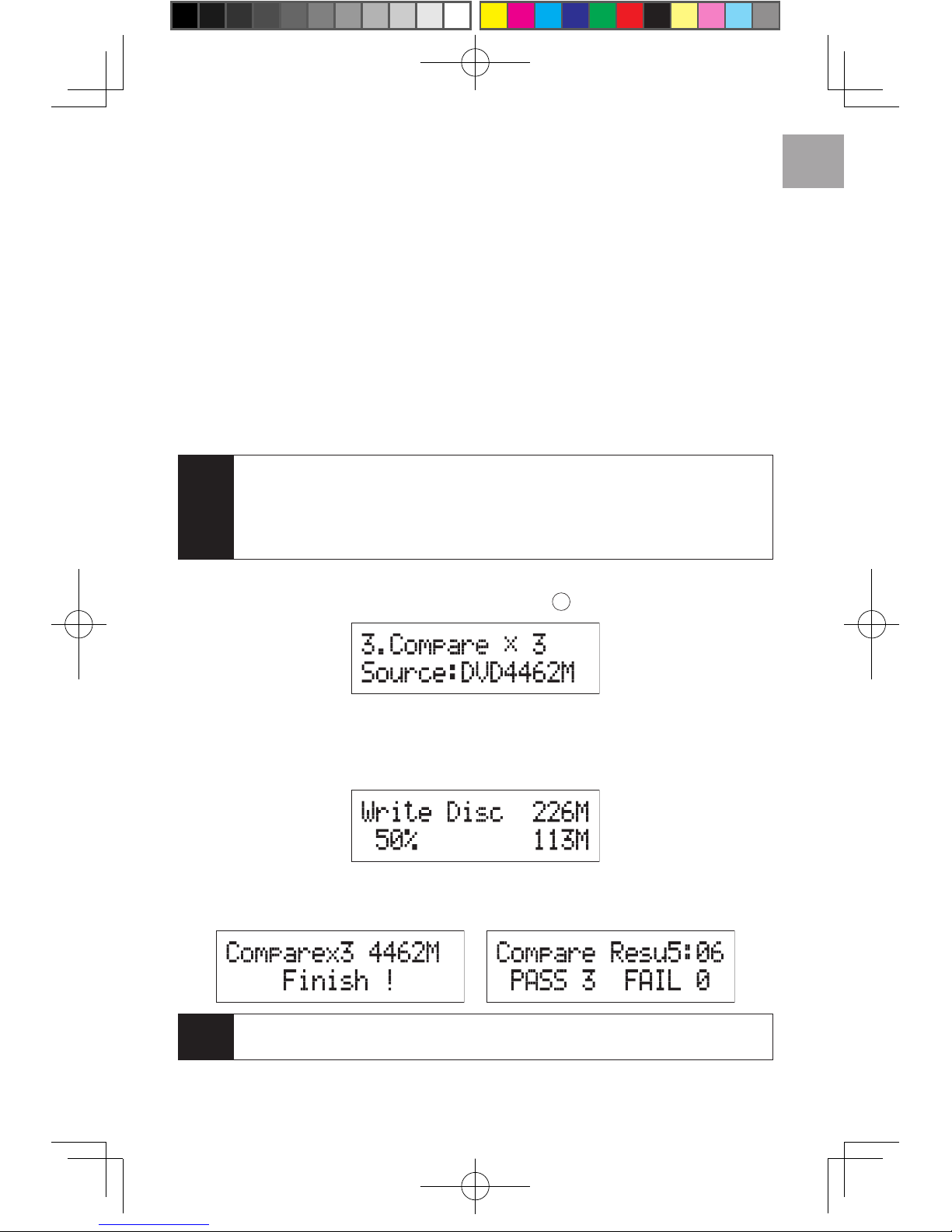

2Select function "3. Compare" then press OK to start comparing.
3System would automatically detect the quantity of source and
target, then start comparing.
4System shows compare result after comparison is finished.
Note It’s recommended to select function "4. Copy+compare" to make sure the
accuracy of duplication and reduce working process.
U-Reach UPRO User Guide V1.0(EN).indb 15
13/4/22 上午10:19

Acquiring Information
16
Get Disc Info
1CD Info: Select function "7.1.1 Disc Info." to inquire the format of
CD, maximum writing speed supported, and recordable length of
time of sound track. It is able to inquire recorded time length of CD
with data.
Time for Burning Length
Max Burn Speed
Disc Format
2DVD info: Select function "7.1.1 Disc Info." to inquire format of
DVD, maximum writing speed supported, and capacity of DVD. It is
able to inquire data size of DVD with data.
Burning Speed
Capacity / Data Siz
eDisc Format
Get Drive Info
1HDD: Select function "7.1.2 Drive Info." to inquire the brand name
of model of HDD.
HDD Brand & Model
2Drive: Select function "7.1.2 Drive Info." to inquire the brand name,
model, and firmware version of Optical Disc Drive.
Brand & Model
Drive Version
U-Reach UPRO User Guide V1.0(EN).indb 16
13/4/22 上午10:19

Acquiring Information
17
Get System Info

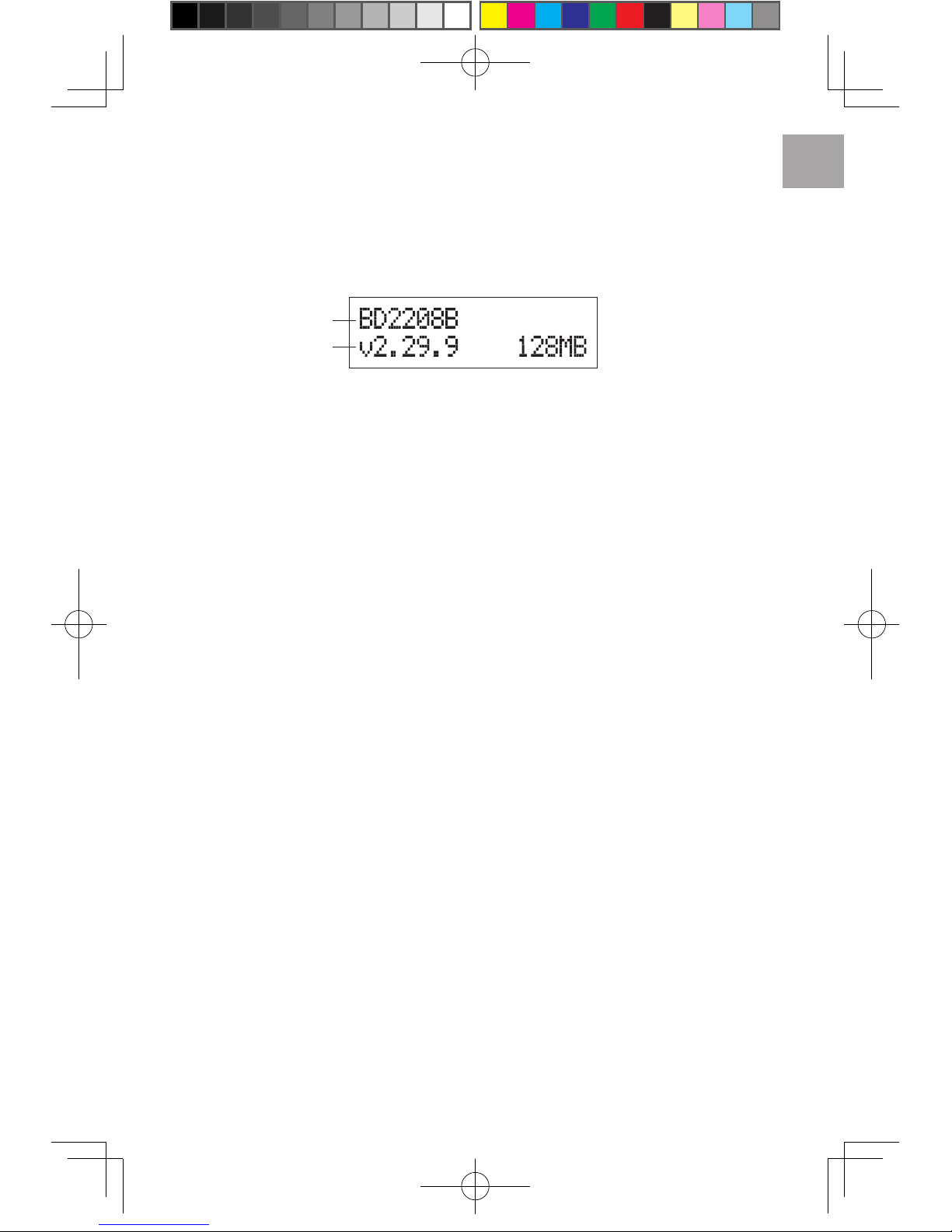

Select "7.1.3 System Info." to inquire model and firmware version of
Controller.
Version
Controller model
U-Reach UPRO User Guide V1.0(EN).indb 17
13/4/22 上午10:19

How to update firmware?
18
By disc

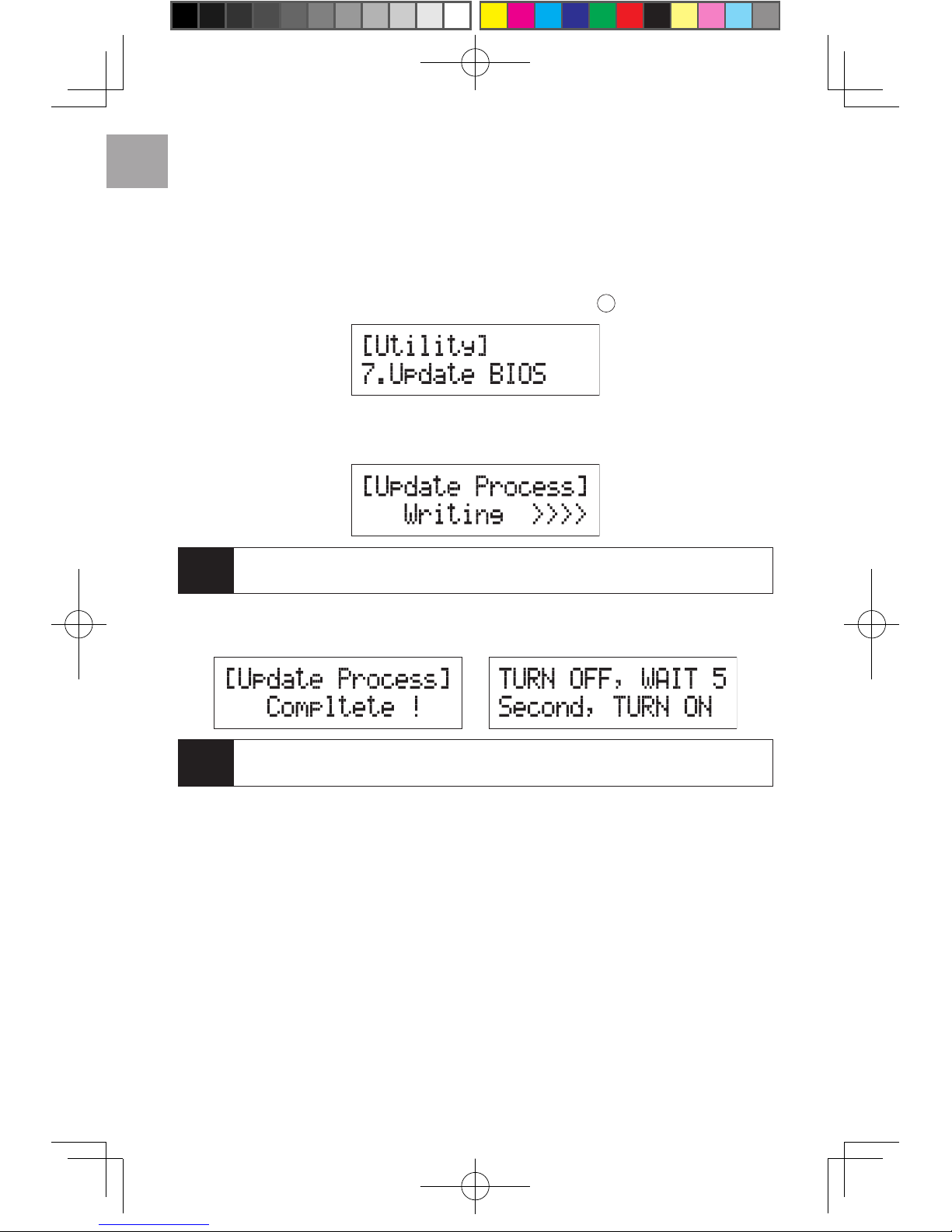

1Save the BIOS in disc and place it into drive.
2Select function "7.7 Update BIOS" then press
OK
to update
3System would detect firmware file and start updating.
Note Please do not execute any function on duplicator or turn off the power during
updating, otherwise it might happen un-repairable problem.
4System would request for rebooting after update is completed.
Note • Make sure BIOS is unzipped.
• Make sure BIOS is saved at root directory, not under folder.
U-Reach UPRO User Guide V1.0(EN).indb 18
13/4/22 上午10:19

How to update firmware?
19
By USB port
1Save BIOS in USB sticks and connect it to "USB source port", not
"USB target port".
2Select function "7.7 Update BIOS", then press OK to start
update, and refer to the same update process as above.
Note • USB stick has to be FAT16/32 format, otherwise the systems would show
"No Update File!" with non-FAT format.
• Make sure BIOS is unzipped.
• Make sure BIOS is saved at root directory, not under folder.
• It’s possible that USB stick is incompatible, if system can’t update even the
three possible reasons above are all excluded. It’s suggested to replace
another USB stick or format USB stick again on PC before update again.
U-Reach UPRO User Guide V1.0(EN).indb 19
13/4/22 上午10:19

HDD Application
20
HDD Application
These functions are applicable only with HDD assembled.
How to save image file to HDD
Select function "9.2 Disc => Image" to export data of source disc,
then save it to built-in HDD.
1Place source disc into any one of the drives.
2Select function "9.2 Disc => Image".
3Press OK to start saving image file.
4System ejects disc automatically after image file is saved.
Note Source disc can be placed into any one of the drives.
U-Reach UPRO User Guide V1.0(EN).indb 20
13/4/22 上午10:19
