U.S.SAWS TC-7 User manual

U.S.SAWS TC-7 STAND-UP EDGER
OPERATING MANUAL
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
U.S. English
07-15-2020
Notice of Copyright Protection
Copyright 2020, by U.S.SAWS . All rights reserved. This work may not be reproduced or disseminated in whole or in part by any
means without the prior written permission of U.S.SAWS
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

INTRODUCTION & SPECIFICATIONS
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
Model Identication: Record machine serial number plate information
below for future reference
Table of Contents & Introduction ..................................................... 2
Symbols & Decals ................................................................... 3
Safety Instruction ................................................................... 4 - 5
Operation ........................................................................ 6
Parts Breakdown ................................................................... 7 - 10
Warranty & Service ............................................................. 11 - 12
1.0 INSTRUCTIONS FOR USE OF MANUAL SECTIONS
Section Page
2.0 SPECIFICATIONS
Foreword/Introduction
2
The owner’s manual is intended to point out some of the basic safety situa-
tions that maybe encountered during the normal operation & maintenance
of the TC-7 Stand-up Edger & to instruct you in safety practices for dealing
with these conditions. Keep all manuals provided with your machine in a
safe place at all times.
The information and specications included in this publication were
in effect at the time of approval for printing. U.S.SAWS reserves the right,
however, to discontinue or change specications or design at any time with-
out notice and without incurring any obligation.
The U.S.SAWS TC-7 Stand-Up Edge Grinder was designed for concrete oor
grinding and polishing concrete surfaces near walls and other vertical
surfaces. This grinder can be used indoors or outdoors in small or large
spaces. This edge grinder utilizes 7” diamond cup wheel to level, smooth,
or clean the edges of the concrete slab. The U.S.SAWS TC-7 oor grinder
features the U.S.SAWS Generation 2 concrete dust shroud system for a
clean, dust-free work environment.
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111

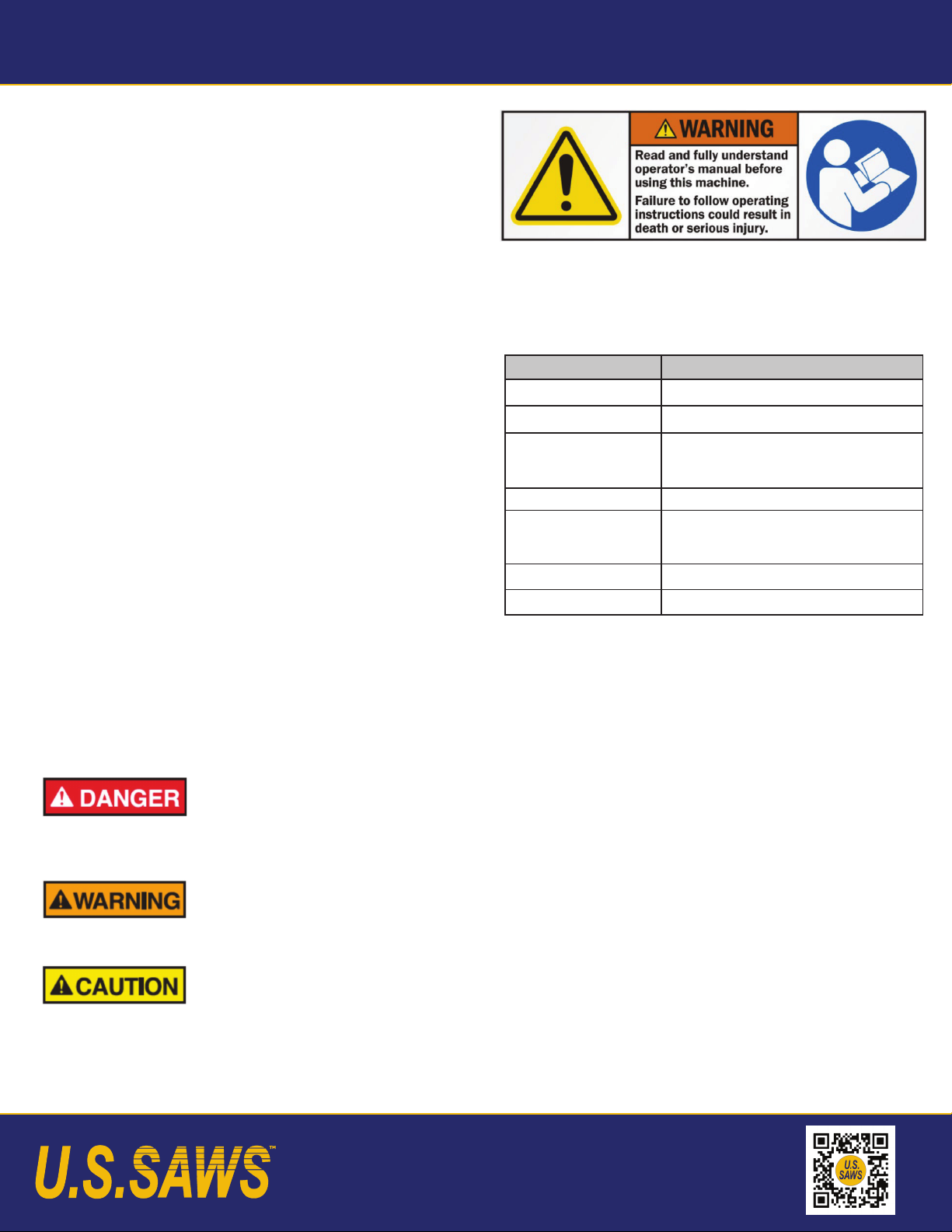

Model TC-7 Edger
Part Number SX67000
Power Source Metabo 24- 230 15 AMP 6600 RPM
Includes Metabo 24-230, 7” 24 segment turbo cup
wheel and shroud
Power Requirements 115V 15A
Grinding Wheels Used 7” Diamond Cup Wheels, PCDs, ZEC
Wheels, EZ Edge Ceramic Wheels, Polishing
Pads
Weight 49lbs
Variable Speed Control SX67099
DANGER: Indicates an imminently hazardous situation that if not avoided,
will result in death or serious injury. This signal word is limited to the most
extreme situations.
WARNING: Indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation that, if not avoided
may result in minor or moderate injury. It may also be used to alert against
unsafe practices that may cause property damage.
Dangers, Warnings and Cautions.
The purpose of safety symbols and explanations are to attract your atten-
tion to possible hazards and how to avoid them. The safety symbols and
explanations do not by themselves eliminate any danger. The instructions
or warnings they give are not substitutes for proper accident prevention
measures.

SYMBOLS & DECALS
3
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Comm unication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Comm unication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation

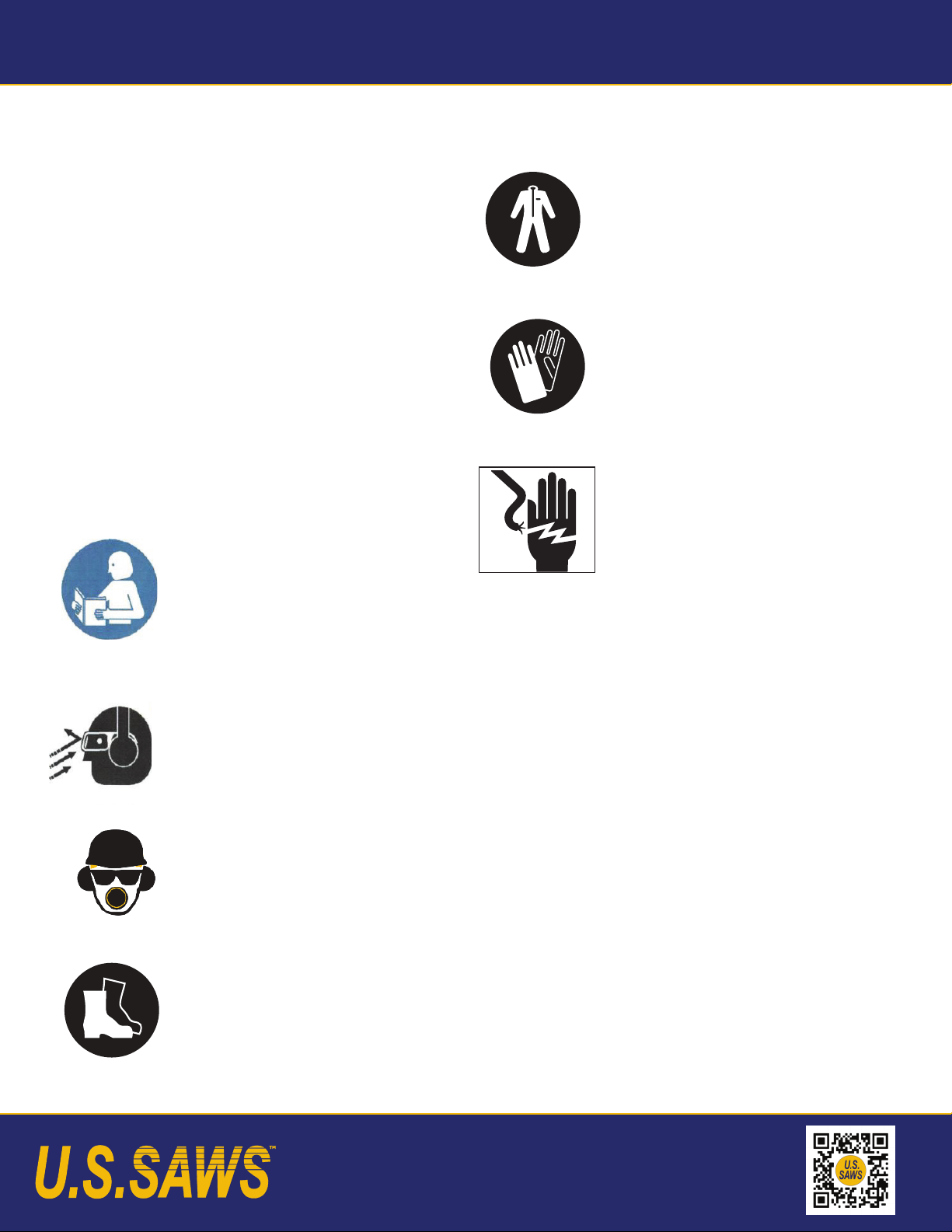

Read and understand operator’s
manual before using this machine.
Failure to follow operating Instruc-
tions could result in injury or dam-
age to equipment.
Always wear protective glasses
or full face protection
Wear safety boots when
operating this machine
Wear appropriate clothing
Wear hand protection
Wear Head Protection, breath-
ing protection, and the use of
hearing protection is manda-
tory
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
For Safe Operation
You must be qualied for safe operation of the U.S.SAWS TC-7 ma-
chine. You must clearly understand the written instructions supplied by
U.S.SAWS, be trained - including actual operation - & know the safety
rules & regulations for the job site. It is a safety practice to point out & ex-
plain safety signs & practices to others & to make sure they understand
the importance of following these instructions.
Be Safe
Human error is the result of many factors: carelessness, fatigue, sensory
overload, preoccupation, unfamiliarity with the machine or attachments,
or drugs or alcohol, to name a few. You can avoid serious injury or death
caused by these & other unsafe work practices. Be safe and never as-
sume accidents cannot happen to you.
For your safety and the safety of others, act safely and encourage your
fellow workers to act safely as well.
Wear proper electrostatic
grounding equipment at all
times.
3.0 SYMBOLS & DECALS

SAFETY INSTRUCTIONS
4.1 KNOW THE RULES & YOUR EQUIPMENT.
Most job sites have rules governing equipment use & maintenance.
Before starting at a new work location, check with the supervisor or
safety coordinator. Ask about any rules or regulations you need to
abide.
OSHA enforces federal laws within the United States that apply to the
safe operation, application, & maintenance of equipment on job sites.
It is the employer’s responsibility to comply with these laws.
Do not operate this machine unless you have read the operations and
maintenance manual carefully.
4.2 RECEIVE PROPER TRAINING.
Do not operate this machine unless you have received operational and
maintenance training from a U.S. SAWS representative or from an autho-
rized distributor for U.S.SAWS.
4.3 PROTECT YOUR FEET.
Observe all applicable local, state and federal safety regulations. Wear
OSHA approved foot protection.
4.4 PROTECT YOUR EYES.
Observe all applicable local, state and federal safety regulations. Wear
OSHA approved safety glasses.
4.5 PROTECT YOUR LUNGS.
Breathable silica may be generated by use of this product. Silica can
cause severe and permanent lung damage, cancer, and other serious
diseases. Do not breath the dust. Do not rely on your sight or smell to
determine if the dust is in the air. Silica may be in the air without a vis-
ible dust cloud. If air monitoring equipment for silica is not provided by
your employer at your work site, you MUST wear appropriate respiratory
protection when using or servicing the machine. Consult your employer
and OSHA regarding the appropriate respiratory protection.
4.6 PROTECT YOUR HEARING.
Observe all applicable local, state and federal safety regulations. Wear
OSHA approved hearing protection.
4.7 DRESS PROPERLY.
Do not wear loose clothing or jewelry that can be caught in moving parts.
Wear protective hair covering to contain long hair. Keep hair away from
motor air vent. Rubber gloves and non-skid footwear are recommended
when working outdoors.
4.8 AVOID A DANGEROUS ENVIRONMENT.
Do not expose machine to rain. Do not use machine in wet conditions.
Water entering a power tool will increase the risk of electric shock. Keep
work area well lit. When working at an elevated location, pay attention to
articles and persons below. If operating the power tool in damp locations
is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected
supply. Use of an GFCI reduce the risk of electric shock.
4
4.9 ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodi-
ed plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radia-
tors, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
4.10 ELECTRICAL CORD MANAGEMENT
Do not abuse the cord. Never use the cord for carrying, pulling or unplug-
ging the power tool. Keep cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
4.11 AVOID ANY AREAS OR ACTIONS THAT EXPOSE YOU TO CARBON
MONOXIDE.
Exhaust gas from gasoline engines contains dangerous carbon monoxide.
Breathing it can cause unconsciousness and even kill you. Always oper-
ate gasoline engine machines in a well-ventilated area. Do not operate in
areas where exhaust fumes could accumulate without wearing appropriate
respiratory protection. Consult your employer and OSHA regarding use of
appropriate respirator for dangerous carbon monoxide gases.
4.12 KEEP WORK AREA CLEAN. DO NOT RUN OVER ANYTHING.
Loose objects could be thrown from crack. Make sure area to be cut is
clear from people and any loose objects, nuts, bolts, etc. Never run over
any loose objects.
4.13 KEEP CHILDREN AND VISITORS AWAY.
Do not allow anyone to stand in line with the blade path. Do not let children
or visitors contact machine or extension cord. Keep children and visitors
away from the work area.
4.14 KEEP FIRM GRIP ON MACHINE.
During normal operation as instructed in Section 6.0, keep a rm hold
on the handle grips and maintain control of the machine until the blade
completely stops.
4.15 SHUT OFF MACHINE.
When not in use, before servicing and when changing accessories shut off
engine. Release the lever switch and move the on/off switch to the OFF
position. Move the fuel valve lever to the OFF position.
4.16 STORE IDLE EQUIPMENT.
The machine and tools should be stored in a dry and secure location when
not in use. Keep equipment out of reach of children.
4.17 OBTAIN MATERIAL SAFETY DATA SHEET (MSDS) FOR ALL
WORK SURFACE MATERIALS.
This includes primers, all coatings, adhesives, tile and crack lling materi-
als, etc. Do not attempt to cut, clean out or remove material without MSDS
information. Consult MSDS sheet for hazards information. Be aware that
some materials are explosive as a dust.
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
4.0 SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS
5
4.18 DO NOT OVERREACH.
Keep proper footing and balance at all times.
4.19 OBTAIN MATERIAL SAFETY DATA SHEET (MSDS) FOR
ALL WORK SURFACE MATERIALS.
This includes primers, all coatings, adhesives, tile and crack lling materi-
als, etc. Do not attempt to cut, clean out or remove material without MSDS
information. Consult MSDS sheet for hazards information. Be aware that
some materials are explosive as a dust.
4.20 MAINTAIN MACHINE WITH CARE.
Keep machine clean and follow maintenance procedures for better and
safer performance. Keep handles dry, clean, and free from oil and grease.
Follow instructions for lubricating and changing accessories.
4.21 REMOVE ADJUSTING TOOLS.
Form a habit of checking to see that tools such as adjusting wrenches are
removed from the machine and properly stored before starting the engine.
4.22 STAY ALERT.
Watch what you are doing. Use common sense. Do not operate machine
when you are tired or fatigued.
4.23 DO NOT USE DRUGS, ALCOHOL, MEDICATION.
Do not operate machine while under the inuence of drugs, alcohol,
or any medication.
4.24 KEEP THE RIGHT PARTS IN THE RIGHT POSITIONS.
Do not operate machine with parts missing or improperly mounted.
4.25 CHECK DAMAGED PARTS.
Verify all machine guards are in good condition and will function properly
before using the machine. Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any other conditions that
may affect machine operation. A guard, power switch or other part that is
damaged should be properly repaired or replaced by an authorized service
center unless indicated elsewhere in this instruction manual. Do not oper-
ate machine if lever or engine on/off switch does not function properly.
4.26 SECURELY MOUNT ACCESSORIES TO THE MACHINE.
Extra care must be taken an elevated location to prevent injury to some-
one on a lower level in the event the tool or accessory should drop. Do
not operate without fall protection for operator and debris protection for
public.
4.27 NEVER TOUCH THE MOVING PARTS.
Never touch moving parts such as blades, belts and others.
4.28 STOP OPERATION IMMEDIATELY IF ANY ABNORMALITY IS
DETECTED.
Stop using machine immediately if any abnormalities are observed during
operation. Examples of abnormalities include unusual noise and vibration.
4.29 WHEN REPLACING A PART, USE THE SAME TYPE
AND QUALITY.
When replacing a component part with a new one, use only the same
type and quality of new part. Never attempt to repair a machine if you are
unfamiliar with proper procedures and techniques required.
4.30 LOAD AND UNLOAD SAFELY.
Use proper heavy lifting procedures. Read & understand manuals before
loading & unloading.
4.31 SAVE THESE INSTRUCTIONS.
Refer to this operations and maintenance manual as well as any addition-
al instructions included from other manufacturers and organizations such
as Honda® and the Masonry and Concrete Saw Manufacturers Institute®.
Never permit anyone to operate the machine without proper instructions.
DUST WARNING
Cutting, especially when DRY cutting, generates dust that comes
from the material being cut, which frequently contains silica.
Silica is a basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Exposure to excessive amount of
such dust can cause:
• Respiratory diseases (affecting your ability to breath), including
chronic bronchitis, silicosis and pulmonary brosis from exposure
to silica. These diseases may be fatal;
• Skin irritation and rash; and
• Cancer according to NTP* and IARC*
* National Toxicology Program, International Agency for Research
on Cancer
Take precautionary steps
• Avoid inhalation of and skin contact with dust, mist and fumes;
• Wet cut when feasible, to minimize dust;
• Wear and ensure that all bystanders wear appropriate respiratory
protection such as dust masks designed to lter out microscopic
particles. (See OSHA 29 CFR Part 1910.1200)
California Prop 65 Warning: Use of this product can cause exposure to
materials known to the State of California to cause cancer and/or birth
defects or other reproductive harm.
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

OPERATION
The U.S.SAWS TC-7 Stand-up Edger features:
• Powered by Metabo’s W24-230, 15 amp electric grinder
• U-shaped frame puts the operator in a comfortable working position
• Adjustable outrigger wheel for various head pressure
• Forward control handle features comfortable shock absorbing grip
Start-up
5.1 Select the appropriate cup wheel or polishing pad for the task at
hand.
5.2 Make sure the cup wheel is properly mounted to the grinder. The
TC-7 comes with a matched set of blade Adapter Nuts with the letters “B-
CV” stamped on the side of the “arbor nut” and the letters/numbers “C-1”
stamped on the side of the “Blade Nut”. This set of “Adapter Nuts” is
made to a specic height to accommodate the standard cup wheel height.
Low prole or thread on cup wheels may not work unless spaced properly.
The grinding surface of the cup wheel and the edge of the dust shroud
should be at the same level and touch the surface at the exact same time.
If the cup wheel protrudes from the shroud, dust will escape. If the cup
wheel sits too deep in the shroud, it will require excess downforce and
make the machine uncontrollable.
5.3 Make sure the trigger is in the unlocked position and plug the
cord into your extension cord. It is recommended to use a cord that is 10
gauge and less than 50 ft long. We realize this is not always possible but
don’t use a 200 foot 16 gauge cord if theres an outlet 20 ft from where
your working. To long of a cord will eventually burn the grinder out.
5.4 Attach your dust collector hose to the hose port on the dust
shroud. By OSHA regulations, you must use a vacuum with 175+ cfm.
5.5 Hold the front handle rmly but don’t apply downforce yet. Hold
the trigger handle rmly, press the safety lock on the trigger forward, and
then squeeze the trigger to start the grinder. The grinder will immediately
start to full speed so be ready to control the machine.
5.6 Keep the machine moving. If you stop moving, you will leave a
mark in the oor. Most professionals prefer to make small overlapping
circles to nesse the surface to the desired prole.
5.7 Once you are comfortable, you may choose to lock the trigger in
the ON position. NEVER take your hand off the trigger handle.
Pitch Control

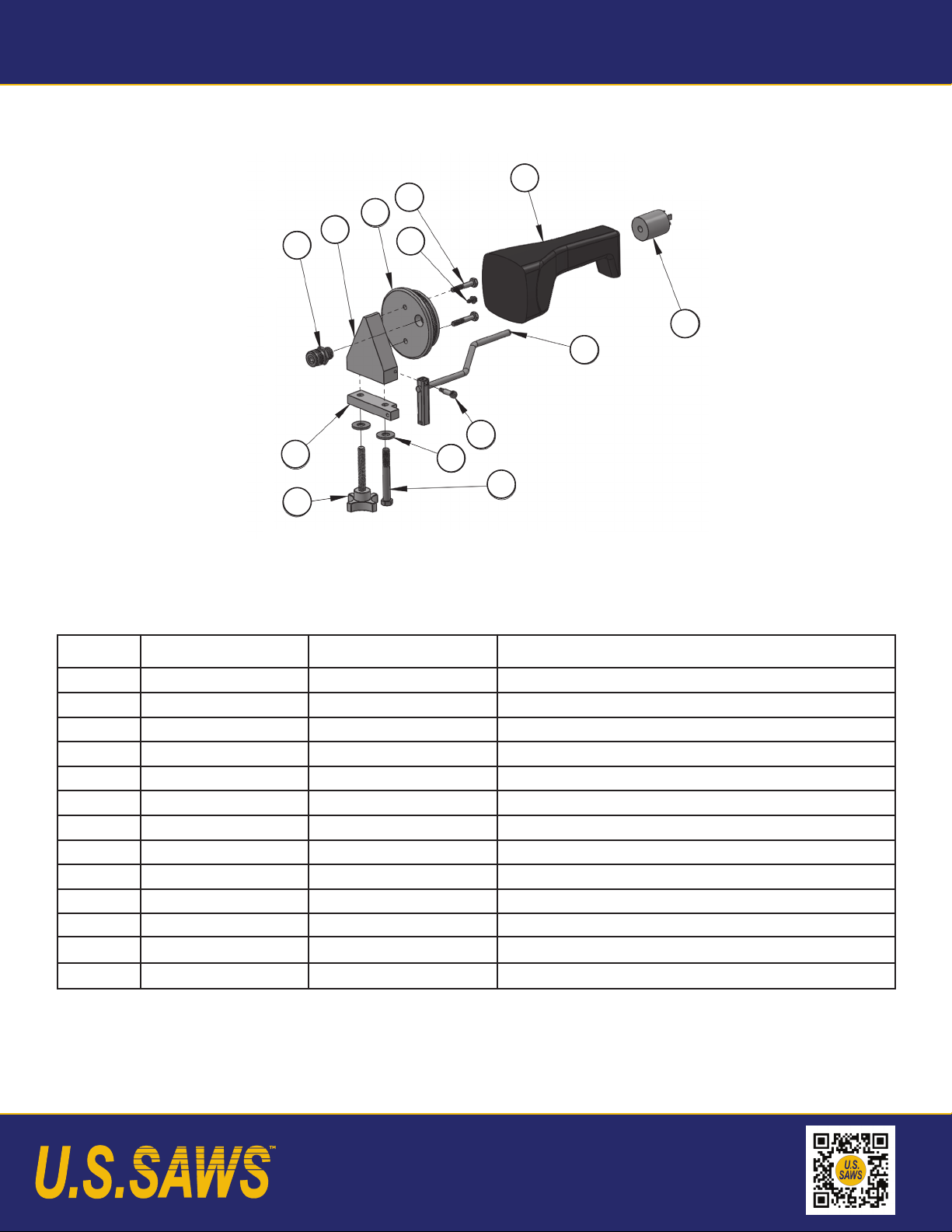

5.8 The Front Handle will pivot from side to side allowing the cup
wheel to have higher pressure downforce on the right or left. The operator
should never elevate one side of the cup wheel, just apply pressure in
different areas as needed. The operator feeling is similar to using a hand
grinder with a Loop Handle. This is especially important on wavy slabs.
5.9 The Rear Pitch Control Handle is under the trigger and can be
lifted up on to angle the front of the grinder down. This is mainly used
when there is a slight curl to the slab where it meets a wall, to ensure that
the cup wheel is preparing the surface all the way to the edge of the wall.
Do not pull up with excessive pressure. The operator will be able to feel
the front of the TC-7 pull to the left if too much input is applied to the Rear
Pitch Control Handle.
Polishing & Use of the variable speed controller
5.10 To install the variable speed controller, use two self-tapping
screws to attach it to the frame just in front of the rear control handle.
5.11 Plug the control handle cord into the speed controller and the
speed controller into your extension cord.
5.12 It is advised to run the grinder at the highest speed possible to
achieve your desired results. To low of a speed will cause excessive heat
in the grinder and cause damage. 6
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
5.0 OPERATION 5.13 It is advised to not apply excessive downforce while polishing.
The speed controller comes equipped with a 20 amp fuse and if you are
constantly blowing fuses, your pushing down too hard.
5.14 It is advised to not use a metal bond cup wheel with the speed
controller. The high drag caused by a diamond cup wheel can damage
the speed controller. It can be safely done, but you can’t apply a lot of
downforce.
Steel backing Pad
5.15 The TC-7 Polishing package comes with a rigid steel backing
pad and it is superior on this machine than a exible one.
5.16 Install the “E&F” marked arbor nut set. Thread the “F” nut on
to the shaft of the grinder. Put the shaft of the “E” nut through the arbor
hole of the pad and thread on to the already installed “F” nut. Do not
use excessive force to tighten.
Tips for use
5.15 Practice. This machine has a learning curve to use and some
operators will be more comfortable than others. After a few minutes, an
experienced hand grinding technician should feel just as comfortable
with this machine as a hand held grinder.
5.16 Don’t hunch over. The curve in the frame is there to allow you
to stand upright and not have to reach out to the controls. This machine
was built for the average height man (5’7” to 6’2”)
5.17 Keep your jobsite clean. You will be much more satised with
this machine if you have a clean oor and are not running over cords,
hoses, rocks, broomsticks, buckets, empty red bull cans, and whatever
else your guys, (and the electricians and plumbers) leave all over the
ground.

PARTS BREAKDOWN
1
2
3
4
5
6
12
7
13
8
14
9
15
10
16
11
1
1
2
4
2
2
1
2
1
2
1
4
4
5
5
1
US67101
US67121
US67107
US31052-5
US60225
US67106
US67126
US31601
US32403
US27752
US60237
US67119
US67122
US31168
US67123
US67109
FRAME, STAND UP EDGER
FRONT TOGGLE
SPIRAL RETAINING RING, 1” SHAFT
3/8” - 24 HEX NUT
1/4” FLAT WASHER SAE
UPRIGHT CONTROL LINK
5/16” X 1/2” SHOULDER BOLT 1/4” - 20 THREAD
GRIP, 7/8” ID
5/16” - 18 X 1/2” BUTTON HEAD CAP SCREW
1/2” X 1/2” SHOULDER BOLT, 3/8”- 16 THREAD
3/8” - 24 ROD END
HANDLE PIVOT ROD
3/8“ - 16 X 1” BUTTON HEAD CAP SCREW
TILT HANDLE BRACKET
GRINDER MOUNT SADDLE WELDMENT
TILT HANDLE BAR
7
ITEM QUANTITY PART NUMBER DESCRIPTION
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

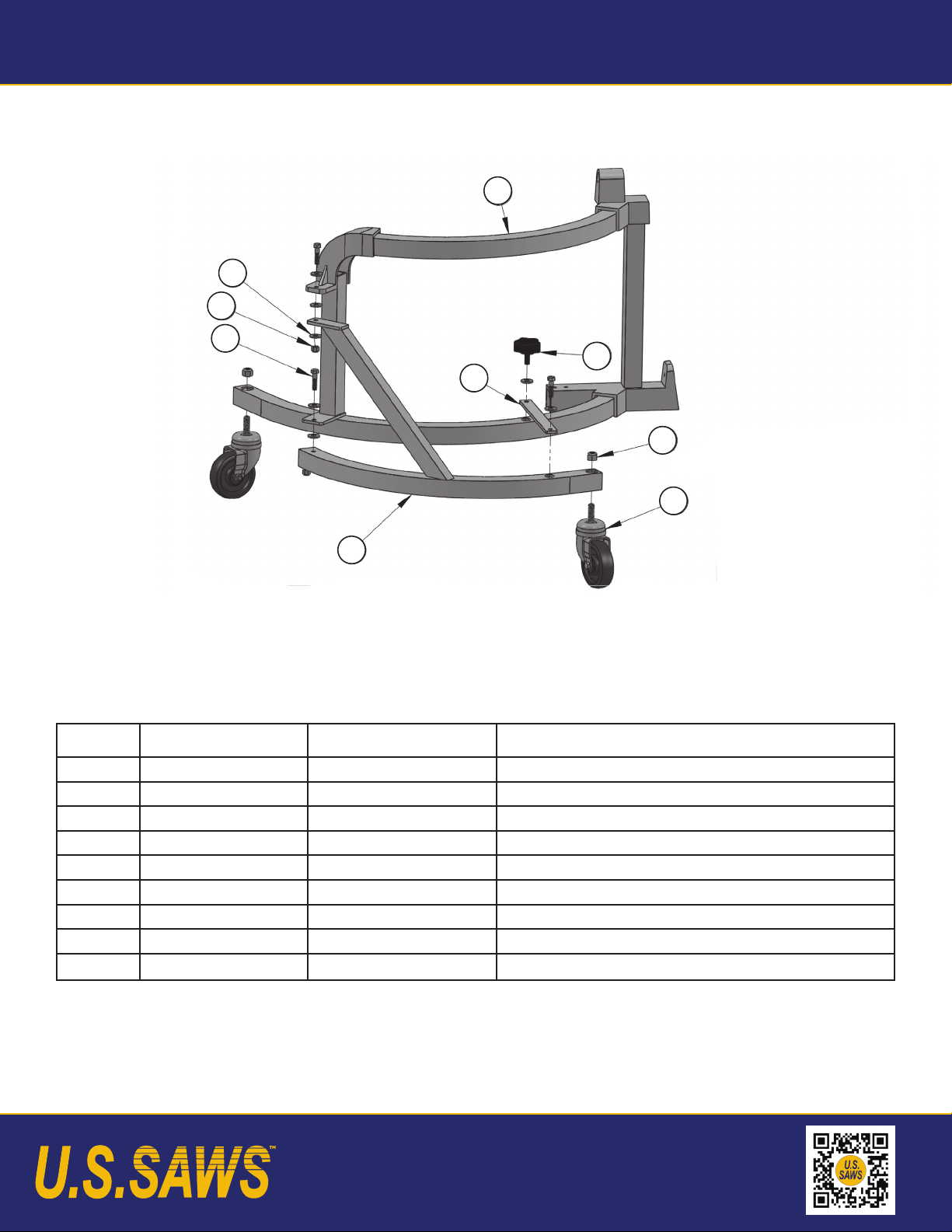

6.0 TC-7 PARTS BREAKDOWN

PARTS BREAKDOWN
8
17
18
19
20
21
22
23
24
25
1
1
1
2
2
8
3
1
2
US67101
US67102
US67124
SX20121
US31351-1
US31337
US31156
SX73706
US31052-2
FRAME STAND UP EDGER
SUPPORT LEG
LEG STOP BAR
CASTER 4” WHEEL, 1/2
1/2” - 13 NYLOCK NUT
3/8” USS FLAT WASHER
3/8” - 16 X 1-1/2” HEX HEAD CAP SCREW
KNOB 3/8” - 16” X 1”
3/8” - 16 NYLON LOCK NUT
ITEM QUANTITY PART NUMBER DESCRIPTION
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
17
18
19
20
21
22
23
24
25

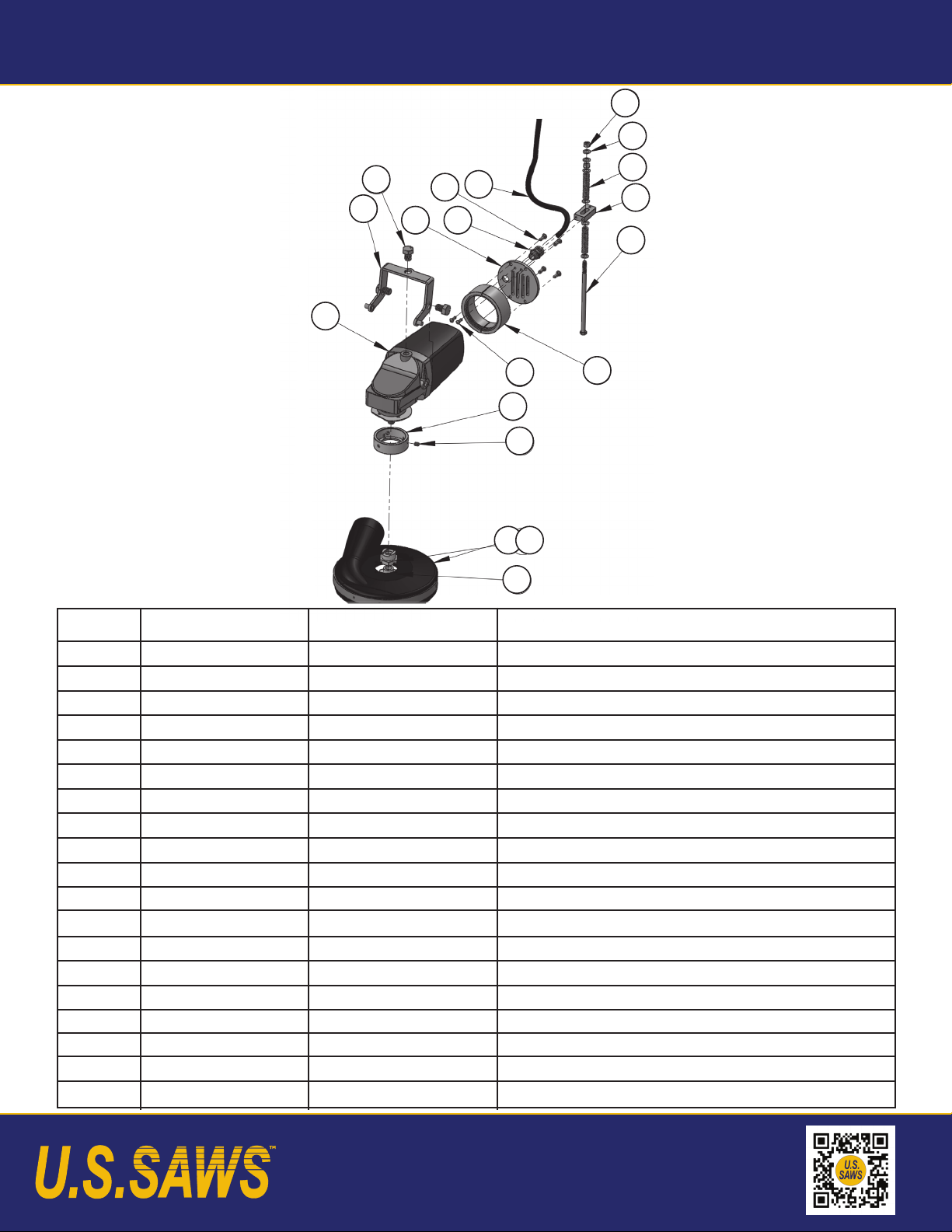

PARTS BREAKDOWN
9
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
25
26
27
28
29
30
36
31
37
32
38
41
33
39
42
34
40
43
35
1
1
3
1
1
1
1
1
1
3
1
1
6
4
4
1
5
5
1
SX65807
SX80640
US27539
SX50501
SX71100-1
US67109
US67129
SXW24230
US31110
SX73902
US67114
US67113
US31321
US31061
US67112
US67128
SX20311
US67111
US31104-2
7”G2 GRINDER - VAC SHROUD (CONVERTIBLE)
SHROUD ADAPTER, METABO/GEN 2 SHROUD
5/16”- 18 X 3/8” SOCKET HEAD SET SCREW
B - CV NUT
C1 CUP WHEEL BLADE NUT
GRINDER MOUNT SADDLE WELDMENT
W24-230 9” METABO GRINDER
5/16” - 18” HEX NUT
M14 - 2.0 X 20MM HEX HEAD CAP SCREW
CORD GRIP, 3/8” NPT ALUMINUM
TAIL CAP COVER
5/16” FLAT WASHER
10-24 X 5/8” BUTTON HEAD CAP SCREW
TAIL CAP COVER
CORDAGE, 14/3 JE00W
TERMINAL 16 - 14 AWG QUICK DISCONNECT
TAIL CAP RING
5/16” - 18 X 7” HEX HEAD CAP SCREW
SPRING, COMPRESSION, 1/2” OD X 2-1/2” LONG
ITEM QUANTITY PART NUMBER DESCRIPTION
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40 41
42
43

PARTS BREAKDOWN
10
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
44
45
46
47
48
49
55
50
56
51
52
53
54
1
1
3
1
1
1
1
1
1
3
6
1
1
US31337
US67118
US67116
SXW24230
SX20315
US67114
US67127
US67117
SX31073
US31602
US31164
US31162-1
US67125
3/8” USS FLAT WASHER
HANDLE MOUNT BLOCK
HANDLE ADAPTER DISC
W24-230 9” METABO GRINDER
ELECTRICAL GROUNDING SCREW, 10-32
CORD GRIP, 3/8 NPT ALUMINUM
HANDLE CLAMP BAR
1/4” - 20 - 1-1/2” HEX HEAD CAP SCREW
1/4” X 5/8” SHOULDER BOLT 10-24 THREAD
3/8” - 16 X 3 HEX HEAD CAP SCREW
KNOB, 3/8” - 16 X 2-1/2”
LEVER WELDMENT
PLUG, 5-15P WIRE ON, 120V/15A
ITEM QUANTITY PART NUMBER DESCRIPTION
44
45
46
47
48
49
50
51
52
53
54
55
56

WARRANTY AND SERVICE
7.1.1 Warranty
This document is to be used as a guide in determining warranty policies and procedures for U.S.SAWS and its U.S.SAWS products. It is to be used
in determining whether a warranty is justied and as a procedural guide in completing a U.S.SAWS warranty claim form.
7.1.2 Warranty Responsibility
The distributor or the end user must prepare a Machine Warranty Information Card when the machine is delivered. Failure to comply will make
any and all warranties on this equipment null and void. Credit for warranty repairs will be given only after receipt of the WARRANTY CLAIM FORM,
properly completed with all the required details. Submittal details are described later in this document.
7.1.3 Warranty Policy
7.1.3.1 U.S.SAWS warrants its U.S.SAWS products against defects in material and workmanship under normal and proper use for a period
of one year (365) days from the date of delivery; in the case of Rental Fleet Machines, date of assignment to Rental Fleet. Such warranty is
extended only to the buyer who purchases the equipment directly from U.S.SAWS or its authorized distributor. This warranty does not include
expendable parts such as, but not limited to, plugs, cutters, blades, blast wheel, wear parts, liners and seals.
7.1.3.2 The obligation under this warranty is strictly limited to the replacement or repair, at US SAWS’s option, of machines and does not in-
clude the cost of transportation, loss of operating time, or normal maintenance services.
7.1.3.3 This warranty does not apply to failure occurring as a result of abuse, misuse, negligence, corrosion, erosion, normal wear and tear,
alterations or modications made to the machine without express written consent of U.S.SAWS .
7.1.3.4 Warranty request must be submitted in writing within thirty (30) days after failure.
7.1.3.5 Written authorization to return merchandise under warranty must rst be obtained from U.S.SAWS .
7.1.3.6 U.S.SAWS reserves the right to inspect and make the nal decision on any merchandise returned under warranty.
7.1.3.7 U.S.SAWS offers no warranty with respect to accessories, including but not limited to, engines, motors, batteries, electrical boards, tires
and any other parts not manufactured by us but which the original manufacturer warrants.
7.1.3.8 U.S.SAWS reserves the right to make product changes or improvements without prior notice and without imposing any obligation upon
itself to install the same on its products previously sold.
7.1.3.9 The above warranty conditions can only be altered by US SAWS. US SAWS must conrm alterations in writing for each specic transac-
tion.
7.1.3.10 U.S.SAWS reserves the right to establish specic warranty terms for used or demo machines on an individual transaction basis.
Invoices covering such merchandise will clearly state the provisions of the applicable warranty for each specic transaction.
7.1.3.11 WE DO NOT AUTHORIZE ANY PERSON, REPRESENTATIVE OR SERVICE OR SALES ORGANIZATION TO MAKE ANY OTHER WARRANTY OR TO
ASSUME FOR US ANY LIABILITY IN CONNECTION WITH THE SALE OF OUR PRODUCTS OTHER THAN THOSE CONTAINED HEREIN.
7.1.3.12 UNDER NO CIRCUMSTANCES SHALL US SAWS BE LIABLE TO CUSTOMER OR ANY OTHER PERSON FOR ANY DIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF ANY WARRANTY OR FOR ANY
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER, INCLUDING WITHOUT LIMITATIONS, DAMAGES FOR ANY LOSS OF GOODWILL,
WORK STOPPAGE, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES.
7.1.3.13 U.S.SAWS MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO THE US SAWS PRODUCTS SOLD PURSUANT THERETO.
11
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
7.0 WARRANTY AND SERVICE

MACHINE WARRANTY INFORMATION CARD
TO ENSURE THE PROPER WARRANTY COVERAGE IS EXTENDED TO THE OWNER OF THIS MACHINE,
FILL OUT THE ATTACHED CARD COMPLETELY AND ACCURATELY.
WARRANTY REGISTRATION CARD
IMPORTANT! To ensure that your U.S.SAWS machine is covered under warranty, please ll in the following information and mail or
fax it to U.S.SAWS, 3702 W. Central Ave. Santa Ana, CA 92704, Fax No. 714-434-7299
If you are not the owner of record as shown on the manual copy of the warranty registration card, do not operate this
machine before contacting U.S.SAWS at 1-877-817-6687. Verify the following before operating the equipment:
CHANGE OF OWNER OR NEW ADDRESS REGISTRATION CARD
IMPORTANT! To ensure that your U.S.SAWS machine is covered under warranty, please ll in the following information and mail or
fax it to U.S. SAWS, 3702 W. Central Ave. Santa Ana, CA 92704, Fax No. 714-434-7299
COMPANY
COMPANY
NAME
NAME
ADDRESS
ADDRESS
INTENDED USE
INTENDED USE
DATE OF PURCHASE
DATE OF PURCHASE
INTENDED USE
INTENDED USE
SERIAL NUMBER
SERIAL NUMBER
12
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
