U Technology UT-GC-DMX-DECOD-5CH User manual

[e-mail] • utechnology.ca • [phone]
For further information please contact us
UT-GC-DMX-DECOD-5CH
USER GUIDE

[e-mail] • utechnology.ca • [phone]
For further information please contact us
2
Function Diagram, Product Data, Safety & Warnings ......................................................3
Button Introduction & Menu Descriptions .................................................................4
Factory Default Settings ................................................................................5
Menu Settings ..........................................................................................6
DMX Decoding Mode Tables .............................................................................7
Strobe Channel Data Definitions, SUpported RDM PIDs ....................................................9
Product Dimensions, Wiring Diagram .....................................................................10
GC-DMX-DECOD-5CH
USER GUIDE

[e-mail] • utechnology.ca • [phone]
For further information please contact us
3
GC-DMX-DECOD-5CH
USER GUIDE

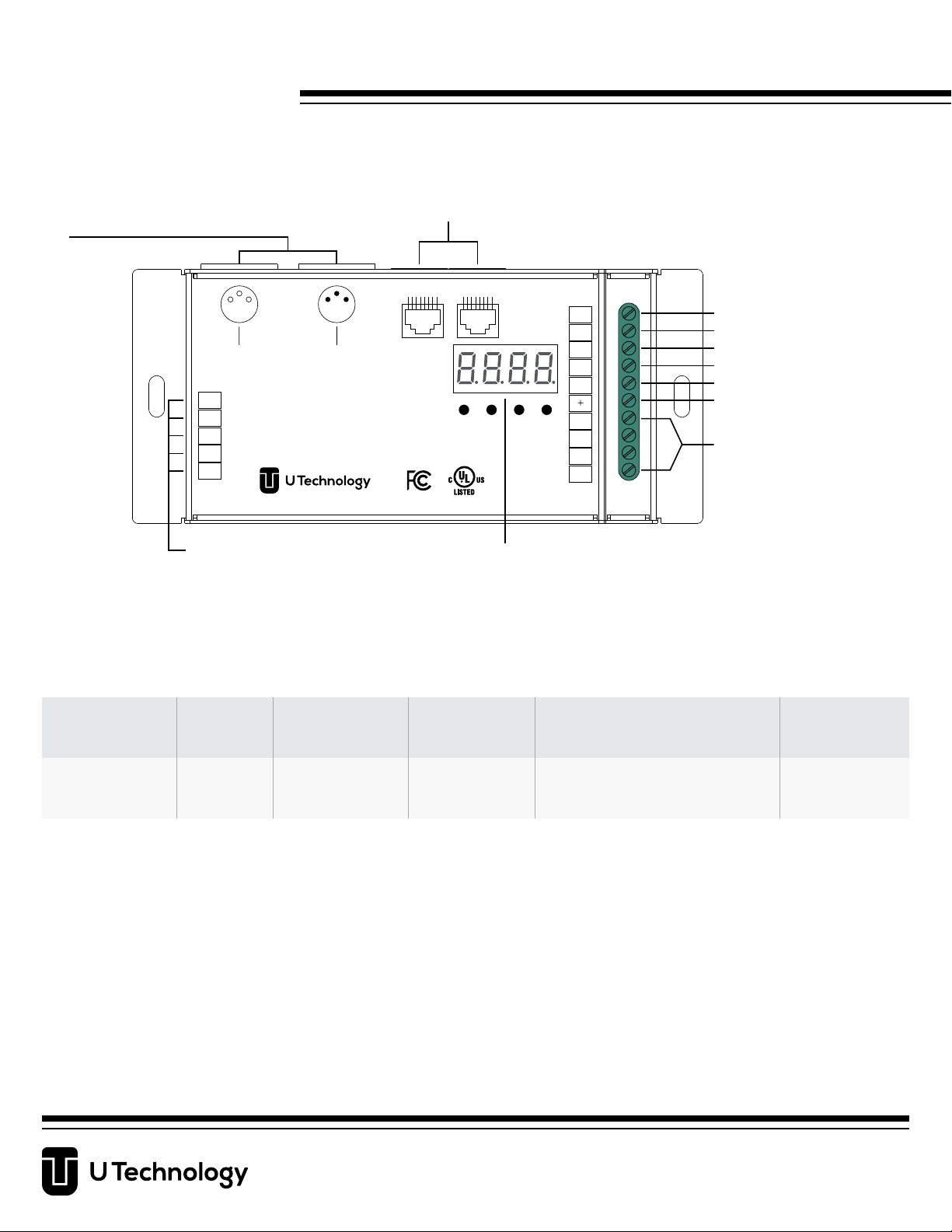

PRODUCT DATA
SAFETY AND WARNINGS
• Do not install while power is being applied to the device.
• Do not expose the device to moisture.
• Short circuit protection: If short circuit of the connected load is detected, the display will flash to alarm and the load
will be forced to open circuit status. Once the fault is removed, the decoder will recover after being re-powered on.
2 groups plug in type terminal:
UT-GC-DMX-DECOD-5CH
DMX512 & Decoder
DMX512 signal input & output
Pin1:Data+
Pin2:Data-
Pin7:GND
Pin8:GND
12345678
DMX
Female
SignalDMX Signal
Male
DMX Signal
RJ45
3
2
V-
V-
V+
V+
1/R-
2/G-
3/B-
4/W1-
5/W2-
BackEnter Up Down
D+
D-
D+
D-
GND
13
2112345678
Pin1:GND
Pin2:D-
Pin3:D+
Pin1:GND
Pin2:D-
Pin3:D+
DMX in/out
DC Power
Input
DMX in/outDMX in/out
3/5 Pin male & female XLR terminal:
DMX512 signal input & output
2xRJ45 terminal:
DMX512 signal input & output
DC power input
Common anode output (+)
CH 1:R/WW output (-)
CH 2:G/CW output (-)
CH 3:B/WW output (-)
CH 4:W/CW output (-)
CH 5:W/WW output (-)
Digital display
Input
Voltage
Output
Current
Output
Power
Output
Type Protection
Size
(LxWxH)
12-24V DC 5 x 8A 5x(96-192)W Constant
Voltage Short Circuit
164 x 73 x 38 mm
6-7/16 x 2-7/8 x 1-1/2 in

[e-mail] • utechnology.ca • [phone]
For further information please contact us
4
BUTTON INTRODUCTION AND MENU DESCRIPTIONS
• After powering on the device, use the Up and Down buttons to select different settings
• Press the Enter button to enable setting changes, display will flash
• Use the Up and Down buttons to change settings
• Click Back button to confirm setting
• When DMX signal input is detected, the indicator on the display following the first digit turns on red
FACTORY DEFAULT SETTINGS
Simultaneously press and hold the Back and Enter buttons until the digital display turns off.
The system will reset to factory settings and the display will turn Back on.
Default settings are as follows:
• DMX Address Code: a001
• DMX Address Quantity: SW 1=0: ch05, SW 1=1: ch04
• PWM Resolution Mode: bt16
• PWM Frequency: pf01
• Gamma: ga1.5
• Decoding Mode: dp1.1

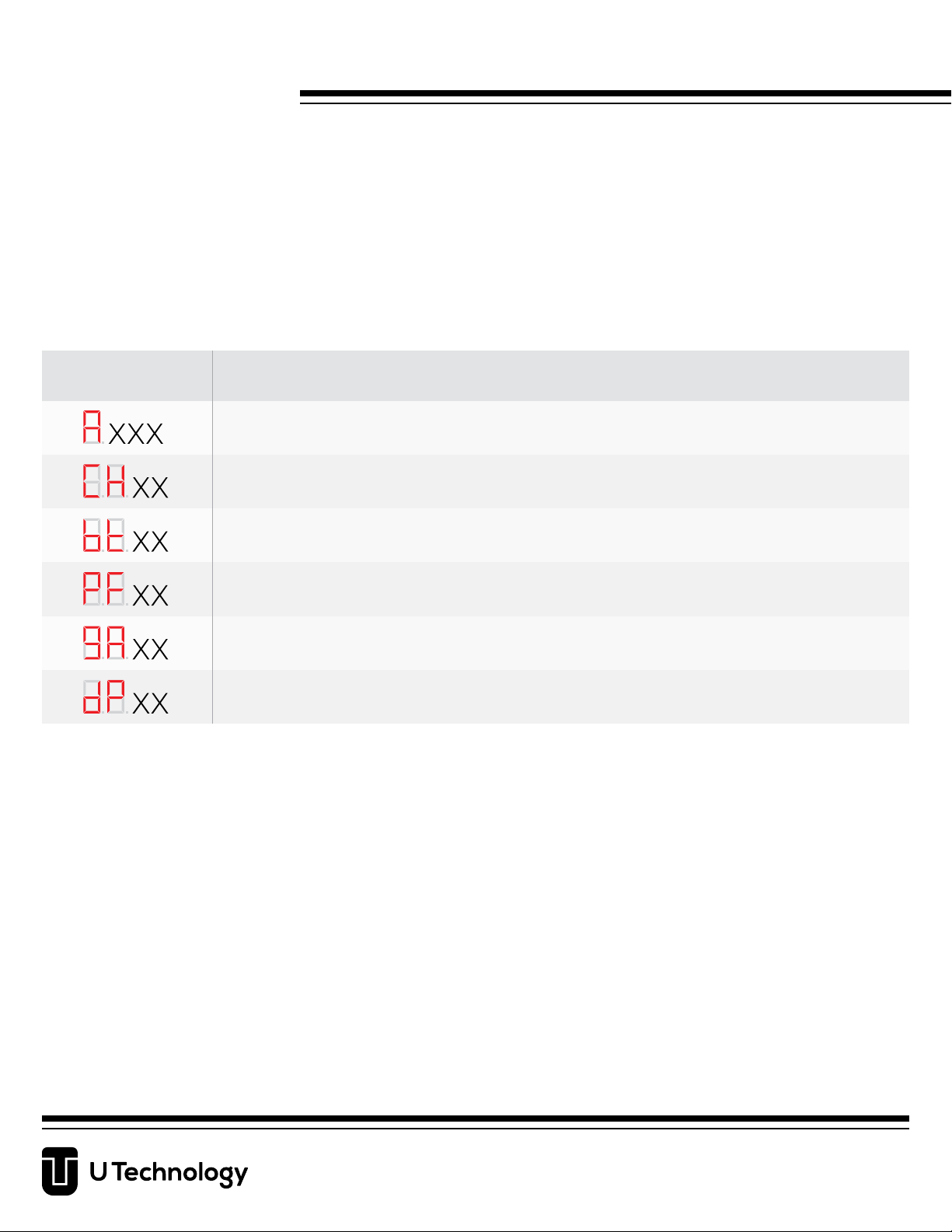

Digital Display Description
A: DMX address - factory default setting is 001
CH: DMX channel quantity - factory default setting is Ch05
BT: Bit depth (8 or 16) - factory default setting is 16 bit
PF: Output PWM frequency - factory default setting is 1 KHZ
GA: Output dimming curve gamma value - factory default setting is ga 1.5
DP: Decoding mode - factory default setting is dp 1.1
GC-DMX-DECOD-5CH
USER GUIDE

[e-mail] • utechnology.ca • [phone]
For further information please contact us
5
MENU SETTINGS

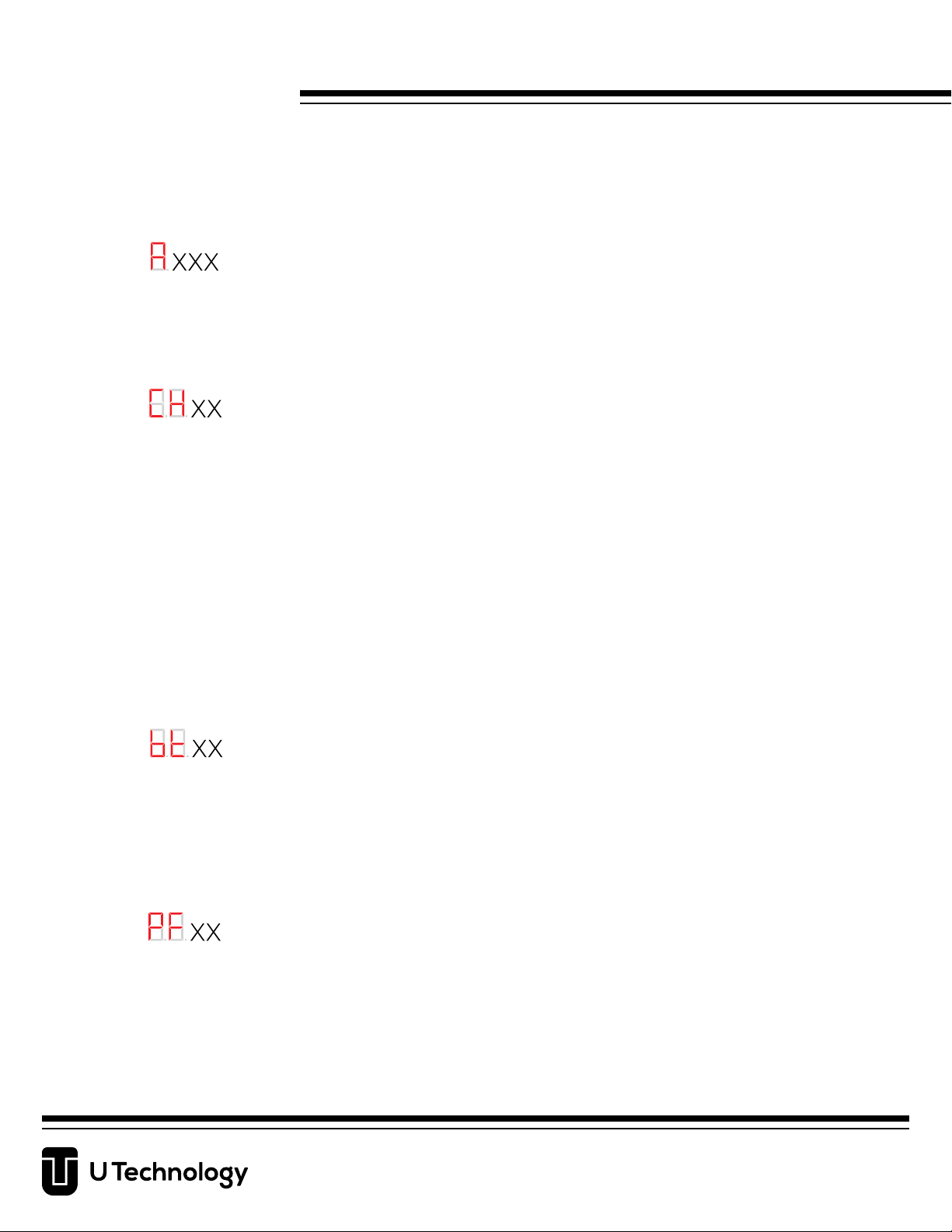

A: DMX Address Setting
Select menu click Enter button then click or hold Up/Down buttons to set DMX address.
Click Back button to confirm.
CH: DMX Channel Quantity Setting
Select menu click Enter button then click or hold Up/Down buttons to set DMX channel quantity. Click
Back button to confirm.
An example (for DMX address = 001):
CH01 = 1 DMX address for all the output channels, which are all address 001
CH02 = 2 DMX addresses , output 1 and 3 is address 001, output 2, 4 and 5 is address 002
CH03 = 3 DMX addresses, output 1, 2 is address 001, 002, output 3, 4 and 5 is address 003
CH04 = 4 DMX addresses, output 1, 2, 3 is address 001, 002, 003, output 4 and 5 is address 004
CH05 = 5 DMX addresses, output 1, 2, 3, 4, 5 is address 001, 002, 003, 004, 005
BT: PWM Output Bit Resolution Setting
Select menu click Enter button then click or hold Up/Down buttons to choose 08 or 16 bit output
resolution. Click Back button to confirm.
PF: PWM Output Frequency Setting
Select menu click Enter button then click or hold Up/Down buttons to choose output resolution 00-30
(00 = 500Hz, 01 = 1kHz, 02 = 2kHz... 30 = 30kHz). Click Back button to confirm.
GC-DMX-DECOD-5CH
USER GUIDE

[e-mail] • utechnology.ca • [phone]
For further information please contact us
6
MENU SETTINGS (CONTINUED)
GA: Output Dimming Curve Gamma Value Setting
Select menu click Enter button then click or hold Up/Down buttons to set gamma value (0.1-9.9).
Click Back button to confirm.
Micro Dimming:
The micro dimming effect is only visible when the dimming curve gamma value is set lower than 1.4. The lower the
value, the more visible the micro dimming effect.
DP: DMX Decoding Mode Setting
Select menu click Enter button then click or hold Up/Down buttons to choose the decoding mode. Click
Back button to confirm.
“dPxx” means the DMX address quantity used for control of corresponding PWM output channel quantity.
The 1st “x” shows the DMX address quantity, the 2nd “x” shows the PWM channel quantity.
GC-DMX-DECOD-5CH
USER GUIDE
Output
Brightness
Level
DMX Value Level
1.0
GAMMA
VALUE
6.5
3.5
2.5
1.5
0.9
<1
>1
0.8

[e-mail] • utechnology.ca • [phone]
For further information please contact us
7
DMX DECODING MODE TABLES
DMX address is 001, CH01:
DMX address is 001, CH02:
DMX address is 001, CH03:
GC-DMX-DECOD-5CH
USER GUIDE
DMX Channel:
DMX Channel:
DMX Channel:
dp1.1
dp1.1
dp1.1
dp2.1
dp2.1
dp2.1
dp3.2
dp4.3 dp5.3
DMX Console Slide Number
DMX Console Slide Number
DMX Console Slide Number
1
1
1
3
3
5
2
2
2
4
4
6
For all output dimming
For output 1 and 3 dimming
For output 1 dimming
-
For output 3, 4 and
5 dimming
For output 3, 4 and
5 dimming
For output 3, 4 and 5
micro dimming
-
-
For output 2, 4 and 5 dimming
For output 2 dimming
-
-
-
For all output dimming
For output 1 and 3 dimming
For output 1 dimming
For output 2, 4 and 5 dimming
For output 2 dimming
For output 1 and 3 dimming
For output 1 dimming For output 1 dimming
For all output dimming
For output 3, 4 and
5 dimming
For output 3, 4 and
5 dimming
- Strobe effects
For all output micro dimming
For output 1 and 3 micro dimming
For output 1 micro
dimming
For output 2, 4 and 5 micro dimming
For output 2 micro
dimming
For all output master
dimming
For all output master
dimming
For output 2, 4 and 5 dimming
For output 2 dimming For output 2 dimming
-
- -

[e-mail] • utechnology.ca • [phone]
For further information please contact us
8
DMX DECODING MODE TABLES (CONTINUED)
GC-DMX-DECOD-5CH
USER GUIDE
DMX address is 001, CH04:
DMX address is 001, CH05:
DMX Channel:
DMX Channel:
dp1.1
dp1.1
dp2.1
dp2.1
dp5.4
dp6.5
dp6.4
dp7.5
DMX Console Slide Number
DMX Console Slide Number
1
1
3
3
5
5
7
7
9
2
2
4
4
6
6
8
8
10
For output 1 dimming
For output 1 dimming
For output 3 dimming
For output 3 dimming
For output 3 dimming
For output 3 dimming
For output 3 dimming
For output 3 dimming
For output 3 dimming
For output 3 dimming
For output 3 micro
dimming
For output 3 micro
dimming
For output 3, 4 and 5
micro dimming
For output 4 micro
dimming
For output 5 micro
dimming
-
For output 5 dimming
-
-
-
-
-
-
-
Strobe effects
-
For output 2 dimming
For output 2 dimming
For output 4 and 5
dimming
For output 4 dimming
For output 4 and 5
dimming
For output 4 dimming
For output 5 dimming
-
-
-
-
-
For output 1 dimming
For output 1 dimming
For output 2 dimming
For output 2 dimming
For output 1 dimming
For output 1 dimming
For output 1 dimming
For output 1 dimming
For all output master
dimming
For output 1 micro
dimming
For output 1 micro
dimming
For output 2 micro
dimming
For output 2 micro
dimming
For output 4 and 5
dimming
For output 4 dimming For output 4 dimming
For all output master
dimming
For output 5 dimming For output 5 dimming
For output 4 and 5
dimming
For output 2 dimming
For output 2 dimming
For output 2 dimming
For output 2 dimming
-
For all output master
dimming
For all output master
dimming
-
-
-
-
-
-
Strobe effects

[e-mail] • utechnology.ca • [phone]
For further information please contact us
9
{0, 7}
{66, 71}
{128, 133}
{190, 195}
{251, 255}
//undefined
//undefined
//undefined
//undefined
//undefined
{8, 65}
{72, 127}
{134, 189}
{196, 250}
//slow strobe −
›
fast strobe
//slow push fast close
//slow close fast push
//random strobe
STROBE CHANNEL DATA DEFINITIONS
SUpPORTED RDM PIDs:
• DISC_UNIQUE_BRANCH
• DISC_MUTE
• DISC_UN_MUTE
• DEVICE_INFO
• DMX_START_ADDRESS
• IDENTIFY_DEVICE
• SOFTWARE_VERSION_LABEL
• DMX_PERSONALITY
• DMX_PERSONALITY_DESCRIPTION
• SLOT_INFO
• SLOT_DESCRIPTION
• MANUFACTURER_LABEL
• SUpPORTED_PARAMETERS
GC-DMX-DECOD-5CH
USER GUIDE

[e-mail] • utechnology.ca • [phone]
For further information please contact us
10
PRODUCT DIMENSIONS
WIRING DIAGRAM
GC-DMX-DECOD-5CH
USER GUIDE
DMX Master
Console
V- V+
V-
V+
OUTPUT
RGBW LED Strip
W- W-
B- B-
G- G-
R- R-
V+ V+
V+ V+
V- V-
DMX
Female
SignalDMX Signal
Male
3
2
Back EnterUpDown
D+
D-
D+
D-
GND
13
21
Pin1:GND
Pin2:D-
Pin3:D+
Pin1:GND
Pin2:D-
Pin3:D+
DMX in/out
V- V+
Power Supply
Power Supply
V-
V+
OUTPUT
W W-
B- B-
G- G-
R- R-
V+ V+
Single Color LED Strip
V+ V+
V- V-
RGBW LED Strip
Single Color LED Strip
RGBW LED Strip
Pin1:Data+
Pin2:Data-
Pin7:GND
Pin8:GND
DMX
Female
SignalDMX Signal
Male
DMX Signal
RJ45
3
2
V-
V-
V+
V+
1/R-
2/G-
3/B-
4/W1-
5/W2-
Back EnterUpDown
D+
D-
D+
D-
GND
13
211234567812345678
Pin1:GND
Pin2:D-
Pin3:D+
Pin1:GND
Pin2:D-
Pin3:D+
DMX in/out
DC Power
input
DMX in/outDMX in/out
Pin1:Data+
Pin2:Data-
Pin7:GND
Pin8:GND
DMX Signal
RJ45
V-
V-
V+
V+
1/R-
2/G-
3/B-
4/W1-
5/W2-
1234567812345678
DC Power
input
DMX in/outDMX in/out
15 mm
73 mm
164 mm
