uAvionix ping20Si Manual

UAV-1001626-001 Rev F
ECCN 7A994 Page 1 | 30

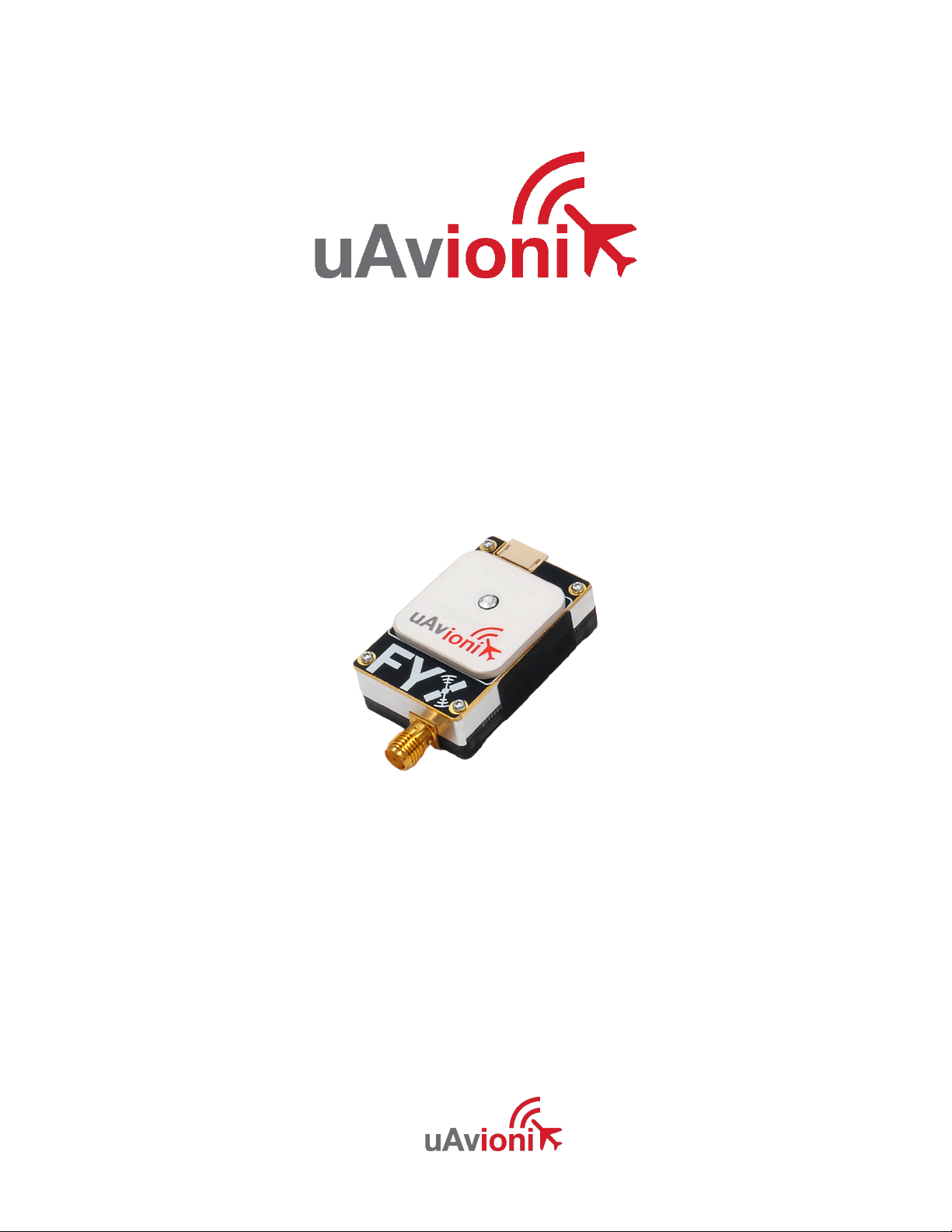

ping20Si
User and Installation Guide

UAV-1001626-001 Rev F
ECCN 7A994 Page 2 | 30
© 2020 uAvionix Corporation. All rights reserved.
uAvionix Corporation
300 Pine Needle Lane
Bigfork, MT 59911
http://www.uavionix.com
http://www.uavionix.com/support
Except as expressly provided herein, no part of this guide may be
reproduced, transmitted, disseminated, downloaded or stored in any
storage medium, for any purpose without the express written permission of
uAvionix. uAvionix grants permissions to download a single copy of this
guide onto an electronic storage medium to be viewed for personal use,
provided that the complete text of this copyright notice is retained.
Unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.
uAvionix® is a registered trademark of uAvionix Corporation, and may not
be used without express permission of uAvionix.

UAV-1001626-001 Rev F
ECCN 7A994 Page 3 | 30
1 Revision History
Revision
Date
Comments
A
12/9/2017
Initial release
B
4/4/2019
Input power requirements
C
6/18/2019
Including ambient temperature with battery pack
D
7/30/2019
E
10/26/2019
Update product label compliant to RED
RED conformity statement added
F
5/19/2020
Update Support Contact and minor formatting
edits

UAV-1001626-001 Rev F
ECCN 7A994 Page 4 | 30
2 Warnings / Disclaimers
All device operational procedures must be learned on the ground.
uAvionix is not liable for damages arising from the use or misuse of this
product.
This equipment has not received a FAA transmit license and is
for development use only.
This equipment is classified by the United States Department of
Commerce's Bureau of Industry and Security (BIS) as Export Control
Classification Number (ECCN) 7A994.
These items are controlled by the U.S. Government and authorized for
export only to the country of ultimate destination for use by the ultimate
consignee or end-user(s) herein identified. They may not be resold,
transferred, or otherwise disposed of, to any other country or to any person
other than the authorized ultimate consignee or end-user(s), either in their
original form or after being incorporated into other items, without first
obtaining approval from the U.S. government or as otherwise authorized by
U.S. law and regulations.
!

UAV-1001626-001 Rev F
ECCN 7A994 Page 5 | 30
3 Limited Warranty
uAvionix products are warranted to be free from defects in material and
workmanship for one year from the installation in the aircraft. For the
duration of the warranty period, uAvionix, at its sole option, will repair or
replace any product which fails under normal use. Such repairs or
replacement will be made at no charge to the customer for parts or labor,
provided that the customer shall be responsible for any transportation cost.
This warranty does not apply to cosmetic damage, consumable parts,
damage caused by accident, abuse, misuse, water, fire or flood, damage
caused by unauthorized servicing, or product that has been modified or
altered.
IN NO EVENT, SHALL UAVIONIX BE LIABLE FOR ANY INCIDENTAL,
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER
RESULTING FROM THE USE, MISUSE OR INABILITY TO USE THE
PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES DO
NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Warranty Service
Warranty repair service shall be provided directly by uAvionix.

UAV-1001626-001 Rev F
ECCN 7A994 Page 6 | 30
4 Contents
1 Revision History .................................................................................... 3
2 Warnings / Disclaimers ......................................................................... 4
3 Limited Warranty ................................................................................... 5
5 Introduction ........................................................................................... 8
5.1 Description ..................................................................................... 8
5.2 RED conformity .............................................................................. 8
5.3 Interfaces ....................................................................................... 9
5.4 Software and Airborne Electronic Hardware Configuration. ........ 10
5.5 Supplied Accessories ................................................................... 10
6 Technical Specifications ..................................................................... 11
6.1 Markings ...................................................................................... 12
7 Equipment Limitations ........................................................................ 12
7.1 Installation .................................................................................... 12
7.1.1 Modifications and Use Outside of Intended Scope ................ 12
7.1.2 Deviations .............................................................................. 12
8 Equipment Installation ........................................................................ 13
8.1 Unpacking and Inspecting ............................................................ 13
8.2 Mounting ...................................................................................... 13
8.3 Connections ................................................................................. 14
............................................................................................................... 15

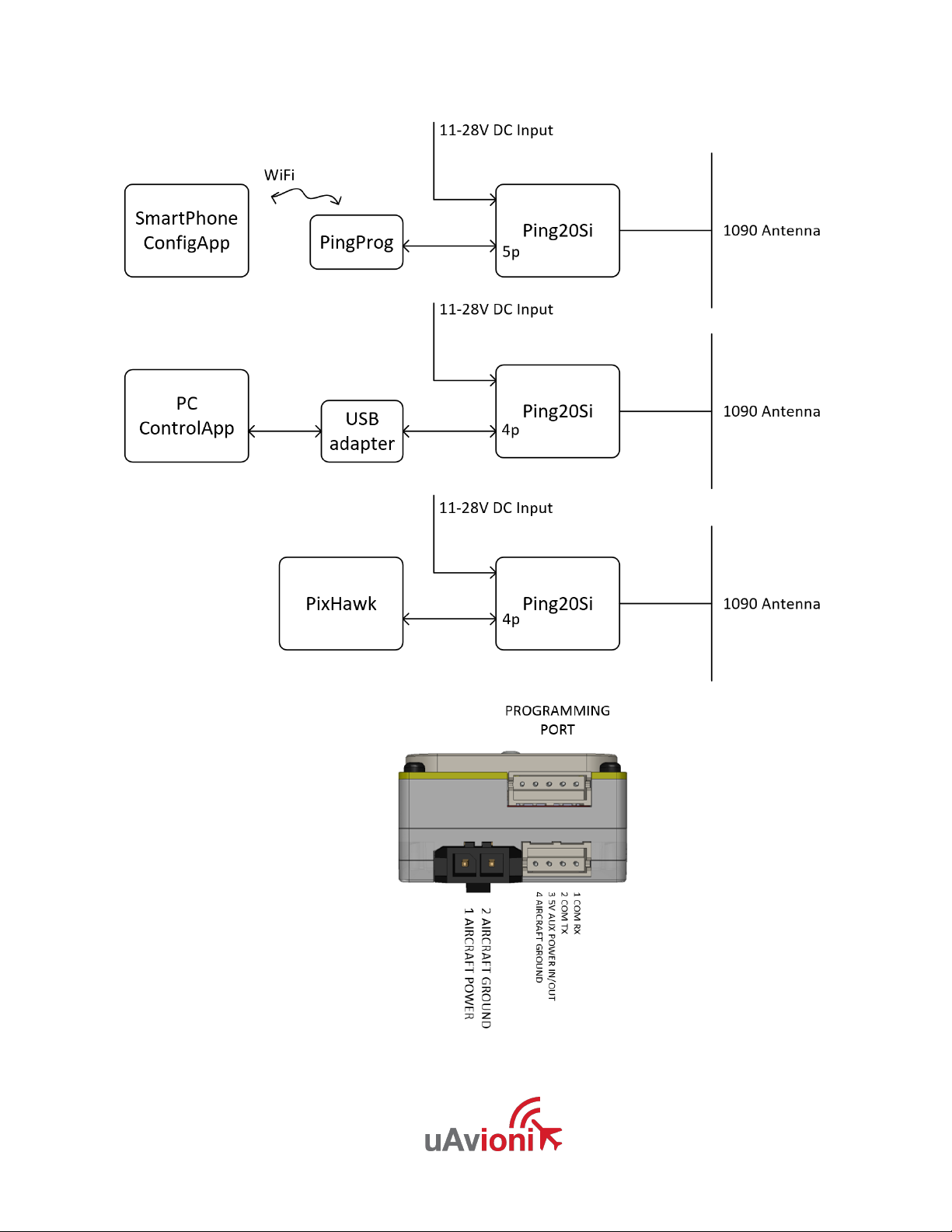

8.4 Wiring Diagram ............................................................................ 16
Mating Connector: Molex 0436450200 ................................................... 16
8.5 Cooling Requirements ................................................................. 17
8.6 Antenna Installation ..................................................................... 17
9 Programming ...................................................................................... 18
9.1 Default Control ............................................................................. 19

UAV-1001626-001 Rev F
ECCN 7A994 Page 7 | 30
9.2 ICAO Number .............................................................................. 19
9.3 Callsign ........................................................................................ 20
9.4 Aircraft Category .......................................................................... 20
9.5 VFR Squawk Code ...................................................................... 20
9.6 Aircraft Maximum Speed .............................................................. 20
9.7 ADS-B RX Capability ................................................................... 20
9.8 Aircraft Length / Width ................................................................. 21
9.9 GPS Antenna Offset Lateral / Longitudinal .................................. 22
10 PC Control Application ........................................................................ 23
11 Post Installation Checklist ................................................................... 24
12 Continued Airworthiness ..................................................................... 25
13 Environmental Qualification Forms ..................................................... 26

UAV-1001626-001 Rev F
ECCN 7A994 Page 8 | 30
5 Introduction
5.1 Description
The ping20Si is a Mode S, 20W transponder with support for ADS-B
extended squitter. The ping20Si has a nominal power output of 20W. The
integrated GPS sensor meets the requirements of DO-229D.
Meets the requirements of:
RTCA DO-181E Level 2els (20W output power level)
RTCA DO-260B Class B1S
RTCA DO-176B Level C
RTCA DO-254 Level C
RTCA DO-160G
RTCA DO-229D Class Beta 1
ICAO Annex 10, Volume IV
EuroCAE ED-115 Class LcF
EU-RED Annex VII
This transponder replies to both legacy Mode A/C interrogations and to
Mode S interrogations from both ground radar and airborne collision
avoidance systems. In all cases, the interrogations are received by the
transponder on 1030MHz and replies are transmitted on 1090MHz.
5.2 RED conformity
Hereby, uAvionix Corporation declares that the radio equipment type
ping20Si is in compliance with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet address:
https://uavionix.store/info/red-conformity

UAV-1001626-001 Rev F
ECCN 7A994 Page 9 | 30
5.3 Interfaces
The ping20Si has a SMA antenna connection, a 4-pin Control interface and
a 5-pin programming interface.
Control Interface
The control interface supports the MavLink protocol and can be directly
connected to the TELEM port. Additionally, GDL90 Control and status is
also supported. Protocol switching is automatic.
Protocol
Message Type
CONTROL
COM1 RX
1200-115200bps
GDL90
Appendix A
[^CS] Callsign
[^MD] Mode
SAGETECH
[0x02] Preflight
[0x03] Operating
[0x05] Data Request
Protocol
Message Type
STATUS
COM1 TX
1200-115200bps
GLD90
Appendix B
[010] Heartbeat
[1010] Ownship
[1110] Geo Altitude
SAGETECH
[0x80] Acknowledge
[0x81] Installation Response
[0x82] Preflight Response
[0x83] Status Response
The Interface Control Document (ICD) can be downloaded from:
www.uavioinix.com

UAV-1001626-001 Rev F
ECCN 7A994 Page 10 | 30
5.4 Software and Airborne Electronic Hardware
Configuration.
Part
Part Number
Revision
Software
Airborne Electronic Hardware
5.5 Supplied Accessories
Part
Part Number
Revision
ping20Si
UAV-10001625-001
Antenna
UAV-10000295-001
Power Cable
PingProg
Programming Cable JST5p-5p
Control Cable JST4p-4p
PixHawk1 cable
PixHawk 2 cable

UAV-1001626-001 Rev F
ECCN 7A994 Page 11 | 30
6 Technical Specifications
SPECIFICATION
Operating Altitude
unrestricted
Max Cruising Speed
unrestricted
Transmit Power (Max)
45dBm, 32W
1030 Receive Sensitivity
-61±3 dBm
RF Impedance
50Ω
Host Serial Communications
SageTech, GDL90
Calibrated Pressure Altitude
85,000 ft
Export Compliance
ECCN 7A994
Supply Voltage
11-28V
Power Consumption (ON & ALT)
1W
Power Consumption (STBY)
0.5W
Transponder Performance Standard
RTCA DO-181E
Class
20W
Level
2els
ADS-B Performance Standard
RTCA DO-260B
Class
B1S
Pressure Altitude Standard
SAE AS8003
Granted Certifications
TSO-C199 (GPS)
Compliance
DO-181E Class 1 Level 1els (20W output power level)
DO-260B Class B1S (20W output power level)
DO-160F
ICAO Annex 10, Volume IV
EuroCAE ED-115 Class Lc2 es V3
(20W output power level)
EU-RED Annex VII
Environmental
RTCA DO-160F
Software
RTCA DO-178B
Hardware
RTCA DO-254 Level C
Operating Temperature
-45°C to +80°C/+55°C*
Storage Temperature
-55°C to +85°C
Transmitter Modulation
6M75 V1D
Weight
20 grams
Height
17mm
Length
40mm
Width
35mm
Host Interface Connector
4p JST
RF Connector
SMA
*based on max. operating temperature with battery pack.

UAV-1001626-001 Rev F
ECCN 7A994 Page 12 | 30

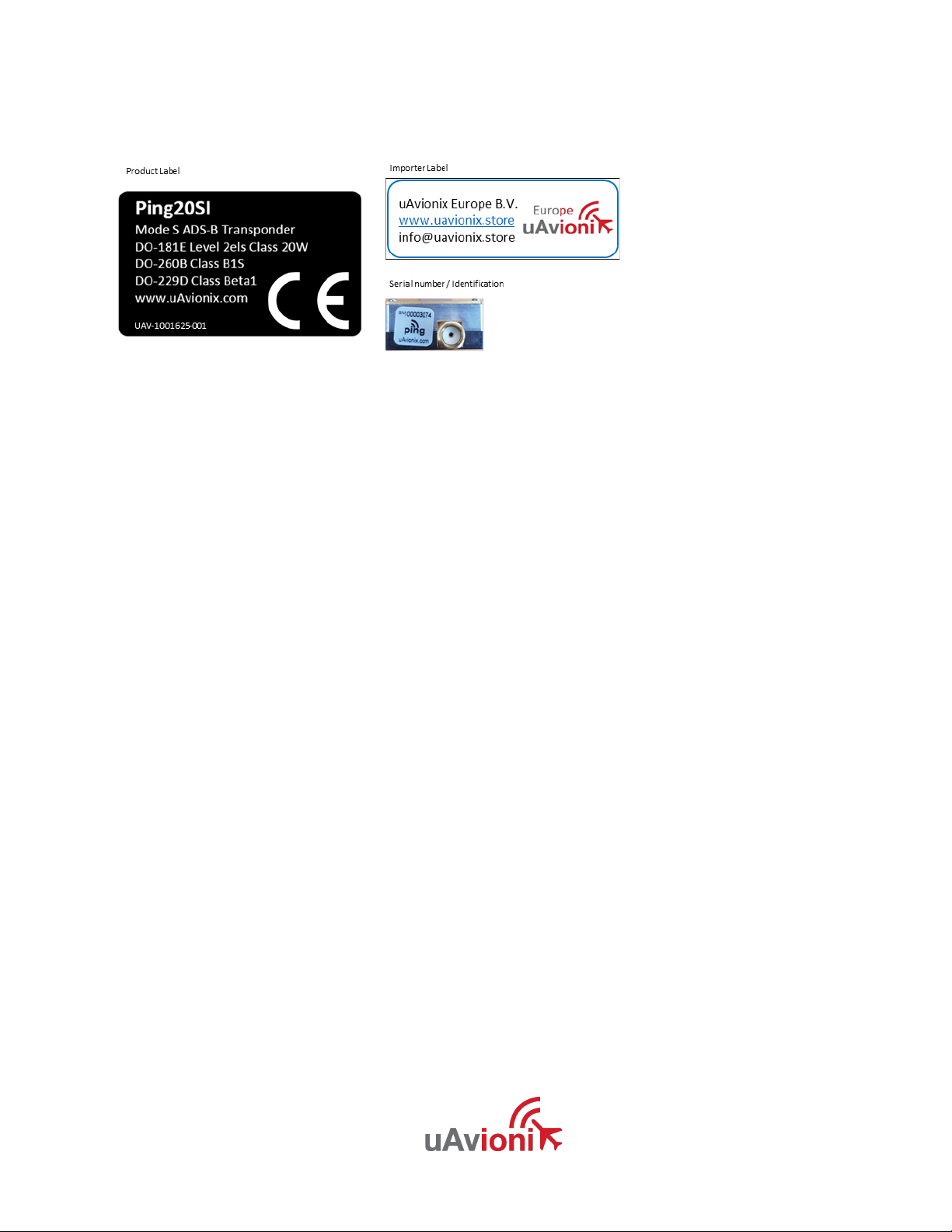

6.1 Markings
7 Equipment Limitations
7.1 Installation
7.1.1 Modifications and Use Outside of Intended Scope
This device has been designed and tested to conform to all applicable
standards in the original form and when configured with the components
shipped with the device. It is not permissible to modify the device, use the
device for any use outside of the intended scope, or use the device with
any antenna other than the one shipped with the device.
7.1.2 Deviations
Output power is limited to 20W.

UAV-1001626-001 Rev F
ECCN 7A994 Page 13 | 30
8 Equipment Installation
This section describes the installation of ping20Si and related accessories
in the aircraft, including mounting, wiring, and connections.
8.1 Unpacking and Inspecting
Carefully unpack the device and make a visual inspection of the unit for
evidence of any damage incurred during shipment. If the unit is damaged,
notify the shipping company to file a claim for the damage. To justify your
claim, save the original shipping container and all packing materials.
8.2 Mounting
The ping20Si is designed to be mounted in any convenient location in the
cockpit, the cabin, or an avionics bay.
The following installation procedure should be followed, remembering to
allow adequate space for installation of cables and connectors.
• Select a position in the aircraft that is not too close to any high
external heat source. The ping20Si is not a significant heat source
itself and does not need to be kept away from other devices for this
reason.
• Avoid sharp bends and placing the cables too near to the aircraft
control cables.
• Secure the transponder to the aircraft via the supplied mounting tape.
It should be mounted on a flat surface.

UAV-1001626-001 Rev F
ECCN 7A994 Page 14 | 30
8.3 Connections
Whenever power is supplied to the transponder, a 50ohm load
must be provided to the SMA connection. You can use the
supplied antenna or a commercially available 50ohm load.
!

UAV-1001626-001 Rev F
ECCN 7A994 Page 15 | 30

UAV-1001626-001 Rev F
ECCN 7A994 Page 16 | 30
8.4 Wiring Diagram
Power Interface
Pin
Type
Physical
1
Aircraft Power
11-15V
2
Ground
Mating Connector: Molex 0436450200
Use a 1 Amp circuit breaker for power supply protection to the ping20Si.
Power to be provided by UAV battery or separate 3S LiPo battery.
Control Interface
Pin
Type
Physical
Rate
Link
1
RX In
3.3V Serial
57600bps
Control
2
TX Out
3.3V Serial
57600bps
GDL 90
3
Power
5V Out
4
Ground
Mating Connector: JST ZHR-4, Pins: SZH-002T-P0.5
LEDs
LED
SOLID
FLASHING
RED
FAULT
Reply /
Transmit
GREEN
Powered
Receiving
Interrogation

UAV-1001626-001 Rev F
ECCN 7A994 Page 17 | 30
8.5 Cooling Requirements
ping20Si is designed to meet all applicable TSO requirements without
forced-air cooling.
Attention should, however, be given to the incorporation of cooling
provisions to limit the maximum operating temperature if ping20Si is
installed in close proximity to other Avionics. The reliability of equipment
operating in close proximity in an avionics bay can be degraded if adequate
cooling is not provided.
8.6 Antenna Installation
The following considerations should be taken into account when siting the
antenna.
• The antenna should be mounted in a vertical position when the
aircraft is in level flight.
• Where practical, plan the antenna location to keep the cable lengths
as short as possible and avoid sharp bends in the cable to minimize
the VSWR.
Electrical connection to the antenna should be protected to avoid loss of
efficiency due to exposure to liquids and moisture. All Antenna feeders
shall be installed in such a way that a minimum of RF energy is radiated
inside the aircraft.

UAV-1001626-001 Rev F
ECCN 7A994 Page 18 | 30
9 Programming

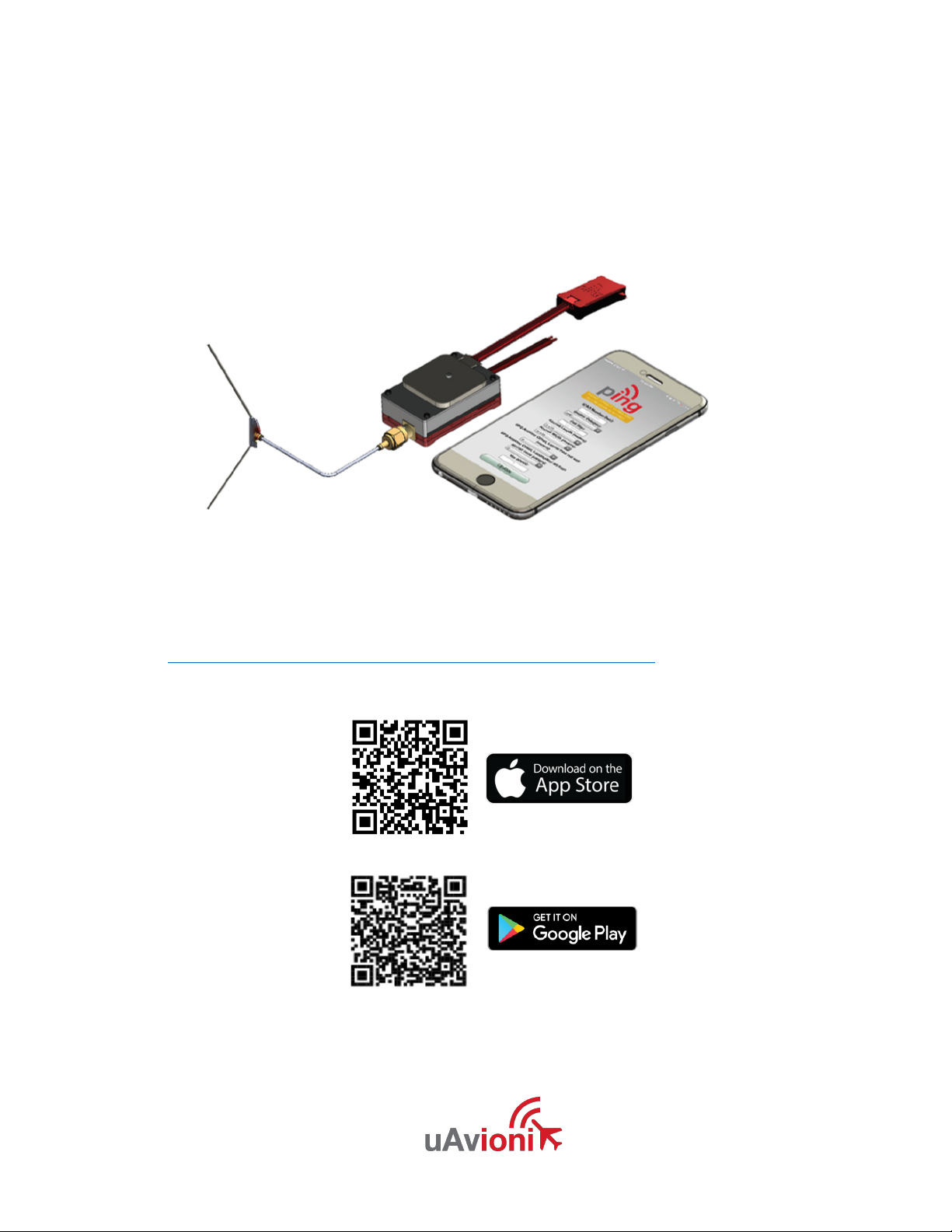

These settings are stored in the ping20Si. To change these settings, the
ping20Si is configured via the supplied pingUSB Wi-Fi adapter and mobile
device application.
Please refer to the following documentation:
Ping App iOS quick start guide:
http://uavionix.com/downloads/pingapp/uavionix-ping-app-quick-start-guide.pdf

UAV-1001626-001 Rev F
ECCN 7A994 Page 19 | 30
The transponder system should be configured during initial system
installation by a qualified technician. The configuration items list below
should be used to document the system installation for future reference.
Configuration Item
Default
Control
Priority
Default Control
Standby/Off
YES
ICAO Number
0x000000
Callsign
“ “
YES
Aircraft Category
UAV (14)
VFR Squawk Code
1200
YES
Aircraft Maximum Speed
Not Available
ADS-B RX Capability
UAT RX
NO
ES1090 RX
NO
Aircraft Length (Meters)
0
Aircraft Width (Meters)
0
GPS Offset Lateral (Meters)
0
GP Offset Longitudinal (Meters)
0
Configuration Items List
9.1 Default Control
Select the desired control type. This setting configures the ping20Si for
Standby, On or Altitude reporting.
• Standby/Off: Disables both the transmit and receive functions.
• ON: Responds to all interrogations and transmits ADS-B Extended
Squitter messages. Reports 0000 to altitude (Mode C) interrogations.
ALT: Responds to all interrogations and transmits ADS-B Extended
Squitter messages. Reports barometric altitude to Mode C
interrogations.
9.2 ICAO Number
The ICAO address is a 24-bit number issued to the aircraft by the
registration authority of the aircraft. These addresses are usually written as
a 6-digit hexadecimal number, although you may also encounter one
written as an 8-digit octal number. The echoUAT understands the

UAV-1001626-001 Rev F
ECCN 7A994 Page 20 | 30
hexadecimal format, so you must first convert an octal number to
hexadecimal before entering.
Tip: By using the N-Number Look Up function on https://www.faa.gov,
locate and use the “Mode S Code (base 16 / hex)” value.
9.3 Callsign
The CALL SIGN can be up to an 8 digit code that corresponds to the tail
number of the aircraft. (0-9, A-F).
Note: This is typically your aircraft N-number, unless otherwise advised by
the FAA or ATC.
9.4 Aircraft Category
To assist ATC tracking of aircraft, an aircraft category can be transmitted.
9.5 VFR Squawk Code
VFR squawk (Mode 3/A) code is a pre-programmed default code when the
pilot is flying VFR and not in contact with ATC. In the USA, the VFR
squawk code is 1200 and in most parts of Europe the VFR squawk code is
7000.
9.6 Aircraft Maximum Speed
Mode S transponders can transmit their maximum airspeed characteristics
to aircraft equipped with TCAS. This information is used to identify threats
and to plan avoiding action by the TCAS equipped aircraft. The airspeeds
are grouped in ranges.
9.7 ADS-B RX Capability
The ADS-B transmissions include an indication to the ground stations of
whether the aircraft includes a 1090MHz ADS-B receiver, a UAT ADS-B
receiver, or both.
