uAvionix Ping20S Manual

UAV-1001559-002
ECCN 7A994 Page 1 | 30

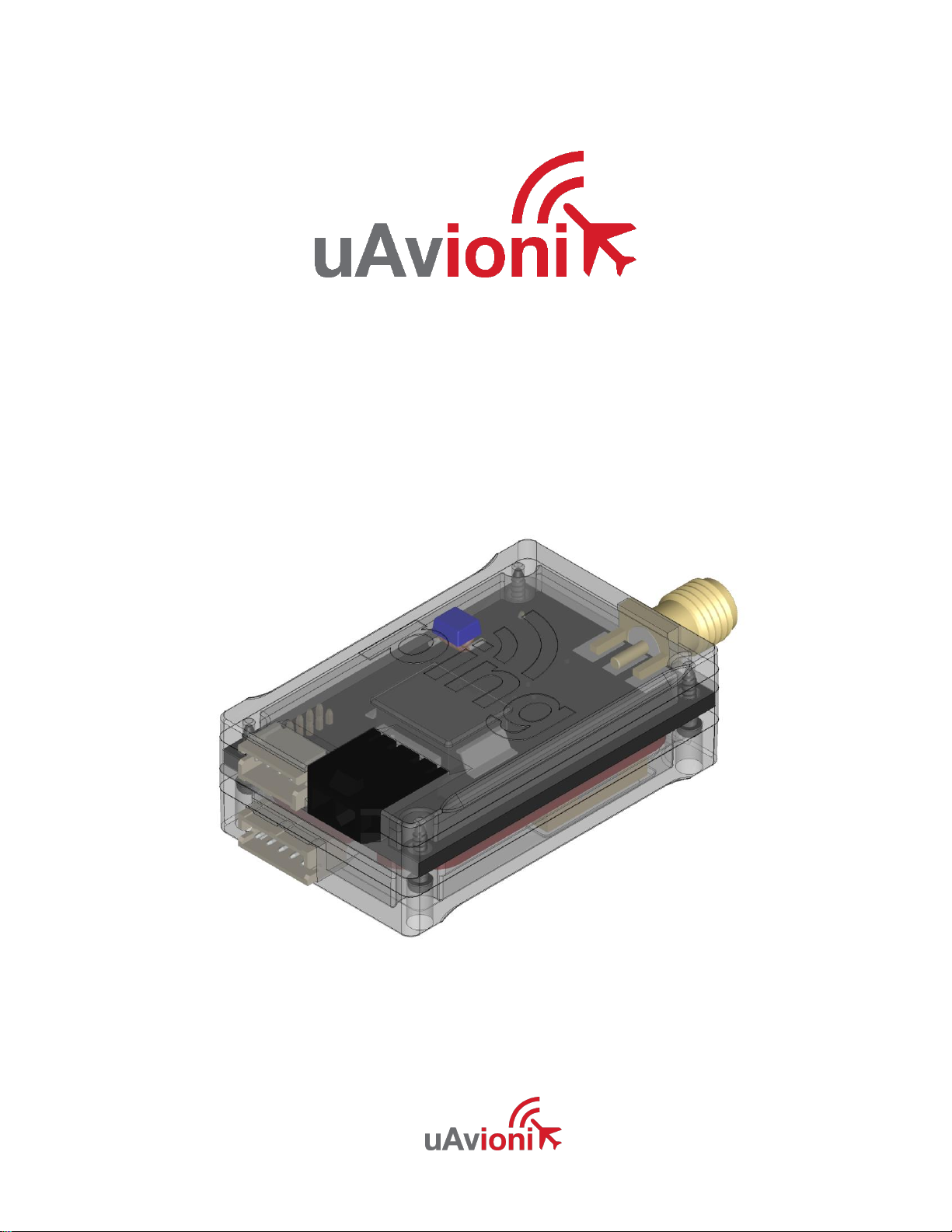

Ping20S
User and Installation Guide

UAV-1001559-002
ECCN 7A994 Page 2 | 30
© 2017 uAvionix Corporation. All rights reserved.
uAvionix Corporation
300 Pine Needle Lane
Bigfork, MT 59911
http://www.uavionix.com
[e-mail]
Except as expressly provided herein, no part of this guide may be
reproduced, transmitted, disseminated, downloaded or stored in any
storage medium, for any purpose without the express written permission of
uAvionix. uAvionix grants permissions to download a single copy of this
guide onto an electronic storage medium to be viewed for personal use,
provided that the complete text of this copyright notice is retained.
Unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.
uAvionix®is a registered trademark of uAvionix Corporation, and may not
be used without express permission of uAvionix.

UAV-1001559-002
ECCN 7A994 Page 3 | 30
1 Revision History
Revision
Date
Comments
A
12/19/16
Initial release
B
5/25/17
Export Control
C
10/9/17
Input Power 24V
D
1/15/2017
Corporate Address

UAV-1001559-002
ECCN 7A994 Page 4 | 30
!
2 Warnings / Disclaimers
All device operational procedures must be learned on the ground.
uAvionix is not liable for damages arising from the use or misuse of this
product.
This equipment has not received a FAA transmit license and is
for development use only.
This equipment is classified by the United States Department of
Commerce's Bureau of Industry and Security (BIS) as Export Control
Classification Number (ECCN) 7A994.
These items are controlled by the U.S. Government and authorized for
export only to the country of ultimate destination for use by the ultimate
consignee or end-user(s) herein identified. They may not be resold,
transferred, or otherwise disposed of, to any other country or to any person
other than the authorized ultimate consignee or end-user(s), either in their
original form or after being incorporated into other items, without first
obtaining approval from the U.S. government or as otherwise authorized by
U.S. law and regulations.

UAV-1001559-002
ECCN 7A994 Page 5 | 30
3 Limited Warranty
uAvionix products are warranted to be free from defects in material and
workmanship for one year from the installation in the aircraft. For the
duration of the warranty period, uAvionix, at its sole option, will repair or
replace any product which fails under normal use. Such repairs or
replacement will be made at no charge to the customer for parts or labor,
provided that the customer shall be responsible for any transportation cost.
This warranty does not apply to cosmetic damage, consumable parts,
damage caused by accident, abuse, misuse, water, fire or flood, damage
caused by unauthorized servicing, or product that has been modified or
altered.
IN NO EVENT, SHALL UAVIONIX BE LIABLE FOR ANY INCIDENTAL,
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER
RESULTING FROM THE USE, MISUSE OR INABILITY TO USE THE
PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES DO
NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Warranty Service
Warranty repair service shall be provided directly by uAvionix.

UAV-1001559-002
ECCN 7A994 Page 6 | 30
4 Contents
1Revision History...................................................................................3
2Warnings / Disclaimers........................................................................4
3Limited Warranty..................................................................................5
5Introduction..........................................................................................8
5.1 Description....................................................................................8
5.2 Interfaces......................................................................................9
5.3 Software and Airborne Electronic Hardware Configuration. ........10
5.4 Supplied Accessories..................................................................10
5.5 Optional Accessories..................................................................10
6Technical Specifications ....................................................................11
6.1 Markings.....................................................................................12
7Equipment Limitations .......................................................................12
7.1 Installation...................................................................................12
7.1.1 Modifications and Use Outside of Intended Scope ................12
7.1.2 Deviations .............................................................................12
8Equipment Installation .......................................................................12
8.1 Unpacking and Inspecting...........................................................12
8.2 Mounting.....................................................................................13
8.3 Connections................................................................................14
8.4 Wiring Diagram...........................................................................15
8.5 Cooling Requirements ................................................................17
8.6 Antenna Installation ....................................................................17
8.6.1 Supplied Dipole Antenna.......................................................17
9Configuration.....................................................................................18
9.1 Default Control............................................................................18
9.2 ICAO Number.............................................................................18
9.3 VFR Squawk Code .....................................................................19

UAV-1001559-002
ECCN 7A994 Page 7 | 30
9.4 Callsign.......................................................................................19
9.5 Aircraft Maximum Speed.............................................................19
9.6 Aircraft Category.........................................................................19
9.7 ADS-B RX Capability..................................................................19
9.8 Aircraft Length / Width ................................................................20
9.9 GPS Antenna Offset Lateral / Longitudinal..................................20
9.10 Programming..............................................................................22
10 PC Control Application.......................................................................23
11 Post Installation Checks.....................................................................24
12 Continued Airworthiness....................................................................25
13 Environmental Qualification Forms....................................................26

UAV-1001559-002
ECCN 7A994 Page 8 | 30
5 Introduction
5.1 Description
The Ping20S is a Mode S, 20W transponder with support for ADS-B
extended squitter. The Ping20S has a nominal power output of 20W.
Meets the requirements of:
RTCA DO-181E Class 1 Level 1els (20W output power level)
RTCA DO-260B Class B1S (20W output power level)
RTCA DO-178C Level C
RTCA DO-254 Level C
RTCA DO-160G
ICAO Annex 10, Volume IV
EuroCAE ED-115 Lc2 es V3 (20W output power level)
This transponder replies to both legacy Mode A/C interrogations and to
Mode S interrogations from both ground radar and airborne collision
avoidance systems. In all cases, the interrogations are received by the
transponder on 1030MHz and replies are transmitted on 1090MHz.

UAV-1001559-002
ECCN 7A994 Page 9 | 30
5.2 Interfaces
The Ping20S has a single SMA antenna connection, a 4-pin Host interface
and a 5-pin FYXnav GPS interface.
Host Interface
Interface
Specification
Protocol
COM1 RX
57600bps
VFR Squawk Code
Call sign
Squawk Code
IDENT
Transponder Mode
GDL 90 Compatible
Control Protocol
(See Appendix A)
COM1 TX
57600bps
Heartbeat
Ownship
Geometric Altitude
GDL 90
(See Appendix B)
FYXnav Interface
Interface
Specification
Protocol
FYXnav
COM 2
115200bps
GPS
Altitude Encoder
ICAO number
VFR Squawk Code
Callsign
Aircraft Maximum Speed
Aircraft Category
Aircraft Vso
Aircraft Length and Width
GPS Antenna Offset
ADS-B Rx Capability
MavLink

UAV-1001559-002
ECCN 7A994 Page 10 | 30
5.3 Software and Airborne Electronic Hardware
Configuration.
Part
Part Number
Revision
Software
UAV-1001557-002
A
Airborne Electronic Hardware
UAV-1001558-002
A
5.4 Supplied Accessories
Part
Part Number
Revision
Ping20S
UAV-1000814-001
A
Dipole Antenna
UAV-1000653-001
A
Ping20S User Manual
UAV-1001559-002
A
Power Cable
Antenna
RS232 adapter
WiFi Programmer
5.5 Optional Accessories
Part
Part Number
Revision
FYXnav-B GPS/Baro
UAV-1000568-001
A

UAV-1001559-002
ECCN 7A994 Page 11 | 30
6 Technical Specifications
Specification
Characteristics
Compliance
DO-181E Class 1 Level 1els (20W output power level)
DO-260B Class B1S (20W output power level)
DO-160F
ICAO Annex 10, Volume IV
EuroCAE ED-115 Class Lc2 es V3
(20W output power level)
Software
RTCA DO-178B Level C
Hardware
RTCA DO-254 Level C
Power
Requirements
11-16VDC. Typical 2.4W On/Alt, 0.1W Standby.
Altitude
35,000ft
Operating
Temperature
-45°C to +70°C
Humidity
Tested to Category DO-160G Category B2
Transmit
Frequency
1090MHz ±1MHz
Transmit Power
20W nominal; 16W minimum at antenna after allowing
for 0.5dB connector losses and 1.5dB cable losses.
Transmitter
Modulation
6M75 V1D
Receiver
Frequency
1030MHz
Receiver
Sensitivity
-74dBm ±3dB
Weight
15grams
Height
13mm
Length
40mm
Width
25mm

UAV-1001559-002
ECCN 7A994 Page 12 | 30

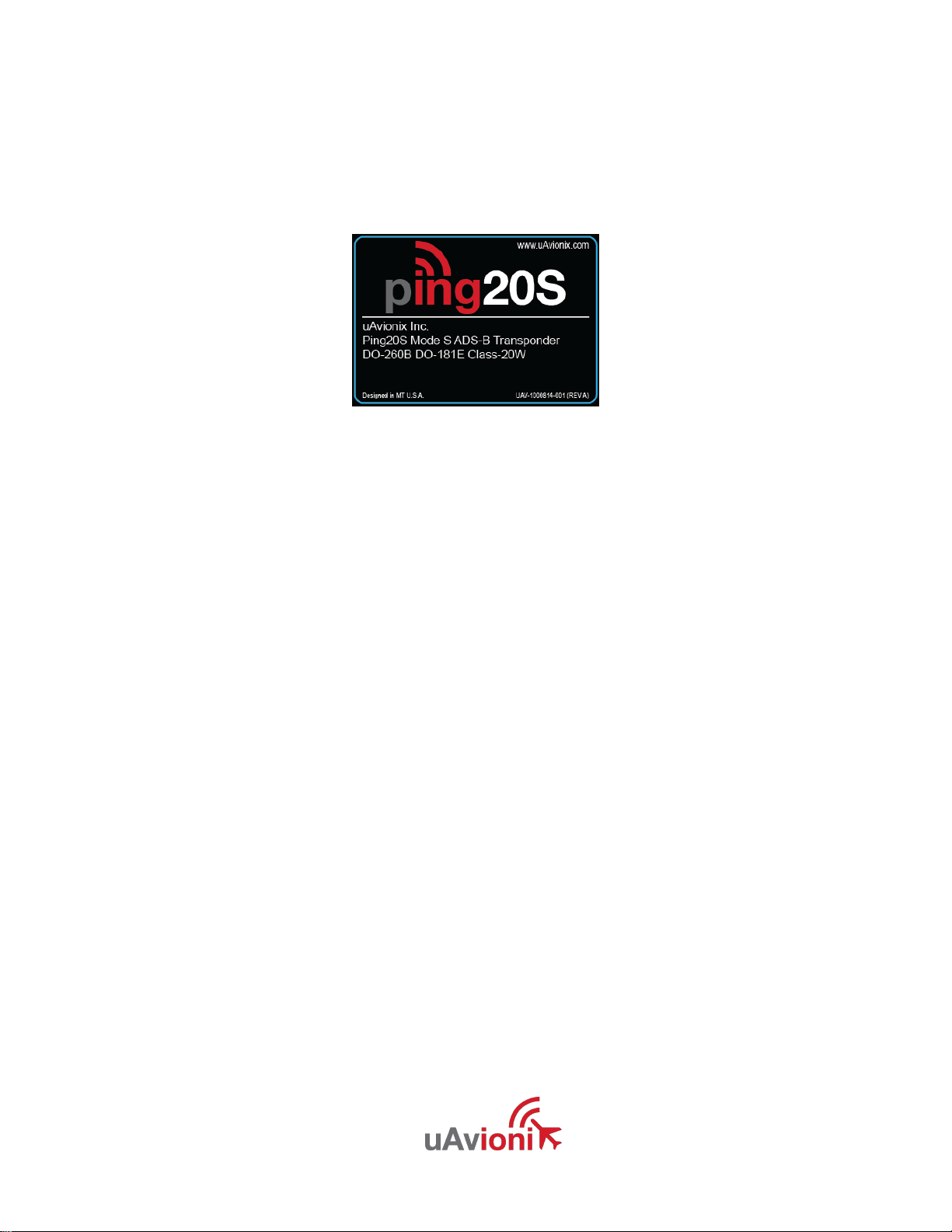

6.1 Markings
7 Equipment Limitations
7.1 Installation
7.1.1 Modifications and Use Outside of Intended Scope
This device has been designed and tested to conform to all applicable
standards in the original form and when configured with the components
shipped with the device. It is not permissible to modify the device, use the
device for any use outside of the intended scope, or use the device with
any antenna other than the one shipped with the device.
7.1.2 Deviations
Output power is limited to 20W.
8 Equipment Installation
This section describes the installation of Ping20S and related accessories
in the aircraft, including mounting, wiring, and connections.
8.1 Unpacking and Inspecting
Carefully unpack the device and make a visual inspection of the unit for
evidence of any damage incurred during shipment. If the unit is damaged,
notify the shipping company to file a claim for the damage. To justify your
claim, save the original shipping container and all packing materials.

UAV-1001559-002
ECCN 7A994 Page 13 | 30
8.2 Mounting
The Ping20S is designed to be mounted in any convenient location in the
cockpit, the cabin, or an avionics bay.
The following installation procedure should be followed, remembering to
allow adequate space for installation of cables and connectors.
Select a position in the aircraft that is not too close to any high
external heat source. The Ping20S is not a significant heat source
itself and does not need to be kept away from other devices for this
reason.
Avoid sharp bends and placing the cables too near to the aircraft
control cables.
Secure the transponder to the aircraft via the supplied mounting tape.
It should be mounted on a flat surface.

UAV-1001559-002
ECCN 7A994 Page 14 | 30
!
8.3 Connections
Whenever power is supplied to the transponder, a 50ohm load
must be provided to the SMA connection. You can use the
supplied antenna or a commercially available 50ohm load.

UAV-1001559-002
ECCN 7A994 Page 15 | 30
8.4 Wiring Diagram

UAV-1001559-002
ECCN 7A994 Page 16 | 30
Power Interface
Pin
Type
Physical
1
Aircraft Power
11-16V
2
Ground
Mating Connector: Molex 0436450200
Host Interface
Pin
Type
Physical
Rate
Link
1
RX In
3.3V Serial
57600bps
Control
2
TX Out
3.3V Serial
57600bps
GDL 90
3
Power
5V Out
4
Ground
Mating Connector: JST ZHR-4, Pins: SZH-002T-P0.5
FYXnav Interface
Pin
Type
Physical
Rate
Link
1
NC
2
RX In
3.3V Serial
115200bps
MavLink
3
TX Out
3.3V Serial
115200bps
GDL 90
4
Power
5V Out
5
Ground
Mating Connector: JST ZHR-5, Pins: SZH-002T-P0.5
LEDs
LED
SOLID
FLASHING
RED
FAULT
Reply /
Transmit
GREEN
Powered
Receiving
Interrogation

UAV-1001559-002
ECCN 7A994 Page 17 | 30
8.5 Cooling Requirements
Ping20S is designed to meet all applicable TSO requirements without
forced-air cooling.
Attention should, however, be given to the incorporation of cooling
provisions to limit the maximum operating temperature if Ping20S is
installed in close proximity to other Avionics. The reliability of equipment
operating in close proximity in an avionics bay can be degraded if adequate
cooling is not provided.
8.6 Antenna Installation
8.6.1 Supplied Dipole Antenna
The following considerations should be taken into account when siting the
antenna.
The antenna should be mounted in a vertical position when the
aircraft is in level flight.
Where practical, plan the antenna location to keep the cable lengths
as short as possible and avoid sharp bends in the cable to minimize
the VSWR.
Electrical connection to the antenna should be protected to avoid loss of
efficiency due to exposure to liquids and moisture. All Antenna feeders
shall be installed in such a way that a minimum of RF energy is radiated
inside the aircraft.

UAV-1001559-002
ECCN 7A994 Page 18 | 30
9 Configuration
The transponder system should be configured during initial system
installation by a qualified technician. The configuration items list below
should be used to document the system installation for future reference.
Configuration Item
Default
Setting
ICAO Number
0x000000
VFR Squawk Code
1200
Callsign
“SELF “
Aircraft Maximum Speed
Not Available
Aircraft Category
UAV (14)
ADS-B RX Capability
UAT RX
NO
ES1090 RX
NO
Configuration Items List
9.1 Default Control
Select the desired control type. This setting configures the Ping20S for
Standby, On or Altitude reporting.
Standby/Off: Disables both the transmit and receive functions.
ON: Responds to all interrogations and transmits ADS-B Extended
Squitter messages. Reports 0000 to altitude (Mode C) interrogations.
ALT: Responds to all interrogations and transmits ADS-B Extended
Squitter messages. Reports barometric altitude to Mode C
interrogations.
9.2 ICAO Number
The ICAO address is a 24-bit number issued to the aircraft by the
registration authority of the aircraft. These addresses are usually written as
a 6-digit hexadecimal number, although you may also encounter one
written as an 8-digit octal number. The FYXnav understands the
hexadecimal format. An octal number must be converted to hexadecimal
format before entering.

UAV-1001559-002
ECCN 7A994 Page 19 | 30
9.3 VFR Squawk Code
VFR squawk (Mode 3/A) code is a pre-programmed default code when the
pilot is flying VFR and not in contact with ATC. In the USA, the VFR
squawk code is 1200 and in most parts of Europe the VFR squawk code is
7000.
9.4 Callsign
The callsign (aka VFR Flight ID) is an 8 character code that corresponds to
the tail number of the aircraft. (0-9, A-Z). No dashes or spaces are
permitted in the callsign field.
9.5 Aircraft Maximum Speed
Mode S transponders can transmit their maximum airspeed characteristics
to aircraft equipped with TCAS. This information is used to identify threats
and to plan avoiding action by the TCAS equipped aircraft. The airspeeds
are grouped in ranges. Choose the range that fits your aircraft.
9.6 Aircraft Category
To assist ATC tracking of aircraft, an aircraft category can be transmitted.
9.7 ADS-B RX Capability
The ADS-B transmissions include an indication to the ground stations of
whether the aircraft includes a 1090MHz ADS-B receiver, a UAT ADS-B
receiver, or both.

UAV-1001559-002
ECCN 7A994 Page 20 | 30
9.8 Aircraft Length / Width
When on the ground, ADS-B transmits encoded aircraft size information
which is used by ATC to identify taxiing routes and potential conflicts. Enter
the length and width (wingspan) fields and the appropriate size codes will
be calculated for transmission.
Air Aircraft Length in Meters
Aircraft Width (wing span) in Meters
L ≤ 15
W ≤ 23
15 < L ≤ 25
28.5 < W ≤ 34
25 < L ≤ 35
33 < W ≤ 38
35 < L ≤ 45
39.5 < W ≤ 45
45 < L ≤ 55
45 < W ≤ 52
55 < L ≤ 65
59.5 < W ≤ 67
65 < L ≤ 75
72.5 < W ≤ 80
75 < L ≤ 85
W > 80
L > 85
Any
9.9 GPS Antenna Offset Lateral / Longitudinal
The GPS antenna offset is used in conjunction with the length and width to
manage taxiway conflicts. A typical GPS does not report the geographic
position of the center of the aircraft, or even the tip of the nose of the
aircraft; instead, it usually reports the location of the actual GPS antenna
(not the GPS receiver). In normal flight operation, this distinction is of no
importance at all, but if ADS-B is used to manage taxiway conflicts, a
significant offset in antenna position could mean the aircraft footprint is not
in the same place as the ADS-B reported position. Although the GPS
Antenna Offset is primarily intended for position correction on large
transport aircraft, General Aviation aircraft can also have a significant
offset. For example, if the aircraft has a long tail boom and the GPS
antenna is on top of the tail, the GPS position could be 4 meters or more
from the nose of the aircraft.
