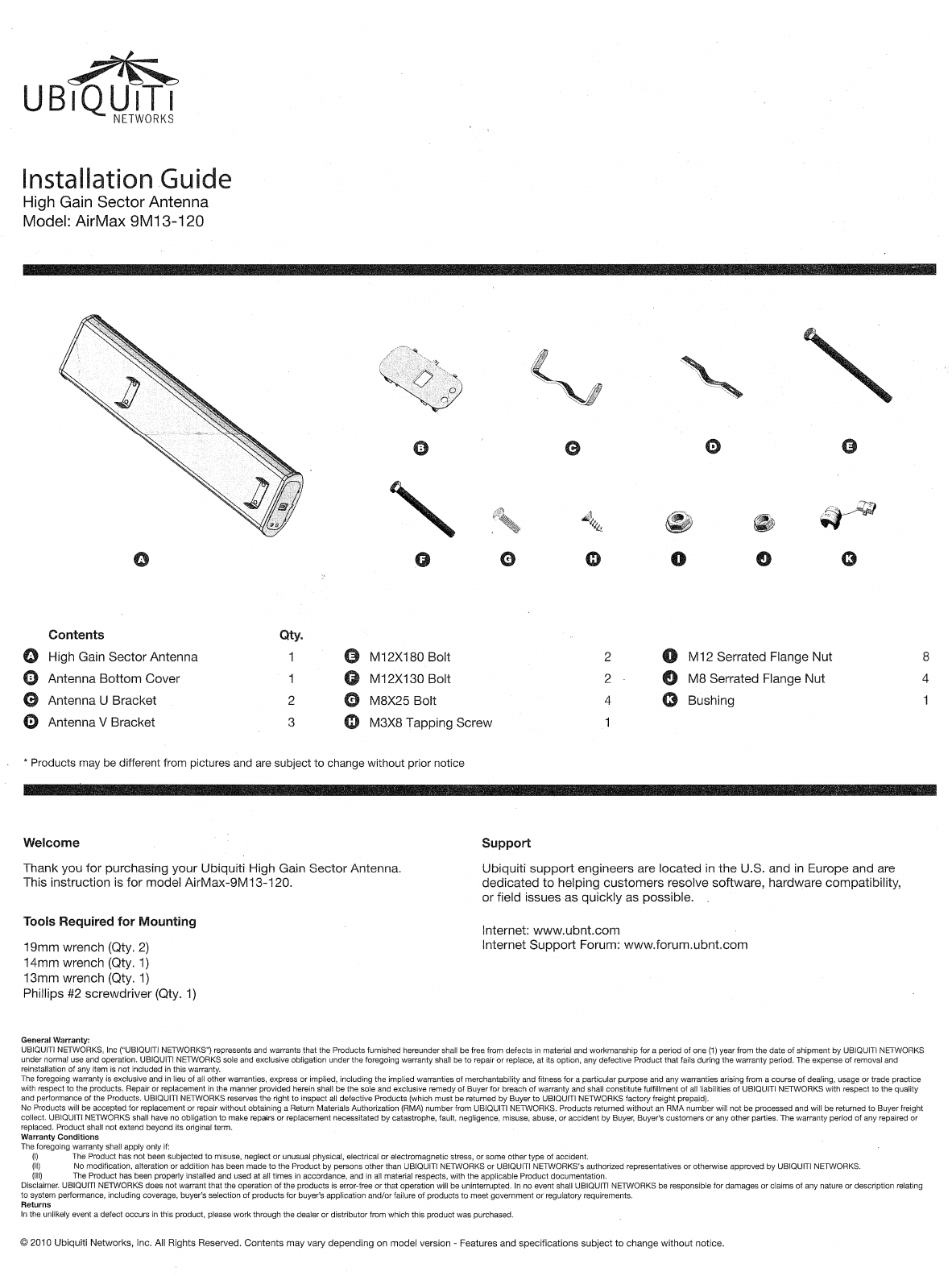

Ubiquiti AirMax 9M13-120 User manual

Installation Guide
High Gain Sector Antenna
Model: AirMax 9M13-120
Contents
0 High Gain Sector Antenna
0 Antenna Bottom Cover
a Antenna U Bracket
Qty. G
G
2 e
0
M12X180 Bolt 2 0 M12 Serrated Flange Nut
M12X130 Bolt 2
f)
MB Serrated Flange Nut
M8X25 Bolt 4 0 Bushing
(!) Antenna V Bracket 3 (l')
M3X8 Tapping Screw
'
Products may be different from pictures and are subject to change without prior notice
Welcome
Thank you for purchasing your Ubiquiti High Gain Sector Antenna.
This instruction
is for model AirMax-9M13-120.
Tools Required for Mounting
19mm wrench (Qty. 2)
14mm wrench (Qty. 1)
13mm wrench (Qty. 1)
Phillips #2 screwdriver (Qty. 1)
General Warranty:
Support
Ubiquiti support engineers are located in the U.S. and in Europe and are
dedicated to helping customers resolve software, hardware compatibility,
or field issues as quickly as possible.
Internet: www.ubnt.com
Internet Support Forum: www.forum.ubnt.com
8
4
UBIQUITI NE1WORKS, Inc ("UB!QUITI NETWORKS") represents and warrants that the Products furnished hereunder shaH be free from defects in material and workmanship for a period of one (I) year from the date of shipment by UBIQUITI NETWORKS
under normal use and operation. UBIQUITI NETWORKS sole and exclusive ob!igatlon under the foregoing warranty shatl be to repair or replace, at its option, any defective Product that fails during the warranty period. The expense of removal and
reinstallation of any item is not included
The foregoing warranty is exclusive and in lieu express implied warranties of merchantability and fitness for a particular purpose and any warranties arising from a course of dealing, usage or trade practice
with respect
to the products. Repair or replacement in the manner provided herein be remedy of Buyer for breach of warranty and shall constitute fulfillment of atl liab1litles of UB!QUJTI NETWORKS with respect to the quality
and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIOUITI NETWORKS factory freight prepaid).
No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (AMA) numberfrom UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned to Buyer freight
collect. UBIOUrn NETWORKS shall have no obligatkm to make repairs or replacement necessitated by catastrophe, fault neglJgence, misuse, abuse, or accident by Buyer, Buyer's customers or any other parties. The warranty period of any repaired or
replaced. Product shall not extend beyond its original term.
Warranty Conditions
The foregoing warranty shal1 apply only if:
The Product has not been subjected to misuse, neglect or unusual physical, electrical or electromagnetic stress, or some othertype of accident
No modification, alteration or addition has been made to the Product by persons other than UBlQUITI NETWORKS or UBIQU!TI NETWORKS's authorized representatives or otherwise approved by UB!QUITI NETWORKS.
The Product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation.
UBIQUITt NETWORKS does is error-free or that operation will be uninterrupted, In no event shall UBIQUIT! NETWORKS be responsible for damages or claims of any nature or description relating
application and/orfailure of products to meet government or regulatory requirements.
In the unlikely event a defect occurs in this product, please work through the dealer or distributor from which this product was purchased.
© 2010 Ubiquiti Networks, Inc. All Rights Reserved. Contents may vary depending on model version -Features and specifications subject to change without notice.

1. Install Rocket and Cables
Route Ethernet cable through the hole on the OAntenna Bottom Cover
and connect to Ethernet port on the Rocket.
Attach the two antenna
RF connectors to the Rocket.
2. Install Cover and Bushing
Install cover to the bottom ofthe antenna with the 0 M3X8 Tapping
Screw.
Wrap network cable in 0 Bushing then push it into place of cover.
3. Install Antenna Bracket Clamps
Install 9 Antenna U Bracket Clamps to the antenna brackets by installing:
0 M8X25 Bolt (Qty. 4)
0 MS Serrated Flange Nut (Qty. 4)
4. Attach Antenna to Pole
Mounting bracket can accommodate 030-75mm pole.
Install<:) Antenna V Bracket clamps by installing:
0 M12X180 Bolt (Qty. 2)
G M12X130 Bolt (Qty. 2)
0 M12 Serrated Flange Nut (Qty. 8)
Secure each Q M12X18 Bolt using a 0 M12 Serrated Flange Nut
on the top 9 U Bracket.
i
