Uhlenbrock Elektronik 71 700 Owner's manual

Connection DGL 750, DGL 751 and DAL 770
green
blue
grey
black (only 750)
ConnectionDGR755andDFR756
blue greengrey
What it does
The pickup shoe selector is working in conjunction with any Uhlenbrock Motorola decoder. It will
automaticallyselect thefront pickupshoe dependingon direction,and connectit tothe decoder’s
red lead. Thus trains will stop at the dead section in front of a signal.
Hookup
The selector’s red lead is to be connected to the decoder’s red lead.
The selector’s green, blue, and gray leads have to be soldered to the corresponding pads on
the decoder as shown in the sketch.
The selector’s black lead is to be connected to the decoder’s black lead (+20V). Exception:
Decoder DGL 750. Here the black lead has to be soldered to a pad on the decoder as shown
in the sketch.
The pickup shoes’ leads must be connected to the orange ones of the selector. If pickup is done
from the rear shoe, the orange leads have to be changed over.
Digital Pickup Shoe Selector 71 700
for motor cars and shuttle trains
Supplement to Uhlenbrock decoders
Connection 75400 and 75420Connection 75100
black +20V
orange rearpickupshoe
red Decoderinput
green forward
orange frontpickupshoe
grey –
blue reverse
ConnectionSchematic71 700(775)
07.03 Be

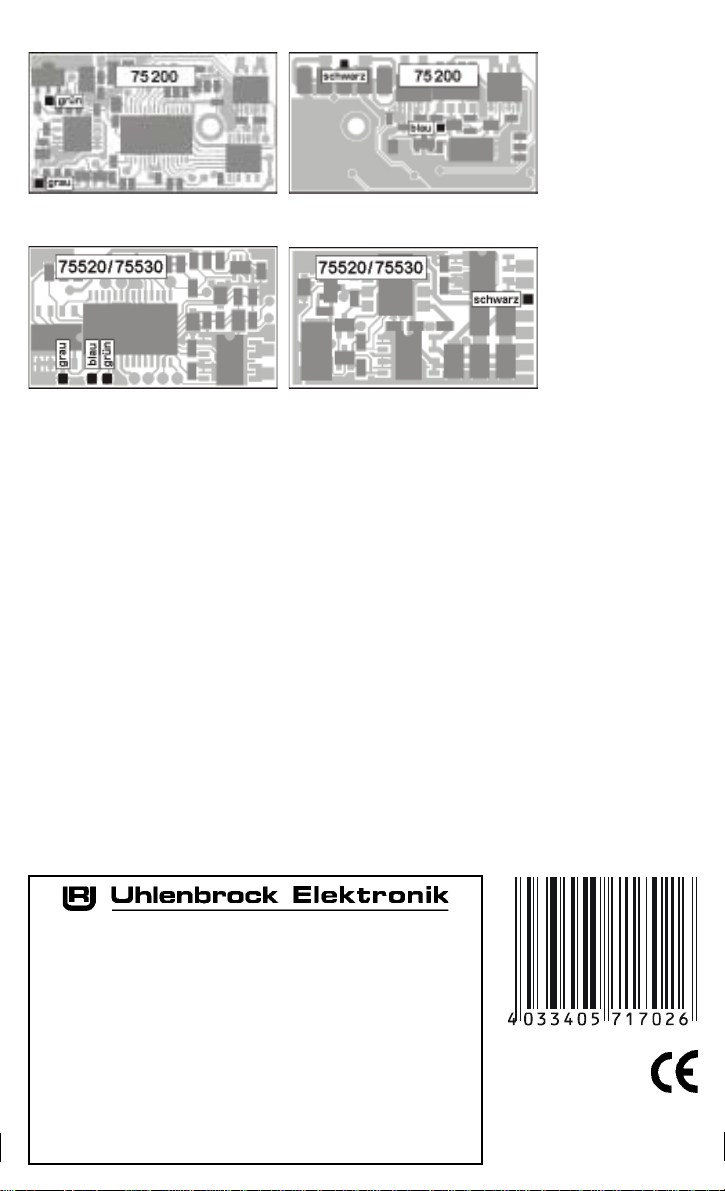

Connection 75200
Connection 75520/75530
Allbrandnamesmentionedareregisteredtrademarksoftherespectivecompanies.
Warranty Statement
Every item is fully tested for functioning before shipment. If a defect occurs within two years
after purchase, the item will be repaired free of charge against presentation of purchase proof.
Damages caused by overload or improper treatment are not covered by this warranty.
For EU only: Please note that decoders may only used in models carrying the EC conformance
label.
www.uhlenbrock.de
Be it most recent information about Intellibox, a pricelist or a listing of authorized dealers, plus
various publications to download, our website warrants your visit in every case.
Item no. 71 70299
07.03Be
Uhlenbrock Elektronik GmbH
Mercatorstr.6
D-46244 Bottrop
MadeinGermany
These are your advantages:
Service
In case of an eventual failure please return the defective item to us for
repair. Please include purchase proof and a short description of defect,
as well as stating the decoder’s address setting.
Hotline
In case of questions, we are ready to answer them for you!
Directly contact our technician: + 49 (0)2045 - 858327
Mo-Fr except Wed 14:00-16:00 hrs CET, Wed 16:00-18:00 hrs CET The figure 2 at the end of the item no.
meansthatthisarticle isdeliveredwith
an english discribtion.
