INSTALLATION AND MOUNTING MANUAL
HyperSpike® MA-1 and MA-2

Copyright © Ultra Electronics – USSI, Columbia City, IN 46725 USA
HyperSpike®MA-1 and MA-2 Installation and Mounting Manual
i
98028A-MAN-MASERIES Rev B
This manual contains information that is proprietary to Ultra Electronics – USSI. It is
intended solely for the education and use of parties operating and maintaining the
equipment described herein
.

Copyright © Ultra Electronics – USSI, Columbia City, IN 46725 USA
98028A-MAN-MASERIES Rev B
Page 1
HyperSpike®MA-1 and MA-2 Installation and Mounting Manual
1.0 INTRODUCTION
The MA-1and MA-2 product families consist of single-channel and multi-channel units. All versions
are available in 5-, 3-, 2-, and 1-sided configurations.
The MA-1 and MA-2 series speaker systems are designed for indoor or outdoor wet applications.
These speakers produce up to 360 degrees of acoustic energy and excel in high ambient noise
environments. They have an operation temperature range of -20°C to 60°C. Select speakers meet
UL Standard 1480A (Speakers for Commercial and Professional Use) and Hazardous Location
Class I Division 2.
90000A-800-00-L
PRODUCT:
90105A – MA-1 Single-Channel
90223A – MA-1 Multi-Channel
90162A – MA-1 Connectorized
90080A – MA-2 Single-Channel
90224A – MA-2 Multi-Channel
90163A – MA-2 Connectorized
CONFIGURATION:
801 – 5 sided
802 – 3 sided
803 – 2 sided
804 – 1 sided
COLOR CODE:
02 – Tan
04 – Gray
CERTIFICATION:
N/A – Uncertified versions
L – 1480A and Class I Division 2, Group A, B, C, and D certified
(Not available for 90162A or 90163A)

Copyright © Ultra Electronics – USSI, Columbia City, IN 46725 USA
98028A-MAN-MASERIES Rev B
Page 2
HyperSpike®MA-1 and MA-2 Installation and Mounting Manual
Specifications:
Table 1: Emitter Head and dB Rating
Input Voltage:
MA-1 and MA-2 Single/Double Channel: 90 VRMS
Multi-Channel: 41 VRMS per channel
Impedance / Power Rating:
Frequency Response: 175 Hz – 6000 Hz
Weight:
MA-1: 50 lbs.
MA-2: 100 lbs.
Dimensions:
MA-1: 12.8” DIA X 26.2” H
MA-2: 12.8” DIA X 45.5” H
CAUTION: EXCEEDING THE MAXIMUM RATINGS OF THE SPEAKER WILL CAUSE
EXCESSIVE DISTORTION AND MAY CAUSE PERMANENT DAMAGE TO THE
SPEAKER AND ITS INTERNAL COMPONENTS.
Product dB SPL
(Peak @ 1m) dB SPL (Max @ 1m) Usable Range (Feet @ 80dB)
MA-1
143
135
1969
MA-2
148
140
3280
MA-1
90105A, 90162A Impedance (per channel) Power (Watts) Directionality
-801
5
1600
360
-802
8
960
230
-803
12
640
185
-804
24
320
120
MA-2
90080A, 90163A Impedance (per channel) Power (Watts) Directionality
-801
5
3200
360
-802
8
1920
230
-803
12
1280
185
-804
24
640
120
MA-1/MA-2 Multi Channel
90223A, 90224A Impedance (per channel) Power (Watts) Directionality
-801
6
1600/3200
360
-802
6
960/1920
230
-803
6
640/1280
185
-804
6
320/640
120

Copyright © Ultra Electronics – USSI, Columbia City, IN 46725 USA
98028A-MAN-MASERIES Rev B
Page 3
HyperSpike®MA-1 and MA-2 Installation and Mounting Manual
This equipment is suitable for indoor or outdoor wet location use in Class I Division 2, Groups A, B,
C, D; or Non-Hazardous locations only.
Temperature Code: T3A
CAUTION: SOUND LEVEL EXCEEDS 120 dBA.
2.0 MOUNTING
WARNING: WHEN MOUNTING OUTDOORS, MAKE SURE THAT THE SUPPORT
SYSTEM USED HAS THE PROPER WIND LOAD RATING AND COMPLIES WITH
LOCAL STANDARDS AND CODES.
The MA-series comes standard with a mounting adaptor that accepts a 2” diameter pole and has
2 – 3/8 set screws to lock the unit in place. (Figure 1)
1) To mount the MA-1/MA-2, slide the mount on the emitter head over a 2” OD pipe
(not included).
Figure 1: Location of the 2” ID mount

Copyright © Ultra Electronics – USSI, Columbia City, IN 46725 USA
98028A-MAN-MASERIES Rev B
Page 4
HyperSpike®MA-1 and MA-2 Installation and Mounting Manual

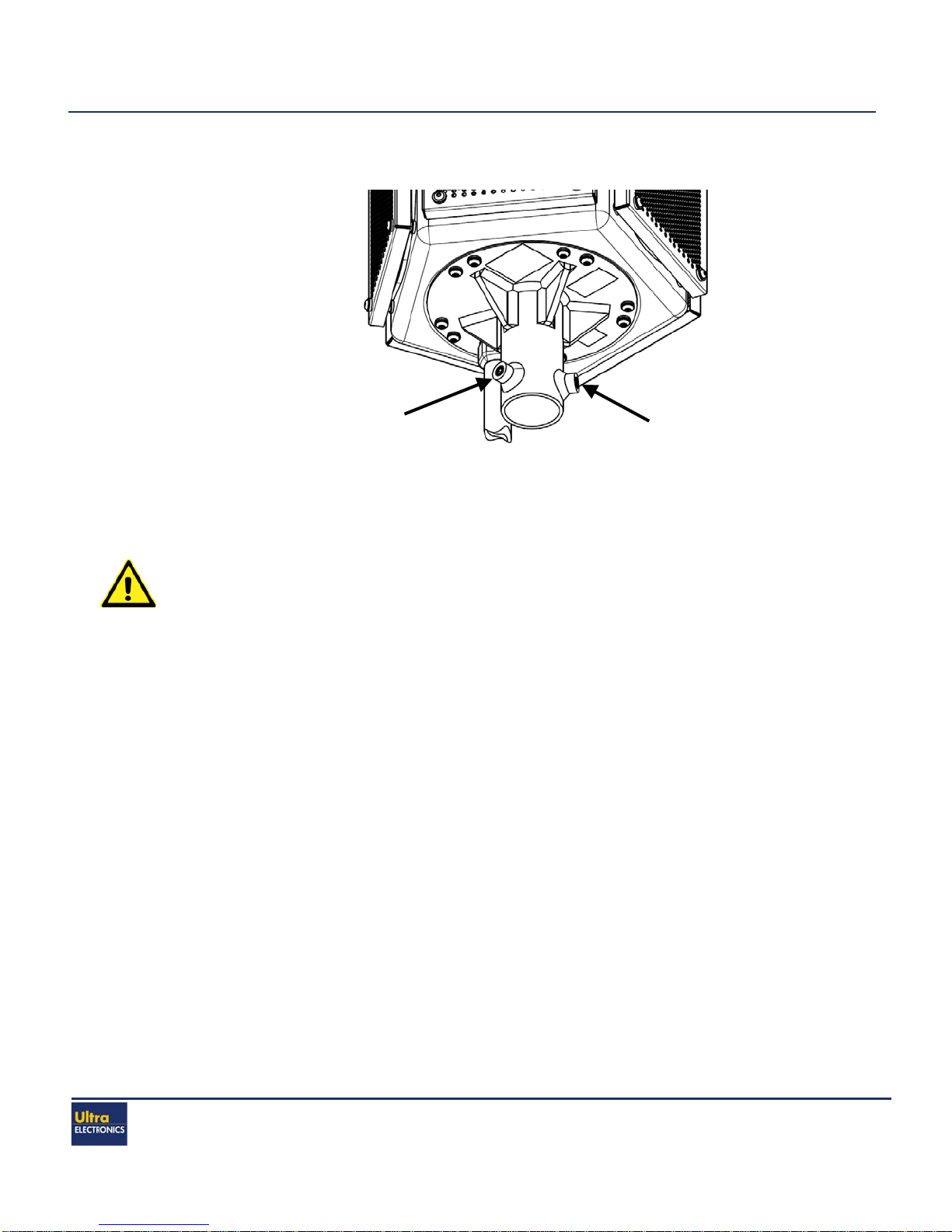

2) Once mounted, tighten the 2 – 3/8 set screws to 30 in-lbs.
Figure 2: Location of screws to tighten to 2” pipe
3.0 FIELD WIRING
WARNING: EXPLOSION HAZARD. DO NOT DISCONNECT THE EQUIPMENT
UNLESS POWER HAS BEEN SWITCHED OFF OR UNLESS THE AREA IS KNOWN
TO BE NON-HAZARDOUS.
3.1. Cable Routing
3.1.1. Single- and Multi-Channel Systems
All single- and multi-channel MA-1and MA-2 systems come with a 10-foot long 3/4” flexible
conduit and 11-foot 14 AWG leads. The connection at the end of the conduit requires an
installer-supplied junction box with a rating suitable for the installation environment of the
box. See figure 3 for an example.
Route the conduit to a junction box approved by local electrical codes and standards.
Follow your integrator’s instructions for installing into an appropriate junction system.

Copyright © Ultra Electronics – USSI, Columbia City, IN 46725 USA
98028A-MAN-MASERIES Rev B
Page 5
HyperSpike®MA-1 and MA-2 Installation and Mounting Manual

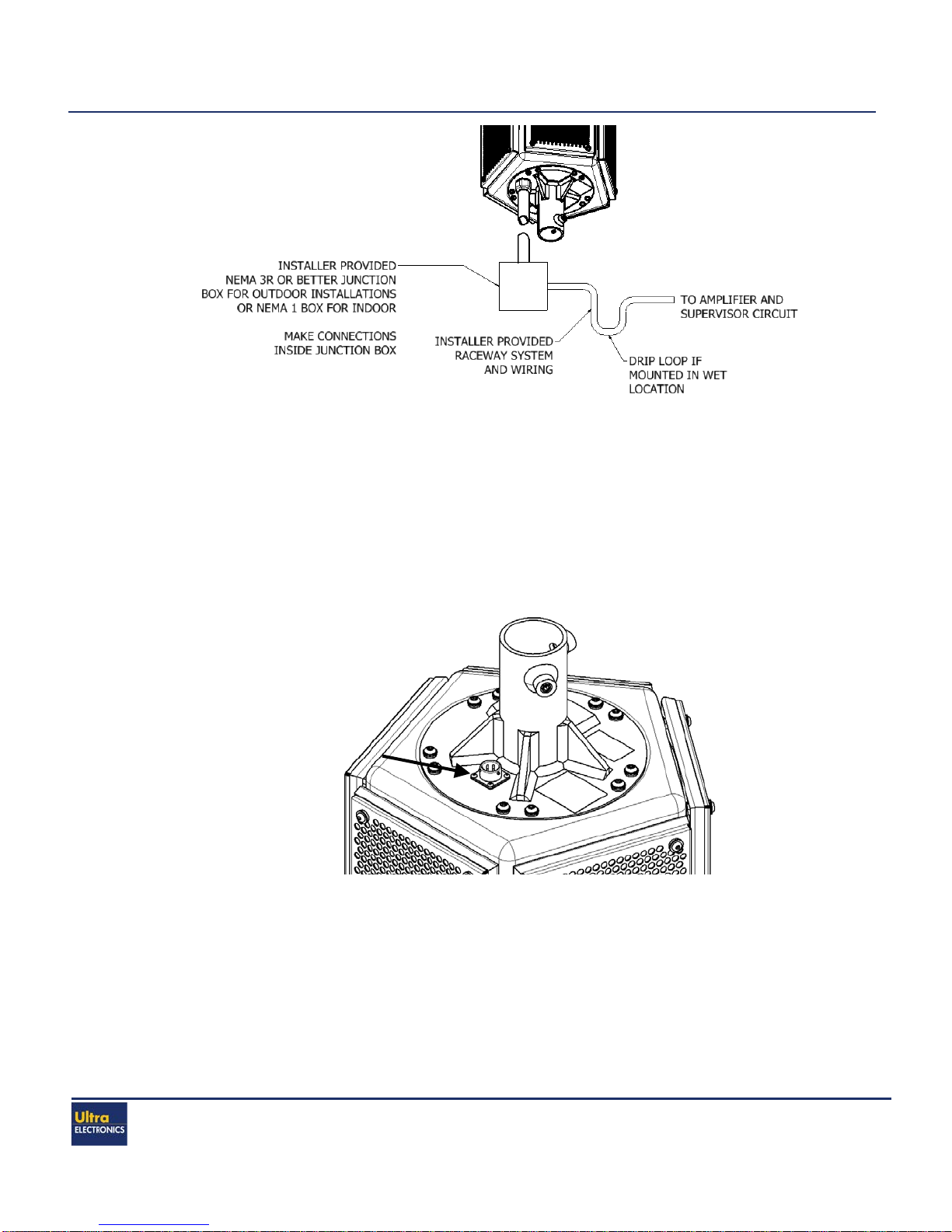

Figure 3: Example of field wiring
3.1.2. Connectorized Systems
The connectorized MA-1and MA-2 systems have a four-pin connector that provides audio
to the speaker from the amplifier. See section 3.2.2 below for the pinout of the connector.
The mating cable is sold separately.
Figure 4: Connector Location

Copyright © Ultra Electronics – USSI, Columbia City, IN 46725 USA
98028A-MAN-MASERIES Rev B
Page 6
HyperSpike®MA-1 and MA-2 Installation and Mounting Manual
3.2. Wiring Diagrams
3.2.1. Single- and Multi-Channel Systems
The single-channel MA-1and double-channel MA-2 have 14 AWG leads coming out of the
speaker as depicted below. The red/black and white/green pairs are used for attaching to
the customer-supplied amplifier or the optional HyperSpike®amplifier kit, and the blue/
yellow and orange/brown pairs are used for a supervision circuit.
The multi-channel MA-1and MA-2 have a red and black twisted pair of 18 AWG wires
coming from each face of the speaker. The total number of pairs coming out of the speaker
will depend on the number of faces populated. Each pair has an impedance of 6 ohms and
a power rating of up to 300 watts. These leads may be attached to a customer-supplied
amplifier or the optional HyperSpike®amplifier kit.
Figure 5: MA-1 Single-Channel Figure 6: MA-2 Double-Channel

Copyright © Ultra Electronics – USSI, Columbia City, IN 46725 USA
98028A-MAN-MASERIES Rev B
Page 7
HyperSpike®MA-1 and MA-2 Installation and Mounting Manual

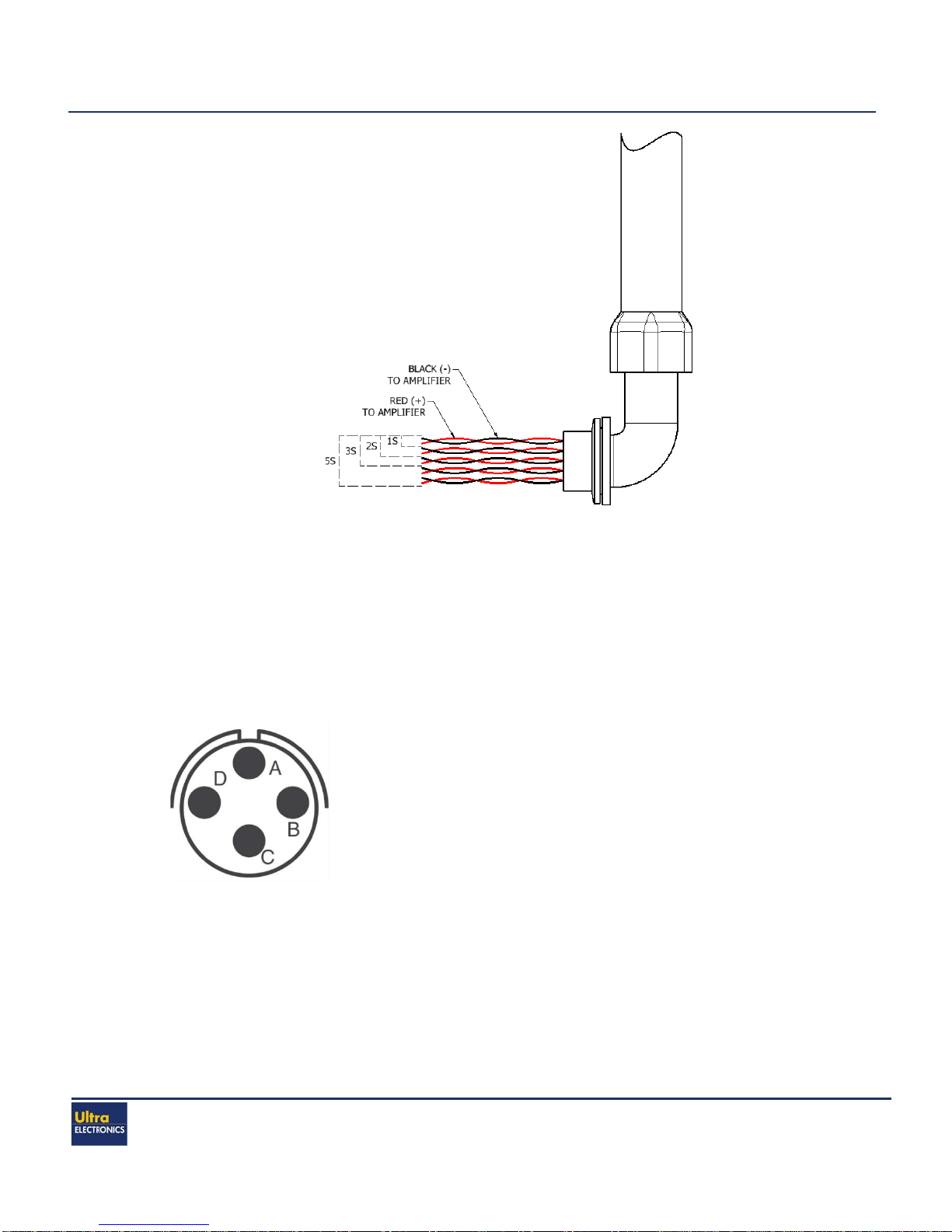

Figure 7: Multi-Channel
3.2.2. Connectorized Systems
The connectorized MA-1 and MA-2 have a four-pin connector. Included with the unit is a
speaker cable used to connect the unit to a customer-supplied amplifier or the optional
HyperSpike®amplifier kit.
Pin A – Channel 1 (-)
Pin B – Channel 1 (+)
Pin C – Channel 2 (-) (MA-2 only)
Pin D – Channel 2 (+) (MA-2 only)
