Ultra Products ULT33063 User manual

700VA Power Protection Unit
www.ultraproducts.com © 2006 Ultra Products, Inc.
700VA Power Protection Unit
700VA Power Protection Unit
USER’S Manual
USER’S Manual

- 1 -
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING (SAVE THESE INSTRUCTIONS): This manual contains
important instructions that should be followed during installation and maintenance of
the UPS and battery.
WARNING (Controlled Environment): These units are intended for
installation in a temperature controlled, indoors area, free of a conductive
environment.
CAUTION:Risk of electric shock. Do not remove cover. No user serviceable
parts inside. Refer servicing to qualified service personnel.
CAUTION:Do not dispose of battery in a fire. The battery may explode.
CAUTION: Do not open or mutilate the battery. Released electrolyte is harmful
to the skin and eyes. It may be toxic.
CAUTION:A battery can present a risk of electric shock and high short circuit
current. The following precaution should be observed when working on batteries:
zRemove watches, rings or other metal objects from your person.
zUse tools with insulated handles.
zWear rubber gloves and boots.
zDo not lay tools or metal parts on top of batteries.
zDisconnect charging source prior to connecting or disconnecting battery
terminals.
zServicing of batteries should be performed or supervised by personnel
knowledgeable of batteries and the required precautions. Keep unauthorized
personnel away from batteries.
zWhen replacing battery, replace with same type.
zDo not connect any additional batteries by yourself.
- 2 -
TABLE OF CONTENTS
1. Presentation...................................................................................2
2. Installation......................................................................................3
3. Operation.......................................................................................5
4. Software and Computer Interface..................................................6
5. Battery Maintenance and Replacement.........................................6
Appendix a Troubleshooting..............................................................7
Appendix b Specifications..................................................................8
Thank you for selecting this uninterruptible power system (UPS). It provides you with
perfect protection for connected equipment. The manual is a guide to install and use the
UPS. It includes important safety instructions for operation and correct installation of the
UPS. If you should have any problems with the UPS, please refer to this manual before
calling customer service.
Inspect the UPS upon receipt. The packaging is recyclable; keep it for reuse or disposed of
properly. Also, please keep this manual for future reference.

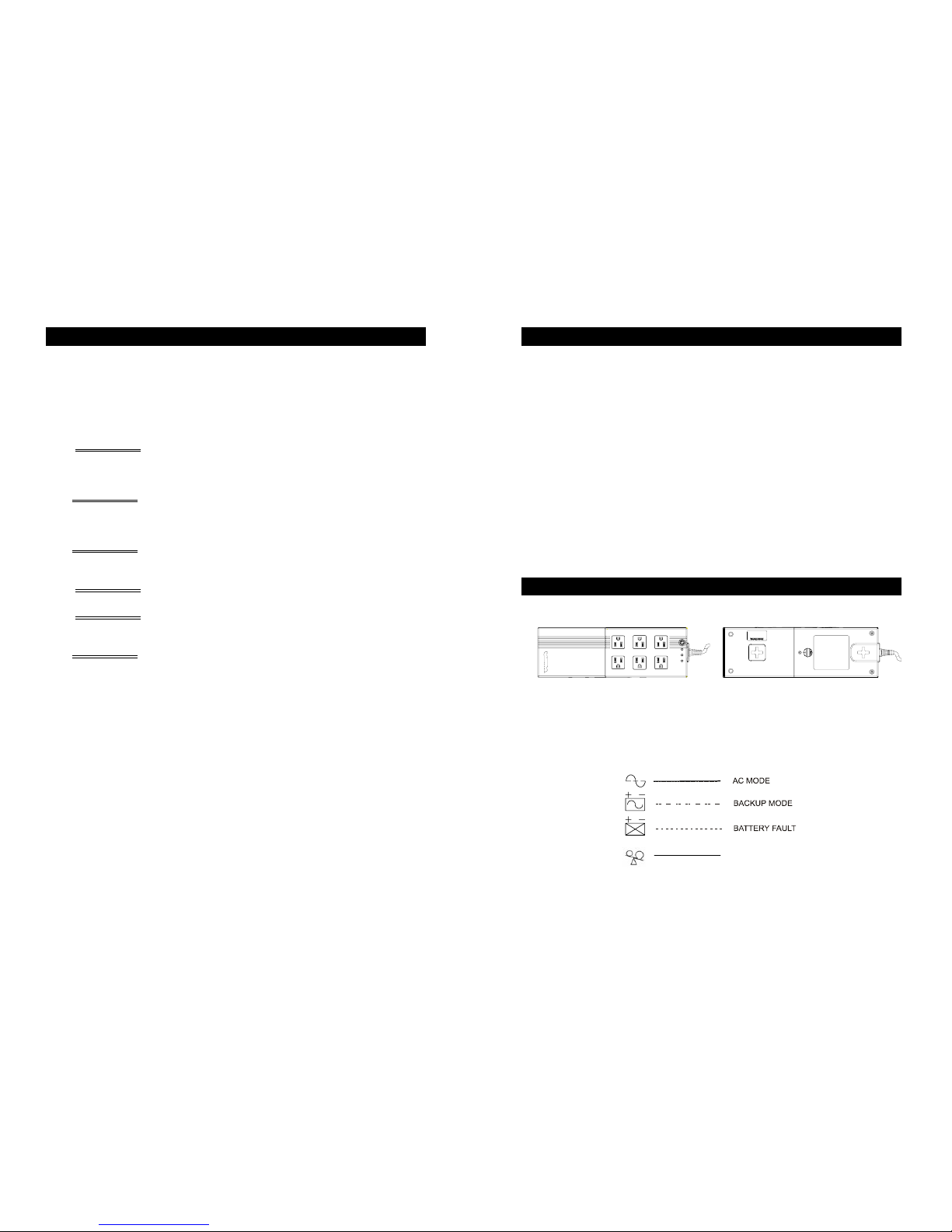

1. PRESENTATION
ULT33063
Top View Rear View
1.1 LED Indicator Status
Green LED indicator illuminates when power utility is normal. Yellow LED indicator
illuminates every 4 seconds in Backup mode. Red LED rapidly flashes (1 sec) when the
inner battery needs to be replaced. If Red LED illuminates, the UPS is in overloaded status.
Attention: The internal battery has to be replaced when rapid flash occurs while in AC
mode.
OVERLOAD
(Green LED)
(Yellow LED)
(Solid Red LED)
(Flashing Red LED)

- 3 -
1.2 Outlets Design for AC Adapters
Allows 6 AC power adapter blocks to be plugged into the UPS, respectively, without
blocking adjacent outlets.
1.3 Battery Power-Supplied Outlets
Provides instantaneous back-up power and full-time bypass protection to your equipment.
Ensure temporary uninterrupted operation of your equipment during power failure.
1.4 Full-time Bypass Protection Outlets
Provides full-time Bypass protection to your equipment. Prevents surges from traveling
through your system through unprotected peripherals.
1.5 Power button (ON/OFF/TEST/SILENCE)
The UPS can be automatically turned on while connected to the utility power. After the UPS
is turned on, it conducts a self-test and enters normal mode. Pressing the power button for 1
second under normal mode will enable the self-test function again. The silence function can
be enabled/disabled by pressing the power button for 1 second while under backup mode.
In addition, the power button can be used as the master on/off switch of your equipment by
leaving your equipment connected to UPS and switched on. To turn off the UPS, please
press power button until buzzer stops (about 2 seconds).
1.6 Circuit Breaker
Serves as an overload and fault protection. This is a critical component of the advanced
UPS surge protection circuit.
1.7 “Phone Jack” Communications Protection Ports
The UPS’s exclusive communication protection ports protect any standard modem, PBX
System or 10/100 Base-T connection. This communication port can accommodate either the
phone (RJ-11) or network (RJ-45) type of jack.
1.8 USB Interface port
USB interfaces are provided for using with UPSMON software. Windows 98SE/ 2000/ ME/
XP and Windows 2003 operating systems support communication with the UPS via
UPSMON software.
Communication Port
Internet/ TEL/ Modem
BAT. Back up
Surge Only
Circuit Breaker
Switch
Indicator
- 4 -
2. INSTALLATION
2.1 Recharge the battery
The UPS may be used right out of the box. The battery is fully charged before it is shipped
from the factory. However, the user is encouraged to charge the battery for at least four
hours before using the UPS. Energy loss may occur during shipping or storage. To recharge
the battery, simply let UPS be plugged into an AC outlet and switch it on.
2.2 Connect the loads
Plug your primary equipment (e.g. computer, monitor and critical data storage device, etc.)
to the Battery backup outlets. Plug your peripheral equipment (e.g. printer, scanner, fax, or
audio device) to the Full-time Bypass Protection outlets. Do not plug a laser printer to the
UPS, as its power demand is much higher than typical peripherals and may cause the circuit
breaker (or fuse) to trip.
2.3 Connect the telephone
If you wish to protect a fax or a modem, connect the telephone cable from the wall outlet to
the “IN” jack on the UPS. Connect the telephone cable (provided) from the “OUT” jack to
the fax or modem. To protect a 10/100Base-T (UTP) network interface, obtain and use a
UTP cable to connect the “OUT” jack from the UPS to your computer.
2.4 Connect to the utility power
Plug UPS to a 2-pole, 3-wire grounding receptacle. Make sure the battery supply outlets of
the UPS do not service equipment requiring heavy electrical power
(e.g. refrigerator, air conditioner, copier, etc.).
ATTENTION: When using extension cords, make sure the total rating of the loads is
suitable.
2.5 UPS self-test
UPS will conduct a self-test each time it is turned on. In addition, the UPS will conduct a
self-test by switching the UPS on for a second when a load is connected to UPS and utility
power is normal.
2.6 Battery auto-charging
The internal battery is charged automatically when the utility power is normal.
2.7 Auto restart feature
UPS will shutdown when the battery voltage is too low, and reactivate automatically when
the utility power is normal.
2.8 Overload (continuous alarm)
When the UPS is working under overload condition (the connected loads exceed the
maximum rated capacity), the UPS will emit a continuous alarm to warn of the overload
condition. In order to protect the unit and the loads, the UPS will automatically turn off.
Please disconnect any non-essential devices form the UPS to eliminate the overload alarm.
2.9 Optimal battery status
To maintain the optimal battery status, leave UPS plugged in and switched on at all times.

- 5 -
2.10 No load Shutdown feature
The UPS is equipped with a no load shutdown function. When the UPS senses no load, the
unit will automatically shutdown after 3 minutes.
3. OPERATION
3.1 Simple test
It is recommended that the user perform a simulation test when using the UPS for the first
time or when adding an additional piece of equipment to the UPS. To conduct a simulation
test: First, switch the UPS on and wait for the power indicator to light up, then simply
unplug the UPS to simulate a power failure.
3.2 Check the power requirement of your equipment
3.2.1. Make sure the total power of your equipment does not exceed the rating capacity.
3.2.2. Make sure the equipment you plug into the Battery Power-Supplied outlets does not
exceed the total power that can be handled by the capacity of the UPS. Otherwise, overload
may occur and cause the circuit breaker to trip. If the power requirement of your equipment
differs from VA, convert the requirement power into VA by doing the calculations 3.2.3:
3.2.3. If the power requirement of your equipment is not listed in VA, and the power factor
is uncertain, assume the power factor of the load is .50 (worst case.) Multiply your load’s
total wattage by two for an estimated VArating.
3.3 Limited rating power of UPS
When utility power failure occurs, the battery power outlets will supply power to your
equipment from its battery. The buzzer will beep once every 4 seconds. Be sure that your
equipment is running under the maximum power limit. When utility power is restored,
perform the self-test to make sure UPS works properly.
3.4 Checking table for Buzzer, LED and Status.
Buzzer LED Status
OFF Green LED ON AC MODE
OFF Red LED ON: 0.5’S
OFF: 0.5’S BATTERY FAULT
ON Red LED ON OVERLOAD
ON: 1’S
OFF: 4’S
Yellow LED
ON: 1’S
OFF: 4’S BACKUP MODE
ON: 1’S
OFF: 1’S
Yellow LED
ON: 1’S
OFF: 1’S BATTERY LOW
ON: 0.5’S
OFF: 0.5’S Green LED ON CHARGER ABNORMAL
- 6 -
4. SOFTWARE AND COMPUTER INTERFACE
4.1 Power Monitoring Software
The UPSMON software (or other compatible power monitoring software) uses a USB port
interface to perform monitoring functions. Furthermore, it provides an orderly shutdown of
a computer in the event of power failure. Moreover, UPSMON displays all the diagnostic
symptoms on the monitor, such as Voltage, Frequency, Battery level and so on. The
software is compatible with Windows 98SE /2000/ ME/ NT/ XP/ 2003 and other operating
system.
4.2 Interface Kits
A series of interface kits is available for operation systems that provide UPS monitoring.
Each interface kit includes the special interface cable required to convert status signals from
the UPS into signals which individual operating systems recognize. The interface cable
must be connected to REMOTE PORT at the UPS side, and USB port at the computer side.
For other installation instructions and features please refer to READ.ME file.
CAUTION: Use only factory supplied or authorized UPS monitoring cable!
4.3 The characteristics of computer interface port
The computer interface port has the following characteristics:
The communication port on the back of the UPS may be connected to a host computer. This
port allows the computer to monitor the status of the UPS and control the operation of the
UPS in some cases. Its major functions normally include some or all of the following:
zTo broadcast a warning when power fails.
zTo close any open file before the battery is exhausted.
zTo turn-off the UPS.
5. BATTERY MAINTENANCE AND REPLACEMENT
5.1 Battery maintenance
For preventive maintenance, keep the area around the UPS clean and clutter free. Keep the
UPS at an ambient temperature of 25℃(77℉). It is recommend that the battery charges for
24 hours after a long period of storage.
5.2 Battery replacement
The battery should be replaced if the Power-on indicator flashes. To verify if the battery
needs to be replaced, conduct a self-test by pressing the Power button. If the Power-on
indicator continues to flash, replace the inner battery according to the following procedure.

- 7 -
ULT33063
Battery Replacement Procedure
5.3 Storage
To store the UPS, cover it and store it with the battery fully charged. During extended
storage, it is suggested to connect the utility power to the UPS to recharge the battery every
three months to ensure battery life.
APPENDIX A TROUBLESHOOTING
Problems Possible Cause Solution
Full-time Bypass
Protection outlets
stop providing
power to the
equipment
Circuit breaker button popped up as
a result of overload. Unplug at least one piece of equipment from the Full-time
Surge Protection outlets,
switch off the UPS, wait for 5
seconds and reset the circuit
breaker (press down breaker
button, then switch on UPS).
Battery undercharged or depleted
due to frequent power outages. Recharge the battery by leaving the UPS plugged in and switched
on.
The power required by your
equipment slightly exceeds the
capacity of the UPS.
Unplug at least one piece of
equipment from the UPS outlets.
UPS doesn’t
perform to its
expected runtime.
The battery is slightly worn-out. Consider replacing the battery.
UPS has a circuit breaker designed
to prevent damage. Switch UPS off, wait for 5 seconds, and then switch UPS
on.
The battery is worn-out. Consider replacing the battery.
UPS cannot be
turned on.
Mechanical problem. Contact your sales
representative.
- 8 -
APPENDIX B SPECIFICATIONS
Part No. ULT33063
Model RCD-UPS700
UPS Capacity 700VA
Total Capacity
(Protection) 1200VA
No. of sockets Style AUPSx3, Bypassx3
Voltage (on battery) Simulated sine wave at 120V +/- 5%
Frequency(on battery) 50 or 60Hz +/- 0.3Hz
Output
Transfer Time 2-4 milliseconds, including detection time
Voltage (single phase) 120V +15%/-20% at line input
Input Frequency 50 or 60Hz +/- 10% (auto sensing)
Unit Input Circuit breaker for overload & short circuit
protection
Overload Protection
AC Mode: If load exceeds 110% of nominal,
Buzzer beeps continuously. If load exceeds
120% of nominal for 30 seconds, 130% for 3
seconds, UPS shuts down automatically.
Back up Mode: If load exceeds 105% of
nominal for 20 seconds, 120% for 10 seconds,
130% for 3 seconds, UPS shuts down
automatically.
Short Circuit UPS output shuts off immediately
Protection
Surge Protection 1140 Joules, 2ms
Type Sealed, maintenance-free lead acid battery,
with 3-6 years typical lifetime
Typical Recharge Time 6 hours (to 90% of full capacity)
Back-up Time 9-11 minutes (a PC with 15” CRT monitor)
17-19 minutes (a PC with 15” LCD monitor)
Battery
Protection Automatic self-test, Overdischarge
protection, short circuit protection by fuse
Net weight Kg (lbs) 2.58(5.67)
Physical Dimension (W x D x H) 104 x 316 x 85 (4.1” x 12.4” x 3.3”)
Interface USB Battery low detecting, USB on/off scheduling
AC input/output power status display.
Battery Back-Up Slow beeping sound every 4 seconds
Battery Low Rapid beeping sound every second
Charge Abnormal AC Mode: Rapid beeping sound every 0.5
second
Alarm
Overload Continuous beeping sound
Ambient operation 3,500 meters max. elevation, 0-95% humidity
non-condensing, 0-40℃
Environment Audible Noise <40dBA (1 meter from surface)
