UltraE HUMMING PROBE User manual

1
HUMMING PROBE pH Measurement system
User Manual (V1.0)
Contents
1. Introduction .....................................................................................................................2
1.1. Product Introduction ...................................................................................................................... 2
1.2. Safety Instructions .......................................................................................................................... 2
2. Product Description ........................................................................................................2
2.1. HUMMING PROBE pH Measurement System ................................................................................ 2
3. Product, Accessories and Function keys .......................................................................3
3.1. UX100 pH Measurement Meter ..................................................................................................... 3
3.2. UH1: pH Test Strip Electrode .......................................................................................................... 3
3.3. Strip Extended Connection Cable................................................................................................... 4
3.4. Charging ......................................................................................................................................... 4
3.5. Touch screen icon definition .......................................................................................................... 4
4. Main screen & Description .............................................................................................5
5. UX-100 Setup .................................................................................................................6
5.1. Setup Menu and Function List ....................................................................................................... 6
5.2. Measuring Mode Selection: ........................................................................................................... 8
6. Measuring pH ..................................................................................................................9
6.1. Strip Port Mode measuring procedure. ......................................................................................... 9
6.2. Cable Socket Mode Measurement Procedure ............................................................................. 10
7. Stored data Reading and Editing ................................................................................. 12
7.1. Read or Edit Data .......................................................................................................................... 12
7.2. USB Storage Mode to connect to PC ............................................................................................ 13
8. Technical Data sheet .................................................................................................... 13
9. Warranty ........................................................................................................................ 14

2
1. Introduction
1.1. Product Introduction
￭ Thank you for choosing HUMMING PROBE pH measurement system. Please read
this manual carefully before using. It will provide you with the information you need to
use this product.
￭ HUMMING PROBE calibration-free pH measurement system UX100 together with
strip electrode UH1 make pH measurement simple and accurate. The unique features:
calibration-free and low sample requirement allow multiple applications feasible.
￭ UX100 Meter design with high-resolution color touch panel and comprehensive user
interface, make it easy to learn and operate. Data can be edited and stored with
graphics and text, making data storage complete and meaningful.
￭ UH1 strip electrode, innovatively integrate the principle of electrode measurement on a
single test strip electrode for pH measuring. It is easy to use, free from calibration,
convenient to store and carry. Measurement is just easy and quick..
￭ The HUMMING PROBE pH measurement system is manufactured by UltraE Co., Ltd.,
and sold by authorized dealers. If you have any questions or comments about our
products, please call our company or contact your local distributor. We will assist you
as soon as possible.
1.2. Safety Instructions
￭ Read this manual thoroughly before using the instrument.
￭ When you suspect that the instrument is damaged, do not use it, notify us or distributor
immediately.
￭ Do not place the pH Meter in water.
￭ If you have any questions about using the system, please contact us or your dealer.
2. Product Description
2.1. HUMMING PROBE pH Measurement System
Using calibration-free test strip electrode to measure pH value of solvent: The package
contains:
(1). UX100 : pH Measurement Meter ( 1 unit)
(2). UH1 : pH test Strip electrode (10 pcs in a vial)
(3). Strip Extended Connection cable (1 pc)
(4). Charger(1 pc)
(5). Micro USB cable for charging and data transfer. (1 pc)
(6). Brief User Manual
(7). User manual is built inside the Meter storage and can copied to computer for reading.

3
3. Product, Accessories and Function keys
3.1. UX100 pH Measurement Meter
Back View Built-in Adjustable Stand
3.2. UH1: pH Test Strip Electrode
Vial (10 pcs/vial)
Note: The vial should
be closed constantly to
maintain the quality of
the strips.
pH Test Strip Electrode UH1
Note :The pH Test Strip Electrode
should always be capped and stored
in the vial and only to be taken out
when using.
Dual Mode Inspection
Adapter Socket
Strip Port
USB/ Charging Port
Power Button
Side
Front
Top
Light
Adjustable
Stand
Camera

4
3.3. Strip Extended Connection Cable
Strip Extended
Connection
Cable
Plug connecting
to Meter socket
Adapter for pH test
strip electrode to
insert
Strip electrode insert
method and
direction.
3.4. Charging
UX100 rechargeable battery can be used for a few hours after fully charged. Plug the
Charger into 100/240V AC power supply and connect to the Meter with micro USB Cable.
3.5. Touch screen icon definition
Setup HOME
Scanning QR code Previous Menu
Execute Inspection Previous Menu
Enter Previous Menu
Enter pH inspection data database Scan QR code
Delete Camera light off
Selects All Camera light on
Input Text Not selected
Activate Camera Selected
1. Enter the mode selection menu
2. Select the Cable Socket mode 1. Enter the mode selection menu 2. Select the Strip Port Mode
Take Photo

5
4. Main screen & Description
Switch on and enter main screen (press and hold the power switch for 2 seconds)
Icon
Touch icon description
Mode Switch:
Switch to Strip Port
mode
Switch to Cable
Socket mode
Setup : parameter
setup
Scan QR code : scan
the QR code
Enter storage data
menu
Date.Time
Battery Charging
Indication
Electric
Potential
Icon :
Mode Switch
pH Reading
Temperature
pH Scale
Icon :
Setup Menu
Icon :
Storage Data
Menu
Icon :
Scan QR Code

6
5. UX-100 Setup
5.1. Setup Menu and Function List
Click to initiate setup menu
Tab and slide the screen to move the menu up and down.
Tick to automatically store pH reading
when reaching stable state
Delete all data
Date setup
Time setup
Brightness setup
Firmware update
Restore to factory default settings
About the meter
Connect to computer
using USB cable
Custom storage pH data title
Power Saving mode

7
Operation Instructions
Tick here and Data will be saved automatically
reaching stable pH measuring.
Click to enter the input page, you can input a title
as the preset title of the pH storage record,
press to confirm , or press to return to
the previous screen.
Click and the delete option appears, press Yes to
delete all data, press No to cancel. Note that you
cannot restore the change after deleting.
Tick here to enter Power Saving Mode. If the Meter
in not in the Detection Status or Measurement
Screen, the Meter will shut down automatically
after 5 minutes of idle to save power consumption.
Click for the USB connection option to appear,
press Yes to connect to the computer, press No
to cancel.
When Connected icon show up , the file manager
of the computer will display the UX100 DISK disc.
Tab Touch Here to Exit to disconnect from the
computer and return to the main menu whenever
needed.
Date setting
Click to enter the date setting menu, select the
correct year, month, and day and press OK to set a
new date or press Cancel to cancel.
Time setting
Click to enter the time setting menu, select the
correct hour ,minute, and second and press OK to
set a new time or press Cancel to cancel.
Click to enter the brightness adjustment menu and
slide the indicator to adjust the brightness,
press to return to previous page

8

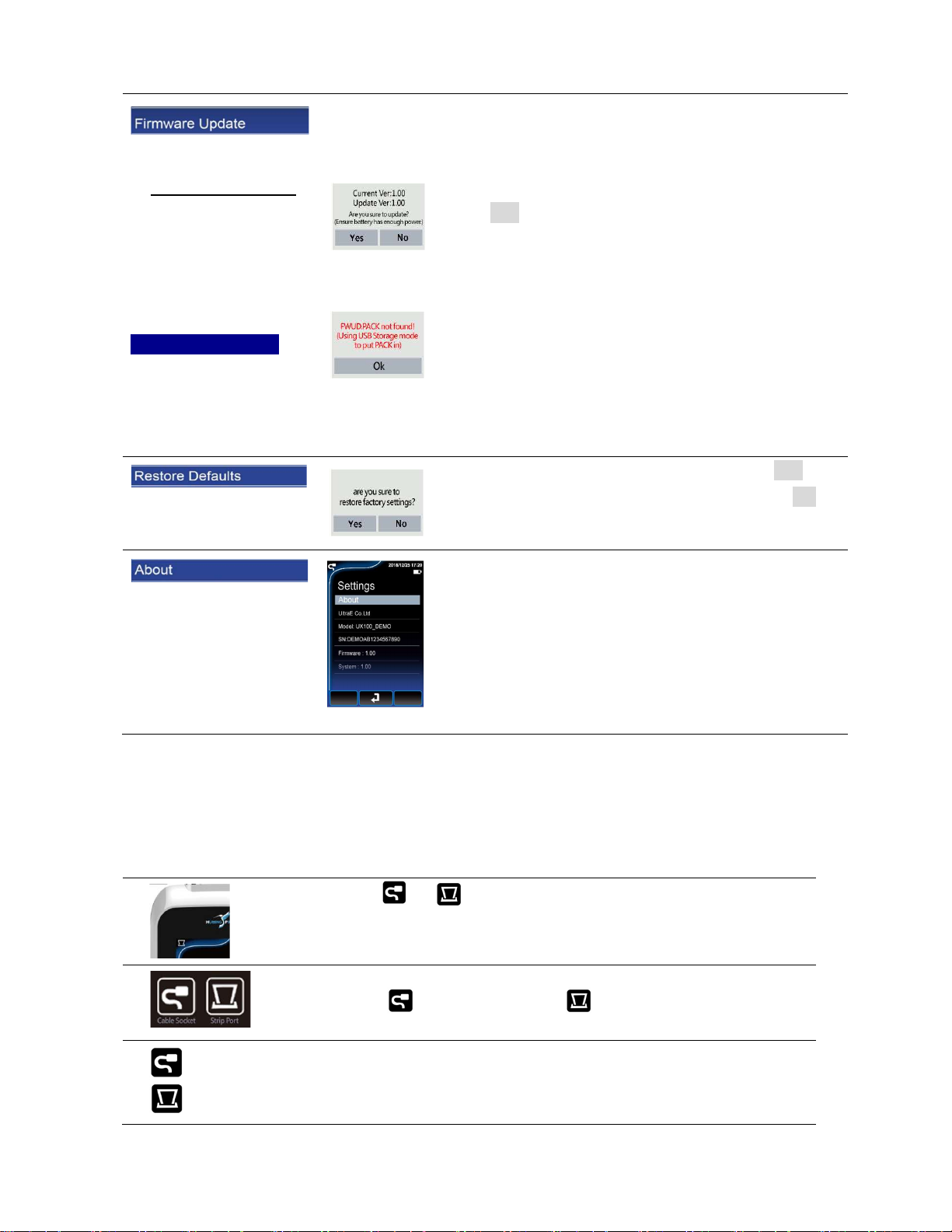

Check
firmware update
at www.ultrae.com.tw.
For new firmware
found, download it to
computer, then
connect Meter to the
computer using
USB storage mode
and save the update
directory to the UX100
root directory.
After downloading the new firmware FWUD.PACK
and store it in UX100 , click here to update.
When the Update Firmware Options appears.
Press Yes to confirm update. It will be updated
according to the newest firmware version file in the
root directory of the UX100.
If the left screen appears, it indicates that the
update file was not found, please download the
new firmware to the root directory of UX100 in
order to update.
Click for the restore defaults option , press Yes to
restore to the original factory setting or press No to
cancel.
Click to Display :
Company Name,
Model Name
SN
Firmware serial number
System serial number
5.2. Measuring Mode Selection:
Strip Port Mode or Cable Socket Mode can be selected for detection (factory default setting
as Strip Port Mode), the operation steps are as follows:
Click or in the upper left corner of the main
screen if you want to change it to another mode.
Option screen appears, click to choose Cable Socket
mode or Strip Port mode according to usage.
After choosing the new Mode, it will return to the main
screen, and the chosen mode will display in the upper left
corner.
Cable Socket
Strip Port

9
6. Measuring pH
6.1. Strip Port Mode measuring procedure.
(1) Turn on the meter (press the power switch for 2
seconds) , choose the Strip Port Mode.
(2) Click the QR code Icon below the main screen.
(3) The current Lot no. will display ( the number before
# is the Lot no., the number after # shows the un-
used qty of the strips in the vial. Every strip used,
the qty number will minus 1 automatically ) If it is
correct, press Continue to enter the measurement
screen. Press Rescan for need to rescan.
Measurement
screen
(4) Rescan: Align the “photo frame” with the QR code
on the vial, and then press the scan icon to
scan.
(5) Check the Lot no. (number before #) and press OK
if correct. If not, press Rescan to rescan.
(6) Take the test strip electrode out of the vial and close
the vial instantly.
(7) Drop the test sample into the strip sampling port
(figure A) or immerse sampling port end until the
white line into the testing sample for about 2
seconds .(figure B)
Figure A) (Figure B)
(8) Insert the Strip Insert End into the Meter Strip Port.
( step 7 and 8 can be reversed)

10
(9) Press the Inspect icon bubble icons will appear
to indicate the status of measurement ,
1 bubble (begin) to 5 bubbles (pH stable state)
(10) When the pH stable state display, the pH
measuring is done and the stable pH reading will
display on screen. If autosave was set, the reading
data will be automatically saved to UX100 storage.
(11) Press to end
(12) Do you want to save the data ?
Press Yes to store the pH data or press No to
cancel.
(13) Back to main the measurement screen, the same
Lot.no. strips can be used for the next
measurement.
(14) Tab for option screen and tab Yes to return to
main menu, tab No to remain in the measurement
screen.
6.2. Cable Socket Mode Measurement Procedure
(1) Turn on the meter (press the power switch for 2
seconds) , choose the Cable Socket Mode.
(2) Connect the strip Extended Connection Cable plug
to the socket of the meter
(3) Tab the QR code icon below the main screen.
(4) The current Lot no. will display ( the number before
# is the Lot no., the number after # shows the un-
used qty of the strips in the vial. Every strip used,
the qty number will minus 1 automatically ) .
Press Continue to enter the measurement screen if
the correct lot no. is displayed. Press Rescan for
need to rescan.
Measurement
screen

11
(5) Rescan: Align the “photo frame” with the QR code
on the vial, and then press the scan icon to
scan.
(6) Check the Lot no. (number before #) and press OK
if correct. If not, press Rescan to rescan.
(7) Take the test strip electrode out of the vial and close
the vial instantly.
(8) Insert the test strip electrode into the adapter of the
cable.
(9) Immerse the strip sampling port end into the test
sample until the white line. If you have a CS200
mixer, you can attach the Extended Connection
Cable to the bracket.
(10) Press the Inspect icon ,bubble icons will
appear to indicate the status of measurement ,
1 bubble (begin) to 5 bubbles (pH stable state)
(11) When the pH stable state display, the pH
measuring is stabilized, and the stable pH reading
will display on screen. If autosave was set, the
reading data will be automatically saved to UX100
storage.
(12) Tab to end.
(13) Do you want to save the data ? Press Yes to store
the pH data or press No to cancel.
(14) Back to the measurement screen, the same
Lot.no. strips can be used for the next
measurement.
m
easurement
screen
(15) Tab and tab Yes to return to main menu, tab
No to remain in the measurement screen

12
7. Stored data Reading and Editing
Tab to enter data editing Mode
7.1. Read or Edit Data
Tab to enter data
Editing Menu
Tab and slide the screen to move the menu
up and down.
Tab a record to enter
data editing page,
you can input text or
take a photo to help
memo the status.
Tab to enter text input page to input
text notes.
Tab enter to save data, Tab to
cancel and return to previous page.
Tab to initiate photo function.
Tab to take photo.
Confirm screen
appears.
Tab to save, Tab to return.
Long press a record to
enter batch selection
screen. You can tick
single or multiple
records to delete.
Tab to select all records.
Tab to delete all records, deleted
records cannot be restored.
Confirm screen
Tab Yes to confirm
deletion, tab No to
cancel deletion.

13
7.2. USB Storage Mode to connect to PC
(1) Connect the Meter to computer with USB cable, then choose and enter the
USB Storage Mode, run the file manager of the computer to find “UX100 DISK”.
(2) Enter “UX100 DISK” root directory, UX100_UserManual.pdf can be found for download.
(3) The directory “Data” in “UX100 DISK” contains all stored pH measuring data.
(4) Enter “Data” directory, you can find “DataLog.txt” and “PHOTO” directory where photos
were stored.
(5) Copy “dataLog.txt” and “PHOTO” directory to PC.
(6) Use EXCEL to run “DataLog.txt”, select “Delimited “ and choose “Tab” to separate and
group the data. You can then save it as Excel file in your Computer.
(7) Click the file name on the photo data column to open the photo file. (The Photo
directory must be in the same directory of “DataLog.txt”.)
(8) To update firmware, store the newest updated directory FWUD.PACK into the UX100
DISK root directory and run the firmware update process.
8. Technical Data sheet
Specification
Screen ： 4.3” color LCD touch screen
IP Code： IP54
Camera： 5 M pixels
Power： 5V DC，2A(110/240V AC)
Battery： Rechargeable battery 2500 mAh
Dimension (WxLxH)： 87 x 152 x 21 mm
weight： 250 g
Measuring range
pH range： 1.00 ~ 14.00 pH
Electric Potential： ±1000.00 mV
Temperature： 10° ~ 40°C
Resolution
pH Value： 0.01 pH
Electric Potential： 0.1 mV
Temperature： 0.1°C
Accuracy
pH Value： ±0.1 pH
Electric Potential： 0.05%
Temperature： ±0.5° C

14
9. Warranty
￭ Under normal usage, UltraE provides a 12 month guarantee for material or
manufacturing defects of products after purchase.
￭ The decision whether or not the guarantee is applicable is subject to UltraE‘s
assessment of the defect cause.
￭ The guarantee explicitly excludes normal wear and tear and misuse of the meter.
￭ UltraE holds the right, at wholly its own discretion, to refuse guarantee claims in the
event it suspects the meter has been used incorrectly. In cases of incorrect use, UltraE
may, but is not obliged to, offer to repair the meter at regular repair fees.
￭ Please confirm the integrity of the product when purchasing the Meter.
￭ Any representations and guarantees made by any person, including distributors,
representatives and employees of UltraE that are contradictory to the abovementioned
guarantee conditions are void unless these are made in writing and signed by an
authorized person.
￭ UltraE is not liable to users for any damages, either direct or indirect, relating to the
misuse of the products and accessories
