HydroPower® RO S
Content
1 Introduction................................................................................................................ 4
1.1 General information............................................................................................. 4
1.2 Intellectual and industrial property rights .......................................................... 4
1.3 Property and legal deficiencies ........................................................................... 4
1.4 Explanation of signs............................................................................................. 5
1.4.1 Instructions for use..................................................................................... 5
1.4.2 Enumerations ............................................................................................. 5
1.4.3 Hazard classes ............................................................................................ 6
1.4.4 Warning signs.............................................................................................. 7
1.4.5 Mandatory signs.......................................................................................... 7
1.5 Nameplate............................................................................................................ 8
1.6 Obligation of the operator.................................................................................... 8
1.7 Obligation of personnel........................................................................................ 8
1.7.1 Requirements for staff................................................................................ 8
1.7.2 Training of staff ........................................................................................... 9
1.8 Storing the operating instructions ...................................................................... 9
1.9 Contact addresses ............................................................................................... 9
2 About HydroPower RO S ............................................................................................ 10
2.1 Using the HydroPower RO S ............................................................................... 10
2.1.1 Intended use................................................................................................ 10
2.1.2 Foreseeable misuse .................................................................................... 10
2.2 Technical specifications....................................................................................... 10
2.2.1 Operating conditions ................................................................................... 10
2.2.2 Electrical specifications .............................................................................. 10
2.2.3 Protection types of electrical components ................................................. 10
2.2.4 Pressure ratings.......................................................................................... 11
2.2.5 Dimensions quick overview ........................................................................ 11
2.2.6 Media connections ...................................................................................... 11
2.2.7 Water quality ............................................................................................... 11
2.3 Water output quantity .......................................................................................... 11
2.4 Scope of delivery .................................................................................................. 11
3 Safety ........................................................................................................................ 12
3.1 General safety regulations................................................................................... 12
3.1.1 Basic principles........................................................................................... 12
3.1.2 Unit protection............................................................................................. 12
3.2 Mechanical hazards ............................................................................................. 13
3.3 Electrical hazards ................................................................................................ 13
3.4 Thermal hazards.................................................................................................. 13
3.5 Hazards due to pressure...................................................................................... 13
3.6 Hazards from materials and substances ............................................................ 14

3
HydroPower® RO S
Content
4 Preparing for use ....................................................................................................... 15
4.1 Construction of the HydroPower RO S ................................................................ 15
4.2 Interfaces ............................................................................................................ 15
4.3 Transport and storage ......................................................................................... 16
4.3.1 Transportation ............................................................................................ 16
4.3.2 Storage ...................................................................................................... 17
4.3.3 Operation the HydroPower RO S................................................................. 17
4.4 Commissioning ................................................................................................... 18
5 Operation of the HydroPower RO S ............................................................................ 20
5.1 General information............................................................................................. 20
5.2 Cleaning surfaces with the HydroPower RO S .................................................... 21
5.3 Interruption of work............................................................................................. 21
5.4 Switching off the HydroPower RO S .................................................................... 21
6 Malfunctions............................................................................................................... 22
6.1 Procedure for accidents....................................................................................... 22
6.2 Procedure for malfunctions................................................................................. 22
7 Maintenance and servicing......................................................................................... 24
7.1 General information............................................................................................. 24
7.2 Maintenance and maintenance plan ................................................................... 25
7.2.1 Daily inspection .......................................................................................... 25
7.2.2 Monthly examination................................................................................... 25
7.2.3 Membrane protection.................................................................................. 26
7.3 Repair and replacement of parts......................................................................... 27
7.3.1 Replacing filter cartridges .......................................................................... 27
8 Switching off the device.............................................................................................. 29
8.1 Disassembly and storage..................................................................................... 29
8.2 Recycling.............................................................................................................. 30
8.3 Disposal of waste................................................................................................. 30
Proofreading documents ............................................................................................ 32
EC Declaration of Conformity .............................................................................. 32
ENGLISH

T
www.ungerglobal.com
4
HydroPower® RO S
Introduction
1 Introduction
1.1 General information
This manual allows you to use the HydroPower RO Safely and efficiently.
The operating instructions are part of the HydroPower RO S and must be kept accessible to the personnel
in the immediate vicinity of the HydroPower RO S at all times.
Before starting work, the personnel must have read and understood this manual. All safety instructions
and instructions for use stated in this manual must be followed for safe operation.
The current version of the HydroPower RO S is described in this manual. If changes or additions become
necessary over time, the operating instructions will be accompanied by a supplement which will be
incorporated into the next revision.
The respective revision status of the operating instructions is displayed on the cover sheet. The first user
manual has the revision status „1.0“. The status is increased by „1“ for each revision.
1.2 Intellectual and industrial property rights
All contents of this manual are the intellectual property of Unger Germany GmbH and are protected by
copyright law.
The product, as well as the word / image mark, are legally protected.
Any duplication, processing, distribution or transfer to third parties - including, but not limited to - any
kind of exploitation outside of the copyright limits require the written consent of Unger Germany GmbH.
In the case of infringements, Unger Germany GmbH reserves the right to take legal action at any time.
We reserve the right to make changes to this manual, as well as changes to technical details, with regard
to the specifications and illustrations in this manual.
1.3 Property and legal deficiencies
Claims for material and legal deficiencies presuppose that the operator shall submit the defect in writing
without delay, but at the latest within two working days.
Unger Germany GmbH is in no case responsible for damage to the system itself, or damage caused by the
unit due to improper handling of the product.
In particular, Unger Germany GmbH is not responsible for failures or errors caused by modifications to the
unit by the customer or other persons.
If Unger Germany GmbH is responsible for a defect, Unger Germany GmbH shall repair or replace the unit
at its discretion.
Claims for material and legal deficiencies will be nullified in the case of non-compliance with the
individual regulations of this manual, the relevant legal provisions, as well as further recommendations
given by Unger Germany GmbH.

5
HydroPower® RO S
Explanation of signs
1.4 Explanation of signs
1.4.1 Instructions for use
Instructions for use are shown as follows:
To perform an action, proceed as follows:
1. Do this.
2. Do that.
`This is the intermediate result.
3. Do that.
3You have completed the action.
1.4.2 Enumerations
Enumerations are shown as follows:
• List of first order,
- Second order,
- Second order,
• List of first order.
ENGLISH

T
www.ungerglobal.com
6
HydroPower® RO S
Explanation of signs
1.4.3 Hazard classes
Safety instructions are shown in this manual with standardized illustrations and symbols. Depending on
the probability of the occurrence and severity of the consquence, the following hazard classes are used:
DANGER
Indicates a hazardous situation that can lead to serious injury or death.
`Here you will find measures to avoid the danger.
CAUTION
Indicates a potentially hazardous situation, which can lead to minor
injuries.
`Here you will find measures to avoid the danger.
ATTENTION
Indicates a situation which can lead to material damage.
`Here you will find measures to prevent material damage.
NOTE
Here you can find application tips and other useful information.

7
HydroPower® RO S
Explanation of signs

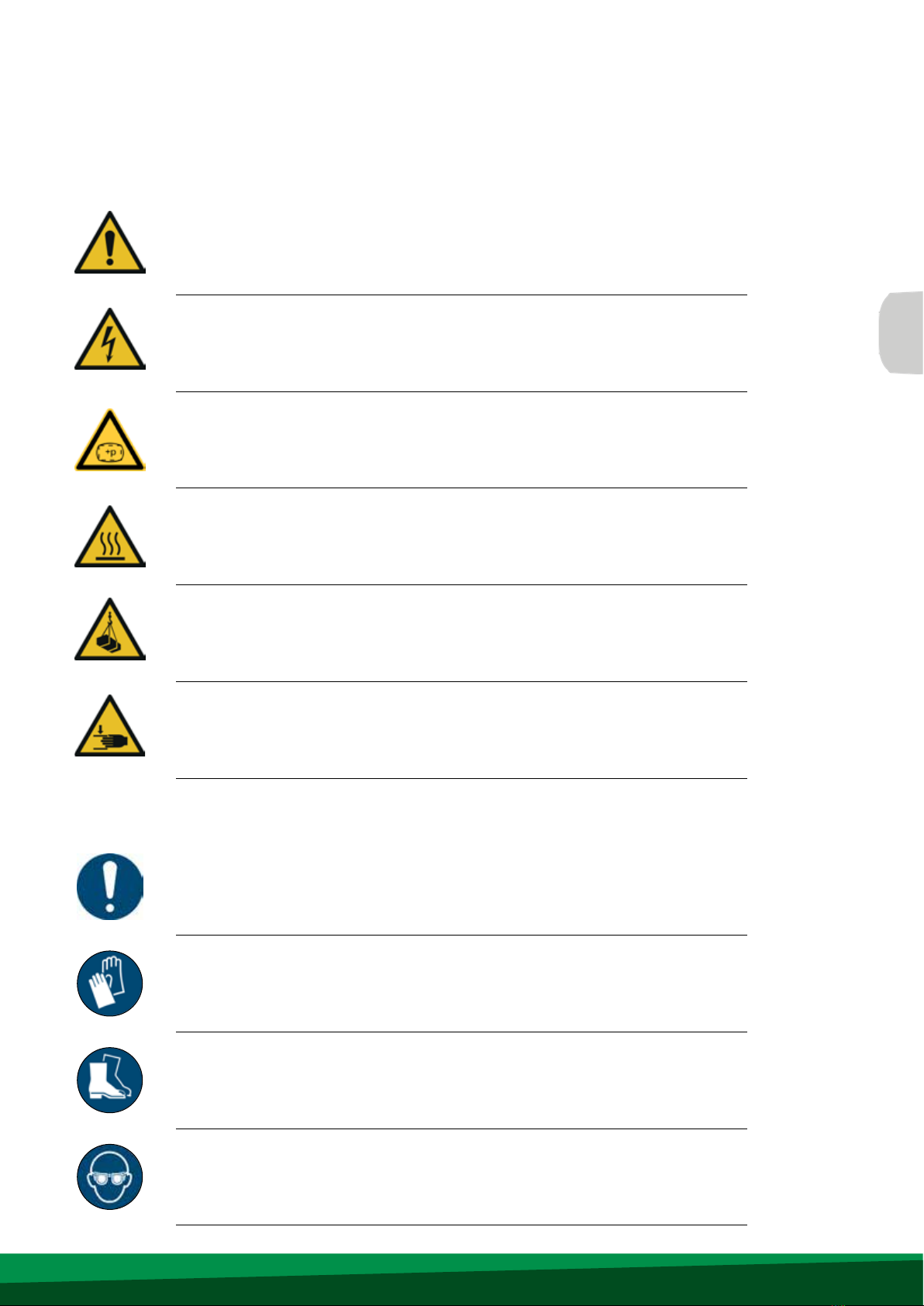

1.4.4 Warning signs
Warning of a hazard.
Warning of electrical voltage.
Warning of overpressure in containers.
Warning of hot surfaces.
Warning of suspended loads.
Warning of injury to the limbs.
1.4.5 Mandatory signs
Application tips and other useful information.
Use protective gloves.
Use safety shoes.
Use protective goggles.
ENGLISH

T
www.ungerglobal.com
8
HydroPower® RO S
Obligations
1.5 Nameplate

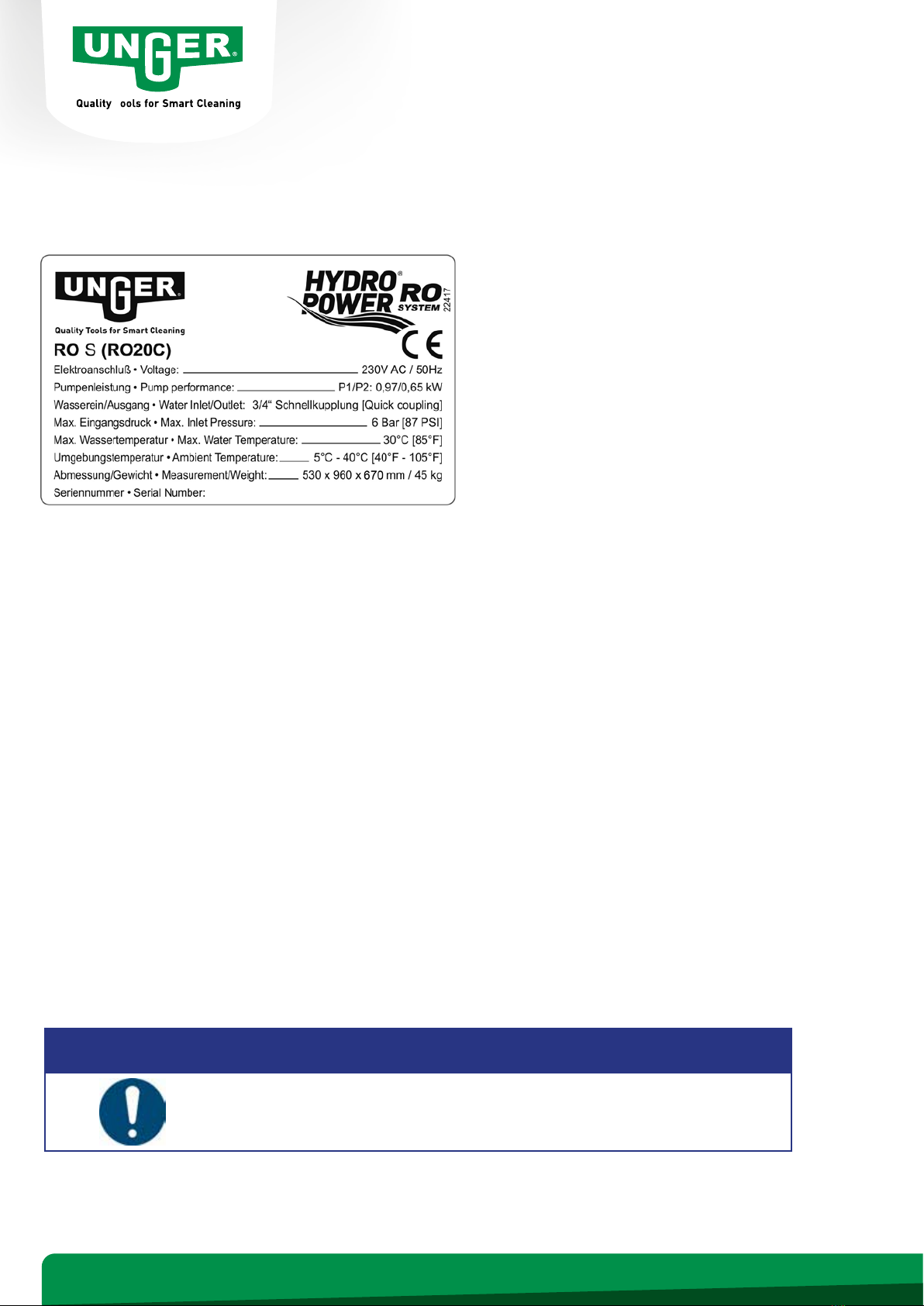

Each HydroPower RO S from Unger Germany GmbH has a nameplate on the back.

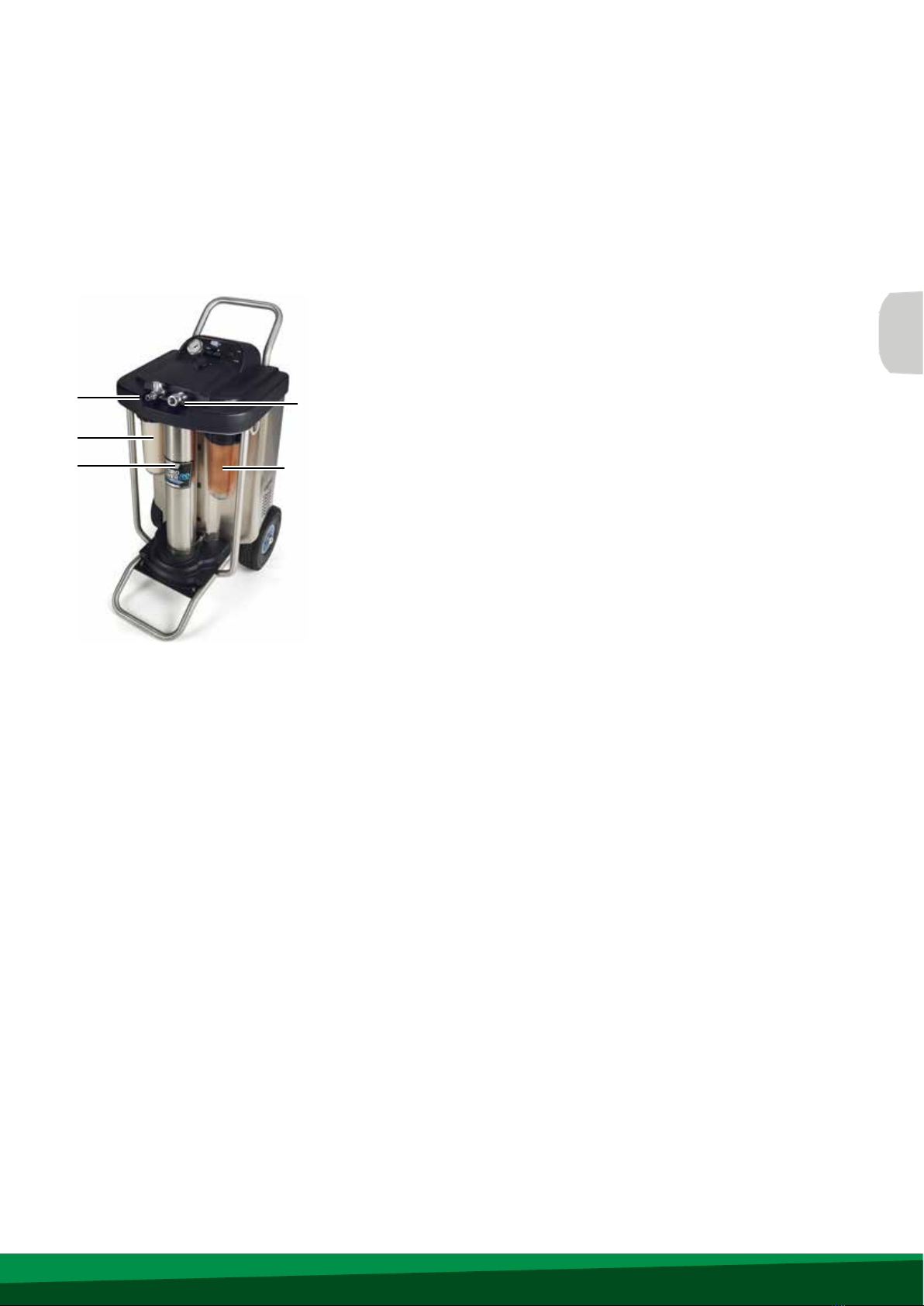

Pic. 1 Nameplate
1.6 Obligation of the operator
The HydroPower RO S is used in the commercial sector. The operator must adhere to the statutory
obligations to work safety.
The operator is obliged to have only persons working on the HydroPower RO S that:
• are familiar with the basic regulations on work safety and accident prevention
• have been trained in the handling of the HydroPower RO S
• have read and understood the safety instructions and safety regulations in this manual
The operator is obligated to ensure that all warnings on the HydroPower RO S are always legible.
1.7 Obligation of personnel
Working with the HydroPower RO S is only permitted if the operating instructions have been read and
understood.
1.7.1 Requirements for sta
Only persons who perform their work reliably, should be authorized as personnel for this unit. Persons
whose reactions and judgement are affected, e.g. by drugs, alcohol or medication, are NOT permitted to
operate this unit.
NOTE
The operator is recommended to have this confirmed in writing.

9
HydroPower® RO S
Obligations
1.5.2 Training for sta
These operating instructions are aimed at staff with the following professional qualifications:
The staff will be able to carry out the tasks assigned to them and to recognize and avoid possible dangers
independently on the basis of their professional training, experience and knowledge, as well as the
knowledge of relevant provisions.
1.6 Storing the operating instructions
This instruction manual must be kept in the immediate vicinity of the HydroPower RO S and must be
available to the entire staff at all times. The operator must inform the personnel about the location of
these operating instructions.
If the user manual has become illegible due to constant use, the operator must obtain replacement from
the manufacturer.
These operating instructions can also be downloaded as a PDF at www.ungerglobal.com/downloads.
NOTE
When transferring or reselling the HydroPower RO S to third parties, the
following documents must be passed on to the new owner:
`this manual,
`the documentation of the repair work,
`proof of maintenance work.
1.7 Contact address
Unger Germany GmbH
Piepersberg 44
42653 Solingen
Germany
Telefon: (49) 0212 / 22 07–0
Fax: (49) 0212 / 22 07–2 22
[e-mail]
www.ungerglobal.com
ENGLISH

T
www.ungerglobal.com
10
HydroPower® RO S
Technical specifications
2 About HydroPower RO S
2.1 Using the HydroPower RO S
2.1.1 Intended use
The HydroPower RO S is used for the filtration of drinking water by demineralisation for the purpose of
glass and surface cleaning.
The HydroPower RO S is intended for commercial use only.
The HydroPower RO S may only be connected to drinking water lines.
2.1.2 Foreseeable misuse
The use of the HydroPower RO S in any way other than described in the chapter „2.1.1 Intended use“ is
considered to be non-compliant and thus unlawful.
This applies in particular to the use of the HydroPower RO S for bacteria removal.
2.2 Technical specifications
2.2.1 Operating conditions
Ambient temperature [°C] 5 … 40
Water temperature [°C] 5 ... 25
ATTENTION
Material damage due to improper handling.
Ensure that the incoming water corresponds to the national drinking
water regulations.
The drinking water must be free of iron, manganese and heavy metals
(max. 0.2 ml / l iron, 0.05 mg / l manganese), the maximum silicate (SiO2)
content must not exceed 20 mg / l. It must also not contain barium and
strontium.
2.2.2 Electrical specifications
Primary electrical connection [V / Hz] 230 / 50
Power consumption 0,97 kW
2.2.3 Protection types of electrical components
Electric motor IP 54
Pump Control IP 65

11
220
200
180
160
140
120
100
806 8 10 12 14 16 18 20 22
1100
1000
900
800
700
600
500
400
300
200
1006 8 10 12 14 16 18 20 22
HydroPower® RO S
Technical specifications
2.2.4 Pressure ratings
Input pressure [bar] 1... 6
Max. operating pressure [bar] 10
2.2.5 Dimensions quick overview
Height [mm] 960
Width [mm] 530
Depth [mm] 670
Empty weight [kg] 45 kg
2.2.6 Media connections
Standard feedwater connection thread ["] 3/4
Standard concentrate connection thread ["] 3/4
Standard permeate connection thread ["] 3/4
2.2.7 Water quality
Max. salt content in incoming water [ppm] 1000
SiO2content in incoming water [mg/l] 20

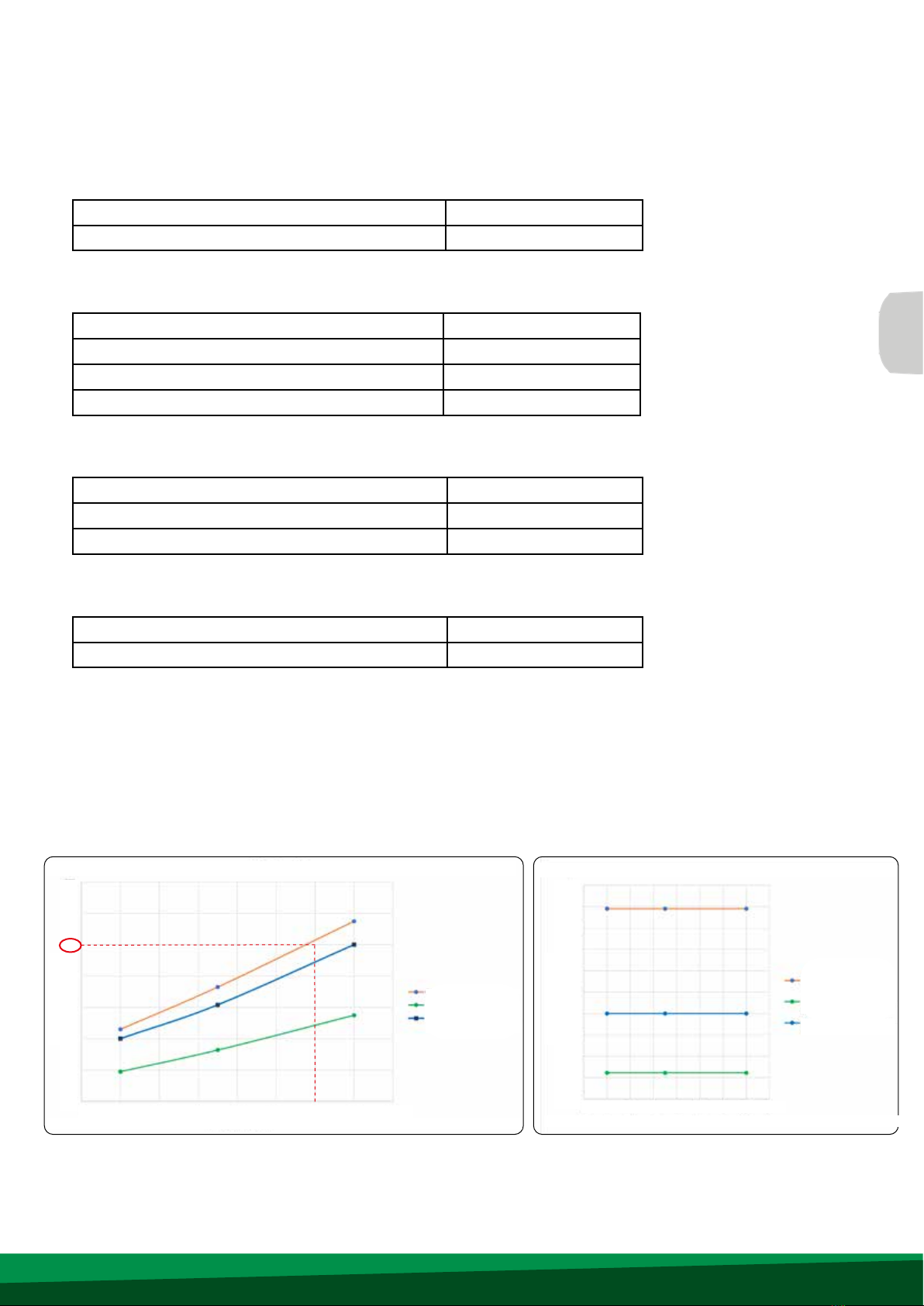

2.3 Water output quantity
The water flow depends on factors like water temperature, hose length and hose diameter.
Measuring Setup:
• Hose length: each 25m
• 3 different hose diameters: 5mm / 7mm / 1/2“
• 3 different water temperatures: 8 / 13 / 20°C
• Line pressure: 4 bar
2.4 Scope of delivery
The following is included in each delivery:
ENGLISH
Standard hose 1/2“
UNGER DuroFlex 5mm (inside)
UNGER DuroFlex High Performance
7mm (inside)
Standard hose 1/2“
UNGER DuroFlex 5mm (inside)
UNGER DuroFlex High Performance
7mm (inside)
Water temperature °C Water temperature °C
Water Output l/h Water Output l/h
Pure Water Mode (PURE) BOOST Mode
(water flows through
all filters, including
membrane)
(line water with high
pressure, bypass to
water out)
• HydroPower RO S
• Filter key
• Concentrate hose
• Suction pipe for membrane care,
• Instruction manual
• Test report

T
www.ungerglobal.com
12
HydroPower® RO S
General safety regulations
3 Safety
3.1 General safety regulations
3.1.1 Basic principles
Special safety regulations may apply to certain activities. Safety instructions and warnings are given in the
respective sections of the operating instructions.
Operate the HydroPower RO S only:
• in accordance with the operating instructions for safety and driving safety
• if the HydroPower RO S is in a technically sound condition.
This includes:
• The safety stickers attached to the HydroPower RO S must always be complete and in good readable
condition. Renew damaged or unreadable signs.
• Carry out cleaning and maintenance work on the HydroPower RO S only if it is disconnected from
electricity.
Turn off the main power switch and unplug the power cord.
• Carry out maintenance on the filter vessels only if they are depressurized.
• Clean the HydroPower RO S after use of dirt and impurities.
Use personal protective equipment to avoid personal injury:
`protective gloves,
`safety shoes,
`safety goggles.
3.1.2 Unit protection
Overheat protection
If the pump overheats, the overheat protection is triggered automatically and the HydroPower RO
Switches off.

13
HydroPower® RO S
General safety regulations
3.2 Mechanical hazards
Crushing due to incorrect operation and / or carelessness.
`Do not reach between the ground surface and the HydroPower RO S.
`Do not place objects in the openings of the HydroPower RO S.
`Place the HydroPower RO S on an even surface only.
`Ensure sufficient stability and secure the HydroPower RO S against tipping over or rolling
away.
`In the case of faults and emergencies, immediately turn off the unit by turning the lower
switch to OFF.
`Wear safety shoes.
3.3 Electrical hazards
Electric shock and burns due to live parts.
`Before each use, perform a visual inspection of the power cable for damage. If you notice
any damage, contact your distributor.
`Maintenance on the electrical components of the system may only be carried out by
employees of Unger Germany GmbH or their authorized specialist dealers / technicians.
3.4 Thermal hazards
Burns due to hot surfaces.
`The housing of the pump motor as well as the coils of the valves can become hot during
operation. Allow the system to cool down sufficiently before touching components marked
with this symbol.
`Wear protective gloves.
3.5 Hazards due to pressure
Injuries from pressurized containers.
`The 3 filter cartridges are pressurized during operation.
`Never open/remove a filter cartridge or any hose during operation.
ENGLISH

T
www.ungerglobal.com
14
3.6 Hazards from materials and substances
The safety data sheets of the materials and substances can be found online at
www.ungerglobal.com/service/downloads/safety-data-sheet.
Irritation to the eyes, skin and respiratory tract through carelessness.
`Avoid any contact with the resin when replacing the DI resin cartridge.
`In case of contact with eyes, remove contact lenses and rinse immediately with plenty of
water.
`Wash hands after finishing work.
`Use protective gloves and goggles.
Irreversible injury due to slipping.
`If resin is spilled, carefully clean it up immediately as there is a high risk of slipping.
`Wear safety shoes.
Irritation to eyes, skin and respiratory tract through membrane care.
`Avoid any contact and swallowing of the membrane care liquid (sold separately).
`In case of contact with eyes, remove contact lenses and rinse immediately with plenty of
water.
`Keep the membrane care liquid sealed and inaccessible to children.
`Use protective gloves and goggles.
HydroPower® RO S
General safety regulations
Materials used in the product
`This product contains lead and diethylhexyl phthalate (SVHC > 0.1 %). (REACH Art. 33)
`The HydroPower RO S is registered in the SCIP database
(database for substances of concern in products)
`For further questions, please contact [e-mail].

15
66
1111
1111
88
77
99
1010
55
44
11
2233
1313
1212
1414
HydroPower® RO S
System overview
4 Preparing for use
4.1 Construction of the HydroPower RO S
4.2 Interfaces
On the front is 1 connection for attaching the hose for the water fed
pole and 1 connection for the water supply. These are standard hose
connections.
Make sure that water cannot flow back into the tap water line, e.g.
through a backflow prevention device.
The water outlet for the concentrate is located at the back. Pour the
concentrate down the drain unsing the enclosed concentrate hose.
1 Manometer
2 TDS-Meter
3 Switch WORK/RO FLUSH
4 Switch TAP BOOST / OFF / PURE
5 Water inlet
6 Water outlet
7 Water meter
8 Carbon/sediment combi pre-filter
9 Membrane
10 DI resin filter
11 Pump ventilation slot
12 Pump Control
13 Power cord
14 Concentrate output
(connection concentrate hose)
The manometer shows the water pressure behind the pump. Ensure that
the water inlet pressure is at least 1 bar. The optimum is 4 bar, maximum
should not exceed 6 bar. The pump increases the pressure by approx. 4 bar.
Accordingly, the pressure in operation should not exceed 10 bar.
ENGLISH
The TDS meter shows the water quality at water outlet for the Pure and the
Boost Mode.
PURE: TDS metre shows the value of the filtered water after RO Membrane
and DI resin. It should ideally show a value of 0. At the latest when it shows
10, the resin should be replaced.
TAP BOOST: TDS metre shows the value of the tap water.
The water meter measures the water flow at the inlet. This is particularly
important for the combination pre-filter, as it must be replaced after approx.
30,000l.

T
www.ungerglobal.com
16
HydroPower® RO S
Transport and storage
4.3 Transport and storage
4.3.1 Transport
The HydroPower RO S is delivered on a pallet by a forwarding company.
The HydroPower RO S is carefully tested and packaged before shipment. However, damage during
transport cannot be ruled out.
Therefore, immediately check the HydroPower RO S for integrity in the presence of the dealer.
Check the completeness of the delivery, see chapter „2.3 Scope of delivery“.
Carry out a visual inspection of the HydroPower RO S for transport damage.
If the HydroPower RO S has been damaged during transport, show the damage to the company delivering
HydroPower RO S on behalf of your dealer.
Complaints due to transport damage cannot be accepted without written confirmation by the dealer or
with unreserved acceptance!

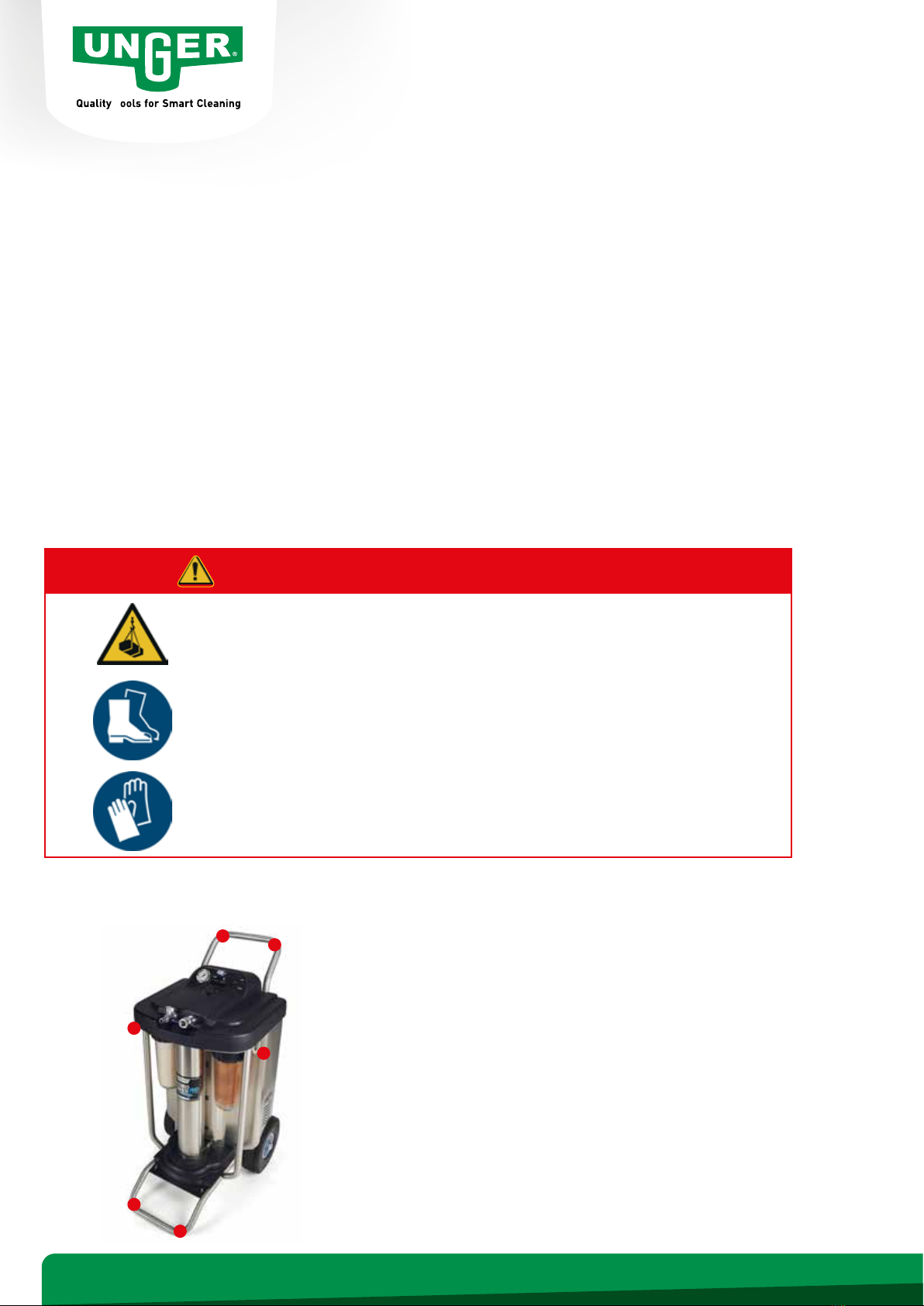

In the case of transport of the HydroPower RO S for use at height, e.g. on a house roof:
DANGER
Severe injuries and property damage due to the HydroPower RO S
falling are possible.
`Do not walk or grab under the suspended load.
`Use only the fixing points provided for fixing the hoist.
`Only use a suitable hoist.
`Secure the HydroPower RO S to the transport.
`Observe the weight and maximum dimensions of the HydroPower RO S.
`Wear protective gloves and safety shoes.
When transporting, ensure that the HydroPower RO S is
properly secured and cannot move in the transport. Protect
the HydroPower RO S from external damage.
Use the fixing points of the frame during transport, or if the
HydroPower RO S is lifted with a crane, in order to avoid
damage.

17
44
55
22
11
33
HydroPower® RO S
Operating the HydroPower RO
4.3.2 Storage
If the unit is not in use for more than 7 days, the membranes must be protected according to the storage
instructions, see chapter „7.2.4 Membrane protection“.
4.3.3 Operating the HydroPower RO
What is Pure Water?
Pure Water is water in its purest form, physically processed to remove the minerals that
would otherwise lead to limescale spots and streaks. Such impurities are referred to as TDS
(Total Dissolved Solids) and are measured in ppm (parts per million). The water is considered
100 % demineralised (pure) when its TDS is measured at 0 ppm, whilst the 180 ppm is
considered as average water hardness.
Flow of water purification
The water enters the HydroPower RO S via the water inlet (1).
The carbon/sediment combi pre-filter (2), which filters out the largest impurities and chlorine from the
water and thus protects the membranes, sits before the membrane.
The membrane filter (3) removes up to 98% of the minerals from the water in the HydroPower RO S.
The resin filter (4) sits after the membrane, which removes the last 2% of the minerals from the water in
the HydroPower RO S.
Pure water is discharged from the water outlet (5) into a hose connected to a water fed pole for cleaning
glass surfaces without chemicals.
The 3 filter cartridges (2-4) can be easily removed and replaced (see page 27).
1 Water inlet
2 Carbon/sediment combi pre-filter
3 RO membrane
4 DI resin filter
5 Water outlet
ENGLISH

T
www.ungerglobal.com
18
5
1
4
6
6
HydroPower® RO S
Commissioning

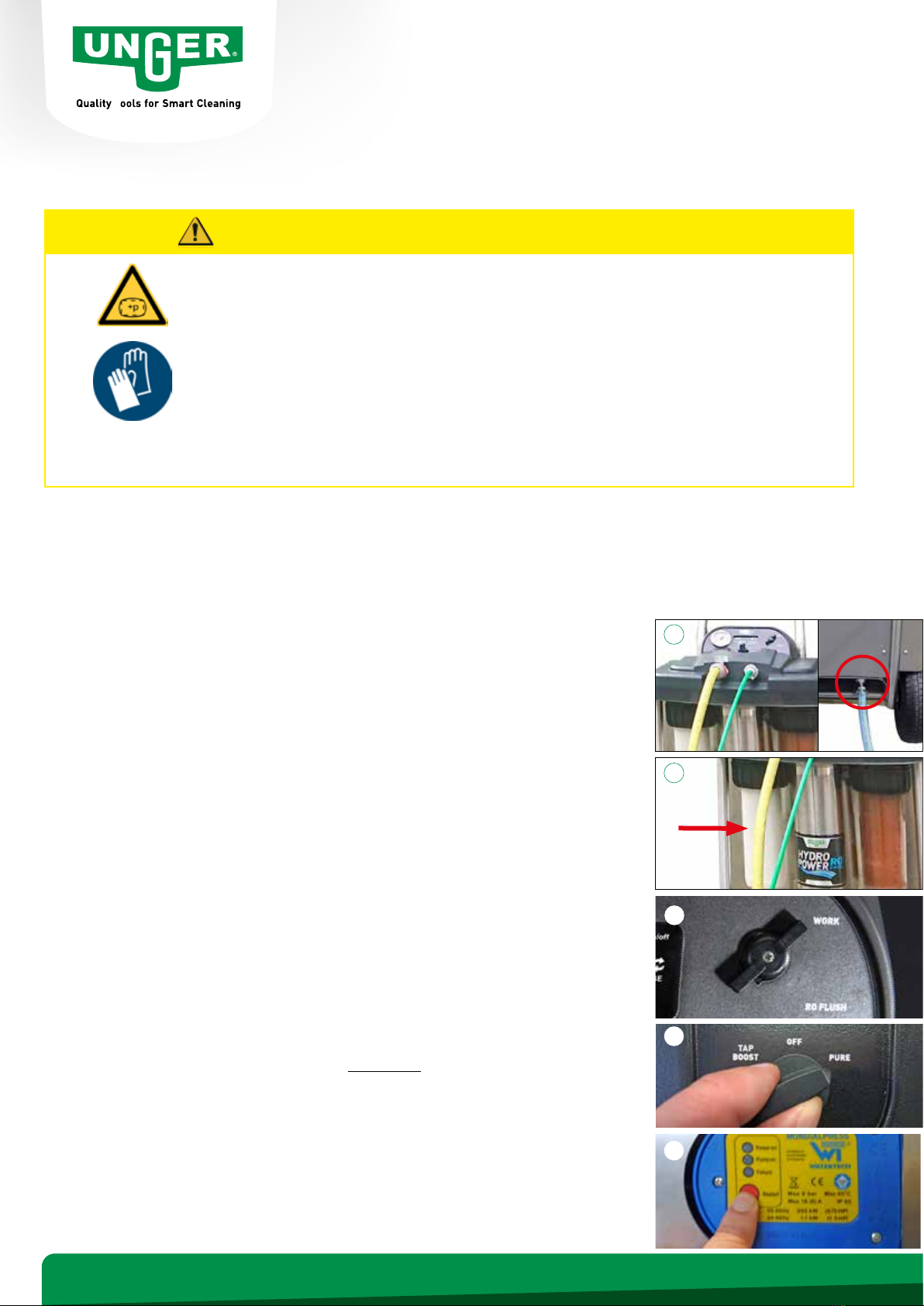

4.4 Commissioning
CAUTION
Slight injuries due to pressurized containers possible.
`The 3 filter cartridges are pressurized during operation.
`Never remove a filter vessel during operation.
`Check if the hoses and tubes are water-tight and fit properly before
commissioning the system.
`Use protective gloves.
ATTENTION: For new or conserved units, the resin filter is removed from the unit and must be
inserted! See next page.
To start the HydroPower RO S, proceed as follows:
1. Connect the two hoses. Do not forget the concentrate hose at the
back of the unit.
2. Connect the power cord to the power supply.
3. Turn on the water supply
4. Put upper switch to the position „WORK“
5. Turn the lower switch from OFF > PURE to work with pure water.
6. The pre-filter cartridges must fill completely with water before
100% efficiency can be achieved.
`
The red RESTART button on the pump control on the back restarts
the pump in case of low pressure. As the system is only just filling
with water at this point, press the RESTART button until the filling
process for both filter cups is complete.
The excess air escapes through the water and concentrate outlets.
3The HydroPower RO S is now ready for use.
`
Info: When you select „TAP BOOST“, unfiltered tap water with
increased pressure comes out to flush surfaces and remove stuborn
dirt.

19
2
4
5
1
HydroPower® RO S
Commissioning
4.4.1 Commissioning of new or preserved HydroPower RO S:
The pre-filter and the resin filter are not inserted in new or preserved units, as they must not come
into contact with the diaphragm care agent.
Before using the resin filter, the membrane maintenance agent must be completely rinsed out.
1. Open the water line and start the HydroPower RO S by setting the upper
switch to „RO FLUSH“ and the lower switch to „PURE“. Rinse out the
membrane care agent for about 15 minutes.
2. Switch off the HydroPower RO S: turn the lower switch to OFF.
3. Disconnect the water supply.
4. Unscrew the resin cartridge and insert the resin filter (RORE2).
Make sure that the orientation is correct, the blue filter inlet must be on
top!
5. Screw the cartridge back on with help of the included filter key.
6. Start the HydroPower RO S by setting upper switch to WORK and lower
switch to PURE.
3The HydroPower RO S is now ready for use.
ENGLISH

T
www.ungerglobal.com
20
HydroPower® RO S
Operation
5 Operation of the HydroPower RO
5.1 General information
Working with the HydroPower RO S is only permitted if the operating instructions have been read and
understood.
DANGER
Severe injuries and property damage due to the HydroPower RO S falling are
possible.
`Place the unit on a level surface only.
`Make sure the unit is standing securely. If necessary secure the wheels with
a wedge, before operating the system.
`Wear safety shoes.
CAUTION
Slight injuries due to pressurized containers possible.
`The 3 filter cartridges are pressurized during operation.
`Never remove a filter cartridge or hose during operation.
`Check if the system is watertight before commissioning.
`Wear protective gloves.
