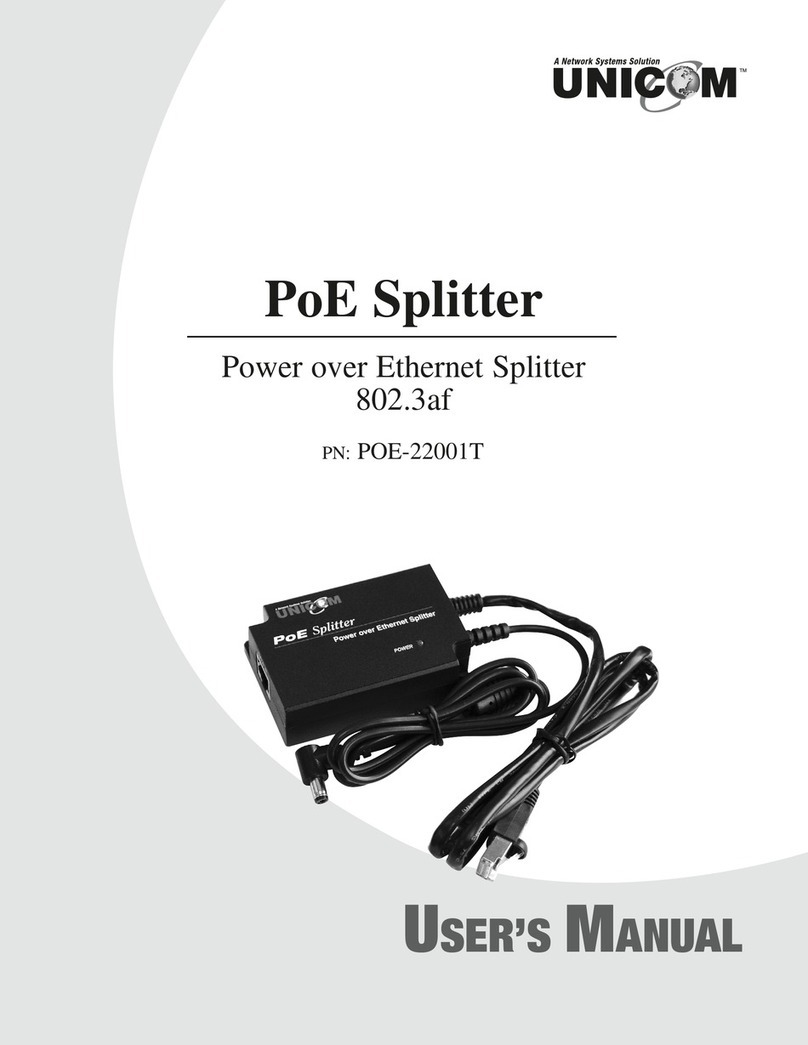

Uni-Com POE-22001T User manual

Specifications
Standa d:
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3af Power over Ethernet
Powe Jack Diamete :
5.5 x 2.0mm, 5.5 x 2.5mm
DIP:
DIP 5V, 7.5V, 9V, and 12V
Connecto :
Data and Power In: 1 x RJ-45, Data pin 1,2,3,6
Powe Pin:
4,5(V+), 7,8(V-) and 1,2(V+), 3,6(V-)
Data Out:
1 x RJ-45, Data pin 1,2,3,6
Powe Out:
5V, 7.5V, 9V, and 12V (2A@5V, Maximum)
Netwo k Cable:
10Base-T: 4-pair UTP/STP Category 3/5e/6 cable,
EIA/TIA-568 100-ohm (up to 100m)
100Base-TX: 4-pair UTP/STP Category 5e/6 cable, EIA/TIA-
568 100-ohm (up to 100m)
LED:
System: power (green)
Powe Input:
DC 48V
Ope ating Envi onment:
0˚~ 40˚C (32˚ ~ 104˚F), 90% Humidity (non-condensing)
Dimension:
80mm x 55mm x 26mm ( x W x H) 3.5" X 2.16"
X1.06"
EMI & Safety:
FCC Class B, CE, CE/EN60950
908 Canada Court
City of Industry, CA 91748 U.S.A.
Phone: [phone] or 800.346.6668 Fax: [phone]
www.unicomlink.com e-mail: [e-mail]
©UNICOM 2007. UNICOM s a trademark of UNICOM Electr c, Inc. All r ghts reserved.
Spec f cat ons subject to change w thout not ce.
082507 UNILT0009WP
PART NUMBER DESCRIPTION
PoE Splitter Adapter
Power over Ethernet
POE-22001T Power over Ethernet Splitter Adapter
