Unichip HUD User manual

Instruction Manual
HUD Wireless CarPlay
CarPlay AndroidAuto CarLife Rear CameraUSB Video

Product Introduction
①3.5 mm audio output interface
②Ambient light sensor detection hole
③Reset hole
④USB socket
⑤Switch on/off
⑥Base
⑦Image combiner(Combiner)
⑧MIC
⑨Base
Gift Box
Base
Cigar lighter cable
Remote Control
This product is a head-up display device for automotive after market. Through innovative product design concepts, the device
enables you to use navigation, listen to music, make calls, and send and receive messages while driving, without leaving your
eyes from the road,and keep your hands on the steering wheel. Drive your car safer.
Rated working voltage: 12V - 24V Limit working voltage: 8 - 27V
USB output: 500ma Working temperature: -20 ~ 60 degrees
TFT screen resolution: 480*240 Projection size: 15-inch virtual image two meters away
SNR: >60dB Degree of distortion: <0.1%
Frequency response: 20Hz - 15Khz Left and right channel senaration: >60dB
Bluetooth version: Version 4.2+ EDR Bluetooth sound processing: A2DP(Advance Audio Distribution Profile)
Bluetooth effective distance: <10M Effective distance of Bluetooth & Micrphone: 0.5 - 2M
FM frequency: 87.5 - 108.0MHZ Transmit FM mode: Stereo digital PLL lock frequency

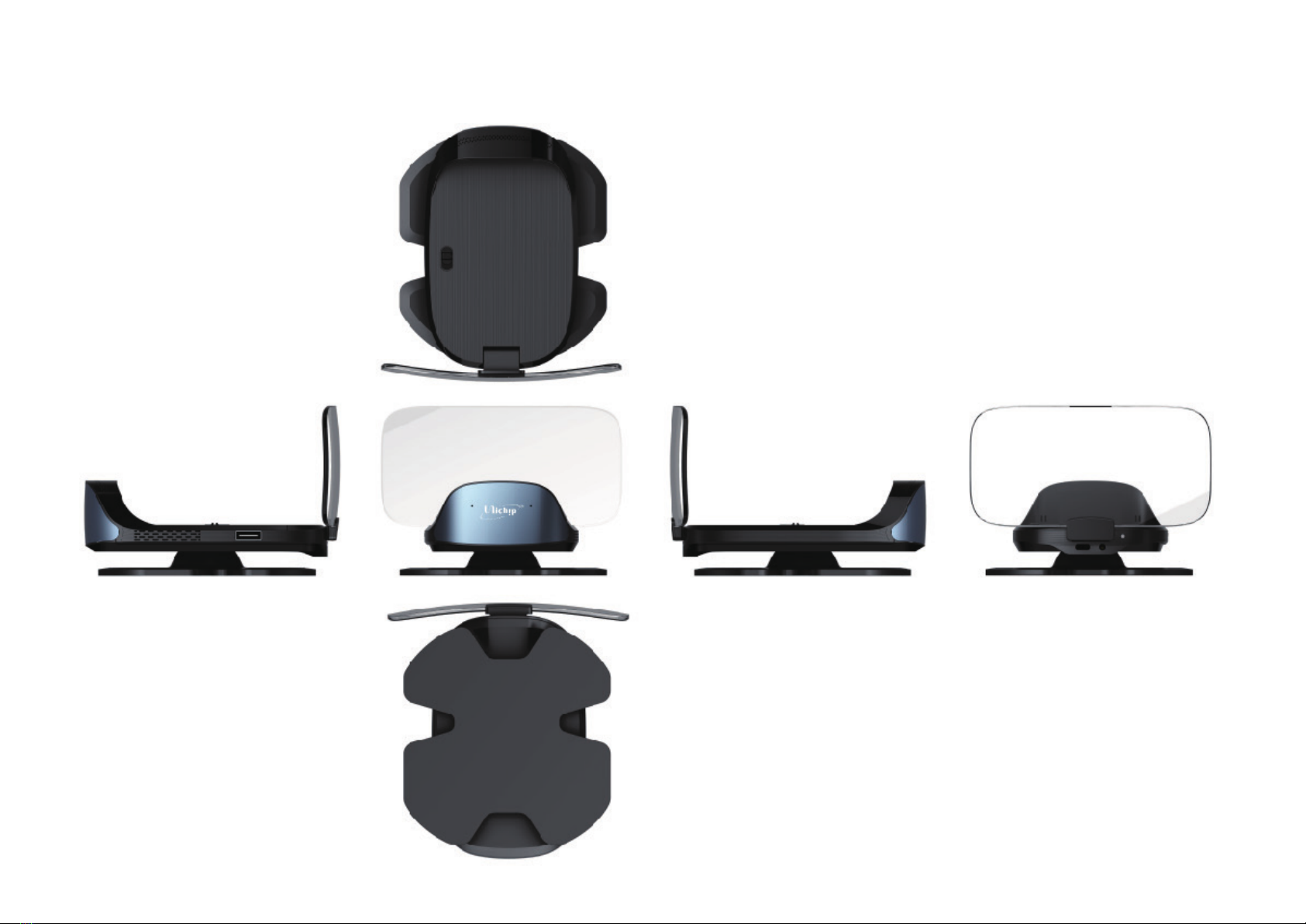

Product Display

How to Separate the Base

Operation Instructions
1.You can find the cigar lighter port of your car at several locations in the figure.
2. Connect cigar lighter, use Type C to connect with product, and turn on the product.
3. Start the car and the HUD will starting up about 3 seconds later (The start-up time of HUD is slightly
different for different types of vehicles)
4. Open the image combiner to the vertical position
5. Adjust the combination of the base and the product, and fine-tune the angle of the image combiner to
find a position where the image can be seen in the driving position, mark this location.
6. Remove the base adhesive protection paper and attach the main body and the base to the center
console. And make the final fine-tuning.
7. Insert the mobile phone data cable into the USB interface and use the cable clips to organize the data
cable and cigar lighter cable.
8. Fix the remote control on the steering wheel,or put on anywhere you are convenient to take.
For iPhone users
1. Connect to the phone through the phone cable or Bluetooth (the connection ways are alternative), HUD automatically
wakes up Carplay function and projects the image onto the image combiner.
2. Open the phone settings interface, search for Bluetooth device, and input PIN code 8362, until connect successfully.
For Google Auto users
Please move to the Google app market to search for and install the Android Auto app designed by
Google.
For some mobile phones, you may also be asked to install some matching apps;
2. Connect to the phone though the phone cable and Bluetooth, HUD automatically launches the Google Auto interface
and projects it onto the image combiner.
3. Open the phone settings interface, search for Bluetooth device, and input PIN code 8362, until connect successfully

Remote Control
Button Function Operation Remarks
Move the pointer
& Switch songs
Move the pointer
& Switch songs
Move the pointer
& control screen
Answer phone
& enter menu
Confirm & Siri
Go back
& hand up phone
Move the point
Down Selection Switch
Return function key
and hang up phone
Answer phone, and
long press enter APP menu
The next selection switch
Confirm and voice assistant key
Screen on and off ,
the front selection switch
Upper Selection Switch
1
2
6
7
5
4
3

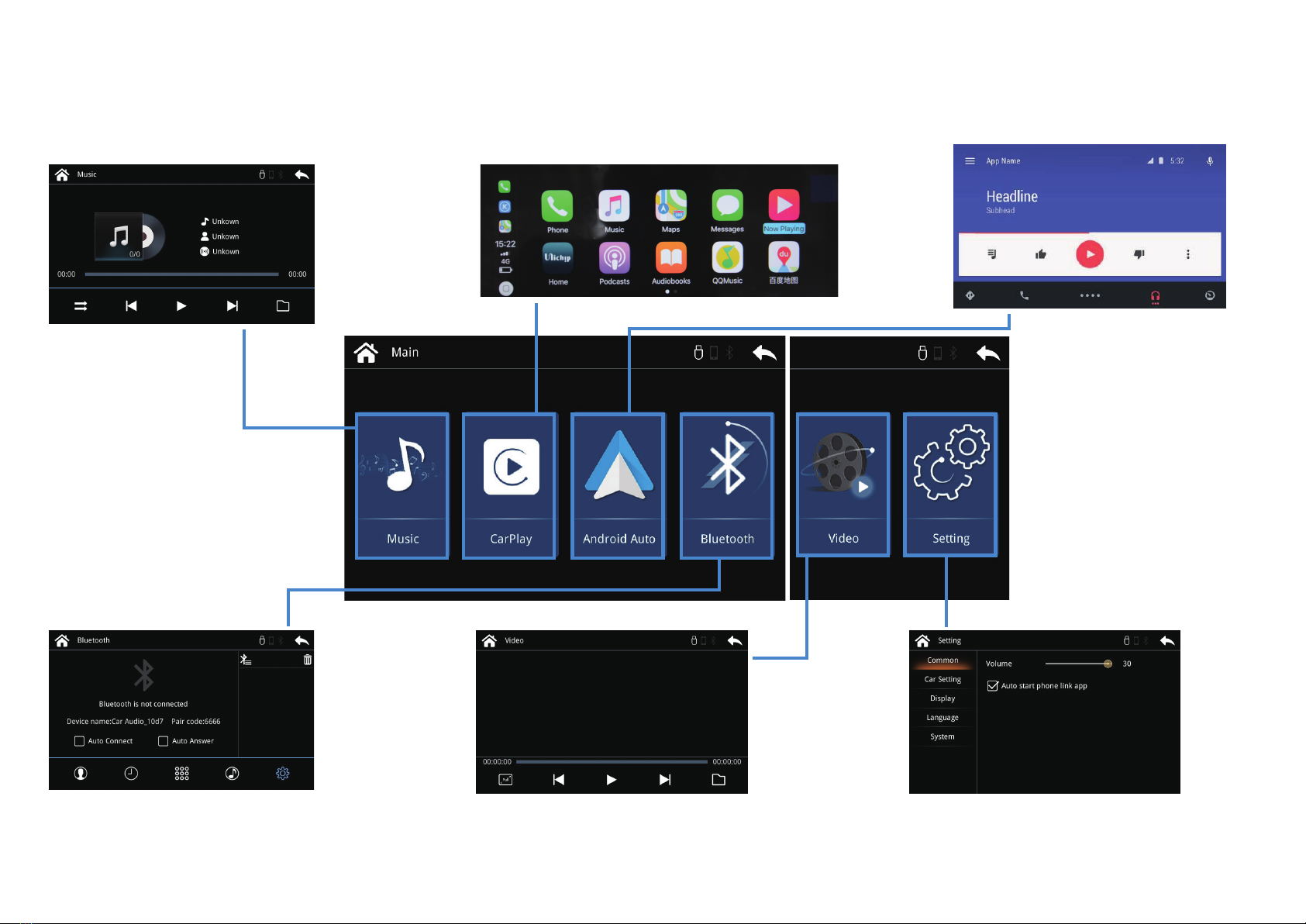

Unichip Smartauto System Menu
MUSIC
Bluetooth Video Setting
CarPlay Android Auto
It can play music from USB.
It can play video from USB. Enter into this interface to set up CarPlay.
Wireless CarPlay, Bluetooth connection
View CarPlay's Bluetooth name and Pair code.

Setting
Volume 0 32
Auto start phone link app
Camera In Use
Reverse Condition
Porsche Diamond Key
Bench Module
Reverse Radar
Reverse Track
Brightness
Contrast
Saturation
Common
Car Setting
Display

Setting
Factory reset
Factory Mode
Screenshot
Boot Logo
Factory setting
LCD Test
Touch calibration
Echo Cancellation
Rebot
System
English
简体中文
繁体中文
Portugal
Italian
Spanish
Language

CarPlay IPhone Link Type
Echo Cancellation
Setting

Setting
How to upgrade via USB
1. Prepare USB drive and format it with "FAT32"
2. Unzip the upgrade file and copy paste them into USB root folder
3. plug the prepared upgrade USB into the smartbox USB port
4. Unplug the power cord from the smart box/enter factory mode (code 131519) and
restart the system
5. Plug in smartbox power harness cable again, the system will be automatically upgrad-
ed
you can switch to carplay system menu and see the screen shows system upgrade
status, after system upgraded accomplished the system will be rebooted.
1. Prepare USB drive and format it with "FAT32"
2. Unzip the upgrade file and copy paste them into USB root folder
3. Start up the CarPlay for one minute
4. Then plug the prepared upgrade USB into the smartbox USB port, the system will be
automatically upgraded
you can switch to carplay system menu and see the screen shows system upgrade
status.
1. Prepare USB drive and format it with "FAT32"
2. Unzip the upgrade file and copy paste them into USB root folder
3. plug the prepared upgrade USB into the smartbox USB port
4. Uuplug the power cord from the smart box, then plug in smartbox power harness
cable again
If CarPlay interface displays normally, dip switch update successed
OS Update
MCU Update
Dip switch Update

1.Turn Off The Original Car Bluetooth.
2. Turn On The Phone Bluetooth And
Wifi, And Then Stay At The Bluetooth
Connection Screen.
3. Enter the bluetooth of the system, view the CarPlay’s Bluetooth name and pair code. Turn on your phone bluetooth, and connect to CarPlay’s bluetooth,
and enter pair code.
4. Then enter the CarPlay pair code, check your iPhone with the jump out message code, choose “Use CarPlay”, wait for 2-3 seconds after that the
wireless CarPlay connected and enjoy !
Wireless CarPlay Connection Setup
