Unicorn ENDAT-D2512 User manual

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
1

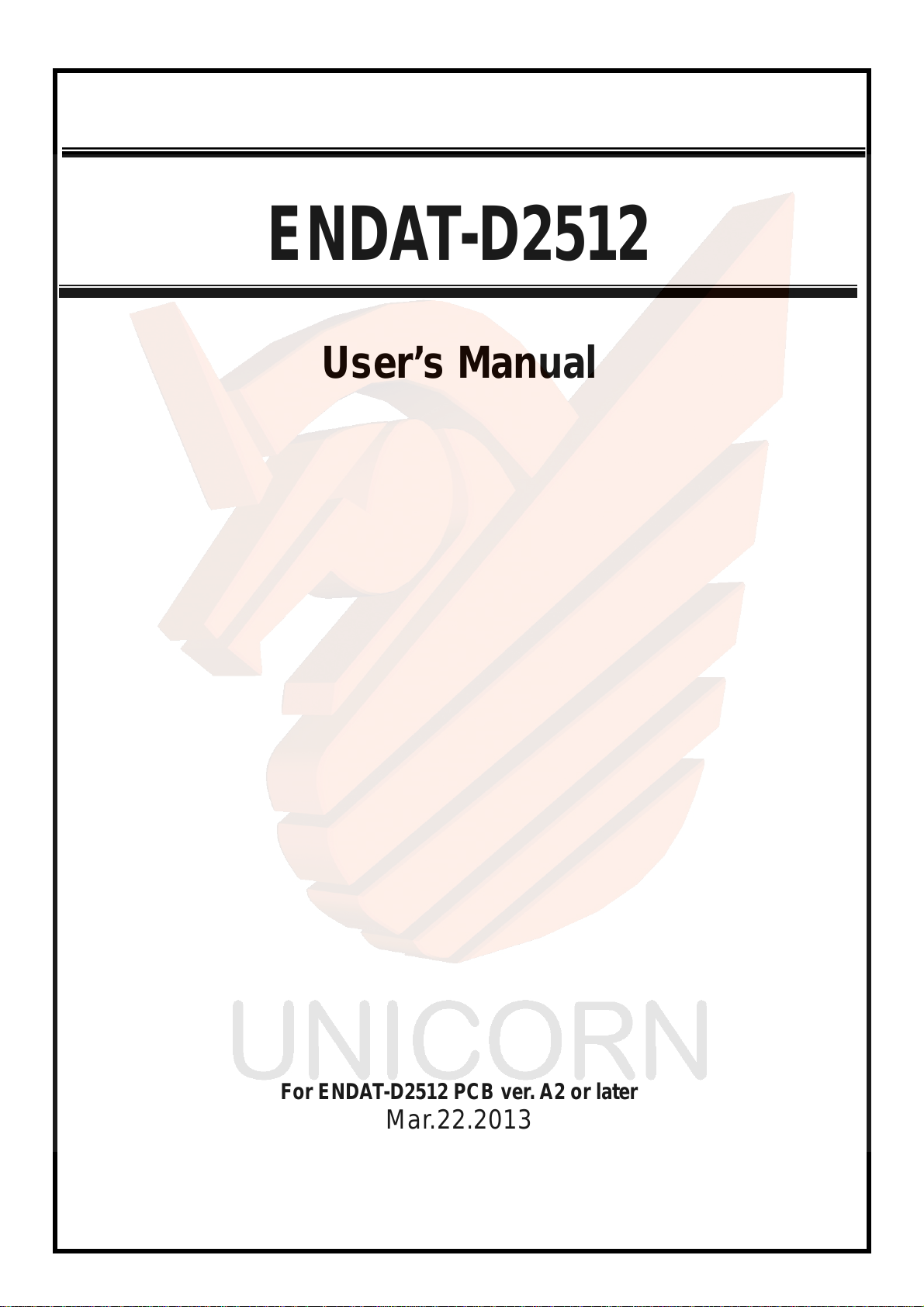

ENDAT-D2512
User’s Manual
For ENDAT-D2512 PCB ver. A2 or later
Mar.22.2013
Document version: Preliminary edition

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
2

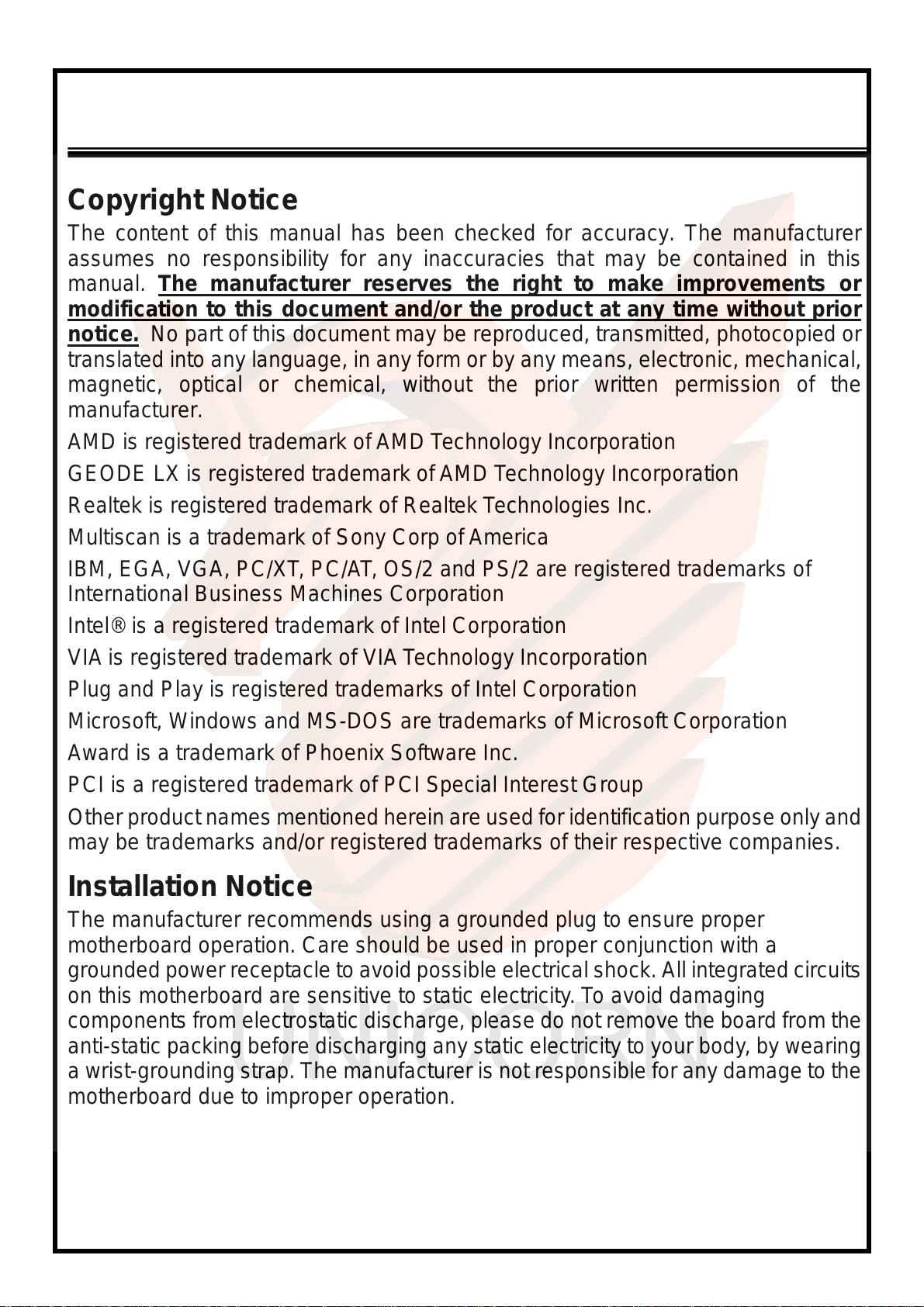

Copyright Notice
The content of this manual has been checked for accuracy. The manufacturer
assumes no responsibility for any inaccuracies that may be contained in this
manual. The manufacturer reserves the right to make improvements or
modification to this document and/or the product at any time without prior
notice. No part of this document may be reproduced, transmitted, photocopied or
translated into any language, in any form or by any means, electronic, mechanical,
magnetic, optical or chemical, without the prior written permission of the
manufacturer.
AMD is registered trademark of AMD Technology Incorporation
GEODE LX is registered trademark of AMD Technology Incorporation
Realtek is registered trademark of Realtek Technologies Inc.
Multiscan is a trademark of Sony Corp of America
IBM, EGA, VGA, PC/XT, PC/AT, OS/2 and PS/2 are registered trademarks of
International Business Machines Corporation
Intel® is a registered trademark of Intel Corporation
VIA is registered trademark of VIA Technology Incorporation
Plug and Play is registered trademarks of Intel Corporation
Microsoft, Windows and MS-DOS are trademarks of Microsoft Corporation
Award is a trademark of Phoenix Software Inc.
PCI is a registered trademark of PCI Special Interest Group
Other product names mentioned herein are used for identification purpose onlyand
may be trademarks and/or registered trademarks of their respective companies.
Installation Notice
The manufacturer recommends using a grounded plug to ensure proper
motherboard operation. Care should be used in proper conjunction with a
grounded power receptacle to avoid possible electrical shock. All integrated circuits
on this motherboard are sensitive to static electricity. To avoid damaging
components from electrostatic discharge, please do not remove the board from the
anti-static packing before discharging any static electricity to your body, by wearing
a wrist-grounding strap. The manufacturer is not responsible for any damage to the
motherboard due to improper operation.

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
3
Specification:
Model ENDAT-D2512
System Chipset Intel® NM10
CPU Supporting Intel Cedar View N2800 (Dual Core, 1.86GHz, 6.5Watt)
Intel Cedar View D2550(Dual Core, 1.86GHz, 10 Watt)
Memory 1 x 204-Pin DDR3 SODIMM sockets
support DDR3-800/1066 up to 4 GB
Ethernet 2 x Intel Gb LAN support by 82583V
VGA Intel graphic GMA3600 , Maximum resolution
up to 1920 x 1200
LVDS interface Support 18/24/36/48bit LVDS with backlight control by standard
(maximum resolution 1920 x 1080 )
Dual view CRT + DVI, CRT + LVDS
Serial/Print 4 ports RS-232 with power selector (+12V / Ring-in / +5V)
RS 422 / 485 by COM2
SATA 2 x SATA2 connectors with AHCI support
USB USB 2.0 x 7 (4 external + 3 internal)
Expansion 1 x PICMG 1.0 compliant PCI slot support up to 2 PCI expansions
1 x Mini-PCIe x1 Socket, 1 x SIM card socket (optional)
Watch Dog Timer On-chip supports 1 to 255 seconds / minutes
AUDIO On-board supports HD Audio with 1.2W amplifier
1 x PS2 Keyboard & Mouse connector
3 x D-sub Connector for COM 1,2,3
1 x VGA
2 x RJ-45 Connector
4 x USB(2.0) Connector
Back Panel I/O
1 x SPK-out
1 x PS2 Keyboard & Mouse with 2.54mm Pin Header
VGA & LPT1 with 2.0mm Box Header
COM4 with 2.54 mm Box Header
3 x USB with 2.54mm Pin Header
Speaker out, Line-in, CD-in, MIC-in, SPDIF Pin Header
8-bits digital I/O for CMOS/TTL level
(4 bit input / 4 bit output) with 2.0mm Pin Header
1 x SP/DIF + 1 x SM BUS with 2.0mm Pin Header
I/O Onboard
SIM Card Socket (optional)
Power Supply DC 12V
Form Factor MINI-ITX (170mm x 170mm) with 6 Layers PCB

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
4

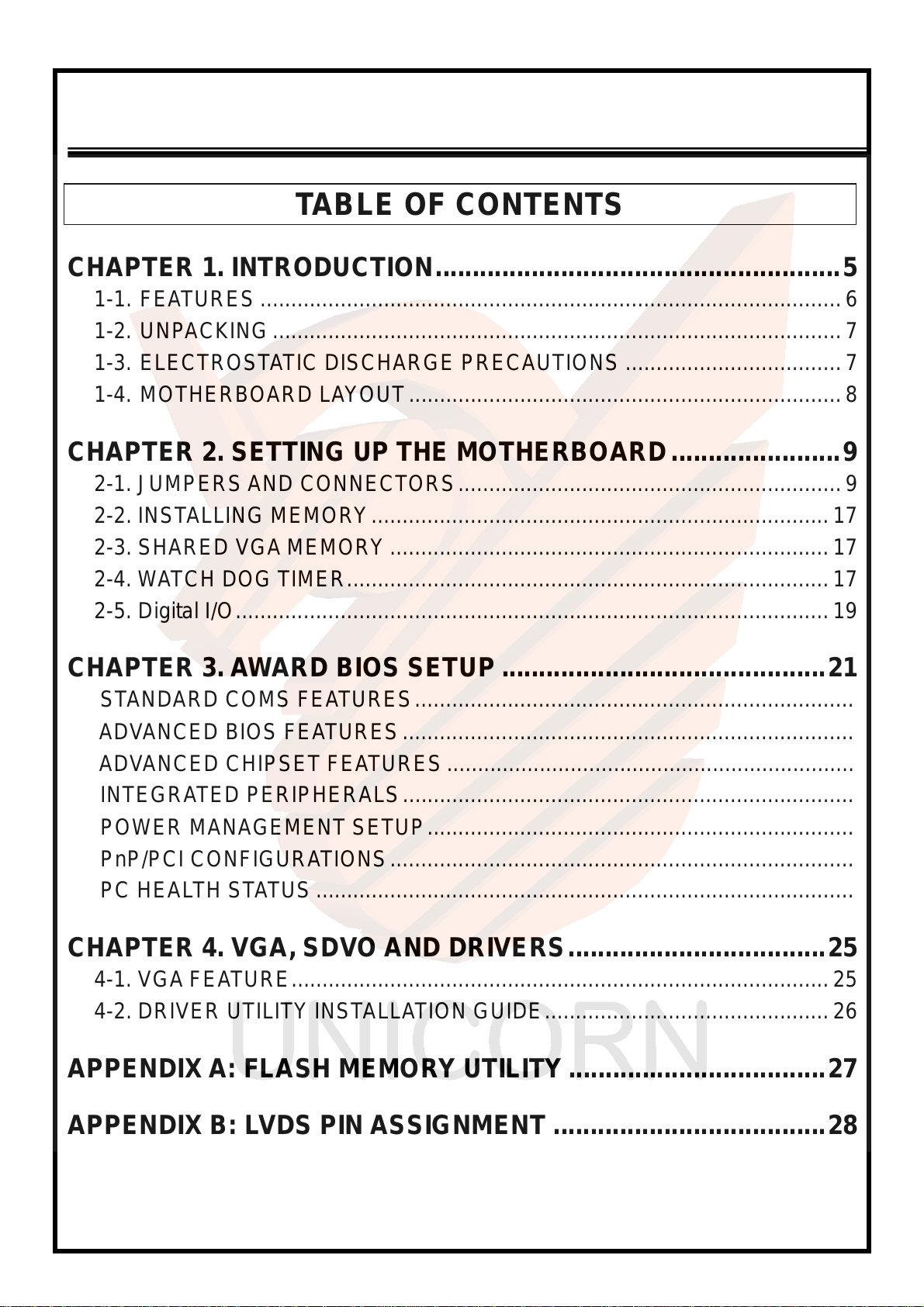

TABLE OF CONTENTS
CHAPTER 1. INTRODUCTION.......................................................5
1-1. FEATURES ..............................................................................................6
1-2. UNPACKING............................................................................................7
1-3. ELECTROSTATIC DISCHARGE PRECAUTIONS ...................................7
1-4. MOTHERBOARD LAYOUT......................................................................8
CHAPTER 2. SETTING UP THE MOTHERBOARD.......................9
2-1. JUMPERS AND CONNECTORS..............................................................9
2-2. INSTALLING MEMORY..........................................................................17
2-3. SHARED VGA MEMORY.......................................................................17
2-4. WATCH DOG TIMER..............................................................................17
2-5. Digital I/O................................................................................................19
CHAPTER 3. AWARD BIOS SETUP ............................................21
STANDARD COMS FEATURES.......................................................................
ADVANCED BIOS FEATURES.........................................................................
ADVANCED CHIPSET FEATURES..................................................................
INTEGRATED PERIPHERALS.........................................................................
POWER MANAGEMENT SETUP.....................................................................
PnP/PCI CONFIGURATIONS...........................................................................
PC HEALTH STATUS.......................................................................................
CHAPTER 4. VGA, SDVO AND DRIVERS...................................25
4-1. VGA FEATURE.......................................................................................25
4-2. DRIVER UTILITY INSTALLATION GUIDE..............................................26
APPENDIX A: FLASH MEMORY UTILITY...................................27
APPENDIX B: LVDS PIN ASSIGNMENT .....................................28
APPENDIX C: LIMITED WARRANTY ..........................................29

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
5

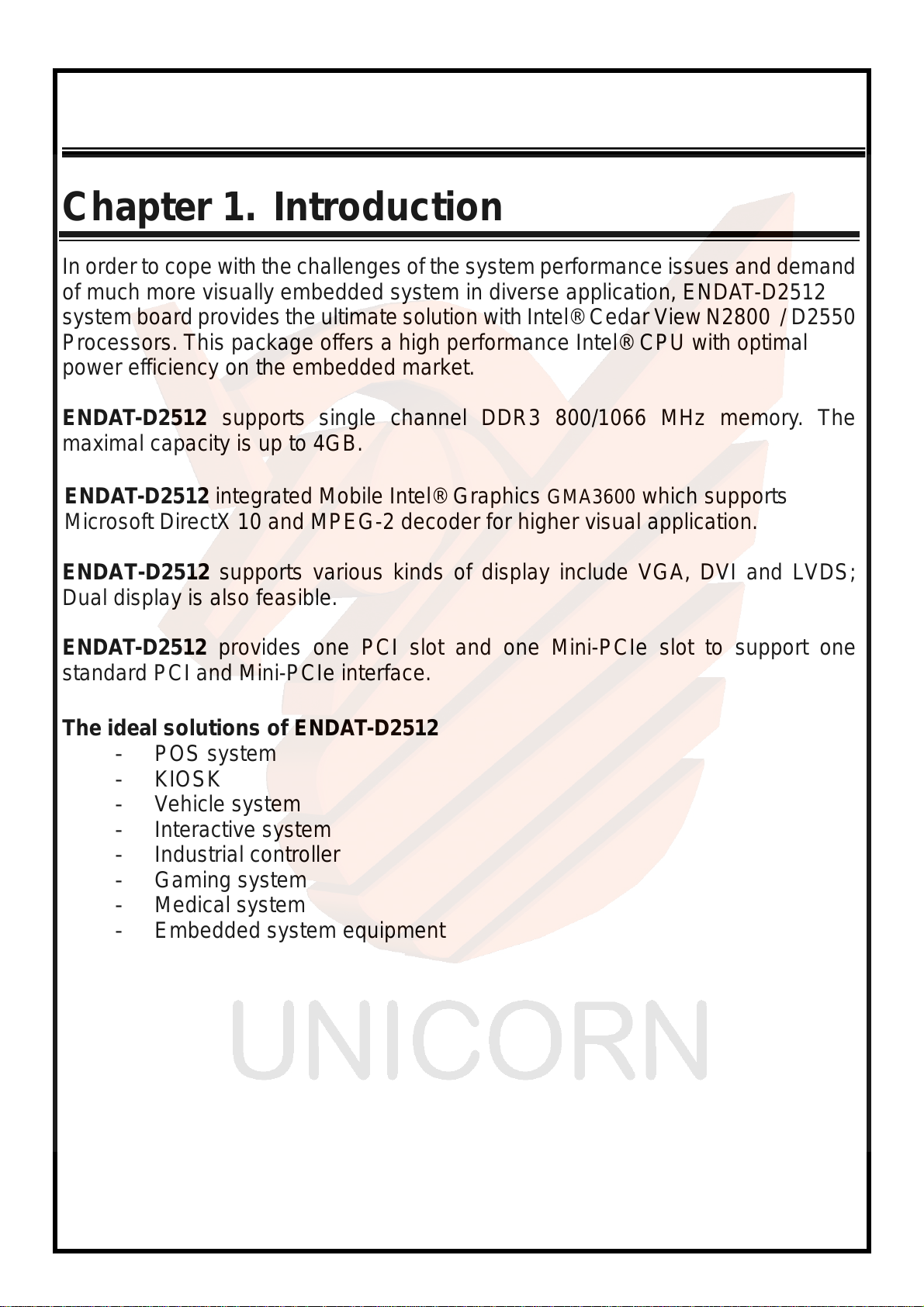

Chapter 1. Introduction
In order to cope with the challenges of the system performance issues and demand
of much more visually embedded system in diverse application, ENDAT-D2512
system board provides the ultimate solution with Intel® Cedar View N2800 / D2550
Processors. This package offers a high performance Intel® CPU with optimal
power efficiency on the embedded market.
ENDAT-D2512 supports single channel DDR3 800/1066 MHz memory. The
maximal capacity is up to 4GB.
ENDAT-D2512 integrated Mobile Intel® Graphics GMA3600 which supports
Microsoft DirectX 10 and MPEG-2 decoder for higher visual application.
ENDAT-D2512 supports various kinds of display include VGA, DVI and LVDS;
Dual display is also feasible.
ENDAT-D2512 provides one PCI slot and one Mini-PCIe slot to support one
standard PCI and Mini-PCIe interface.
The ideal solutions of ENDAT-D2512
-POS system
-KIOSK
-Vehicle system
-Interactive system
-Industrial controller
-Gaming system
-Medical system
-Embedded system equipment

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
6

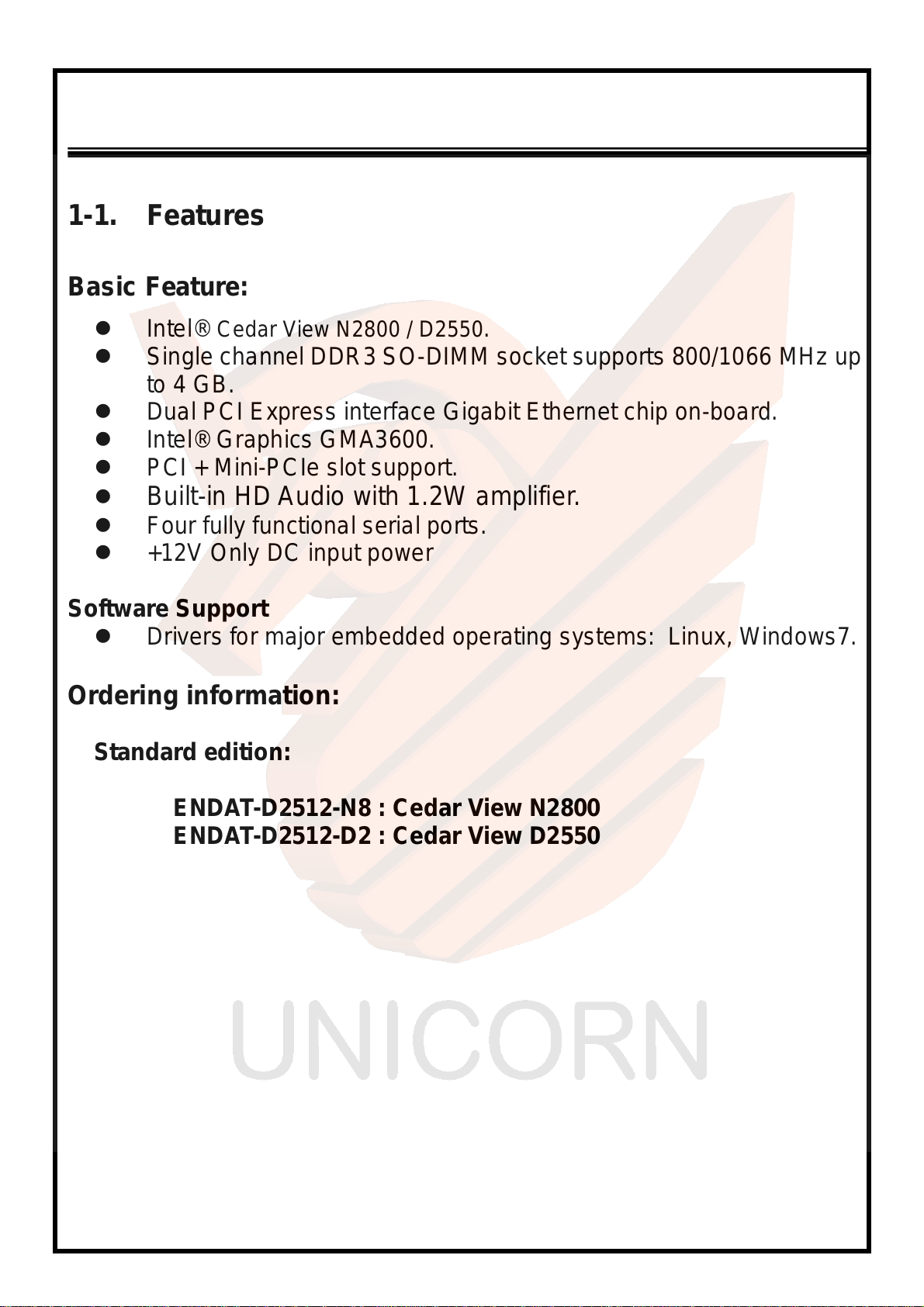

1-1. Features
Basic Feature:
Intel® Cedar View N2800 / D2550.
Single channel DDR3 SO-DIMM socket supports 800/1066 MHz up
to 4 GB.
Dual PCI Express interface Gigabit Ethernet chip on-board.
Intel® Graphics GMA3600.
PCI + Mini-PCIe slot support.
Built-in HD Audio with 1.2W amplifier.
Four fully functional serial ports.
+12V Only DC input power
Software Support
Drivers for major embedded operating systems: Linux, Windows7.
Ordering information:
Standard edition:
ENDAT-D2512-N8 : Cedar View N2800
ENDAT-D2512-D2 : Cedar View D2550

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
7
1-2. Unpacking
The motherboard comes securely packaged in a sturdy cardboard shipping carton. In
addition to the User's Manual, the motherboard package includes the following items:
 ENDAT-D2512 System Board
 One SATA HDD Cable
 Serial (2.54mm) port and Parallel port(2.0mm) Cable.
 LCD cable and DVI Cable(Optional)
 CD with Driver utilities for on-board chipsets, VGA and LAN adapter
If any of these items is missing or damage, please contact the dealer whom you purchase
the motherboard from. Save the shipping material and carton in the event that you want to
ship or store the board in the future.
Note: Leave the motherboard in its original package until you are ready to install it!
1-3. Electrostatic Discharge Precautions
Make sure you properly ground yourself before handling the motherboard, or other system
components. Electrostatic discharge can easily damage the components. Note: You must
take special precaution when handling the motherboard in dry or air-conditioned
environments.

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
8

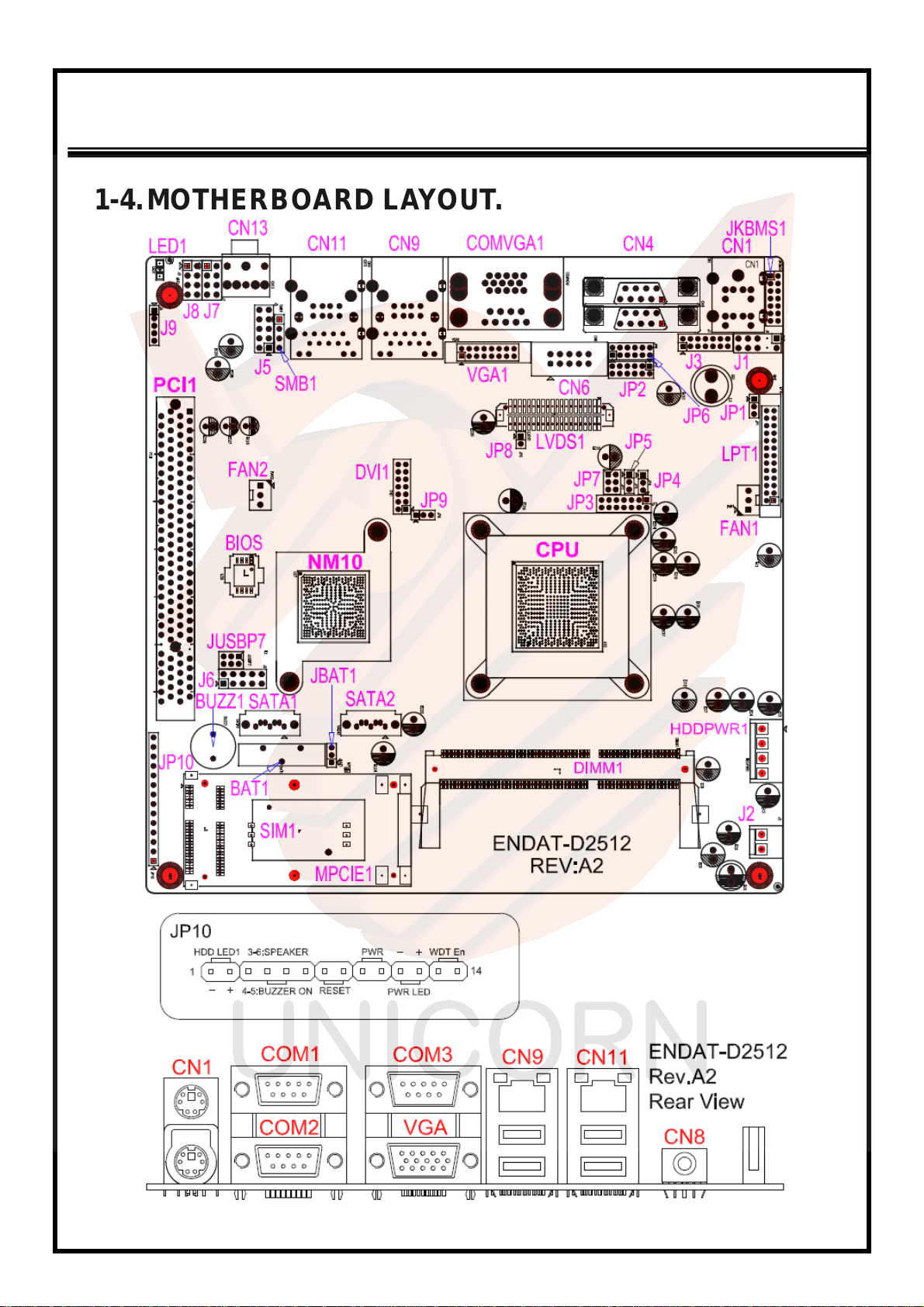

1-4.MOTHERBOARD LAYOUT.

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
9
Chapter 2. Setting up the Motherboard

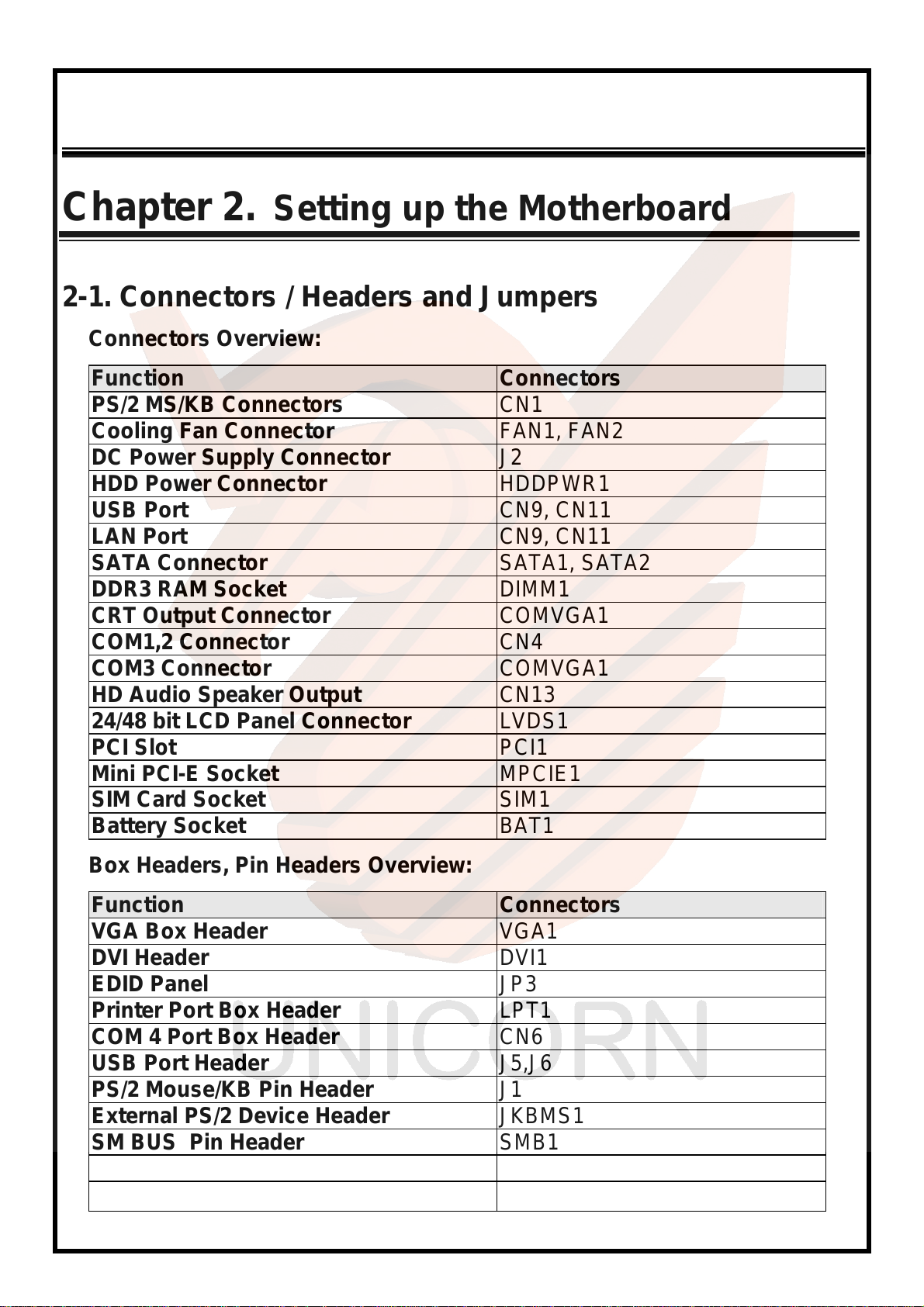

2-1. Connectors / Headers and Jumpers
Connectors Overview:
Function Connectors
PS/2 MS/KB Connectors CN1
Cooling Fan Connector FAN1, FAN2
DC Power Supply Connector J2
HDD Power Connector HDDPWR1
USB Port CN9, CN11
LAN Port CN9, CN11
SATA Connector SATA1, SATA2
DDR3 RAM Socket DIMM1
CRT Output Connector COMVGA1
COM1,2 Connector CN4
COM3 Connector COMVGA1
HD Audio Speaker Output CN13
24/48 bit LCD Panel Connector LVDS1
PCI Slot PCI1
Mini PCI-E Socket MPCIE1
SIM Card Socket SIM1
Battery Socket BAT1
Box Headers, Pin Headers Overview:
Function Connectors
VGA Box Header VGA1
DVI Header DVI1
EDID Panel JP3
Printer Port Box Header LPT1

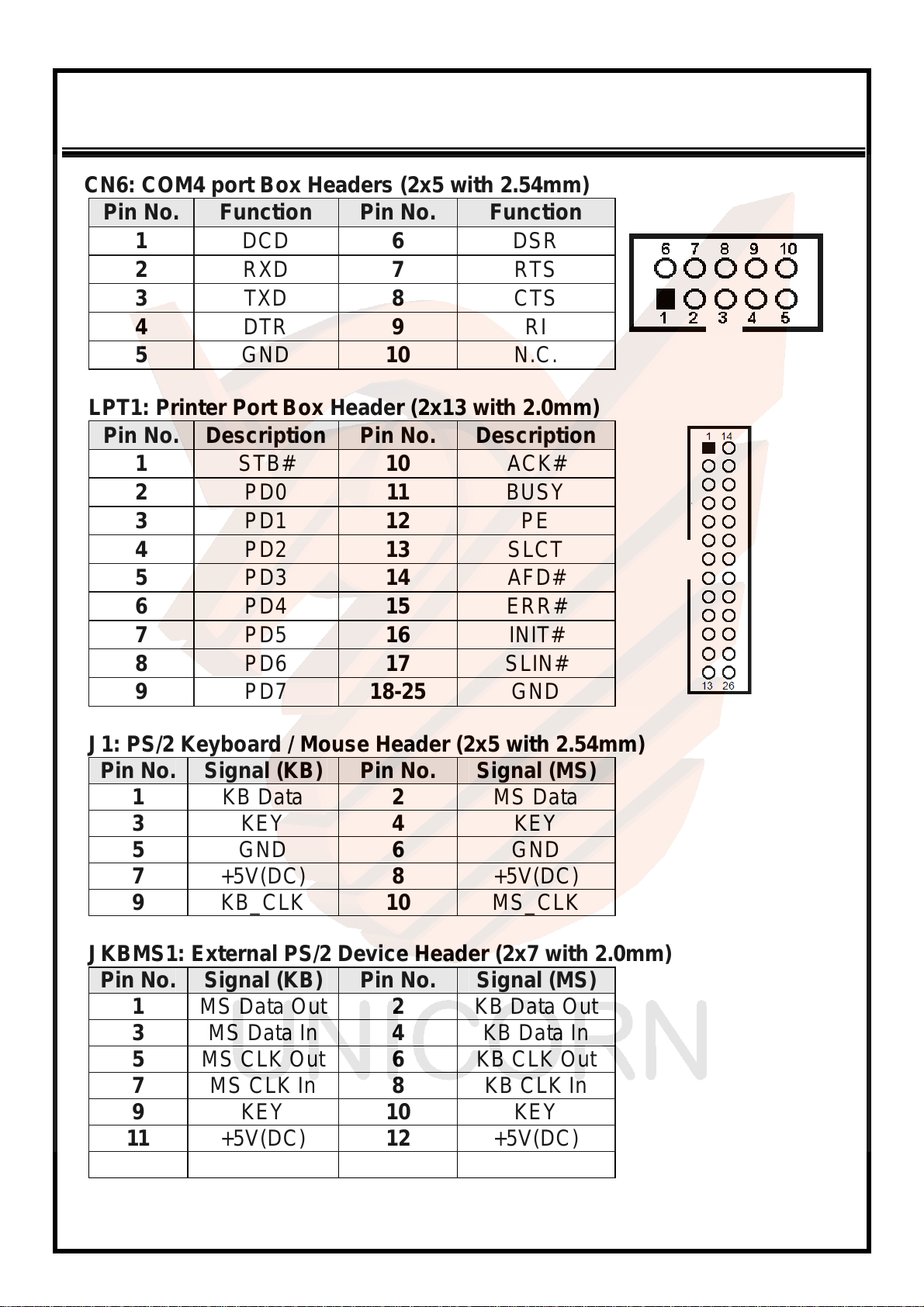

COM 4 Port Box Header CN6
USB Port Header J5,J6
PS/2 Mouse/KB Pin Header J1
External PS/2 Device Header JKBMS1
SM BUS Pin Header SMB1
Line-Out, CD-In Pin Header J7
Line-In、MIC-In Pin Header J8

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
10
Function Connectors
SPDIF Pin Header J9

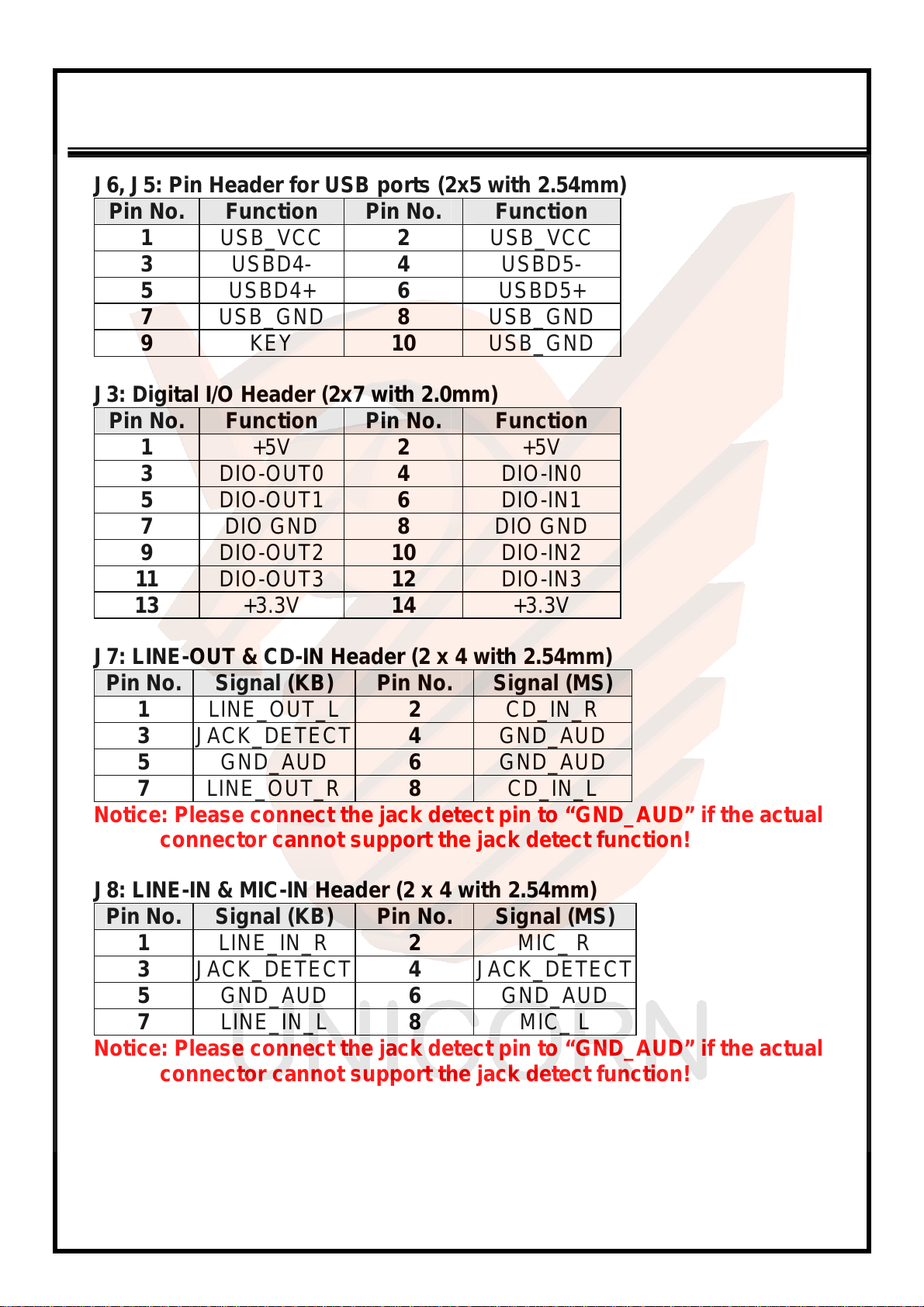

DIGITAL I/O Pin Header J3
Jumpers Overview:
Function Connectors
LCD Voltage Select JP7
LCD Backlight Voltage Select JP4
LCD Backlight Control Voltage Select JP5
LVDS1
LCD Backlight Voltage (for +5V) JP8
Clear CMOS JBAT1
PS2 Power Selector JP1
COM1/2/3/4 Voltage Selector JP6,JP2
Header for Case Panel JP10
HDD LED JP10: Pin 1(-), Pin 2(+)
External Speaker JP10: Pin 3(-), Pin 6(+)
Buzzer On/Off JP10: Pin 4, Pin 5
Hardware Reset Switch JP10: Pin 7, Pin 8
ATX Power Supply On/Off Switch JP10: Pin 9, Pin 10
Power LED JP10: Pin 11(-), Pin 12(+)
WDT Function Enable/Disable JP10: Pin 13, Pin 14
Please double-check the insertion and orientation of the LCD cable before applying power.
Improper installation will result in permanent damage LCD panel.
Part 1: Onboard Jumpers
JP1: PS2 Standby Power Selector (1x3 with 2.0mm)
Pin 1-2 * +5Vsb
Pin 2-3 +5V
JBAT1: CMOS Data Clear (1x3 with 2.0mm)
Pin 2-3 * Normal
Pin 1-2 Close for clear CMOS

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
11

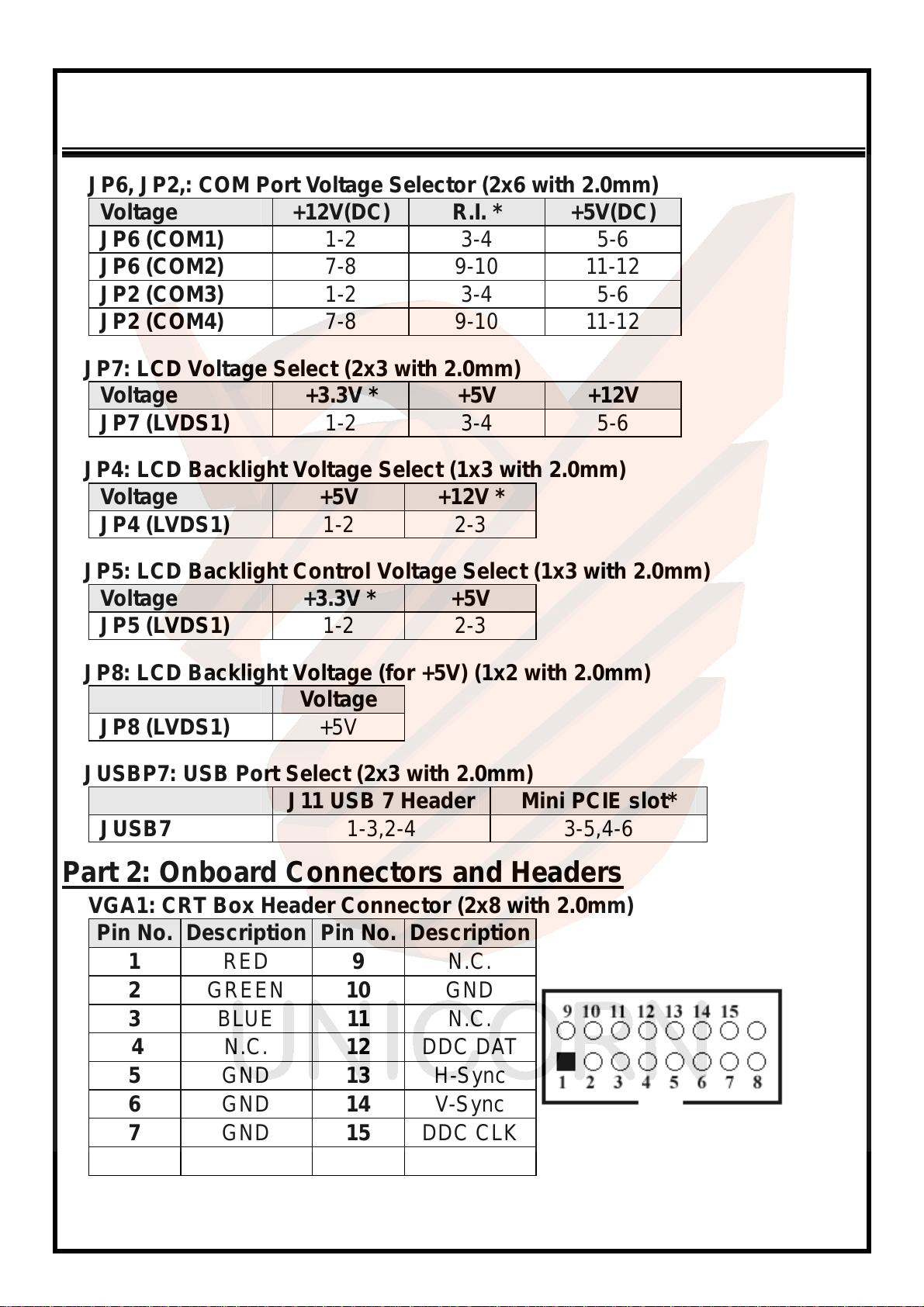

JP6, JP2,: COM Port Voltage Selector (2x6 with 2.0mm)
Voltage +12V(DC) R.I. * +5V(DC)
JP6 (COM1) 1-2 3-4 5-6
JP6 (COM2) 7-8 9-10 11-12
JP2 (COM3) 1-2 3-4 5-6
JP2 (COM4) 7-8 9-10 11-12
JP7: LCD Voltage Select (2x3 with 2.0mm)
Voltage +3.3V * +5V +12V
JP7 (LVDS1) 1-2 3-4 5-6
JP4: LCD Backlight Voltage Select (1x3 with 2.0mm)
Voltage +5V +12V *
JP4 (LVDS1) 1-2 2-3
JP5: LCD Backlight Control Voltage Select (1x3 with 2.0mm)
Voltage +3.3V * +5V
JP5 (LVDS1) 1-2 2-3
JP8: LCD Backlight Voltage (for +5V) (1x2 with 2.0mm)
Voltage
JP8 (LVDS1) +5V
JUSBP7: USB Port Select (2x3 with 2.0mm)
J11 USB 7 Header Mini PCIE slot*
JUSB7 1-3,2-4 3-5,4-6
Part 2: Onboard Connectors and Headers
VGA1: CRT Box Header Connector (2x8 with 2.0mm)
Pin No. Description Pin No. Description
1 RED 9 N.C.
2 GREEN 10 GND
3 BLUE 11 N.C.
4 N.C. 12 DDC DAT
5 GND 13 H-Sync
6 GND 14 V-Sync
7 GND 15 DDC CLK
8 GND

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
12
DVI1: DVI Header Connector (2x7 with 2.0mm)
Pin No. Description Pin No. Description
1 DVI_TDC2-CN 2 +5V
3 DVI_TDC2+CN 4 GND
5 DVIOUTDATA 6 DVIHPDET
7 DVIOUTCLK 8 DVI_TDC0-CN
9 DVI_TDC1-CN 10 DVI_TDC0+CN
11 DVI_TDC1+CN 12 GND
13 DVI_TLC-CN 14 DVI_TLC+CN
D-SUB Type Connector for COM1,2,3 port (RS-232)
Pin No. Function Pin No. Function
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
D-SUB Type Connector for COM2 port (RS-4852 Wire)
Pin No. Function Pin No. Function
1 Data – 6 NA
2 Data + 7 NA
3 NA 8 NA
4 NA 9 NA
5 NA
D-SUB Type Connector for COM2 port (RS-4224 Wire)
Pin No. Function Pin No. Function
1 –TXD 6 NA
2 +RXD 7 NA
3 +TXD 8 NA
4 –RXD 9 NA
5 NA

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
13
CN6: COM4 port Box Headers (2x5 with 2.54mm)
Pin No. Function Pin No. Function
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND 10 N.C.
LPT1: Printer Port Box Header (2x13 with 2.0mm)
Pin No. Description Pin No. Description
1 STB# 10 ACK#
2 PD0 11 BUSY
3 PD1 12 PE
4 PD2 13 SLCT
5 PD3 14 AFD#
6 PD4 15 ERR#
7 PD5 16 INIT#
8 PD6 17 SLIN#
9 PD7 18-25 GND
J1: PS/2 Keyboard / Mouse Header (2x5 with 2.54mm)
Pin No. Signal (KB) Pin No. Signal (MS)
1 KB Data 2 MS Data
3 KEY 4 KEY
5 GND 6 GND
7 +5V(DC) 8 +5V(DC)
9 KB_CLK 10 MS_CLK
JKBMS1: External PS/2 Device Header (2x7 with 2.0mm)
Pin No. Signal (KB) Pin No. Signal (MS)
1 MS Data Out 2 KB Data Out
3 MS Data In 4 KB Data In
5 MS CLK Out 6 KB CLK Out
7 MS CLK In 8 KB CLK In
9 KEY 10 KEY
11 +5V(DC) 12 +5V(DC)
13 GND 14 GND

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
14
J6, J5: Pin Header for USB ports (2x5 with 2.54mm)
Pin No. Function Pin No. Function
1 USB_VCC 2 USB_VCC
3 USBD4- 4 USBD5-
5 USBD4+ 6 USBD5+
7 USB_GND 8 USB_GND
9 KEY 10 USB_GND
J3: Digital I/O Header (2x7 with 2.0mm)
Pin No. Function Pin No. Function
1 +5V 2 +5V
3 DIO-OUT0 4 DIO-IN0
5 DIO-OUT1 6 DIO-IN1
7 DIO GND 8 DIO GND
9 DIO-OUT2 10 DIO-IN2
11 DIO-OUT3 12 DIO-IN3
13 +3.3V 14 +3.3V
J7: LINE-OUT & CD-IN Header (2 x 4 with 2.54mm)
Pin No. Signal (KB) Pin No. Signal (MS)
1 LINE_OUT_L 2 CD_IN_R
3 JACK_DETECT 4 GND_AUD
5 GND_AUD 6 GND_AUD
7 LINE_OUT_R 8 CD_IN_L
Notice: Please connect the jack detect pin to “GND_AUD” if the actual
connector cannot support the jack detect function!
J8: LINE-IN & MIC-IN Header (2 x 4 with 2.54mm)
Pin No. Signal (KB) Pin No. Signal (MS)
1 LINE_IN_R 2 MIC_ R
3 JACK_DETECT 4 JACK_DETECT
5 GND_AUD 6 GND_AUD
7 LINE_IN_L 8 MIC_ L
Notice: Please connect the jack detect pin to “GND_AUD” if the actual
connector cannot support the jack detect function!

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
15
J9: SPDIF Header (1 x 5 with 2.0mm)
Pin No. Signal (KB) Pin No. Signal (MS)
1 +5V 4 GND
2 N.C 5 SPDIF-IN
3 SPDIF-OUT
SMB1: SM BUS Header (1 x 5 with 2.54mm)
Pin No. Signal (KB) Pin No. Signal (MS)
1 SMB_CLK 4 SMB_DATA
2 +3.3V 5 GND
3 IR_RX
FAN1, FAN2: Cooling Fan Connector
Pin No. Function
1 GND
2 +12V
3 Sensor Pin
DC-IN1: DC Input connector (1x2 with 3.96mm)
Pin No. Signal
1 GND
2 +12V
HDDPWR1: DC Output connector (1x4 with 3.96mm)
Pin No. Signal
1 +12V
2 GND
3 GND
4 +5V

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
16

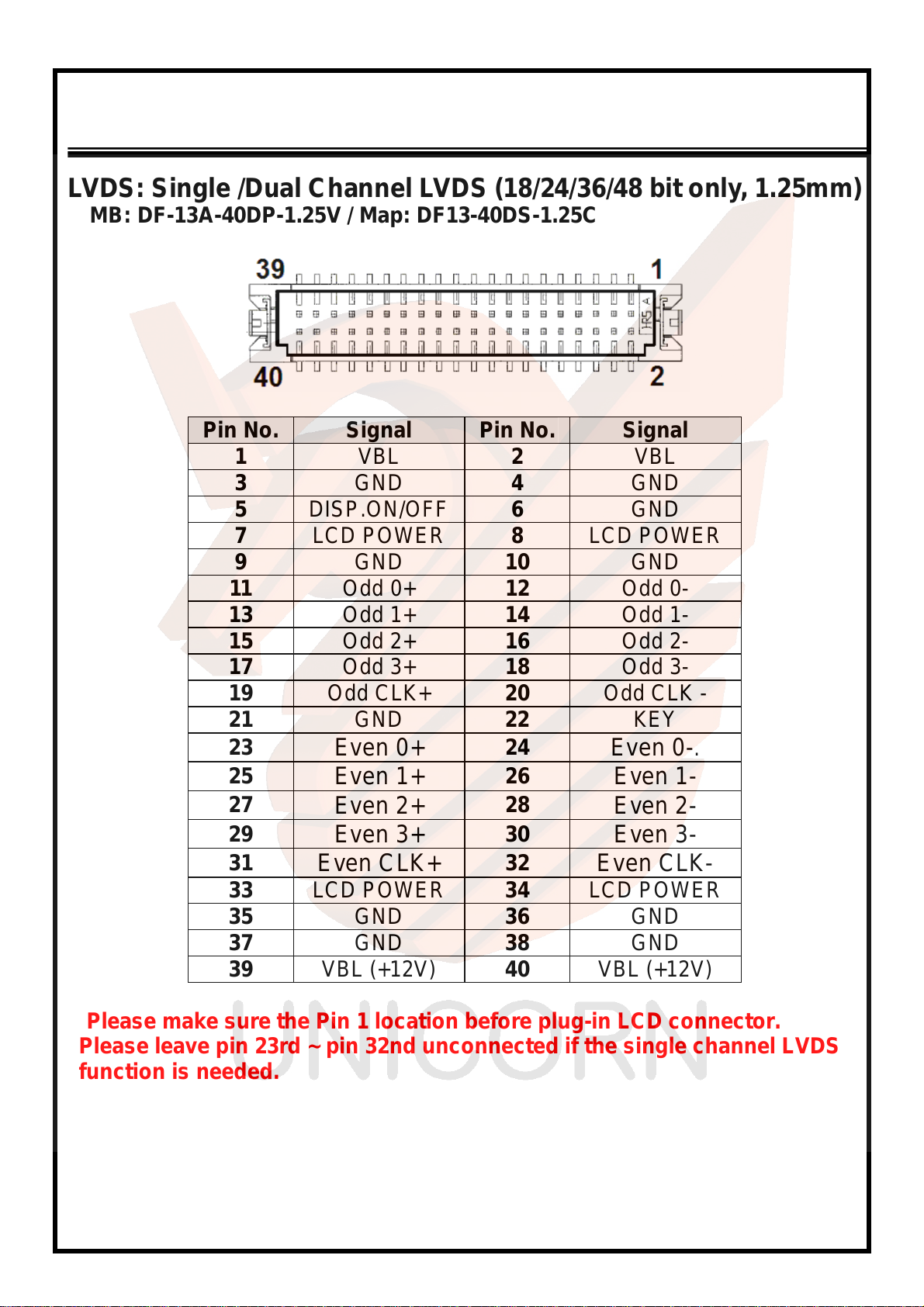

LVDS: Single /Dual Channel LVDS (18/24/36/48 bit only, 1.25mm)
MB: DF-13A-40DP-1.25V / Map: DF13-40DS-1.25C
Pin No. Signal Pin No. Signal
1 VBL 2 VBL
3 GND 4 GND
5 DISP.ON/OFF 6 GND
7 LCD POWER 8 LCD POWER
9 GND 10 GND
11 Odd 0+ 12 Odd 0-
13 Odd 1+ 14 Odd 1-
15 Odd 2+ 16 Odd 2-
17 Odd 3+ 18 Odd 3-
19 Odd CLK+ 20 Odd CLK -
21 GND 22 KEY
23 Even 0+ 24 Even 0-.
25 Even 1+ 26 Even 1-
27 Even 2+ 28 Even 2-
29 Even 3+ 30 Even 3-
31 Even CLK+ 32 Even CLK-
33 LCD POWER 34 LCD POWER
35 GND 36 GND
37 GND 38 GND
39 VBL (+12V) 40 VBL (+12V)
Please make sure the Pin 1 location before plug-in LCD connector.
Please leave pin 23rd ~ pin 32nd unconnected if the single channel LVDS
function is needed.

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
17
2-2. Installing Memory
The DDR3 SO-DIMM sockets of ENDAT-D2512 support up to 4GB memory. The speed of
DDR3 memory can be DDR3-800 or DDR3-1066.
2-3. Shared VGA Memory
The ENDAT-D2512 built-in Intel® GMA3600 graphic engine with DVMT 4.0 up system
memory. The amount of video memory on motherboard determines the number of colors
and the video graphic resolution.
2-4. Watch Dog Timer
Watch dog Timer (WDT) is a special design for system monitoring to secure the
system work normally. WDT has an independent clock from the oscillator and could
set time and clear/refresh WDT counter function. When time is up, WDT will send
hardware RESET signal to reset system.
Timeout Value Range
-1 to 255
-Second or Minute

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
18
Sample code (using TurboC/C++ 3.0):
#include <stdio.h>
#include <dos.h>
#include <dir.h>
void show_ver();
void main()
{
unsigned int tt;
clrscr();
show_ver();
tt=0;
while((tt==0)||(tt>255))
{
printf("\n\nPlease key in how many seconds you want to reset system (1~255):");
scanf("%d",&tt);
}
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //set Logic Device number pointer
outportb(0x2f,0x08); //set Logic Device number
outportb(0x2e,0x30); //set WDTO active
outportb(0x2f,0x01); //set reg value active (bit0 =1 active,0 inactive )
outportb(0x2e,0xf5); //set WDTO Control Mode
outportb(0x2f,0x04); //set register value (bit3=1: minute. =0: second)
outportb(0x2e,0xf6); //set WDT Counter
outportb(0x2f,tt); //set time out value of WDT
}
void show_ver()
{
unsigned char tmp0;
printf("Designed by attila of UNICORN computer corp. \n2012/08/29 release
version:1.0a\n");
printf("This program is design for test Watch Dog Timer for ENADT-D2512
(W83627UHG).\n");
}

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
19
2-5. Digital I/O
Pin define:
J3: Digital I/O Header (2x7 with 2.0mm)
Pin No. Function Pin No. Function
1 +5V 2 +5V
3 DIO-OUT0 4 DIO-IN0
5 DIO-OUT1 6 DIO-IN1
7 DIO GND 8 DIO GND
9 DIO-OUT2 10 DIO-IN2
11 DIO-OUT3 12 DIO-IN3
13 +3.3V 14 +3.3V
Digital I/O port address:
This function is support by onboard super I/O chip; it can be control easily by
change the register of super I/O chip via I/O port “2Eh” and “2Fh”. Please see
the sample code of below for implement. Voltage tolerance: +/- 5% with 0V to
+5V.
Sample code for input (using Turbo C/C++ 3.0):
bit No 7 6 5 4 3 2 1 0
Map DIO-I3 DIO-I2 DIO-I1 DIO-I0 NA NA NA NA
Sample code for input (using Turbo C/C++ 3.0)
#define input_port 0x2f // Digital input data port
Unsigned char read_data;
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //set Logic Device number pointer
outportb(0x2f,0x08); //set Logic Device number
outportb(0x2e,0x30); //set Device Active
outportb(0x2f,0x02); // set Bit 1 =GPIO5 ; 0=Inactive / 1= Active Default: 03h
outportb(0x2e,0xE0); // set GPIO Output / Input Port
outportb(0x2f,0xF0); // 0=Output/ 1=Input ; Default: F0h
// Bit 0~3 DIO-O0~ DIO3 / Bit4~7 DIO-I0~DIO-I3.
outportb(0x2e,0xF1); //Read DIO-Input register.
//Bit4~Bit7 = DIO-I0~DIO-I3.(Read Only)
read_data=inportb(input_port); // Read digital input data
printf("DIO-Input=%02X\n",read_data); //Show digital input data on screen

ENDAT-D2512 USERS MANUAL
UNICORN COMPUTER CORP.
20
Sample code for output (using Turbo C/C++ 3.0):
bit No 7 6 5 4 3 2 1 0
Map NA NA NA NA DIO-O3 DIO-O2 DIO-O1 DIO-O0
Sample code for output (using Turbo C/C++ 3.0)
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //set Logic Device number pointer
outportb(0x2f,0x08); //set Logic Device number
outportb(0x2e,0x30); //set Device Active
outportb(0x2f,0x03); // set Bit 1 =GPIO5 ; 0=Inactive / 1= Active Default: 03h
outportb(0x2e,0xE0); // set GPIO Output / Input Port
outportb(0x2f,0xF0); // 0=Output/ 1=Input
// Bit 0~3 DIO-O0~ DIO3 / Bit4~7 DIO-I0~DIO-I3.
outportb(0x2e,0xE1); //Read DIO-Input register.
outportb(0x2f,0xnm); // n=DIO-I0~DIO-I3 / m=DIO-O0~DIO-O3.
Bit3~Bit4 = DIO-I0~DIO-I3.(Read Only)
