Unicorn ENDAT-GM451 User manual

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
1

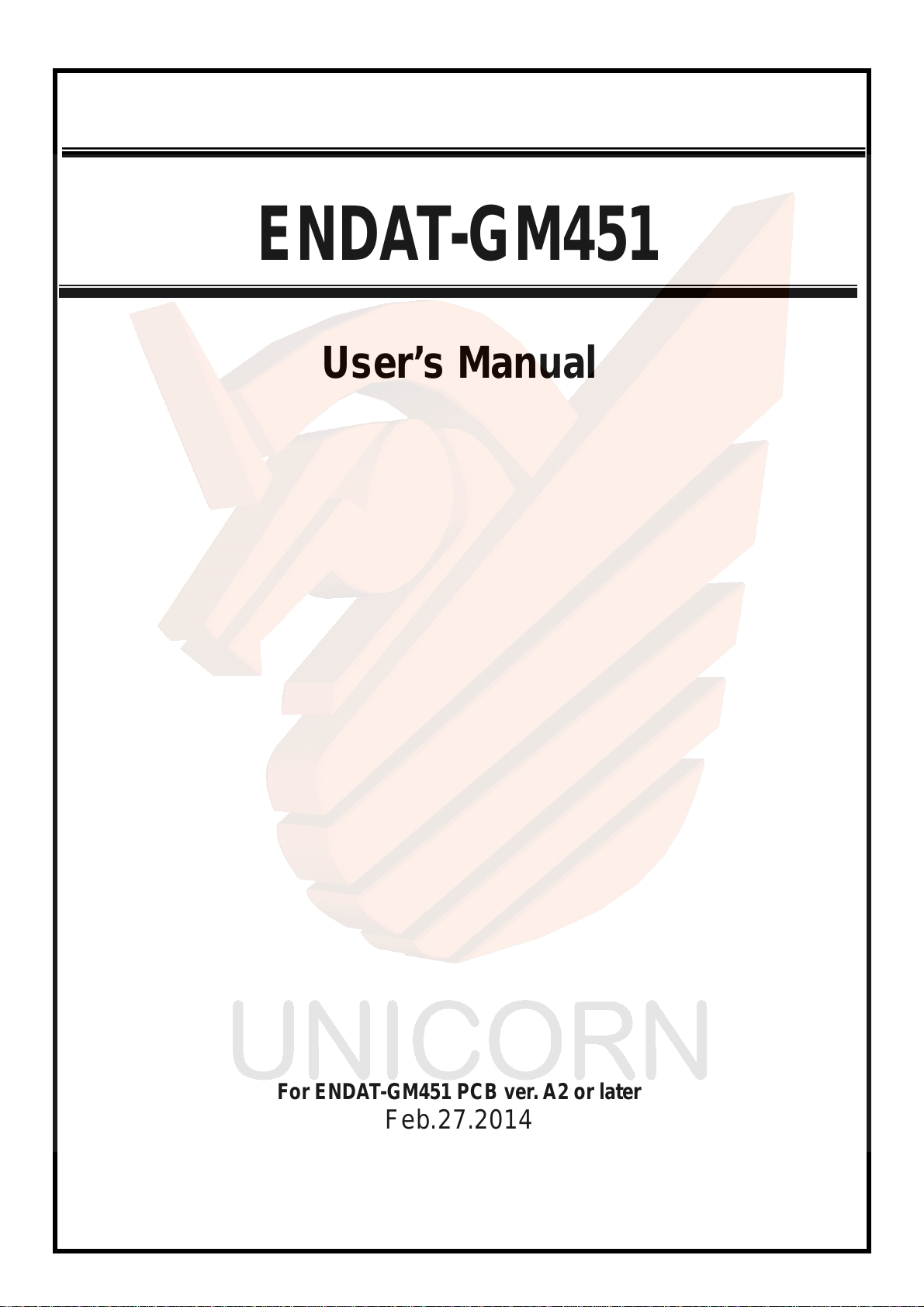

ENDAT-GM451
User’s Manual
For ENDAT-GM451 PCB ver. A2 or later
Feb.27.2014
Document version: Preliminary edition

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
2
Copyright Notice
The content of this manual has been checked for accuracy. The manufacturer
assumes no responsibility for any inaccuracies that may be contained in this
manual. The manufacturer reserves the right to make improvements or
modification to this document and/or the product at any time without prior
notice. No part of this document may be reproduced, transmitted, photocopied or
translated into any language, in any form or by any means, electronic, mechanical,
magnetic, optical or chemical, without the prior written permission of the
manufacturer.
AMD is registered trademark of AMD Technology Incorporation
GEODE LX is registered trademark of AMD Technology Incorporation
Realtek is registered trademark of Realtek Technologies Inc.
Multiscan is a trademark of Sony Corp of America
IBM, EGA, VGA, PC/XT, PC/AT, OS/2 and PS/2 are registered trademarks of
International Business Machines Corporation
Intel® is a registered trademark of Intel Corporation
VIA is registered trademark of VIA Technology Incorporation
Plug and Play is registered trademarks of Intel Corporation
Microsoft, Windows and MS-DOS are trademarks of Microsoft Corporation
Award is a trademark of Phoenix Software Inc.
PCI is a registered trademark of PCI Special Interest Group
Other product names mentioned herein are used for identification purpose only and
may be trademarks and/or registered trademarks of their respective companies.
Installation Notice
The manufacturer recommends using a grounded plug to ensure proper
motherboard operation. Care should be used in proper conjunction with a
grounded power receptacle to avoid possible electrical shock. All integrated circuits
on this motherboard are sensitive to static electricity. To avoid damaging
components from electrostatic discharge, please do not remove the board from the
anti-static packing before discharging any static electricity to your body, by wearing
a wrist-grounding strap. The manufacturer is not responsible for any damage to the
motherboard due to improper operation.

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
3

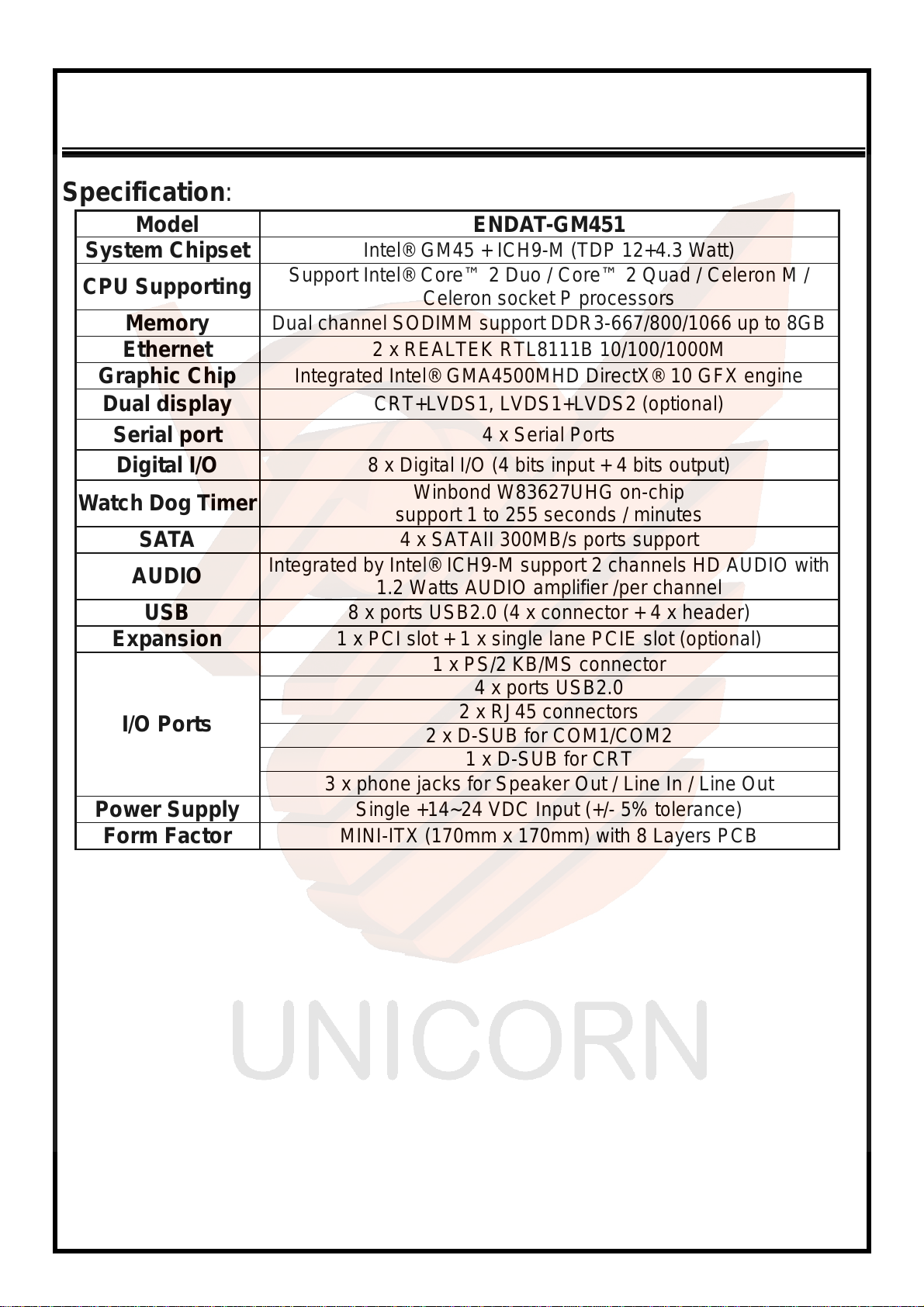

Specification:
Model ENDAT-GM451
System Chipset Intel® GM45 + ICH9-M (TDP 12+4.3 Watt)
CPU Supporting Support Intel® Core™ 2 Duo / Core™ 2 Quad / Celeron M /
Celeron socket P processors
Memory Dual channel SODIMM support DDR3-667/800/1066 up to 8GB
Ethernet 2 x REALTEK RTL8111B 10/100/1000M
Graphic Chip Integrated Intel® GMA4500MHD DirectX® 10 GFX engine
Dual display CRT+LVDS1, LVDS1+LVDS2 (optional)
Serial port 4 x Serial Ports
Digital I/O 8 x Digital I/O (4 bits input + 4 bits output)
Watch Dog Timer Winbond W83627UHG on-chip
support 1 to 255 seconds / minutes
SATA 4 x SATAII 300MB/s ports support
AUDIO Integrated by Intel® ICH9-M support 2 channels HD AUDIO with
1.2 Watts AUDIO amplifier /per channel
USB 8 x ports USB2.0 (4 x connector + 4 x header)
Expansion 1 x PCI slot + 1 x single lane PCIE slot (optional)
1 x PS/2 KB/MS connector
4 x ports USB2.0
2 x RJ45 connectors
2 x D-SUB for COM1/COM2
1 x D-SUB for CRT
I/O Ports
3 x phone jacks for Speaker Out / Line In / Line Out
Power Supply Single +14~24 VDC Input (+/- 5% tolerance)
Form Factor MINI-ITX (170mm x 170mm) with 8 Layers PCB

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
4
TABLE OF CONTENTS
CHAPTER 1. INTRODUCTION.......................................................6
1-1. FEATURES..............................................................................................7
1-2. UNPACKING............................................................................................8
1-3. ELECTROSTATIC DISCHARGE PRECAUTIONS ...................................8
1-4. MOTHERBOARD LAYOUT......................................................................9
CHAPTER 2. SETTING UP THE MOTHERBOARD.....................10
2-1. JUMPERS AND CONNECTORS............................................................10
2-2. INSTALLING MEMORY..........................................................................17
2-3. SHARED VGA MEMORY.......................................................................17
2-4. WATCH DOG TIMER..............................................................................17
2-5. DIGITAL I/O…………………………………………………………………….18
CHAPTER 3. AWARD BIOS SETUP ............................................20
3-1. STANDARD COMS FEATURES.............................................................21
3-2. ADVANCED BIOS FEATURES...............................................................22
3-3. ADVANCED CHIPSET FEATURES........................................................23
3-4. INTEGRATED PERIPHERALS...............................................................24
3-5. POWER MANAGEMENT SETUP...........................................................26
3-6. PnP/PCI CONFIGURATIONS.................................................................27
3-7. PC HEALTH STATUS.............................................................................28

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
5
CHPATER 4. VGA, SDVO AND DRIVERS...................................29
4-1. VGA FEATURE....................................................................................... 29
4-2. SDVO INTERFACE................................................................................ 29
4-3. DRIVER UTILITY INSTALLATION GUIDE.............................................. 30
APPENDIX A: FLASH MEMORY UTILITY...................................31
APPENDIX B: DIMM COMPATIBILITY ........................................32
APPENDIX C: LIMITED WARRANTY..........................................33

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
6

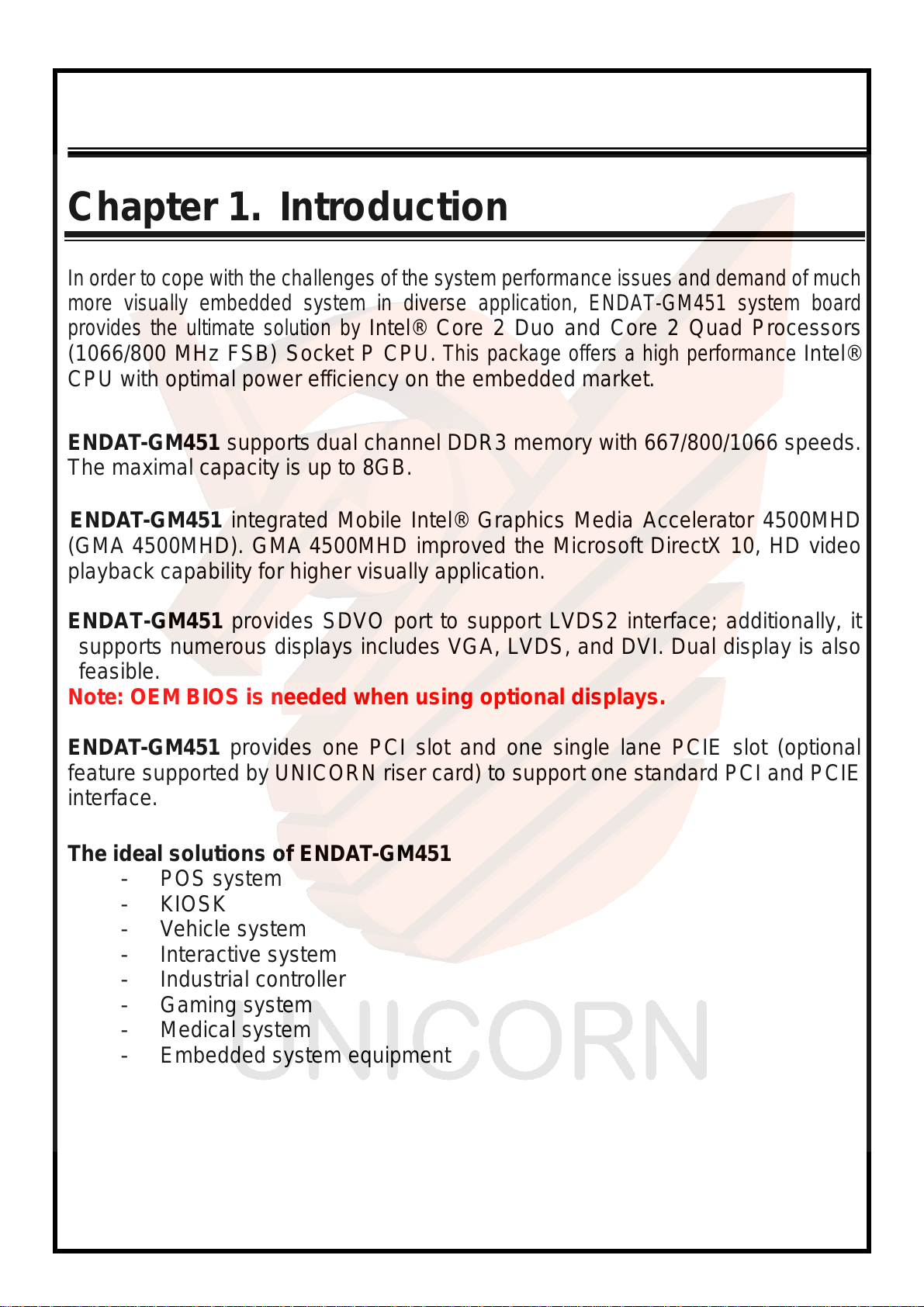

Chapter 1. Introduction
In order to cope with the challenges of the system performance issues and demand of much
more visually embedded system in diverse application, ENDAT-GM451 system board
provides the ultimate solution by
Intel® Core 2 Duo and Core 2 Quad Processors
(1066/800 MHz FSB) Socket P CPU.
This package offers a high performance Intel®
CPU with optimal power efficiency on the embedded market.
ENDAT-GM451 supports dual channel DDR3 memory with 667/800/1066 speeds.
The maximal capacity is up to 8GB.
ENDAT-GM451 integrated Mobile Intel® Graphics Media Accelerator 4500MHD
(GMA 4500MHD). GMA 4500MHD improved the Microsoft DirectX 10, HD video
playback capability for higher visually application.
ENDAT-GM451 provides SDVO port to support LVDS2 interface; additionally, it
supports numerous displays includes VGA, LVDS, and DVI. Dual display is also
feasible.
Note: OEM BIOS is needed when using optional displays.
ENDAT-GM451 provides one PCI slot and one single lane PCIE slot (optional
feature supported by UNICORN riser card) to support one standard PCI and PCIE
interface.
The ideal solutions of ENDAT-GM451
-POS system
-KIOSK
-Vehicle system
-Interactive system
-Industrial controller
-Gaming system
-Medical system
-Embedded system equipment

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
7

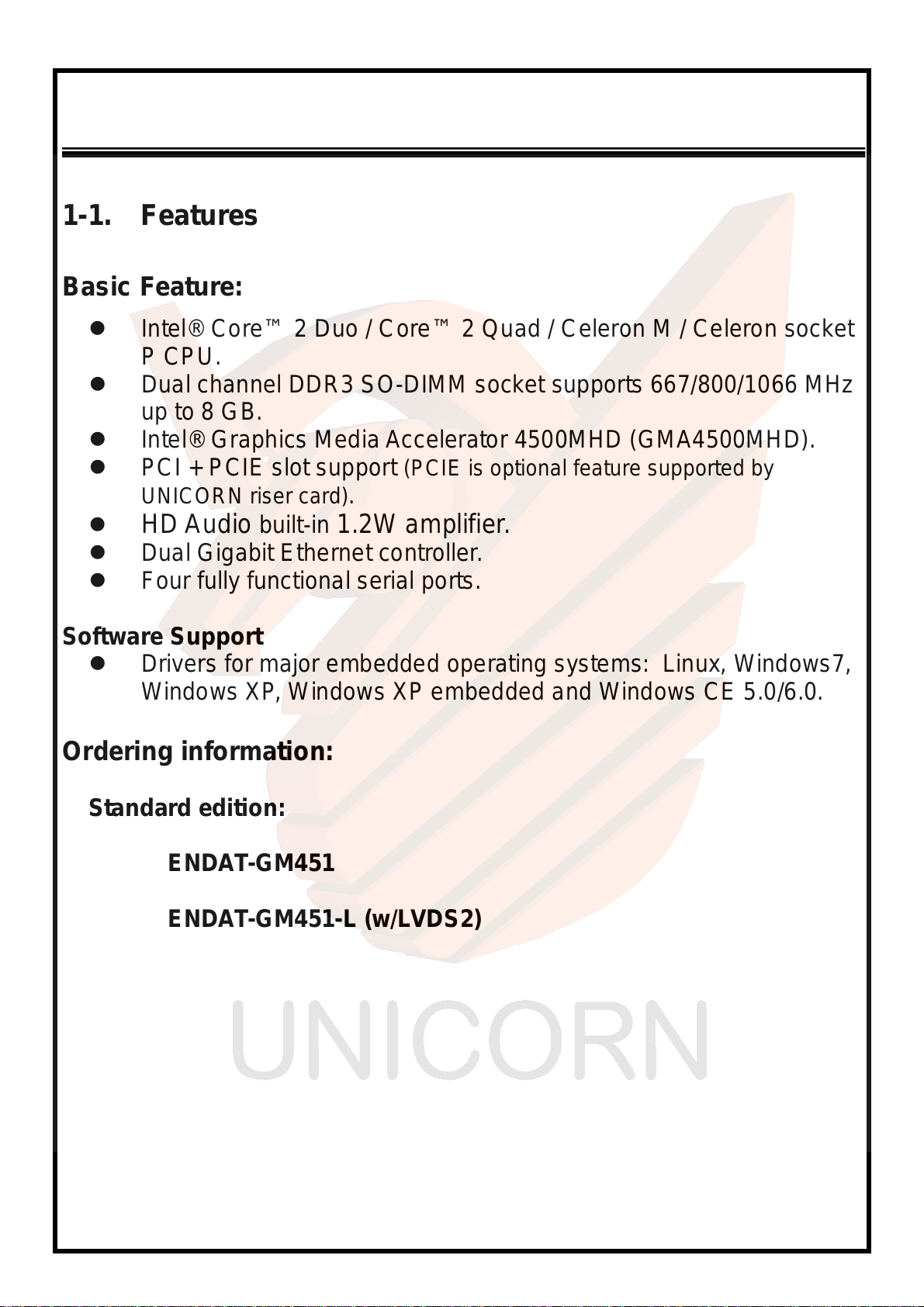

1-1. Features
Basic Feature:
Intel® Core™ 2 Duo / Core™ 2 Quad / Celeron M / Celeron socket
P CPU.
Dual channel DDR3 SO-DIMM socket supports 667/800/1066 MHz
up to 8 GB.
Intel® Graphics Media Accelerator 4500MHD (GMA4500MHD).
PCI + PCIE slot support (PCIE is optional feature supported by
UNICORN riser card).
HD Audio built-in 1.2W amplifier.
Dual Gigabit Ethernet controller.
Four fully functional serial ports.
Software Support
Drivers for major embedded operating systems: Linux, Windows7,
Windows XP, Windows XP embedded and Windows CE 5.0/6.0.
Ordering information:
Standard edition:
ENDAT-GM451
ENDAT-GM451-L (w/LVDS2)

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
8

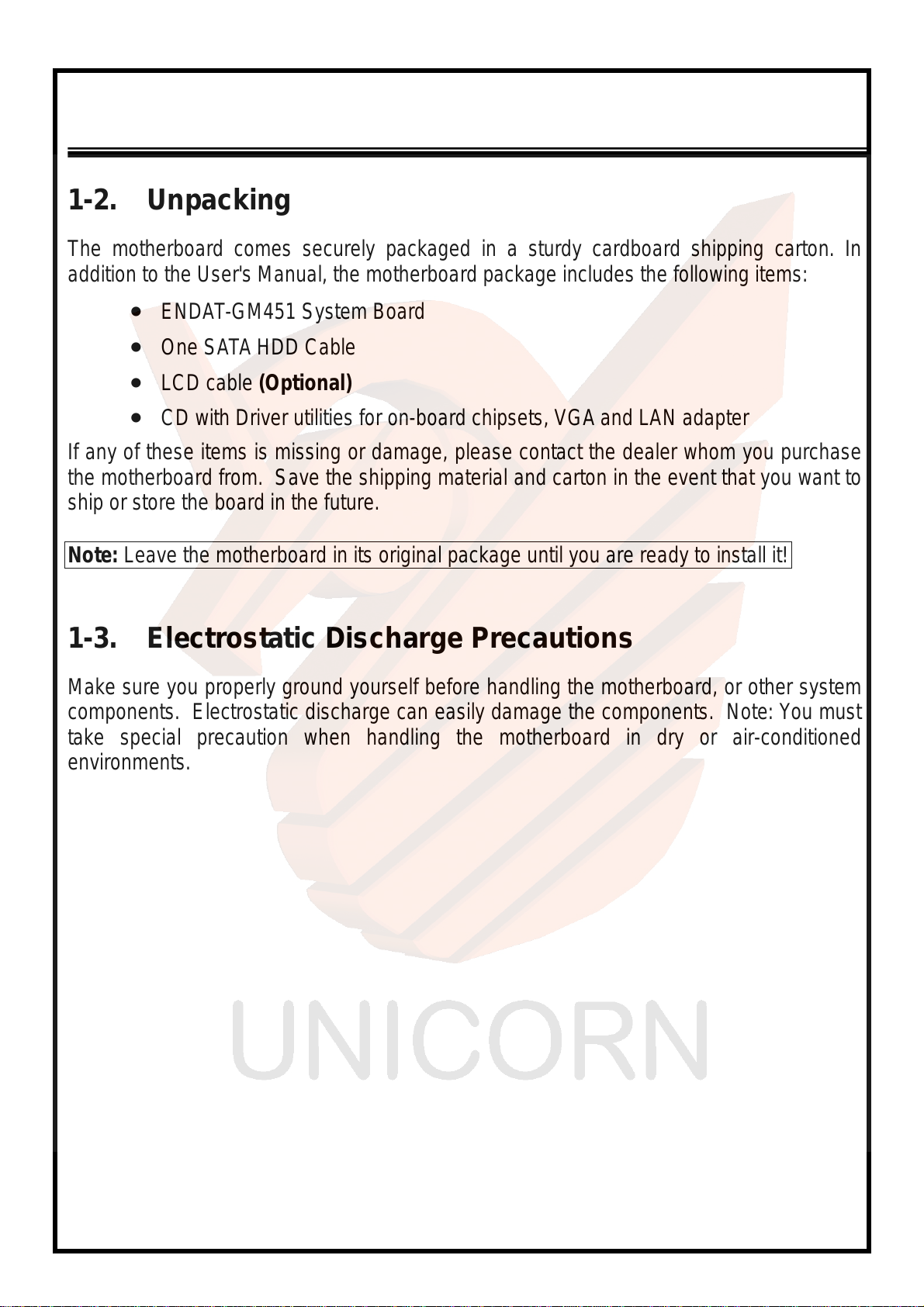

1-2. Unpacking
The motherboard comes securely packaged in a sturdy cardboard shipping carton. In
addition to the User's Manual, the motherboard package includes the following items:
 ENDAT-GM451 System Board
 One SATA HDD Cable
 LCD cable (Optional)
 CD with Driver utilities for on-board chipsets, VGA and LAN adapter
If any of these items is missing or damage, please contact the dealer whom you purchase
the motherboard from. Save the shipping material and carton in the event that you want to
ship or store the board in the future.
Note: Leave the motherboard in its original package until you are ready to install it!
1-3. Electrostatic Discharge Precautions
Make sure you properly ground yourself before handling the motherboard, or other system
components. Electrostatic discharge can easily damage the components. Note: You must
take special precaution when handling the motherboard in dry or air-conditioned
environments.

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
9

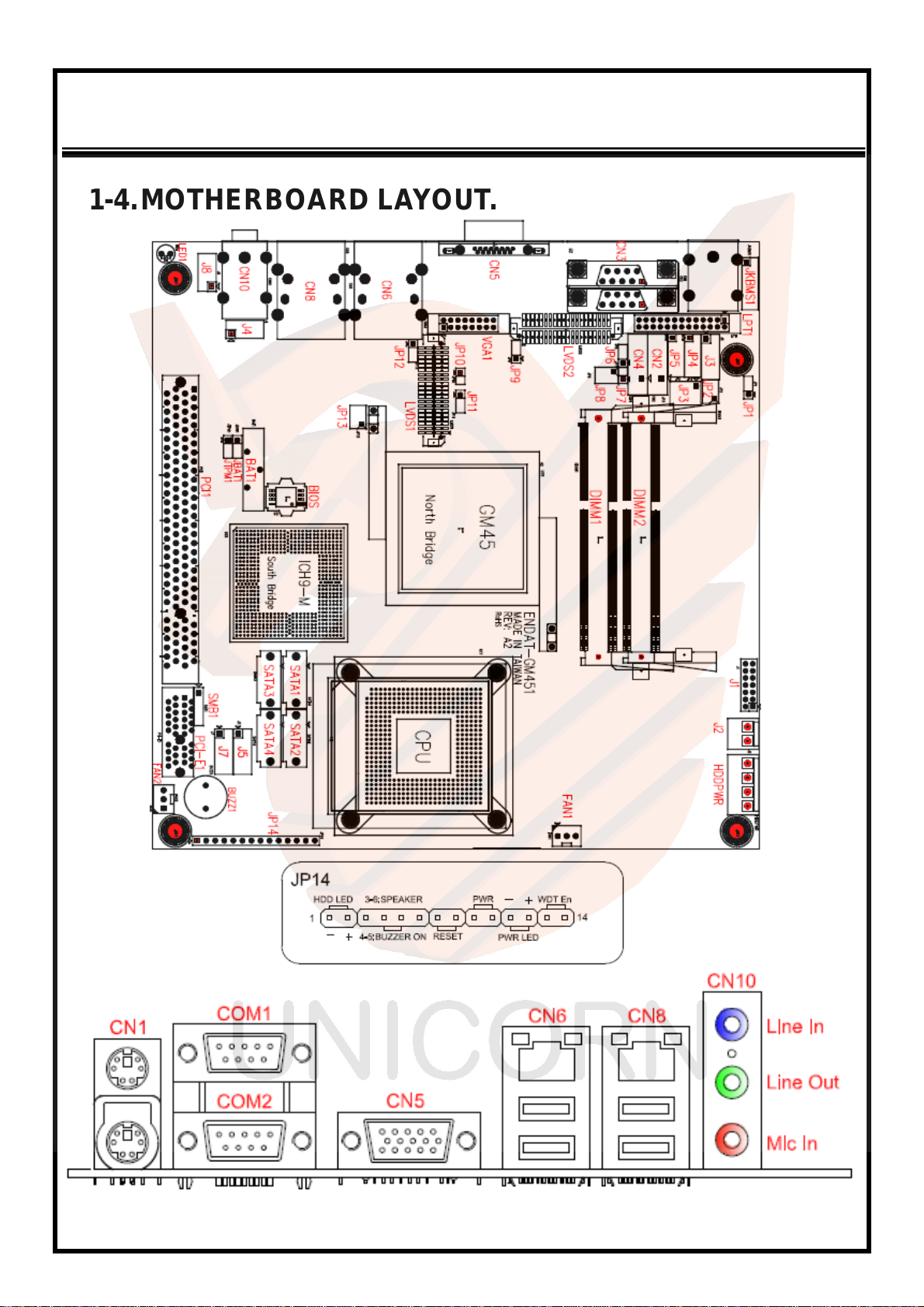

1-4.MOTHERBOARD LAYOUT.

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
10

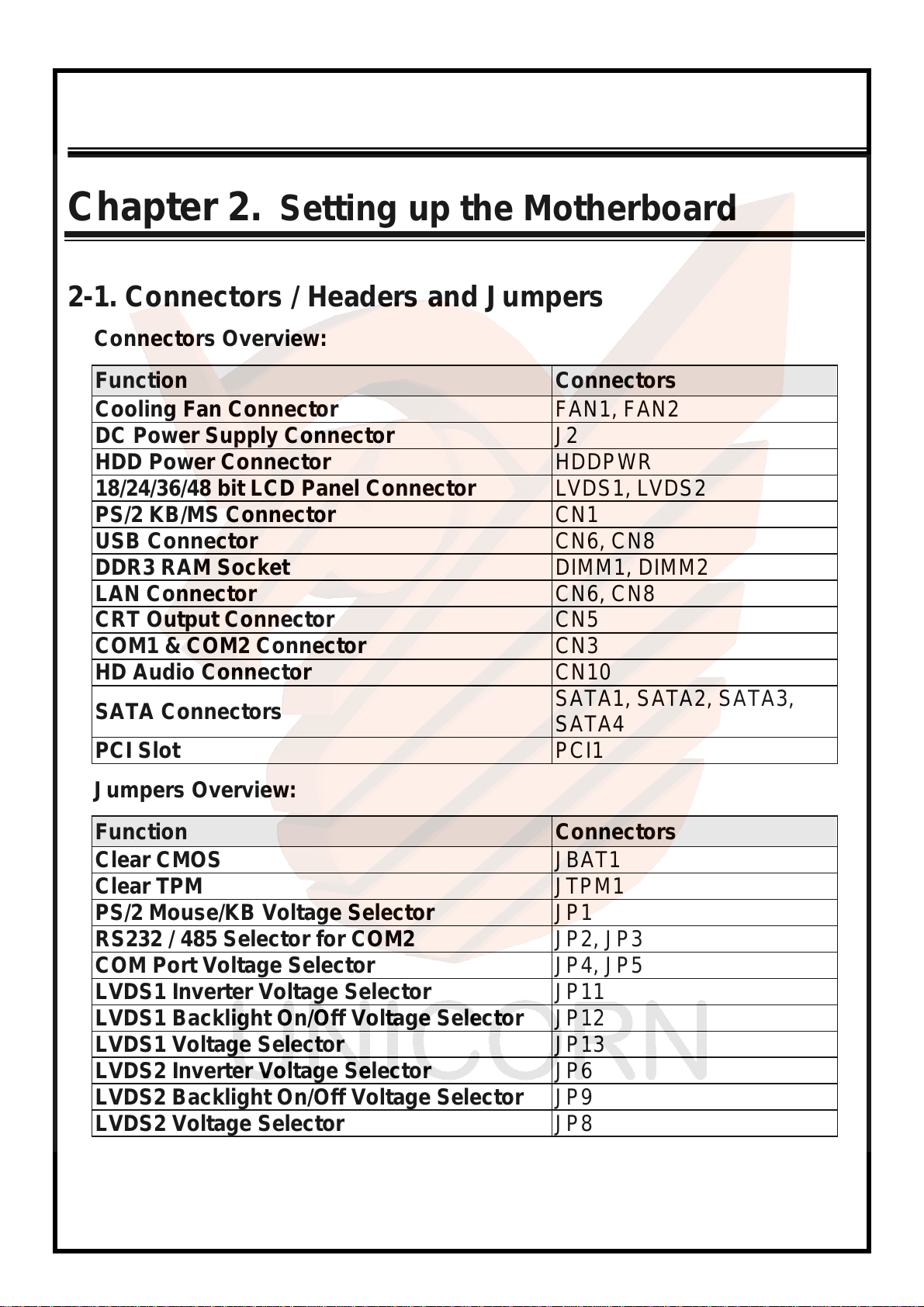

Chapter 2. Setting up the Motherboard
2-1. Connectors / Headers and Jumpers
Connectors Overview:
Function Connectors
Cooling Fan Connector FAN1, FAN2
DC Power Supply Connector J2
HDD Power Connector HDDPWR
18/24/36/48 bit LCD Panel Connector LVDS1, LVDS2
PS/2 KB/MS Connector CN1
USB Connector CN6, CN8
DDR3 RAM Socket DIMM1, DIMM2
LAN Connector CN6, CN8
CRT Output Connector CN5
COM1 & COM2 Connector CN3
HD Audio Connector CN10
SATA Connectors SATA1, SATA2, SATA3,
SATA4
PCI Slot PCI1
Jumpers Overview:
Function Connectors
Clear CMOS JBAT1
Clear TPM JTPM1
PS/2 Mouse/KB Voltage Selector JP1
RS232 / 485 Selector for COM2 JP2, JP3
COM Port Voltage Selector JP4, JP5
LVDS1 Inverter Voltage Selector JP11
LVDS1 Backlight On/Off Voltage Selector JP12
LVDS1 Voltage Selector JP13
LVDS2 Inverter Voltage Selector JP6
LVDS2 Backlight On/Off Voltage Selector JP9
LVDS2 Voltage Selector JP8

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
11
Box Headers, Pin Headers Overview:
Function Connectors
COM3 Box Header CN2
COM4 Box Header CN4
Printer Port BOX Header LPT1
VGA BOX Header VGA1
Digital I/O Pin Header J1
PS/2 Mouse/KB Pin Header J3
External PS/2 Device Header JKBMS1
USB Ports Header J5, J7
HD Audio Line-In / Mic-IN Pin Header J4
HD Audio Speaker Output/CD-In Pin Header J8
Reserved Power for LVDS1 (+3.3V) JP10
Reserved Power for LVDS2 (+3.3V) JP7
Header for Case Panel JP14
HDD LED JP14: Pin 1(-), Pin 2(+)
External Speaker JP14: Pin 3(-), Pin 6(+)
Buzzer On/Off JP14: Pin 4, Pin 5
Hardware Reset Switch JP14: Pin 7, Pin 8
ATX Power Supply On/Off Switch JP14: Pin 9, Pin 10
Power LED JP14: Pin 11(-), Pin 12(+)
WDT Function Enable/Disable JP14: Pin 13, Pin 14
SM BUS Pin Header SMB1
Part 1: Onboard Jumpers
JBAT1: CMOS Data Clear (1x3 with 2.0mm)
Pin 1-2 Close for clear CMOS
Pin 2-3 Normal(Default)
JTPM1: TPM Data Clear (1x3 with 2.0mm)
Pin 1-2 Close for clear TPM
Pin 2-3 Normal(Default)
JP1: PS/2 Mouse/KB Voltage Selector (1x3 with 2.0mm)
Pin 1-2 +5VSUS(Default)
Pin 2-3 +5V

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
12

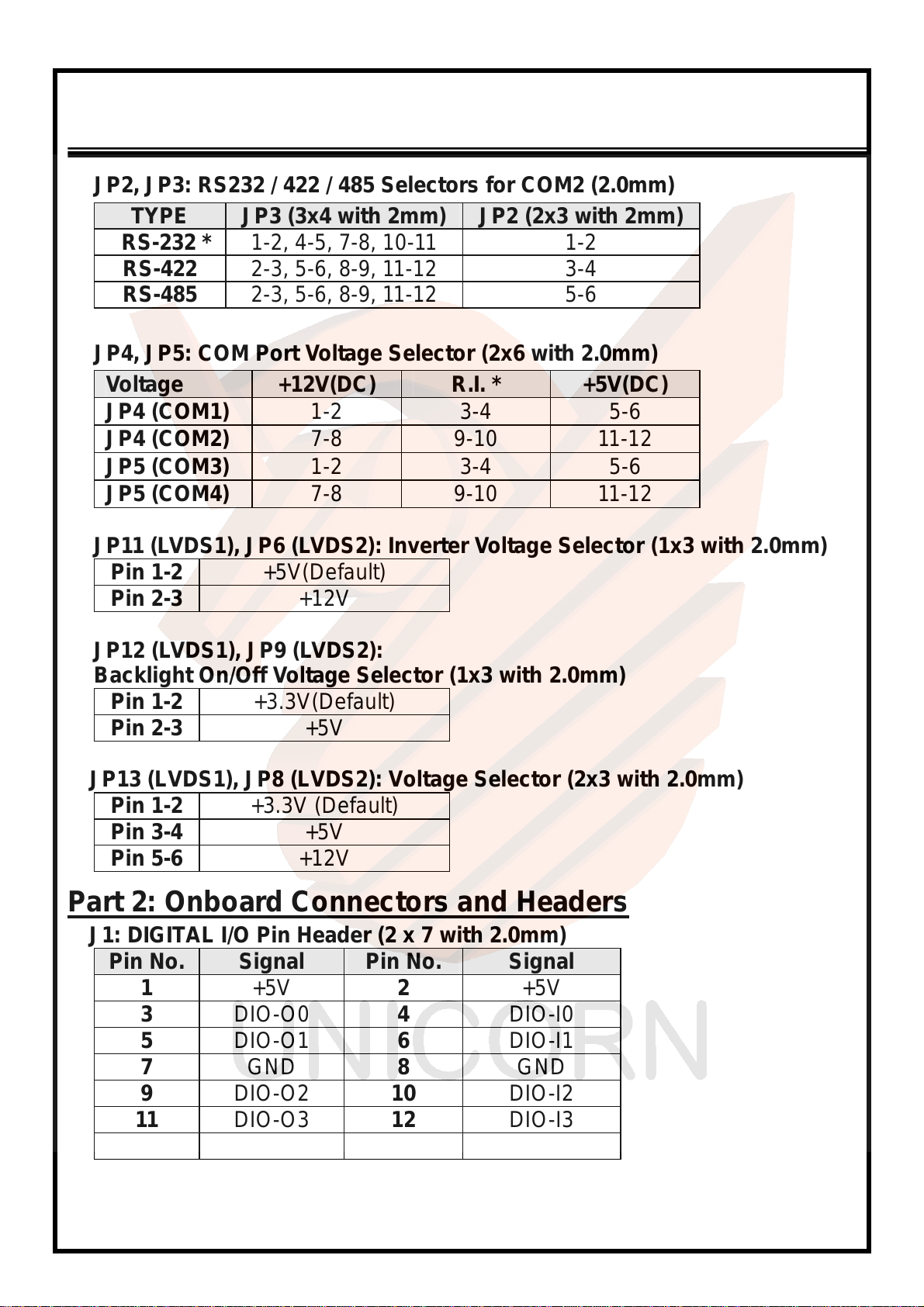

JP2, JP3: RS232 / 422 / 485 Selectors for COM2 (2.0mm)
TYPE JP3 (3x4 with 2mm) JP2 (2x3 with 2mm)
RS-232 * 1-2, 4-5, 7-8, 10-11 1-2
RS-422 2-3, 5-6, 8-9, 11-12 3-4
RS-485 2-3, 5-6, 8-9, 11-12 5-6
JP4, JP5: COM Port Voltage Selector (2x6 with 2.0mm)
Voltage +12V(DC) R.I. * +5V(DC)
JP4 (COM1) 1-2 3-4 5-6
JP4 (COM2) 7-8 9-10 11-12
JP5 (COM3) 1-2 3-4 5-6
JP5 (COM4) 7-8 9-10 11-12
JP11 (LVDS1), JP6 (LVDS2): Inverter Voltage Selector (1x3 with 2.0mm)
Pin 1-2 +5V(Default)
Pin 2-3 +12V
JP12 (LVDS1), JP9 (LVDS2):
Backlight On/Off Voltage Selector (1x3 with 2.0mm)
Pin 1-2 +3.3V(Default)
Pin 2-3 +5V
JP13 (LVDS1), JP8 (LVDS2): Voltage Selector (2x3 with 2.0mm)
Pin 1-2 +3.3V (Default)
Pin 3-4 +5V
Pin 5-6 +12V
Part 2: Onboard Connectors and Headers
J1: DIGITAL I/O Pin Header (2 x 7 with 2.0mm)
Pin No. Signal Pin No. Signal
1 +5V 2 +5V
3 DIO-O0 4 DIO-I0
5 DIO-O1 6 DIO-I1
7 GND 8 GND
9 DIO-O2 10 DIO-I2
11 DIO-O3 12 DIO-I3
13 +3.3V 14 +3.3V

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
13
J3: PS/2 Keyboard / Mouse Header (2x5 with 2.54mm)
Pin No. Signal Pin No. Signal
1 KB Data 2 MS Data
3 KEY 4 KEY
5 GND 6 GND
7 +5V(DC) 8 +5V(DC)
9 KB_CLK 10 MS_CLK
JKBMS1: External PS/2 Device Header (2x7 with 2.0mm)
Pin No. Signal Pin No. Signal
1 MS Data Out 2 KB Data Out
3 MS Data In 4 KB Data In
5 MS CLK Out 6 KB CLK Out
7 MS CLK In 8 KB CLK In
9 KEY 10 KEY
11 +5V(DC) 12 +5V(DC)
13 GND 14 GND
VGA1: CRT Box Header Connector (2x8 with 2.0mm)
Pin No. Signal Pin No. Signal
1 RED 9 N.C / +5V
2 GREEN 10 GND
3 BLUE 11 N.C.
4 N.C. 12 DDC DAT
5 GND 13 H-Sync
6 GND 14 V-Sync
7 GND 15 DDC CLK
8 GND
CN2 (COM3), CN4 (COM4): COM Port Box Headers (2x5 with 2.0mm)
Pin No. Signal Pin No. Signal
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND 10 N.C.

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
14

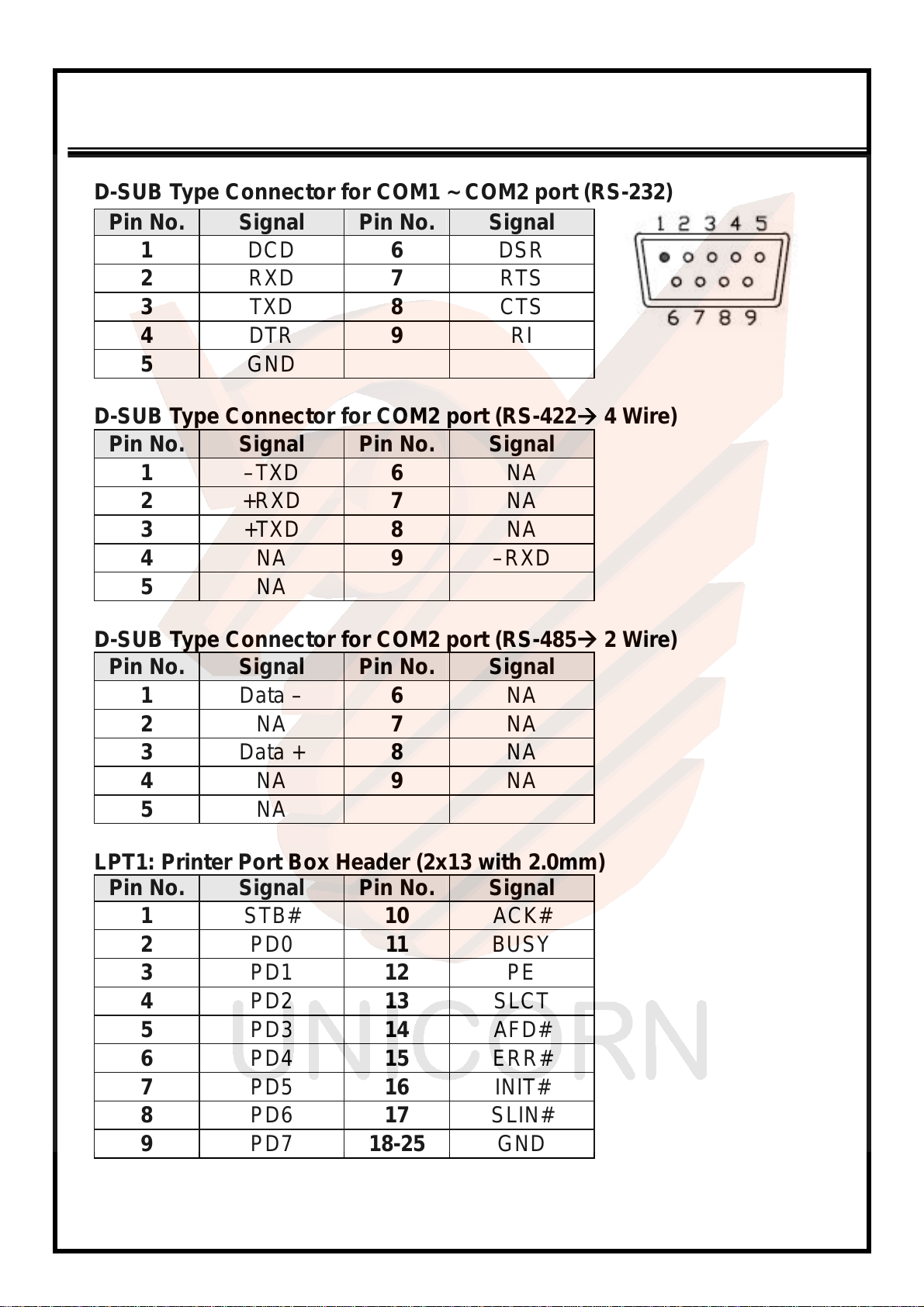

D-SUB Type Connector for COM1 ~ COM2 port (RS-232)
Pin No. Signal Pin No. Signal
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
D-SUB Type Connector for COM2 port (RS-4224 Wire)
Pin No. Signal Pin No. Signal
1 –TXD 6 NA
2 +RXD 7 NA
3 +TXD 8 NA
4 NA 9 –RXD
5 NA
D-SUB Type Connector for COM2 port (RS-4852 Wire)
Pin No. Signal Pin No. Signal
1 Data – 6 NA
2 NA 7 NA
3 Data + 8 NA
4 NA 9 NA
5 NA
LPT1: Printer Port Box Header (2x13 with 2.0mm)
Pin No. Signal Pin No. Signal
1 STB# 10 ACK#
2 PD0 11 BUSY
3 PD1 12 PE
4 PD2 13 SLCT
5 PD3 14 AFD#
6 PD4 15 ERR#
7 PD5 16 INIT#
8 PD6 17 SLIN#
9 PD7 18-25 GND

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
15

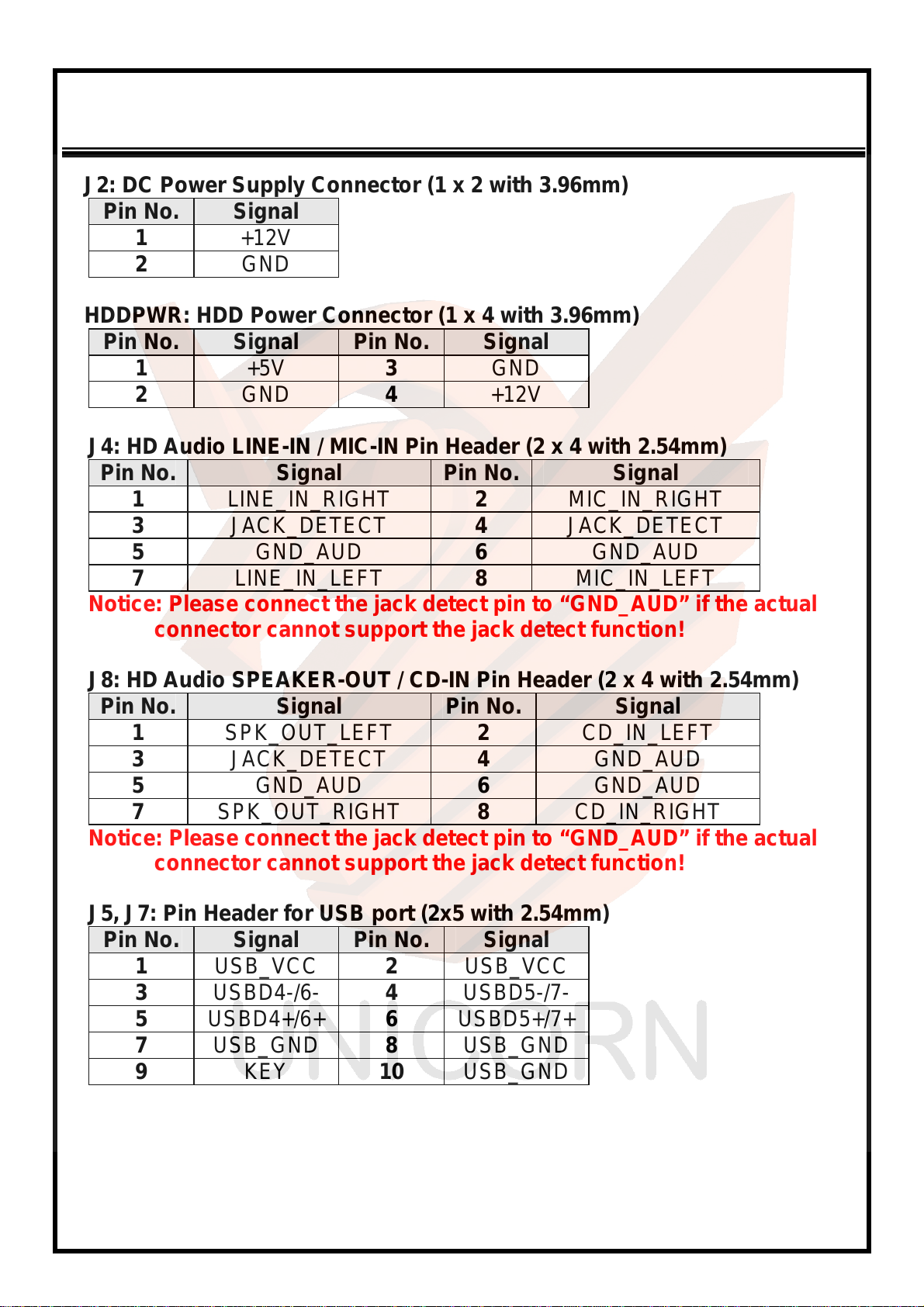

J2: DC Power Supply Connector (1 x 2 with 3.96mm)
Pin No. Signal
1 +12V
2 GND
HDDPWR: HDD Power Connector (1 x 4 with 3.96mm)
J4: HD Audio LINE-IN / MIC-IN Pin Header (2 x 4 with 2.54mm)
Pin No. Signal Pin No. Signal
1 LINE_IN_RIGHT 2 MIC_IN_RIGHT
3 JACK_DETECT 4 JACK_DETECT
5 GND_AUD 6 GND_AUD
7 LINE_IN_LEFT 8 MIC_IN_LEFT
Notice: Please connect the jack detect pin to “GND_AUD” if the actual
connector cannot support the jack detect function!
J8: HD Audio SPEAKER-OUT / CD-IN Pin Header (2 x 4 with 2.54mm)
Pin No. Signal Pin No. Signal
1 SPK_OUT_LEFT 2 CD_IN_LEFT
3 JACK_DETECT 4 GND_AUD
5 GND_AUD 6 GND_AUD
7 SPK_OUT_RIGHT 8 CD_IN_RIGHT
Notice: Please connect the jack detect pin to “GND_AUD” if the actual
connector cannot support the jack detect function!
J5, J7: Pin Header for USB port (2x5 with 2.54mm)
Pin No. Signal Pin No. Signal
1 USB_VCC 2 USB_VCC
3 USBD4-/6- 4 USBD5-/7-
5 USBD4+/6+ 6 USBD5+/7+
7 USB_GND 8 USB_GND
9 KEY 10 USB_GND
Pin No. Signal Pin No. Signal
1 +5V 3 GND
2 GND 4 +12V

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
16
JP10 (LVDS1), JP7 (LVDS2): Reserved Power for +3.3V (1 x 2 with 2.00mm)
Pin No. Function
1 +3.3V
2 +3.3V
SMB1: SM BUS Pin Header (1 x 4 with 2.54mm)
Pin No. Signal Pin No. Signal
1 SMB_CLK 3 +3.3V
2 SMB_DATA 4 GND
FAN1 & FAN2: Cooling Fan Connector (System)
Pin No. Signal
1 GND
2 +12V
3 Sensor Pin
LVDS1, LVDS2: LVDS Pin description (2 x20 with 1.25mm)
Pin No. Signal Pin No. Signal
1 VBL(+12V) 2 VBL(+12V)
3 GND 4 GND
5 DISP.ON/OFF 6 GND
7 LCD POWER 8 LCD POWER
9 GND 10 GND
11 RxO0+ 12 RxO0-
13 RxO1+ 14 RxO1-
15 RxO2+ 16 RxO2-
17 RxO3+ 18 RxO3-
19 RxOC+ 20 RxOC-
21 GND 22 GND
23 RxE0+ 24 RxE0-
25 RxE1+ 26 RxE1-
27 RxE2+ 28 RxE2-
29 RxE3+ 30 RxE3-
31 RxEC+ 32 RxEC-
33 LCD POWER 34 LCD POWER
35 GND 36 GND
37 GND 38 GND
39 VBL(+12V) 40 VBL(+12V)
Please make sure the Pin 1 location before inserting the LCD connector.

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
17
2-2. Installing Memory
The DDR3 SO-DIMM sockets of ENDAT-GM451 support up to 8GB memory. The speed of
DDR3 memory can be DDR3-800 or DDR3-1066.
2-3. Shared VGA Memory
The ENDAT-GM451 built-in Intel® GMA4500MHD graphic engine with DVMT 5.0 up to
1GB of system memory. The amount of video memory on motherboard determines the
number of colors and the video graphic resolution.
2-4. Watch Dog Timer
Watch dog Timer (WDT) is designed to monitor and secure the system work
normally. WDT has an independent clock from the oscillator that can set time and
clear/refresh WDT counter function. When time is up, WDT send hardware RESET
signal to reset system.
Timeout Value Range
-1 to 255
-Second or Minute
Sample code (using TurboC/C++ 3.0):

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
18
#include <stdio.h>
#include <dos.h>
#include <dir.h>
void show_ver();
void main()
{
unsigned int tt;
clrscr();
show_ver();
tt=0;
while((tt==0)||(tt>255))
{
printf("\n\nPlease key in how many seconds you want to reset system (1~255):");
scanf("%d",&tt);
}
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //set Logic Device number pointer
outportb(0x2f,0x08); //set Logic Device number
outportb(0x2e,0x30); //set WDTO active
outportb(0x2f,0x01); //set reg value active (bit0 =1 active,0 inactive )
outportb(0x2e,0xf5); //set WDTO Control Mode
outportb(0x2f,0x04); //set register value (bit3=1: minute. =0: second)
outportb(0x2e,0xf6); //set WDT Counter
outportb(0x2f,tt); //set time out value of WDT
}
void show_ver()
{
unsigned char tmp0;
printf("Designed by attila of UNICORN computer corp. \n2011/08/12 release
version:1.0a\n");
printf("This program is design for test Watch Dog Timer for ENADT-GM451
(W83627UHG).\n");
}

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
19
2-5. Digital I/O
Pin define:
J1: DIGITAL I/O Pin Header (2 x 7 with 2.0mm)
Pin No. Function Pin No. Function
1 +5V 2 +5V
3 DIO-O0 4 DIO-I0
5 DIO-O1 6 DIO-I1
7 GND 8 GND
9 DIO-O2 10 DIO-I2
11 DIO-O3 12 DIO-I3
13 +3.3V 14 +3.3V
Digital I/O port address:
This function is support by onboard super I/O chip; it can be control easily by
change the register of super I/O chip via I/O port “2Eh” and “2Fh”. Please see
the sample code of below for implement. Voltage tolerance: +/- 5% with 0V to
+5V.
Sample code for input (using Turbo C/C++ 3.0):
bit No 7 6 5 4 3 2 1 0
Map DIO-I3 DIO-I2 DIO-I1 DIO-I0 NA NA NA NA
Sample code for input (using Turbo C/C++ 3.0)
bit No 7 6 5 4 3 2 1 0
Map NA NA NA NA DIO-O3 DIO-O2 DIO-O1 DIO-O0
Sample code for input (using Turbo C/C++ 3.0)
#define input_port 0x2f // Digital input data port
Unsigned char read_data;
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //set Logic Device number pointer
outportb(0x2f,0x08); //set Logic Device number
outportb(0x2e,0xE1); //Read DIO-Input register.
read_data=inportb(input_port); // Read digital input data
printf("DIO-Input=%02X\n",read_data); //Show digital input data on screen
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //set Logic Device number pointer
outportb(0x2f,0x08); //set Logic Device number
outportb(0x2e,0xE1); //Read DIO-Input register.
outportb(0x2f,0xFn); //Write data to digital output (Bit3-0)

ENDAT-GM451 USERS MANUAL
UNICORN COMPUTER CORP.
20

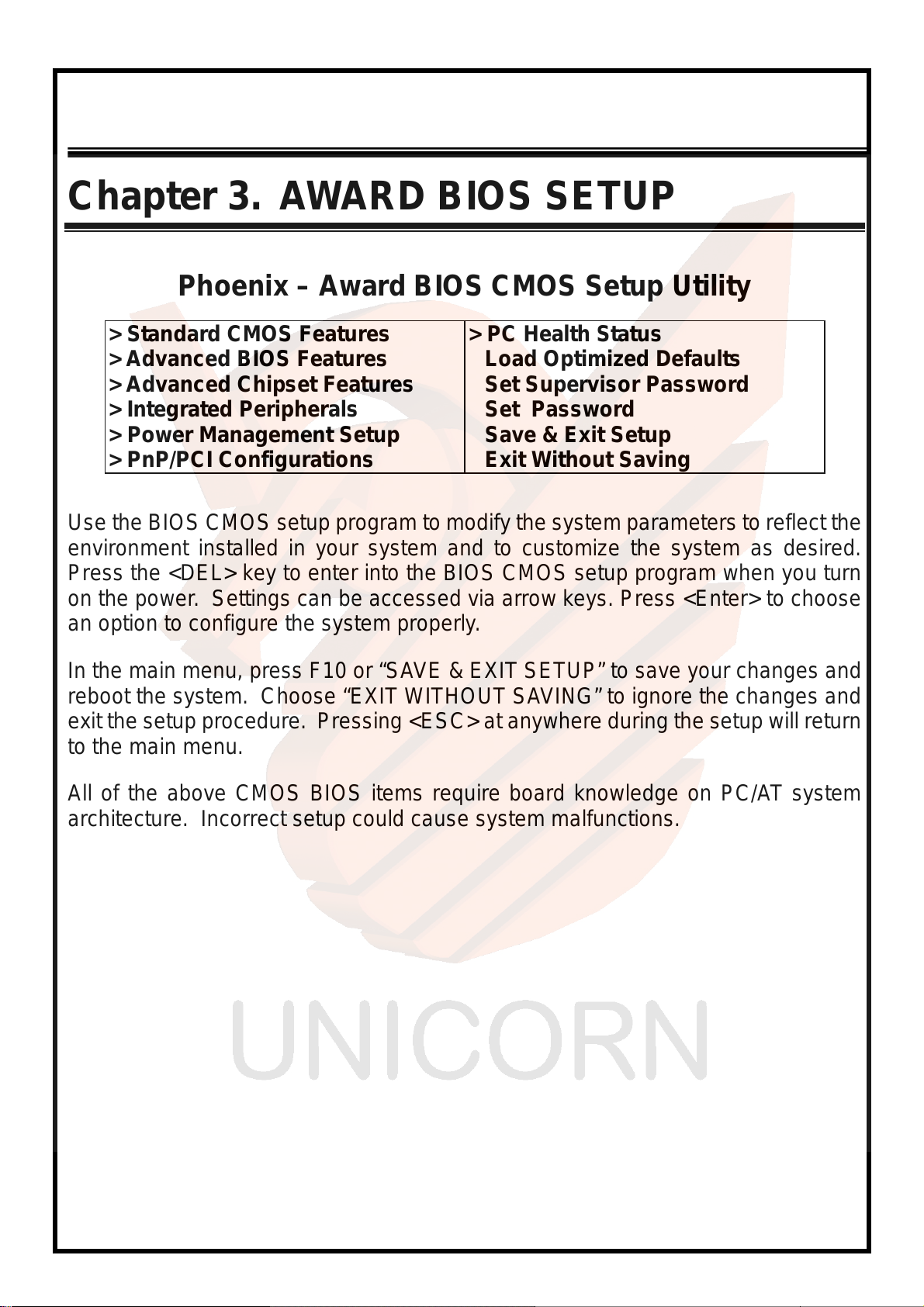

Chapter 3. AWARD BIOS SETUP
Phoenix – Award BIOS CMOS Setup Utility
> Standard CMOS Features
> Advanced BIOS Features
> Advanced Chipset Features
> Integrated Peripherals
> Power Management Setup
> PnP/PCI Configurations
> PC Health Status
Load Optimized Defaults
Set Supervisor Password
Set Password
Save & Exit Setup
Exit Without Saving
Use the BIOS CMOS setup program to modify the system parameters to reflect the
environment installed in your system and to customize the system as desired.
Press the <DEL> key to enter into the BIOS CMOS setup program when you turn
on the power. Settings can be accessed via arrow keys. Press <Enter> to choose
an option to configure the system properly.
In the main menu, press F10 or “SAVE & EXIT SETUP” to save your changes and
reboot the system. Choose “EXIT WITHOUT SAVING” to ignore the changes and
exit the setup procedure. Pressing <ESC> at anywhere during the setup will return
to the main menu.
All of the above CMOS BIOS items require board knowledge on PC/AT system
architecture. Incorrect setup could cause system malfunctions.
