Welcome
Terminology used in this Manual
Thank you for purchasing a Uniden Multi-Handset phone. This unit is different from conventional cordless telephones. When the
base unit is connected to AC power and a telephone line, it can support up to 4 handsets. Using extra handsets, you can establish
a 3-way conference call (2 handsets and an outside line), while two other handsets are making an intercom call. You can now
place a fully featured cordless handset anywhere in your home or office where AC power is available to connect the handset
chargers.
Note: Illustrations in this manual are used for explanation purposes. Some illustrations in this
manual may differ from the actual unit.
Caution: The earcap of this telephone may attract and retain small metallic objects.
Base
CID
CID/CW or CIDCW
Charger
DirectLink
Extra or
Accessory Handset
Global
Settings
The main part of the phone that connects to your phone line and lets you make and receive
calls.
Caller ID is available from your telephone provider. With this service, you can see the name
and number of incoming callers.
Caller ID on Call Waiting is available from your telephone provider. With this service, you can
see incoming caller information while on another call. Note: The Caller ID on Call Waiting
service is currently unavailable in NZ.
A cradle that comes with an accessory handset and charges the handset battery. It connects
to power but does not connect to a phone line.
If you have accessory handsets on your system, you can use two handsets as 2-way radios.
This phone system is expandable and will support a total of four handsets to one base. The
extra, or accessory handset, is a handset that is compatible with this model.
Apply to registered handsets. If you change something under the global menu, you change it
for all handsets. Only one handset can change global settings at a time, and the phone must
be in standby.
[5]

Standby
Station
Talk
The handset is not in use. If it is off the cradle, no line has been activated. No dial tone is
present.
Any handset or the base.
A telephone line has been activated on the handset enabling a dial tone.
[6]
Product Overview
Main Features:
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2.4GHz Digital Expandable System
Expands up to 4 Handsets
Caller ID*
- Caller ID on Call Waiting*
- Distinctive Ring** by Party
- Name Tag** (POP ID) Caller Name Identification
100 shared Phonebook Entries/Caller ID
Numbers
DirectLink***
Room/Baby Monitoring***
20 Ringer Options (10 Tones/10 Melodies)
10 Speed Dial Locations
Last 3 Number Redial on handset
Copy Phonebook Entries to Another Handset***
Call Transfer***
Conferencing***
Intercom***
Handset Speakerphone
Base Keypad
Base Speakerphone
* Requires subscription to Caller ID and Caller ID on Call Waiting service provided by Network supplier. There is
usually a fee for this service. The Caller ID on Call Waiting service is currently unavailable in NZ.
** These features rely on the Caller ID service to function.
*** Requires the use of multiple handsets.
# Range may vary depending on environmental and/or topographical conditions.

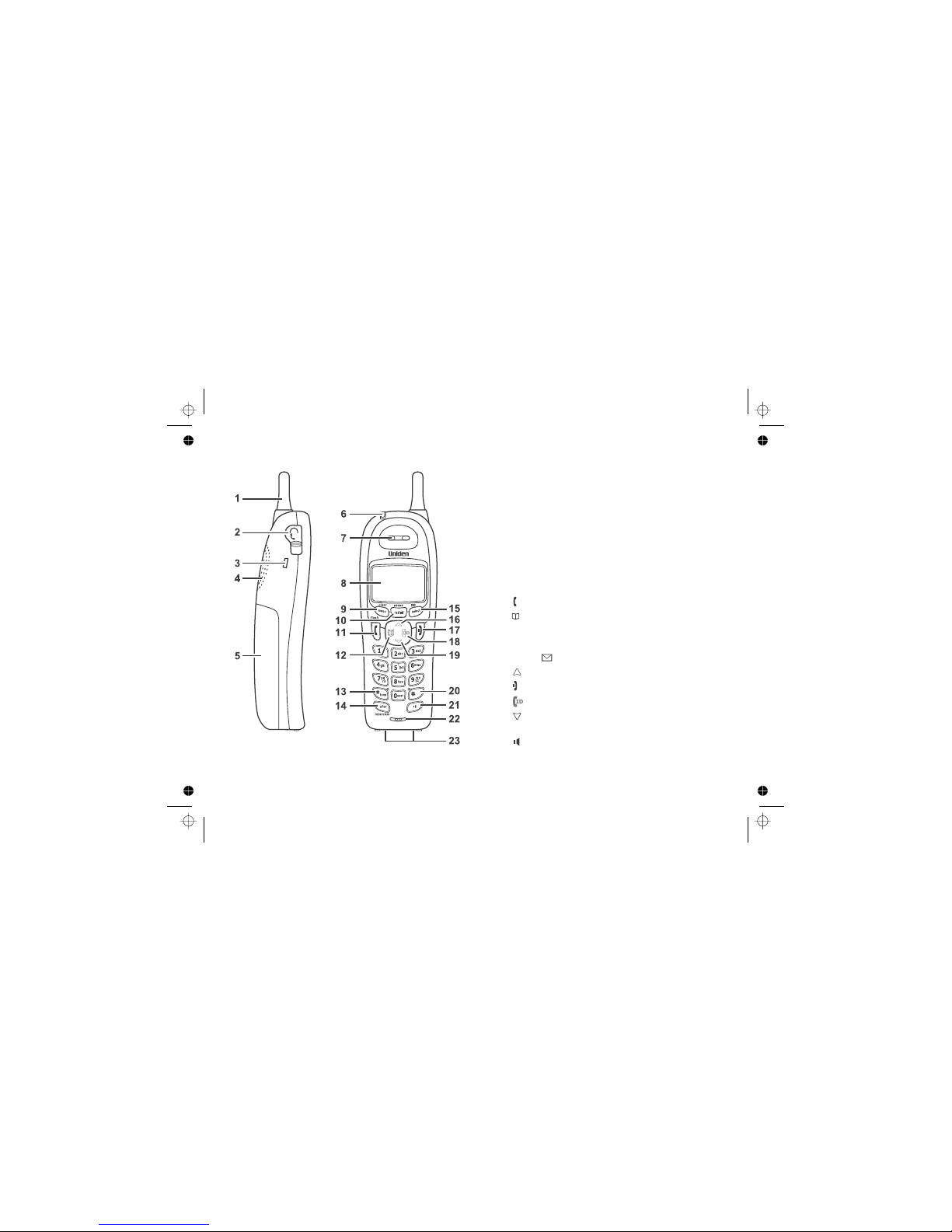

Parts of the Handset 1. Handset Antenna
2. Headset Jack Cover
3. Beltclip Hole
4. Speakerphone Speaker and Ringer
5. Handset Battery Compartment
6. New Message LED
7. Handset Earpiece
8. LCD Display
9. key
10. key
11. key (talk/flash)
12. key (phonebook)
13. key
14. key
15. key (select/messages)
16. key (up)
17. key (end call)
18. key (caller ID)
19. key (down)
20. key (pound)
21. key (speaker)
22. Handset Microphone
23. Handset Charging Contacts
[menu/clear]
[redial/pause]
[ / flash]
[]
[*/tone/<]
[xfer/intercom]
[select/ ]
[]
[]
[]
[]
[#/>]
[]
[7]

[8]
Parts of the Base
24. Base charging contacts
25. Base Speaker
26. key
27. Charge LED
28. in use LED
29. Base Antenna
30. keys
(Volume Up/Down)
31. key
32. key
33. key
(intercom/transfer)
34. key and LED
(do not disturb)
35. key
36. key
37. Base Microphone
38. key and
speaker LED (speaker)
39. key
40. key
41. [ key (find handset)
42. DC IN 9V Jack
43. TEL LINE Jack
[memory]
[]
[pause]
[hold]
[int'com/xfer]
[dnd]
[*/tone]
[#]
[speaker]
[flash]
[redial]
mute/find hs]
24
25 26 27 28
29
31
30
32
33
34
35 36 38
39
37
41
43 42
40

[9]
B
P
Handset Icons
ICON STATUS DESCRIPTION
Standby/Talk
Standby
Talk
Talk
Talk
Talk
The icon indicates the handset battery status: full, medium, low, and empty.
The icon indicates that the ringer is turned off.
The icon appears when you mute the handset.
The icon appears when the Clarity Boost feature is activated.
The icon appears when the handset speaker phone is in use.
The icon appears when Privacy Mode is turned on.
battery
ringer off
mute
boost
speaker
privacy

The Standby Screen

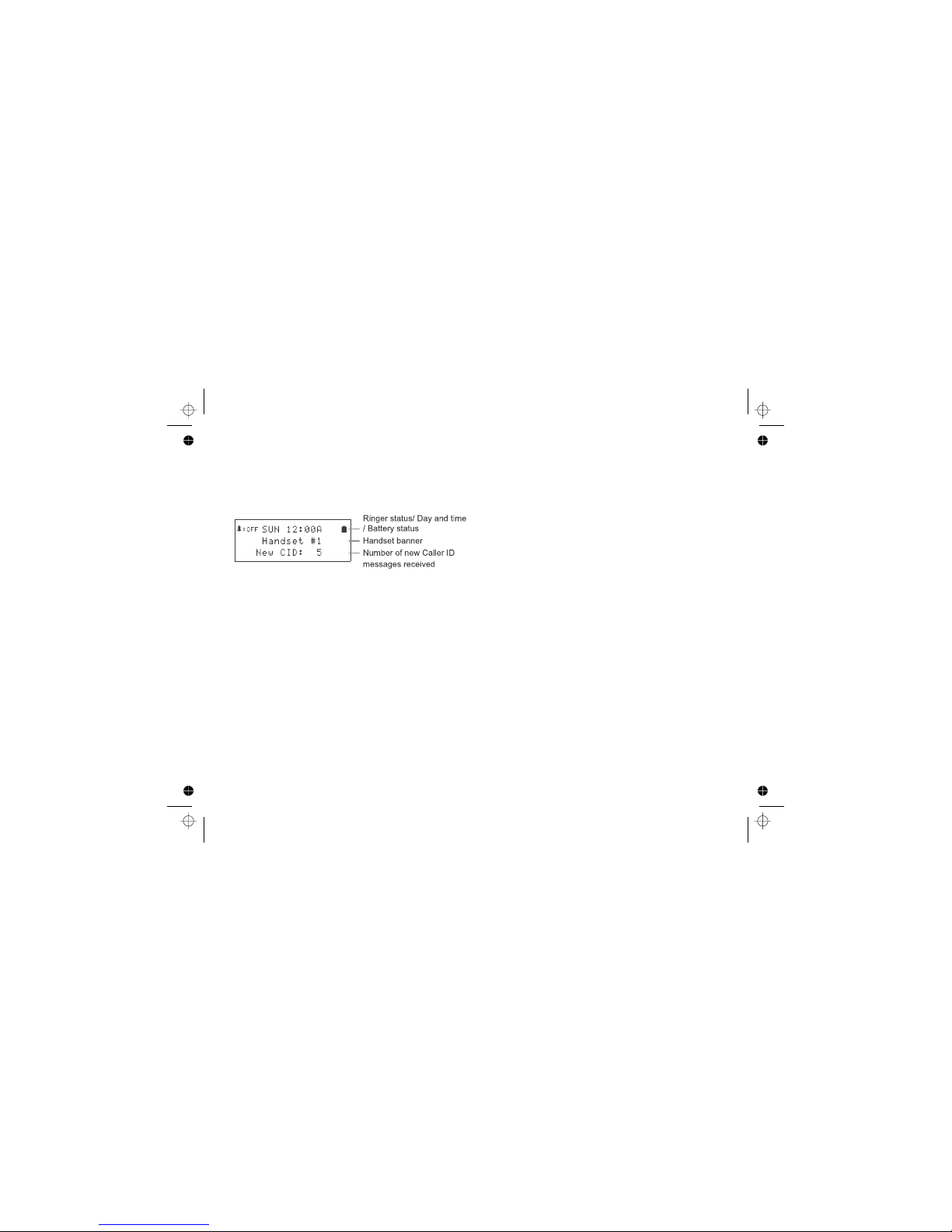

When the phone is in standby, the handset display shows the following items:
[10]

[11]
Using the Interface
Using the Handset Menus
Using the Four-way Function Key
[menu/clear]
[select/ ] [ ]

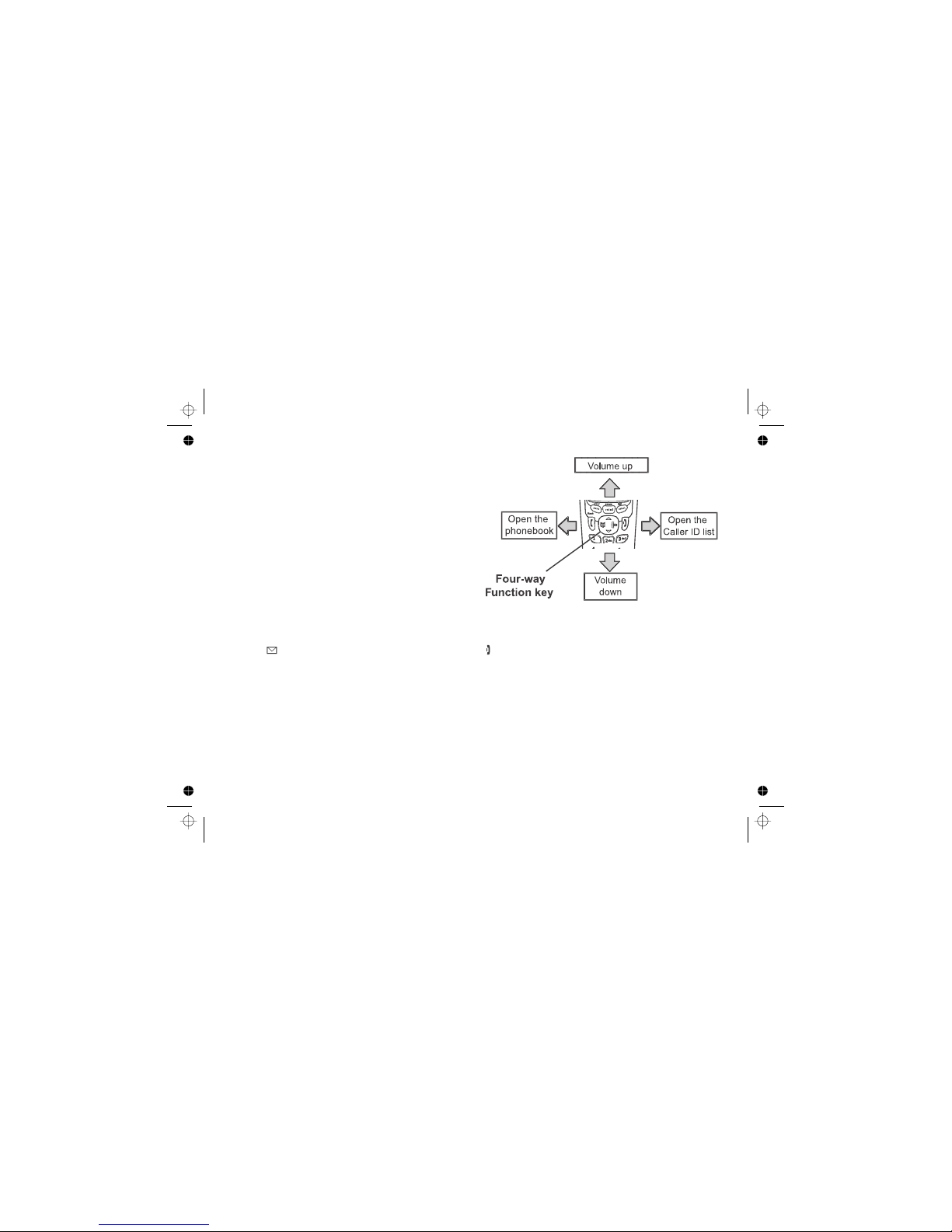

Your handset has a four-way function key that allows you
to move the cursor on the display and access the most
commonly used features at the touch of a button. By
moving this key to the left, you open the Phonebook.
Move the key to the right to access Caller ID information.
To use this four-way key, place your thumb over the key
on the handset and move to the four positions to get the
feel of how it moves and operates.
To open the menu, press . Select the option you want by pressing the four-way function key up or
down. This moves the cursor; the option currently selected has a triangle beside it. Select the option by pressing
. To exit the menu and return to standby, press on the handset.
If you do not press a key within 30 seconds, the phone times out and exits the menu. When setting Day and Time,
the time-out period is extended to two minutes.

[12]
Entering Text from Your Handset

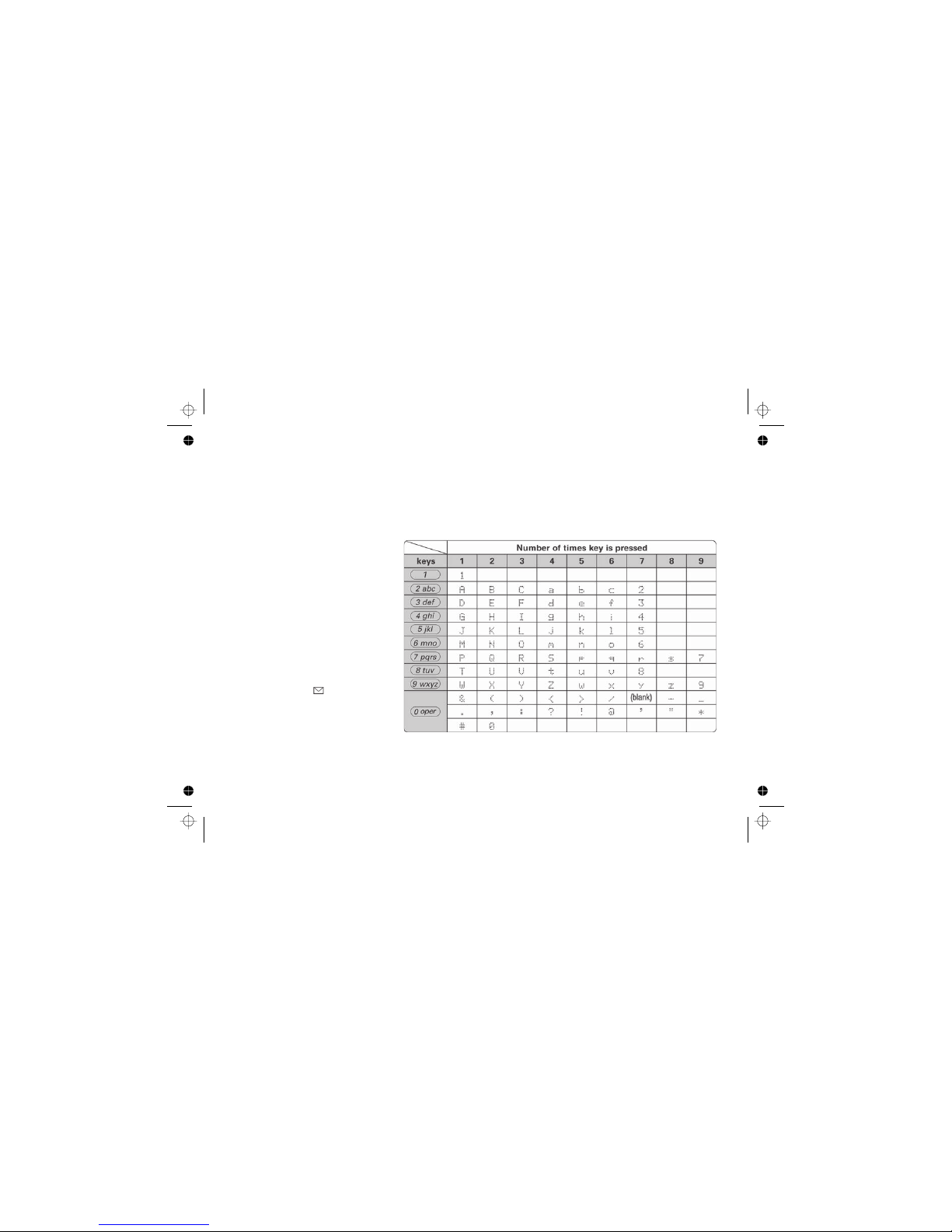

You can use the number keypad on your phone to enter text by referring to the letters printed on each number key.
When you press the number key in a text entry field, the phone displays the first letter printed on the number key.
Press the number key twice to display the second letter and three times to display the third. Capital letters are
displayed first, then lower case letters, then the number on the key.
If two letters in a row use the same number key, enter the first letter, then use to move the cursor to the next
position to enter the second letter. For example, to enter the word "Movies":
1. Press once to enter M.
2. Use to move the cursor to
the right.
3. Press six times to enter o.
4. Press six times to enter v.
5. Press six times to enter i.
6. Press five times to enter e.
7. Press eight times to enter s.
8. Press to end your
text entry.
If you make a mistake while entering a
name, use or to move
the cursor to the incorrect character. Press to erase the wrong character, and then enter the correct
character. To delete all characters, press and hold .
[#/>]
[6]
[#/>]
[6]
[8]
[4]
[3]
[7]
[select/ ]
[*/tone/<] [#/>]
[menu/clear]
[menu/clear]

Installing the Phone
Choosing the Best Location
When choosing a location for your new phone, here are some important guidelines you should consider:
• The location should be close to both a phone jack and a power outlet that is not controlled by a wall switch.
• The base and handset should be kept away from sources of electrical noise such as motors, microwave
ovens, and fluorescent lighting.
• Don't place the base in direct sunlight or subject it to high temperatures. The battery may not charge
properly.
• For better reception, place the base as high as possible.
• The base should be placed in an open area for optimum range and reception.
• If your home has specially wired alarm equipment connected to a phone line, be sure that installing the
system does not disable your alarm equipment. If you have questions about what will disable alarm
equipment, contact your telephone company or a qualified installer.
[13]

[14]

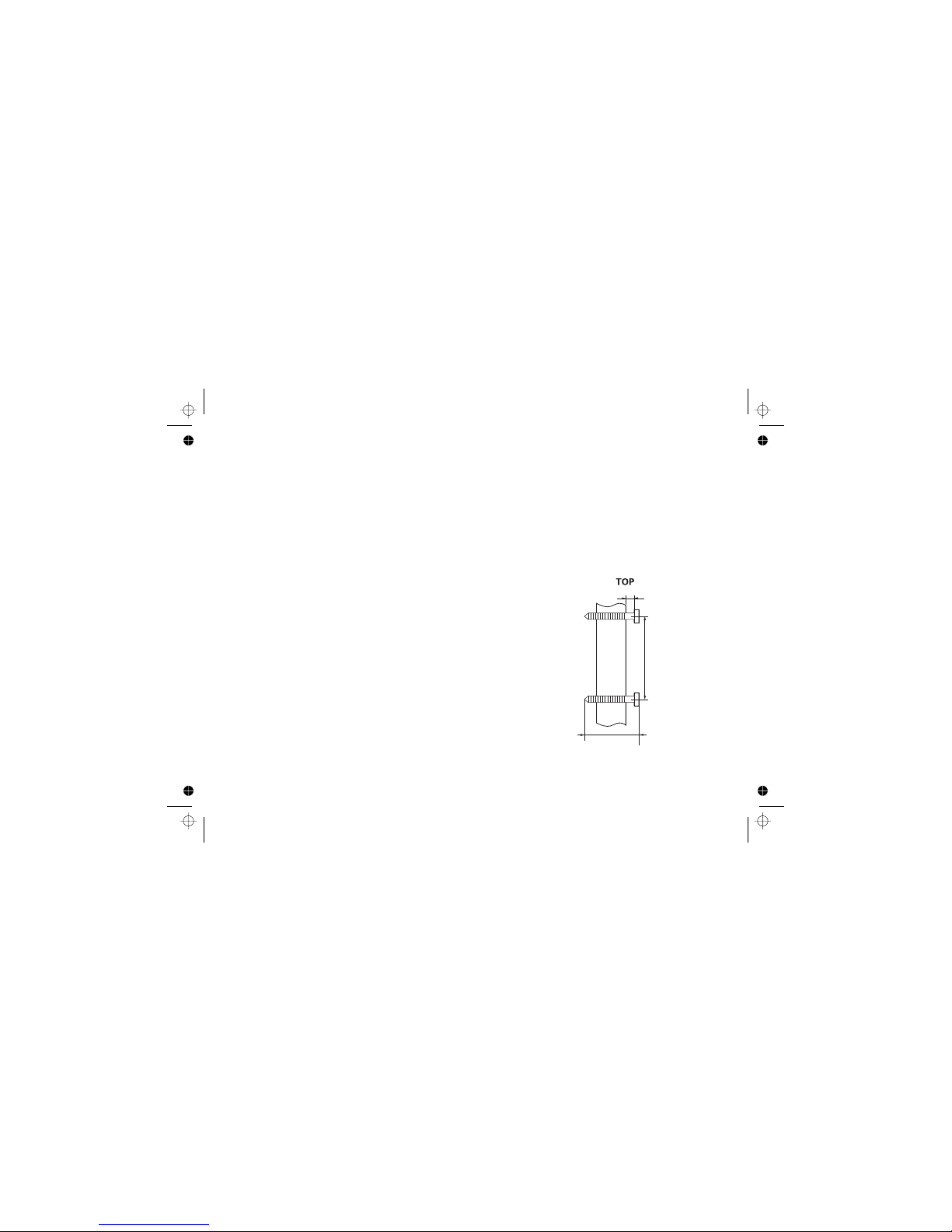

Wall Mounting the Base
This phone can be mounted on any standard wall
plate.

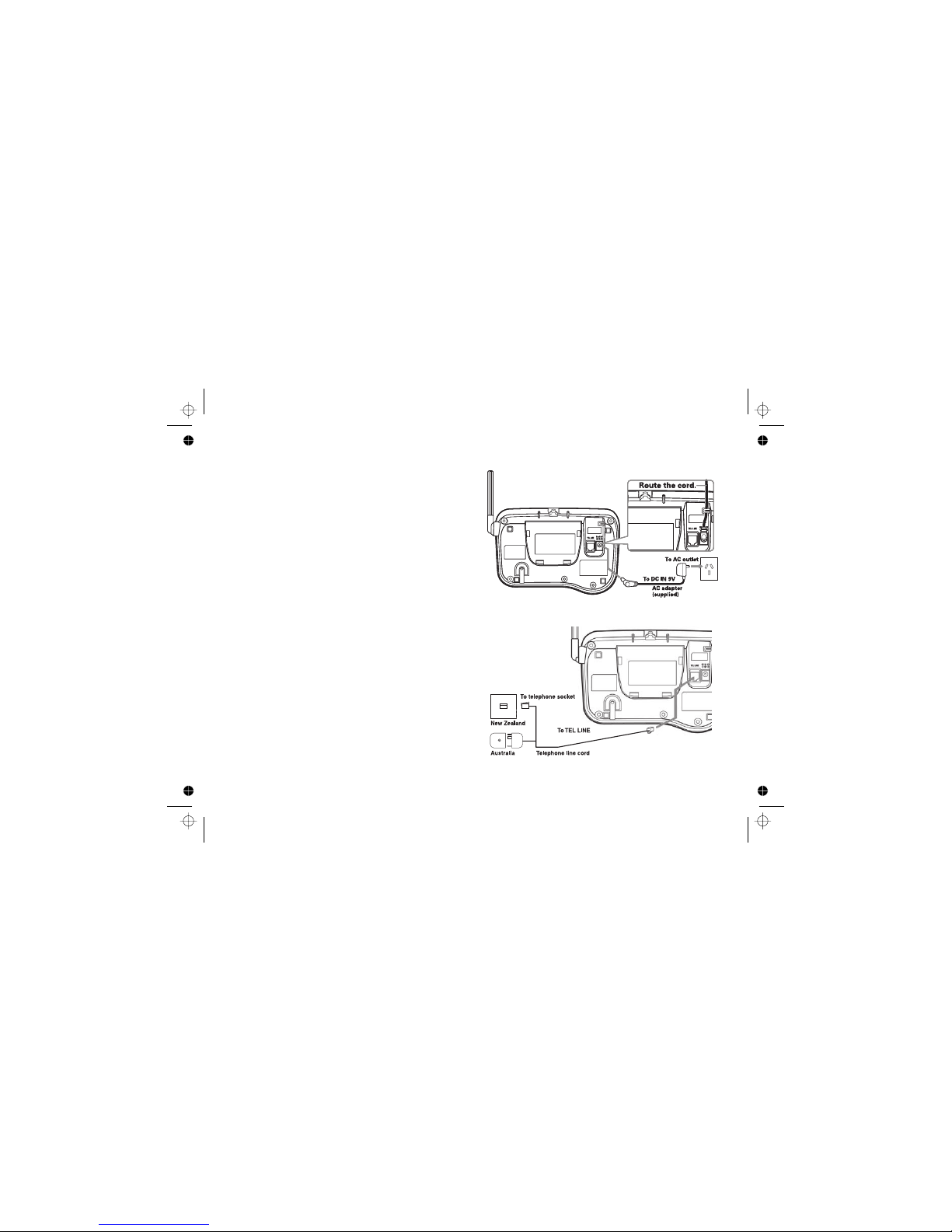

1. Snap the wall mount adapter into the notches on the base top.
2. Plug the AC adapter into the jack.
3. Route the AC adapter cord through the molded wiring channel as
shown.
4. Plug the AC adapter into a standard 240V AC wall outlet.
5. Plug the telephone line cord into the jack.
6. Plug the telephone line cord into the telephone outlet.
7. Align the mounting slots on the base with the mounting posts on
the wall. Then push in and down until the phone is firmly seated.
use an AC outlet controlled by a wall switch.
DC IN 9V
TEL LINE
DO NOT
Notes:
Use only the supplied AAD-041S AC adapter.
Do not use any other AC adapter.
!
!

[15]
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone directly to the wall. Before doing this, consider
the following:
Avoid electrical cables, pipes, or other items behind the mounting location that could cause a hazard when
inserting screws into the wall.
Try to mount your phone within 1.5m of a working phone jack to avoid excessive lengths.
Make sure the wall material is capable of supporting the weight of the base and handset.
Use #10 screws (minimum length of 35mm) with anchoring devices suitable for the wall material where the base
unit will be placed.
1. Insert two mounting screws into the wall
(with their appropriate anchors). 100mm
apart. Allow about 3mm between the wall
and screw heads for mounting the phone.
2. Refer to steps 1 through 7 on page 14 to
mount the telephone.
!
!
!
!
3mm
100mm
35mm

[16]
Installing the Rechargeable Battery
Use only the Uniden BT-909 rechargeable battery
pack supplied with your cordless telephone.
Follow the steps below to install a battery.

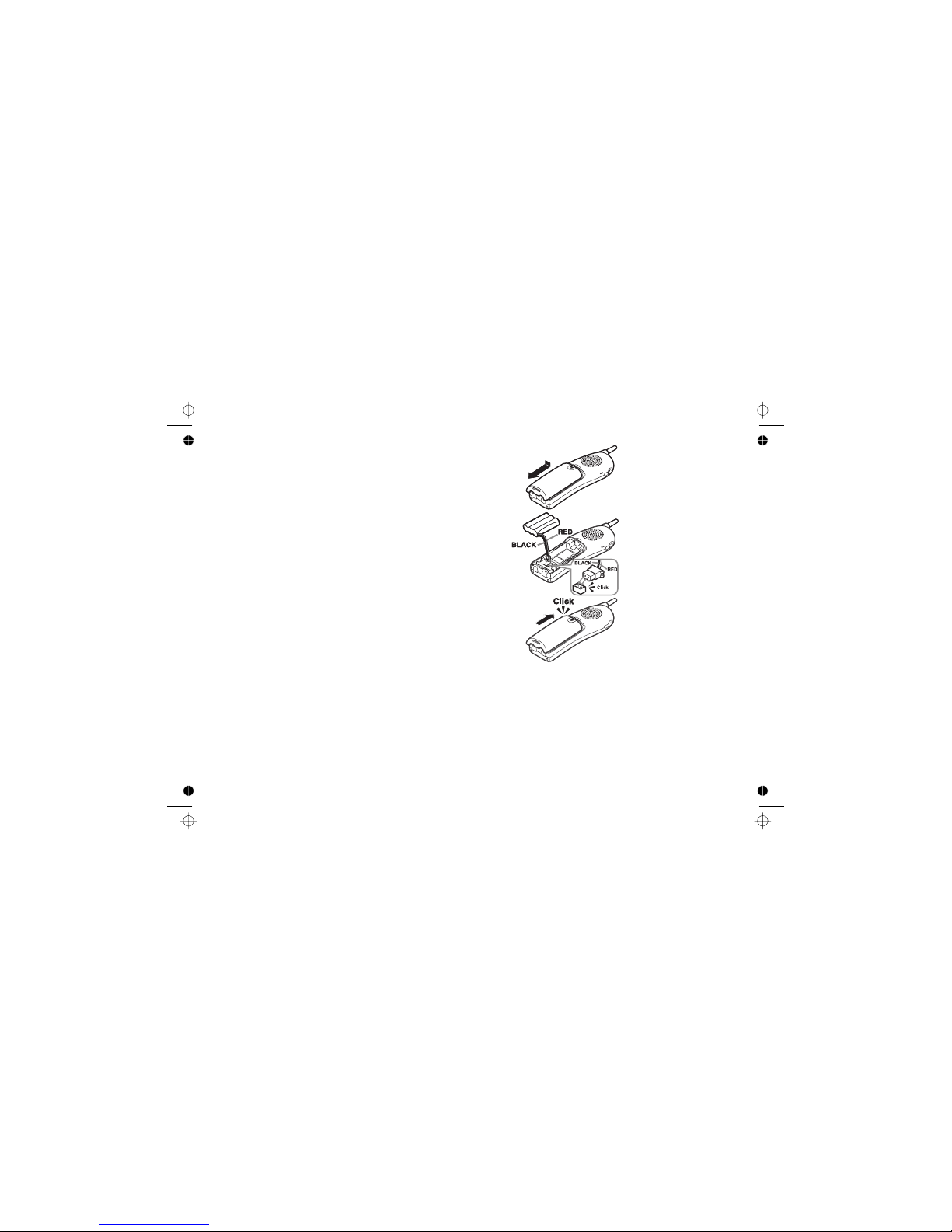

1. Press in on the handset battery case cover (use the
finger indention for a better grip) and slide the cover
downward to remove.
2. Place the battery pack in the battery compartment
with the connectors on the battery and on the
compartment aligned
.
3. Place the battery case cover back on the handset
and slide it upwards until it clicks into place.

[17]
Connecting to the Phone Line
High Speed Internet
Once the handset battery pack is fully charged,
connect the telephone line cord to the TEL LINE jack
and to a standard telephone wall outlet.
If your phone line also has High Speed Internet
please ensure you are using an approved line filter
before connecting the telephone cord.
Connecting the Base and Charging the Handset
1. Connect the AC adapter to the DC IN 9V jack.
2. Connect the AC adapter to a wall outlet that is not
controlled by a switch.
3. Place the handset in the base with the LCD screen
facing forward.
4. Make sure that the charge LED illuminates. If the LED
does not illuminate, check to see that the AC
adapter is plugged in and the handset makes good
contact with the base charging contacts.
5. Charge your handset at least 15-20 hours before plugging
into the phone line.
Note: Use only the supplied AAD-041S adapter with your phone.
Do not use any other AC adapter.

[18]
Installing the Belt Clip
Testing the Connection

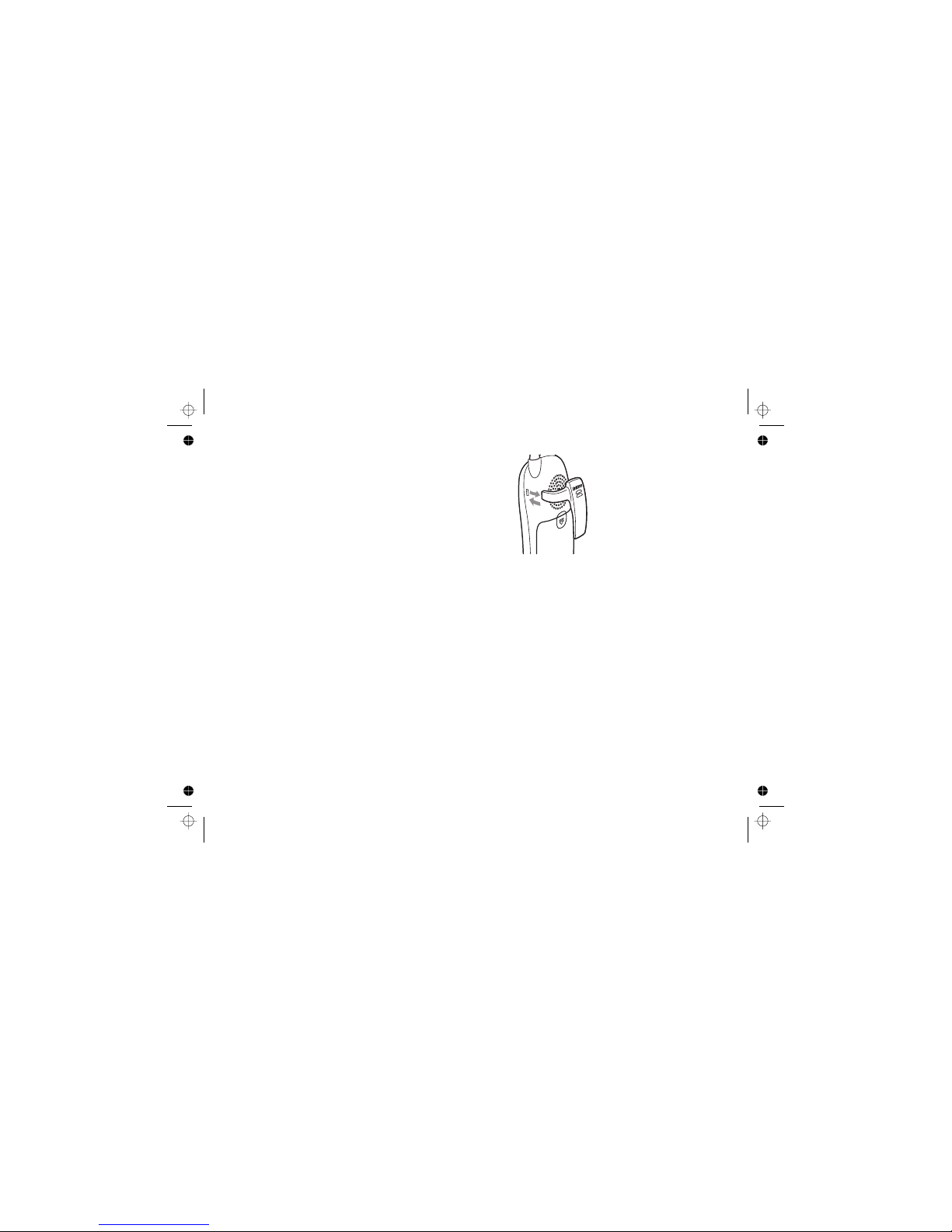

1. Line up the holes on each side of the handset. To
attach the belt clip, insert into the holes on each
side of the handset. Press down until it clicks.
2. To remove the belt clip , pull either side of the belt
clip to release the tabs from the holes.
To test your connection try making a call. If your call connects, the settings are fine. If your call does not connect
check the following:
1. Check the AC adapter cord. Make sure it is securely connected to the DC IN 9V connector and to a standard
AC power outlet.
2. Check to make sure the battery is fully charged. (If you don't see the "battery full" icon, check to make sure
the battery is properly connected).
3. Change "dial mode" (instructions follow).

[19]
Basic Setup
Setting the Day and Time
Note: If you don't press any keys for two minutes
when setting the day and time, the phone exits the
menu.
[menu/clear]
[select/ ]
[select/ ]
[select/ ]
[select/ ]
To change the day and time shown in the display, follow
the steps below.
1. Press . Select the GLOBAL SETUP menu, and then the
DAY & TIME submenu option.
2. Move the cursor to select the day of the week, and then press .
3. Move the cursor to set the hour, and then press .
4. Move the cursor to set the minute, and then press .
5. Move the cursor to choose AM or PM, and then press . You will hear a confirmation tone.
Changing the Dial Mode (Australian Model Only)
Your phone can communicate with the telephone network in two different ways: tone dialing or pulse dialing. These
days, most phone networks use a method called tone dialing, so your phone comes programmed for tone dialing. If
your phone company uses pulse dialing, you will need to change your phone’s dial mode. If you don't get a dial tone
or can't connect to the telephone network, please follow the steps below to modify your phone’s settings:
1. Press . Select the GLOBAL SETUP menu, and then the
DIAL MODE submenu.
2. Scroll to select PULSE.
3. Press . You will hear a confirmation tone.
If you ever need to change the dial mode back to tone dialing, follow the
same procedure, but select TONE in step 2.
[menu/clear]
[]
[select/ ]

Activating Caller ID on Call Waiting
Activating Distinctive Ring
Your phone supports Caller ID on Call Waiting (CIDCW), so you see the name and number of someone who calls
when you're already on the line. You need to subscribe to these features with your phone company before you can
use them. The Caller ID on Call Waiting service is currently unavailable in NZ. To let your phone support these
features, follow the steps below:
1. Press . Select the GLOBAL SETUP
menu, then the CIDCW submenu.
2. Move the cursor to select CW (Call Waiting) ON.
3. Press . You hear a confirmation tone.
You can assign special ringer tones to anyone in your phonebook. When your phone gets a call, it looks up
the Caller ID information in your phonebook. If you've assigned a distinctive ringer to that number, the phone uses it
so you know who is calling. To turn on distinctive ring, follow these steps:
1. Press . Select the HANDSET SETUP menu, and then the DISTINCT. RING submenu.
2. Move the cursor to select ON.
3. Press . You will hear a confirmation tone.
[menu/clear]
[menu/clear]
[select/ ]
[select/ ]
[menu/clear]
[select/ ]
Activating Key Touch Tone
Setting up Voice Mail
Key Touch Tone is the tone your keypad makes when keys are pressed. You can turn this tone on or off.
1. Press . Select the HANDSET SETUP menu, and then the KEY TOUCH TONE submenu.
2. Move the cursor to select ON or OFF.
3. Press . You hear a confirmation tone.
If you subscribe to a voice mail service, you can use your phone to access your voice mailbox. The new message
LED flashes whenever you have messages waiting in your voice mailbox. If you have programmed your access
[20]
