Welcome Congratulations on your purchase of the Uniden dual handset cordless telephone. This
cordless phone is designed and engineered to exacting standards for reliability, long life,
and outstanding performance.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes. The color of your cordless telephone may vary.
Be sure to visit our web site: www.uniden.com
Uniden®and RocketDial®are registered trademarks of Uniden America Corporation.
AutoTalk, AutoStandby, UltraClear Plus, Random Code and AutoSecure are trademarks of
Uniden America Corporation.
Features • 5.8 GHz Extended Range Technology
• Dual Handset System
(Extra Handset & Charger Included)
• Integrated Telephone Answering Device
(ITAD) (Trilingual Announcement Option)
• Voice Prompted ITAD Setup Menu
• 3 Line Backlit Display
• Caller ID/Caller ID on Call Waiting
• 30 Caller ID Memory Locations
• 10 Speed Dial Memory
• One-Touch RocketDial
• Call Transfer from Handset to Handset
• Find handset Locator
• Earpiece Volume Control
• Ringer Levels (High-Low-Off)
• Hearing Aid Compatible
• Desk or Wall Mountable

CONTROLS AND FUNCTIONS [ 5 ]www.uniden.com
2
3
4
1
5
7
6
8
9
12
20
16
15
14
11
10
13
19
18
17
1. Handset antenna
2. Beltclip hole
3. Jack for optional headset
4. Handset battery compartment
5. Handset earpiece
6. LCD display
7. call id (Caller ID)/menu key
8. vol/ / (volume & scroll) key
9. vol/ / (volume & scroll) key
10. /tone/ (left cursor) key
11. redial/pause key
12. select/channel key
13. Handset microphone and
ringer speaker
14. RocketDial key
15. end key
16. talk/flash key
17. #/ (right cursor) key
18. memory key
19. delete/transfer key
20. Handset charging contacts
Controls and Functions
Handsets

CONTROLS AND FUNCTIONS[ 6 ] www.uniden.com
volume SELECT
SET
ringer find hs
MENU/CLOCK
answer on/off greeting
mic
memo
rec
charge in use
38 39
28
29
30
31
32
33
34
35
36
21
22
24
25
26
27
23
37
Main Base Unit
Extra Charging Cradle (for Second Handset)
40
42
41
21. (repeat/rewind) key
22. volume/SELECT (up) key
23. memo/rec (record) key
24. volume/SELECT (down)
key
25. answer on/off key
26. ringer key
27. Base charging contacts
28. Base antenna
29. charge/in use LED
30. (play/stop) key
31. (skip/fast forward) key
32. (delete) key
33. MENU/CLOCK key
34. greeting key
35. find hs key
36. SET key
37. mic (microphone)
38. DC IN 9V jack
39. Telephone line jack
40. Charging contacts
41. Charge LED
42. DC IN 9V jack

GETTING STARTED [ 7 ]www.uniden.com
Installing the Phone
Do the following steps:
A. Choose the best location
B. Install the rechargeable battery packs into both handsets
C. Connect the main base unit and charging cradle
A. Choose the best location
When choosing a location for your new phone, here are some important guidelines
you should consider:
•The location should be close to both a phone jack and a continuous power outlet
(one which is not connected to a switch).
•The handsets and the main base should be kept away from sources of electrical
noise such as motors, microwave ovens, and fluorescent lighting.
•The base can be placed on a desk, tabletop, or mounted on a standard wall plate.
Avoid excessive moisture,
extremely low temperatures,
dust, mechanical vibration,
or shock
Avoid heat sources, such as radiators,
air ducts, and sunlight
Avoid television sets and other
electronic equipment
Avoid noise sources such as a window
by a street with heavy traffic
Avoid microwave ovens
Avoid personal computers
Avoid other cordless telephones
Choose a central location
GETTING STARTED
If your home has
specially wired alarm
equipment connected to
the telephone line, be
sure that installing the
system does not disable
your alarm equipment.
If you have questions
about what will disable
your alarm equipment,
contact your telephone
company or a qualified
installer.

GETTING STARTED[ 8 ] www.uniden.com
B. Install the rechargeable battery packs into both handsets
Both handsets are powered by a rechargeable battery packs.
The battery recharges automatically when the handset is
placed in the main base unit or charging cradle.
1) Press down on the handset battery case cover (use the
finger indention for a better grip) and slide the cover
downward to remove.
2) Plug the battery pack connector (red & black wires) into the
jack inside the battery compartment.
(The connector notches fit into the grooves of the jack only
one way.) Match the wire colors to the polarity label in the
battery compartment, connect the battery, and listen for
a click to insure connection.
3) Make sure you have a good connection by slightly pulling on
the battery wires. If the connection is secure, the battery
jack will remain in place.
• For optimum
performance use only
the Uniden BT-800
rechargeable battery
pack supplied with
your phone.
4) Place the battery case cover back on the handset by sliding
it upwards until it clicks into place.
• Replacement batteries
are also available
through the Uniden
Parts Department at
[phone],
Monday through Friday
from 8:00 a.m. to 5:00
p.m. or online at
www.uniden.com

GETTING STARTED
GETTING STARTED [ 9 ]www.uniden.com
The last number dialed in the redial memory, the Menu display options, the names and
the numbers stored in the memory locations or CID list are retained for up to 30 minutes
while you replace the battery pack.
Low battery alert
When the battery pack is very low and needs to be charged,
the phone is programmed to eliminate functions in order to
save power. If the phone is not in use, Low Battery flashes
on the LCD and none of the keys will operate.
If the phone is in use, Low Battery flashes and the handset
beeps. Complete your call as quickly as possible and return the
handset to either cradle for charging.
• Even when the
battery pack is not
being used, it will
gradually discharge
over a long period of
time. For optimum
performance, be sure
to return the handset
to either cradle after
a telephone call.
Cleaning the battery charging contacts
To maintain a good charge, it is important to clean the
charging contacts on the handsets, main base unit and
charging cradle once a month. Using water only, dampen
a cloth to clean the charging contacts. Then make sure
to go back over the charging contacts with a dry cloth
before returning the handsets to the main base unit or
charging cradle to charge.
Do not use paint thinner, benzene, alcohol, or other chemical products.
Doing so may discolor the surface of the telephone and damage the finish.
•Talk Mode -
The handset is off either
cradle and the talk/flash
key has been pressed,
enabling a dial tone.
•Standby Mode -
The handset may be sitting
in or off either charging
cradle but is NOT in use.
The talk/flash key has not
been pressed and there is
no dial tone.

GETTING STARTED[ 10 ] www.uniden.com
Use only the supplied AD-
314 AC adapter for the
main base and AD-310 for
the charging cradle. Do
not use any other AC
adapter.
C. Connect the main base unit and charging cradle

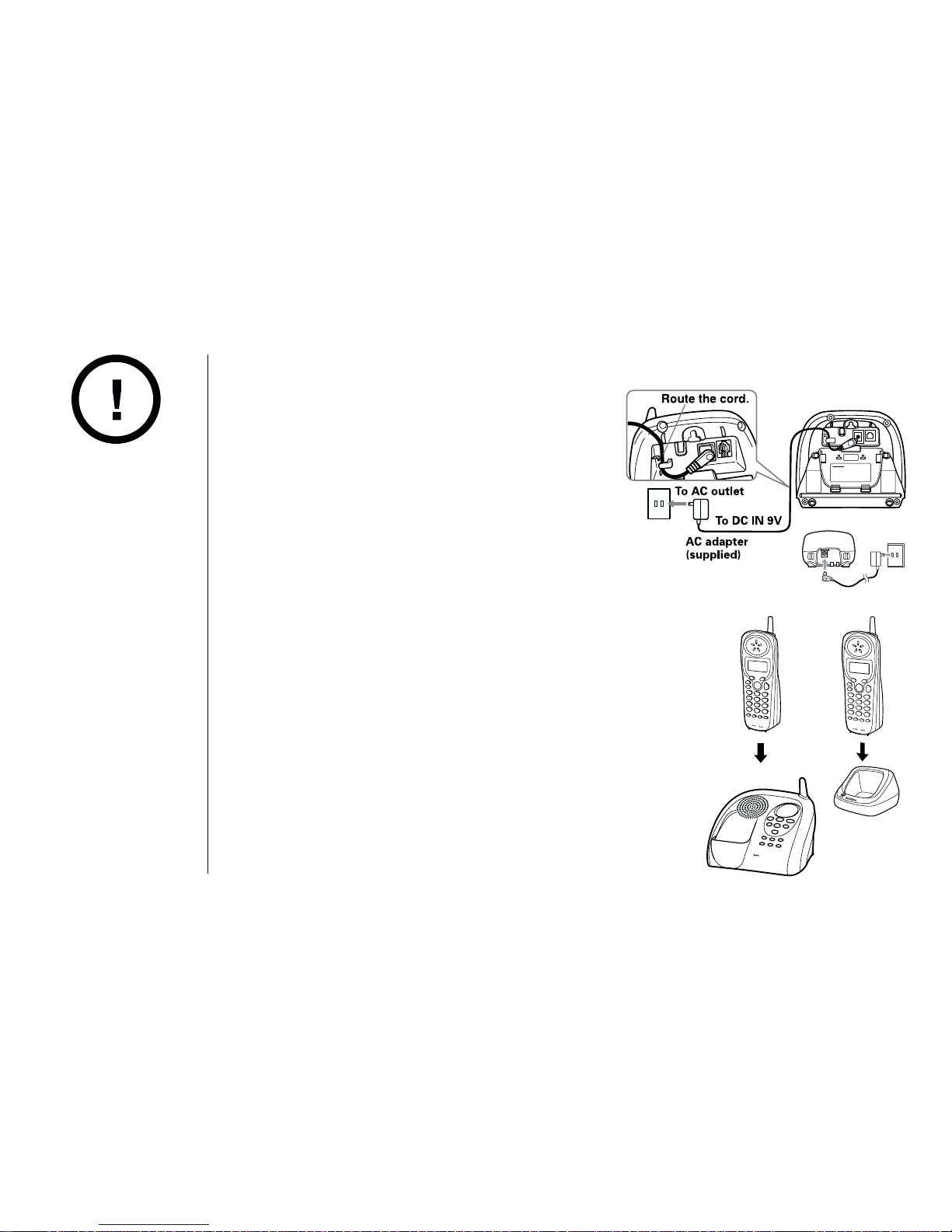

1) Connect each AC adapter to the DC IN 9V
jack and to each standard 120V AC wall
outlet.
2) Place one handset in the main base unit
and the other in the charging cradle.
3) Make sure that the charge/in use and
charge LED illuminate. If the LED does
not illuminate, check to see that the AC
adapter is plugged in and that the
handset makes good contact with the
cradle’s charging contacts.
4) Place the handset in the main base unit and one
handset in the charging cradle for 15-20 hours without
interruption. The main base or charging cradle unit’s
LED light (labeled charge/in use or charge)
illuminates once the handset is placed in the main
base or charging cradle. The LED light will illuminate
whether the battery pack is connected or not.

GETTING STARTED
GETTING STARTED [ 11 ]www.uniden.com
• Place the power cord
where it does not
create a trip hazard
or where it could
become chafed and
create a fire or
electrical hazard.

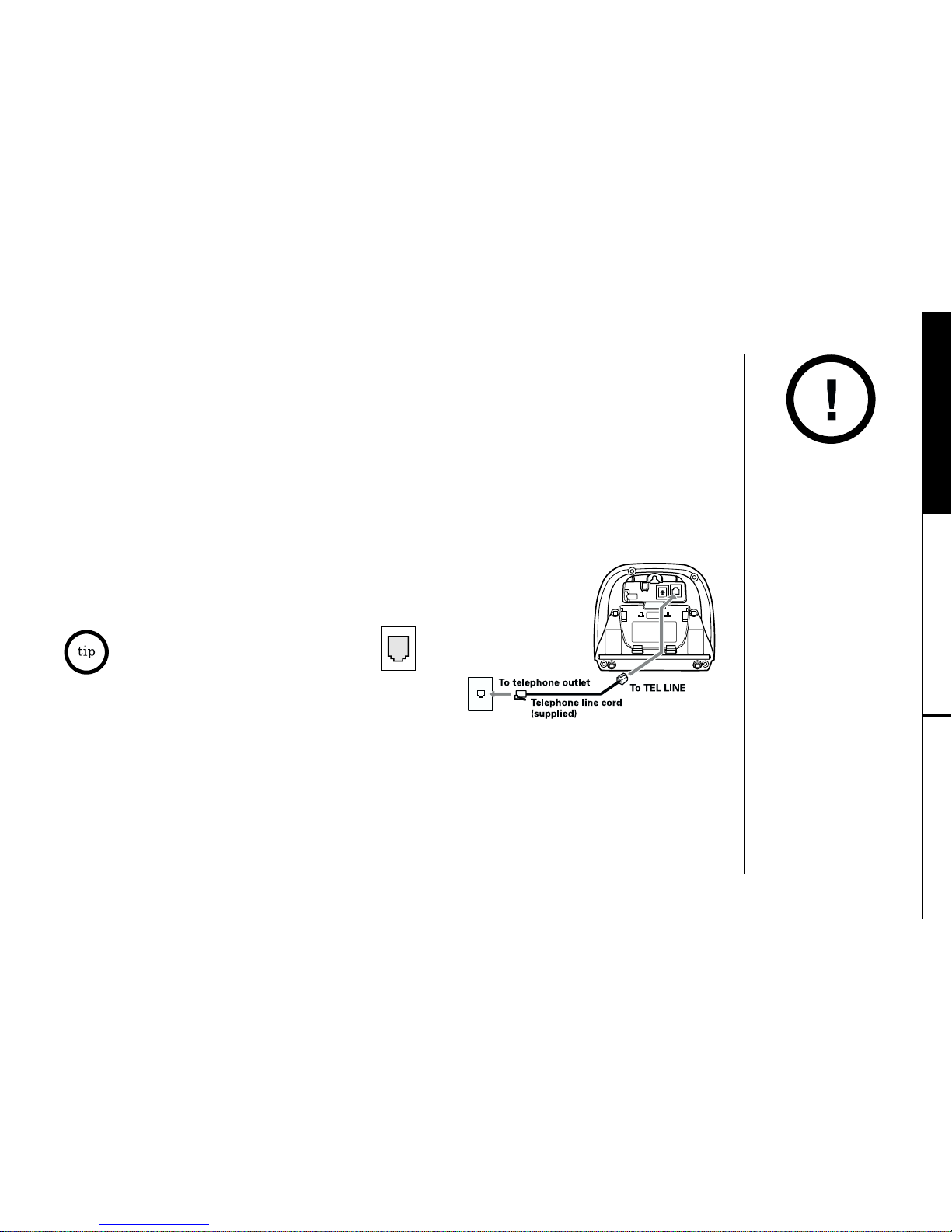

5) Once the handset battery pack is fully charged, connect the
telephone line cord to the TEL LINE jack and to a telephone
outlet.
Modular
If your telephone outlet isn't modular,
contact your telephone company
for assistance.
If the main base charge/in use or charging cradle charge LED
light does not illuminate:
• Check to see if the AC adapter is plugged into both cradles
and the electrical wall outlet properly. (Use only the
supplied AC adapters. Do not use any other AC adapters.)
• Check to see if both handsets are sitting correctly in each
cradle and making good contact with each cradles charging
contacts.
• Place the handsets in
the main base and
charging cradle with
the keypad facing
forward for charging.

GETTING STARTED[ 12 ] www.uniden.com
DO NOT use an AC
outlet controlled by
a wall switch.
Mounting the Main Base Unit on a Wall
Standard wall plate mounting
This phone can be mounted on any standard wall plate.

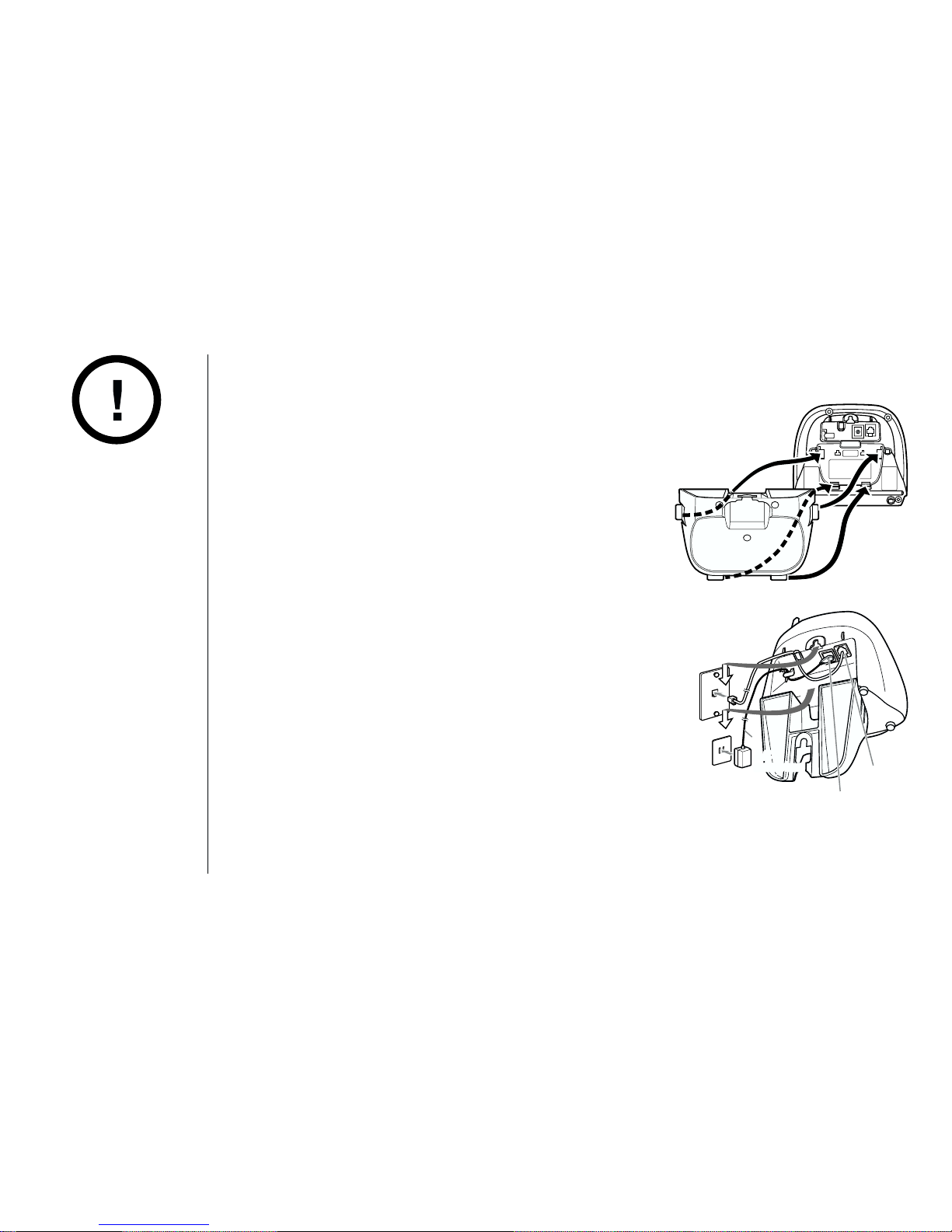

1) Snap the wall mount adapter into the notches on
the bottom of the base.
2) Plug the AC adapter into the DC IN 9V jack.
3) Wrap the AC adapter cord inside the molded wiring
channel as shown.
4) Plug the AC adapter into a standard 120V AC
wall outlet.
5) Plug the telephone line cord into the TEL LINE jack.
Wrap the cord inside the molded wiring channel as
shown.
6) Plug the telephone line cord into the telephone
outlet.
7) Align the mounting slots on the base with the
mounting posts on the wall. Then push in and
down until the phone is firmly seated.
Wall plate
AC outlet 5
2
7
6
7
4
3
AC
adapter
1

GETTING STARTED
GETTING STARTED [ 13 ]www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone directly to the
wall. Before doing this, consider the following:
•Avoid electrical cables, pipes, or other items behind the mounting location that
could cause a hazard when inserting screws into the wall.
•Try to mount your phone within 5 feet of a working phone jack to avoid excessive
lengths.
•Make sure the wall material is capable of supporting the weight of the base
and handset.
•Use #10 screws (minimum length of 1-3/8 inches) with anchoring devices suitable
for the wall material where the main base unit will be placed.
1) Insert two mounting screws into the wall (with their
appropriate anchoring device), 3-15/16 inches apart.
Allow about 1/8 of an inch between the wall and screw heads
for mounting the phone.
2) Refer to steps 1 through 7 on page 12 to mount the telephone.

GETTING STARTED[ 14 ] www.uniden.com
Register Handsets to the Main Base Before Using!
• When you charge the
handsets, Caller ID
summary screen and
the name of the
handset, HS1 appears.
If HS2 appears, you
are charging the
handset No. 2.
• The charging cradle
can be used to charge
either handset.
Whichever handset you choose to charge in the main base will automatically register
to the base.
The second handset (charging in the extra charging cradle) MUST also be registered
to the main base before use. Follow the steps below to register the second handset.
1) Be sure both handsets are fully charged.
2) Remove the handset from the charging cradle, and place it in the main base. The
charge/in use LED light on the main base will begin to flash, indicating that the
registration is taking place.
3) Wait for at least 5 seconds before removing the handset from the main base.
4) Once both handsets are registered, it doesn’t matter which handset is placed in
the main base or the charging cradle.

GETTING STARTED [ 15 ]www.uniden.com
When to Re-register Handsets
You’ll need to re-register the handsets if any of the following things occur. Follow
steps on page 14 to re-register the handset.
1) Each time the digital security code is changed, you will need to re-register the
second handset. Refer to page 56 for details regarding the Digital Security Code.
2) When the main base is without power for more than 30 minutes, both handsets
will need to be re-registered.
3) If the second handset’s battery becomes very low, the handset must be recharged
for 15-20 hours and re-registered to the main base unit.
Call Transfer Feature
Your cordless phone allows you to transfer outside calls from handset to handset,
only one handset at a time can talk with an outside caller. The second handset
cannot go off hook to listen to conversations or make an outgoing call while the
other handset is in use.
To transfer a call
1) During a call, press delete/transfer. The call will
automatically be placed on hold and the transfer tone sounds.
2) When the other handset receives the call, the transfer tone stops.
To cancel the transfer and return to the caller, press delete/transfer or talk/flash on
the handset.
To receive a transfer call (from the second handset)
Pick up the handset from the base (when AutoTalk is set to on),
or pick up the handset and press talk/flash to answer the
transferred call. Additionally, you can answer the transferred call
by pressing any number key, /tone/ or #/ (when AutoTalk is set to on).
• Make sure to return the
handsets to the charg-
ing cradles after each
phone call.
• If you transfer the call
and it is not picked up
after 5 minutes, the
call will be
disconnected.
GETTING STARTED

GETTING STARTED[ 16 ] www.uniden.com
The cordless phone
features include
AutoTalkTM and
AutoStandbyTM.
AutoStandby allows you
to hang up by simply
returning the handset to
the main base or
chaging cradle.
Setting Menu Display Options
There are five setup options, AutoTalk, CIDCW (Caller ID on Call Waiting), Area Code,
Dial Mode and Language.
CIDCW and Dial Mode options can only be set by using Handset 1. If you try to set
by using Handset 2, you will not see these options listed on the LCD screen.
(Handset 1 shows HS1 in the display while the phone is charging.)
Setting AutoTalk and CIDCW
1) Press and hold call id/menu. The following screen appears.
2) Use vol/ / or vol/ / to move the pointer to the
selection that you would like to change.
Press select/channel to toggle between On and Off.
3) Press end and return the handset to the main base unit to
complete the setting. The handset returns to standby mode.
AutoTalk allows you to answer the phone without pressing the talk/flash key.
If the phone rings when AutoTalk is on, simply remove the handset from either
charging cradle and the phone automatically answers the call. If the phone rings
when AutoTalk is off, you must press talk/flash to answer the call.
Entering your Area Code
If you enter a 3-digit area code number in the Area Code option, your local area
code does not appear in Caller ID messages. Do not program this option if your
calling area requires 10-digit dialing. When reviewing Caller ID messages, you will
see only the local seven digit number. For calls received from outside your local area
code, you will see a full 10-digit number.

GETTING STARTED
GETTING STARTED [ 17 ]www.uniden.com
1) When the phone is in standby mode, press and hold
call id/menu. The following screen appears.
2) Press vol/ / to move the pointer to Area Code.
3) Press select/channel. If an area code has been already stored,
the phone displays it.
4) Use the number keys (0 - 9) to enter a 3-digit area code. To change a
previously–entered area code, use the delete/transfer to backspace.
5) Press select/channel. A confirmation tone sounds and the displayed area code is
entered.
6) Press end to complete the setting. The handset returns to standby mode.
Choosing the dialing mode
Most phone systems use tone dialing. However, some phone systems (such as those
in rural areas) still use pulse dialing. Your Uniden phone supports both tone and
pulse dialing. The default setting is tone dialing. If your dialing system uses pulse
dialing, follow the steps below to change the dialing mode:

GETTING STARTED[ 18 ] www.uniden.com
1) Be sure you are using handset 1. Handset 1 shows HS1 in its display while the
phone is charging.
2) When the phone is in standby mode, press and hold
call id/menu. The following screen appears.
3) Press vol/ / three times to select Dial.
4) Press select/channel to set the phone to Pulse dialing.
5) Press end and return the handset to the main base unit to complete the setting.
The handset returns to standby mode.
Setting the language
There are three languages to choose from; English, French and Spanish.
1) When the phone is in standby mode, press and hold
call id/menu. The following screen appears.
2) Use vol/ / to move the pointer to Language.
3) Press select/channel to select Eng, Fr. or Esp.
4) Press end or return the handset to the main base unit or charging cradle to
complete the setting. The handset returns to standby mode.
• If you are not sure of
your dialing system,
set for tone dialing
and make a trial call.
If the call connects,
leave the setting as is.
Otherwise, set for
pulse dialing.
• If your phone system
requires pulse dialing
and you need to send
the DTMF tones during
a call, you can
temporarily switch over
to tone dialing. (Refer
to "Tone Dialing Switch
Over" on page 21.)

BASICS
GETTING STARTED
BASICS [ 19 ]www.uniden.com
Refer to page 16
"Setting Menu Display
Options" to turn On the
AutoTalk feature if
desired.
Making and Receiving Calls
Remove the handset (AutoTalk:
on) or remove the handset and
press talk/flash (AutoTalk: off).
1) Remove the handset.
2) Press talk/flash.
3) Listen for the dial tone.
4) Dial the number.
OR
1) Remove the handset.
2) Dial
the number, then press
talk/flash .
1) Remove the handset.
2) Press talk/flash.
3) Listen for the dial tone.
4) Press redial/pause.
OR
1) Remove the handset.
2) Press redial/pause, then
press talk/flash.
Handset on Main Base or Charging Cradle Handset off Main Base or Charging Cradle
Receiving
a call
Making
a call
Hanging up
Redialing
Press talk/flash (AutoTalk: off),
or press talk/flash, /tone/ ,
#/ or any number key
(AutoTalk: on).
1) Press talk/flash.
2) Listen for the dial tone.
3) Dial the number.
OR
Dial the number, then press
talk/flash.
1) Press talk/flash.
2) Listen for the dial tone.
3) Press redial/pause.
OR
Press redial/pause, then press
talk/flash.
Press end or return the handset to the main base or charging cradle
(AutoStandby).

BASICS[ 20 ] www.uniden.com
Adjusting the Handset Ringer and Earpiece Volume
Handset ringer tone and volume
Press the volume up key or volume down key (labeled as
vol/ / or vol/ / ) in standby mode to select one of five
ringer tone/volume combinations.
Earpiece volume
To change the earpiece volume, press vol/ / or vol/ /
keys during a call. This setting will remain in effect after the
telephone call has ended.
Temporarily Mute Ringer
If the handset is off the base, simply press end to temporarily mute the incoming
ring. The ringer will sound with the next incoming call.
