Uniden DXAI4288-2 User manual

DXAI 4288-2

[1]
www.uniden.com
Contents
Welcome/Features 2
Controls and Functions 3
Terms Used in this Manual 5
Accessibility 6
Installing the Phone 7
A. Choose the Best Location 7
B. Install the Rechargeable Battery Packs into the Handsets 8
C. Connect the Main Base and Charging Cradle,
and Charge the Handsets 9
D. Mount the Main Base on a Wall 10
Installing the Beltclip 11
Headset Installation 12
Register Handsets to the Main Base
before Using! 13
When to Re-register Handsets 14
Basic Setup 15
Activating AutoTalk 15
Activating Caller ID on Call Waiting 15
Entering Your Area Code 16
Choosing the Dialing Mode 17
Setting the Language 18
Selecting the Ring Tone and Volume 18
Using Your Phone 19
Making and Receiving Calls 19
Transferring a Call 20
Redialing the Last Dialed Number 20
Adjusting the Earpiece Volume 21
Tone Dialing Switch-over 21
Traveling Out-of-Range 22
Selecting a Different Channel 22
Find Handsets 22
Using Call Waiting 23
Using the Speed Dial Memory 24
Storing Names and Numbers in Speed Dial Memory 24
Storing Caller ID Messages in Speed Dial Memory 27
Making Calls from Speed Dial Memory 28
Caller ID and CIDCW (Caller ID on Call
Waiting) 29
Viewing the Caller ID Message List 30
Deleting Information from the Caller ID List 31
Making a Call from the Caller ID List 32
Caller ID on Call Waiting (CIDCW) 32
The Integrated Answering Device 33
Setting Up Your Answering System 34
Turning the Answering System On/Off 43
Using Your Answering System 44
Remote Operation 49
Changing the Digital Security Code 52
Note on Power Sources 53
General Information 55
Troubleshooting 56
Liquid Damage 59
Precautions & Warranty 60
I.C. Notice 62
Index 63
Remote Operation Card

[2]
www.uniden.com
Welcome
Features • 2.4GHz Extended Range Technology
• Dual Handset System
(Extra Handset & Charger Included)
• Call Transfer from Handset to Handset
• Integrated Answering Device
• Caller ID/Caller ID on Call Waiting
• 3-Line Backlit LCD
• Trilingual Menu Displays/Voice Prompts
• 30 Caller ID Memory
• 10 Number Memory Dialing
• Last Number Redial
• Tone/Pulse Dialing
• Page/Find Handset Key
• Earpiece/Ringer Volume Controls
• Mute or Turn Ringer Off
• Hearing Aid Compatible
• 20 Channel Auto Scan
• Desk or Wall Mountable
If you have any trouble with your phone, call our Customer Hotline at 1- 800-297-1023,
Mon-Fri 7 am to 7 pm, Sat/Sun 9 am to 5 pm, CST. (Phone support is closed on holidays.)
For more information on Uniden products and accessories, be sure to visit our web site:
www.uniden.com
Uniden® is a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, UltraClear Plus, Random Code, and AutoSecure are trademarks of
Uniden America Corporation.
Congratulations on your purchase of the Uniden dual handset cordless telephone and answering
system. This phone is designed and engineered to exacting standards for reliability, long life, and
outstanding performance.
Note:Illustrations in this manual are used for explanation purposes. Some
illustrations in this manual may differ from the actual unit. The color of your
cordless phone may vary.

[3] CONTROLS & FUNCTIONS
www.uniden.com
Controls and Functions
Handsets
7
6
9
8
10
11
12 18
16
15
17
19
13
14
5
1
2
3
4

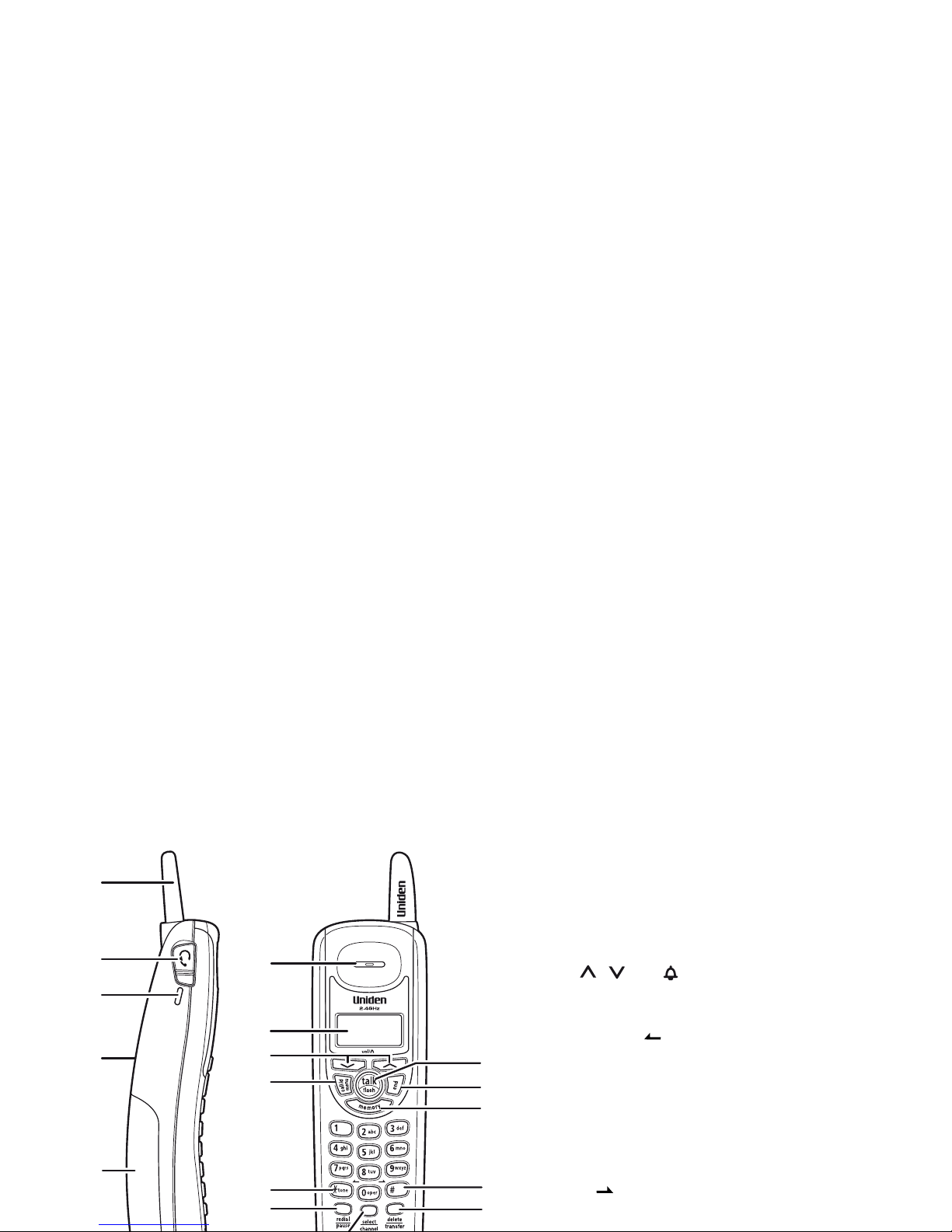

1. Handset antenna

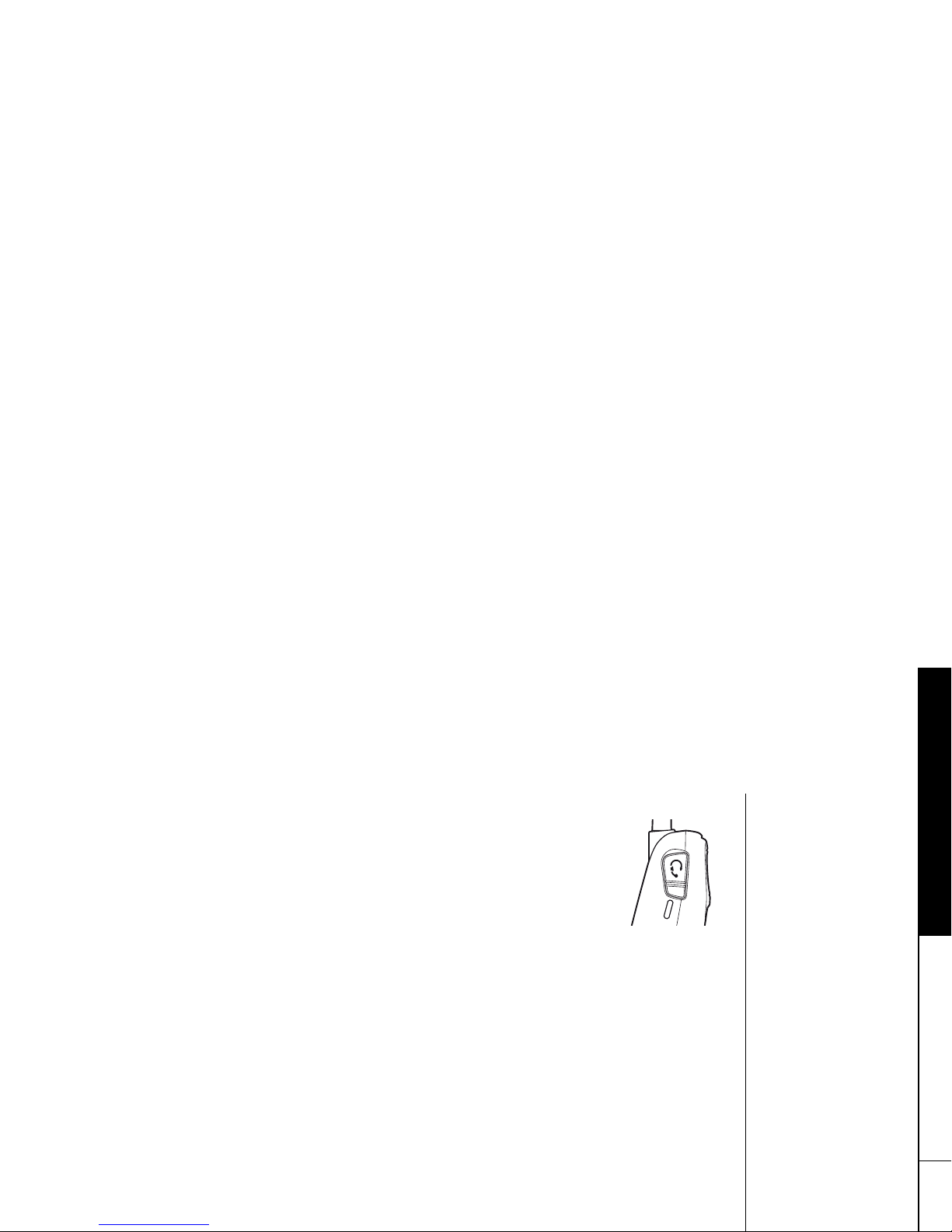

2. Jack for optional headset
3. Beltclip hole
4. Ringer speaker
5. Handset battery compartment
6. Handset earpiece
7. LCD display
8. / /vol/ (earpiece volume, ringer
volume and scroll) key (pages 15, 18 and 21)
9. Call id/menu key (pages 15 and 29)
10. */tone/ key (left cursor)
(pages 21 and 24)
11. Redial/pause key (pages 20 and 26)
12. Select/channel key (pages 15, 22 and 24)
13. Talk/flash key (pages 19 and 23)
14. End key (pages 19 and 21)
15. Memory key (page 24)
16. #/ (right cursor) key (page 24)
17. Delete/transfer key (pages 20 and 31)
18. Handset microphone
19. Handset charging contacts
CONTROLS & FUNCTIONS

CONTROLS & FUNCTIONS [4]
www.uniden.com
Main Base
20
21
32
24
34
33
31
35
38
28
37
36
22
25
23
30
27
29
26
CONTROLS & FUNCTIONS

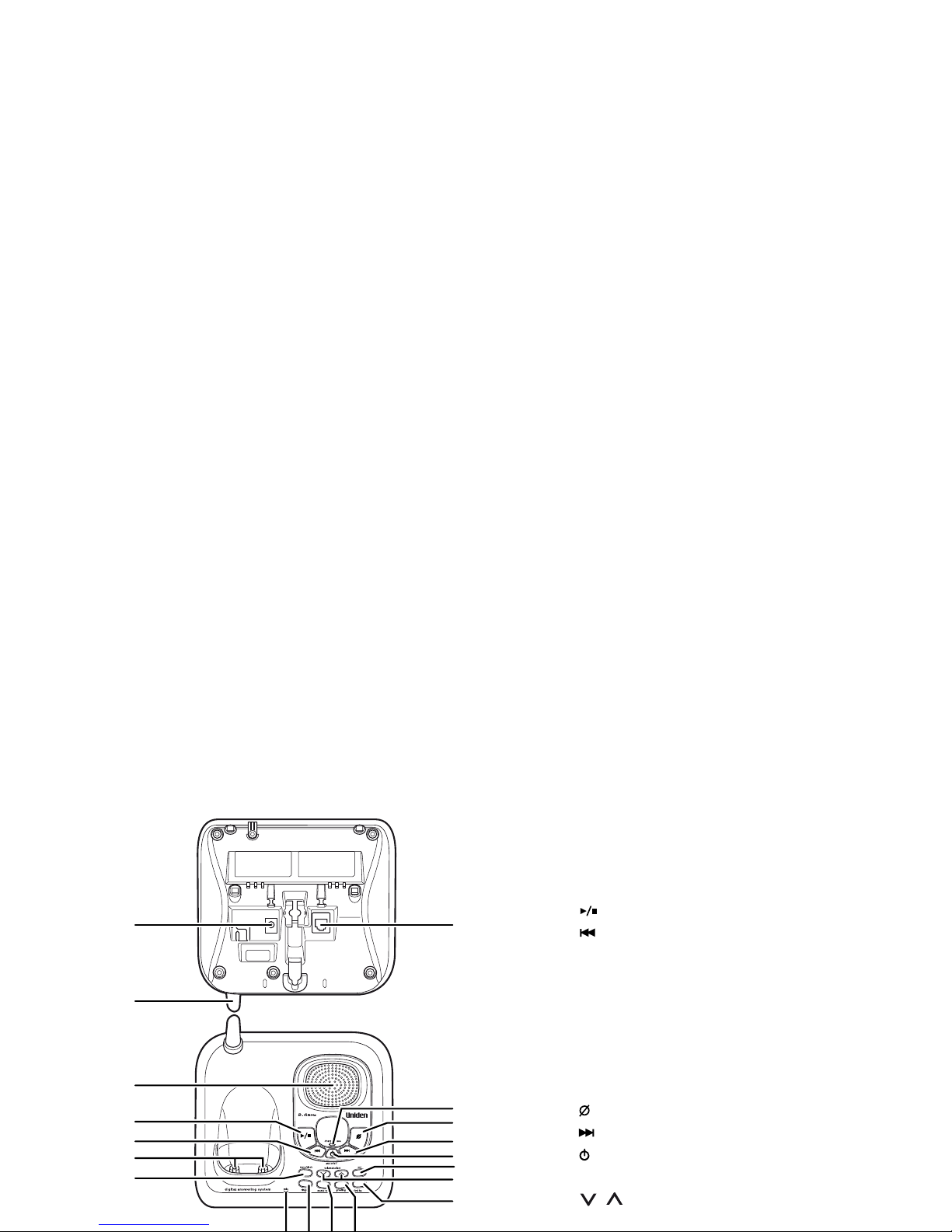

20. DC IN 9V jack
21. Main base antenna
22. Telephone line jack
23. Main base speaker
24. (play/stop) key (pages 42 and 44)
25. (repeat/rewind) key (page 45)
26. Main base charging contacts
27. Menu/clock key (pages 34 and 37)
28. Mic (microphone)
29. Ringer key (page 42)
30. Memo rec (record) key (page 48)
31. Greeting key (page 41)
32. Charge/in use LED
33. (delete) key (page 47)
34. (skip/fast forward) key (page 46)
35. (answer on/off) key (page 43)
36. Set key (page 34)
37. / /volume/select keys
(pages 34 and 42)
38. Find hs (handset) key (pages 22 and 52)

[5] TERMS USED IN THIS MANUAL
www.uniden.com
Extra Charging Cradle for Second Handset
Terms Used in this Manual
• Standby Mode - The handset may be sitting in or off the cradle, but is NOT in use. The talk/flash key has not
been pressed and there is no dial tone.
• Talk Mode - The handset is off the cradle and the talk/flash key has been pressed, enabling a dial tone.
• CID - Caller ID
• CIDCW - Caller ID on Call Waiting
39
40
41
TERMS USED IN THIS MANUAL

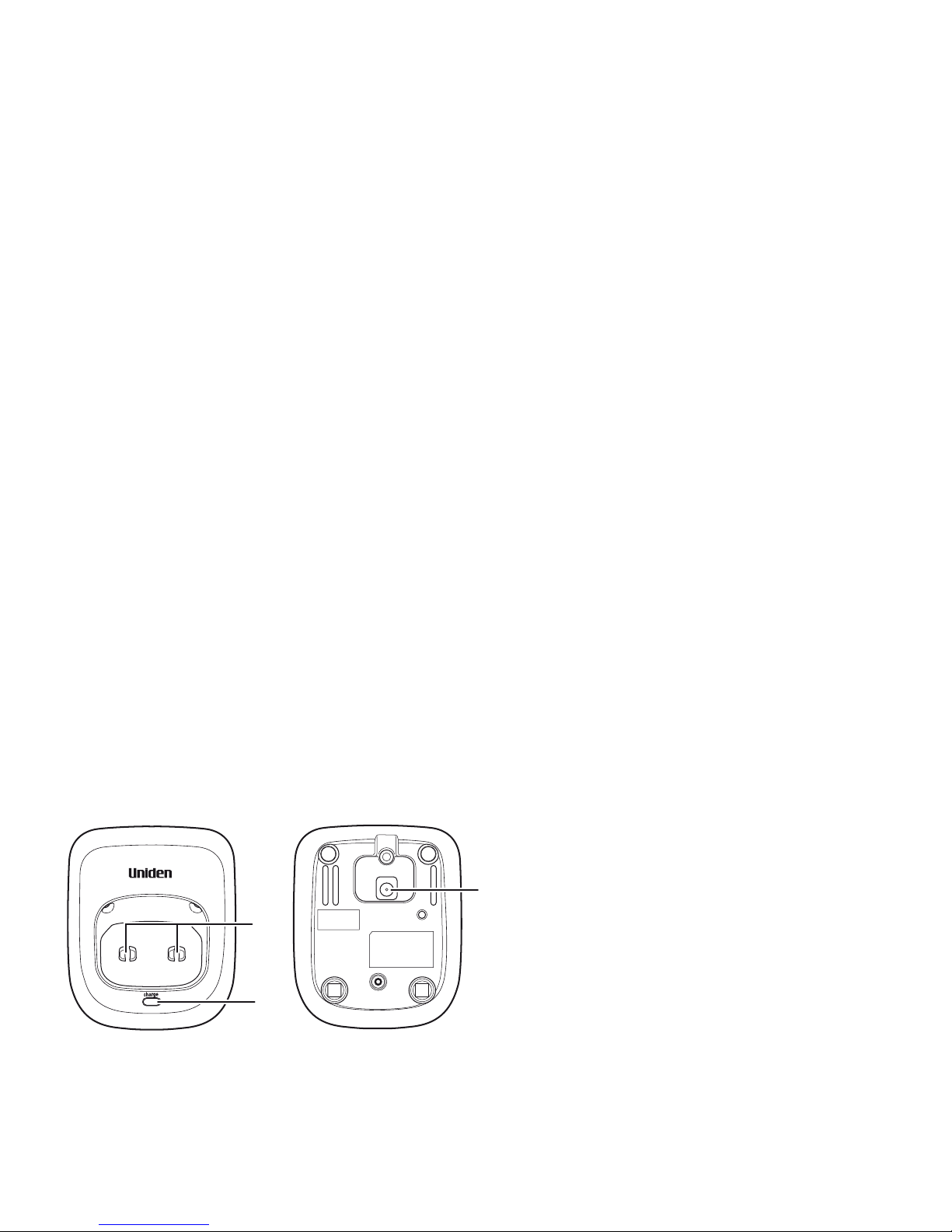

39. Charging contacts
40. Charge LED
41. DC IN 9V jack

ACCESSIBILITY [6]
www.uniden.com
Accessibility
Uniden provides a customer service hotline for accessibility questions. If you have a disability and need customer
service assistance or if you have any questions about how Uniden's products accommodate persons with disabilities,
please call the accessibility voice/TTY line:
1-800-874-9314
A representative is available to talk to you M-F, 8:00 am to 5:00 pm, CST. After hours, you can leave a message, and
we will call you back. Information is also available on our web site, www.uniden.com, under the "Accessibility" link.
ACCESSIBILITY

[7] INSTALLING THE PHONE www.uniden.com
Installing the Phone
Do the following steps:
A. Choose the Best Location
B. Install the Rechargeable Battery Packs into the Handsets
C. Connect the Main Base and Charging Cradle, and Charge the Handsets
D. Mount the Main Base on a Wall
A. Choose the Best Location
When choosing a location for your new phone, here are some important guidelines you should consider:
• The location should be close to both a phone jack and a continuous power outlet (one
which is not connected to a switch).
• The main base and each handset should be kept away from sources of electrical noise such
as motors, microwave ovens, and fluorescent lighting.
• The cradle can be placed on a desk, tabletop, or mounted on a standard wall plate. For
better reception, place the main base as high as possible.
• The main base should be placed in an open area for optimum range and reception.
Avo
id
h
eat sources, suc
h
as ra
di
ators,
air ducts, and sunlight
Avoid television sets and other
electronic equipment
Choose a central location
Avo
id
no
i
se sources suc
h
as a w
i
n
d
ow
b
y
a street with heavy traffic
Avoid microwave ovens
Avoid excessive moisture,
extremely low temperatures, dust,
mechanical vibration, or shock
Avoid personal computers
Avoid other cordless telephones
If your home has
specially wired alarm
equipment connected to
the telephone line, be
sure that installing the
system does not disable
your alarm equipment.
If you have questions
about what will disable
your alarm equipment,
contact your telephone
company or a qualified
installer.
note
INSTALLING THE
PHONE

INSTALLING THE PHONE [8] www.uniden.com
B. Install the Rechargeable Battery Packs into the Handsets
Both handsets are powered by rechargeable battery packs. The
battery recharges automatically when the handset is placed in
the main base or charging cradle.

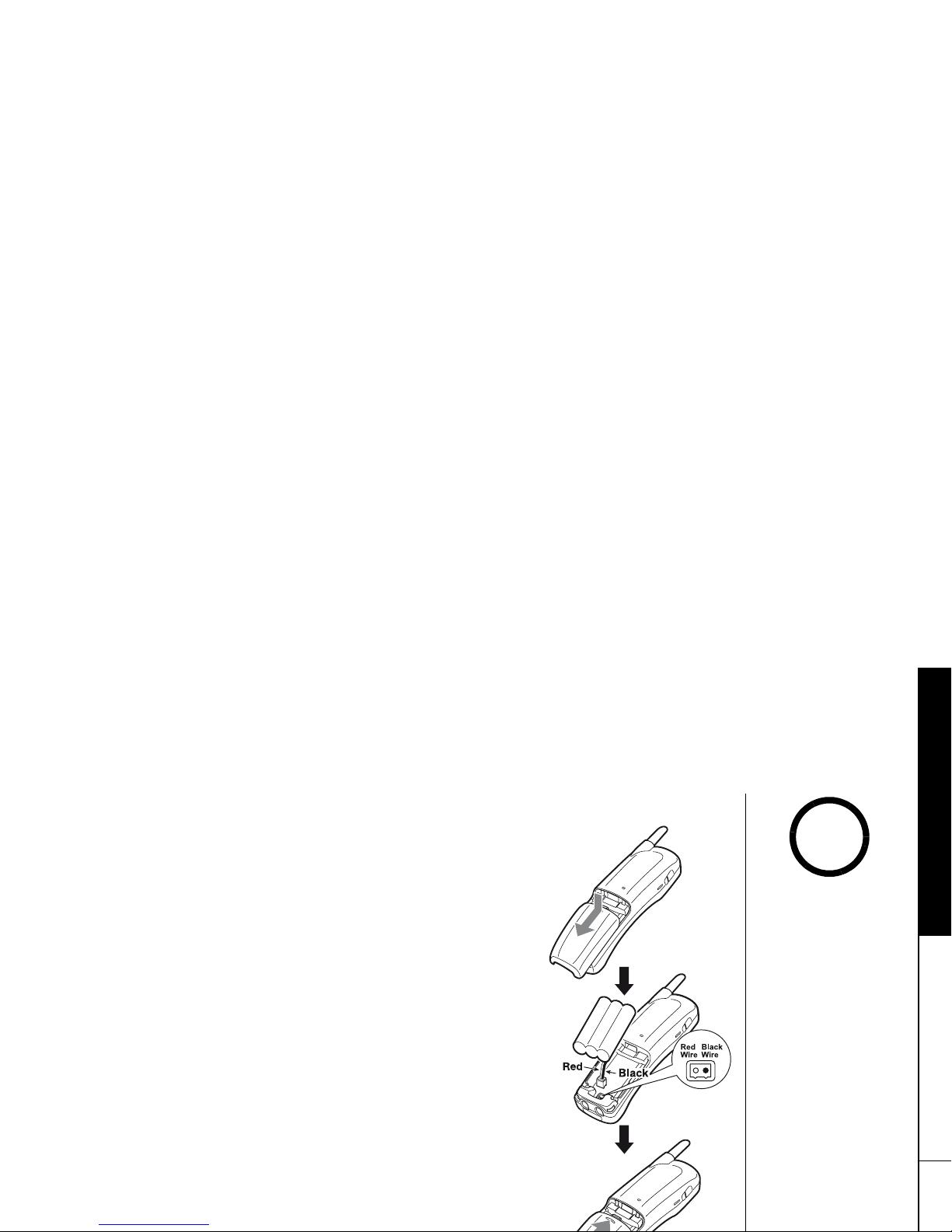

1) Press down on the handset battery case cover (use the finger
indention for a better grip) and slide the cover downward to
remove.
2) Plug the battery pack connector (red & black wires) into the
jack inside the battery compartment.
(The connector notches fit into the grooves of the jack only
one way.) Match the wire colors to the polarity label in the
battery compartment, connect the battery and listen for a
click to insure connection.
3) Make sure you have a good connection by slightly pulling on
the battery wires. If the connection is secure, the battery
jack will remain in place.
4) Place the battery case cover back in the handset by sliding it
upwards until it clicks into place.
Use only the Uniden
(BT-905 or BT-1006)
rechargeable battery
pack supplied with
your cordless
telephone.
!
INSTALLING THE
PHONE

[9] INSTALLING THE PHONE www.uniden.com
C. Connect the Main Base and Charging Cradle,
and Charge the Handsets

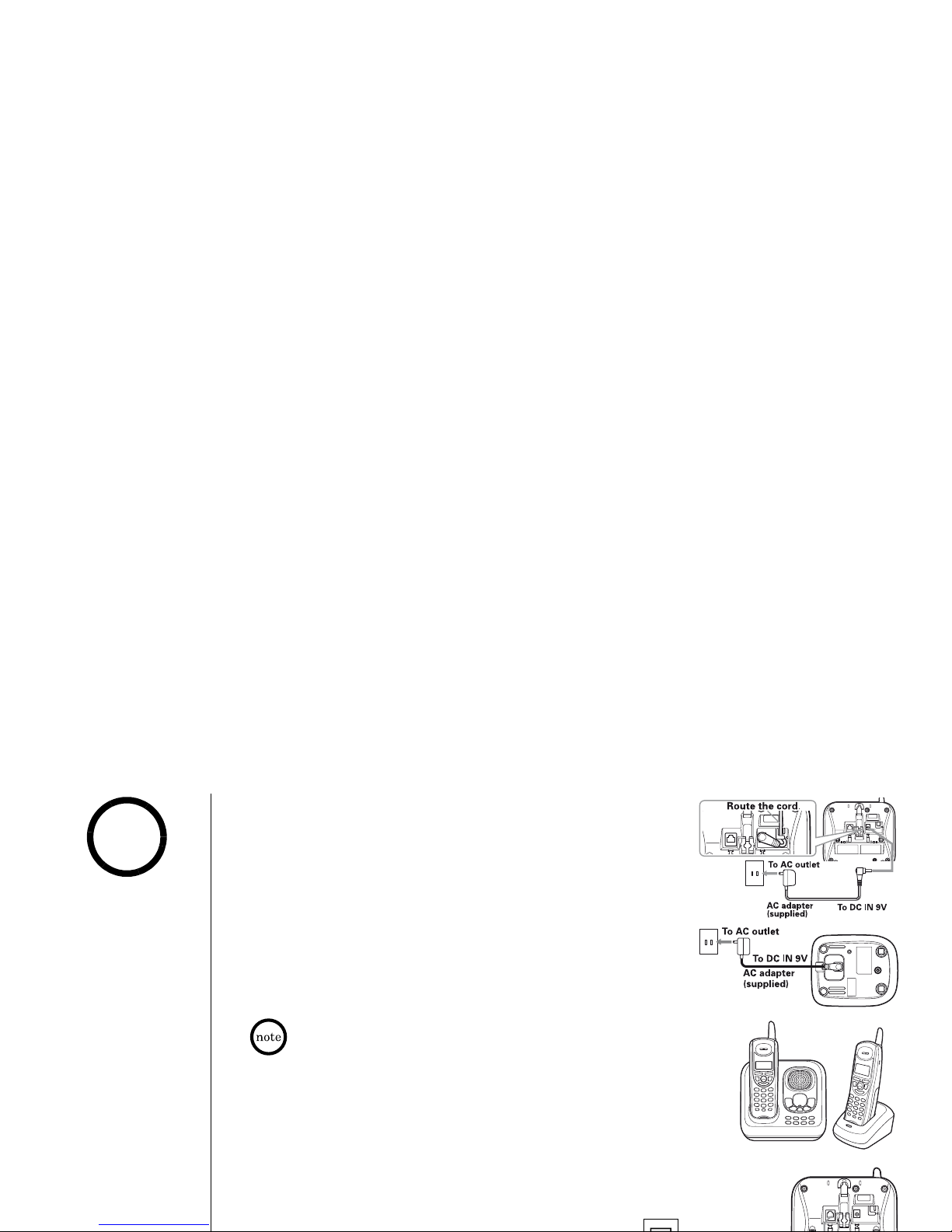

1) Connect the AC adapter to the DC IN 9V jack and to a
standard 120V AC wall outlet.
2) Place one handset in the main base and the other in the
charging cradle with the keypad facing forward.
3) Make sure the charge/in use LED and charge LED illuminate.
If the LED does not illuminate, check to see that the AC adapter is
plugged in and the handset makes good contact with the cradle's
charging contacts.
• Connect each AC adapter to a continuous power supply.
• Place each cradle close to the AC outlet to avoid long
extension cords.
4) Charge your handsets at least 15-20 hours before plugging the
phone line.
5) Once the handset battery packs are fully charged, connect
the telephone line cord to the TEL LINE jack and a telephone
outlet.
If your telephone outlet isn't modular, contact your
telephone company for assistance.
Modular
•Use only the supplied
AD-314 AC adapter
for the main base and
AD-310 or AD-1010
for the charging
cradle.
Do not use any other
AC adapter.
•Do not place the power
cord where it creates a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.
!
INSTALLING THE
PHONE

INSTALLING THE PHONE [10] www.uniden.com
D. Mount the Main Base on a Wall
Standard wall plate mounting
This phone can be mounted on any
standard wall plate.
1) Plug the AC adapter to the DC IN 9V
jack.
2) Route the AC adapter cord through
the molded wiring channel as shown.
3) Plug the AC adapter into a standard
120V AC wall outlet.
4) Plug the telephone line cord into the
TEL LINE jack. Route the cord
through the molded wiring channel
as shown.
5) Plug the telephone line cord into the
telephone outlet.
6) Align the mounting slots on the
main base with the mounting posts
on the wall. Then push in and down
until the phone is firmly seated.
1
4
2
3
5
6
6
INSTALLING THE
PHONE

[11] INSTALLING THE PHONE www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone
directly to the wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting
location that could cause a hazard when inserting screws into the
wall.
• Try to mount your phone within 5 feet of a working phone jack to
avoid excessive cord lengths.
• Make sure the wall material is capable of supporting the weight of
the main base and handset.
• Use #10 screws (minimum length of 1-3/8 inches) with anchoring
devices suitable for the wall material where the main base will be
placed.
1) Insert two mounting screws into the wall, (with their appropriate anchoring device), 3-
15/16 inches apart. Allow about 1/8 of an inch between the wall and screw heads for
mounting the phone.
2) Refer to steps 1 through 6 on page 10 to mount the telephone.
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset. Press down until it clicks.
To remove the beltclip
Pull both sides of the beltclip to release the tabs from the holes.
INSTALLING THE
PHONE

INSTALLING THE PHONE [12] www.uniden.com
Headset Installation
Your phone may be used with an optional headset. To use this feature,
insert the headset plug into the headset jack.
Your phone is ready for hands-free conversations.
(Headsets may be purchased by visiting our website at www.uniden.com or
by calling our Parts Department. See page 53.)
INSTALLING THE
PHONE

[13] REGISTER HANDSETS TO THE MAIN BASE BEFORE USING! www.uniden.com
Register Handsets to the Main Base before Using!
Whichever handset you choose to charge in the main base will automatically register to the
main base.
The second handset (charging in the extra charging cradle) MUST also be registered to the
main base before use. Follow the steps below to register the second handset.
1) Be sure both handsets are fully charged.
2) Remove the handset from the charging cradle, and place it in the main base. The charge/
in use LED light on the main base will begin to flash, indicating that the registration is
taking place.
3) Wait for at least five seconds, then remove the handset from the main base.
4) Press the find hs key on the main base. If both handsets beep, registration is complete. If
one handset does not beep, re-register that handset.
5) Once both handsets are registered, it doesn’t matter which handset is placed in the main
base or the charger.

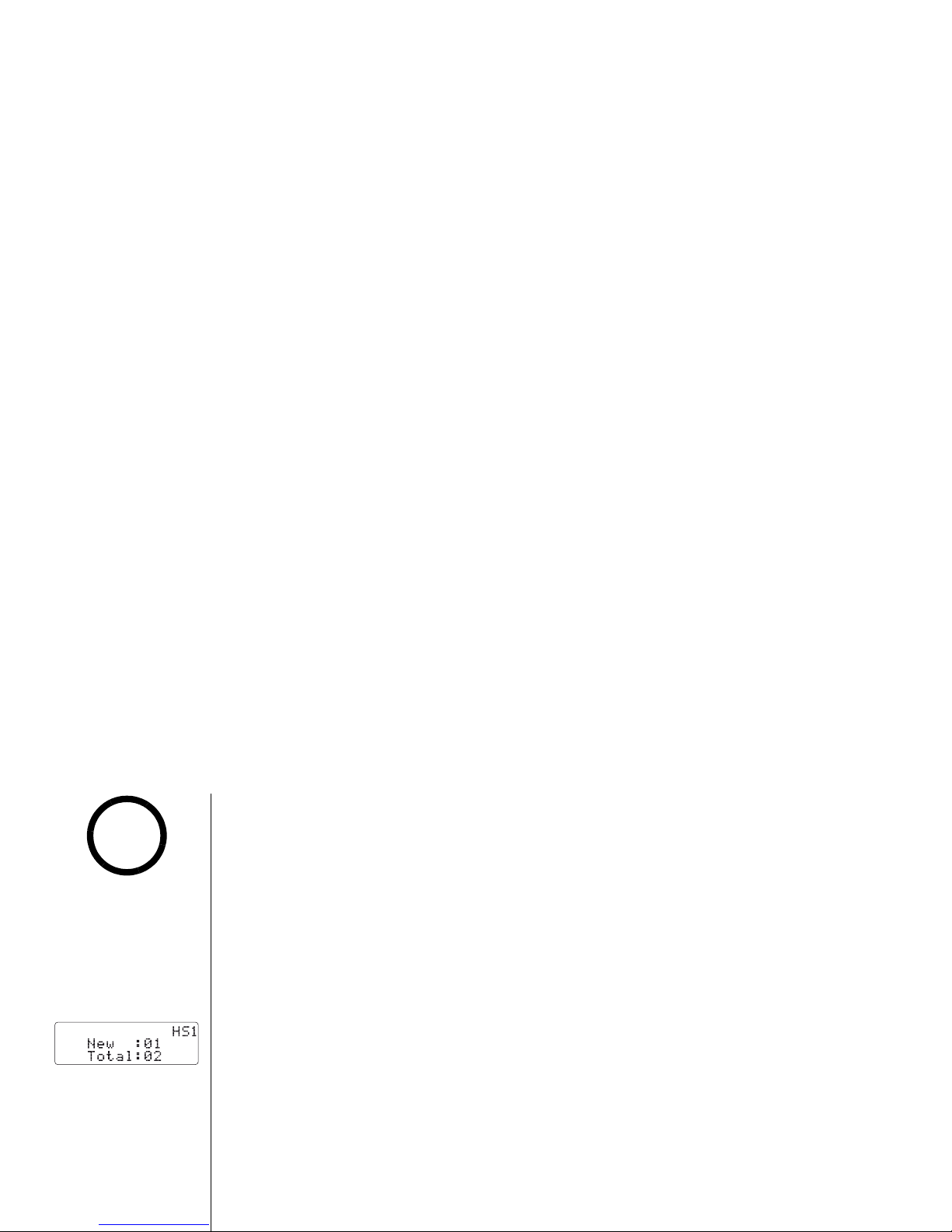

•When you charge the
handsets, Caller ID
summary screen and
the name of the
handset,
HS1 appears.
If
HS2 appears, you
are charging the
handset No. 2.
•The charging cradle
can be used to charge
either handset.
note
REGISTER HANDSETS
TO THE MAIN BASE

WHEN TO RE-REGISTER HANDSETS [14] www.uniden.com
When to Re-register Handsets
1) You’ll need to re-register the second handset (follow steps on page 13) each time the digital
security code is changed. Refer to page 52 for details regarding the Digital Security Code.
2) When there is a power failure for more than one hour:
If power failure occurs (e.g. due to electrical storm or if the unit is unplugged during a
move), both handsets will need to be re-registered. To re-register, follow the same
registration process on page 13.
3) If the second handset’s battery becomes very low, the handset must be recharged for 15-
20 hours and re-registered to the main base.
Make sure to return the
handsets to the cradles
after each phone call.
note
WHEN TO RE-
REGISTER HANDSETS

[15] BASIC SETUP www.uniden.com
Basic Setup
There are five basic options that you will need to set up: AutoTalk, CIDCW (Caller ID on Call
Waiting), Area Code, Dial Mode and Language.
CIDCW and Dial Mode options can only be set by using Handset 1. If you try to set by using
Handset 2, you will not see these options listed on the LCD screen.
(Handset 1 shows HS1 in the display while the phone is charging.)
AutoTalk, Area Code and Language options can be set by using either
Handset 1 or Handset 2.
Activating AutoTalk
AutoTalk allows you to answer the phone simply by removing the handset from the cradle.
You do not have to press any keys.
1) When the phone is in standby mode, press and hold the call id/
menu key. The following screen appears.
2) Press the select/channel key to turn AutoTalk on.
3) Press the end key to complete the setting. The handset returns to
standby mode.
Activating Caller ID on Call Waiting
Caller ID allows you to see the name and number of the calling party before you answer the
phone. Caller ID on Call Waiting (CIDCW) lets you see the name and number of a call that
comes in when you are on the line.
BASIC SETUP

BASIC SETUP [16] www.uniden.com
You must subscribe to Caller ID service through your local telephone provider to use this
feature.

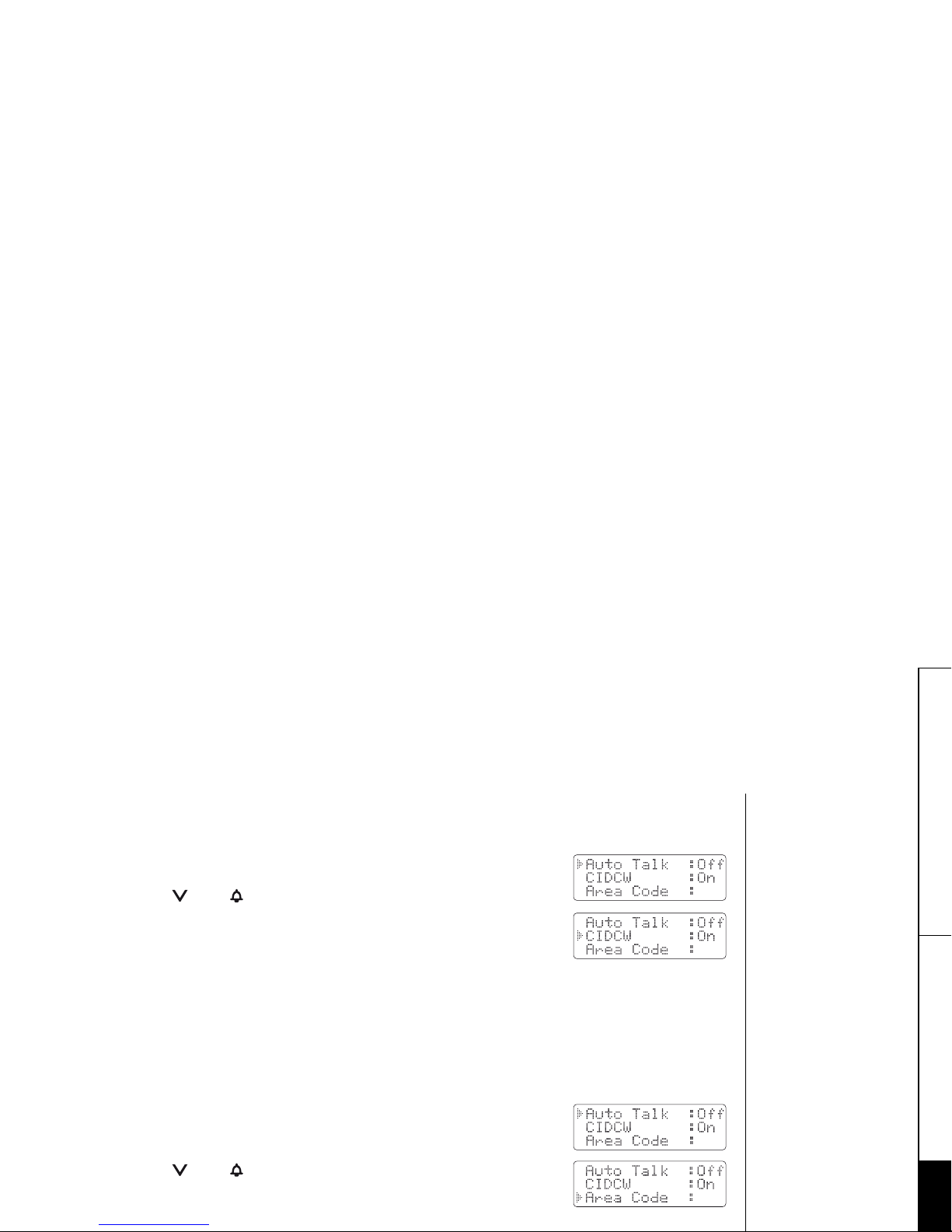

1) When the phone is in standby mode, press and hold the call id/
menu key. The following screen appears.
2) Press the /vol/ key to select
CIDCW .
3) Press the select/channel key to toggle and turn on Caller ID on
Call Waiting.
4) Press the end key and return the handset to the main base to
complete the setting. The handset returns to standby mode.
Entering Your Area Code
If you can make a call by dialing only 7 digits (instead of 10), you can program your local
area code in your phone. If you get a call from within your area code, you'll only see the 7-
digit phone number. If you get a call from outside your area code, you'll see all 10 digits.
1) When the phone is in standby mode, press and hold the call id/
menu key. The following setting screen appears.
2) Press the /vol/ key twice to select
Area Code .
3) Press the select/channel key. If an area code was already stored,
the phone will display it.
BASIC SETUP

[17] BASIC SETUP www.uniden.com
4) Use the number keys (0 - 9) to enter the 3-digit area code. If you
make an error, use the delete/transfer key to backspace.
5) Press the select/channel key. A confirmation tone sounds.
6) Press the end key to complete the setting. The handset returns to standby mode.
Choosing the Dialing Mode
Your phone can communicate with the telephone network in two different ways: tone dialing
and pulse dialing. These days, most phone networks use a method called tone dialing, so
your phone comes programmed for tone dialing.
If your phone company uses pulse dialing, you'll need to change your phone's dial mode.
There's an easy way to tell: try making a call. If your call connects, your phone's setting is
fine. If not, follow the steps below:

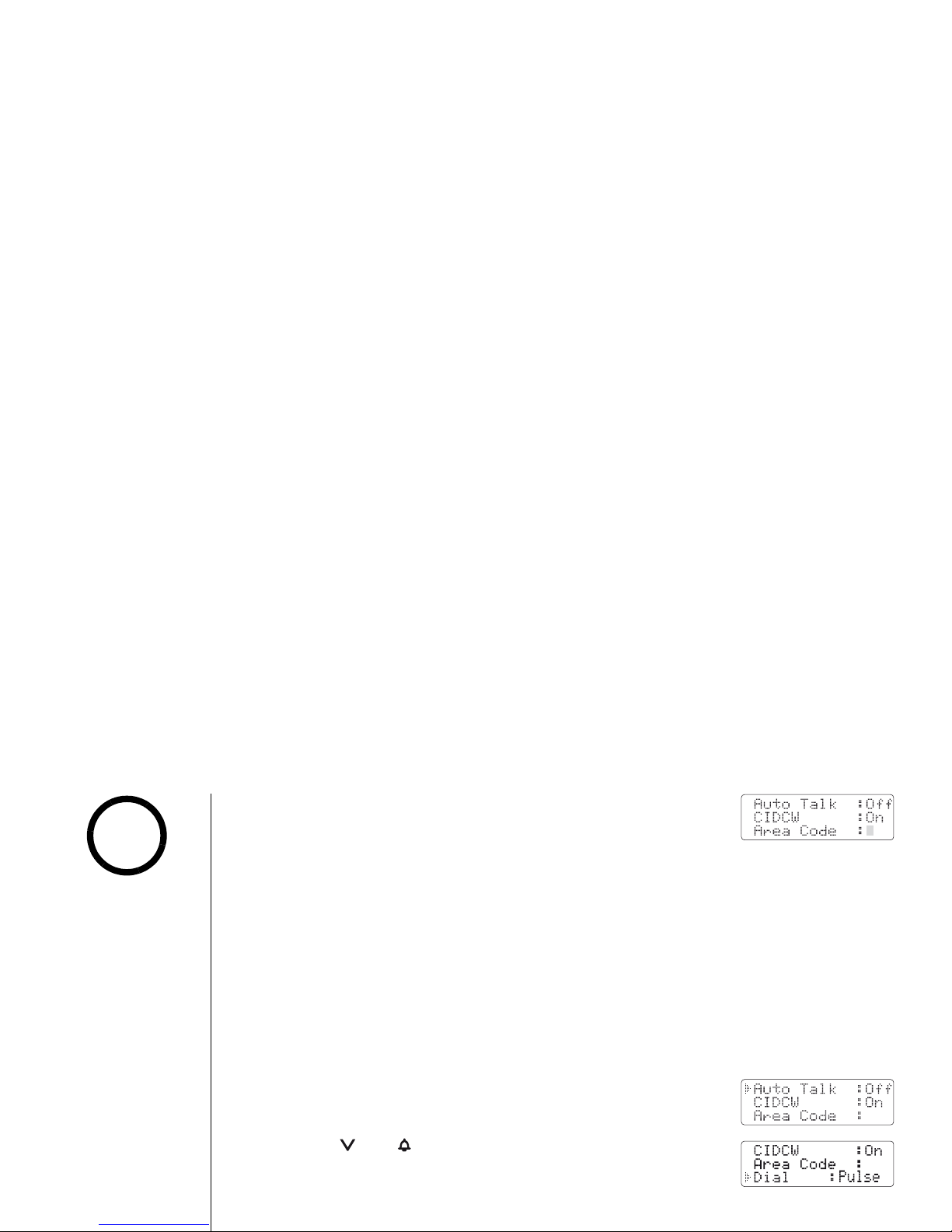

1) When the phone is in standby mode, press and hold the call id/
menu key. The following screen appears.
2) Press the /vol/ key three times to select
Dial .
3) Press the select/channel key to set the phone to pulse dialing.
4) Press the end key and return the handset to the main base to
complete the setting. The handset returns to standby mode.
If your phone system
requires pulse dialing
and you need to send
DTMF tones during a
call, you can
temporarily switch over
to tone dialing. (Refer
to “Tone Dialing Switch-
over” on page 21.)
note
BASIC SETUP

BASIC SETUP [18] www.uniden.com
Setting the Language
You can change the language the menu display uses. Choose from English, French, or
Spanish.
1) When the phone is in standby mode, press and hold the call id/
menu key. The following screen appears.
2) Press the /vol/ key four times to select
Language .
3) Press the select/channel key to select Eng , Fr. or Esp.
4) Press the end key to complete the setting. The handset returns to
standby mode.
Selecting the Ring Tone and Volume
Your phone has five different ringer tone/volume combinations you can choose from.
1) With the phone in standby mode, press the /vol/ or /vol/ key.
2) The phone will sound the different ring tones at different volumes. To turn the ringer off,
select Ringer Off .
3) When the phone sounds the ring tone and volume you wish to use, press the end key.
BASIC SETUP

[19] USING YOUR PHONE www.uniden.com
Using Your Phone
Making and Receiving Calls
Making a call
1) Remove the handset from the cradle.
2) Press the talk/flash key.
3) Listen for the dial tone.
4) Dial the number.
OR
1) Remove the handset from the cradle.
2) Dial the number.
3) Press the talk/flash key.
Receiving a call
1) Remove the handset from the cradle. (If AutoTalk is on, the phone will automatically
answer the call when you pick it up.)
2) Press the talk/flash key.
OR
1) If the handset is off the cradle, press the talk/flash,*/tone/ , #/ or any number
key. (AutoTalk is on.)
Hanging up
Press the end key or return the handset to the cradle.
USING YOUR PHONE
To turn on the AutoTalk
feature, see “Activating
AutoTalk” on page 15.
note
