Uniden EXT 1960 User manual

EXT 1960 3rd 99.8.20 4:49 PM Page 1

Congratulations on your purchase of the EXT 1960 cordless
telephone. This phone is designed for reliability, long life, and
outstanding performance utilizing the latest in 900 MHz Spread
Spectrum technology.
Note: Some illustrations in this manual may differ from the
actual unit for explanation purposes.
• 900 MHz Spread Spectrum Technology
• Caller ID and Call Waiting Caller ID
• 50 Number Caller ID Memory
• Advanced Calling Features
• Message Waiting Indicator
• 3-Line, 16 Character Backlit Handset Display
• 20 Enhanced Memory Dial Locations
• 32 Digit Redial
• 2nd Battery Capability
• Back-up Power Supply with Optional Battery Pack
• 3 Redial Memories
• Pause
• Pulse / Tone Dialing
• Page / Find
• 7 Day Standby Battery Life
• 4 Hour Talk Time
• Handset Earpiece and Ringer Volume Control
• Hearing Aid Compatible
Digital Spread Spectrum Technology utilizes a “wider
frequency band” vs. a “single narrow band” used in standard
digital transmissions. The result is a more secure conversation
with the clarity of digital sound, extended range, and minimal
interference from other cordless phone.
Random Code™ digital security automatically selects one of
over 65,000 codes for the handset and base.
These features enhance your phone’s security and also
prevent unauthorized calls as a result of your phone being
activated by other equipment.
Features
Introduction
EXT 1960 3rd 99.8.20 4:49 PM Page 2

vol
call id menudel
abc def
ghi mno
pqrs tuv wxyz
oper
tone
memory redial/p select voice
mail
jkl
12 3
45 6
78 9
0#
talk call
waiting
open
backup battery
page/find
messages
status
DIGITAL
SPREAD
SPECTRAM 900MHz
1
2
3
4
5
22
23
24
6
7
8
9
10
13
11
12
15
16
17
20
21
19
18
14
27
25
26
28

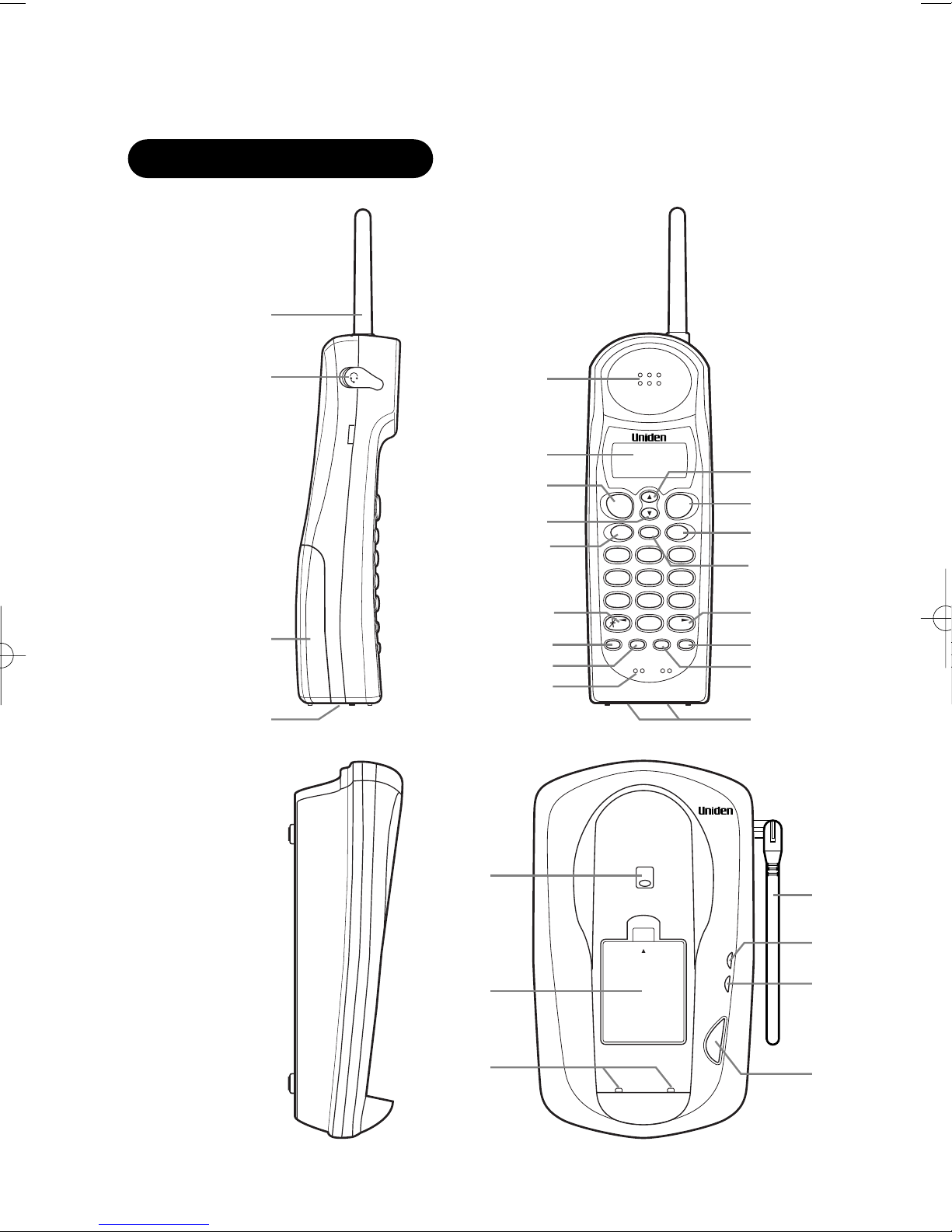

Controls and functions
EXT 1960 3rd 99.8.20 4:49 PM Page 3

29 30 31
1. Handset antenna
2. Headset jack cover
3. Handset battery compartment
4. Ringer off-on switch
5. Handset earpiece
6. LCD display
7. Talk key
8. Volume/Cursor down key
9. Call ID key
10. Tone/Backspace key
11. Memory key
12. Redial/Pause key
13. Handset microphone
14. Volume/Cursor up key
15. Call Waiting key
16. Menu key
17. Delete key
18. Cursor forward key
19. Voice mail key
20. Select key
21. Handset charging contacts
22. Handset clip storage
23. Spare battery charge compartment
24. Base charging contacts
25. Base antenna
26. Status LED
27. Messages LED
28. Page/Find key

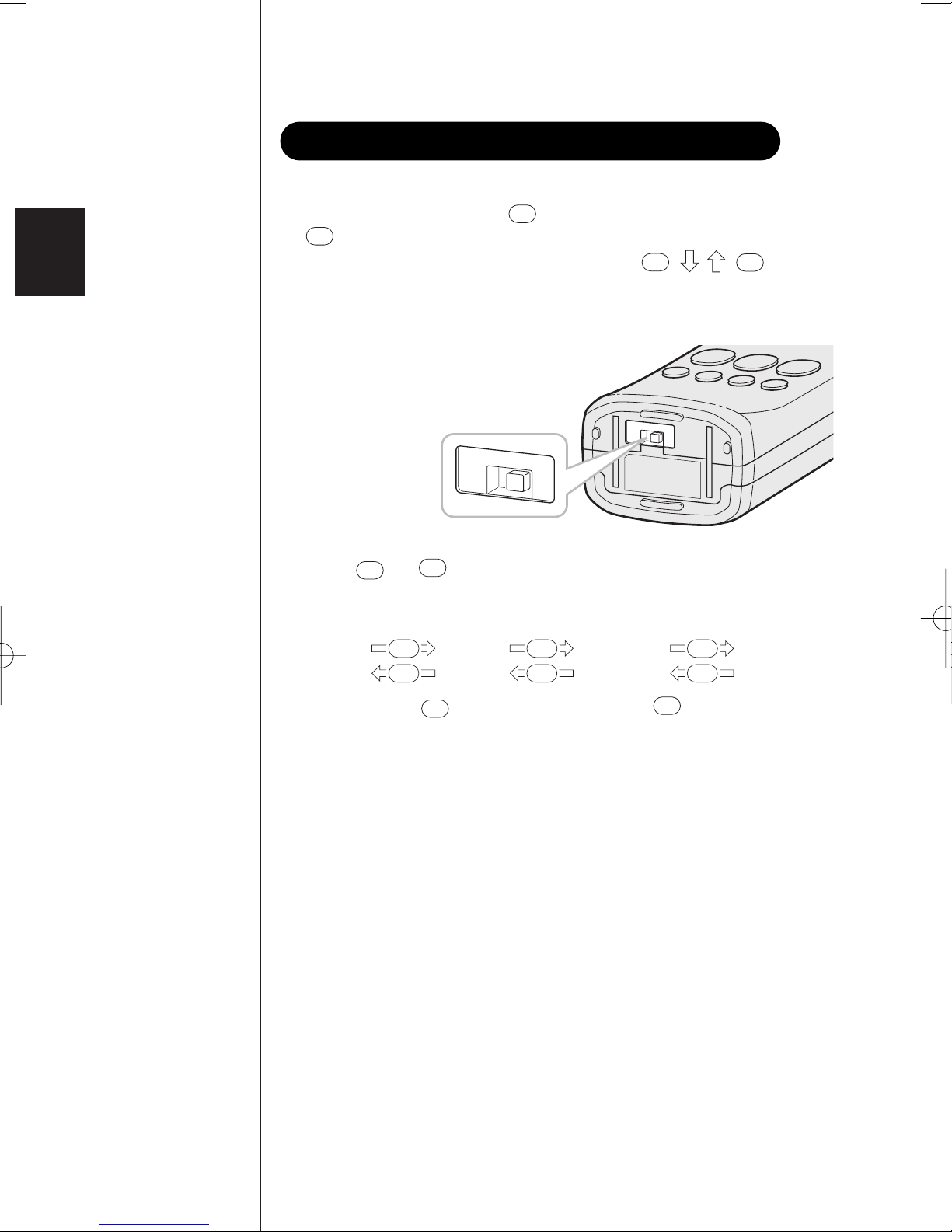

29. Pulse-Tone switch
30. DC power input
31. Phone jack
EXT 1960 3rd 99.8.20 4:49 PM Page 4

Introduction / Features...............inside front cover
Controls and Functions ..............inside front cover
Getting Started
Read this first..........................................................2
Step 1: Checking the package contents ...............3
Step 2: Setting up the base unit ...........................4
Mounting the base unit on a wall ...........7
Step 3: Preparing the battery pack.......................9
Basics
Making a call ........................................................11
Receiving a call ....................................................13
Adjusting the ringer and earpiece volume .........14
Redialing a call .....................................................15
Telephone features
Memory dialing
Storing phone numbers and names .................17
Making calls with memory dialing ...................19
Editing a stored name and/or
phone number ...................................................21
Erasing a stored name and phone number .....23
Advanced Calling Features ..................................24
Paging ...................................................................25
Caller ID features
Caller ID................................................................26
When the telephone rings ...................................27
Viewing the Caller ID Message list .....................28
Deleting information from the Caller ID list ......29
Using the Caller ID list ........................................31
Using Caller ID on Call Waiting service .............33
Additional Information
Changing the digital security code......................34
Installing the beltclip............................................35
Headset installation ..............................................35
Note on power sources .......................................36
Maintenance..........................................................36
Troubleshooting ................................................37
Specifications .....................................................38
Index ....................................................................39
Contents
Getting Started
Basics
Telephone
features
Caller ID
Features
Additional
Information
CONTENTS
EXT 1960 3rd 99.8.20 4:49 PM Page 5

2

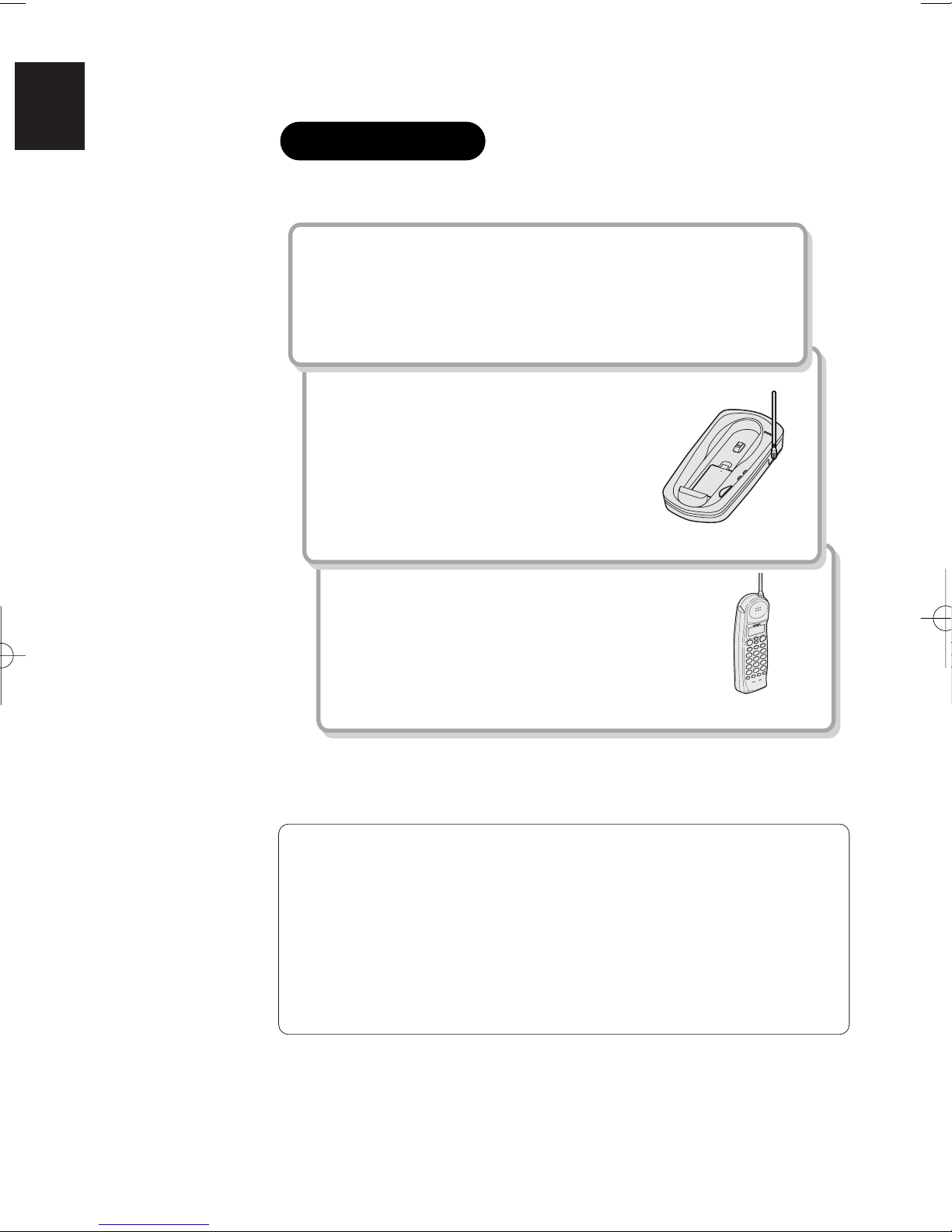

This cordless telephone must be set up before use. Follow these steps;
Step 1 (page 3)
Unpack and check the telephone and accessories.
Step 2 (page 4 to 8)
Next, choose the best location to set
up the base unit.
Base unit
open
backup battery
page/find
messages
status
DIGITAL
SPREAD
SPECTRAM
900MHz
Step 3 (page 9 to 10)

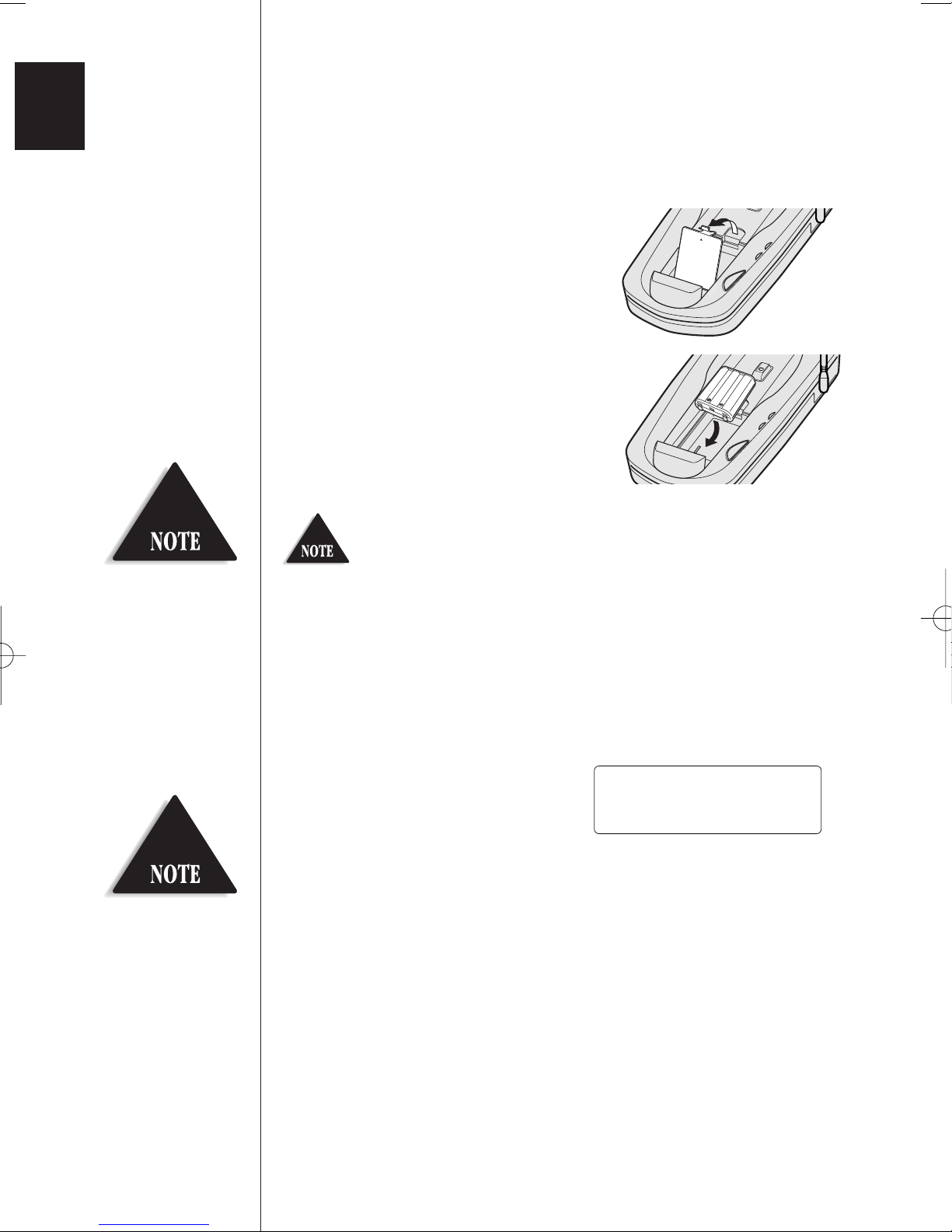

Then, insert the battery pack into the handset.
You must to charge the battery pack for more
than 17 hours before using the phone.
Handset
About the digital security code
This cordless telephone uses a digital security code to prevent
unauthorized access to your base unit. This security code prevents
other cordless handsets from making calls through your base unit.
A random security code will be assigned automatically between
your base unit and handset when you charge the battery pack for
the first time.
If you want to reset the security code, see page 34.
Read this first
GETTING STARTED
EXT 1960 3rd 99.8.20 4:49 PM Page 6

3
Make sure you have received the following items in the package.
• Base unit • Handset • AC adapter (AD-420)
• Rechargeable
battery pack
(BT-999) (2)
• Telephone line
cord (2)
• Wall mount adapter
• This Owner's Manual
• Precautions and Important Safety Instructions
• Guide to Using Advanced Calling Features
open
backup battery
page/find
messages
status
DIGITAL
SPREAD
SPECTRAM
900MHz
Checking the package contents
• Beltclip
Uniden Parts Department
[phone]
Hours: M-F 8:00 AM to 5:00 PM CST.
We can also be reached on the web at www.uniden.com.
EXT 1960 3rd 99.8.20 4:49 PM Page 7

4
Do the following steps.
• Choose the best location
• Connect the base unit
• Choose the dialing mode
Choose the best location
Before choosing a location for your new phone, read the
INSTALLATION CONSIDERATIONS included in the PRECAUTIONS
AND IMPORTANT SAFETY INSTRUCTIONS brochure. Here are some
important guidelines you should consider:
• You should charge your handset for more than 17 hours before
attaching to a phone line and using the phone.
• The location should be close to both a phone jack and a continuous
power outlet which is not switchable.
• Keep the base and handset away from sources of electrical noise
such as motors and fluorescent lighting.
• Be sure there is sufficient space to raise the base antenna
fully vertical.
• The base can be placed on a desk, tabletop or mounted on a
standard wall plate.
Avoid heat sources, such as
radiators, air ducts, and sunlight
Avoid television sets
and other electronic
equipment
Avoid noise sources such as a window
by a street with heavy traffic
Avoid microwave ovens
Avoid excessive
moisture, extremely low
temperatures, dust,
mechanical vibration, or
shock
Avoid personal
computers
Avoid other cordless
telephones
Choose a central location
Setting up the base unit
EXT 1960 3rd 99.8.20 4:49 PM Page 8

5

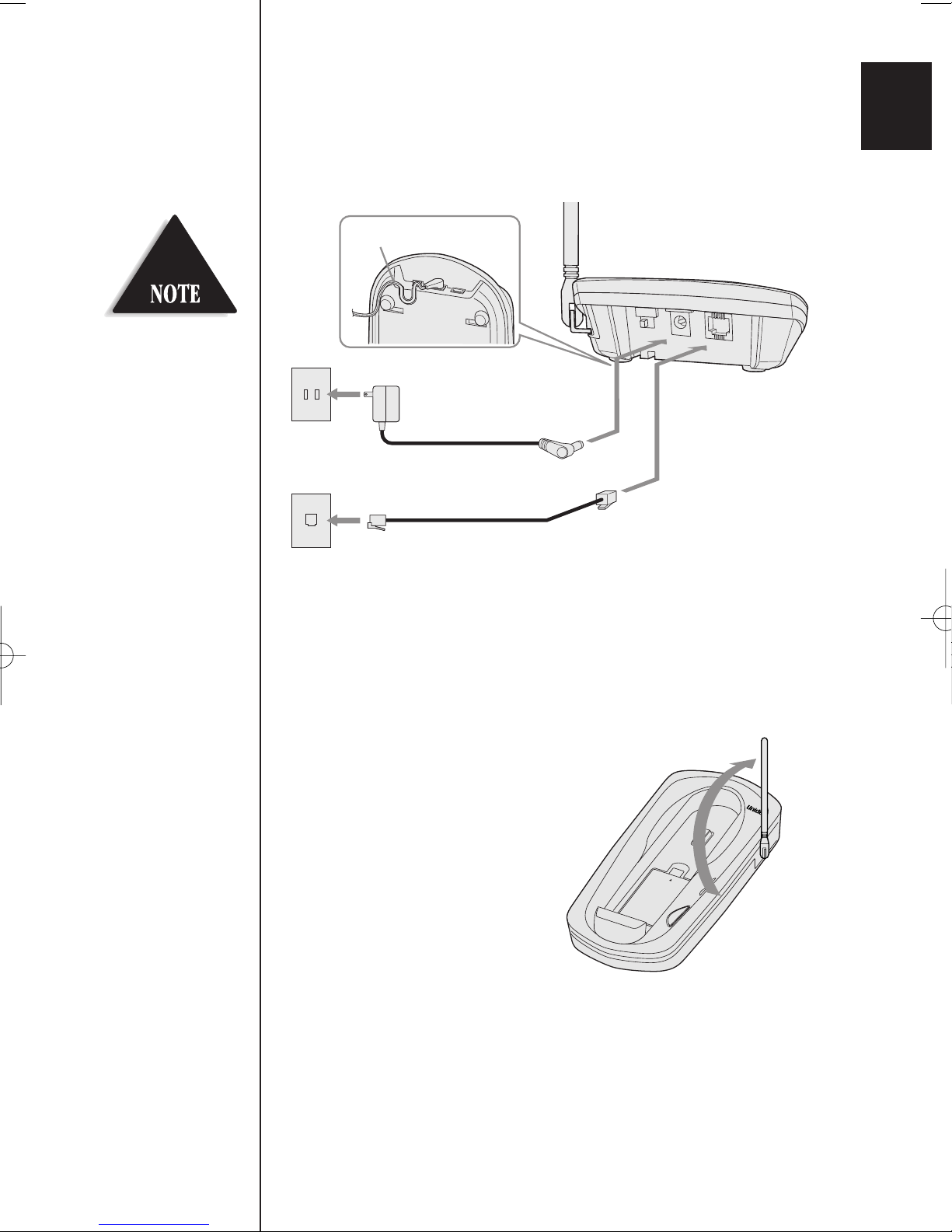

Connect the base unit
If you want to install the base unit on the wall, see page 7.
Route the cord.
To AC outlet
To telephone outlet
To TEL LINE
To DC IN 9V
AC adapter
(supplied)
Telephone line cord
(supplied)
1
2
Place the power cord so it
does not create a trip
hazard, or where it could
become chafed and create
a fire or electrical hazard.
1Connect the telephone line cord to the TEL LINE jack and to
a telephone outlet.
2Connect the AC adapter to the DC IN 9V jack and to a
standard 120V AC wall outlet.
3Set the base unit on a desk or
tabletop and place the handset
on the base unit.
Then raise the antenna to a
vertical position.
open
backup battery
page/find
messages
status
DIGITAL
SPREAD
SPECTRAM
900MHz
EXT 1960 3rd 99.8.20 4:49 PM Page 9

6
Use only the supplied AD-420 AC
adapter. Do not use any other AC
adapter.
Connect the AC adapter to a
continuous power supply.
Place the base unit close to the
AC outlet so that you can unplug the
AC adapter easily.
If your telephone outlet isn't modular,
contact your telephone company for
assistance.
Polarity of the plug
Modular
Choose the dialing mode
Depending on your dialing system, set the PULSE-TONE switch as
follows:
If your dialing system is Set the switch to
Tone TONE
Pulse PULSE
If you aren't sure of your dialing system
Make a trial call with the PULSE-TONE switch set to TONE .
If the call connects, leave the switch as is; otherwise, set to
PULSE .
PULSE TONE
EXT 1960 3rd 99.8.20 4:50 PM Page 10

7
Standard wall plate mounting
This phone can be mounted on any standard telephone wall
plate.

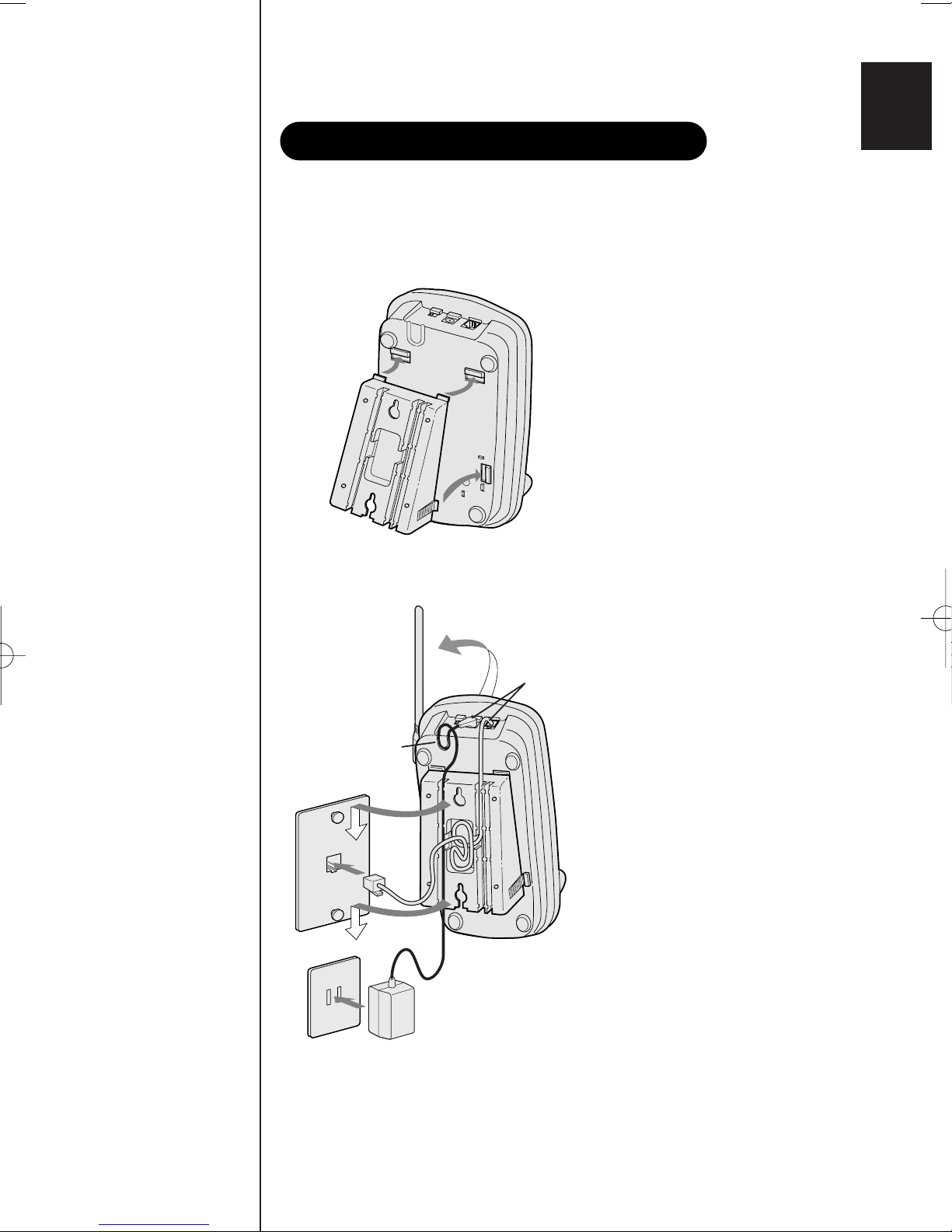

Mounting the base unit on a wall
1Snap the wall mount
adapter into the
notches on the base.
2Plug the telephone
line cord to the
TEL LINE jack and the
AC adapter to the
DC IN 9V jack.
3Plug the telephone
line cord into the
telephone outlet.
4Wrap the AC adapter
cord inside the
molded wiring
channel. Then wrap
the cord around the
strain relief notch.
5Plug the AC adapter
into a standard
120V AC wall outlet.
6Raise the antenna to a
vertical position.
7Align the mounting
slots on the base. with
the mounting posts on
the wall. Push in and
down until the phone
is firmly seated.
1
2
6
4
7
7
3
5
AC adapter
Wall plate
AC outlet
2 - 7
EXT 1960 3rd 99.8.20 4:50 PM Page 11

8

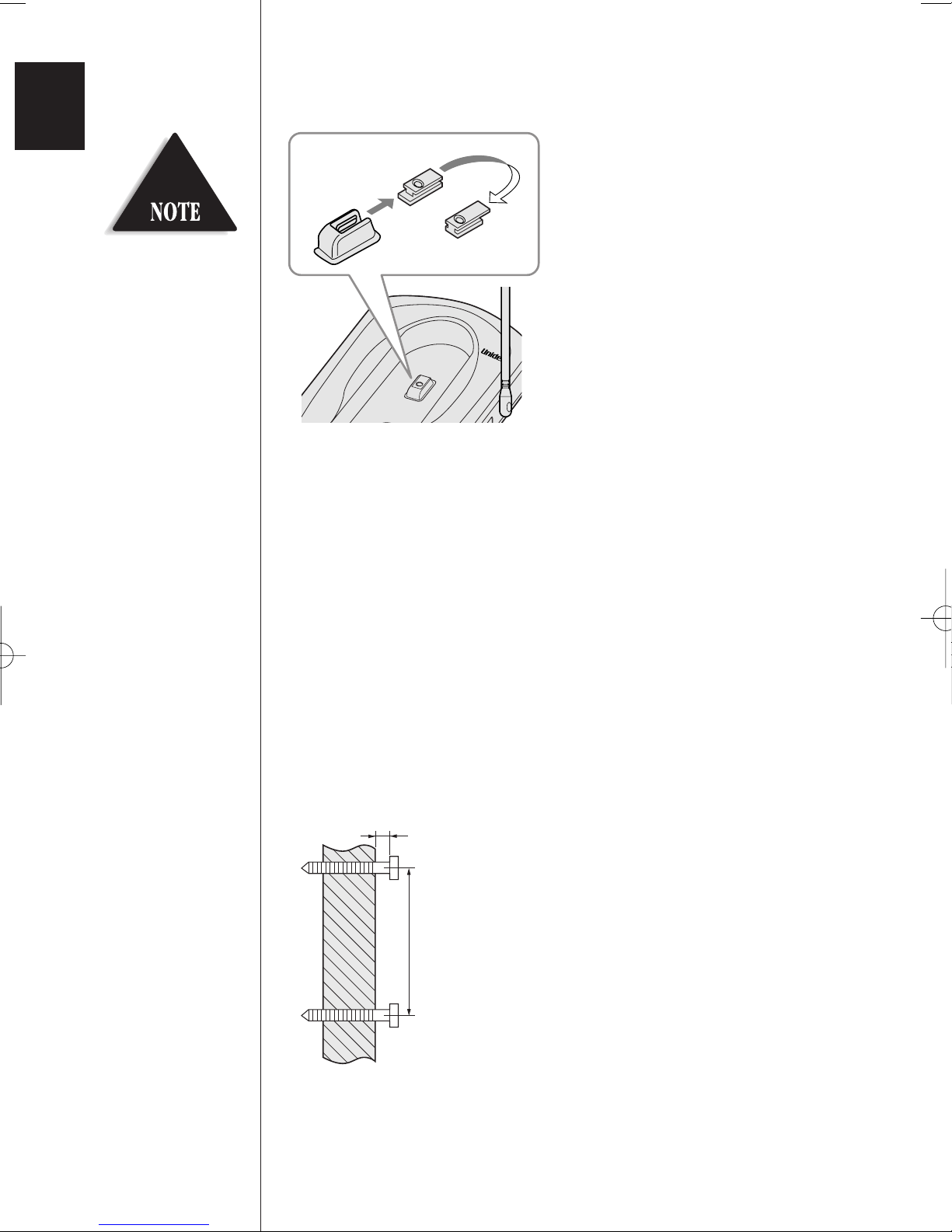

Direct wall plate mounting
If you don't have a standard wall plate, you can mount your phone
directly to the wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting
location, that could cause a hazard when inserting screws into
the wall.
• Try to mount your phone within 10 - 15 feet of a working phone
jack to avoid excessive cord lengths.
• Make sure the wall material is capable of supporting the weight of
the base and handset.
• Use #10 screws with anchoring devices suitable for the wall
material where the base unit will be placed.
1Insert two mounting screws
into the wall, (with their
appropriate anchoring device),
3-15/16 inches apart. Allow
about 3/16 of an inch between
the wall and screwheads for
mounting the phone.
2Refer to steps 1 through 9 on
page 8 and 9 to mount the
telephone.
TOP
3/16 in.
3-15/16 in.
8On the base unit, pull the
handset retainer out of the slot.
Rotate it clockwise 180 degrees.
9Flip the retainer from front to
back. Slide it back into the slot
so that the lip of the retainer is
up and the oval is down. The
retainer holds the handset
in place.
DIGITAL
SPREAD
SPECTRAM
900MHz
Handset retainer
If the handset beltclip is
attached, you cannot
charge the handset with
the display showing when
the phone is mounted on
the wall (See page 35).
EXT 1960 3rd 99.8.20 4:50 PM Page 12

9
Charge the battery pack for more than 17 hours before you start
using your phone.
1Press in on the battery cover
release and slide the cover
down until it comes off.
2Install the nickel-cadmium
battery with the label facing
down.
3Slide the battery cover on
until it snaps into place.
4Place the handset on the
base.
5Make sure that the “ status ”
LED lights. If the LED
doesn’t light, check to see
that the AC adapter is
plugged in and that the
handset makes good contact
with the base charging
contacts.
open
backup battery
page/find
messages
status
DIGITAL
SPREAD
SPECTRAM
900MHz
status LED
Label face
Preparing the battery pack
Use only Uniden Battery (BT-999) supplied with your
phone.
EXT 1960 3rd 99.8.20 4:50 PM Page 13

10
Battery use time (per charge)
From fully charged
• Four hours continuous use.
• Seven days when the handset is in the standby mode.
When the battery charge becomes low
When the voltage of battery pack
in the handset is very low and
needs to be charged, the phone is
programmed to eliminate
functions in order to save power. If the phone is not in use,
“Low Battery” flashes and none of the keys will operate. If the
phone is in use, “Low Battery” flashes and the handset beeps.
Complete your conversation as quickly as possible and return the
handset to the base unit for charging.
Cleaning the battery contacts
To maintain a good charge, it is important to clean the battery
contacts on the handset and base unit about once a month. Use a
pencil eraser or other contact cleaner.
Do not use any liquids or solvents.
Even when the battery
pack is not being used, it
will gradually
discharge over a long
period. For optimum
performance, be sure to
return the handset to the
base unit after a
telephone call for
charging the battery.
Rechargeable batteries
have a memory effect that
reduces standby and talk
time. To avoid this
memory effect, on a
monthly basis, use the
phone until
“Low Battery”
appears on the LCD. Then
charge the battery for
more than 17 hours.
Charging optional battery packs
The base unit of your phone is equipped with a compartment for
charging an extra battery pack for use in your handset.
1. Pull the cover of battery charger.
2. Put the battery pack in the
compartment with contacts
facing down.
3. Replace the charger cover.
4. Charge the battery for more than
28 hours.
page/find
messages
status
open
backup battery
In the event of a power failure, your spare battery pack
can be used as a back-up power supply for the base unit.
Low Battery
page/find
messages
status
z
EXT 1960 3rd 99.8.20 4:50 PM Page 14

3The number is dialed. After
about 5 seconds, the call-time
display appears.
4To hang up, press or
place the handset on the base.
The call-time will be displayed
for about 5 seconds.
11

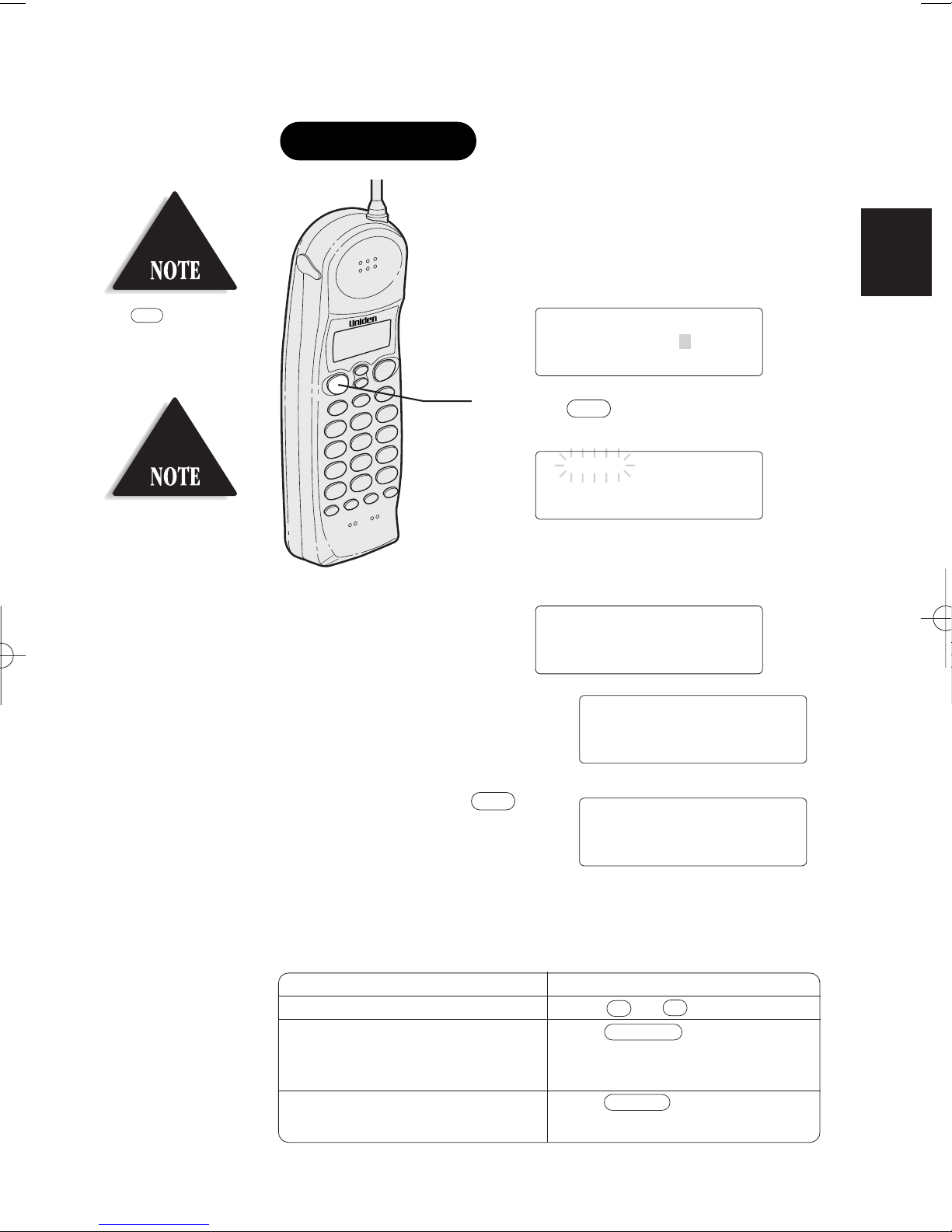

On-hook dialing
1Enter the phone number. (Up to 32
digits.)
Example: Enter 8178583300
2Press . “Talk” flashes on the
display.
Then the volume setting is displayed.
For example, if the volume is set to
high the display shows:
You must press a key
within 20 seconds or the
phone will return to
standby.
Other Operations
To Do this
To adjust the earpiece volume Press or during the call.
To temporarily switch to tone dial Press . The following
(When the base is set to pulse numbers dialed will be sent as
mode) tone dialing.
To enter a pause in the dialing Press .
sequence
ª
•
/tone/ 0
*
Making a call
talk
BASICS
redial/p

8178583300
Talk
8178583300
Talk 
<High>
Talk 0:00
8178583300
5:15
talk
Press if you enter a
wrong number at the
step 1.
del
EXT 1960 3rd 99.8.20 4:50 PM Page 15

12

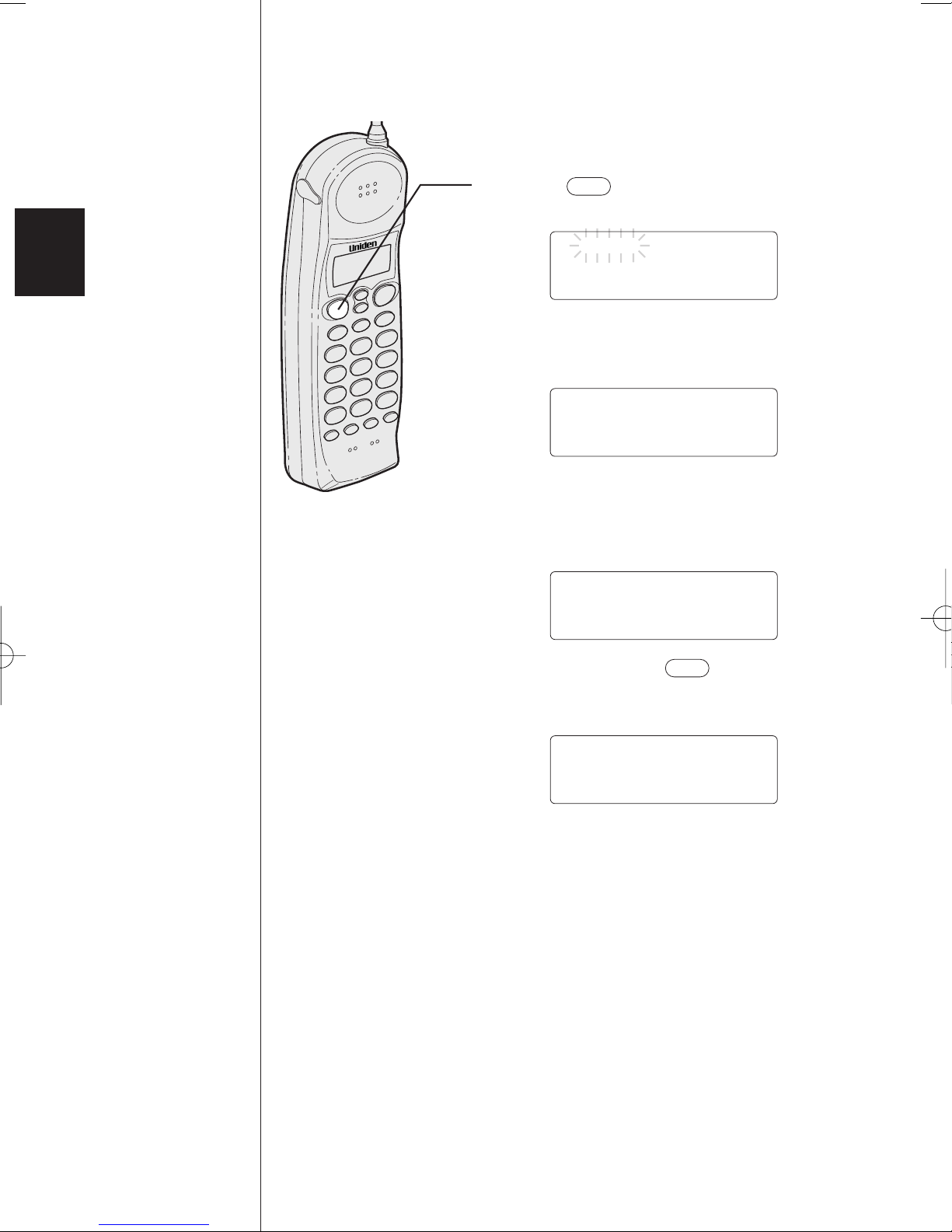

Off-hook dialing
1Press . “Talk” flashes on the
display.
Then the volume setting is displayed.
For example, if the volume is set to high
the display shows:
The call-time display appears.
2Dial the phone number.
Example: Enter 8178583300
3 To hang up, press or place the
handset in the base
. The call-time will be
displayed for about 5 seconds.
talk
Talk
Talk 
<High>
talk
Talk 0:17
8178583300
10:03
EXT 1960 3rd 99.8.20 4:50 PM Page 16

13
1Phone rings.
2Press . “ Talk” and volume
setting appears on the display.
3Talk with the caller.
4To hang up, press or place
the handset on the base. The call
time will be displayed for about 5
seconds.
•
ª
Receiving a call
talk
talk

Calling
Talk 0:02
Talk 0:00
<Normal>
115:35
AutoTalk when ringing
When the AutoTalk setting is on and there is an incoming call,
simply lift the handset from the base unit to answer the phone.
See “Setting Caller ID options” on page 26 for more details.
Any key answer when ringing
When the AutoTalk setting is on, and the handset is off the base,
press any handset key to answer the incoming call.
To cancel a page
To cancel paging, press any of the handset keys while the handset
is beeping. (See page 25.)
Call Waiting
Note: You must subscribe to Call Waiting service to use this feature.
When a call is received during a telephone call already in progress,
press to switch to the new call.
If you also subscribe to Call Waiting on Caller ID, you will see the
name and number of the caller in call waiting. (See page 33.)
call waiting
EXT 1960 3rd 99.8.20 4:50 PM Page 17

14
Adjusting the ringer and earpiece volume
Ringer volume
In the standby mode, press
or on the handset to set the
handset ringer volume.
There are two ringer volume
settings; High and Low.
Ringer on/off switch
This switch turns the handset
ringer on or off.
Earpiece volume
Pressing or during a telephone call will change the earpiece
volume of the handset. This setting will remain in effect after the
telephone call has ended.
When you press in Loud mode or press in Normal mode,
error sound beeps.
•
Ringer High
Ringer Low
ª •
<High> <Medium><Loud> ª
•
ª
•
ª
•
<Normal>
ª
•
ª
•
ª
ringer
off on
ringer
off on
EXT 1960 3rd 99.8.20 4:50 PM Page 18

15
The last three phone numbers dialed can be quickly redialed.
Redialing a call
On-hook redialing
1Press .
The phone number that was last
dialed appears on the display.
2Press again.
Each press of will display
one of the last three numbers dialed.
3Press . “Talk” appears
flashing on the display, then the
volume setting is displayed.
4Then the selected number is dialed.
After about 5 seconds, the call-time
display appears.
5 To hang up, press or place the
handset on the base
.
The call-time will be displayed for
about 5 seconds.
<Redial1>
8178583300
redial/p
redial/p
redial/p
<Redial2>
2145551234
<Redial3>
9725554321
talk
redial/p
redial/p
redial/p
Most
recent
talk
talk
If the recently dialed
number exceeds 32 digits,
only the first 32 digits are
retained for redialing.
EXT 1960 3rd 99.8.20 4:50 PM Page 19

16

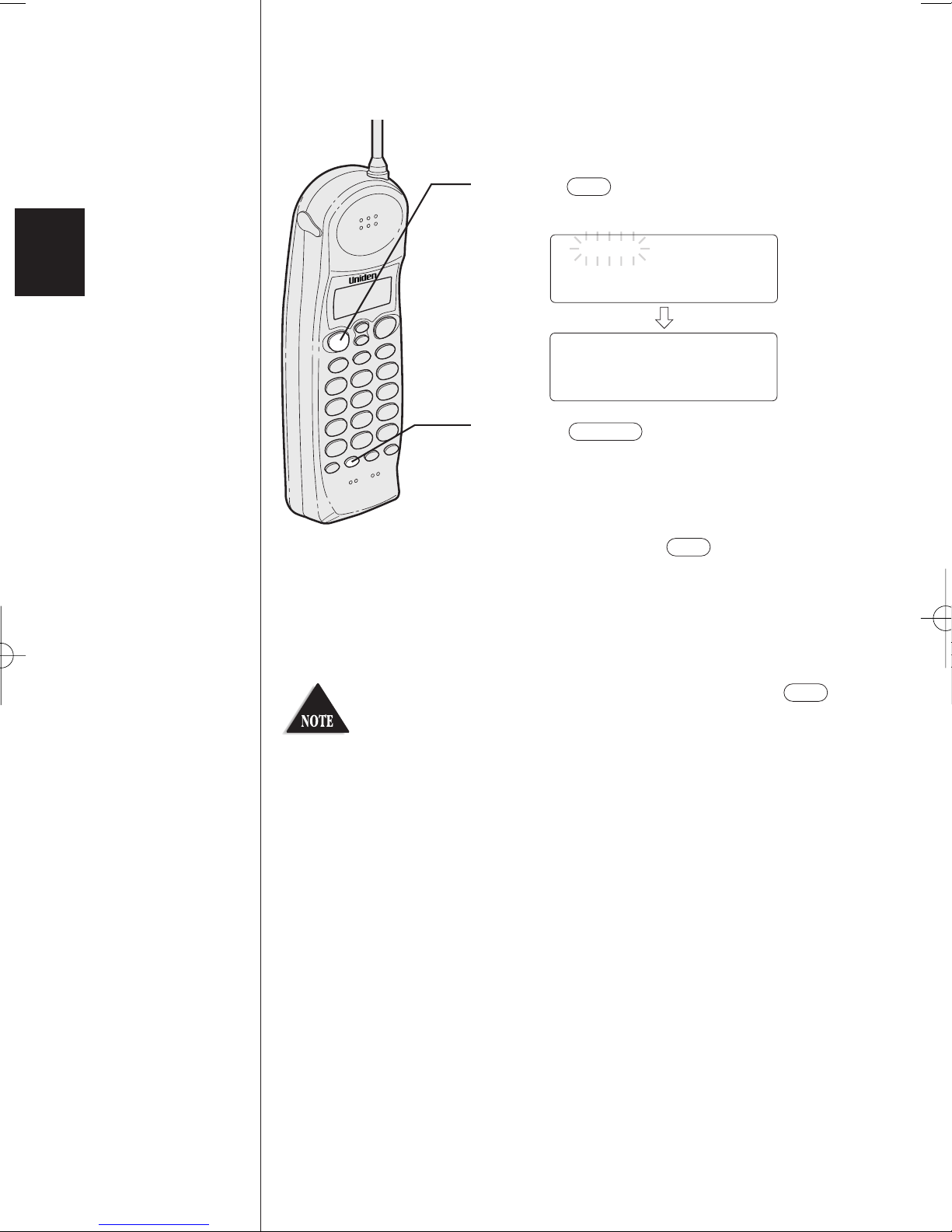

Off-hook redialing
1Press .
“Talk” appears flashing on the display.
2Press .
The last number dialed will be
displayed. The only last number dialed
can be accessed while off-hook.
3 To hang up, press or place the
handset on the base
. The call-time will
be displayed for about 5 seconds.
talk
redial/p
talk
Talk
Talk
<High>
Only the last number dialed can be accessed after
has been pressed.
talk
EXT 1960 3rd 99.8.20 4:50 PM Page 20
