QUICK REFERENCE GUIDE [1]
www.uniden.com
Step 1 Checking the Package Contents
Make sure your cordless phone’s packaging includes the
following items (the number of items may vary depending on
model number within this series).
If any of these items are missing or damaged, contact the
Uniden Parts Department.
•Base Unit
•Handset(s)
•AC Adapter(s)
• Wall Mount Adapter
• Rechargeable Battery Pack(s)
• Telephone Cord
•Belt Clip(s)
• Owner's Manual
• Other Printed Materials
Uniden Parts Department at [phone]
Hours: M-F 8:00 a.m. to 5:00 p.m. CST.
or visit our website at
www.uniden.com for replacement parts.

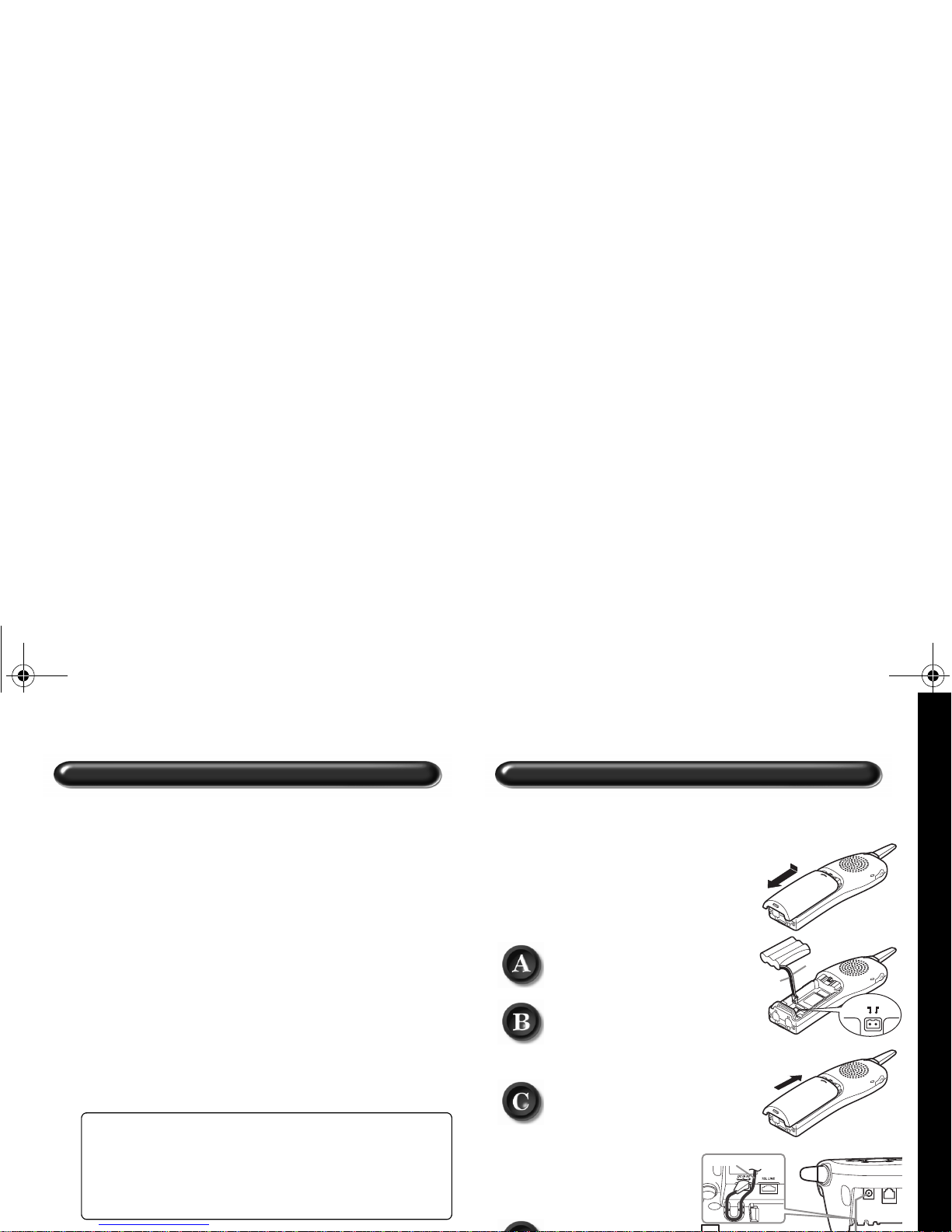

Step 2 Install and Charge the Handset Battery
TO INSTALL THE HANDSET BATTERY
(See page 12 for details)
Charge the handset battery pack for
at least 15-20 hours before using
your new cordless telephone for the
first time!
Use only the Uniden rechargeable
battery pack supplied with your
new phone.
Remove the cover.
Connect the battery pack
connector with the correct
polarity and listen for a click
to insure connection.
Replace the cover.
Use only the Uniden AC
adapter supplied with your
new phone.
Plug the AC adapter
cord into the base unit
and then into a 120V
AC outlet.
Place the handset in the base and charge continuously for
15-20 hours before using the phone.
QUICK REFERENCE GUIDE
UP01321BA0.book1ページ２００３年１０月２８日 火曜日 午後２時１９分

[2] QUICK REFERENCE GUIDE
www.uniden.com
Step 3 Connect to Phone Line
When the handset battery pack
is fully charged after 15-20
hours of charging, plug the
telephone cord into the base
unit and then into a telephone
wall jack.
Your phone is set for tone
dialing. If your local network
requires pulse dialing, please
see “D. Choose the dialing mode” on page 15.
Step 4 Setting Caller ID & Language Display Options
TO SET CALLER ID ON CALL WAITING AND CALL
WAITING DELUXE
For all Handset Menu Setup Options, refer to page 22.
Press menu/del in standby mode.
Press ring/vol/∧or ring/vol/∨to select
Global
Setup
and then select/.
Press ring/vol/∧or ring/vol/∨to select
CIDCW and
then select/.
Press ring/vol/∧or ring/vol/∨to select
CW On/CWDX
On
, CW On/CWDX Off , or CW Off/CWDX Off and
then select/.
TO SET LANGUAGE
Press menu/del in standby mode.
Press ring/vol/∧or ring/vol/∨
to select
Handset Setup and
then select/.
Press ring/vol/∧or ring/vol/∨
to select
Language and then
select/.
Press ring/vol/∨to choose a
language and then select/.
Step 5 Setting Up the Answering System
TO TURN THE ANSWERING SYSTEM ON/OFF
Each time ans on/off is pressed, the answer mode is switched
between On and Off.
TO SET GREETING MESSAGE
Press and hold greeting
until voice prompt
“recording greeting” plays.
Position yourself near the
base mic, and begin
recording your greeting.
When finished recording,
press greeting or play/stop.
Your greeting will playback
for confirmation.
UP01321BA0.book2ページ２００３年１０月２８日 火曜日 午後２時１９分

Guía de referencia rápida [3]
www.uniden.com
Al enchue CA
Al CC IN 9V
Adaptador CA
(suministrado)
Enrolle el cable.
1° Paso Inspección del contenido del embalaje
Asegúrese de que haya recibido los siguientes artículos en el
paquete (la cantidad de artículos puede variar dependiendo del
número del modelo dentro de la serie). Si alguno de estos
artículos falta o está dañado, comuníquese con el departamento
de partes de Uniden.
•Base
• Receptor(es)
• Adaptador(es) CA
• Adaptador de montaje de pared
• Paquete(s) de pilas recargable(s)
• Cable telefónico
• Pinza(s) para la correa
• Manual para el usuario
• Otros impresos
Uniden Parts Department
Teléfono: [phone]
Horas: de Lunes a Viernes desde las 8 a.m. hasta las
5:00 p.m., hora central
O visítenos en nuestra página Web en www.uniden.com
para conseguir las partes de reemplazo.

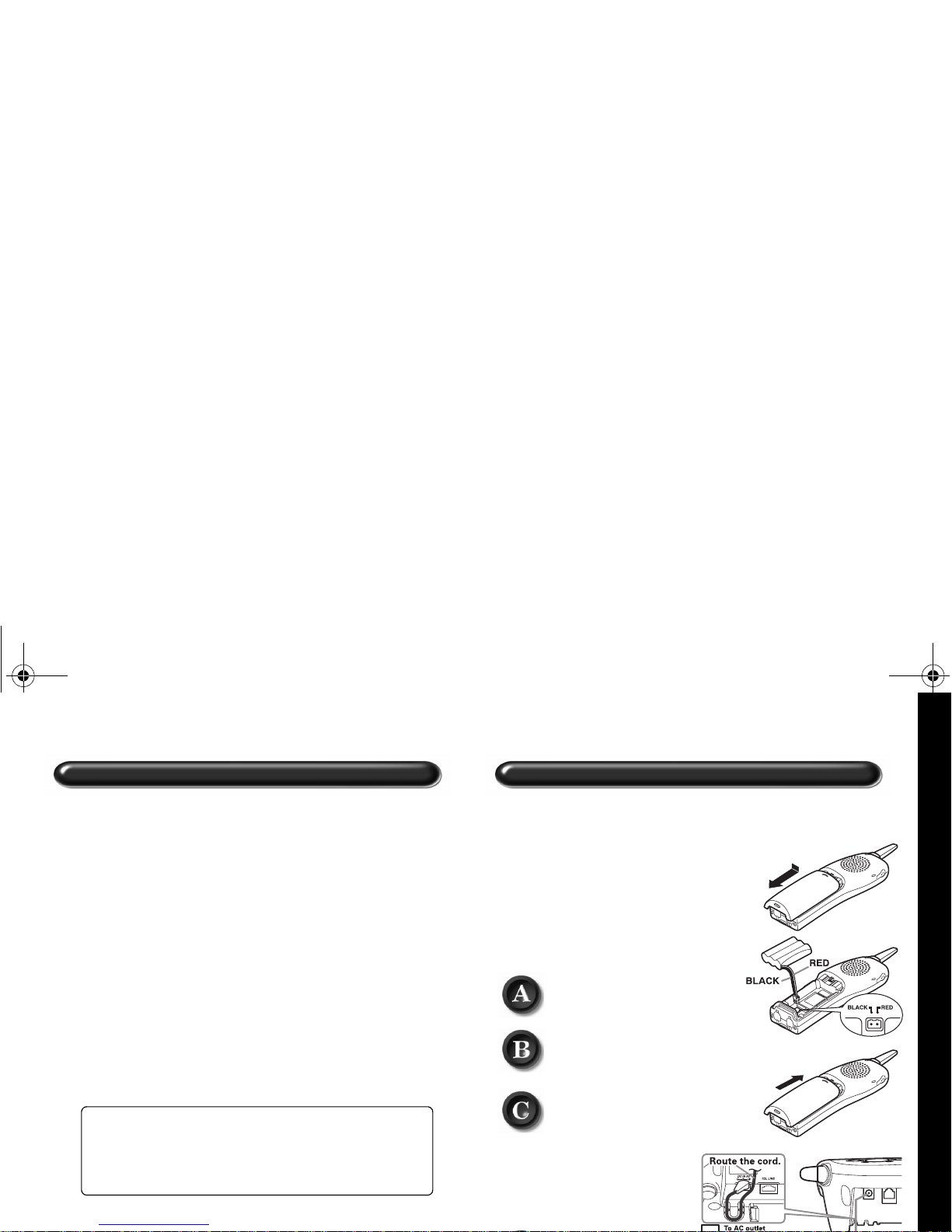

2° Paso Instalación y carga de la pila para el receptor
Para instalar la pila del receptor
(Consulte la página 12 para más detalles)
Cargue el paquete de batería to pila
por lo menos de 15 á 20 horas antes de
conectarlo a una línea telefónica.
Use solamente el paquete de pilas
recargable de Uniden suministrado con
su nuevo teléfono.
Quite la tapa.
Conecte el enchufe del paquete
de las pilas con la polaridad
correcta y escuche por un clic
para asegurar la conexión.
Reponga la tapa.
Use solamente el adaptador
CA de Uniden suministrado
con su nuevo teléfono.
Conecte el cable del
adaptador CA en la
base y luego en una
toma CA de 120 V.
Antes de usar el teléfono, coloque el receptor en la
base y cárguelo continuamente por 15 – 20 horas.
Negro
Rojo
Negro Rojo
Guía de referencia
UP01321BA0.book3ページ２００３年１０月２８日 火曜日 午後２時１９分

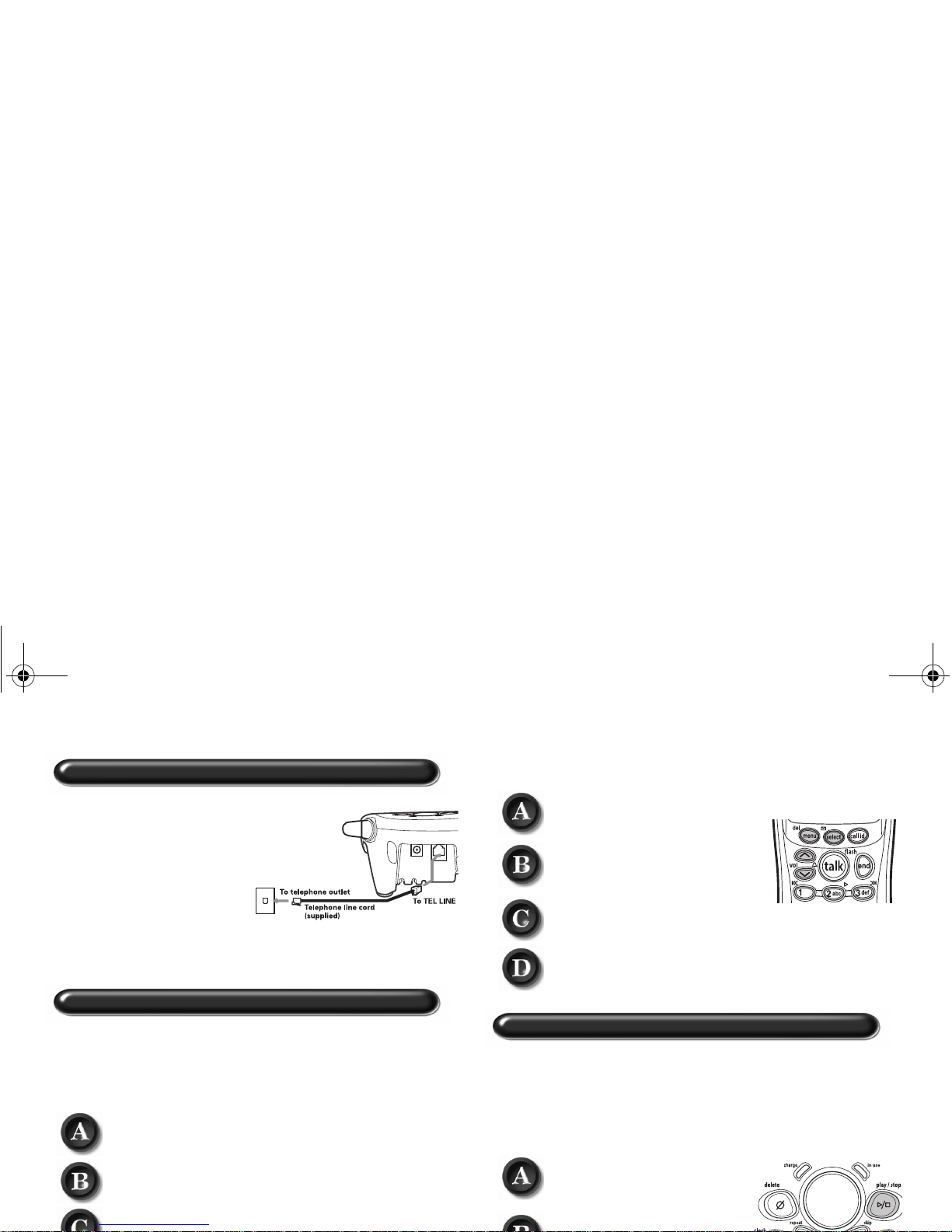

[4] Guía de referencia rápida
www.uniden.com
Al enchufe Telefónico
Cable de línea Telefónica
(suministrado)
A la línea Telefónica
3° Paso Conexión a la línea telefónica
Cuando el paquete de pilas del receptor esté
totalmente cargado, después de una carga de
15-20 horas, conecte el cable telefónico en la
base y luego en el enchufe telefónico de la pared.
Su teléfono está programado
paramarcar por tono.
Si su red local requiere la
marcación por pulso, por favor
consulte "D. Selección del modo
de marcación" en la página 15.
4° Paso Programación de las opciones de identificación
de llamadas y del lenguaje en la pantalla
Para programar las opciones de identificación
de llamadas de llamadas en espera y llamada en
espera de lujo
Para todas las demás opciones de programación en el menú,
consulte la página 22.
Oprima menu/del en el modo de espera.
Oprima ring/vol/∧o ring/vol/∨para seleccionar la
Progr global , y luego select/.
Oprima ring/vol/∧o ring/vol/∨para seleccionar
CIDCW , y luego select/.
Oprima ring/vol/∧o ring/vol/∨para seleccionar
CW
Act/CWDX Act
, CW Act/CWDX Apg , o CW Apg/CWDX
Apg
, y luego select/.
Para programar el lenguaje
Oprima menu/del en el modo de
espera.
Oprima ring/vol/∧o ring/vol/∨
para seleccionar la
Progr
receptor
, y luego select/.
Oprima ring/vol/∧o ring/vol/∨
para seleccionar el
Lenguaje , y
luego select/.
Oprima ring/vol/∨para escoger el
lenguaje, y luego select/.
5° Paso Programación del contestador automático
Para encender o apagar el contestador automático
Cada vez que se oprime ans on/off, el modo de contestación se
intercambia entre encendido y apagado.
Para programar un mensaje personal
Mantenga oprimido greeting
hasta que escuche la indicación
para grabar el mensaje.
Colóquese cerca del micrófono
en la base, y comience a grabar
su mensaje.
Cuando termine con la
grabación, oprima greeting o
play/stop. Su mensaje se
escuchará como confirmación.
UP01321BA0.book4ページ２００３年１０月２８日 火曜日 午後２時１９分

[5]
www.uniden.com
QUICK REFERENCE GUIDE 1
WELCOME/FEATURES/TERMINOLOGY 6
CONTROLS AND FUNCTIONS 8
DISPLAY AND ICONS 10
GETTING STARTED 11

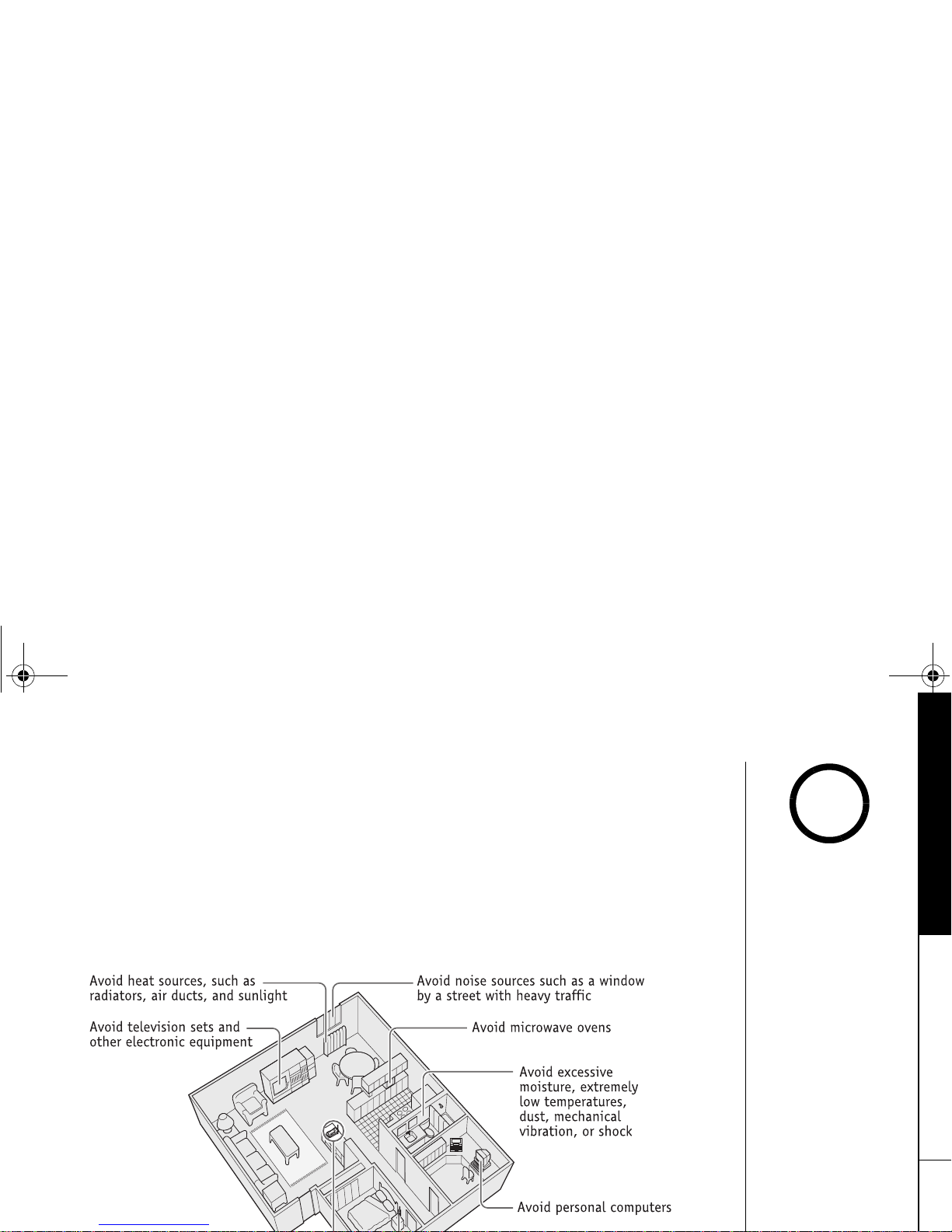

Setting up the Phone 11
Mounting the Base Unit on a Wall 16
About the Menu Options 18
Setting Up the Menu 22
BASICS 30
Making and Receiving Calls 30
Placing a Call on Hold 31
Redialing a Call 32
Adjusting the Handset Ringer, Earpiece and Speaker Volume 33
Do Not Disturb (DND) 33
Mute Microphone 34
Tone Dialing Switch-over 34
Traveling Out-of-Range 34
Clarity Booster 35
Privacy Mode 35
Intercom/Call Transfer Feature 35
3-Way Conferencing 36
Flash and Call Waiting 36
New Message LED 36
PHONEBOOK 37
Phonebook 37
Storing Phone Numbers, Names, Distinctive Rings,
and Speed Dial 37
Steps for Entering Names and Special Characters 39
Viewing the Phonebook 41
Making Calls Using the Phonebook 42
Speed Dialing 42
Editing or Erasing a Stored Name,
Phone Number, Distinctive Ring, and Speed Dial 43
Chain Dialing 44
CALLER ID 45
Caller ID and CIDCW (Caller ID on Call Waiting) 45
Viewing the Caller ID List 46
Deleting a Caller ID Message 47
Using the Caller ID Message List 48
Call Waiting Deluxe Features 49
THE INTEGRATED ANSWERING DEVICE 50
The Integrated Answering Device 50
Turning the Answering System On/Off 51
Setting Up your Answering System 52
Using your Answering System 59
Remote Operation 62
EXPANDING YOUR PHONE 65
Expanding Your Phone 65
Connecting the Charger 65
Register the Handset to the Base 66
Using the DirectLink Mode 67
Room Monitor 67
4-Way Conferencing 68
Intercom/Call Transfer Feature 68
Replacing the Base 70
ADDITIONAL INFORMATION 71
Changing the Digital Security Code 71
Installing the Beltclip 71
Headset Installation 71
Note on Power Sources 72
Maintenance 72
General Information 73
TROUBLESHOOTING 74
Liquid Damage 77
PRECAUTIONS & WARRANTY 78
I.C. NOTICE 80
INDEX 81
MEMORY LIST 82
REMOTE OPERATION CARD 83
Contents
UP01321BA0.book5ページ２００３年１０月２８日 火曜日 午後２時１９分

[6] WELCOME/FEATURES/TERMINOLOGY
www.uniden.com
Congratulations on your purchase of the Uniden Multi-Handset Cordless System telephone. This
unit is different from conventional cordless telephones. When the base unit is connected to AC
power and a telephone line, it can support up to 4 handsets. Using extra handsets, you can
establish a 4-way conference call (2 handsets - Base Speaker Phone - an outside line).
Additionally, with 4-way conference using 2 handsets, another 2 handsets can establish an
intercom call. You can now place a fully featured cordless handset anywhere in your home or
office where AC power is available to connect the handset chargers.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes.
As an Energy StarPartner, Uniden has determined that this product or product
models meets the Energy Starguidelines for energy efficiency.
Energy Staris a U.S. registered mark.
Note: Energy Starapplies to DCT648 only.
• 2.4GHz Frequency Hopping Spread Spectrum
• Integrated Answering Device
• Trilingual Voice Prompts (English, French, Spanish)
• 4 Multi-Handset Expandability
• Hands Free Speaker Phone at Handset and Base
• Caller ID/Caller ID on Call Waiting
• Call Waiting Deluxe
• 100 Dynamic Memory Location (Phonebook & Caller ID)
• Trilingual Handset Display Menus (English, French, and Spanish)
• Intercom/Call Transfer between Handsets
• 20 Distinctive Ring Options (10 ringer tones and 10 melody ringers)
• Mute Feature
• DND Feature (Do Not Disturb)
• 88 Channel Auto Scan
• DirectLinkMode
• Room Monitoring Feature
• Battery Level Indicator
• Clock Display
WELCOME/
FEATURES/
Welcome
Features
UP01321BA0.book6ページ２００３年１０月２８日 火曜日 午後２時１９分

WELCOME/FEATURES/TERMINOLOGY [7]
www.uniden.com
This series features include AutoTalkand AutoStandby. AutoTalk allows you to answer a call by just removing
the handset from the cradle so you don't have to waste time pushing buttons. AutoStandby allows you to hang up by
simply returning the handset to the cradle.
To protect you against mis-billed calls, which might result from your phone being activated by other equipment, this
series has Random Codedigital security, which automatically selects one of over approx. 130,000 digital security
codes for the handset and base.
Frequency Hopping Spread Spectrum (FHSS) technology improves calling range and clarity, and eliminates cross talk.
Because it rapidly changes transmission frequencies within the 2.4GHz bandwidth, this cordless phone helps reduce
the possibility of eavesdropping.
DirectLink mode is used when you have 2 or more handsets. You can use your handsets as transceivers.
Be sure to visit our web site: www.uniden.com
Unidenis a registered trademark of Uniden America Corporation.
AutoTalk, AutoStandby, DirectLink, and Random Code are trademarks of Uniden America.
Terminology
•Standby Mode - The handset is not in use and talk/flash has not been pressed.
•Talk Mode - The handset is not in the cradle and talk/flash or speaker has been pressed enabling a dial tone.
Talk
appears on the display.
WELCOME/
FEATURES/
UP01321BA0.book7ページ２００３年１０月２８日 火曜日 午後２時１９分

[8] CONTROLS & FUNCTIONS
www.uniden.com

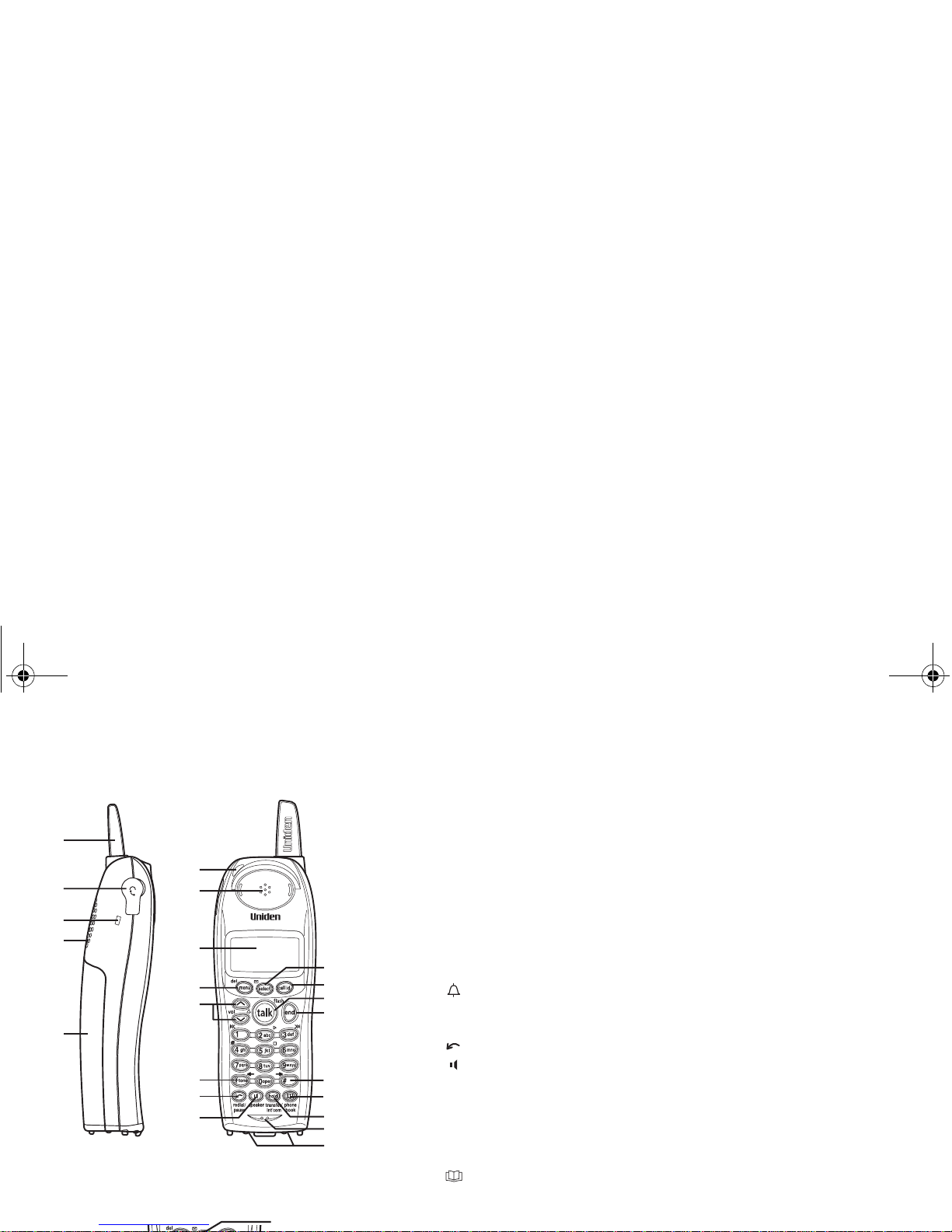

Controls & Functions
1. Handset Antenna
2. Headset Jack Cover
3. Beltclip Hole
4. Hands-Free Speaker
5. Handset Battery Compartment
6. New Message LED
7. Handset Earpiece
8. LCD Display
9. Menu/del (delete) Key (P. 22 / P. 32, 43, 47)
10. (ring)/vol(volume)and∧/∨( P . 3 3 / P . 2 2 )
a. ringer and volume control b. scroll keys for display screen
11.
*
/tone/←Key (P. 34 / P. 40)
12. redial/pause Key (P. 32/ P. 30)
13. speaker Key (P. 30)
14.Select/(Handset Remote) Key (P. 22 / P. 63)
15.Call id (Caller ID) key (P. 46)
16.Talk/flash Key (P. 30 / P. 36)
17.End Key (P. 30)
18.#/→Key (P. 30 / P. 39)
19. (Phonebook) Key (P. 37)
20.Hold/transfer/int'com (Intercom) Key (P. 31 / P. 69 / P. 68)
21.Handset Microphone
22.Handset Charging Contacts
2
1
3
5
4
6
7
8
9
10
11
12
22
15
13
18
19
16
20
21
17
14
Repeat Key
Delete Key Stop Key
Play Key
Skip Key
Select/Key
Handset Remote Operation (P. 63)
(Review ITAD messages from handset)
CONTROLS &
FUNCTIONS
UP01321BA0.book8ページ２００３年１０月２８日 火曜日 午後２時１９分
