Uniden XC-360 User manual

q
@
.--
I==:
---
0 0
D c::D
GJ)G])@
GJ)G)Q
GJGJG)
0@J)@)
uniden@
XC-360AUS
Cordless Telephone
Operating Guide
(Australian Edition)
~Idm
XC-360
~o

CONTENTS
Features 3
Readthis before Installation 3
Installation 4
Selecting a Location 4
InstallingtheBase 4
InstallingtheBattery 5
ChargingtheBattery 5
Setting the Power On/Off Switch 6
Setting the Dialing Mode 6
Operation 7
UsingPrivacy 7
UsingFlash 7
Paging 8
Using Redial 8
UsingToneServicesonaPulseLine 8
MemoryDialing 9
Chain-DialingMemoryNumbers 10

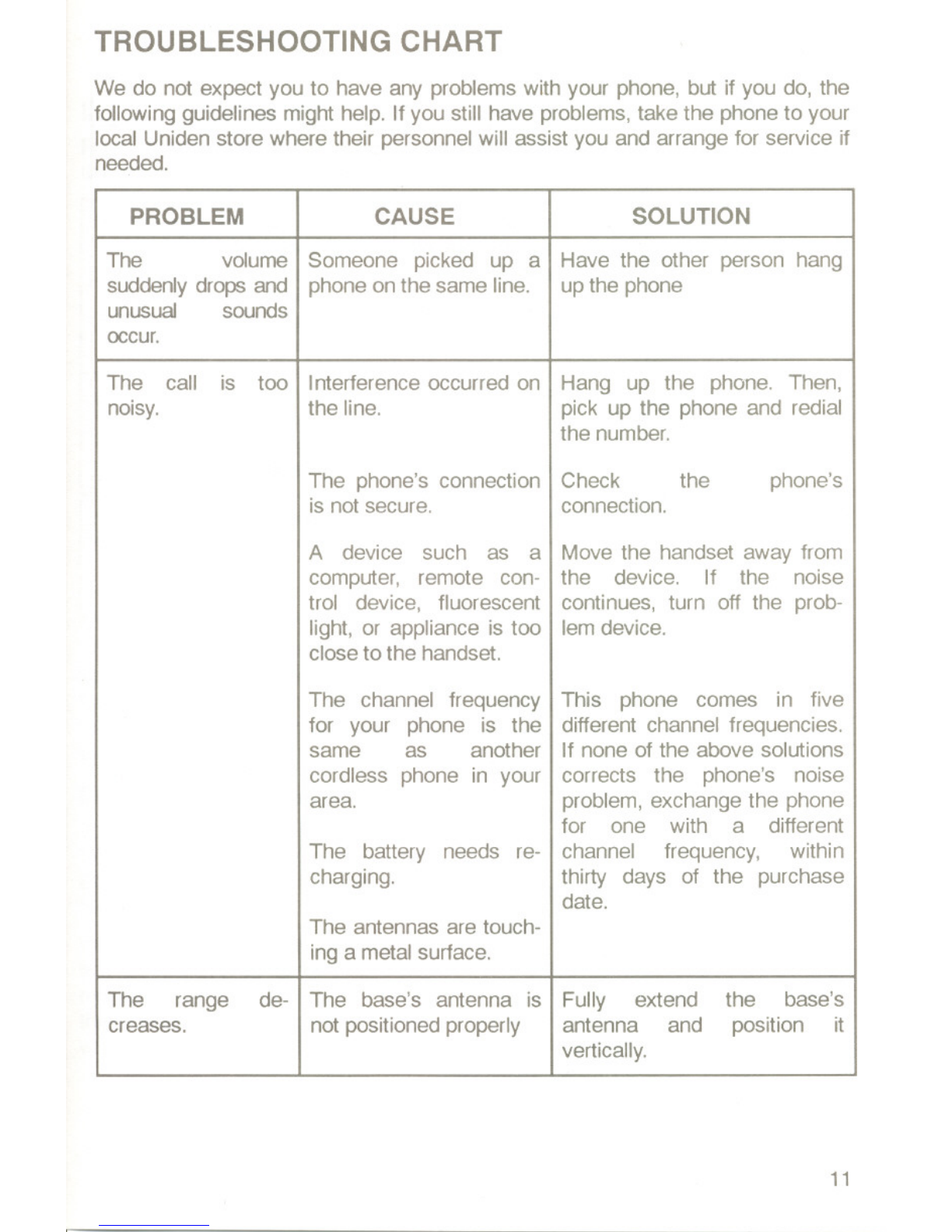

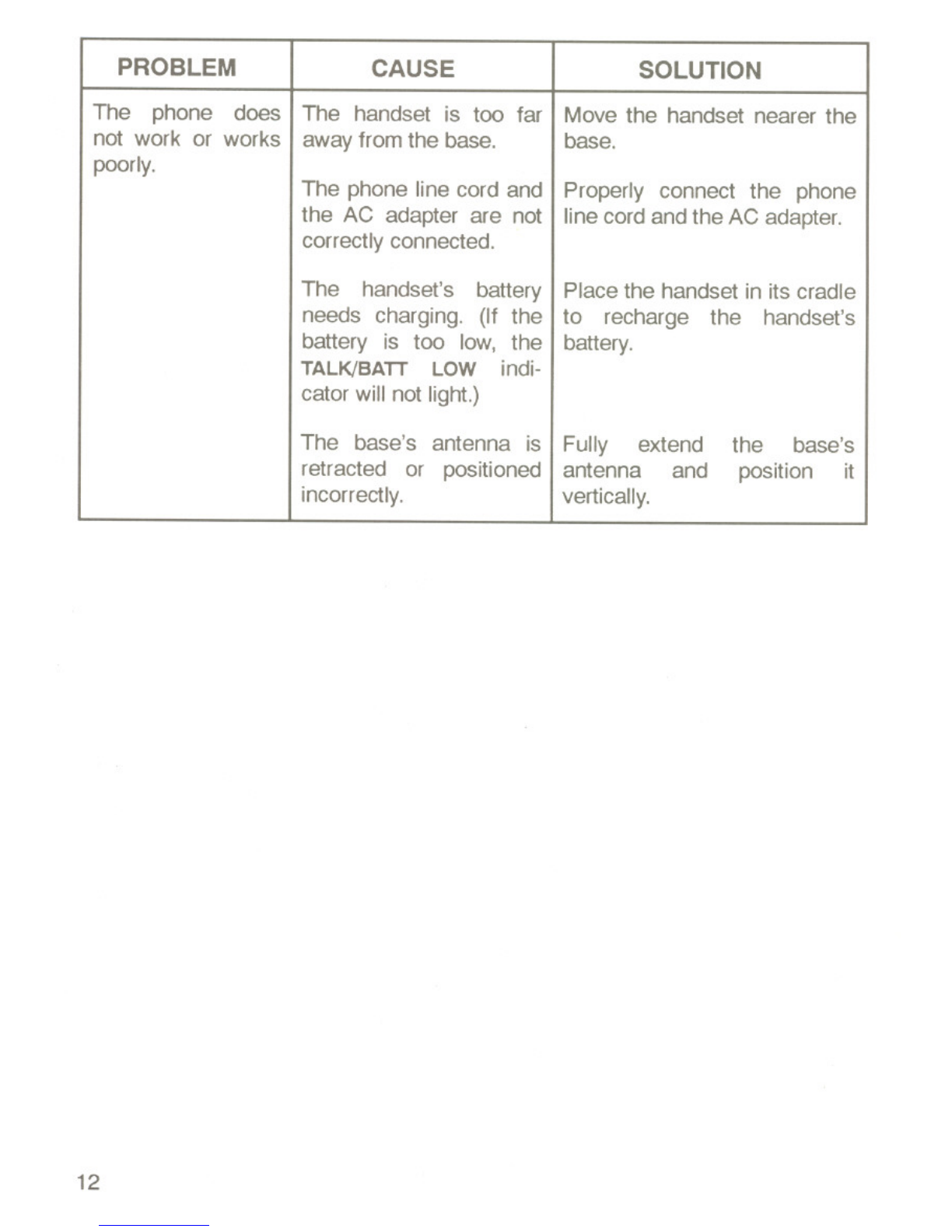

Troubleshooting Chart 11

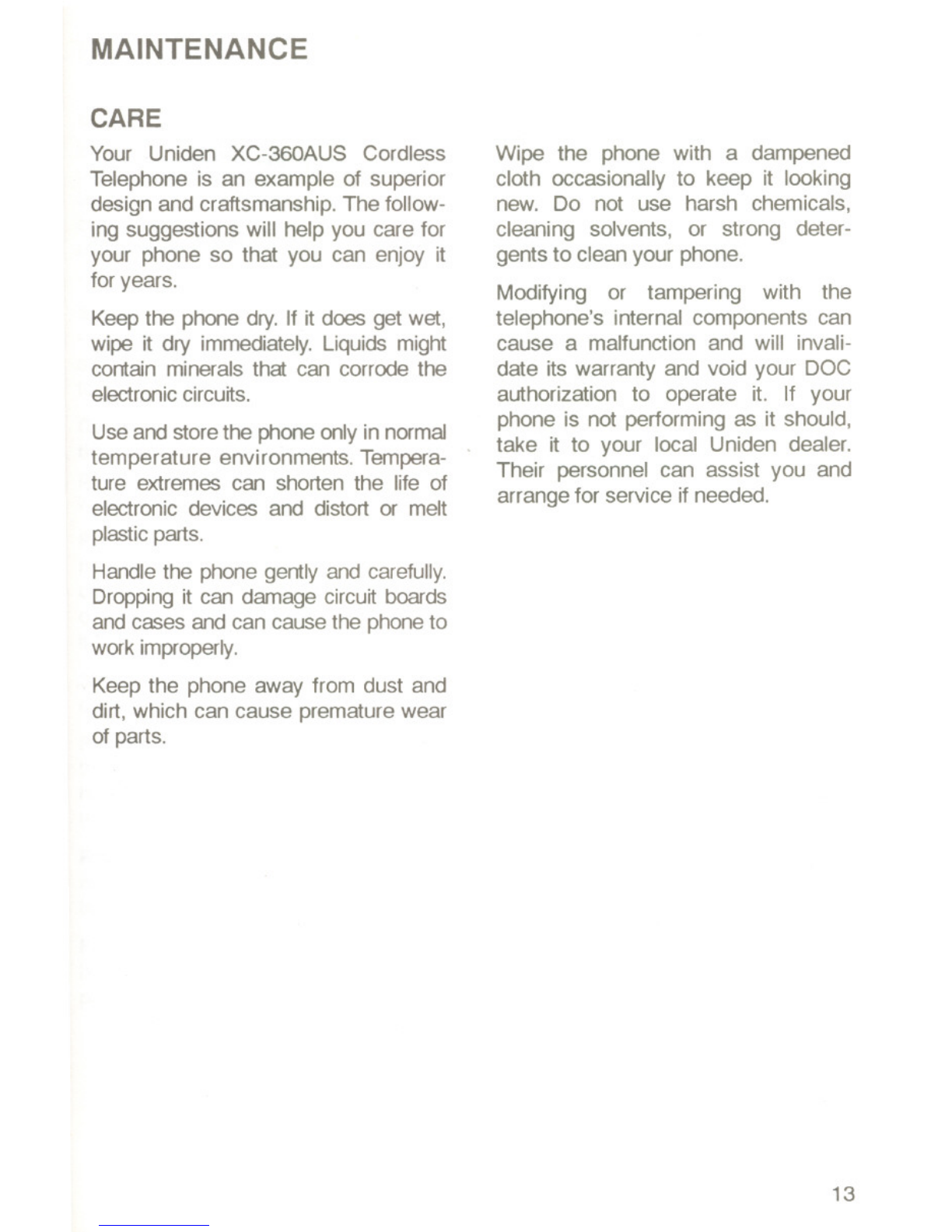

Maintenance 13
Care 13

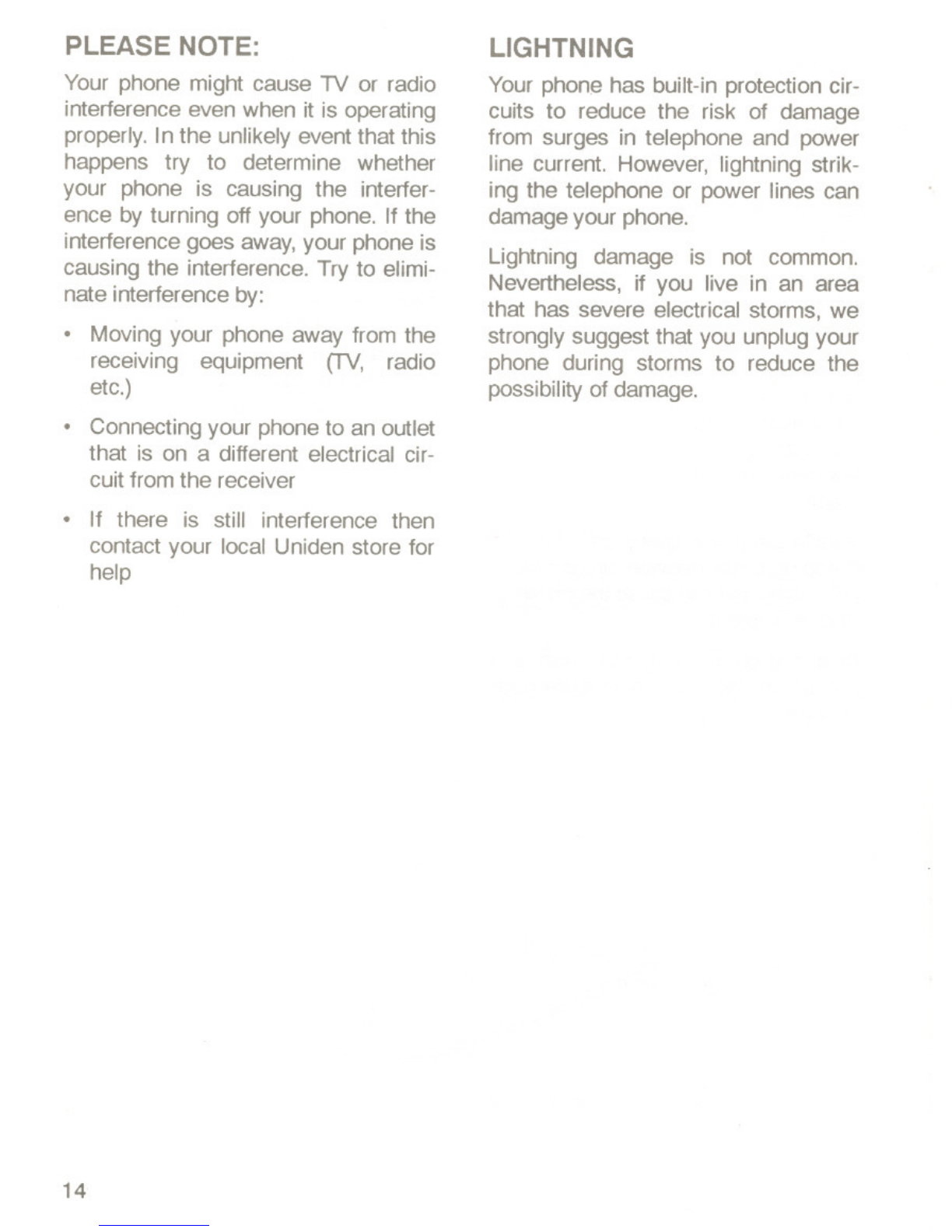

PleaseNote 14
Lightning 14

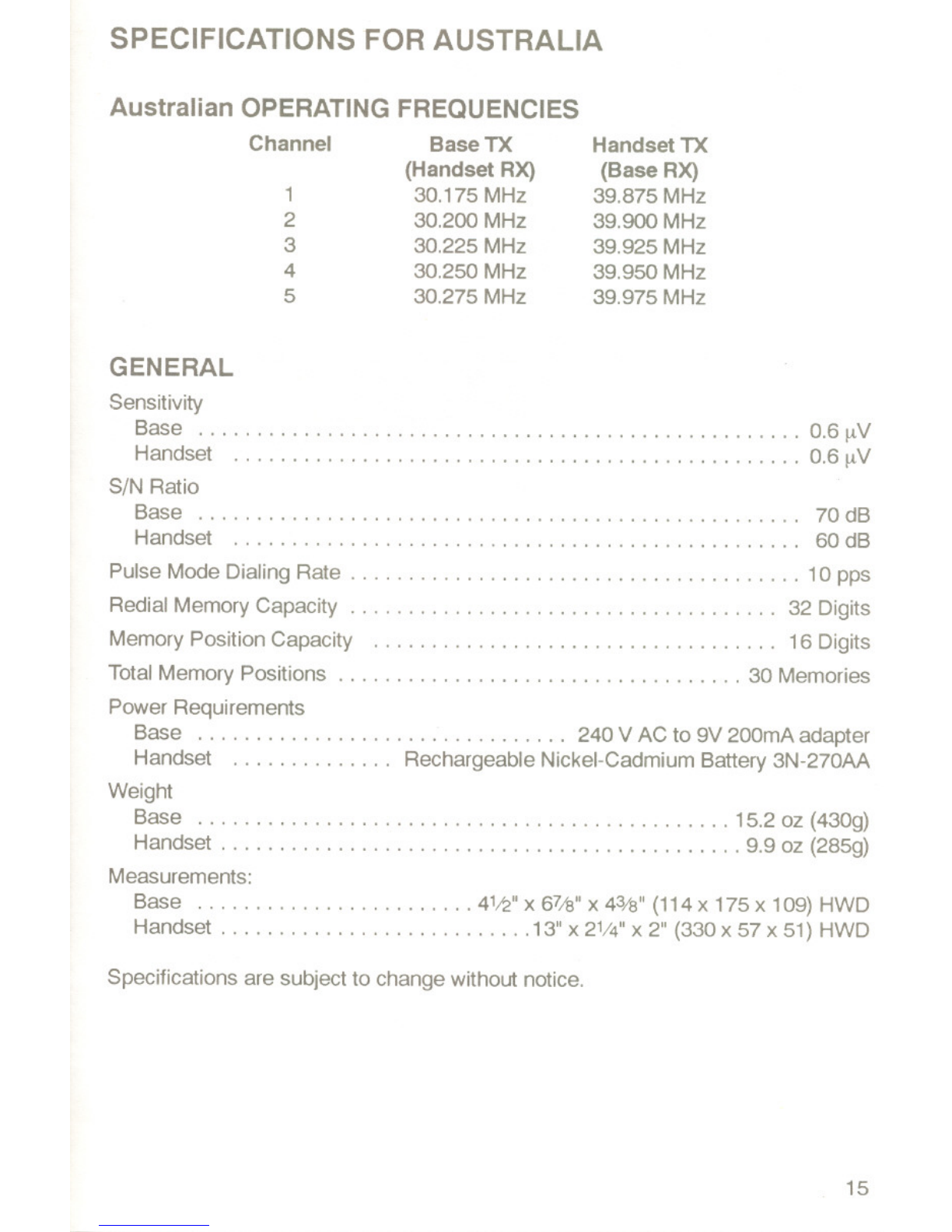

Specifications ForAustralia 15
OperatingFrequencies 15
General 15

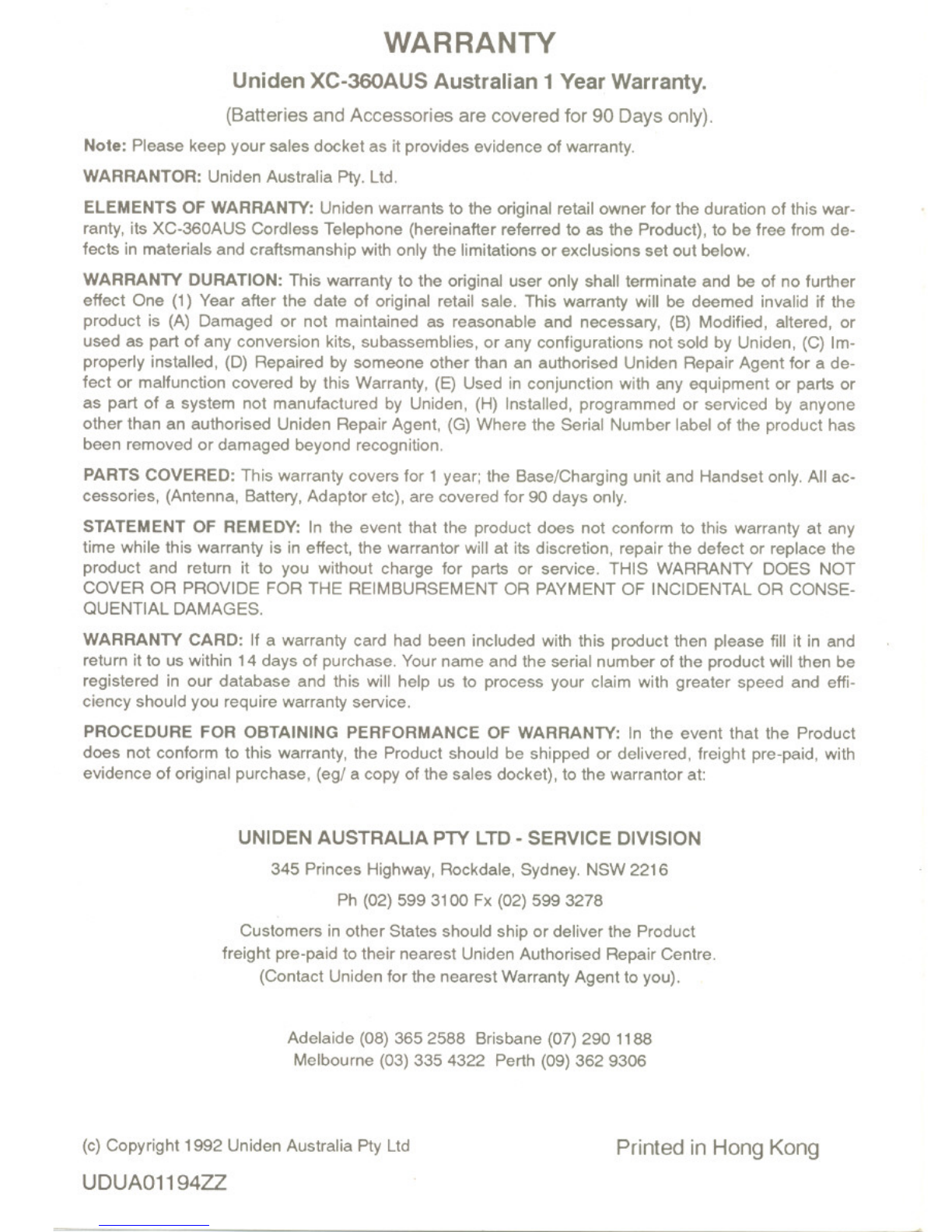

AustralianWarranty 16
2

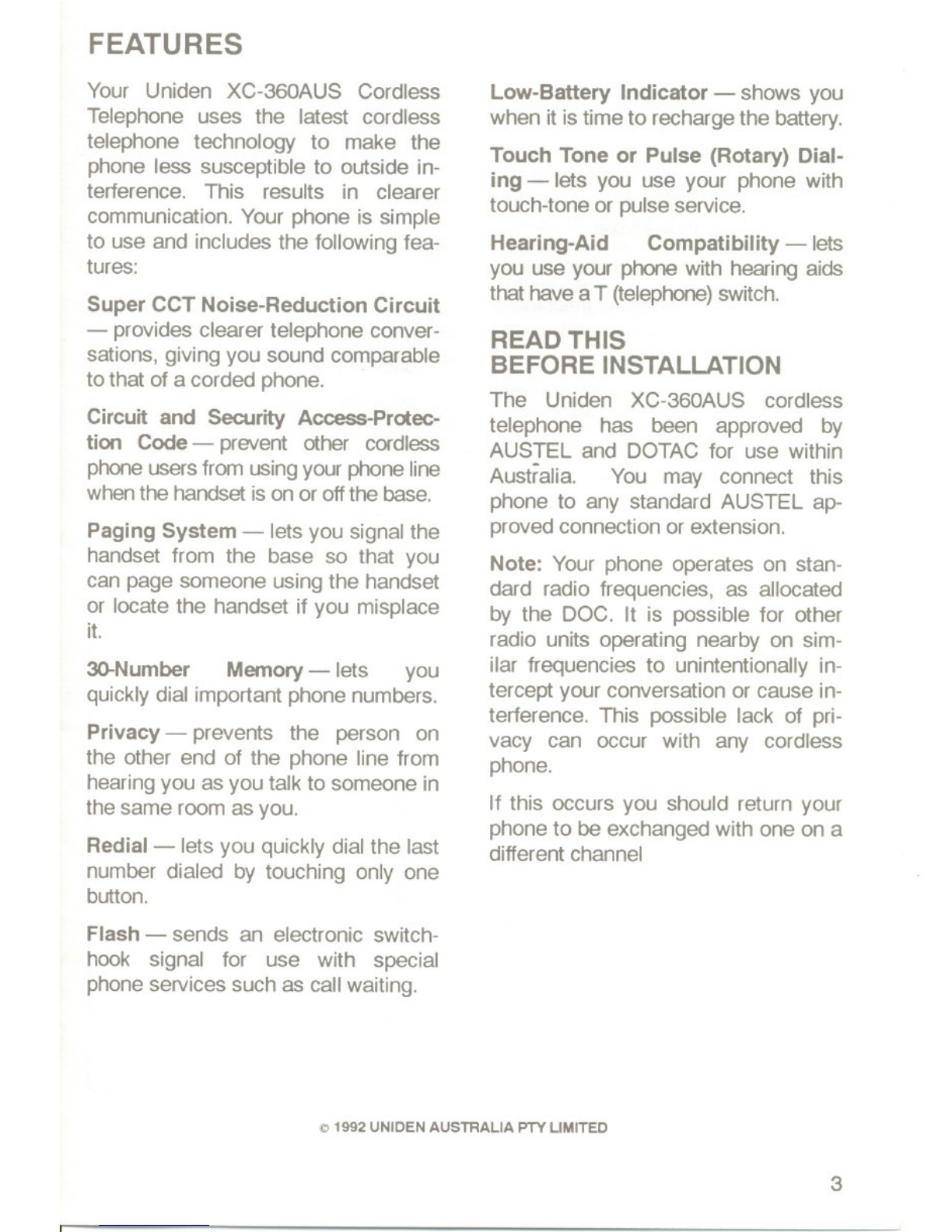

FEATU RES
Your Uniden XC-360AUS Cordless
Telephone uses the latest cordless
telephone technology to make the
phone less susceptible to outside in-
terference. This results in clearer
communication. Your phone is simple
to use and includes the following fea-
tures:
SuperCCT Noise-Reduction Circuit
- provides clearer telephone conver-
sations' giving you sound comparable
to that of a corded phone.
Circuit and Security Access-Protec-
tion Code- prevent other cordless
phoneusersfrom usingyour phoneline
whenthe handsetisonor offthe base.
Paging System -lets you signal the
handset from the base so that you
can page someone using the handset
or locate the handset if you misplace
it.
3O-Number Memory- lets you
quicklydial important phone numbers.
Privacy- prevents the person on
the other end of the phone line from
hearingyou as you talk to someone in
the same room as you.
Redial- lets you quickly dial the last
number dialed by touching only one
button.
Flash- sends an electronic switch-
hook signal for use with special
phoneservices such as call waiting.
Low-Battery Indicator- shows you
when it is time to rechargethe battery.
Touch Tone or Pulse (Rotary) Dial-
ing- lets you use your phone with
touch-tone or pulse service.
Hearing-Aid Compatibility- lets
you use your phone with hearing aids
thathaveaT (telephone)switch.
READ THIS
BEFORE INSTALLATION
The Uniden XC-360AUS cordless
telephone has been approved by
AUSTEL and DOTAC for use within
Australia. You may connect this
phone to any standard AUSTEL ap-
provedconnection or extension.
Note: Your phone operates on stan-
dard radio frequencies, as allocated
by the DOC. It is possible for other
radio units operating nearby on sim-
ilar frequencies to unintentionally in-
tercept your conversation or cause in-
terference. This possible lack of pri-
vacy can occur with any cordless
phone.
If this occurs you should return your
phoneto be exchanged with one on a
different channel
@1992 UNIDENAUSTRALIA PTYLIMITED
3

INSTALLATION
SELECTINGA lOCATION
Select a location that is all of the fol-
lowing:
.Near an AC outlet
. Near a telephone socket
.Out ofthe way of normal activities
.Away from electrical machinery,
electrical appliances, and metal
walls or filing cabinets
.Away from wireless intercoms,
alarms, and room monitors
The base's locationaffectsthe phone's
range. If you have a choice of several
locations,try each locationto see which
one providesthe best performance.
INSTAlliNG THE BASE
To installthe base, do the following:
1. Plug one end of the supplied mod-
ular cord into the TEL LINEjack on
the back of the base.
2. Plug the cord's other end into a
modular phone linejack.
3. Insert the supplied AC/DC adapter
into the DC POWER jack on the
backof the base. .
4. Plug the adapter into a standard
240V AC outlet.
To AC outlet
4

INSTAlliNG THE BATTERY
Follow these steps to install the supplied battery into the handset. Then, charge
the battery as described under "Chargingthe Battery."
1. Use a small Phillips screwdriver
to remove the screw that secures
the battery compartment cover.
Then, remove the cover by
sliding it in the direction of the
arrow.
2. Attach the battery's connector to
the connector inside the battery
compartment. Then, place the
battery inside the compartment.
3. Replace the battery compartment
coverandsecureitwiththe screw.
The supplied battery should last for
approximately two years. When the
battery cannot fully recharge, you will
need to purchase a new one from
your local Uniden store.
CHARGING THE BATTERY
YOU MUST CHARGE A NEW BAT-
TERY FOR AT LEAST 24 HOURS
BEFORE YOU FIRST USE THE
PHONE.
When you first charge the battery, set
POWERON/OFFto OFF. When you
recharge the battery, you can leave
the power on. Recharge the battery
whentheBAIT LOWindicator lights.
~
.
~
t
To charge or recharge the battery,
place the handset on the cradle. The
CHARGEindicatorwill then light.
After you charge the battery, pick up
the handset, set POWERON/OFFto
ON, and place the handset back on
the base. This sets the security ac-
cess protection code, which prevents
others with cordless phones from
usingyour telephone line.
Notes:
.If the CHARGEindicator does not
stay lit when you place the handset
on the cradle, be sure the battery
and AC adapter are properly con-
nected.
5

Also, check the charging contacts
on the handset and base. If the
contacts are dirty or tarnished,
cleanthem with a pencil eraser.
.A full charge lasts about one day
with the handset on in the standby
mode. Be sure to return the hand-
set to the base when you see the
BATTLOWindicator light.
. After the first charging, you should
recharge the handset's battery 2
hoursfor every 1 hour of use.
.ABOUT ONCE A MONTH, FULLY
DISCHARGE THE BATTERY.
OTHERWISE, THE BATTERY
LOSES ITS ABILITY TO FULLY
RECHARGE, AND YOU WILL
HAVE TO RECHARGE AND RE-
PLACE IT MORE OFTEN.
TO FULLYDISCHARGETHE BAT-
TERY, KEEP THE HANDSET OFF
THE CRADLE UNTIL THE BATT
LOW INDICATOR COMES ON.
THEN, SET POWER ON/OFFTO
OFF,RETURN THE HANDSET TO
THE CRADLE, AND FULLY
RECHARGETHE BATTERY.

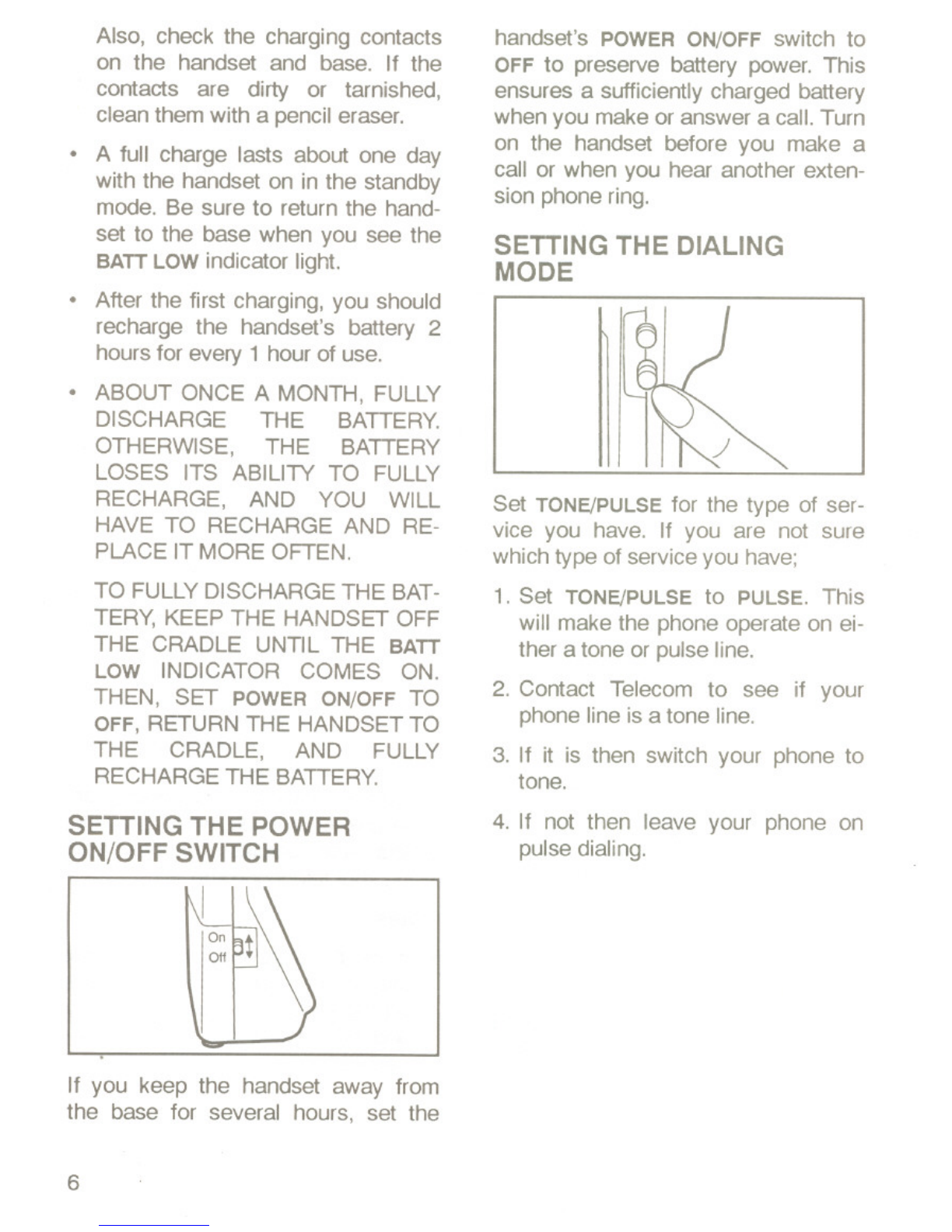

SETTING THE POWER
ON/OFF SWITCH
If you keep the handset away from
the base for several hours, set the
6
handset's POWERON/OFFswitch to
OFF to preserve battery power. This
ensures a sufficiently charged battery
when you make or answer a call. Turn
on the handset before you make a
call or when you hear another exten-
sion phone ring.
SETTING THE DIALING
MODE
Set TONE/PULSEfor the type of ser-
vice you have. If you are not sure
which type of serviceyou have;
1. Set TONE/PULSEto PULSE.This
will make the phone operate on ei-
ther a tone or pulse line.
2. Contact Telecom to see if your
phone line is a tone line.
3. If it is then switch your phone to
tone.
4. If not then leave your phone on
pulse dialing.

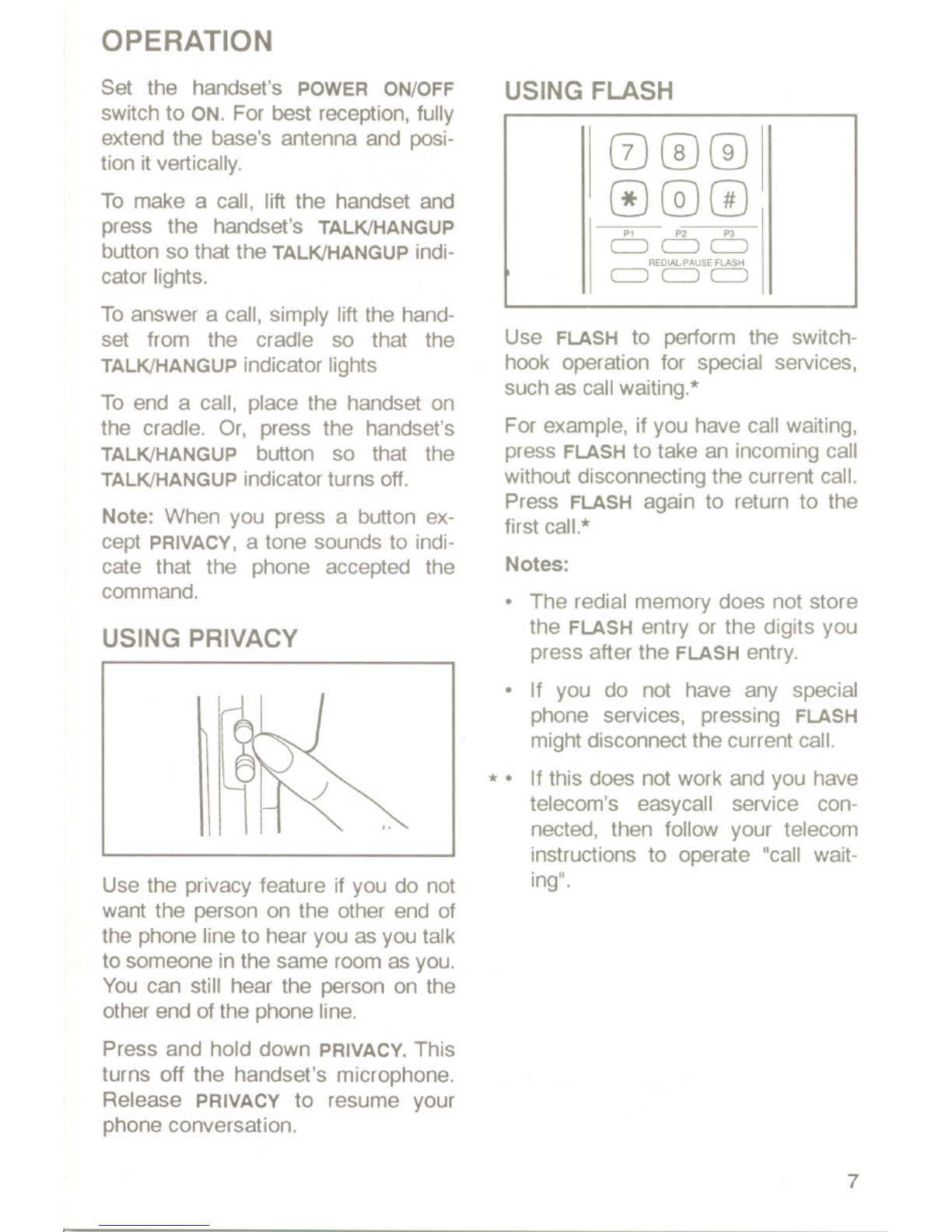

OPERATION
Set the handset's POWER ON/OFF
switch to ON. For best reception, fully
extend the base's antenna and posi-
tion it vertically.
To make a call, lift the handset and
press the handset's TALK/HANGUP
button so that the TALK/HANGUPindi-
cator lights.
To answer a call, simply lift the hand-
set from the cradle so that the
TALK/HANGUPindicator lights
To end a call, place the handset on
the cradle. Or, press the handset's
TALK/HANGUP button so that the
TALK/HANGUPindicatorturns off.
Note: When you press a button ex-
cept PRIVACY,a tone sounds to indi-
cate that the phone accepted the
command.
USING PRIVACY
Use the privacy feature if you do not
want the person on the other end of
the phone lineto hear you as you talk
to someone in the same room as you.
You can still hear the person on the
other end of the phone line.
Press and hold down PRIVACY.This
turns off the handset's microphone.
Release PRIVACY to resume your
phone conversation.
USING FLASH
000
000
P1 P2 P3
~~~ REDIALJPAUSE FLASH
~~~
Use FLASH to perform the switch-
hook operation for special services,
such as call waiting.*
For example, if you have call waiting,
press FLASHto take an incoming call
without disconnecting the current call.
Press FLASH again to return to the
first call.*
Notes:
.The redial memory does not store
the FLASH entry or the digits you
press after the FLASHentry.
.If you do not have any special
phone services, pressing FLASH
might disconnect the current call.
*. If this does not work and you have
telecom's easycall service con-
nected, then follow your telecom
instructions to operate "call wait-
ing".
7

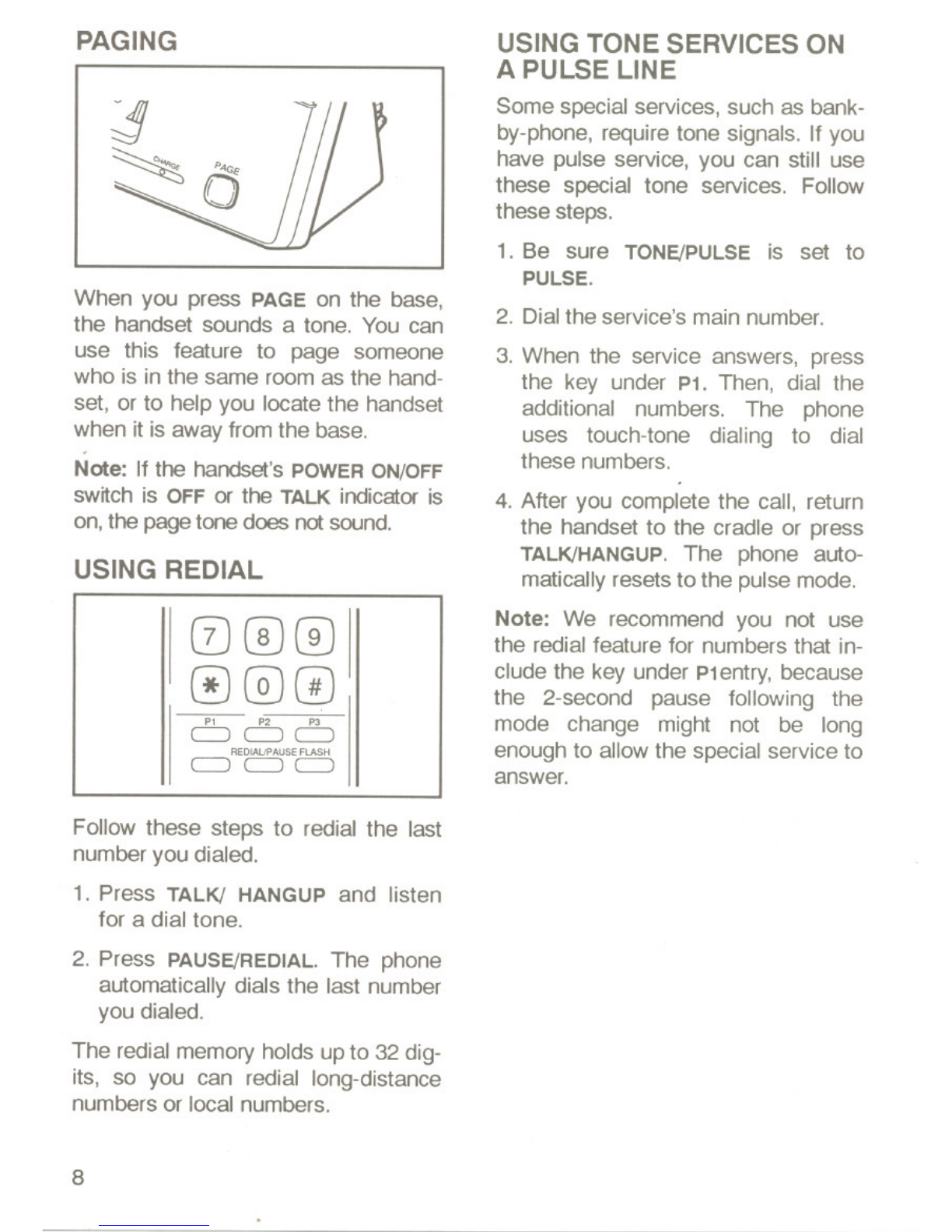

PAGING
When you press PAGE on the base,
the handset sounds a tone. You can
use this feature to page someone
who is in the same room as the hand-
set, or to help you locate the handset
when it is away from the base.
.
Note: If the handset's POWER ON/OFF
switch is OFFor the TALK indicatoris
on, the page tone does not sound.
USING REDIAL
000
000
P1 P2 P3
C:=J C:=J C:=J
REDIAUPAUSE FLASH
C:=J C:=J C:=J
Follow these steps to redial the last
numberyou dialed.
1.PressTALK!HANGUP and listen
for a dial tone.
2. Press PAUSE/REDIAL.The phone
automatically dials the last number
you dialed.
The redial memory holds upto 32 dig-
its, so you can redial long-distance
numbers or local numbers.
8
USING TONE SERVICES ON
A PULSE LINE
Some special services, such as bank-
by-phone, require tone signals. If you
have pulse service, you can still use
these special tone services. Follow
these steps.
1. Be sure TONE/PULSEis set to
PULSE.
2. Dialthe service's main number.
3. When the service answers, press
the key under P1. Then, dial the
additional numbers. The phone
uses touch-tone dialing to dial
these numbers.
4. After you complete the call, return
the handset to the cradle or press
TALK!HANGUP.The phone auto-
matically resetsto the pulse mode.
Note: We recommend you not use
the redial feature for numbers that in-
clude the key under P1entry, because
the 2-second pause following the
mode change might not be long
enough to allow the special service to
answer.

MEMORY DIALING
You can store up to 30 telephone numbers in memory.You can then dial a stored
number by pressing one of the one-touch dial keys or entering a two-digit, mem-
ory-location code. Each numberyou store can be upto 16 digits long.
Storing a Number in Memory
Tostore a number in memory,dothe following.
1. Be sure TONE/PULSEis set for
the type of service you have and
the TALK/HANGUPindicator is off.
2. Press MEMO. A short beep
sounds and the TALK/HANGUP
indicator flashes.
TALK/HANGUPQaATTLO o
)(MEMO)
3. Enterthe phone number entries.
I CD CD01
1@00:
PI P2 P3
c:=) c:=) c:=)
REDIAL/PAUSE FLASH
c:=) c:=) c:=)
4. To store the number into a one-
touch memory location, press
MEMOthen press P1,P2,or P3. TALK/HANGUPOBATTLO o
( ) (MEMO)
To store the number into a regular
memory location, press MEMO
and the two-digit memory-
location number (01-27).
A long beep sounds and the
TALK/HANGUPindicatorturns off.
CDCD0
000
000
@00
PI P2 P3
c:=) c:=) c:=)
REDIAL/PAUSE FLASH
c:=) c:=) c:=)
To store more numbers, repeatSteps 2 through 4.
9

Notes:
. If you receive a callwhile you store
a number in memory, press
TALK/HANGUPto answerthe call.
After the call, begin again at Step 2
to store the number.
.For each number you store, write
the person's or company's name
next to the appropriate location
number on the memory index card.
Use a pencil in case you later store
a different number.
.To delete a number from memory,
repeat all steps except Step 3 in
"Storing a Number in Memory."
Dialing a Memory Number
Follow these steps to dial a number
stored in memory.
1. Lift the handset from the cradle, or
press TALK/HANGUP.
2. When you hear a dial tone, press
P1, P2,or P3for one-touch dialing,
or press MEMOand then enter the
memory-location code.
CHAIN-DIALING MEMORY
NUMBERS
When you use special services, such
as alternate long-distance or bank-by-
phone, you can store the service's
phone number in one memory loca-
tion, your security code (if you have
one) in another location, and any
other numbers, such as the long-dis-
tance number, in a third location. This
lets you easily dial a long sequence of
numbers.
10
Note: To prevent unauthorized ac-
cess to your account, we recommend
that do notwrite down the memory lo-
cation code for your security code on
the memory index card.
To chain-dial memory numbers,follow
these steps.
1. Press MEMOand the memory-loca-
tion code (or press P1, P2, or P3)
for the service's main number.
2. Wait for the computer tone after
the service answers.
3. Press MEMOand the memory-loca-
tion code (or press P1, P2, or P3)
for your security code (if neces-
sary).
4. Press MEMOand the memory-loca-
tion code (or press P1, P2, or P3)
for the remaining numbers.
Note: If you use pulse dialing, re-
member that you need to set
TONE/PULSEto TONE or press the
key under P1 before you store num-
bers you want to memory-dial after
you reachthe specialservice.

TROUBLESHOOTING CHART
We do not expect you to have any problems with your phone, but if you do, the
following guidelines might help. If you still have problems, take the phone to your
local Uniden store where their personnel will assist you and arrange for service if
needed.
PROBLEM CAUSE SOLUTION
The volume Someone picked up a Have the other person hang
suddenly drops and phone on the same line. upthe phone
unusual sounds
occur.
The call is too
1
Interference occurred on
1
Hang up the phone. Then,
noisy. the line. pick up the phone and redial
the number.
The phone's connection
I
Check the
is not secure. connection.
A device such as a
computer, remote con-
trol device, fluorescent
light, or appliance is too
closeto the handset.
The channel frequency
for your phone is the
same as another
cordless phone in your
area.
The battery needs re-
charging.
The antennas are touch-
ing a metal surface.
phone's
Move the handset away from
the device. If the noise
continues, turn off the prob-
lem device.
This phone comes in five
different channel frequencies.
If none of the above solutions
corrects the phone's noise
problem, exchange the phone
for one with a different
channel frequency, within
thirty days of the purchase
date.
The range
creases. de- I The base's antenna is Fully extend the base's
not positionedproperly antenna and position it
vertically.
11

PROBLEM CAUSE SOLUTION
The phone does The handset is too far
I
Move the handset nearer the
not work or works awayfromthe base. base.
poorly.
12
The phone line cord and
I
Properly connect the phone
the AC adapter are not linecord and the ACadapter.
correctlyconnected.
The handset's battery
needs charging. (If the
battery is too Iow, the
TALKlBATTLOW indi-
cator willnot light.)
Place the handset in its cradle
to recharge the handset's
battery.
The base's antenna is Fully extend the base's
retracted or positioned antenna and position it
incorrectly. vertically.

MAINTENANCE
CARE
Your Uniden XC-360AUS Cordless
Telephone is an example of superior
design and craftsmanship. The follow-
ing suggestions will help you care for
your phone so that you can enjoy it
for years.
Keepthe phone dry.If it does get wet,
wipe it dry immediately.Liquids might
contain minerals that can corrode the
electroniccircuits.
Useand storethe phoneonlyin normal
temperature environments. Tempera- .
ture extremes can shorten the life of
electronic devices and distort or melt
plasticparts.
Handlethe phone gently and carefully.
Dropping it can damage circuit boards
and cases andcan causethe phoneto
workimproperly.
Keep the phone away from dust and
dirt,which can cause premature wear
of parts.
Wipe the phone with a dampened
cloth occasionally to keep it looking
new. Do not use harsh chemicals,
cleaning solvents, or strong deter-
gentsto clean your phone.
Modifying or tampering with the
telephone's internal components can
cause a malfunction and will invali-
date its warranty and void your DOC
authorization to operate it. If your
phone is not performing as it should,
take it to your local Uniden dealer.
Their personnel can assist you and
arrange for service if needed.
13

PLEASE NOTE:
Your phone might cause TV or radio
interference even when it is operating
properly. Inthe unlikely eventthat this
happens try to determine whether
your phone is causing the interfer-
ence by turning off your phone. If the
interference goes away,your phone is
causing the interference. Try to elimi-
nate interference by:
.Moving your phone away from the
receiving equipment (TV, radio
etc.)
. Connecting your phone to an outlet
that is on a different electrical cir-
cuit from the receiver
.If there is still interference then
contact your local Uniden store for
help
14
LIGHTNING
Your phonE3has built-in protection cir-
cuits to reduce the risk of damage
from surges in telephone and power
line current. However, lightning strik-
ing the telephone or power lines can
damage your phone.
Lightning damage is not common.
Nevertheless, if you live in an area
that has severe electrical storms, we
strongly suggest that you unplug your
phone during storms to reduce the
possibility of damage.

SPECIFICATIONS FORAUSTRALIA
Australian OPERATING FREQUENCIES
Channel BaseTX
(Handset RX)
30.175 MHz
30.200 MHz
30.225 MHz
30.250 MHz
30.275 MHz
1
2
3
4
5
GENERAL
HandsetTX
(Base RX)
39.875 MHz
39.900 MHz
39.925 MHz
39.950 MHz
39.975 MHz
Sensitivity
Base 0.6~V
Handset 0.6~V
SIN Ratio
Base 70dB
Handset 60dB
Pulse Mode Dialing Rate 10pps
Redial Memory Capacity 32 Digits
MemoryPositionCapacity 16Digits
TotalMemory Positions 30Memories
PowerRequirements
Base 240VACto9V200mAadapter
Handset. . . . . . . . . . . . .. Rechargeable Nickel-Cadmium Battery 3N-270M
Weight
Base 15.2oz(430g)
Handset 9.90z(285g)
Measurements:
Base 41/i' X 67/8"X 43/8"(114x 175x 109) HWD
Handset .13"X21/4"X 2" (330x57x51) HWD
Specifications are subjectto change without notice.
15

WARRANTY
Uniden XC-360AUS Australian 1 Year Warranty.
(Batteries and Accessories are covered for 90 Days only).
Note: Please keep your sales docket as it provides evidence of warranty.
WARRANTOR: Uniden Australia Pty. Ltd.
ELEMENTS OF WARRANTY: Uniden warrants to the original retail owner for the duration of this war-
ranty, its XC-360AUS Cordless Telephone (hereinafter referred to as the Product), to be free from de-
fects in materials and craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user only shall terminate and be of no further
effect One (1) Year after the date of original retail sale. This warranty will be deemed invalid if the
product is (A) Damaged or not maintained as reasonable and necessary, (B) Modified, altered, or
used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C) Im-
properly installed, (D) Repaired by someone other than an authorised Uniden Repair Agent for a de-
fect or malfunction covered by this Warranty, (E) Used in conjunction with any equipment or parts or
as part of a system not manufactured by Uniden, (H) Installed, programmed or serviced by anyone
other than an authorised Uniden Repair Agent, (G) Where the Serial Number label of the product has
been removed or damaged beyond recognition.
PARTS COVERED: This warranty covers for 1 year; the Base/Charging unit and Handset only. All ac-
cessories, (Antenna, Battery, Adaptor etc), are covered for 90 days only.
STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any
time while this warranty is in effect, the warrantor will at its discretion, repair the defect or replace the
product and return it to you without charge for parts or service. THIS WARRANTY DOES NOT
COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSE-
QUENTIAL DAMAGES.
WARRANTY CARD: If a warranty card had been included with this product then please fill it in and
return it to us within 14 days of purchase. Your name and the serial number of the product will then be
registered in our database and this will help us to process your claim with greater speed and effi-
ciency should you require warranty service.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: In the event that the Product
does not conform to this warranty, the Product should be shipped or delivered, freight pre-paid, with
evidence of original purchase, (eg/ a copy of the sales docket), to the warrantor at:
UNIDEN AUSTRALIA PTY LTD -SERVICE DIVISION
345 Princes Highway, Rockdale, Sydney. NSW 2216
Ph [phone] Fx [phone]
Customers in other States should ship or deliver the Product
freight pre-paid to their nearest Uniden Authorised Repair Centre.
(Contact Uniden for the nearest Warranty Agent to you).
Adelaide [phone] Brisbane [phone]
Melbourne [phone] Perth [phone]
(c) Copyright 1992 Uniden Australia Pty Ltd Printed in Hong Kong
UDUAO1194ZZ .
